Description
- Brand Name: NEJE
- Origin: CN(Origin)
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: UL
- Condition: New
- Model Number: MAX
- CNC or Not: CNC
- Is Smart Device: YES
- Diodes: 2 pcs
- Wavelength: 445-450nm
- Working Voltage: DC 12V
- Optical power output: 15W
- Brand: NEJE
- Laser Moudle: A40640
NOTE:
Caros compradores brasileiros, pagamos tarifas elevadas pelos produtos no armazém brasileiro. Se você optar por enviá-lo para o armazém brasileiro, ele será entregue em 7-10 dias úteis, obrigado!
(Como os óculos são produtos anti-epidêmicos, a alfândega brasileira não permite produtos com óculos. Os produtos no armazém do Brasil não incluem óculos, obrigado pela compreensão).
NEJE Master 2S Max Features
– 【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.
– 【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.
– 【More materials and more clear】 Wood, MDF, leather, paper, cotton etc. are all supported, 8mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

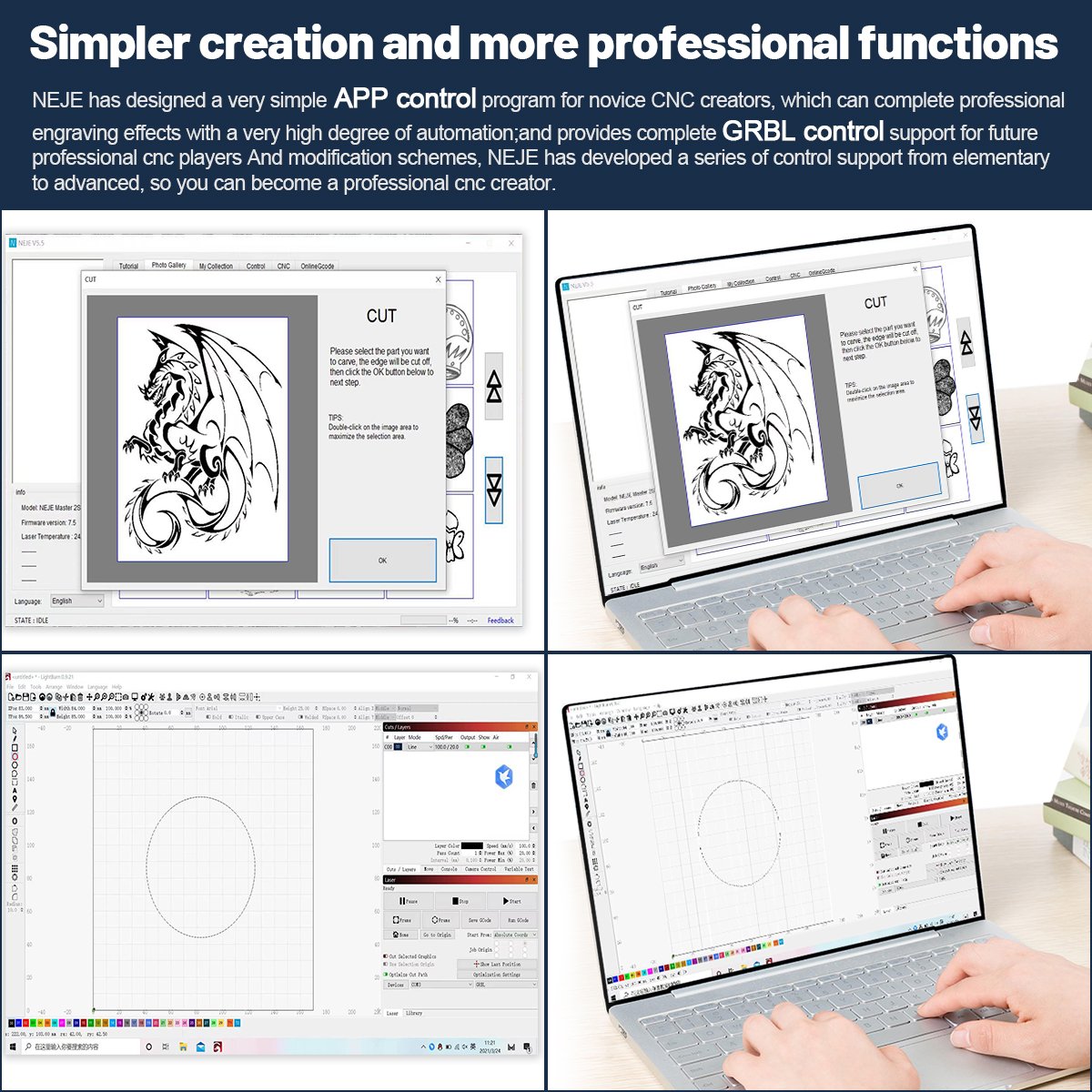

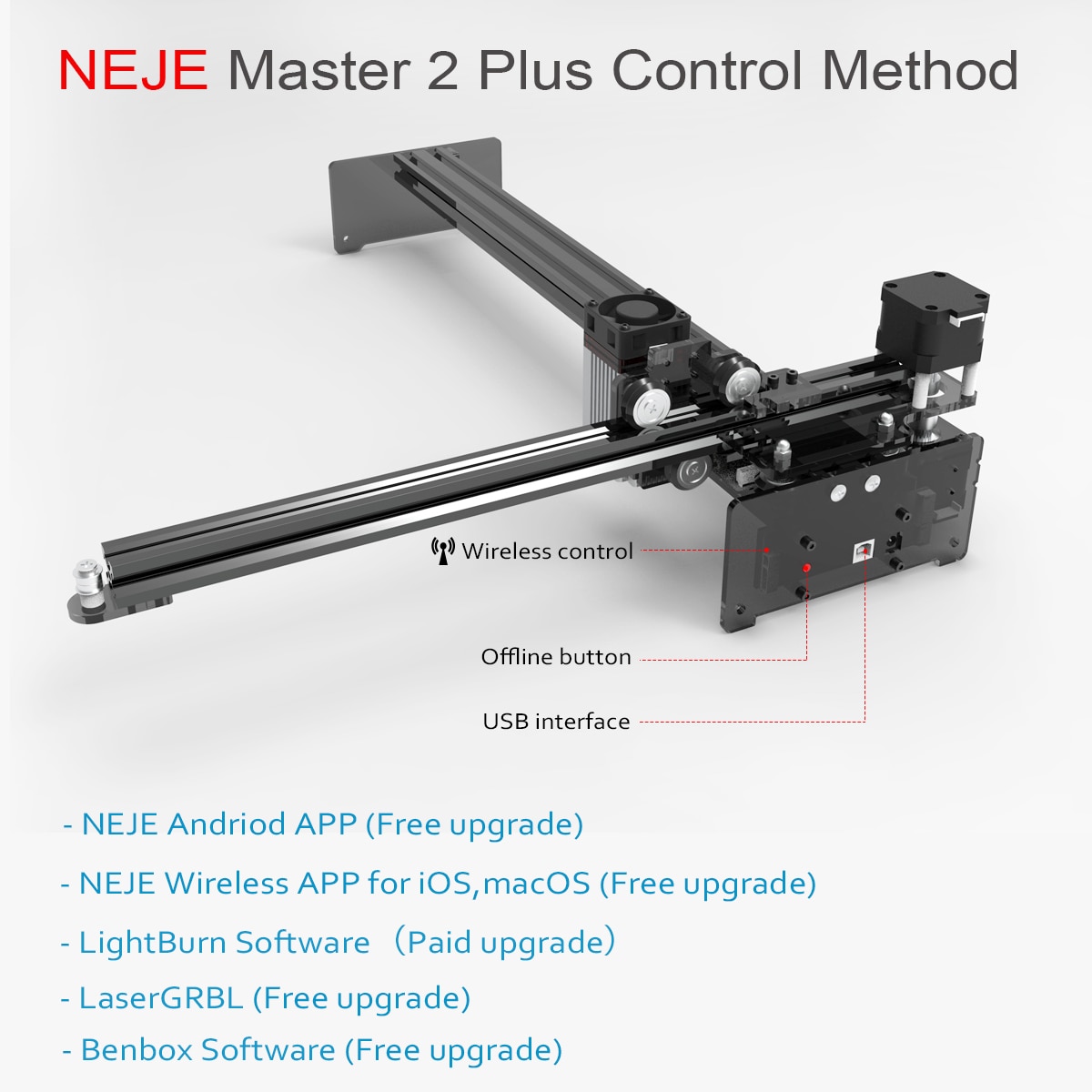

– 【Portable professional control software】 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).
– 【Perfect after-sales service】 free 2-year warranty for the whole machine ( laser module: 2 years 20,000 hours warranty ), and 24 hours shipment of vulnerable parts worldwide.
NEJE Master 2S Max 80W CNC Laser Cutting Machine Product Specifications
~ with Bluetooth App Control Lightburn LaserGRBL
~ Built-in 2 Diodes

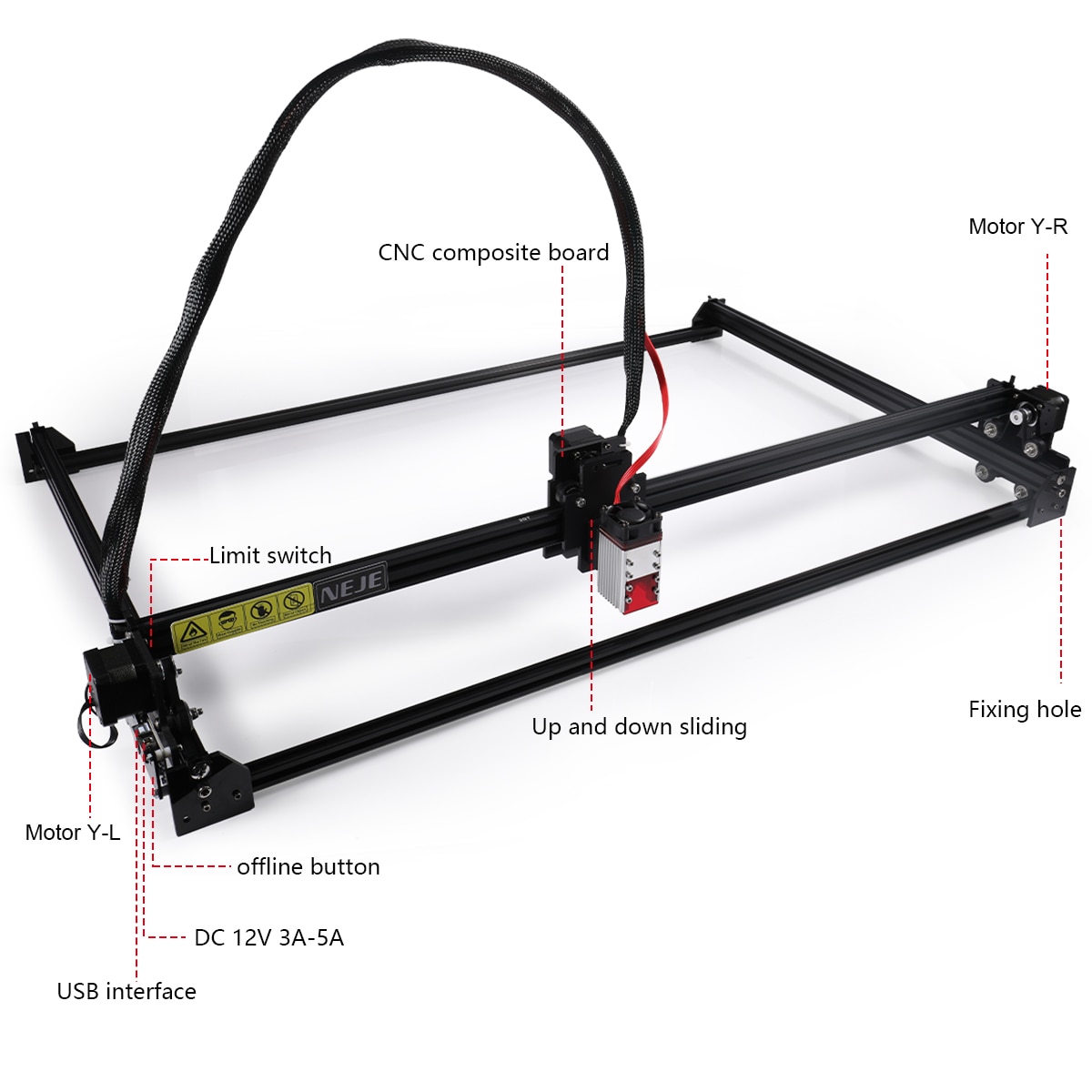

~ Larger area, 460 x 810 mm engraving and cutting area
~40-80W power module, optical power output 15W, focal point 0.1mm, support engraving and cutting.
~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.
~ Support wireless Bluetooth connection
~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.
~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.
~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.
~ Support NEJE 4pin interface series modules, including , 10W, 20W, 30W, 40W,80W, etc.
~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!
NEJE Master 2S Max 80W Product Specification
Model：NEJE Module 80W (A40640)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can Engrave：
Metal/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Stainless Steel
Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material
Technical Parameters：
Module Input：40-80W
Optical power output：15W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20000 hours

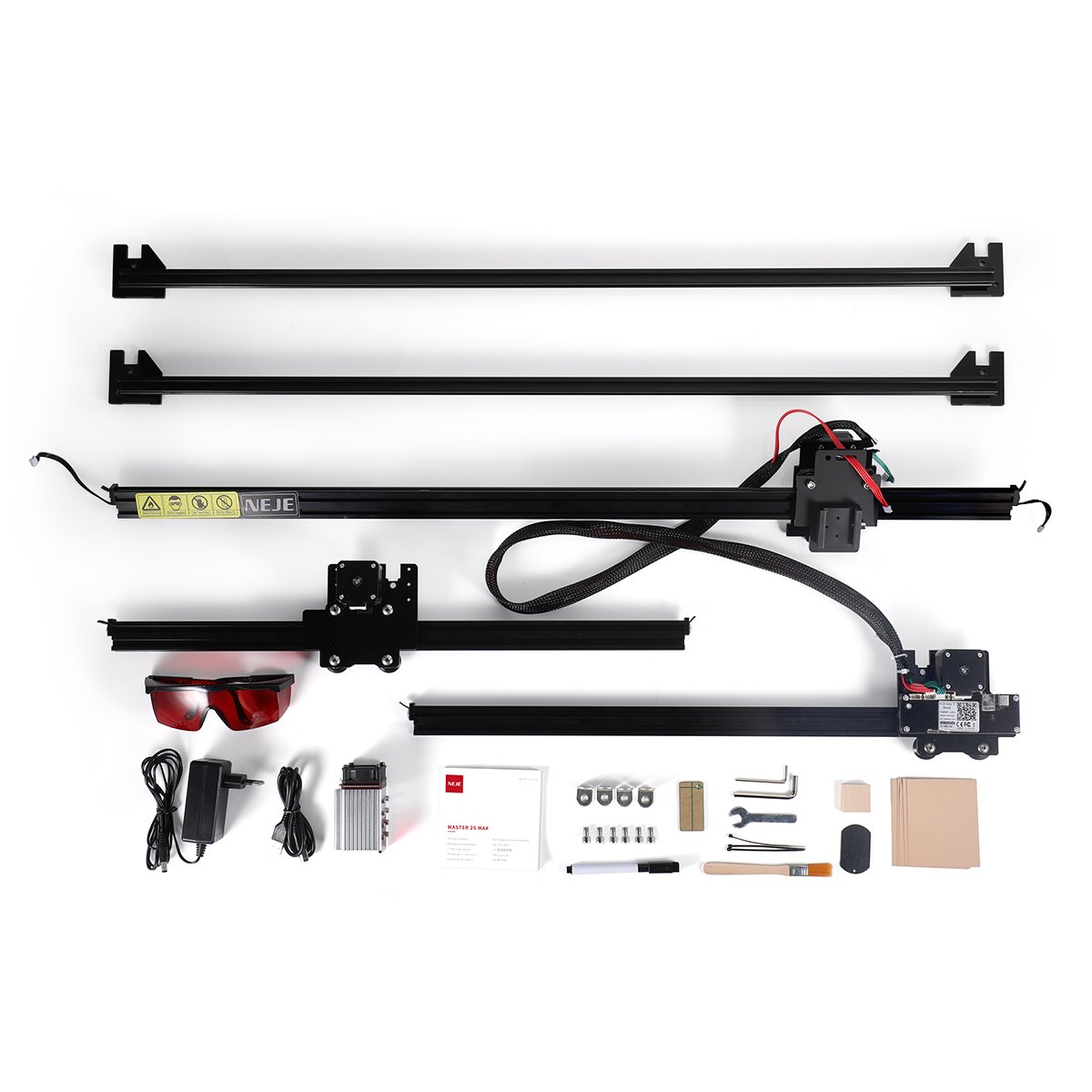

Master 2s Max 80W Package Include
Laser engraving machine 1,
A40640 module 1,
12V4A power supply 1,
European standard adapter 1,
Manual 1,
Red glasses 1,
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)
Master 2s Plus 80W (A40640) Features
Please Note
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.
