Sale!

NEJE Master 2S Max 80W A40640 CNC Laser Engraver Wood Cutter Router Printer Metal MDF Mark DIY Tool Lightburn GRBL Bluetooth App

$418.80 – $838.80

SKU: 1005002294141943 Category:

Description

  • Brand Name: NEJE
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: MAX
  • CNC or Not: CNC
  • Is Smart Device: YES
  • brand: NEJE
  • 80W laser module: A40640
  • 50W laser module: A40630
  • 40W laser module: F30130
  • 30W laser module: N40630

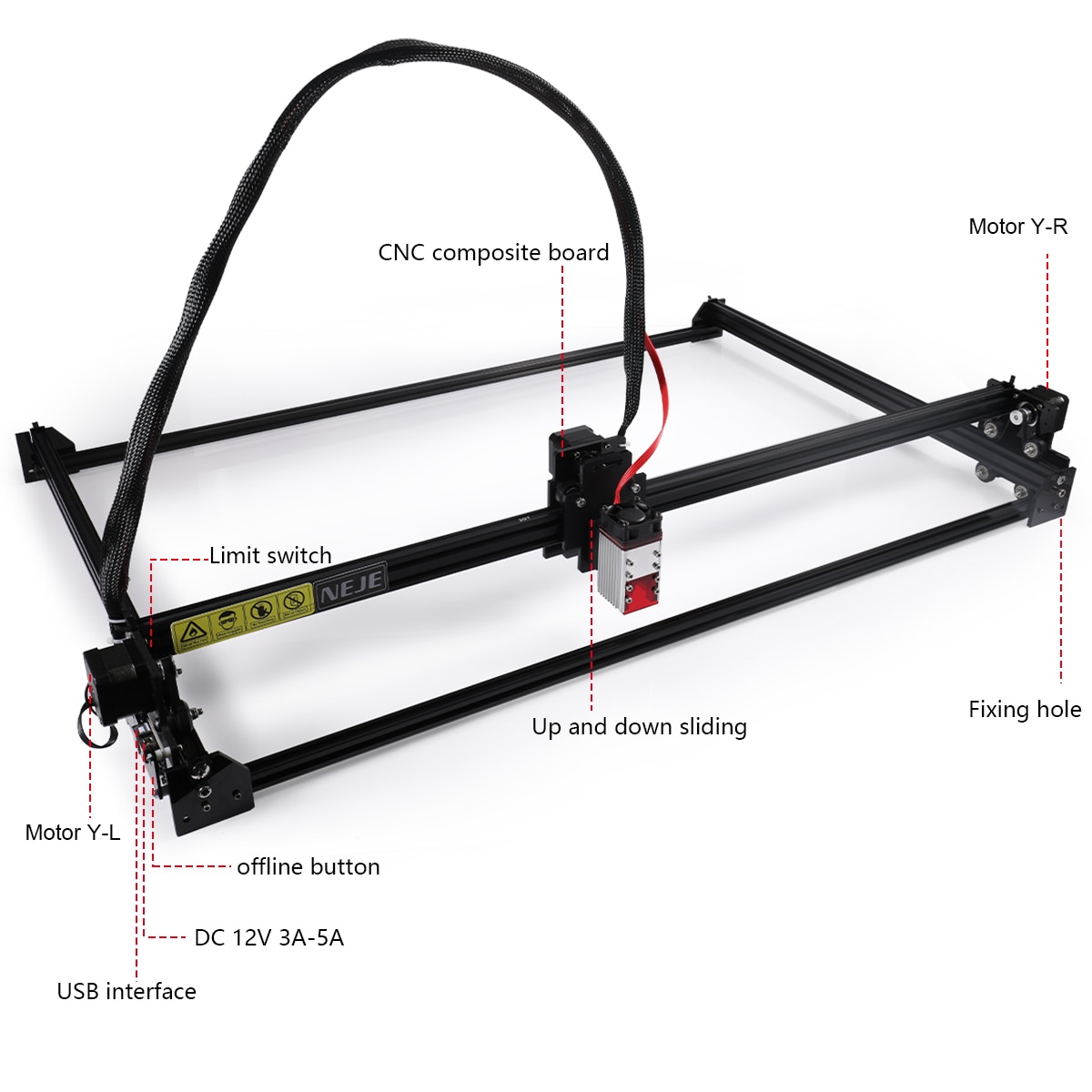

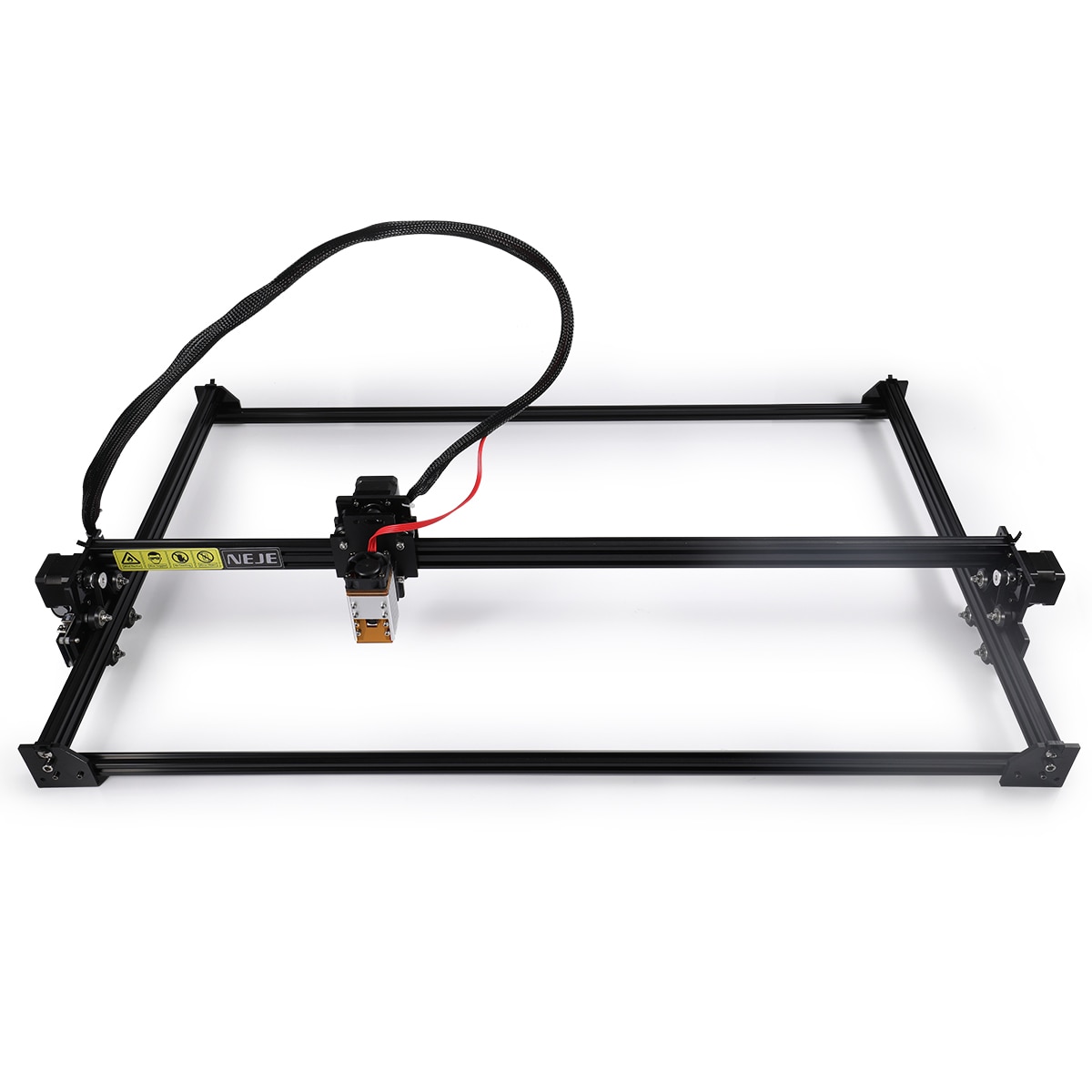

Master 2S Max Product Specifications

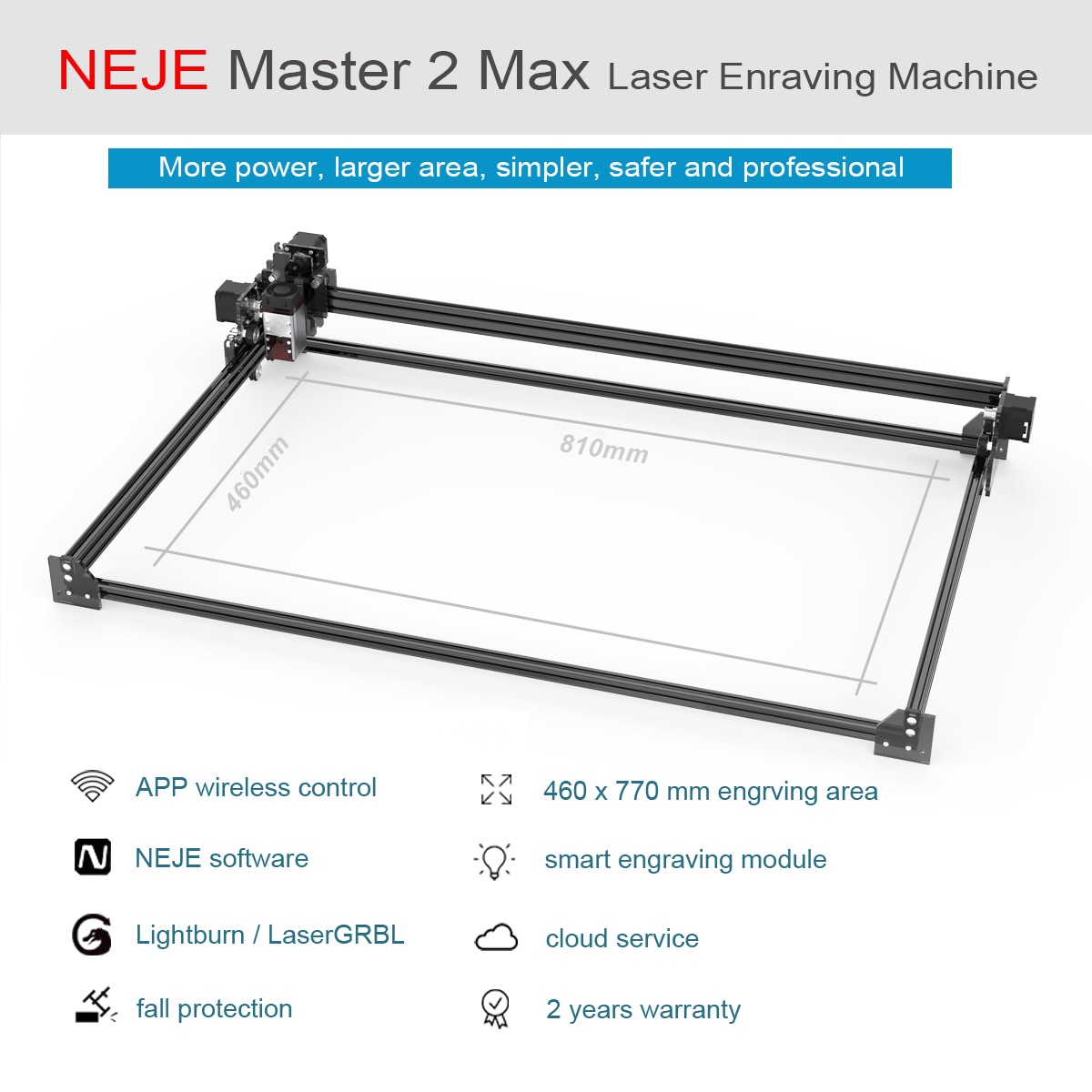

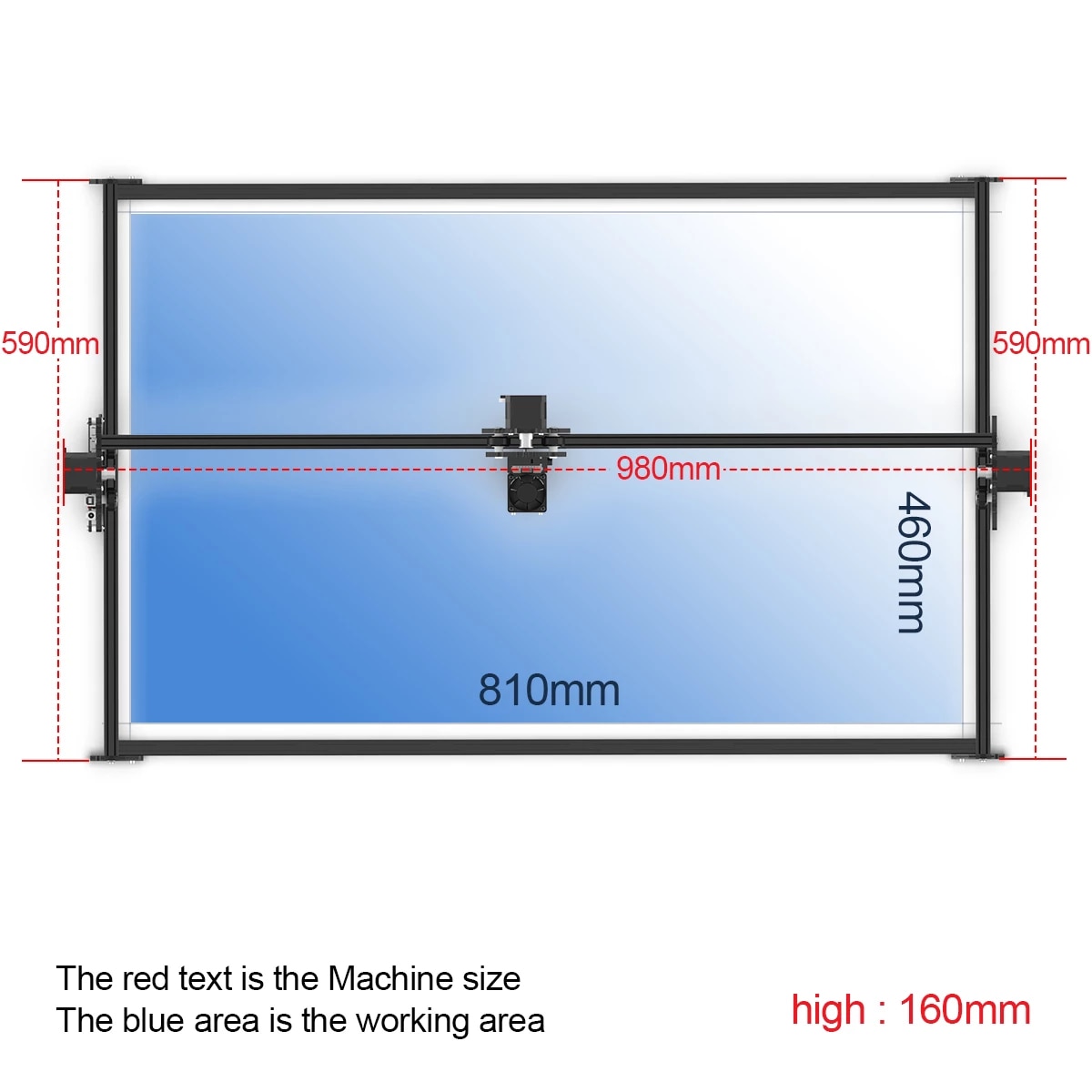

~ Larger area, 460 x 810 mm engraving and cutting area

~40-80W power module, optical power output 15W, focal point 0.1mm, support engraving and cutting.

~ Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.

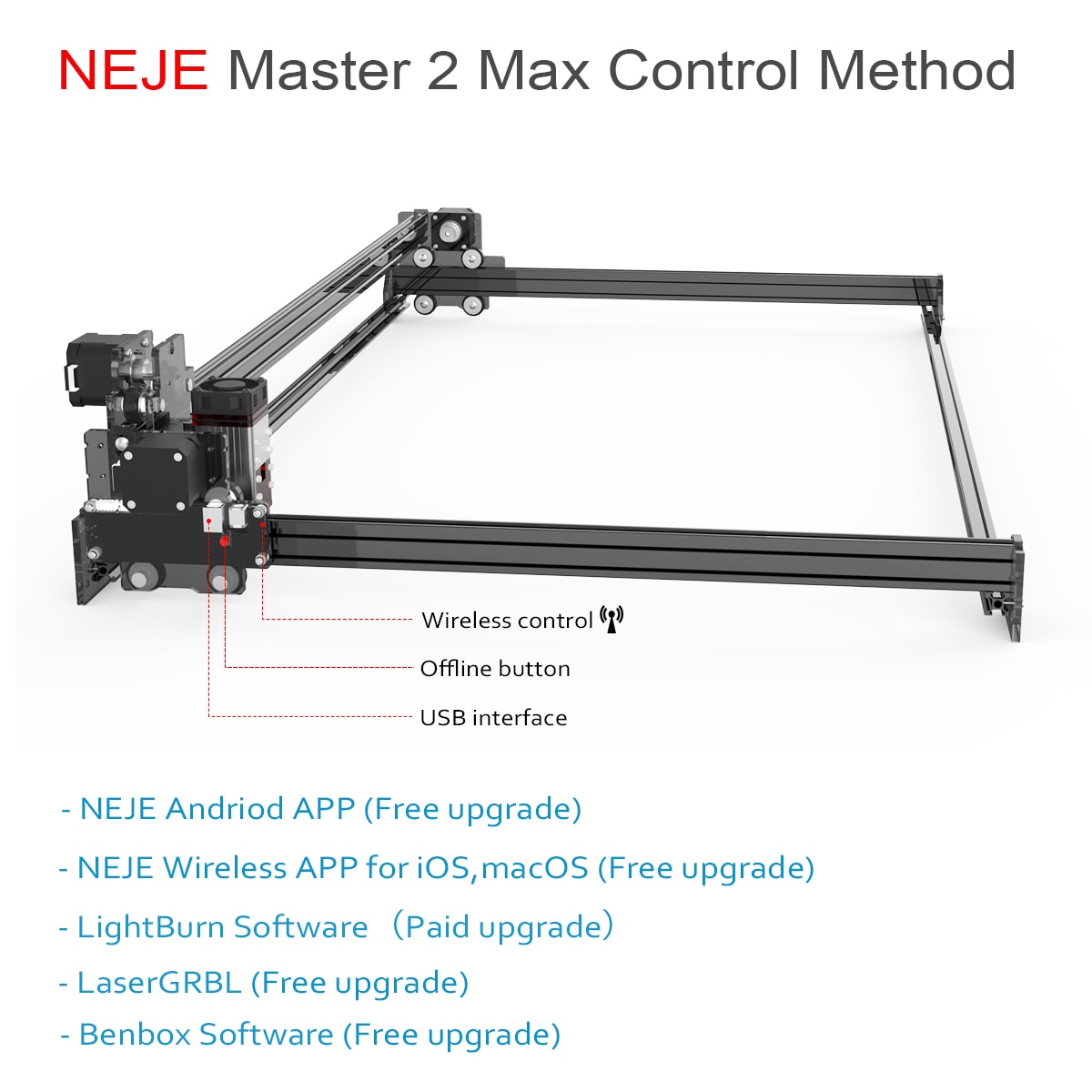

~ The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.

~ Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.

~ Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

~ Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.

~ Support NEJE 4pin interface series modules, including , 15W, 20W, 30W, 40W,80W etc.

~ The product has passed the quality control of NEJE factory. If it is a quality problem, we provide a 2-year warranty!

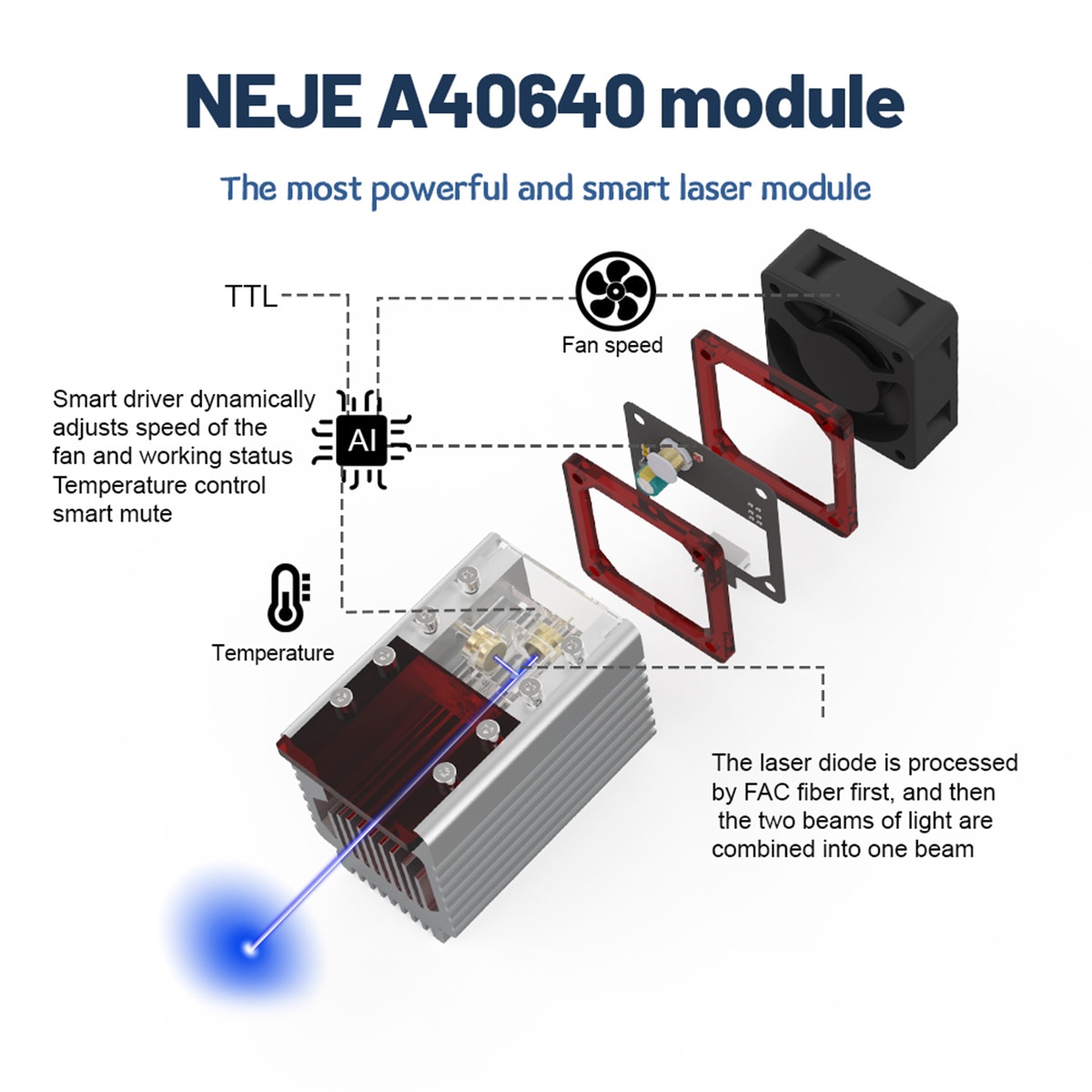

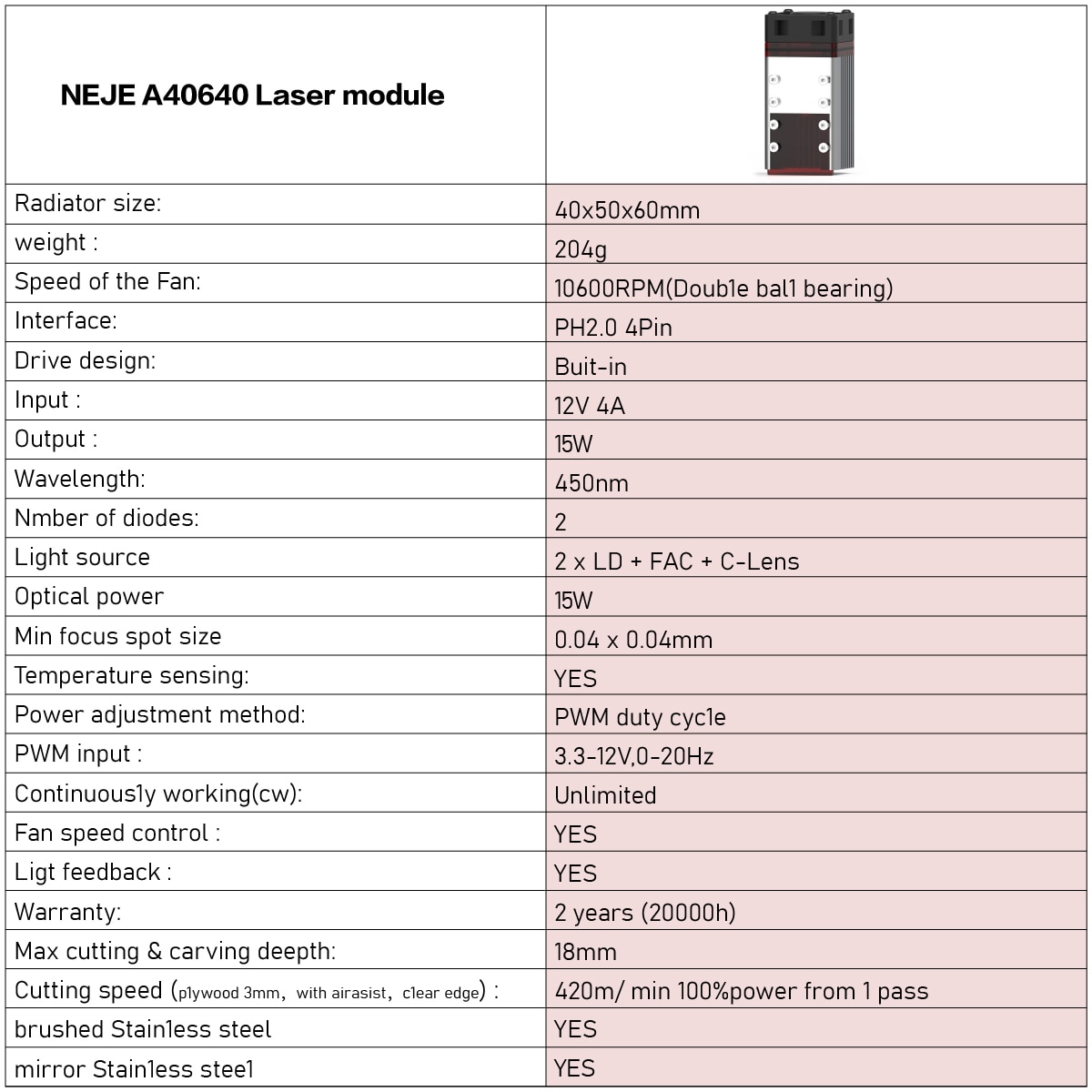

Master 2S Max 80W Product Specification

Model：NEJE Module 80W （A40640）

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：40-80W

Optical power output：15W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20000 hours

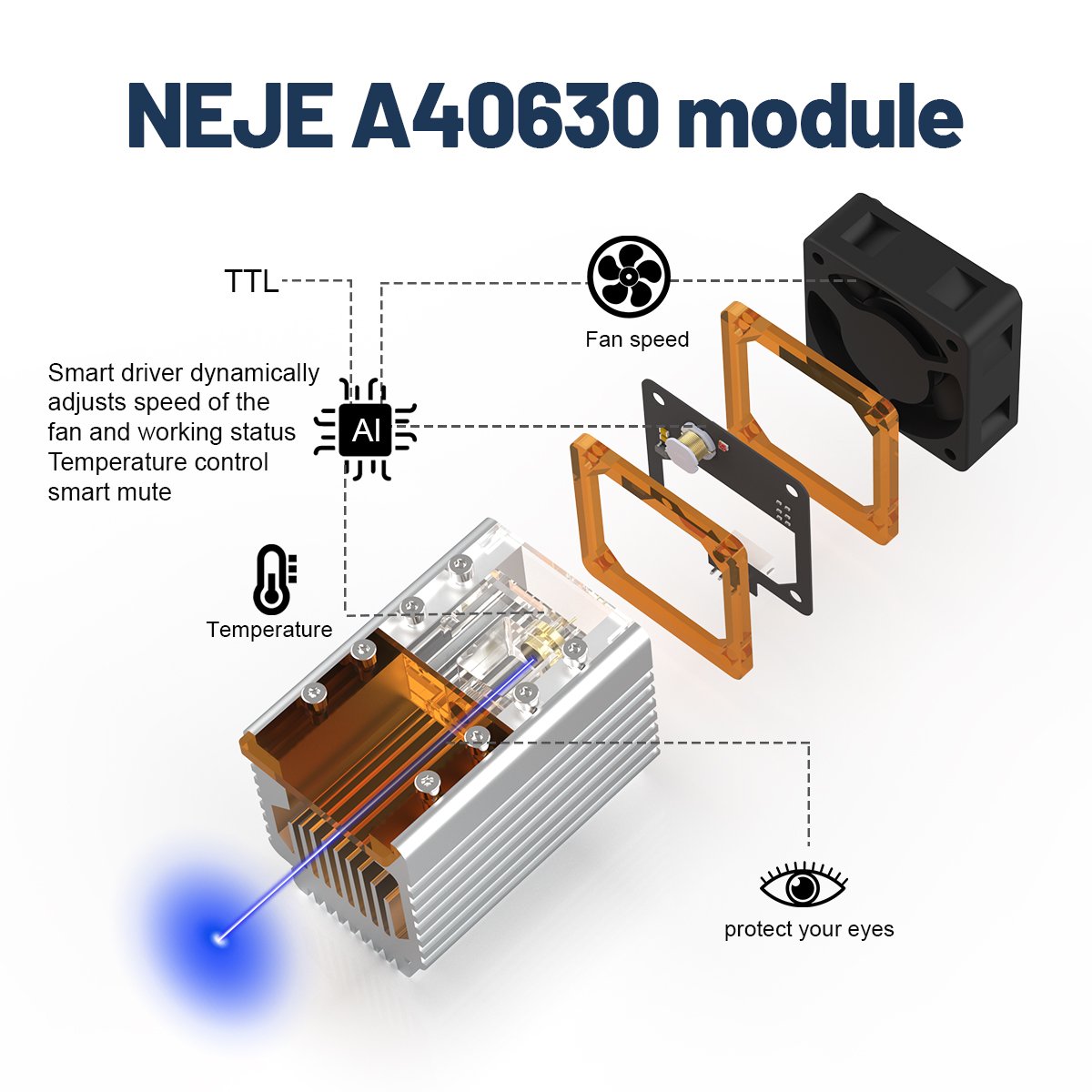

NEJE A40630 New 50W Laser Moudle Feature：

– Designed for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, arduino project.

– 2 in 1 focus, adjustable lens and fixed focal length in one module.

– 7.5W Optical power output, Suitable for engraving and cutting.

– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

– Modified laser air assist, avoid smoke damage to the lens.

– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

– Sliding slot is provided for easy adjustment of focus.

NEJE A40630 New 50W General Specification:

Model：NEJE Module 50W (A40630)

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

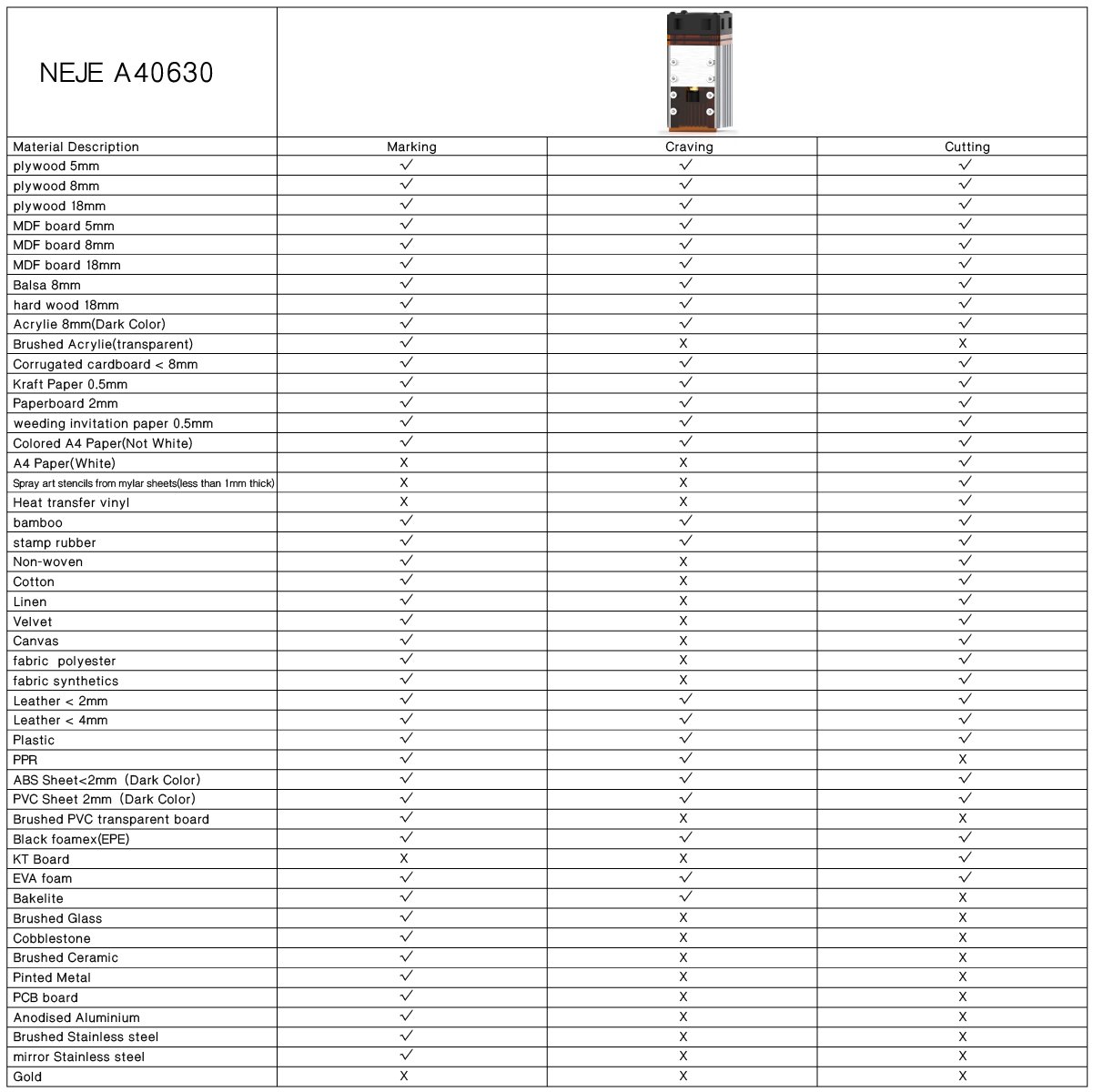

Can Engrave：Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：40-50W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3-4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

40W F30130 Product Specifications

~30-40W electric power, 7.5W optical power output, can be directly upgraded on the basis of NEJE Master2 30W, if it is 20W and 15w customers need to replace the 12V3A power adapter
~Fixed focus design, only need a 6mm spacer on the bottom and lock the screw to adjust the focus
~30mm size, does not affect the engraving area of NEJE Master2
~vision protection
~ Modified laser air assist
~Intelligent drive, able to detect temperature and dynamically adjust the fan speed, making it quieter when not in use.
~15000 rpm dual ball high speed fan, stronger heat dissipation performance
~60mm built-in threaded copper core, added heat dissipation silicone grease, safe temperature control, NEJE 48-hour aging test

Master 2S Max N40630 Laser Moudle Feature

1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

2.7.5W Optical power output, 3mm acrylic from 1 pass(speed 100)

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

6.Slidable mounting fixture is provided for easy adjustment of focus.

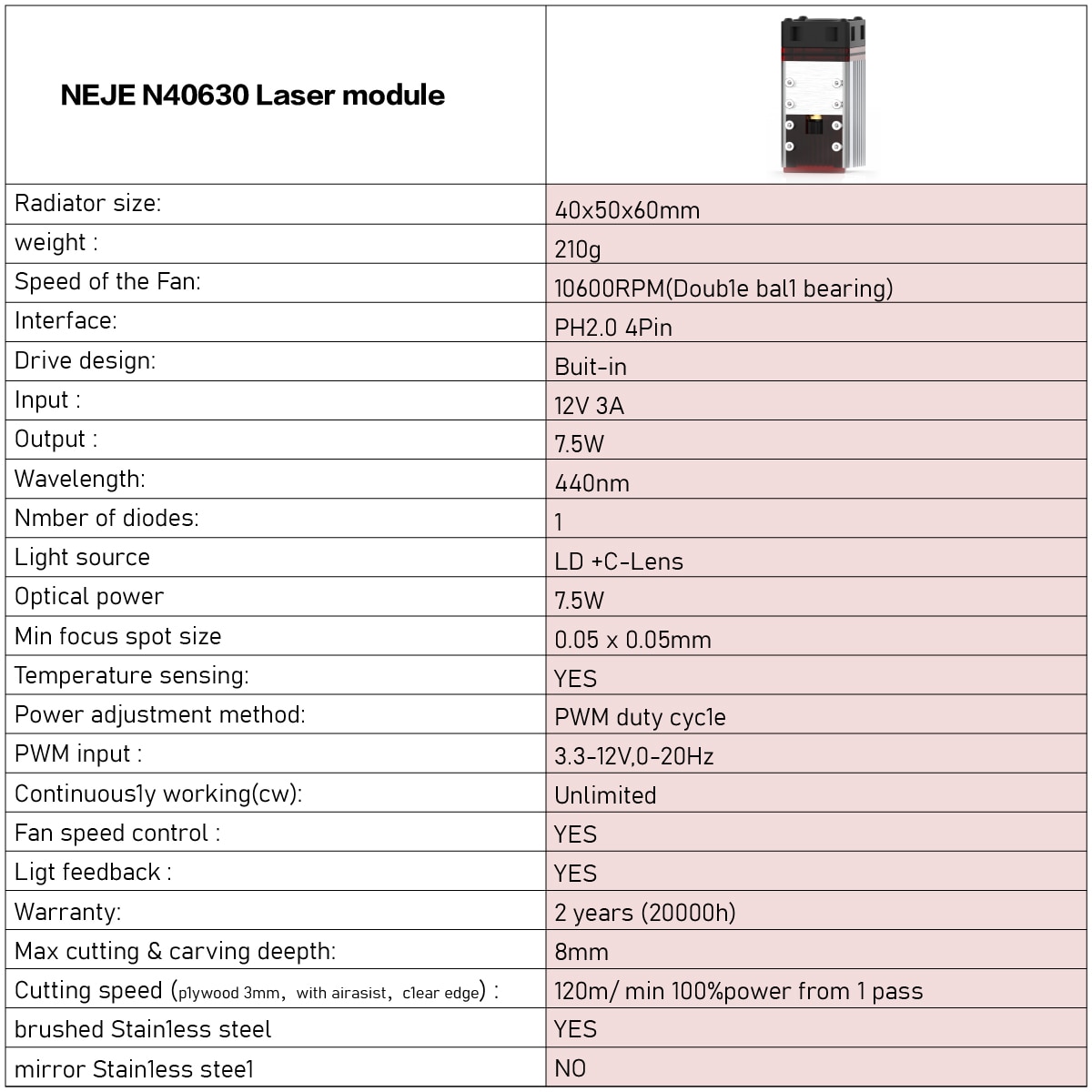

Master 2S Max N40630 Product Specification

Model：NEJE Module N40630

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：30W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

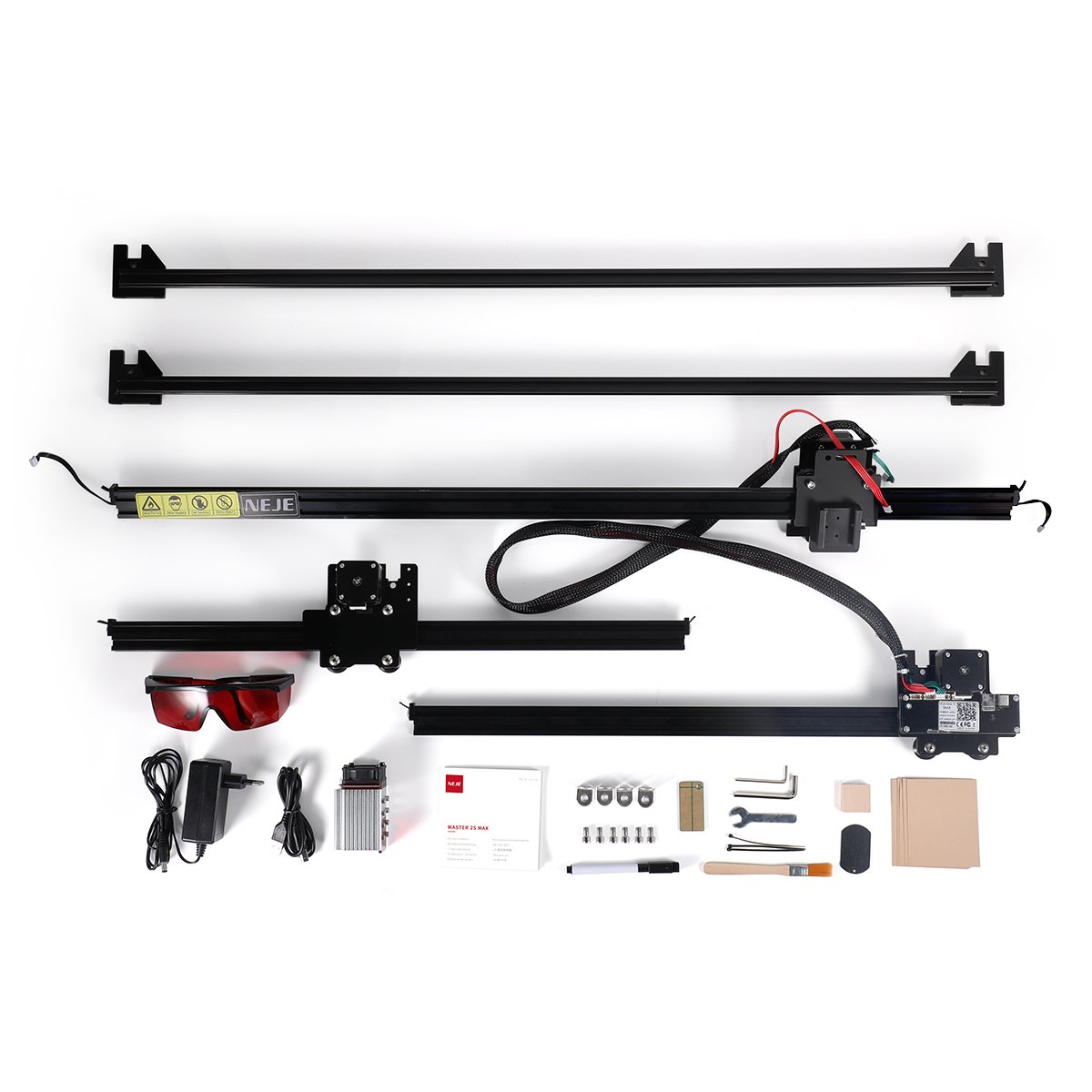

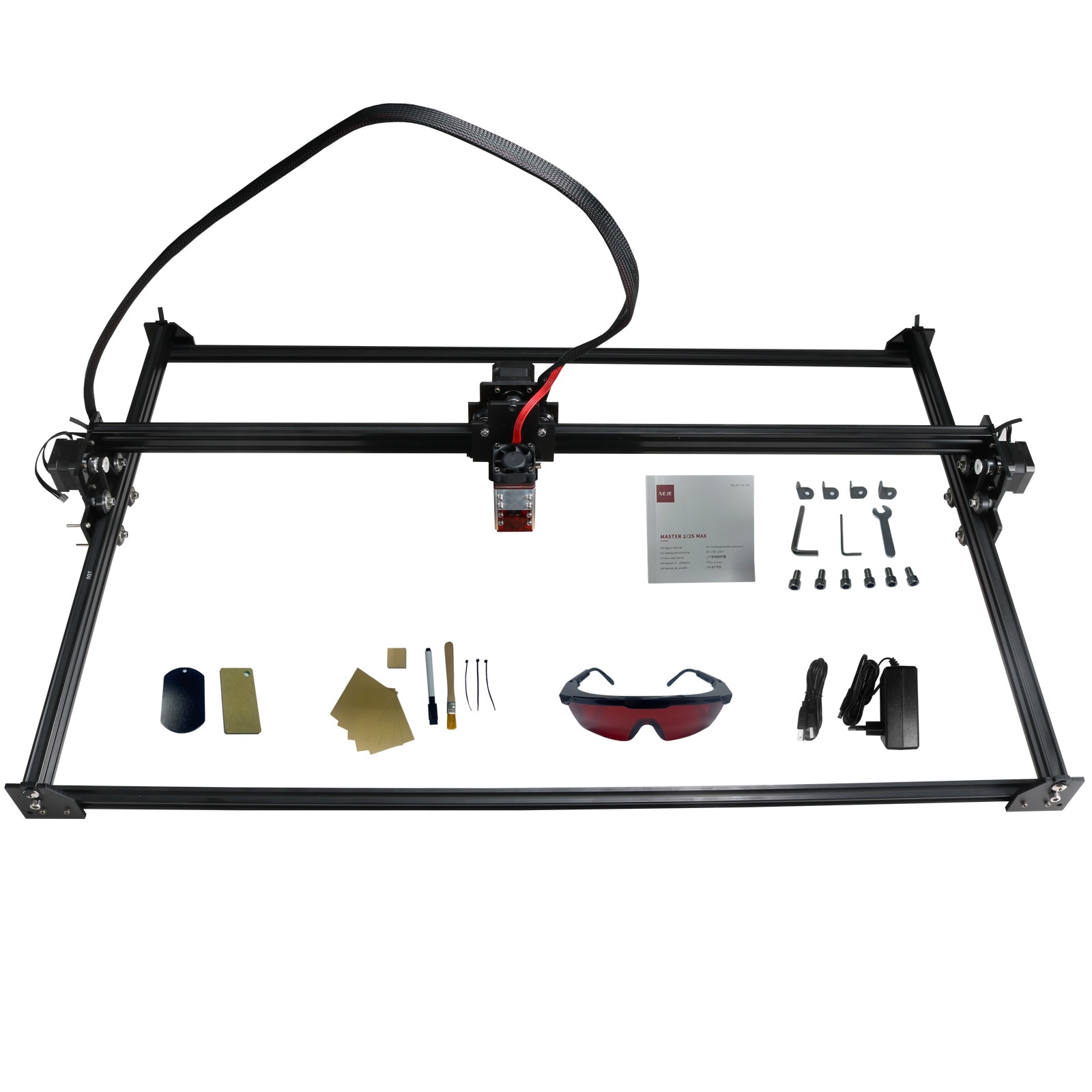

Package List

1* Laser engraving machine

1* N40630/F30130/A40630/A40640 module

1* 12V 4A/3A power supply

1* European standard adapter

1* Manual

1* Red glasses

1* Data cable

1* wooden board

1* pen

1* brush

1* focusing film

1* alumina film

3* cable tie

4* angle iron

5* paper

5* nut

1* large hexagon wrench

1* small hexagon wrench

1* Open wrench

Please Note

If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.

Do not accept bad reviews and disputes due to tariffs.
