Features

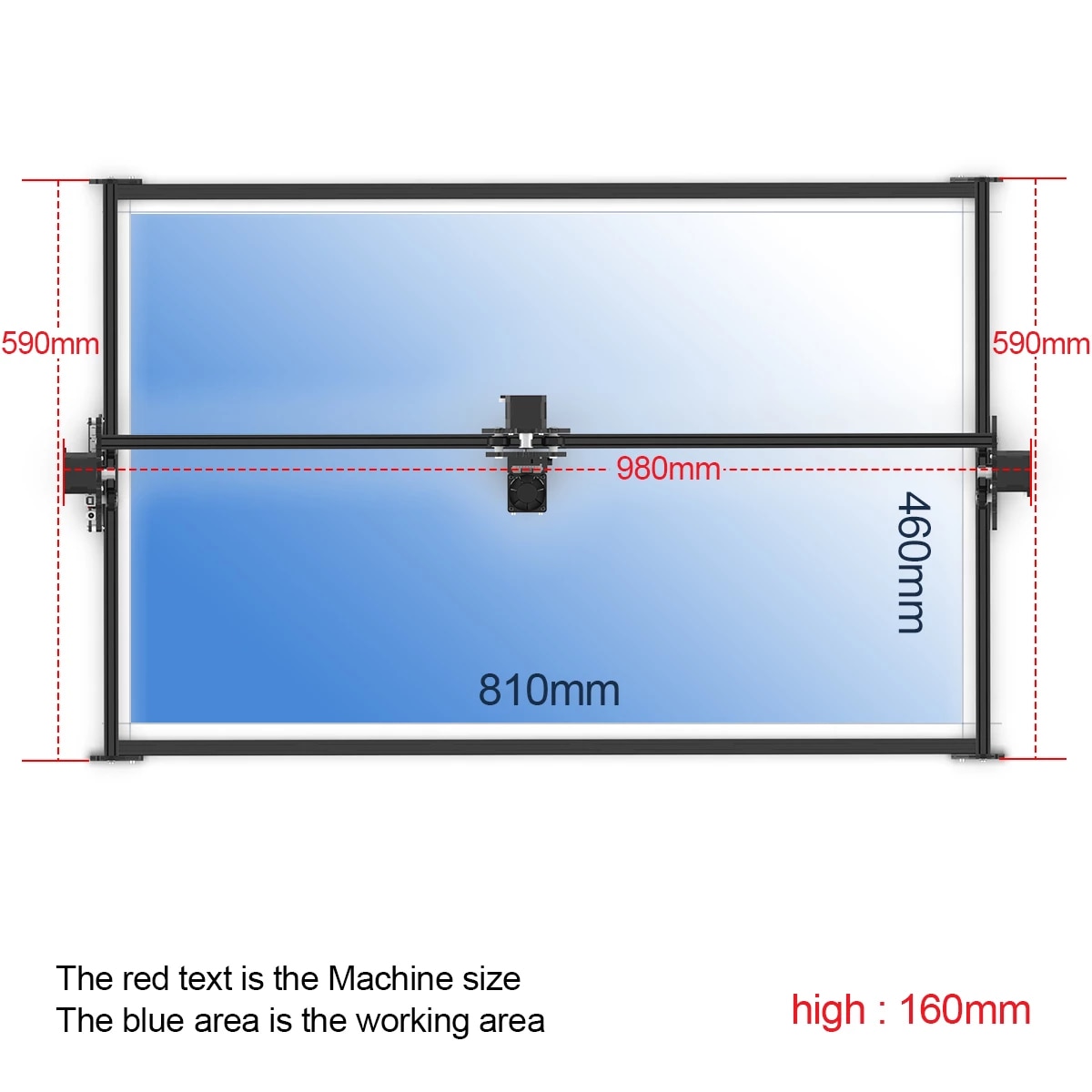

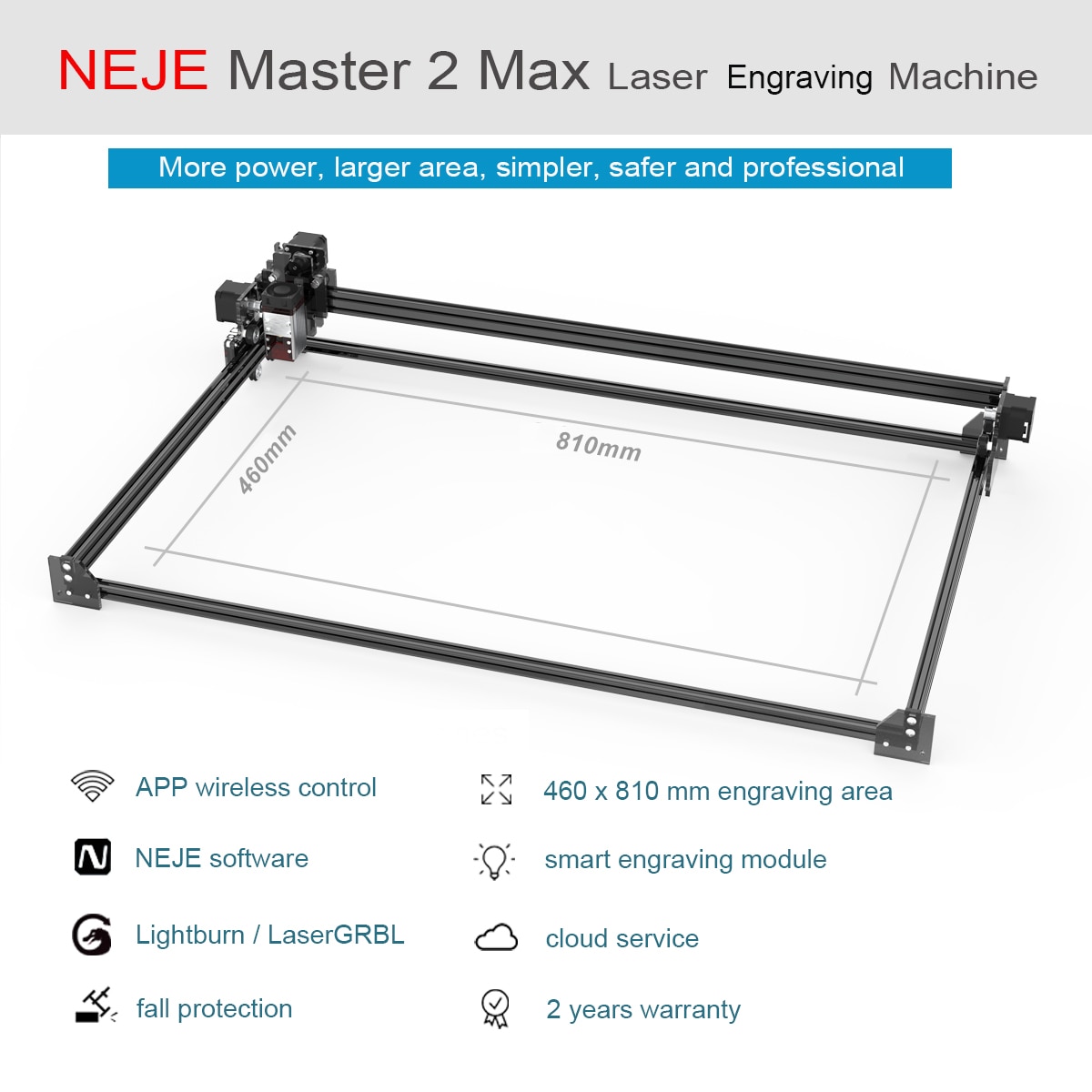

– 【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

– 【Advanced laser module】 The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

– 【More materials and more clear】 Wood, MDF, leather, paper, cotton etc. are all supported, 8mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

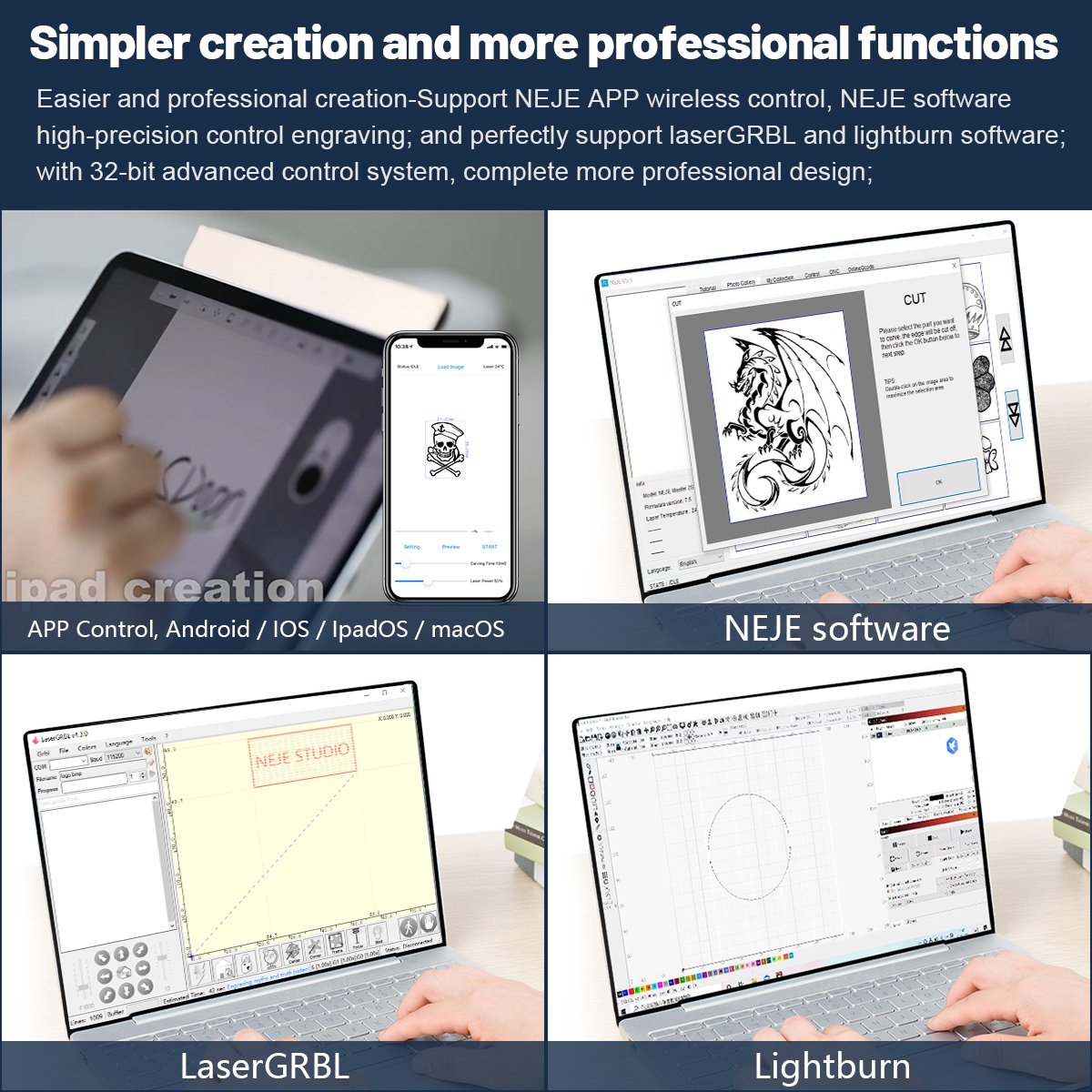

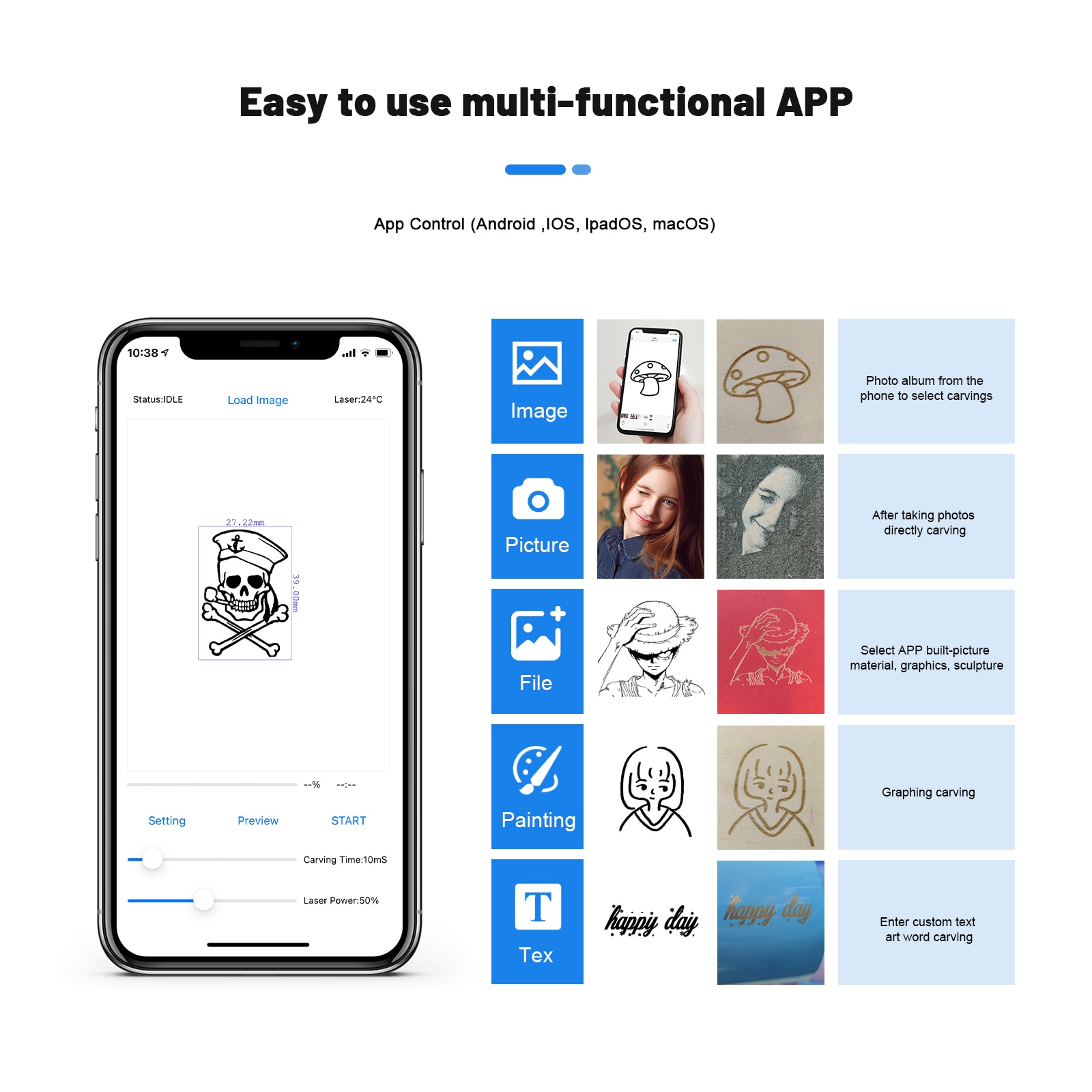

– 【Portable professional control software】 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

– 【Perfect after-sales service】 free 2-year warranty for the whole machine ( laser module: 2 years 20,000 hours warranty ), and 24 hours shipment of vulnerable parts worldwide.

New NEJE A40630 50W Feature：

-【810 x 460 mm】 large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole                machine is tested and         shipped, and only 6 screws are required to complete the installation.

-【Portable professional control software】 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL,      Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).

– Designed for Laser Engraver machine, Laser Cutter, 3D printer, CNC millling, arduino project.

– 2 in 1 focus, adjustable lens and fixed focal length in one module.

– 7.5W Optical power output, Suitable for engraving and cutting.

– More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.

– Modified laser air assist, avoid smoke damage to the lens.

– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.

– Sliding slot is provided for easy adjustment of focus.

NEJE Master 2S Max 50W A40630 General Specification:

Model：NEJE Module 50W （A40630）

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

Can Engrave：Metal/Stainless Steel/MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave：Glass/Stone/Ceramics/PCB/Reflective Material/ Transparent Material

Technical Parameters：

Module Input：40-50W

Optical power output：7.5W (7500mW)

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 4A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module tester board Specification

Power input: DC 12V

Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)

mode: 3 modes (off, manual pwm, pwm / ttl in)

temperature display: YES

pwm display: yes

Manual PWM control: YES

Package Include

Laser engraving machine 1,
A40640/N40630/A40630 module 1,
12V3A/4A power supply 1,
European standard adapter 1,
Manual 1,
Red glasses 1,
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)
