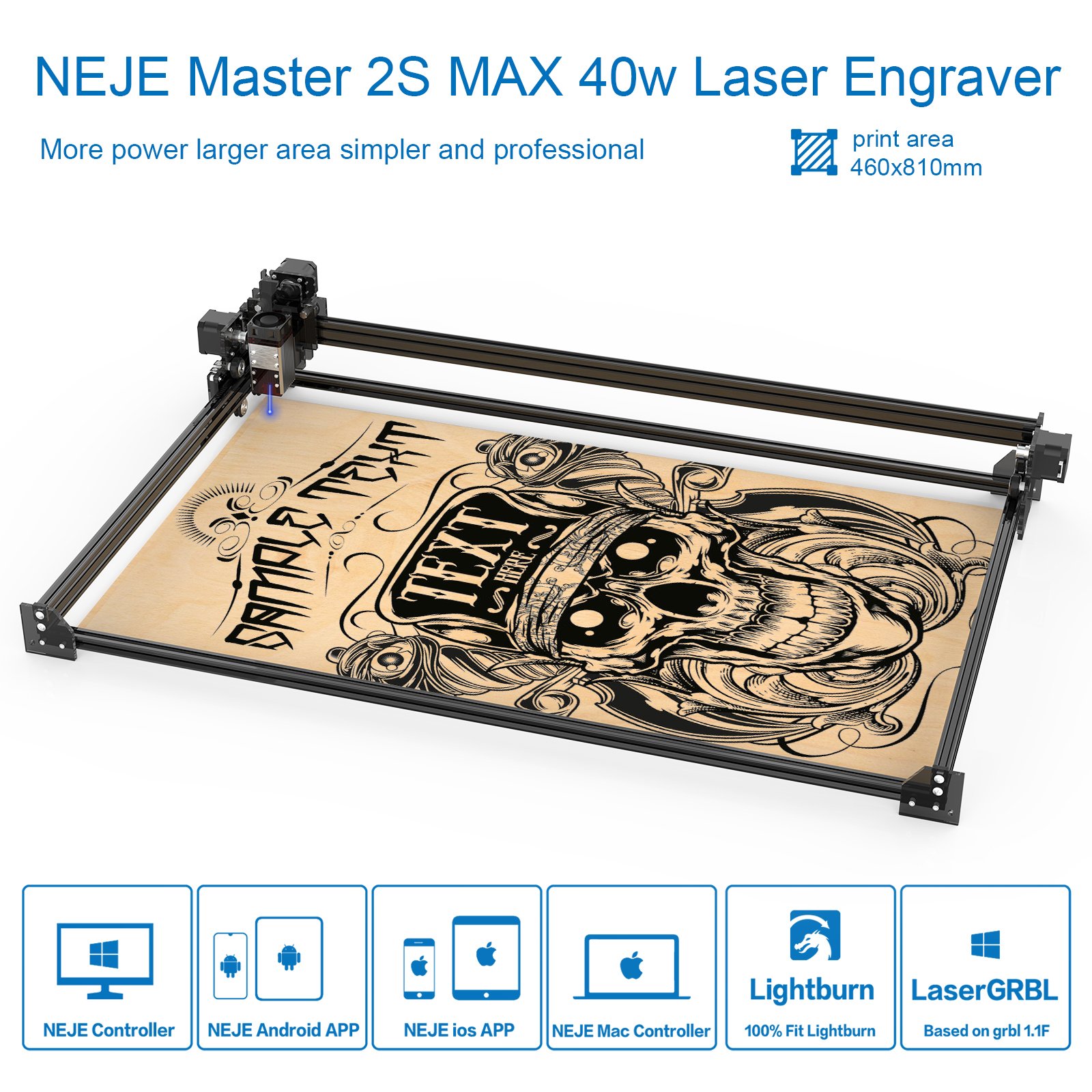

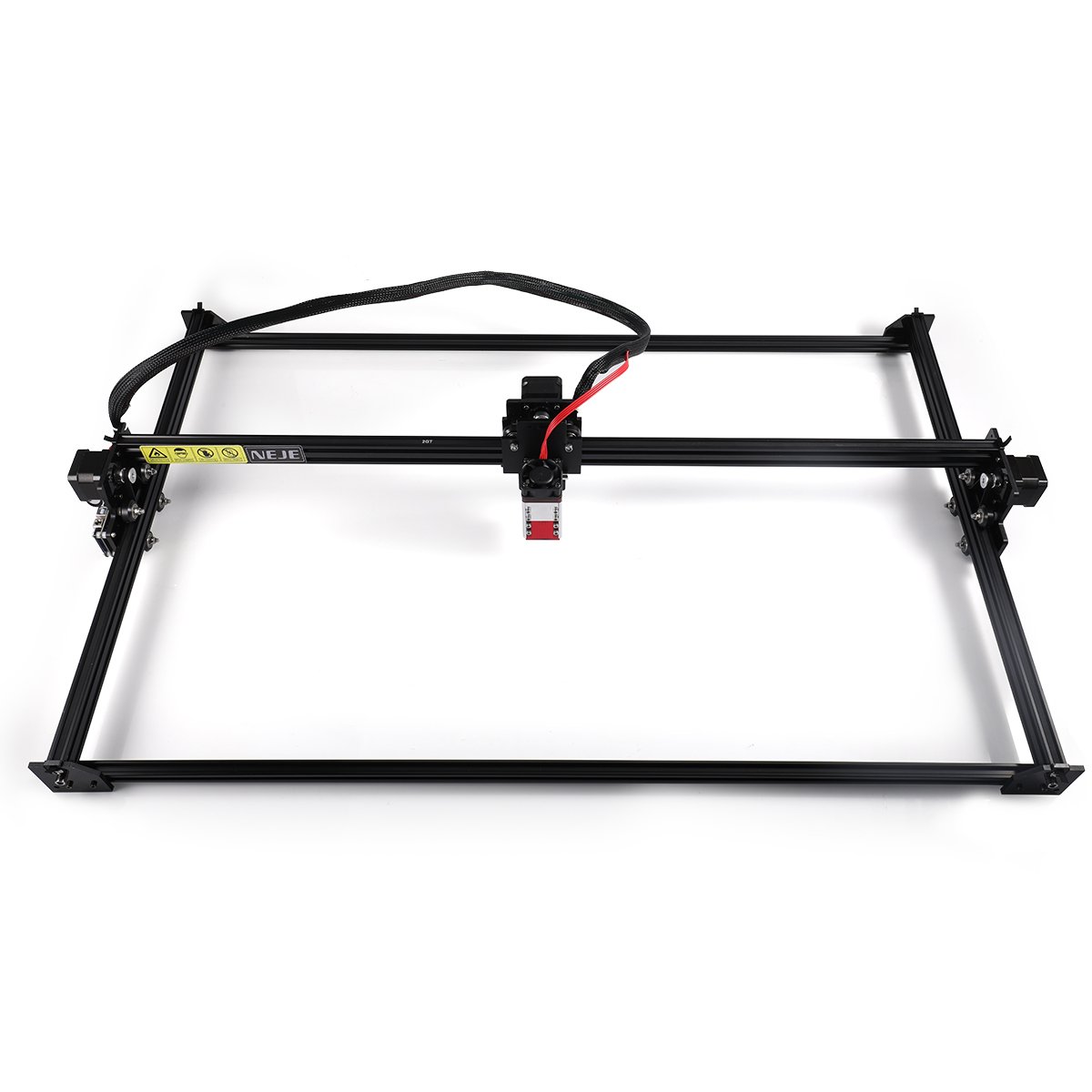

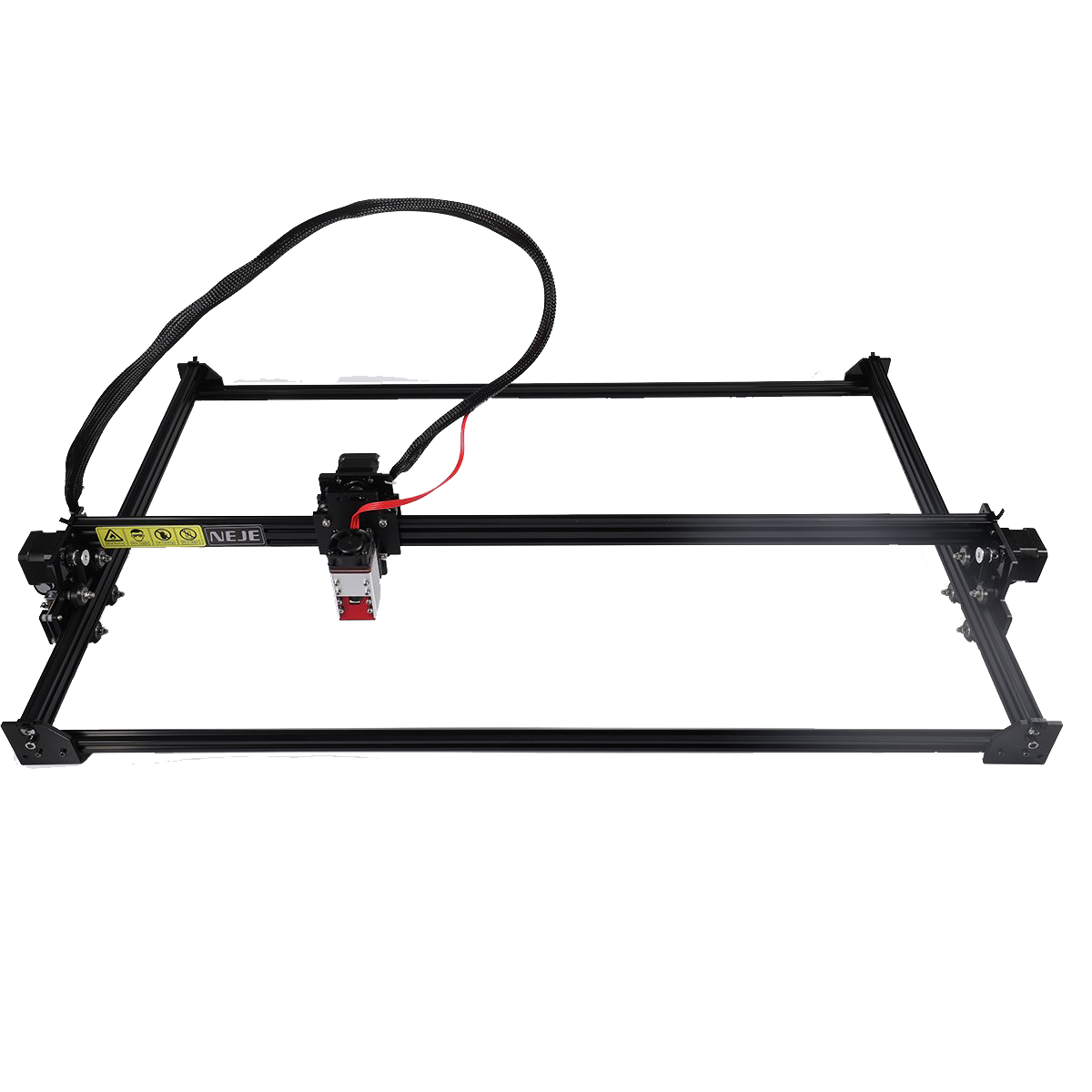

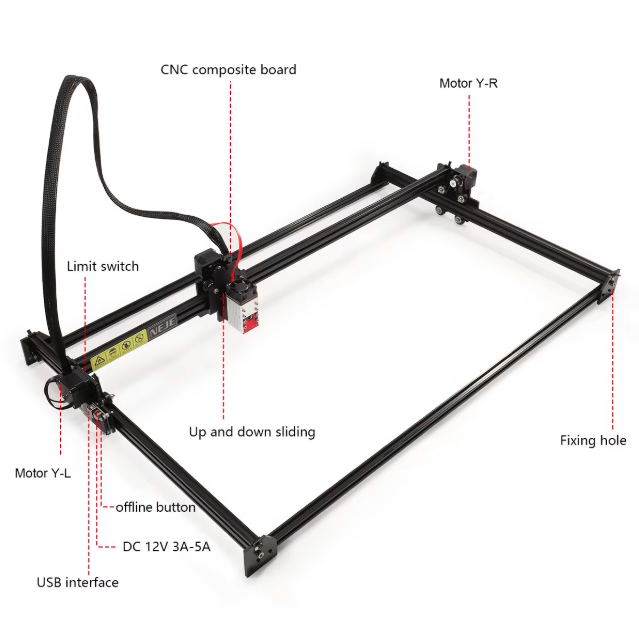

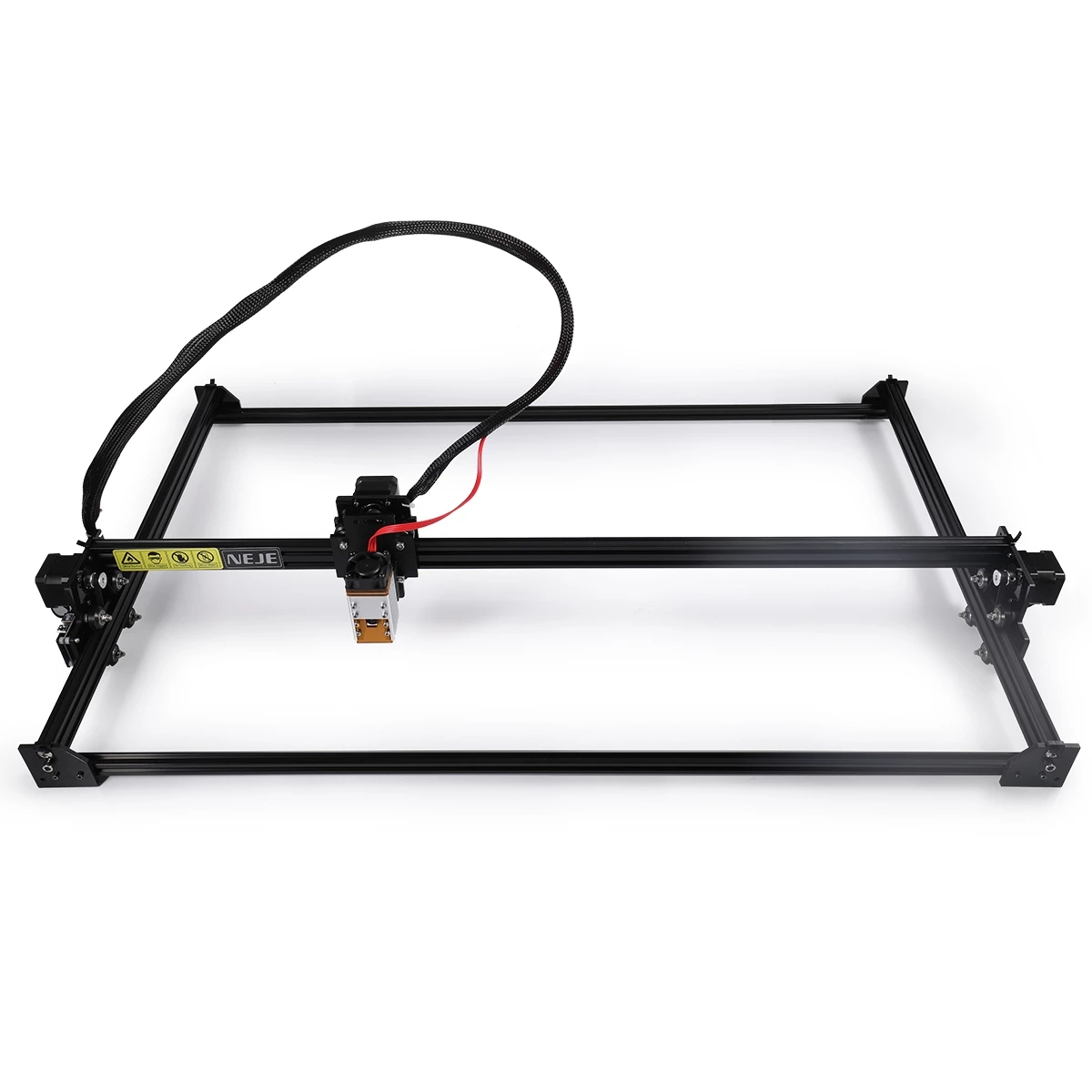

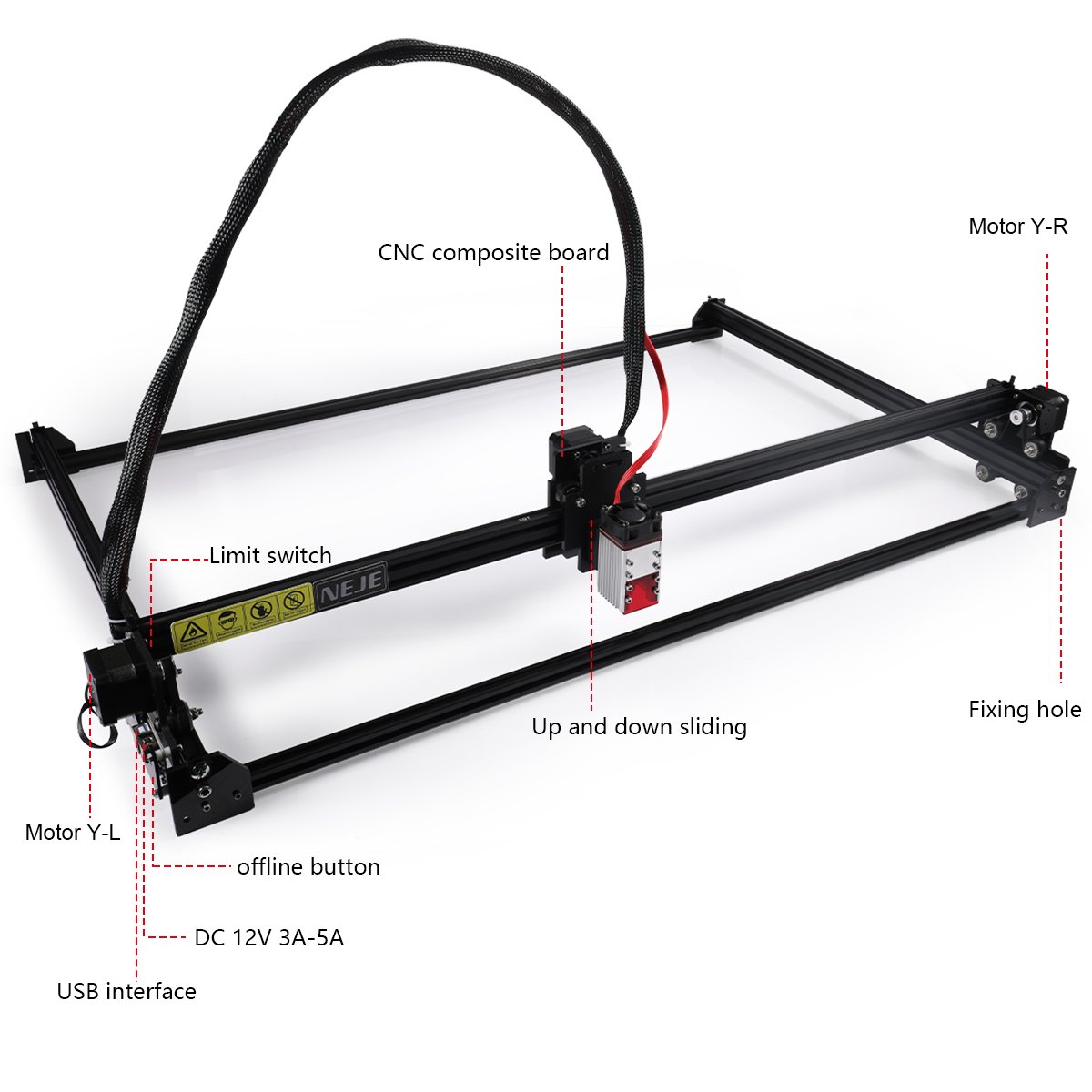

NEJE MASTER 2S MAX 40W LASER ENGRAVER / CUTTER WITH A40640 DUAL LASER BEAMS MODULE – 460 X 810 MM Laser Engraving Machine

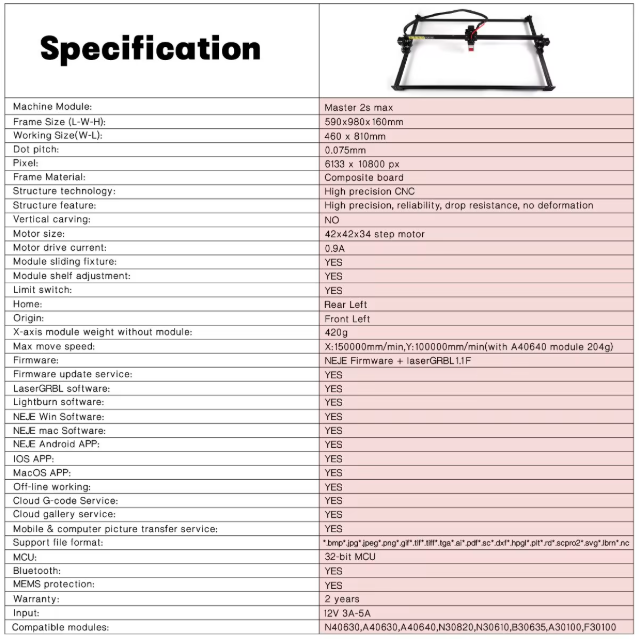

| Machine module: | Master 2s max |
| Frame size(L-W-H): | 590*980*160mm |
| Working size(W-L): | 460*810mm |
| Dot pitch: | 0.075mm |
| Pixel: | 6133*10800px |
| Frame material: | Composite board |
| Structure technology: | High precision CNC |
| Structure feature: | High precision,reliability,drop resistance ,no deformation |
| Motor size: | 42*42*34 step motor |
| Laser module : | NEJE A40640/A40630/N40630/N40620 laser module |
Features

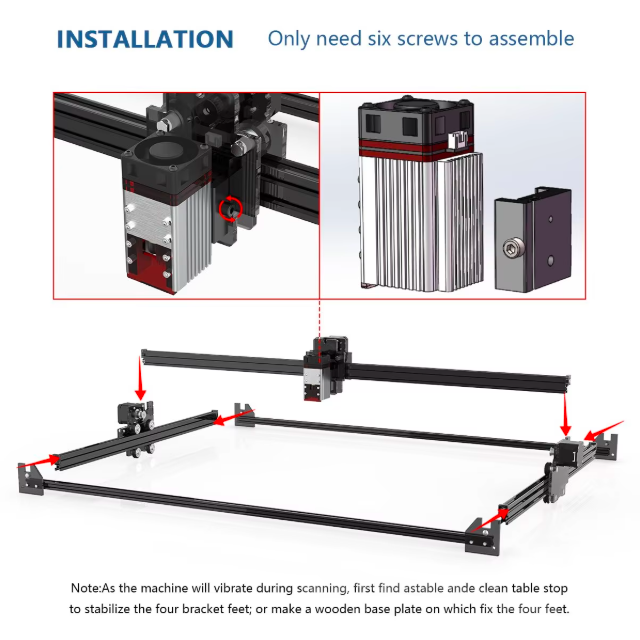

– [810 x 460 mm] large engraving area. 6133 x 10800 px, Engraving accuracy: 0.075mm Dot pitch, 339 dot/inch. The whole machine is tested and shipped, and only 6 screws are required to complete the installation.

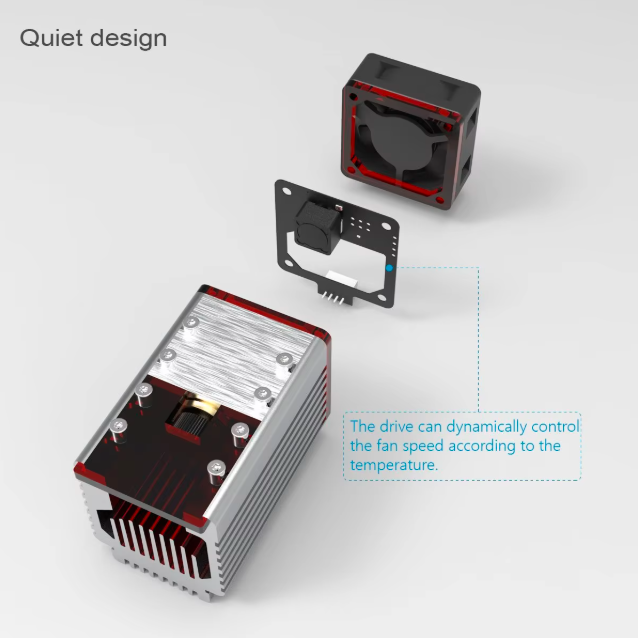

– [Advanced laser module] The laser beam is formed by combining two high-power laser diodes and adopts FAC technology. The minimum focus point reaches 0.04×0.04mm(A40640 module). Support NEJE advanced laser module, Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

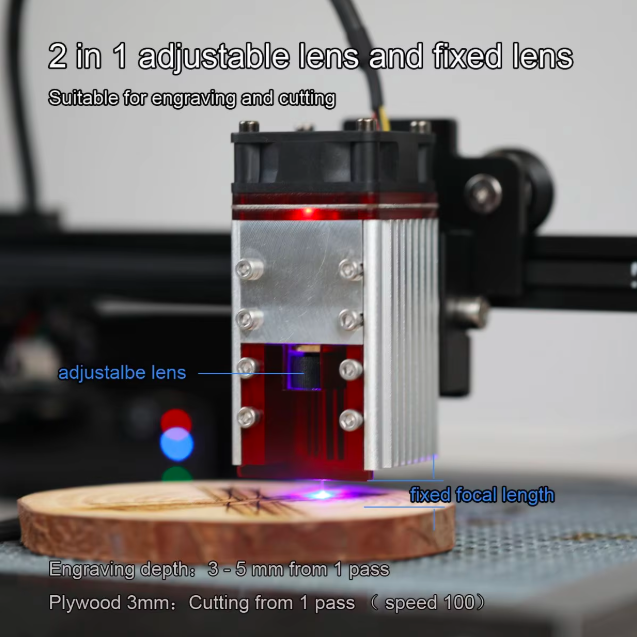

– [More materials and more clear] Wood, MDF, leather, paper, cotton etc. are all supported, 8mm plywood only needs to be cut once with air asist, the cut is very clean. Direct engraving of stainless steel. Glass, transparent acrylic and other materials can be engraved in a certain way.

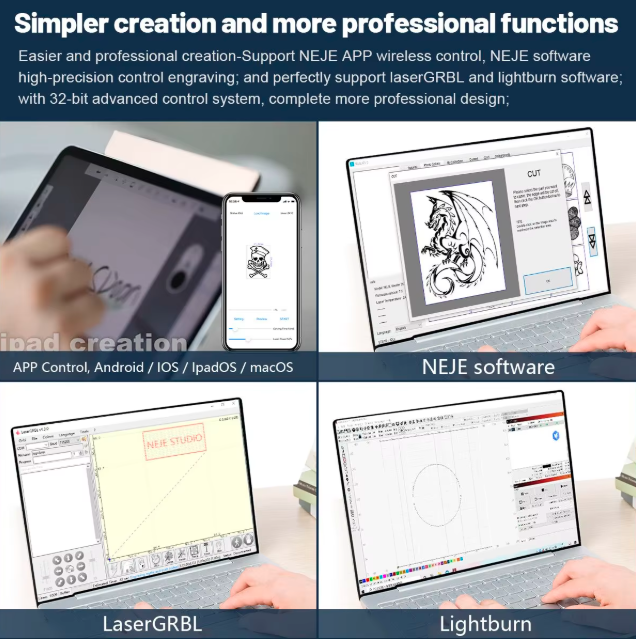

– [Portable professional control software] 32-bit control system, the fastest speed reaches 150000mm/min, supports LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS).
Packing list
Laser engraving machine 1
A40640/A40630/N40630/N40620 laser module 1
12V4A power supply 1
Manual 1
Red glasses 1
(Data cable 1, wooden board 1, paper 5, pen 1, brush 1, focusing film 1, angle iron 4, alumina film 1, cable tie 3, nut 5, large hexagon wrench 1, small hexagon wrench 1, Open wrench 1)
.
