NEJE Master 2s 20W CNC LightBurn GRBL Laser Engraver Machine Wood Cutter Printer Router Bluetooth APP Control DIY Engraving Tool

$188.10 – $310.56

SKU: 1005002789317505 Category:

Description

  • Brand Name: NEJE
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: Master 2s
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Brand: NEJE
  • 20W Laser Module: N30820
  • 10W Laser Head Module: N30610
  • 7W Laser Head Module: B30635

Please note:

Hello friends, because glasses are anti-epidemic supplies, Brazilian customs strictly control them. According to local customs regulations, products shipped from Brazilian warehouses do not come with goggles. Thank you for your understanding!


NEJE Master 2s Description:

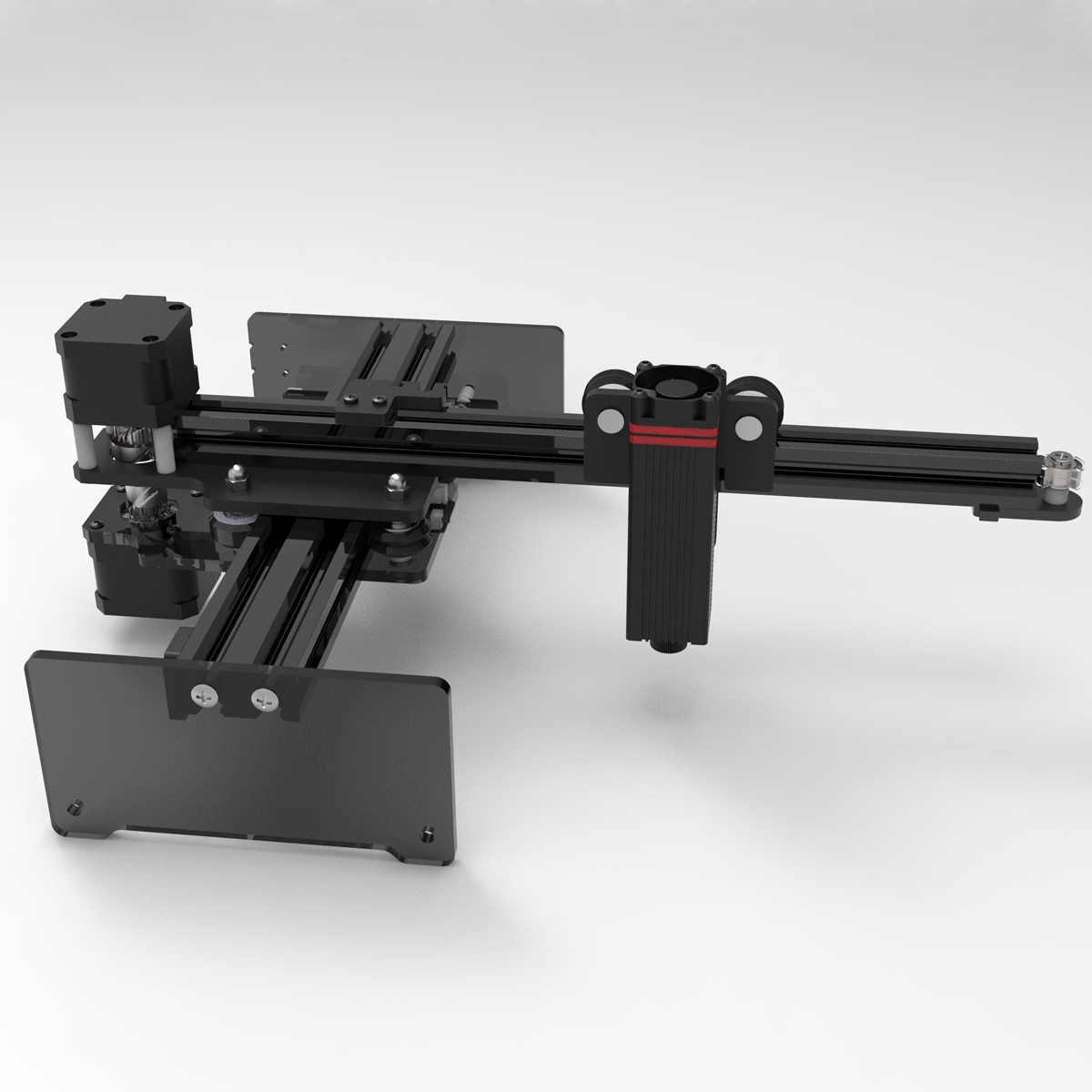

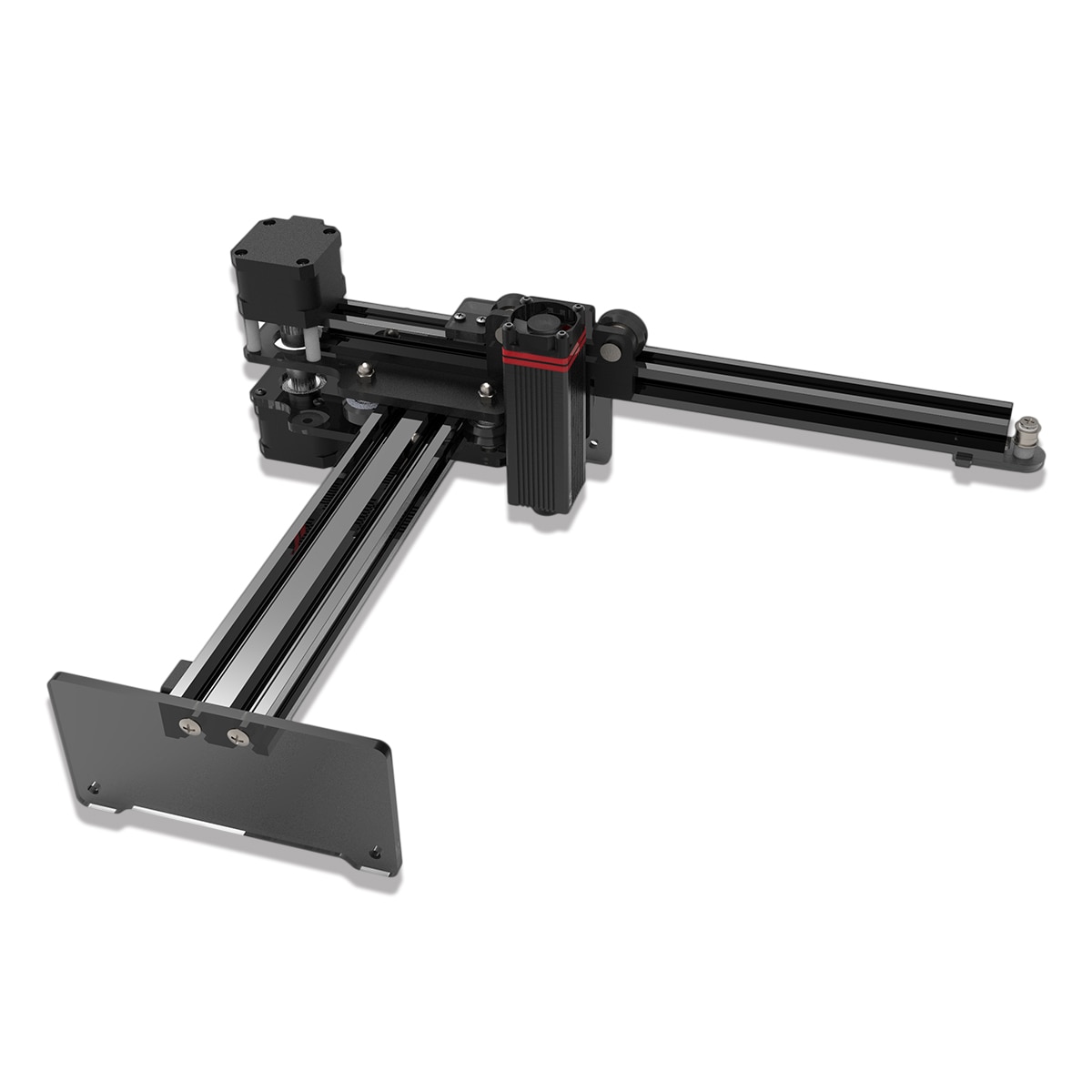

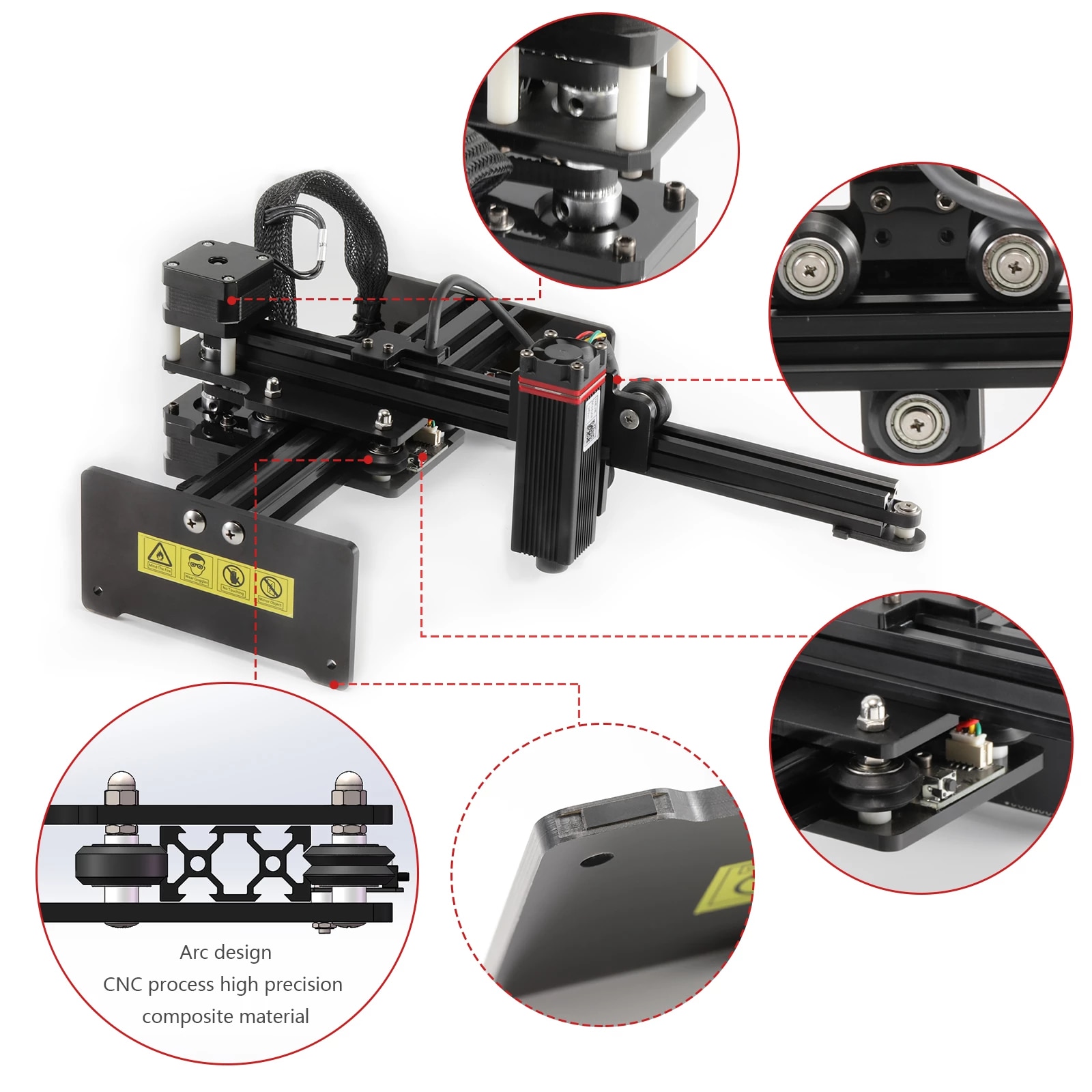

1.NEJE Master 2s is a engraving and cutting machine for area ( 170x170mm ), with its main structure being formed by unique special composite materials and CNC process precision assembly, which enables the machine with durability without deformation, ensuring long-term service life and high accuracy.

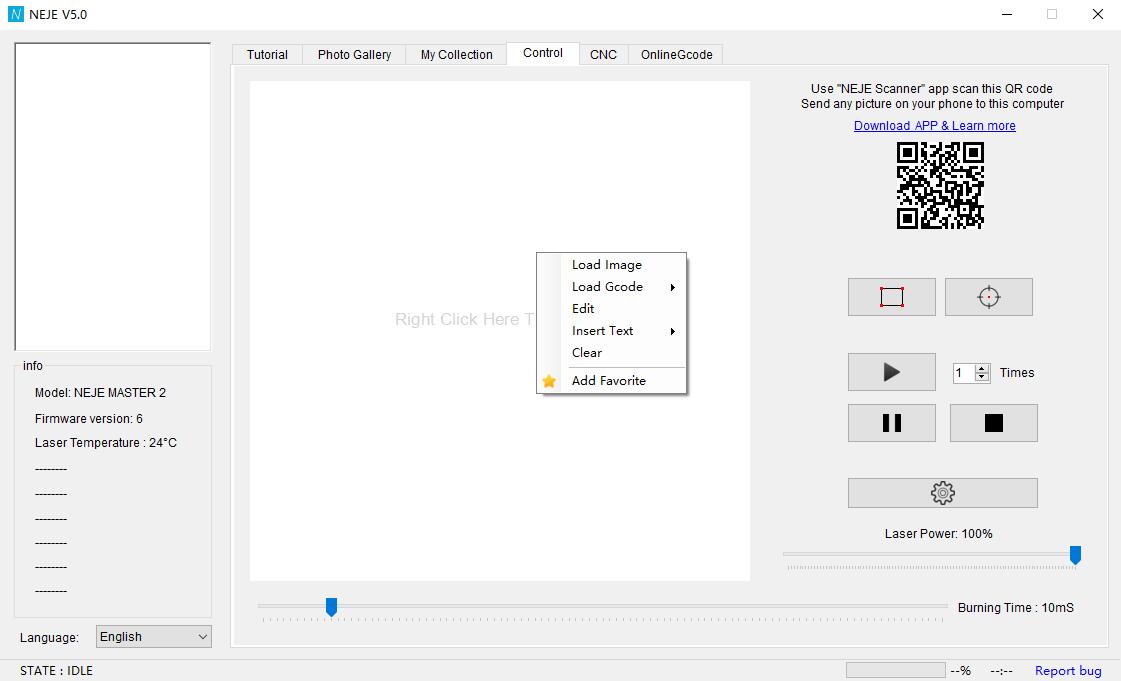

2.NEJE Master 2 is equipped with 2 processors and can support 2 firmwares at the same time. When starting the software, the machine will automatically recognize the software and connect to it. In NEJE mode, NEJE Windows software works with NEJE Android APP. This mode is suitable for beginners, which is simple and can help create high-quality works.
3. NEJE software provides cloud services, with numerous high-quality materials to help you create better works.
4.NEJE’s online G-code helps beginners to easily understand the G-code world.
5.In NEJE mode, with built-in sensor protection function, if the position changes when the machine is working, the machine will stop working to protect it from damage.
6.Another processor is Atmel, which supports BENBOX firmware and GRBL 1.1F firmware. Both these two modes are suitable for professional players to handle G-code.

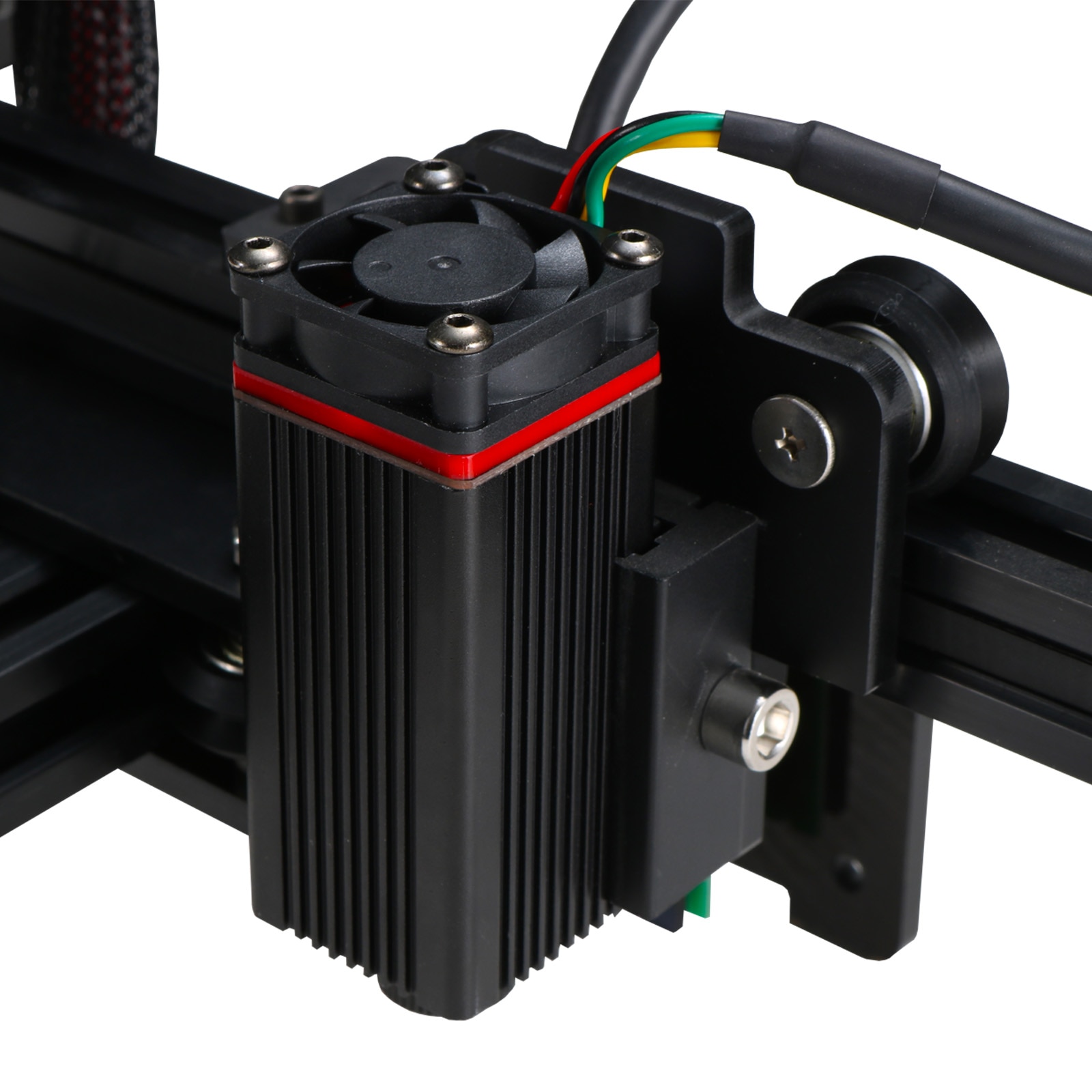

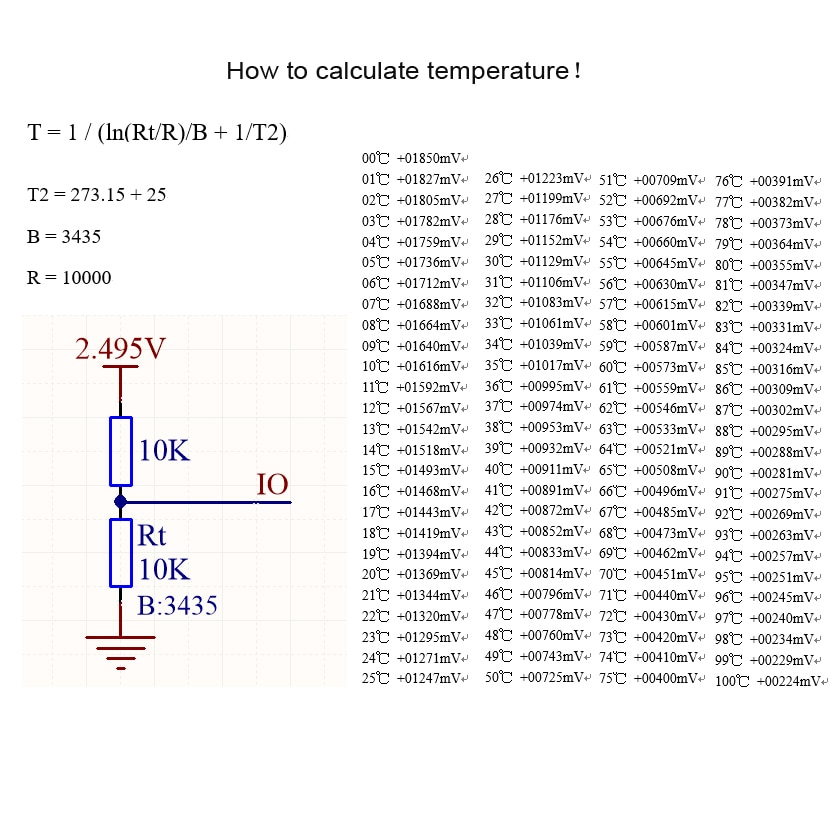

7.NEJE Module is equipped with temperature sensing. Each NEJE laser has undergone long-term aging test to ensure that the heat dissipation is controlled within 70 degrees Celsius. Laser modules without temperature sensing function cannot ensure that the laser can work for a long time because it is impossible to detect the quality for the mode in which the temperature cannot be measured.

NEJE Master 2s 20W N30820 Specification

Model： NEJE Master 2s 20W（N30820）

Optical Power: 450nm 5.5W

Input Power：         20W

Control Board: 2 x MCU + Wireless control + MEMS

Satety Protection: MEMS

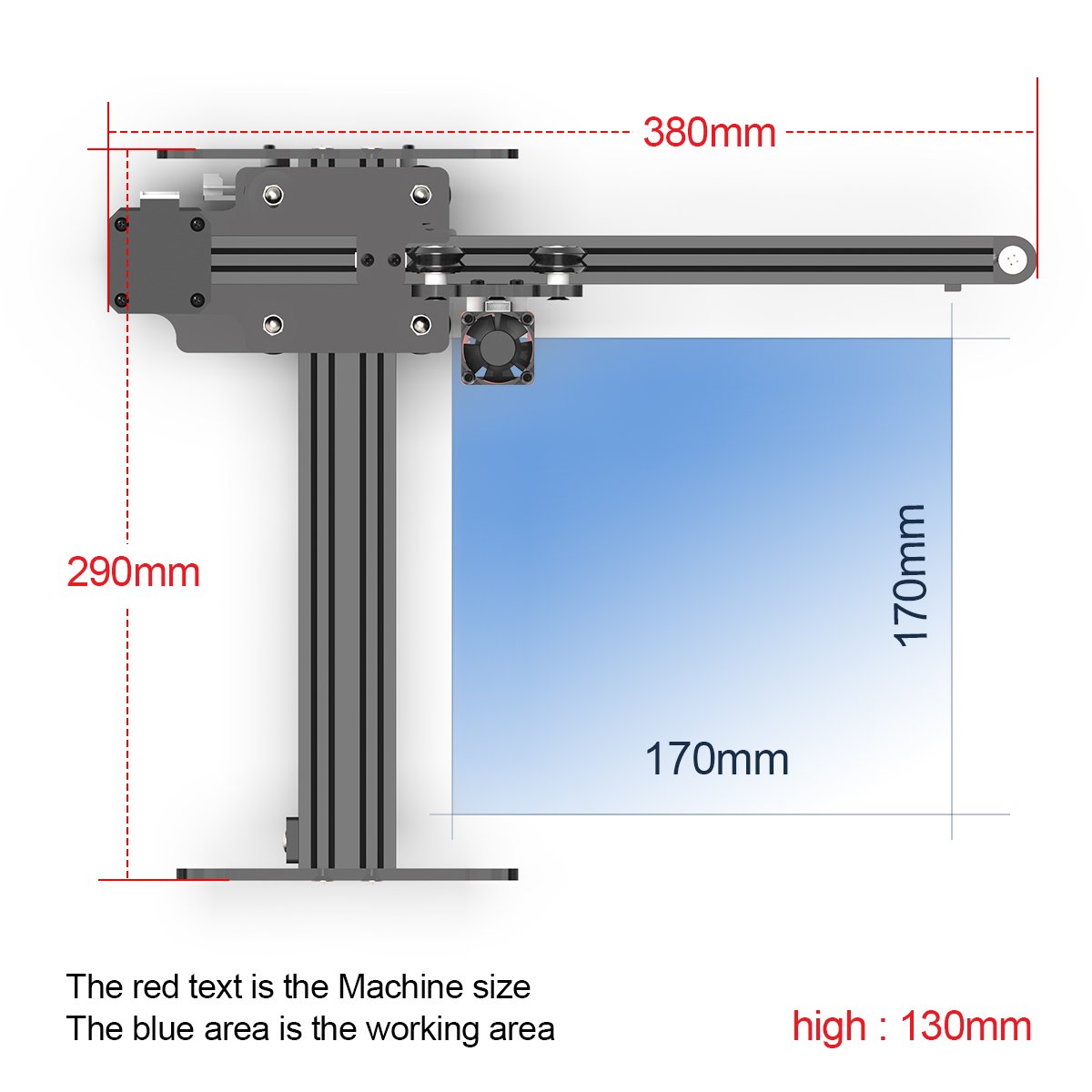

Working Size: 170 x 170 mm

Pixel: 2266 x 2266 px

Dot pitch: 0.075mm

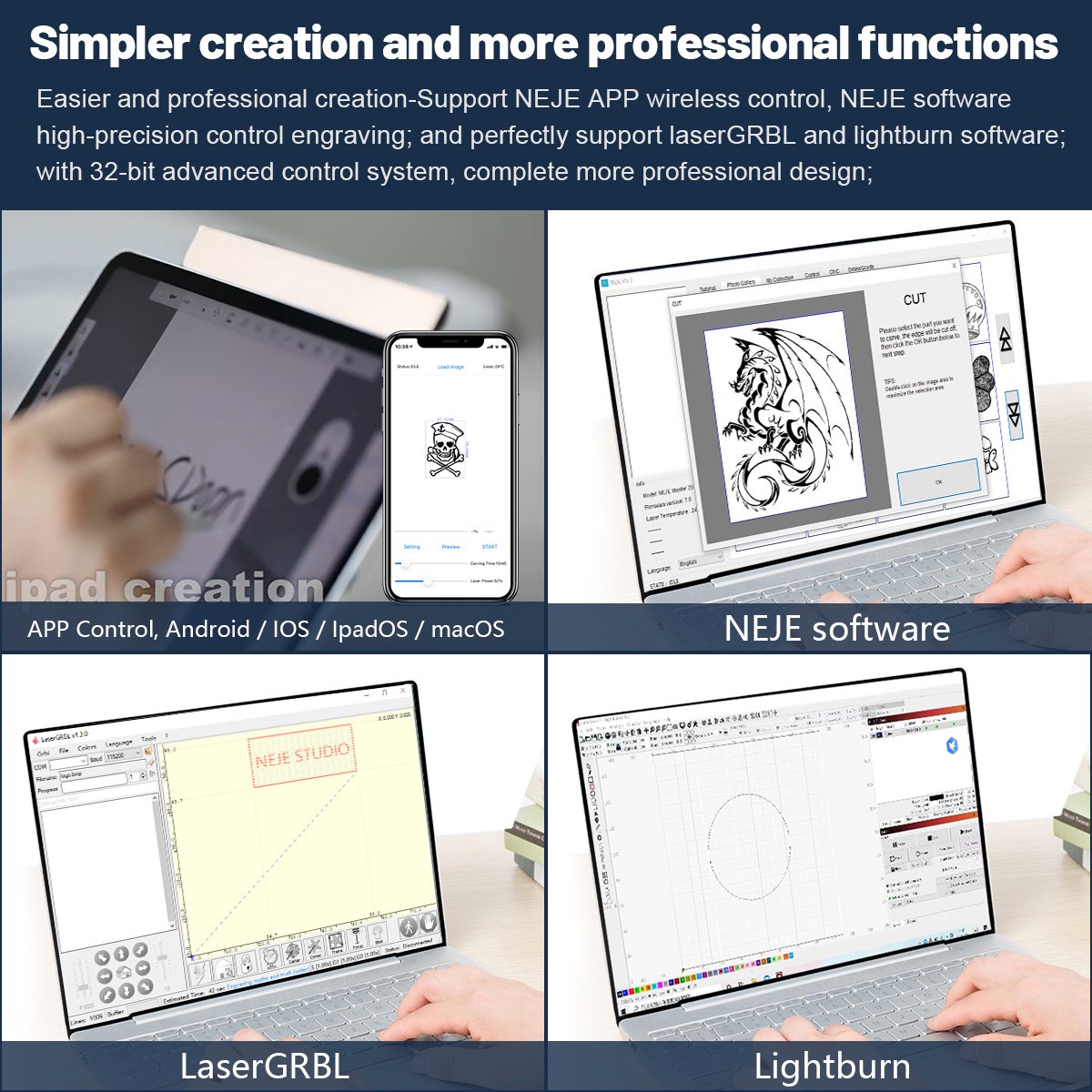

Software: NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.

LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux.

NEJE Software Upgrading Service: YES

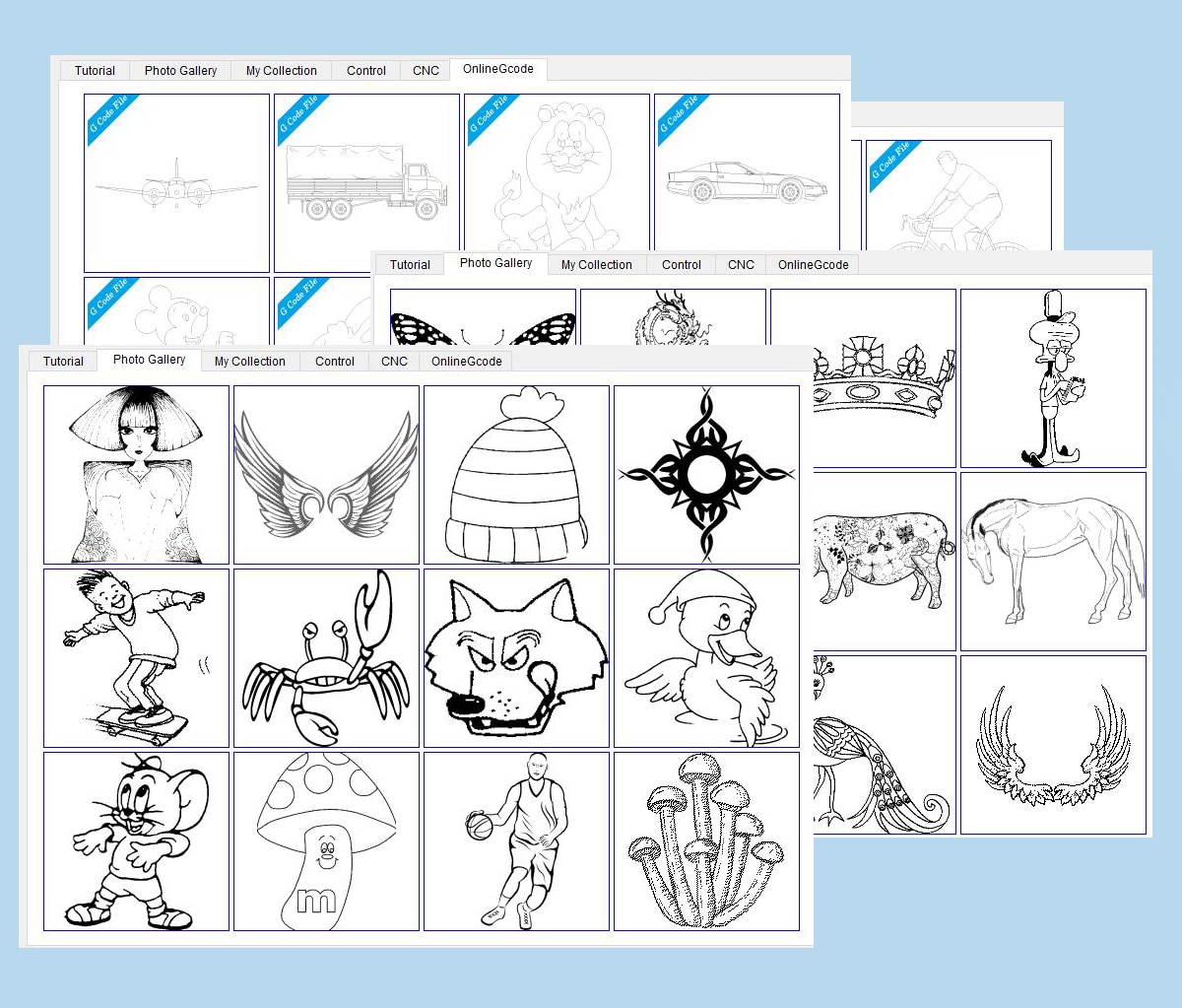

NEJE Cloud Gallery: YES

NEJE Scanner function: YES

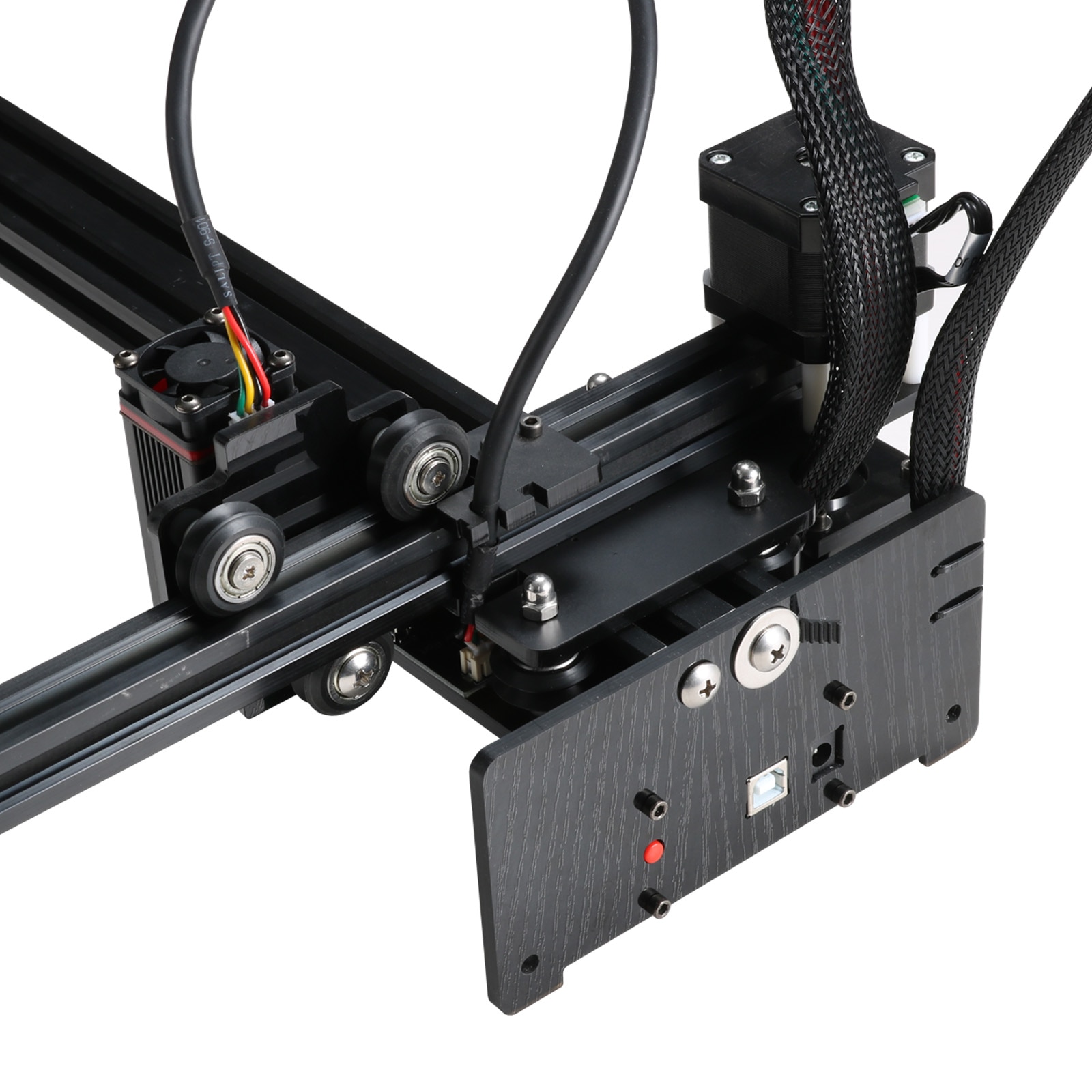

Frame material: CNC Cutting Composite plate, aluminum alloy, acrylic.

Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Continue working: Unlimited

Wavelength： 450nm

Beam Shape： Dot (Focusable)

Drive: Built-in

Lens Material: D-ZK3

Heatsink Material： Aircraft Aluminum + Brass Shell

Luminous Color： Blue

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 3A

Image Format: .bmp .jpg .png .nc .dxf etc..

Plug Type: EU / US (Optional)

NEJE Master 2s Features

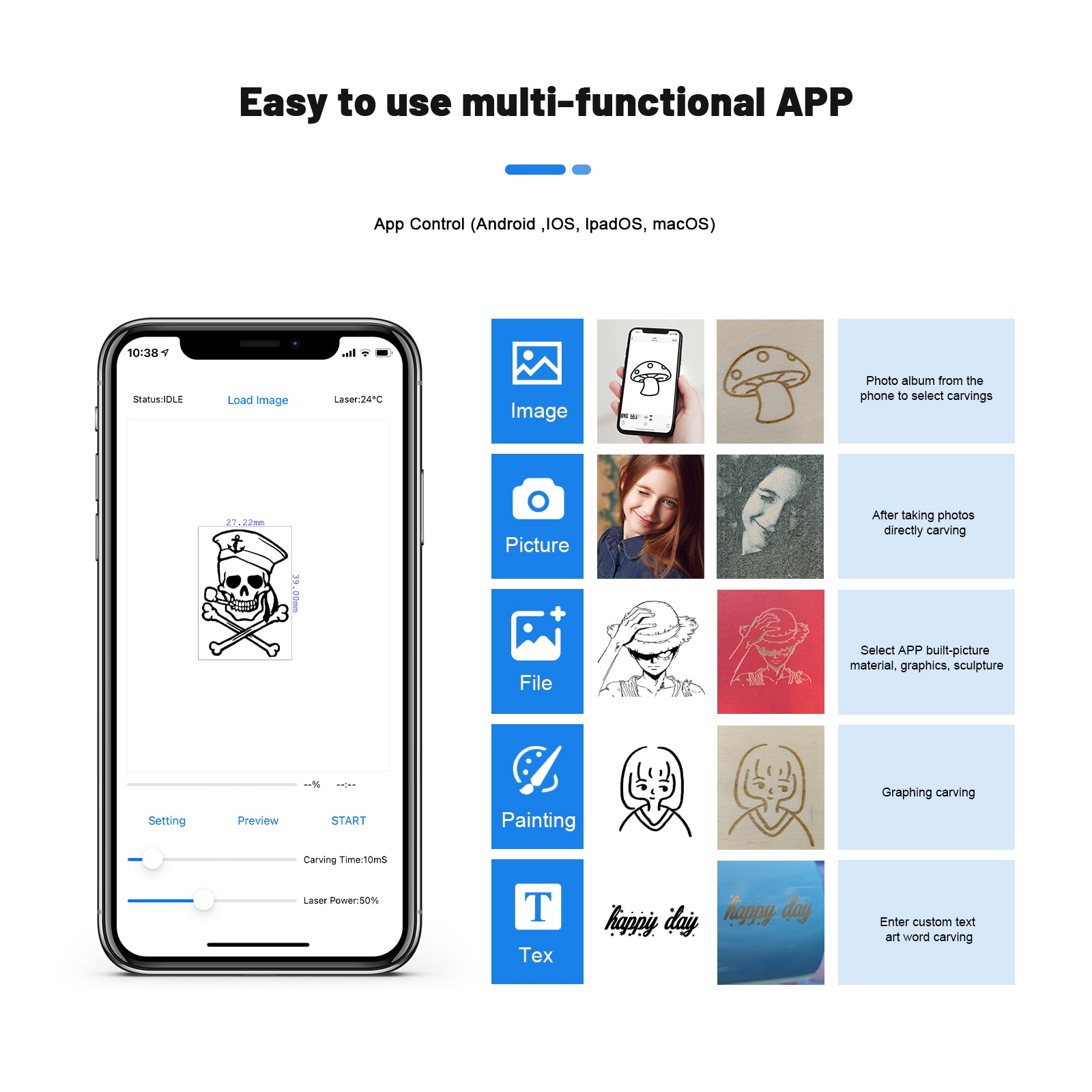

【More Convenient】Off-line and APP Wireless Control. NEJE Scanner Wireless Transfer. Cloud Gallery and Online Gcode Makes Creation Easier.

【Professional CNC software】Benbox , LaserGRBL. 170 x 170 mm Engraving Range. Operating System: windows 7/10 / android / iOS / macOS. Picture format: BMP / PNG / JPG / NC / DXF,etc.”

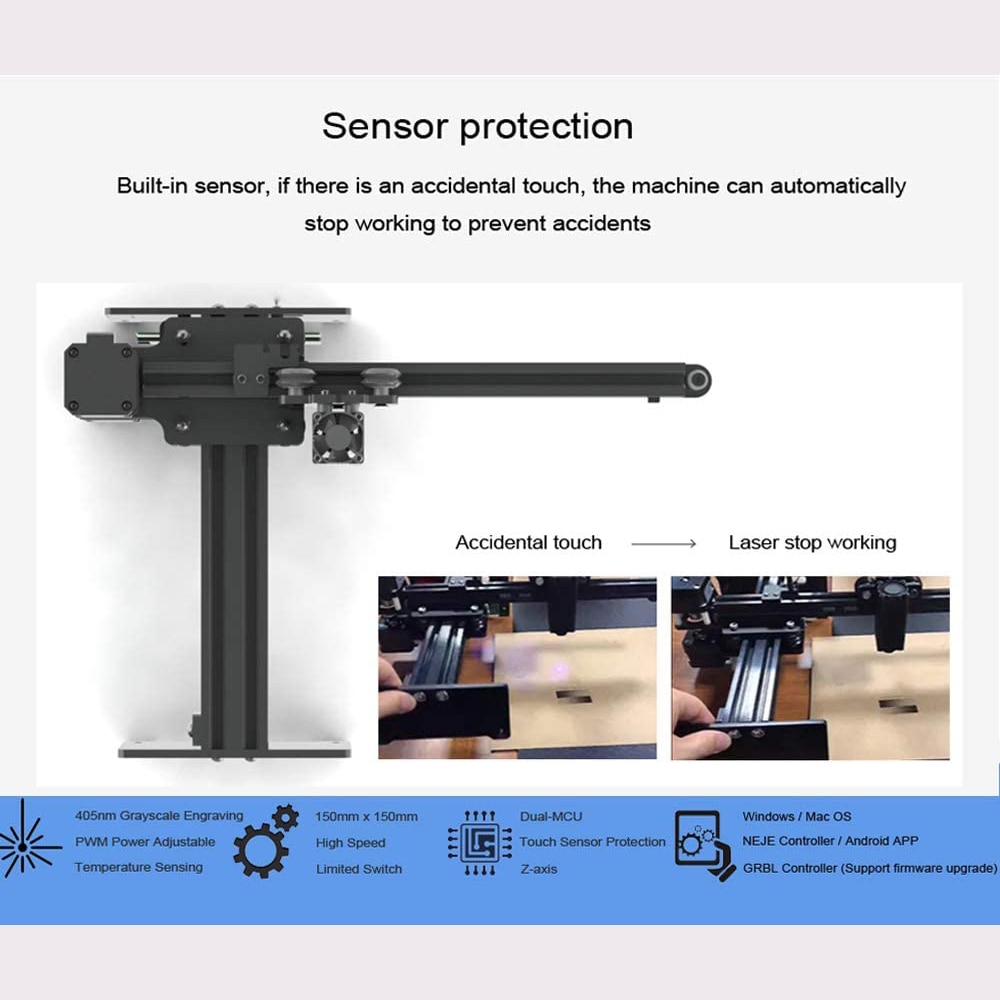

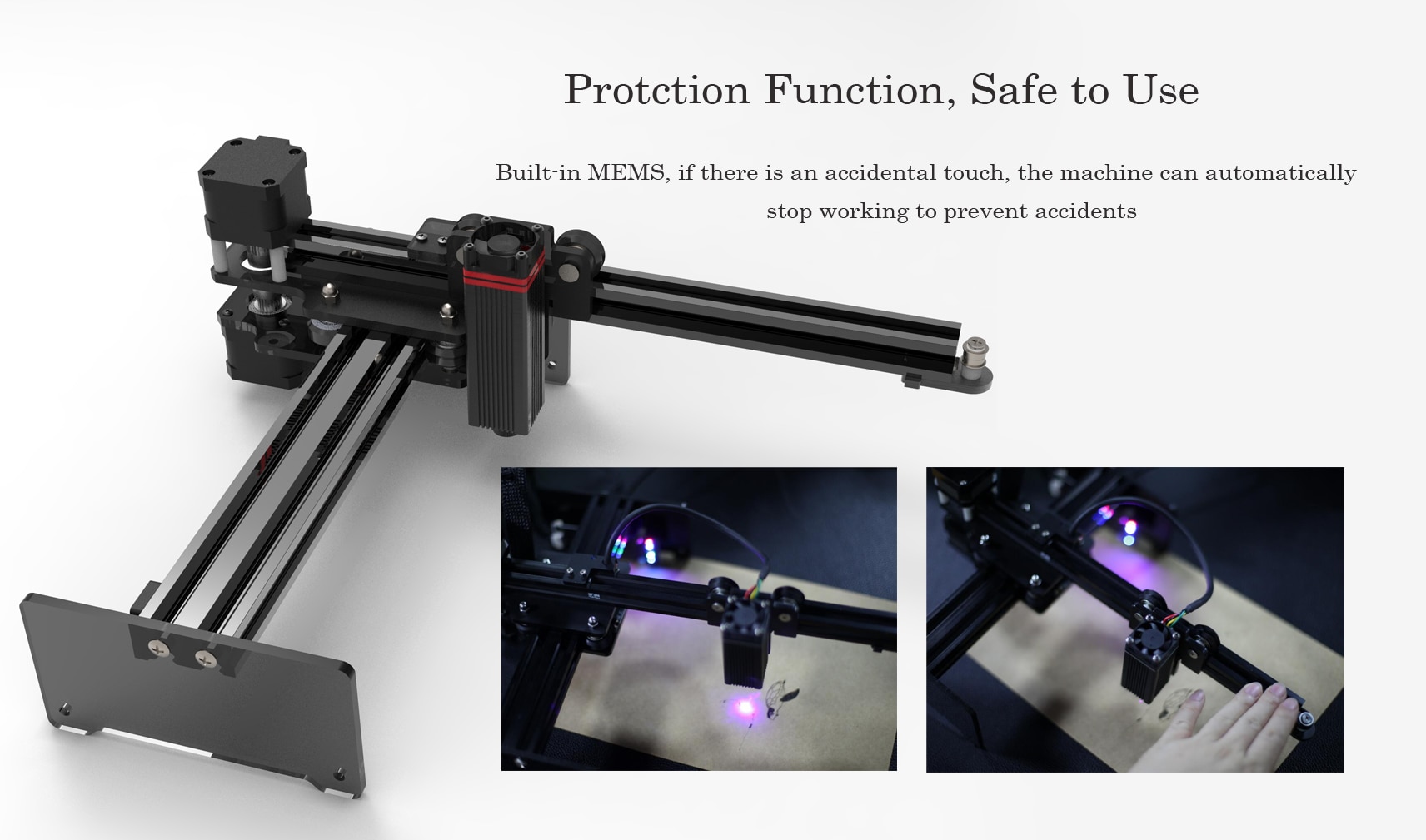

【Safe To Use】Built-in MEMS sensor protection, when accidentally touched, the machine will automatically stop working.

【Carved Material】It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)”

【NEJE Service】We provided 2 years warranty, and full life customer service. If you have any questions about this engraving machine, please contact us, we will reply to you in 24 hours.

NEJE Master 2s N30610 General Specification

Model： NEJE Master 2s N30610

Input Power：10W

Optical Power: 450nm 2.5W

Control Board: 2 x MCU + Wireless control + MEMS

Satety Protection: MEMS

Working Size: 170 x 170 mm

Pixel: 2266 x 2266 px

Dot pitch: 0.075mm

Software: NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.

LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux

NEJE Software Upgrading Service: YES

NEJE Cloud Gallery: YES

NEJE Scanner function: YES

Frame material: CNC Cutting Composite plate, aluminum alloy, acrylic.

Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum

Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Continue working: Unlimited

Wavelength： 450nm

Beam Shape： Dot (Focusable)

Drive: Built-in

Lens Material: D-ZK3

Heatsink Material： Aircraft Aluminum + Brass Shell

Luminous Color： Blue

Input Voltage: AC100-240V, 50/60Hz

Output Voltage: DC12V, 2A

Image Format: .bmp .jpg .png .nc .dxf etc..

Plug Type: EU / US (Optional)

NEJE Master 2s B30635 Product Specification
Model：NEJE Master 2S B30635
Optical Power: 3.5-7W         405nm
Control Board:          2 x MCU + Wireless control + MEMS
Satety Protection:     MEMS
Working Size:           170 x 170 mm
Pixel:      2266 x 2266 px
Dot pitch:  0.075mm
Software:   NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.
LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux.
NEJE Software Upgrading Service: YES
NEJE Cloud Gallery:  YES
NEJE Scanner function:  YES
Frame material:    CNC Cutting Composite plate, aluminum alloy, acrylic.
Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Continue working:    Unlimited
Wavelength：405nm
Beam Shape：Dot (Focusable)
Drive:  Built-in
Lens Material:           D-ZK3
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 2A
Image Format: .bmp .jpg .png .nc .dxf   etc..
Plug Type: EU / US (Optional)


(N30820) Package list

1 X Master 2S Laser Engraving Machine
1 X 20W (N30820) Laser Module
4 X Nuts
1 X goggle
1 X L-shaped wrench
1 X USB Cable
1 X 12V3A Power Adapter
1 X Power adapter
1 X Small Wooden block
1 X Test Paper

(N30610) Package list

1 X Master 2S Laser Engraving Machine
1 X 10W (N30610) Laser Module
4 X Nuts
1 X goggle
1 X L-shaped wrench
1 X USB Cable
1 X 12V2A Power Adapter
1 X Power adapter
1 X Small Wooden block
1 X Test Paper
(B30635) Package list

1 X Master 2S Laser Engraving Machine
1 X 7W (B30635) Laser Module
4 X Nuts
1 X goggle
1 X L-shaped wrench
1 X USB Cable
1 X 12V2A Power Adapter
1 X Power adapter
1 X Small Wooden block
1 X Test Paper

Please note

If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.

Do not accept bad reviews and disputes due to tariffs.
