NEJE Master 2s 20W CNC Laser Engraving Cutting Machine Portable Laser Wood Engraver Cutter Printer Router APP Control Bluetooth

$576.72

SKU: 4001254339904 Category:

Description

  • Brand Name: NEJE
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: Master 2s 20W
  • CNC or Not: Normal
  • Is Smart Device: YES

Product Description
Model:                 NEJE Master 2s 20W
Optical Power:         450nm 5.5W
Control Board:          2 x MCU + Wireless control + MEMS
Satety Protection:     MEMS
Working Size:           170 x 170 mm
Pixel:      2266 x 2266 px
Dot pitch:  0.075mm
Wavelength: 450nm
Beam Shape: Dot (Focusable)
Drive:  Built-in
Lens Material:           D-ZK3
Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 3A
Image Format: .bmp .jpg .png .nc .dxf   etc..
Software:   NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.
LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux.
NEJE Software Upgrading Service: YES
NEJE Cloud Gallery:  YES
NEJE Scanner function:  YES
Frame material:    CNC Cutting Composite plate, aluminum alloy, acrylic.
Can Be Engraving:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Description:
1.NEJE Master 2 is a engraving and cutting machine for area ( 170x170mm ), with its main structure being formed by unique special composite materials and CNC process precision assembly, which enables the machine with durability without deformation, ensuring long-term service life and high accuracy.
2.NEJE Master 2 is equipped with 2 processors and can support 2 firmwares at the same time. When starting the software, the machine will automatically recognize the software and connect to it. In NEJE mode, NEJE Windows software works with NEJE Android APP. This mode is suitable for beginners, which is simple and can help create high-quality works.
3. NEJE software provides cloud services, with numerous high-quality materials to help you create better works.
4.NEJE’s online G-code helps beginners to easily understand the G-code world.
5.In NEJE mode, with built-in sensor protection function, if the position changes when the machine is working, the machine will stop working to protect it from damage.
6.Another processor is Atmel, which supports BENBOX firmware and GRBL 1.1F firmware. Both these two modes are suitable for professional players to handle G-code.

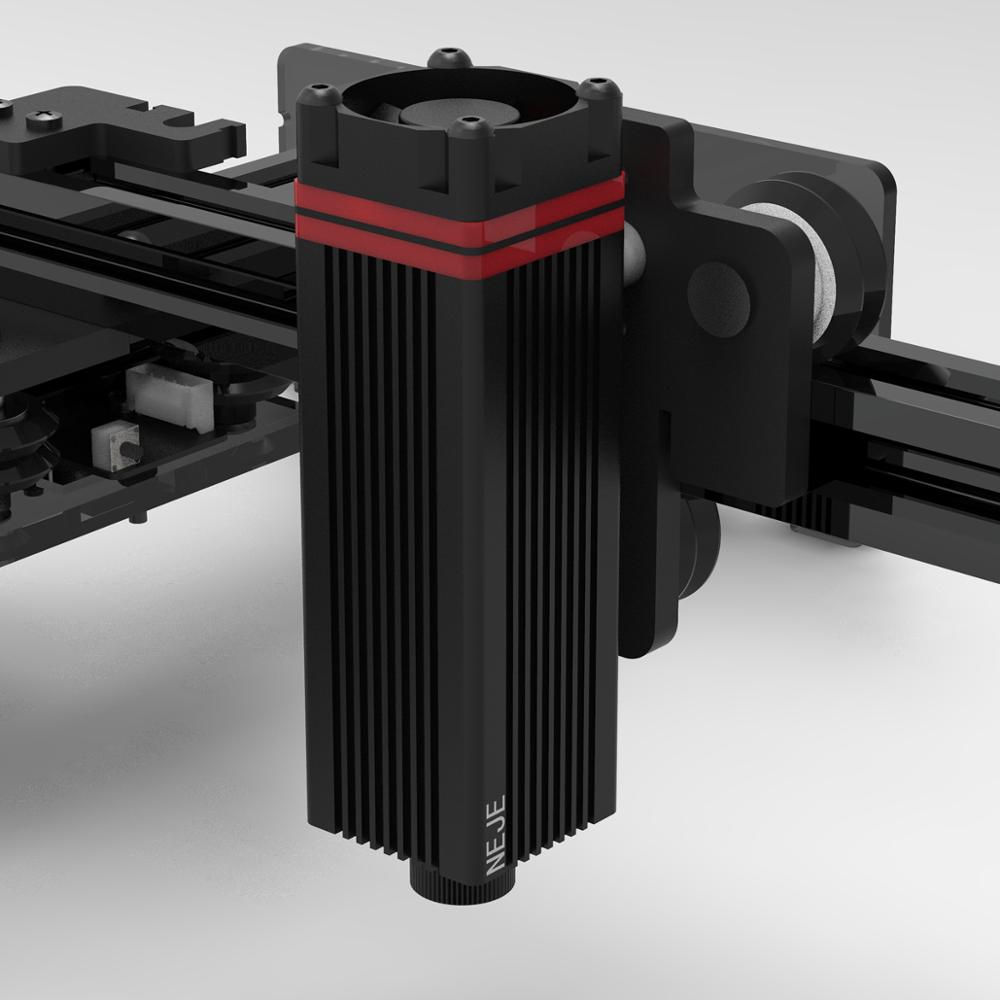

7.NEJE Module is equipped with temperature sensing. Each NEJE laser has undergone long-term aging test to ensure that the heat dissipation is controlled within 70 degrees Celsius. Laser modules without temperature sensing function cannot ensure that the laser can work for a long time because it is impossible to detect the quality for the mode in which the temperature cannot be measured.

Package list

1 * Master 2 Laser Engraving Machine
1 * Laser Module
4 * Nuts
1 * goggle
1 * L-shaped wrench
1 * USB Cable
1 * 12V3A Power Adapter
1 * Power adapter
1 * Small Wooden block
1 * Test Paper
