NEJE MASTER 2 MINI HIGH SPEED LASER ENGRAVER WITH N25410 10W LASER MODULE- 110 X 120MM – APP CONTROL – MEMS PROTECTION

$214.04

SKU: 114904736018651 Category:

Description

Hot models

    Mini CNC 3040                  5 Axis-3040                     New 5 Axis-6040







This machine Can not work for any metals,for metals please buy below models:



             Steel frame CNC 3040                         CNC 6040 with chiller                   CNC 6090 with chiller





Product Description

NEJE MASTER 2 MINI HIGH SPEED LASER ENGRAVER WITH N25410  10W LASER MODULE- 110 X 120MM –  APP CONTROL – MEMS PROTECTION

Feature

-[110 x 120 mm]The 12V power supply can be used on the wall, on the top, at any place, and protected by the MEMS vibration protection sensor, which can complete the fine engraving and cutting process. The X-axis motion module is only 59g, the weight of the matching module is only 56g, and it is driven by a 42mm high-performance stepper motor, which brings an extremely fast engraving experience, 1466 x 1600 pixels, engraving accuracy: 0.075 mm dot pitch, 339 dots/ inch. Test the function of the whole machine and use it directly.

-[Advanced laser module]]This machine can be equipped with N25410 and B25425 lightweight design CW modules, these two modules have very fine focus, respectively 0.03×0.03 and 0.01×0.01mm, B25425 is 405nm, has Grayscale is better. N30610 is suitable for logo, icon, simple cutting and other processes. Built-in fast intelligent drive, temperature feedback can be timely, and intelligently adjust fan heat dissipation. Safe and quiet to use.

-[More materials, clearer] Wood, MDF, leather, paper, etc. all support engraving. Stainless steel, glass, transparent acrylic, etc. can be engraved by spraying, thermal transfer and other methods.

-[Portable professional control software] The fastest speed can reach 400000mm/min, support NEJE computer software, NEJE APP (Android, iOS, ipadOS, macOS), take photos with mobile phones or select images from photo albums to complete works more quickly, NEJE provides free software Upgrade service.

General Specification
Model: Master 2 mini
Optical Power: 450nm 2.5W
Control Board: 1 x MCU + Wireless control + MEMS
Satety Protection: MEMS

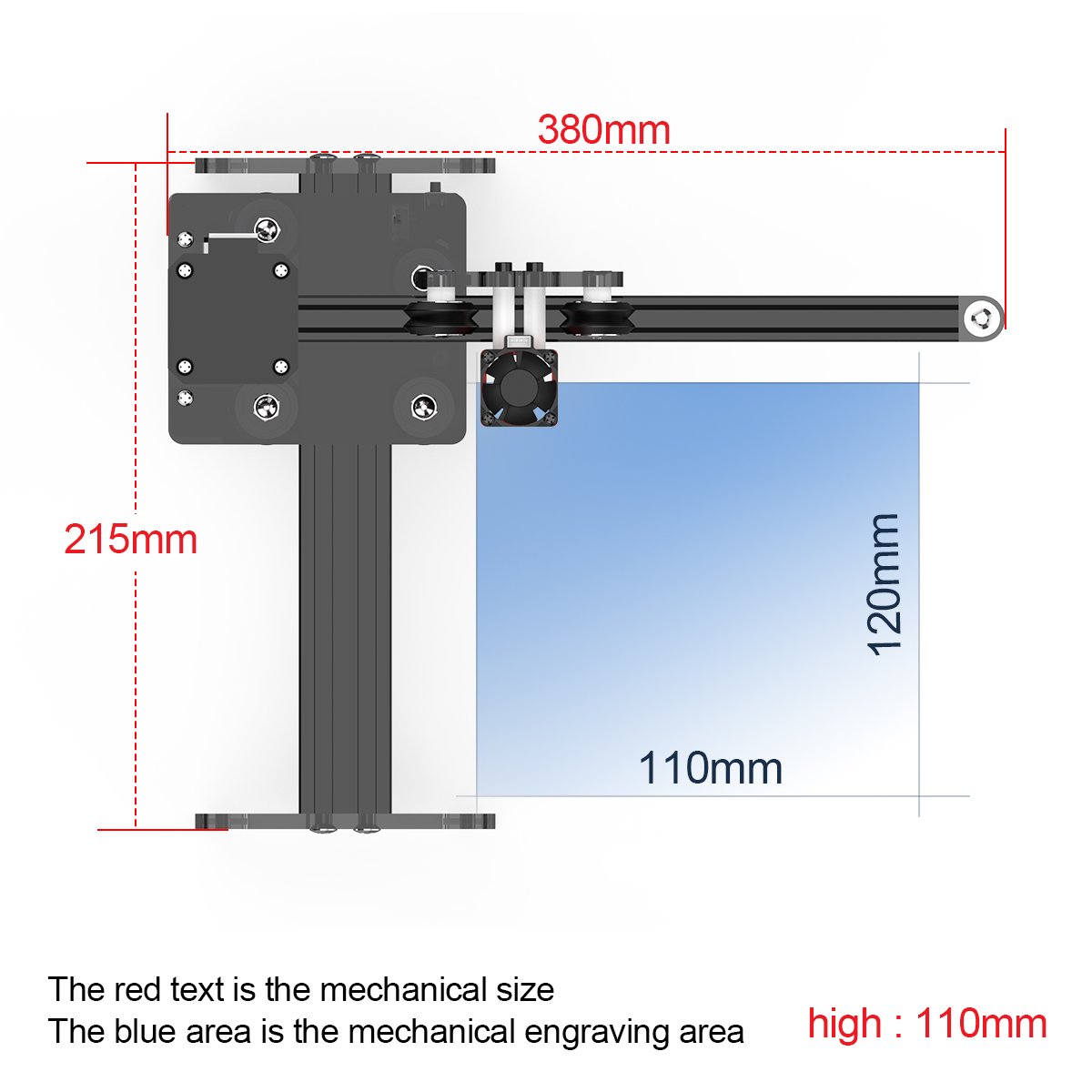

Working Size: 110 x 120 mm
Pixel: 1466 x 1600 px
Dot pitch: 0.075mm
Software: NEJE APP for Android, NEJE Wireless APP for iOS / ipadOS / macOS, NEJE software for windows,N-Scanner APP for Android.
NEJE Software Upgrading Service: YES
NEJE Cloud Gallery: YES
NEJE Scanner function: YES
Frame material: CNC Cutting Composite plate, aluminum alloy, acrylic.
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Continue working: Unlimited
Wavelength: 450nm
Beam Shape: Dot (Focusable)
Drive: Built-in
Lens Material: D-ZK3
Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue

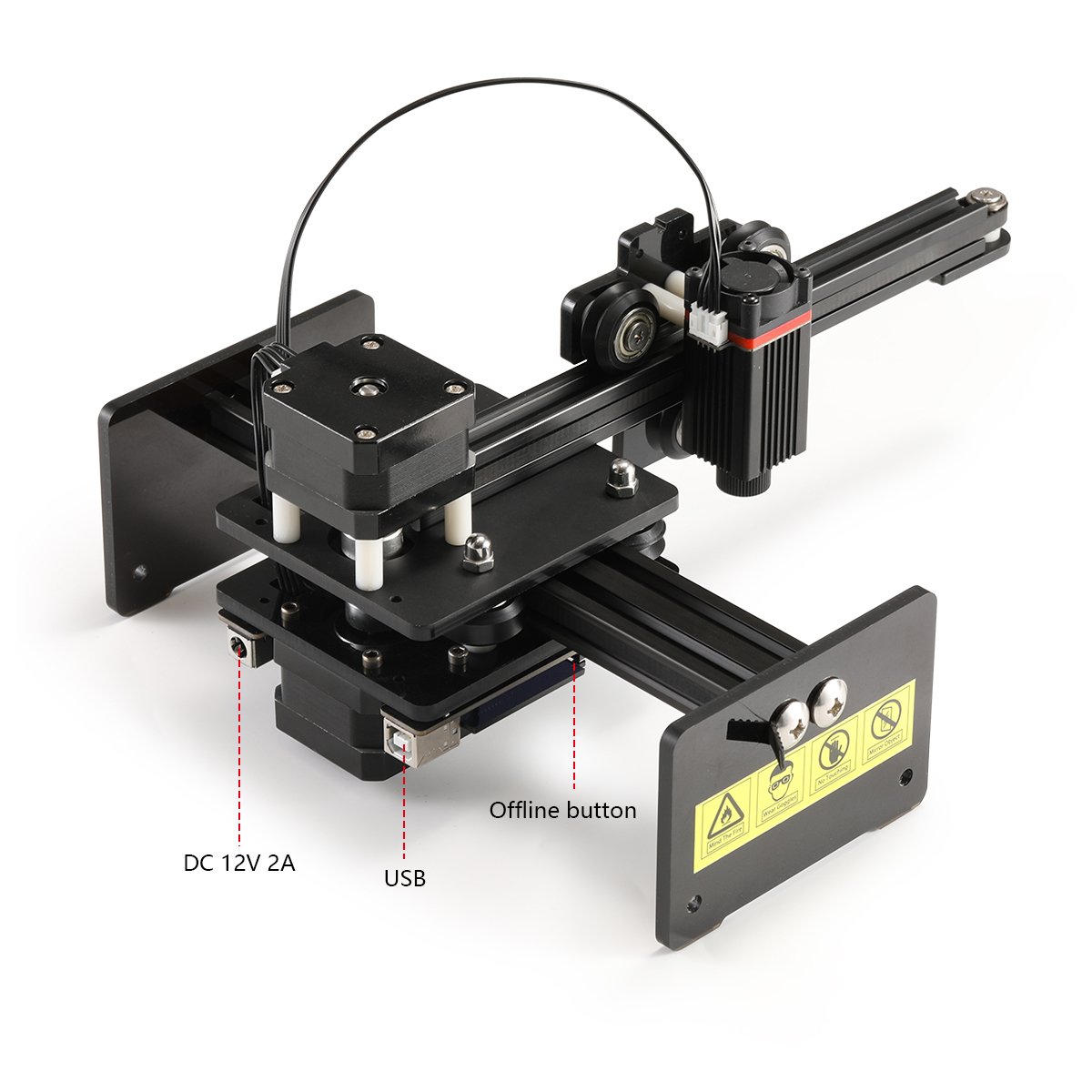

Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 2A
Image Format: .bmp .jpg .png .nc .dxf etc..
Plug Type: EU / US (Optional)

Features
[More Convenient and faster]Off-line and APP Wireless Control. 360°Engraving, High Speed, save more time. Cloud Gallery and Online Gcode Make Creation Easier.
[Professional CNC software]110 x 120 mm Engraving Range. Operating System: Windows 7/10 / Android / iOS / iPad/ MacOS. Picture format: BMP / PNG / JPG / NC / DXF,etc.”
[Safe To Use]Built-in MEMS sensor protection, when accidentally touched, the machine will automatically stop working.
[Carved Material]It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)”

Note(Please pay attention)
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects,Pay attention to fire,Pay attention to pets when working!
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
5. If you have any quality problems with the machine, please feel free to contact us. Many operative problems can be solved according to your video and problem description. Thank you in advance.

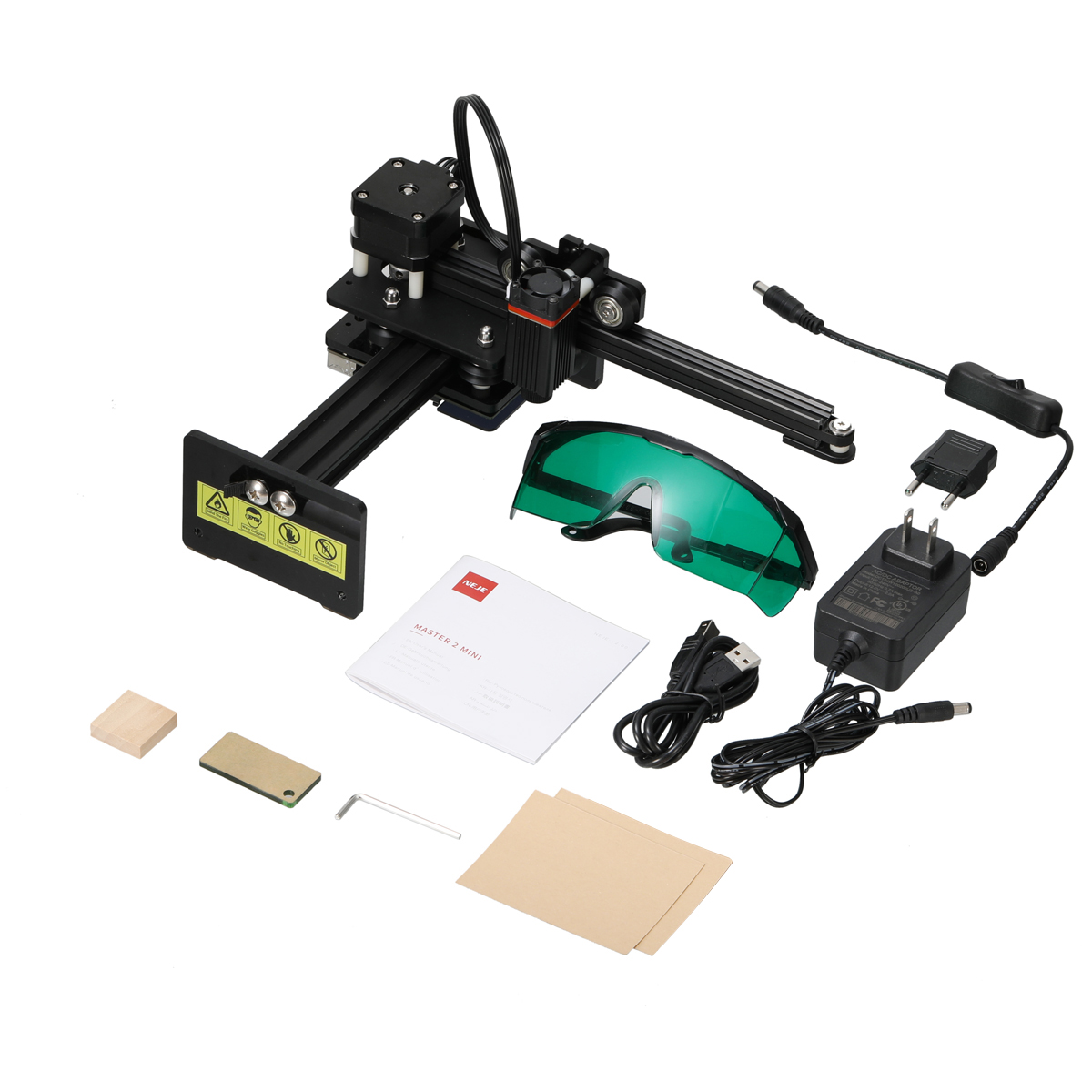

Package Included
1 x Laser Engraving Machine
1 x goggle
1 x Manual
1 x ON/OFF Switch Cable
1 x USB Cable
1 x 12V2A Power Adapter
1 x L-shaped wrench
2 x Test Paper
1 x wooden block
1 x Focusing plate

000.jpg00001.jpg002.jpg003.jpg004.jpg005.jpg006.jpg008.jpg0014.jpg0015.jpg0016.jpg0017.jpg0018.jpg019.jpg0020.jpg0021.jpga1.jpga2.jpga3.jpga5.jpga6.jpga10.jpga11.jpga12.jpga13.jpga14.png





Additional information

Power

10W
