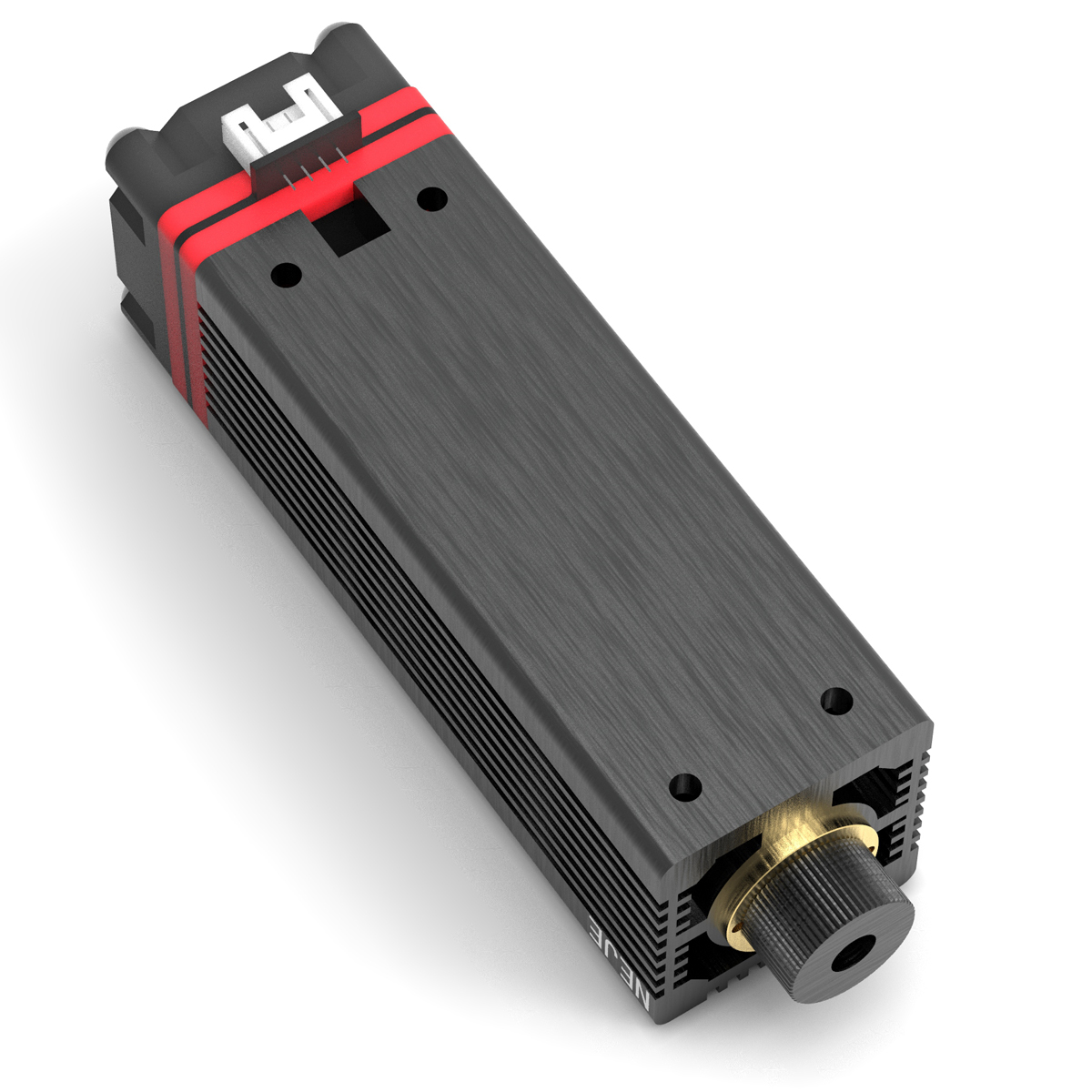

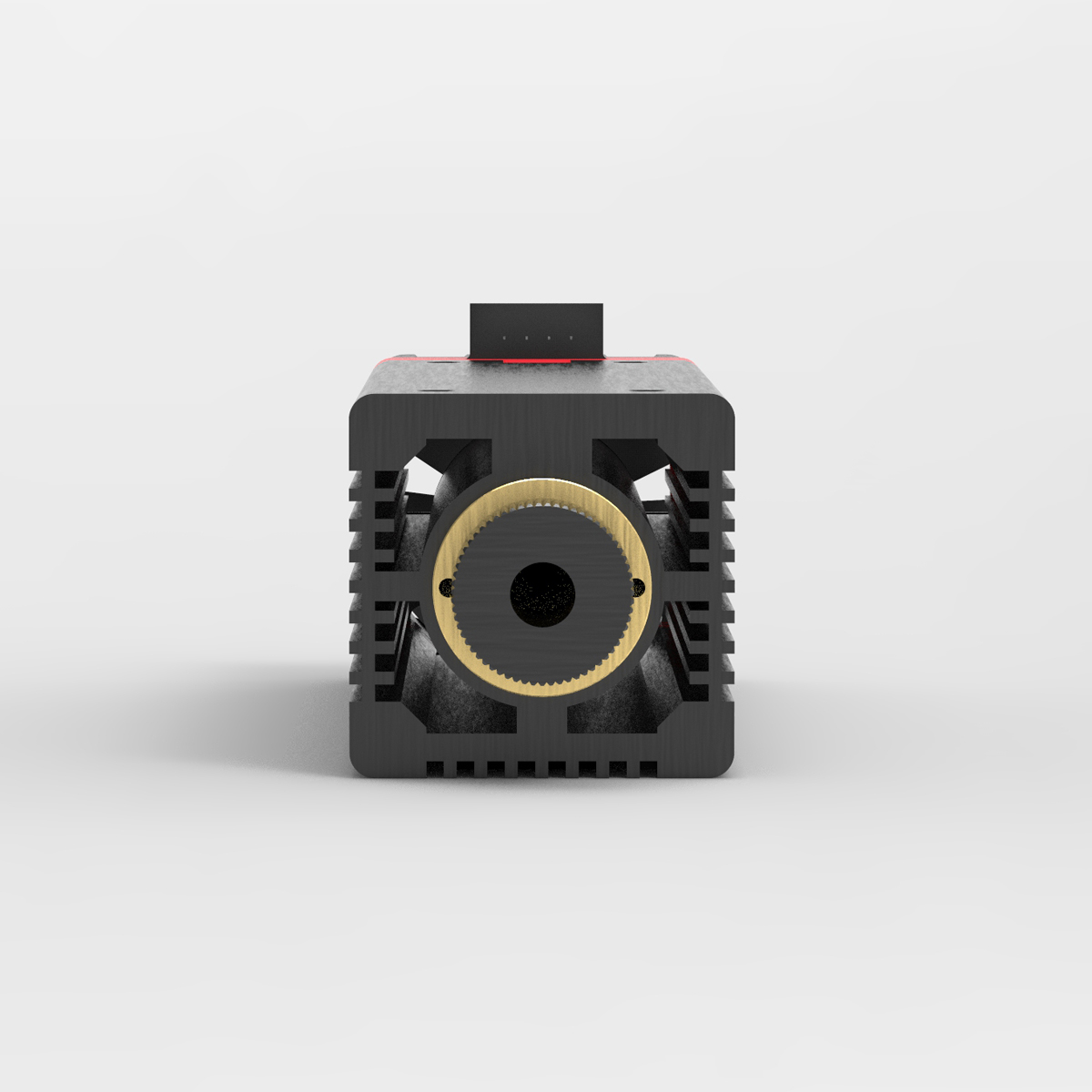

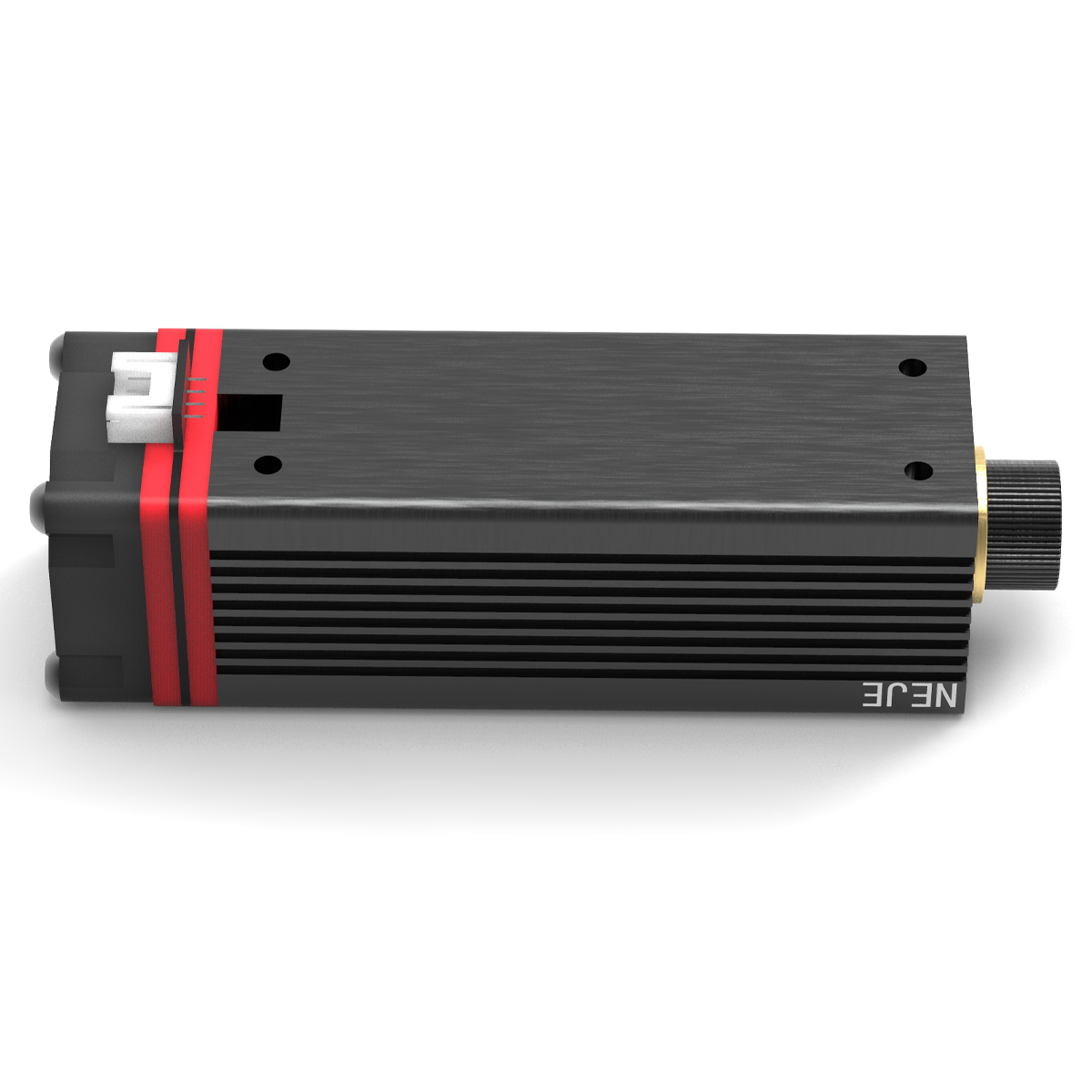

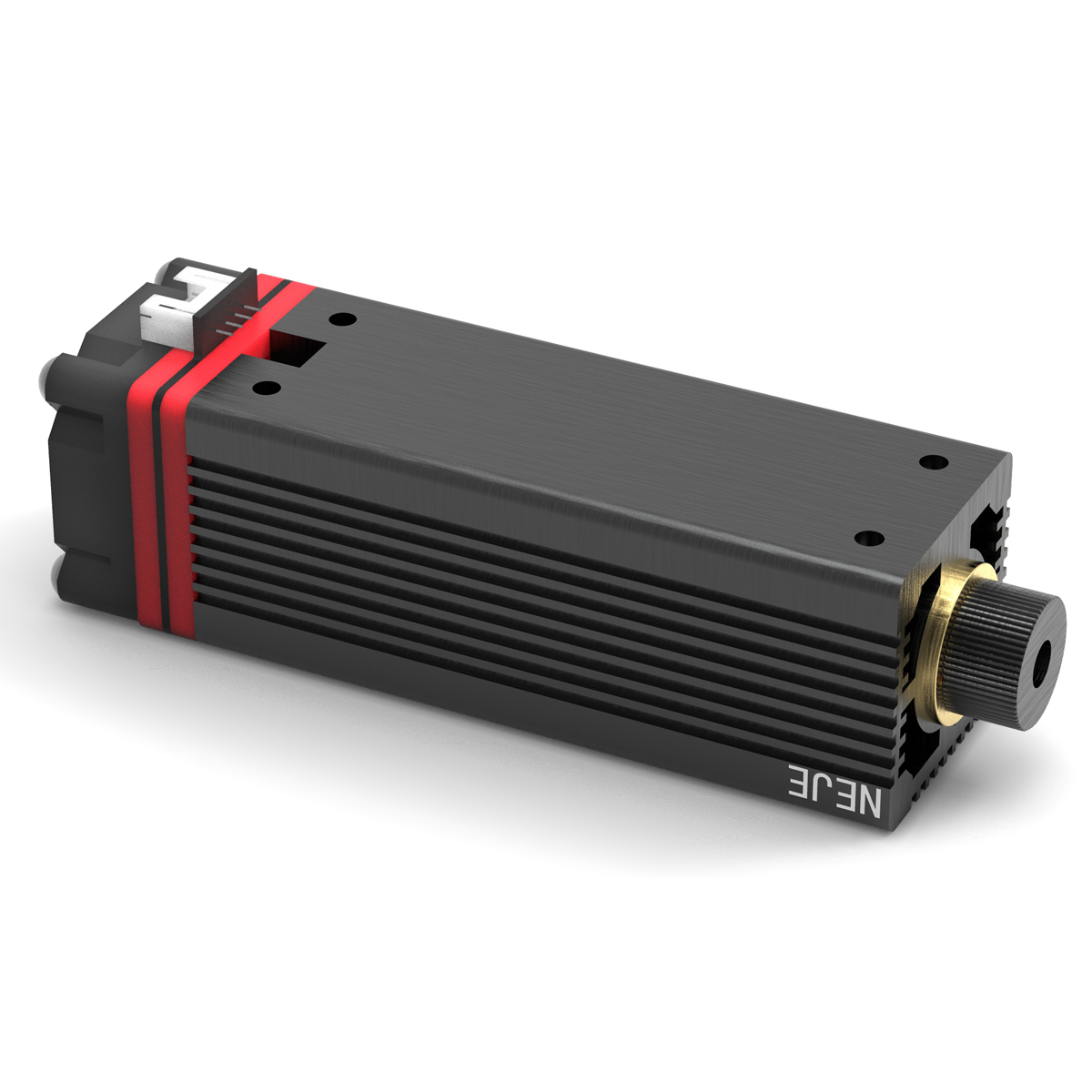

NEJE Laser Engraving Machine Diode Laser Module Head 20W

  • Home
  • NEJE Laser Engraving Machine Diode Laser Module Head 20W
Sale!

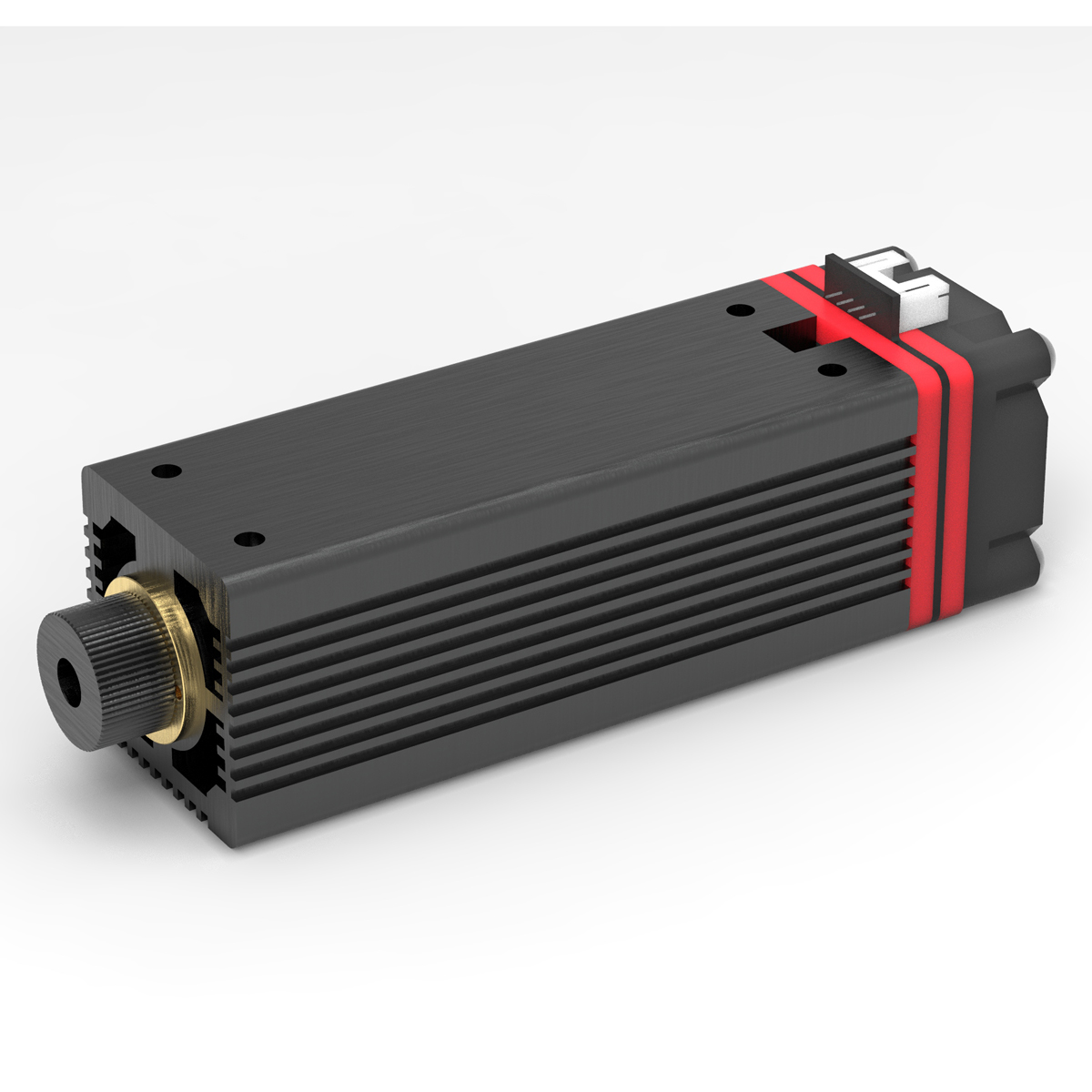

NEJE Laser Engraving Machine Diode Laser Module Head 20W

$204.60

1000 in stock

SKU: 1005003402237783 Category:

Description

  • Brand Name: LanYuXuan
  • Certification: ce
  • Origin: CN(Origin)
  • Place of Origin: China
  • Condition: New
  • Warranty: 1.5 years
  • Brand Name: NEJE
  • Interface specification: 4pin PH2.0
  • Wavelength: 450nm
  • Radiator size: 30*80mm
  • Material: copper aluminum
  • Weight: 202g
  • Drive position: built-in
  • Input power: approx. 12V2A 20W (without fan power)
  • Output optical power: 5.5W
  • Fan speed: 15000 rpm
  • Focus range: 5-50mm

NEJE Laser Engraving Machine Diode Laser Module Head 20W

NOTE: It is heavier, not suitable for engraving,
only suitable for cutting!
Main applications: cutting, drawing
etc. Interface specification: 4pin PH2.0

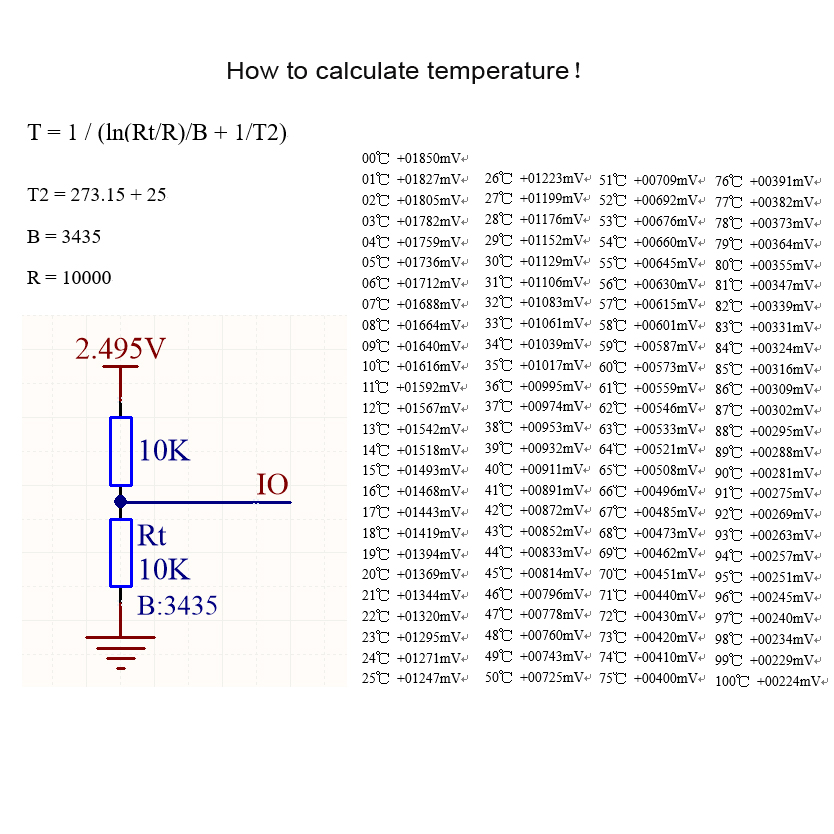

 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Wavelength: 450nm
Radiator size: 30*80mm
Material: copper + aluminum
Weight: 202g

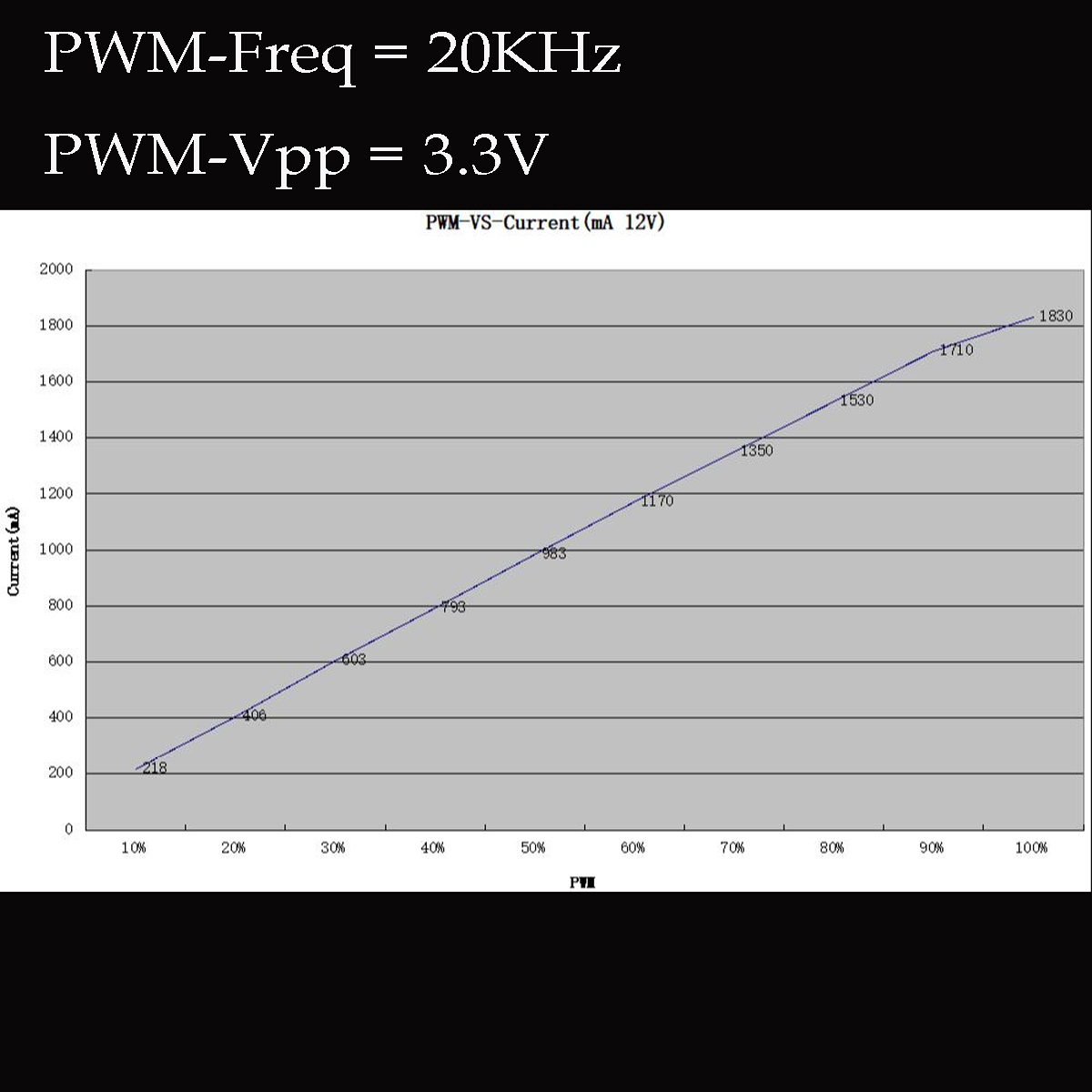

Drive position: built-in Is the power adjustable: PWM can be adjusted Drive
protection: surge protection, overvoltage protection
Input power: approx. 12V2A ≈ 20W (without fan power)
Output optical power: 5.5W
Line length: 300mm Control line installation
method: pluggable

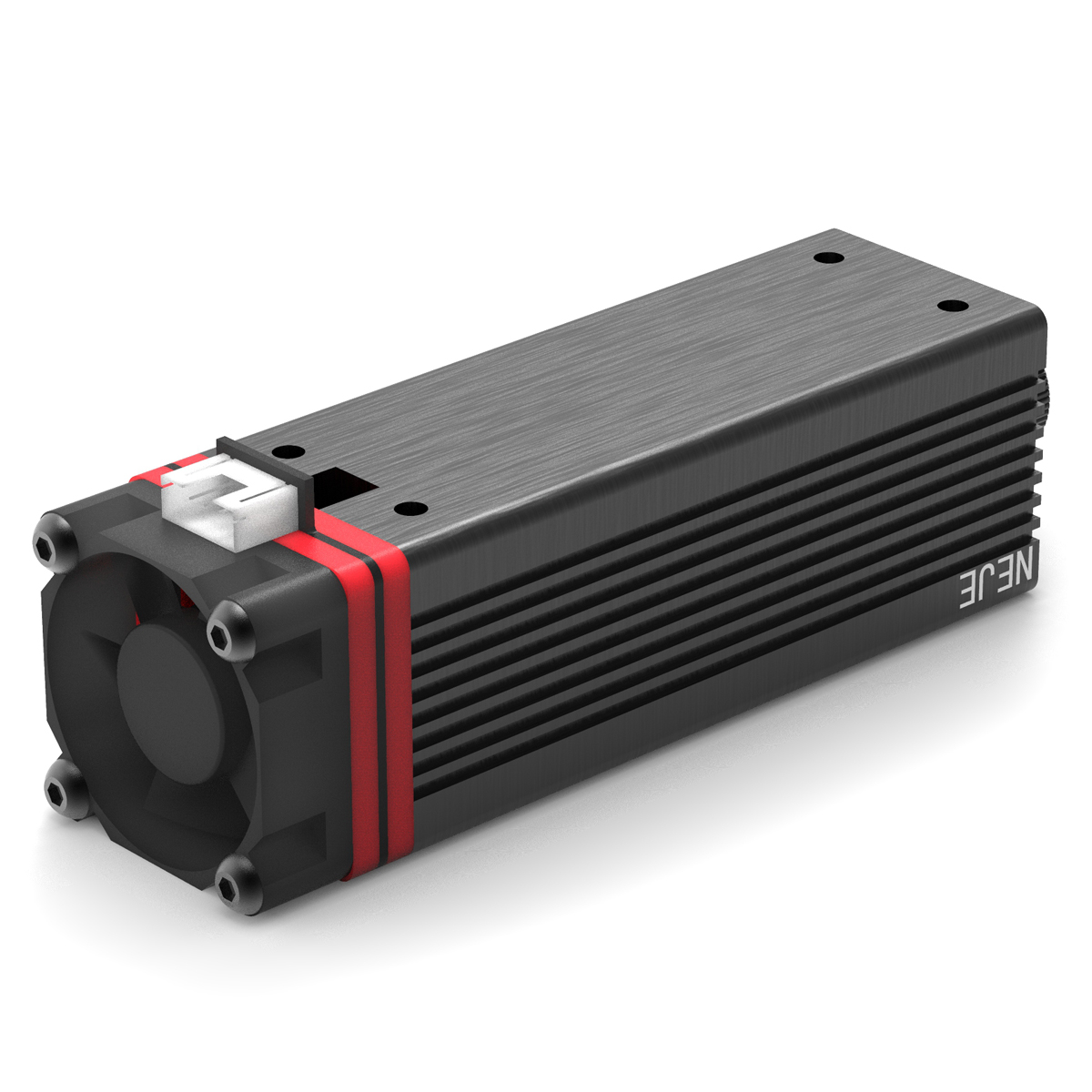

Fan size: 30*10mm
Fan speed: 15000 rpm
Controllable temperature: less than 60 degrees
Celsius Focus range: 5-50mm
Best focal length: 10mm from the light exit
Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master
Note: NEJE Master comes standard with 12V2A charger.
If you want to upgrade your old machine, you need to prepare another 12V3A power supply.
packing list: 1 x module 2 x screw 2 x gasket 1 x control line
