NEJE Laser Engraving Machine Diode Laser Module Head 20W

$125.99

SKU: 3356091012971 Category:

Description

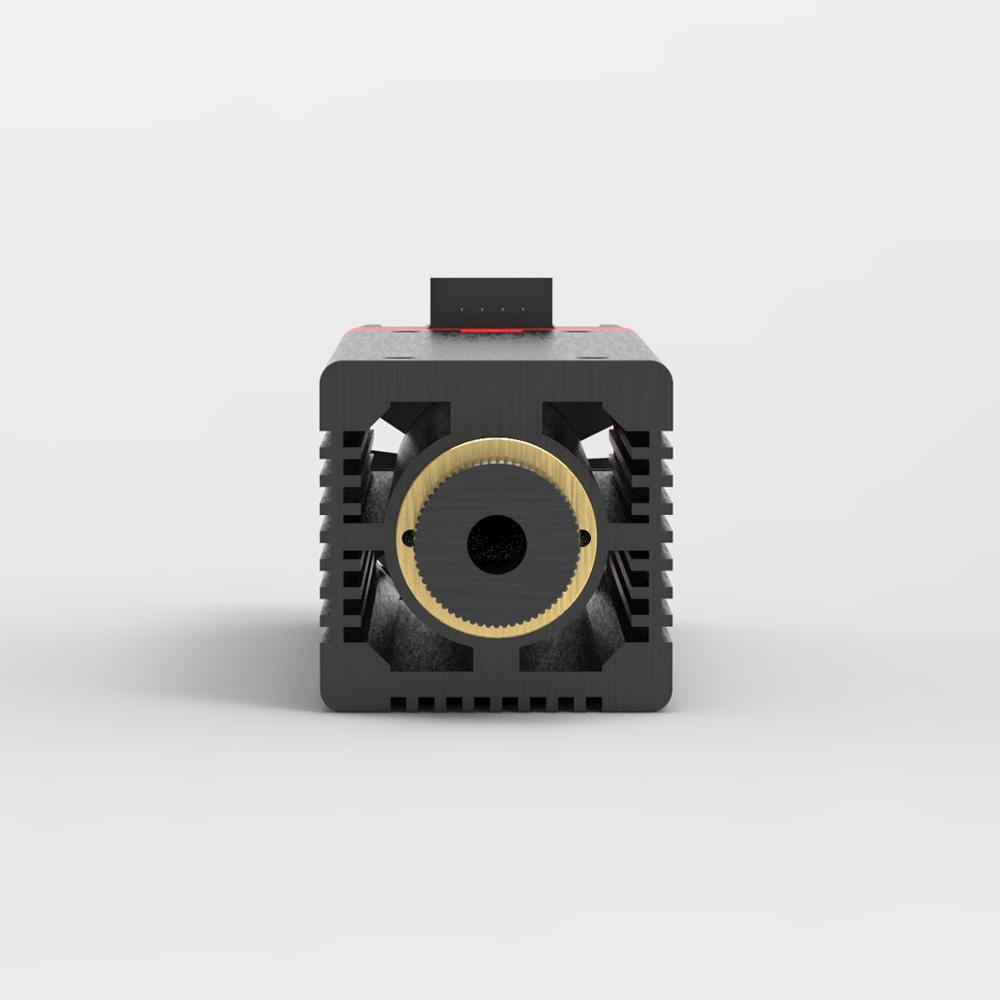

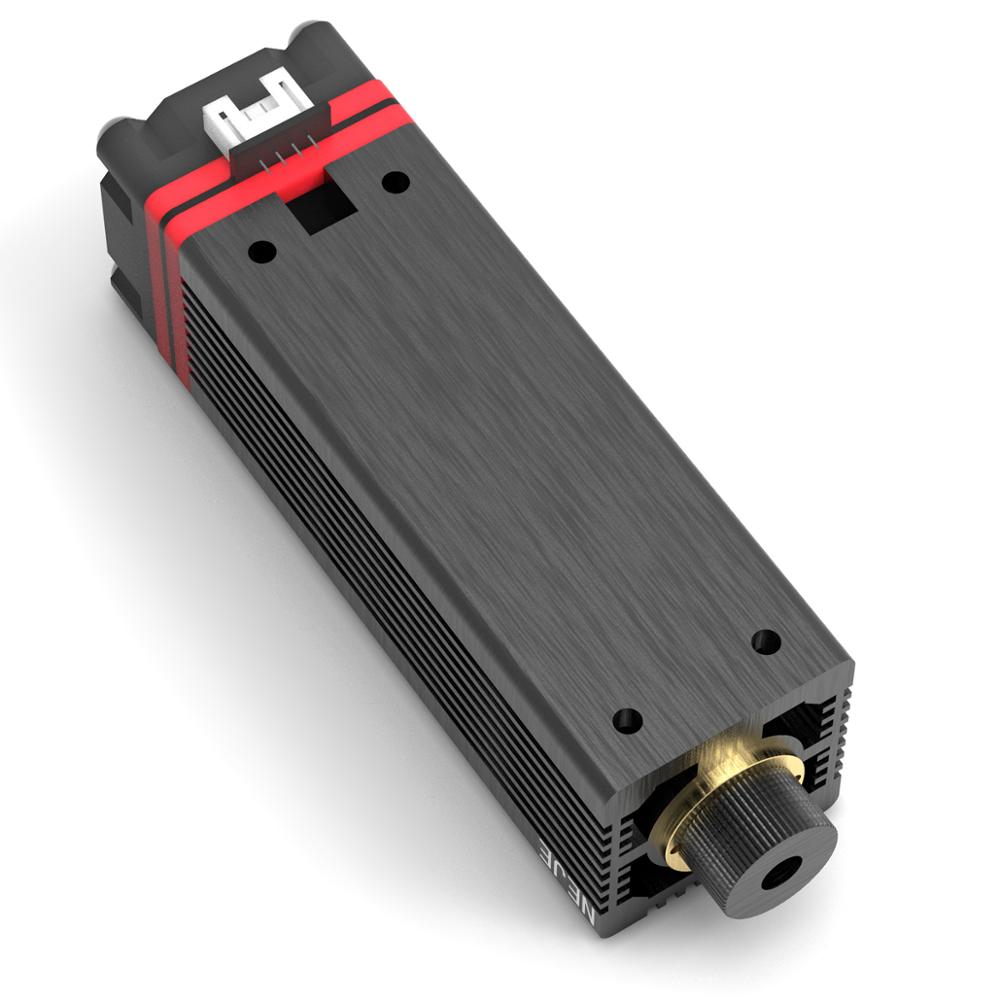

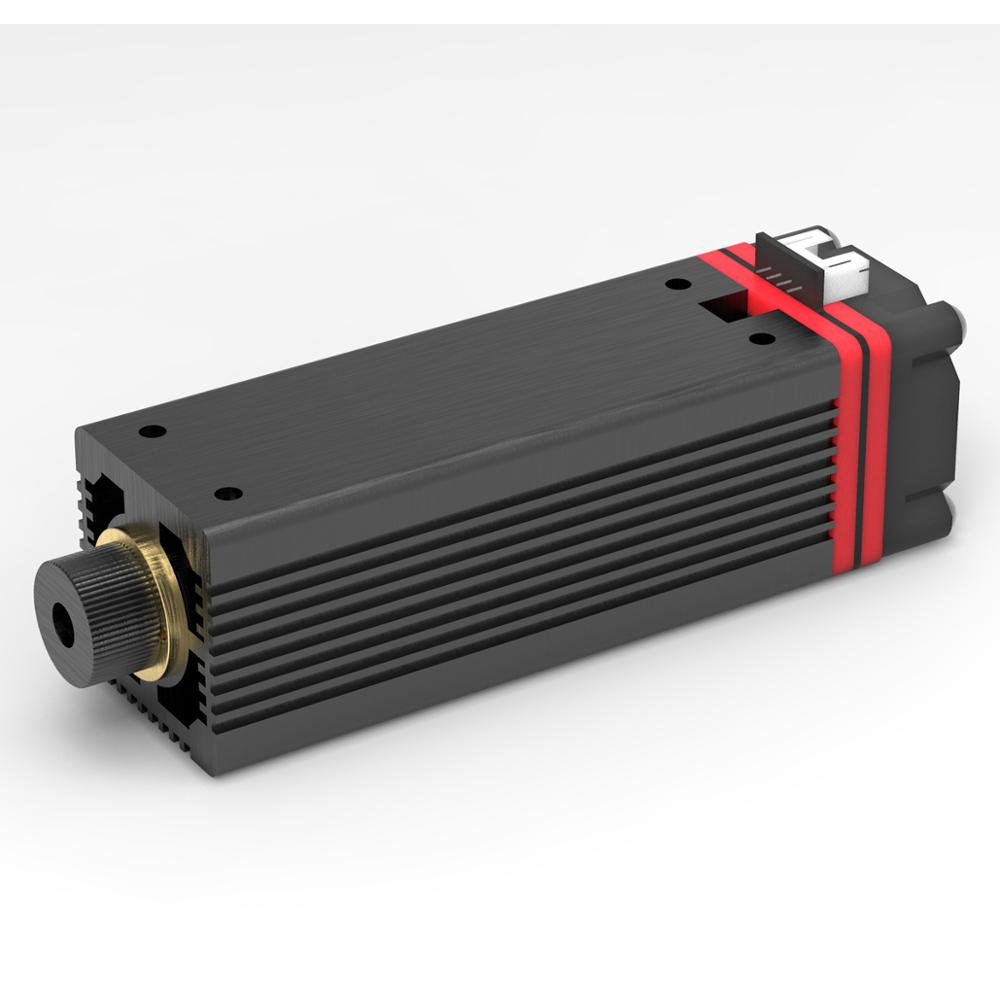

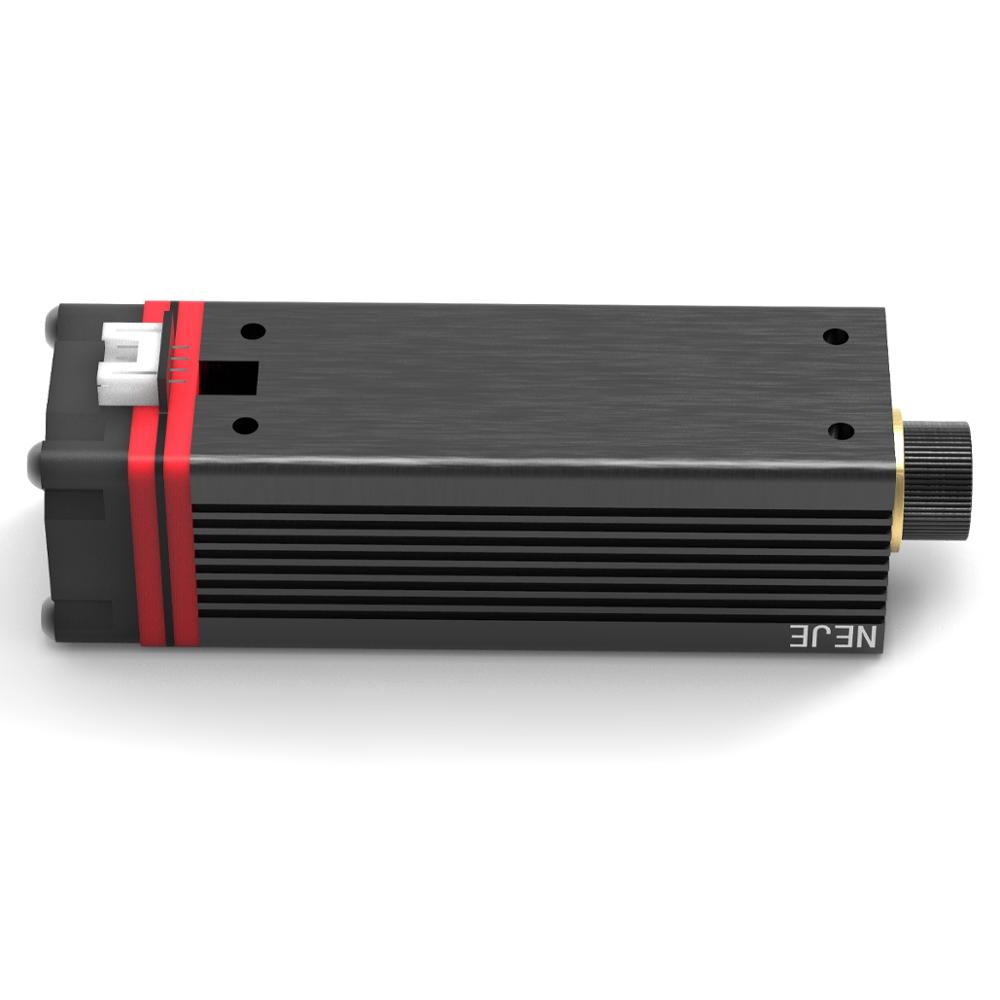

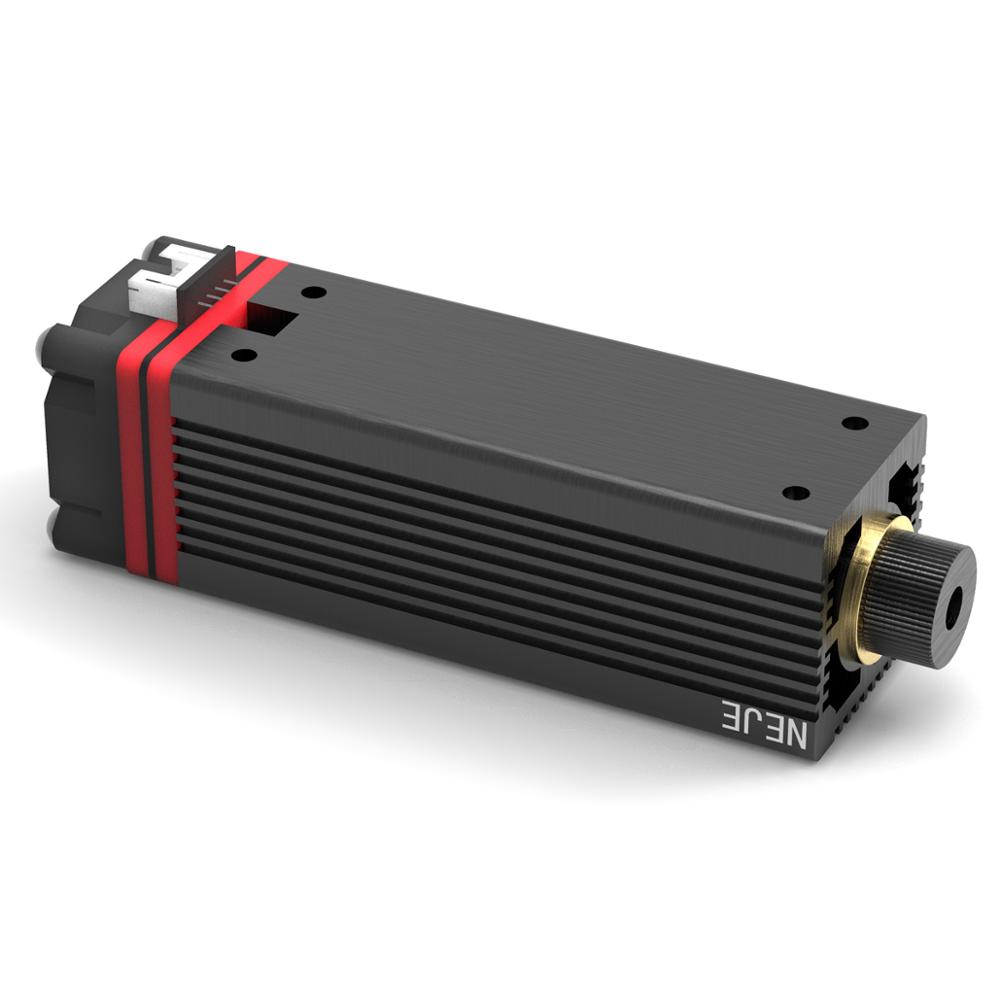

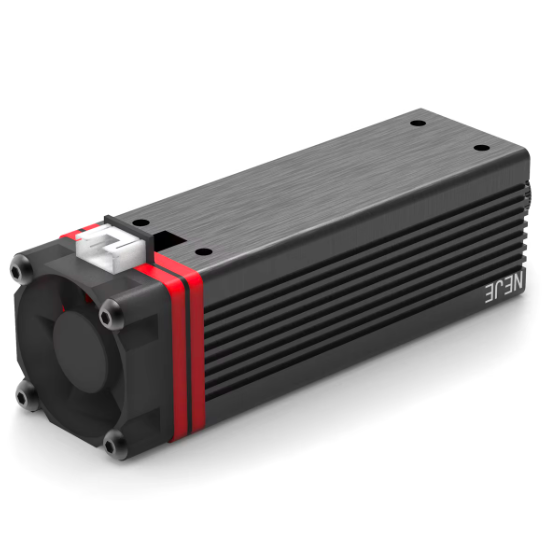

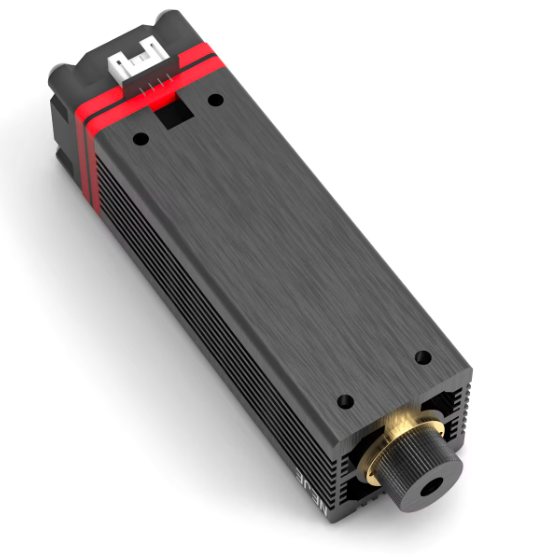

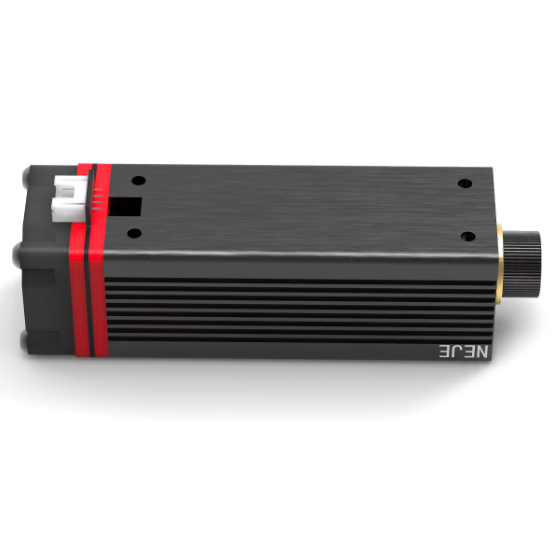

NEJE Laser Engraving Machine Diode Laser Module Head 20W


NOTE: It is heavier, not suitable for engraving,
only suitable for cutting!
Main applications: cutting, drawing
etc. Interface specification: 4pin PH2.0
(red: 12V, black: GND, yellow: PWM, green: temperature signal)
Wavelength: 450nm
Radiator size: 30*80mm
Material: copper + aluminum
Weight: 202g
Drive position: built-in Is the power adjustable: PWM can be adjusted Drive
protection: surge protection, overvoltage protection
Input power: approx. 12V2A ≈ 20W (without fan power)
Output optical power: 5.5W
Line length: 300mm Control line installation
method: pluggable
Fan size: 30*10mm
Fan speed: 15000 rpm
Controllable temperature: less than 60 degrees
Celsius Focus range: 5-50mm
Best focal length: 10mm from the light exit
Safety Warning: Please apply this module under the premise of safety protection!
Recommended application machine: NEJE Master
Note: NEJE Master comes standard with 12V2A charger.
If you want to upgrade your old machine, you need to prepare another 12V3A power supply.
packing list: 1 x module 2 x screw 2 x gasket 1 x control line

Additional information

Model Number

NEJE master 20W laser module
