Description
- Brand Name: NEJE
- Certification: CE,FCC,RoHS,UL
- Origin: Mainland China
- Model Number: F30130
- Brand: NEJE
- laser module: F30130
RECOMMENDED REASON

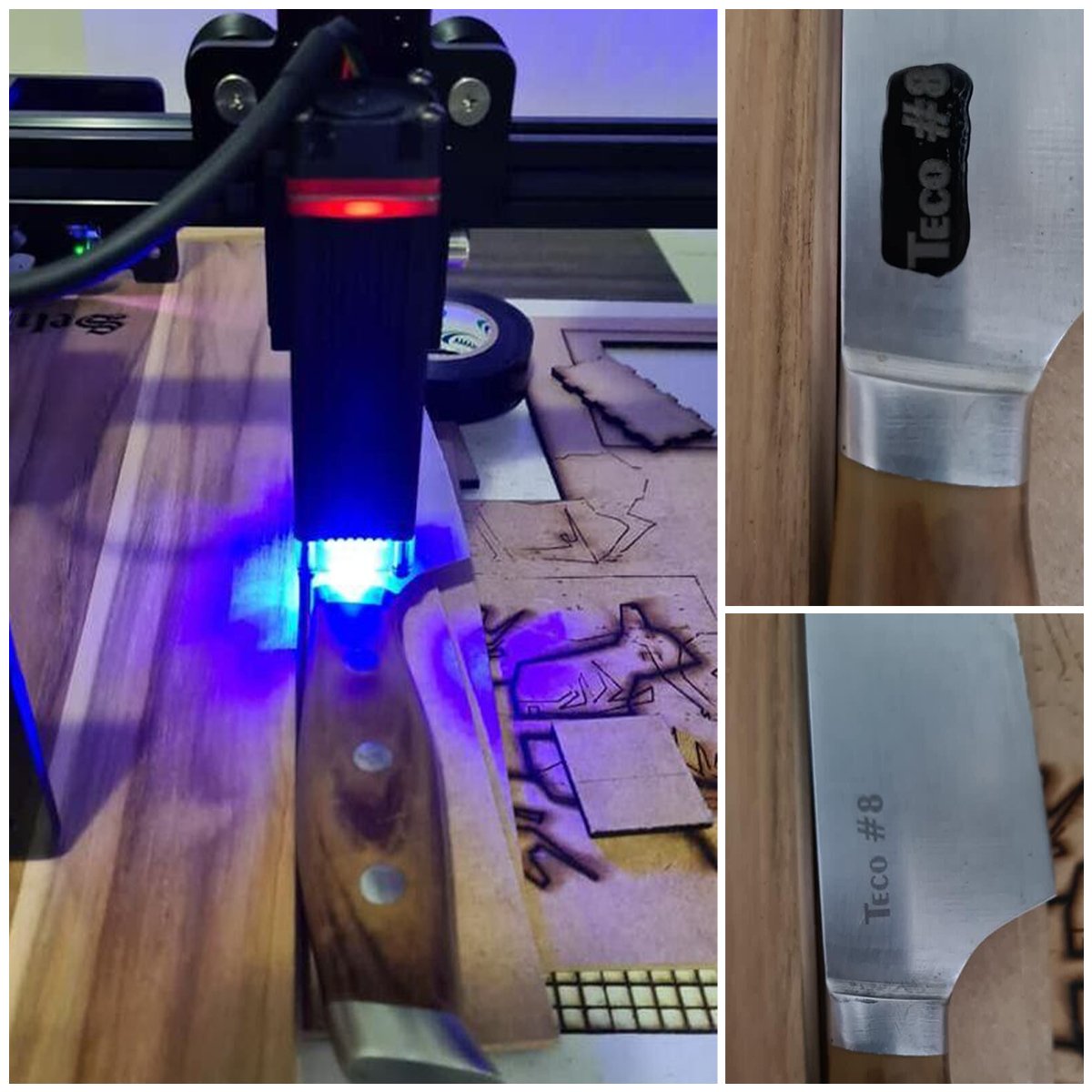

NEJE F30130 is a practical and cheap fixed focus laser module with professional cutting ability, with replaceable lens design, equipped with high pressure air assist and module height adjuster, which can cleanly cut 3mm plywood at 200mm/min, and cut materials less than 3mm It has a very practical effect. The 10mm ultra-short focal design can obtain a large energy density and a small focus, so the F30130 is also good at carving hard materials such as stainless steel and stone.
SPECIFICATION

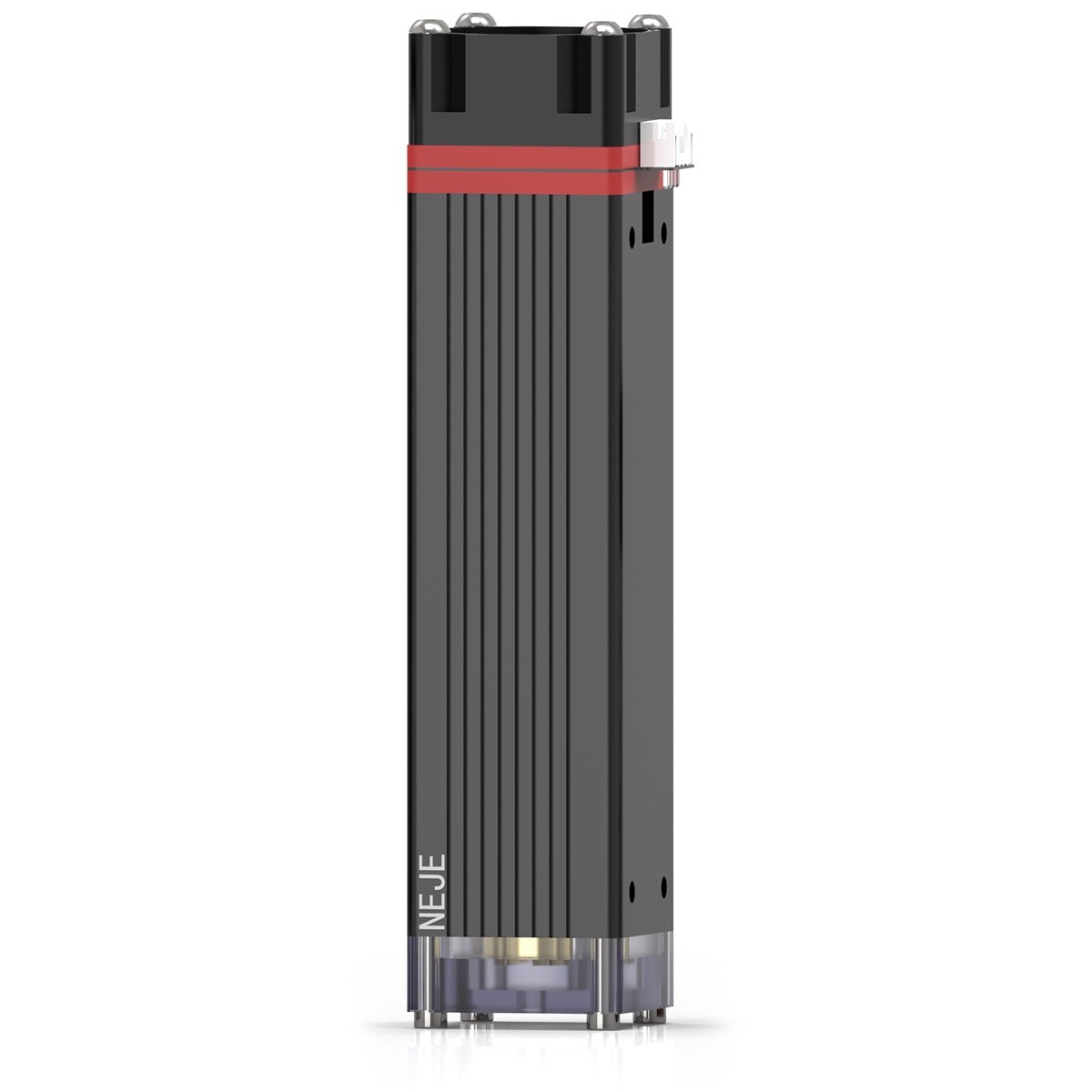

Module: NEJE F30130
Focus: 0.06×0.8mm
Focus method: fixed ( 5mm from the bottom )
Optical power: CW 6W+
Wavelength: 450nm
Weight: 210g
Module Size: 30x30x130 mm
Input: DC 12V 3-4A
Interface: 4pin PH2.0
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc…
( NEJE provides an interface adapter board, which is widely compatible with: other brand laser machine, 3D printer, Arduino, and CNC equipment. )
Power Control: PWM Power Modulation
Fan: Double Ball High Life Fan
Drive: NEJE Smart Quiet Drive, Built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature control: 45℃
air pump: 0.5-1.5mpa clean air
Air interface: 4mm pvc trachea
Replace lens design: Yes
Original registered brand: Yes

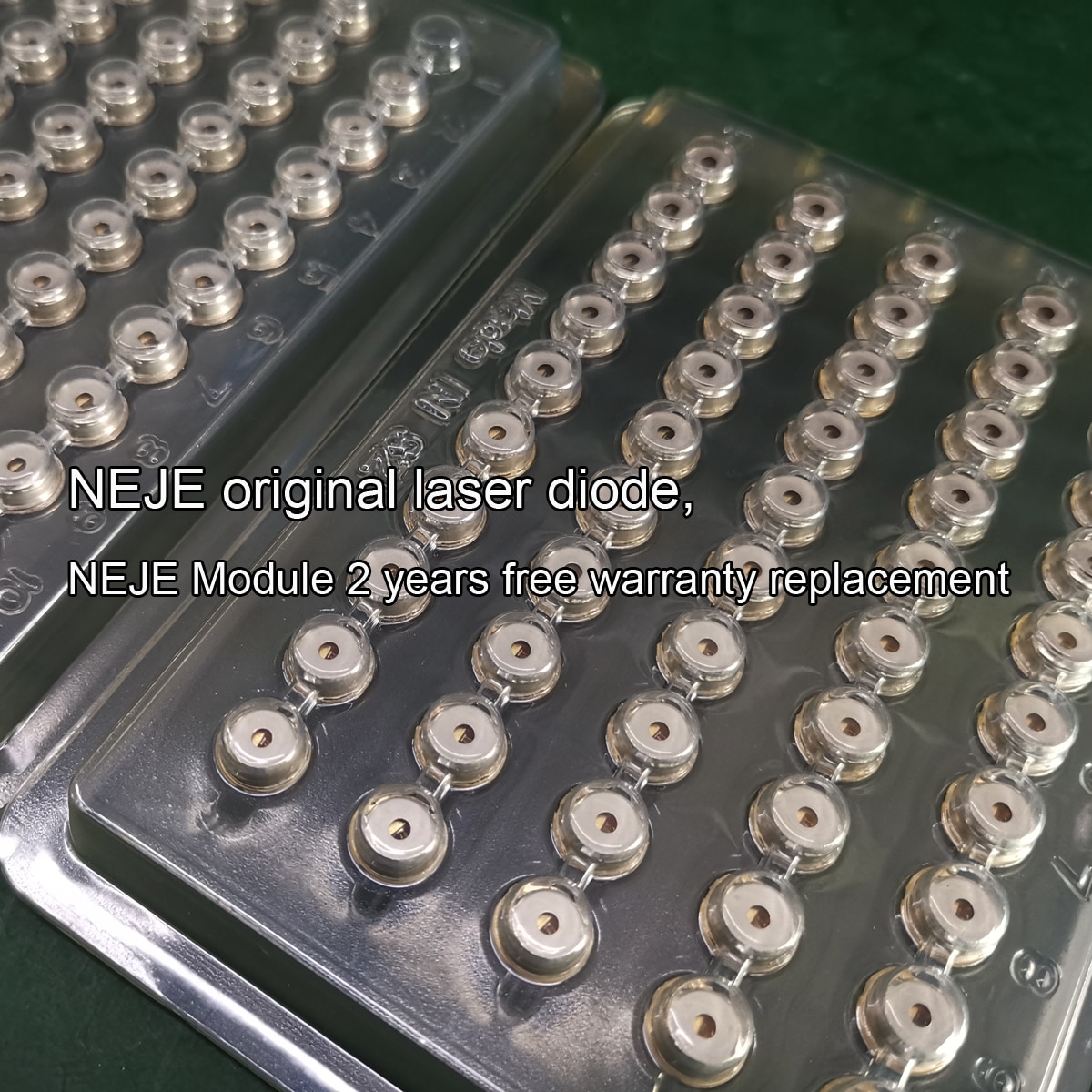

Warranty: 2 years

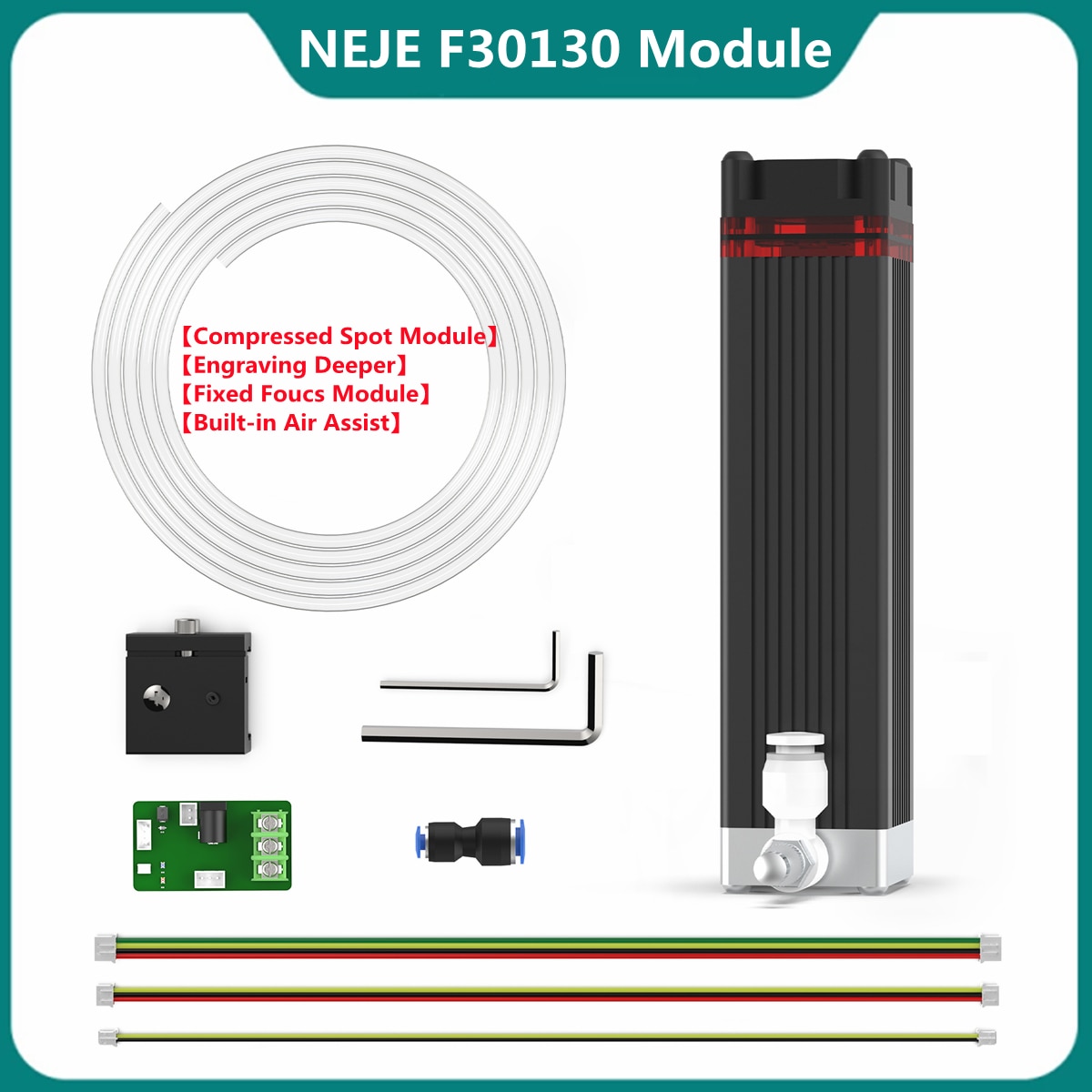

NEJE F30130 40W Kits – 1 Package List
1 * F30130 single module
1 * sliding card slot
1 * L wrench
1 * L-shaped small wrench
1 * interface adapter board
1 * 4pin laser line
1 * 3pin 2.54 interface output cable
1 * 2pin ttl control line
NEJE F30130 40W Laser Module Packing List-2
-
1 x FREE MF15 Air Assist
-
1 x laser module
-
1 x sliding card slot
-
1 x L wrench
-
1 x L-shaped small wrench
-
1 x interface adapter board
-
1 x 4pin laser line
-
1 x 3pin 2.54 interface output cable
-
1 x 2pin TTL control line

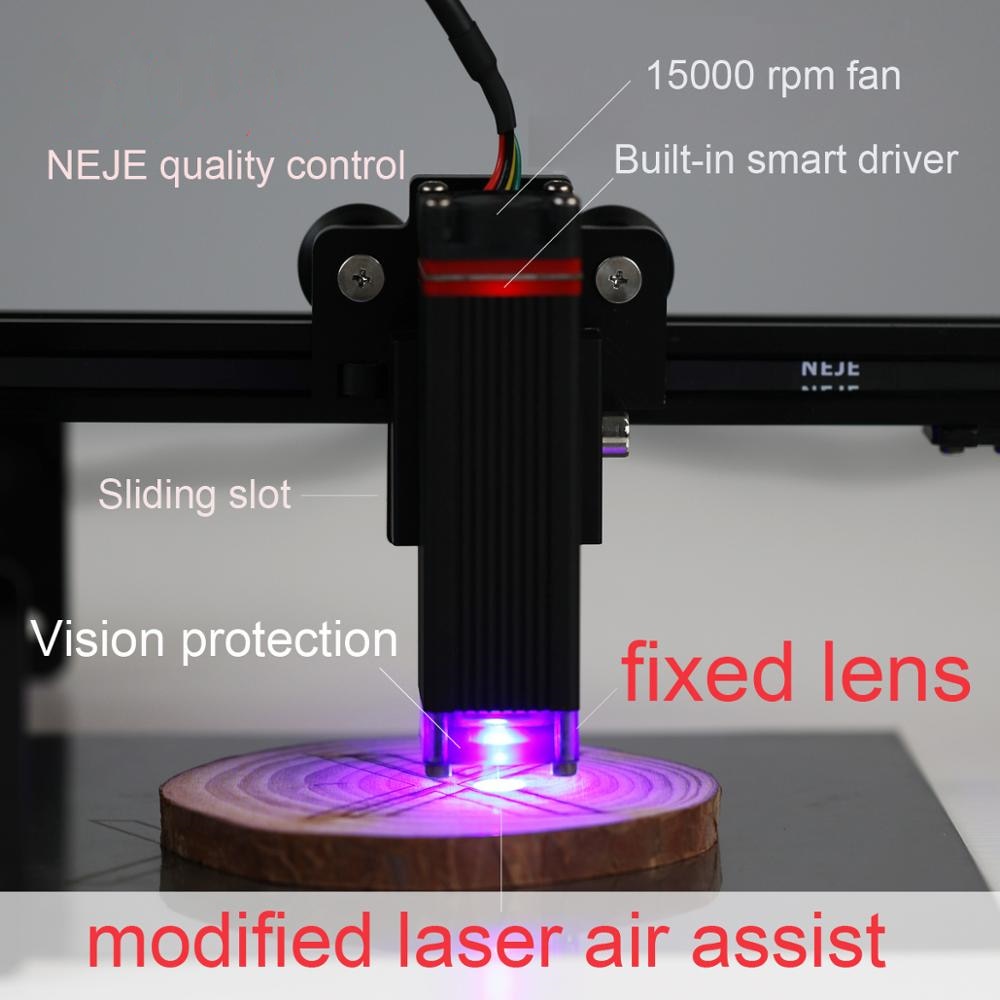

Product Features
1. Designed for general-purpose laser engraving, laser cutting, 3D printer, Arduino and other CNC equipment.
2. 3.3-12V TTL adjustable power.
3. Wide application, 3 input interface designs, DC12V+TTL, 3Pin 2.54 interface, 3pin connection port.
4. 5.5W optical power output, can be directly upgraded on the basis of NEJE Master2S 20W, if it is 7W and 3500mw customers need to replace the 12V3A power adapter.
5. Fixed focus design, you only need to pad a 6mm spacer on the bottom and lock the screw to adjust the focus.
6. 30mm size, does not affect the engraving area of NEJE Master2.
7. vision protection.

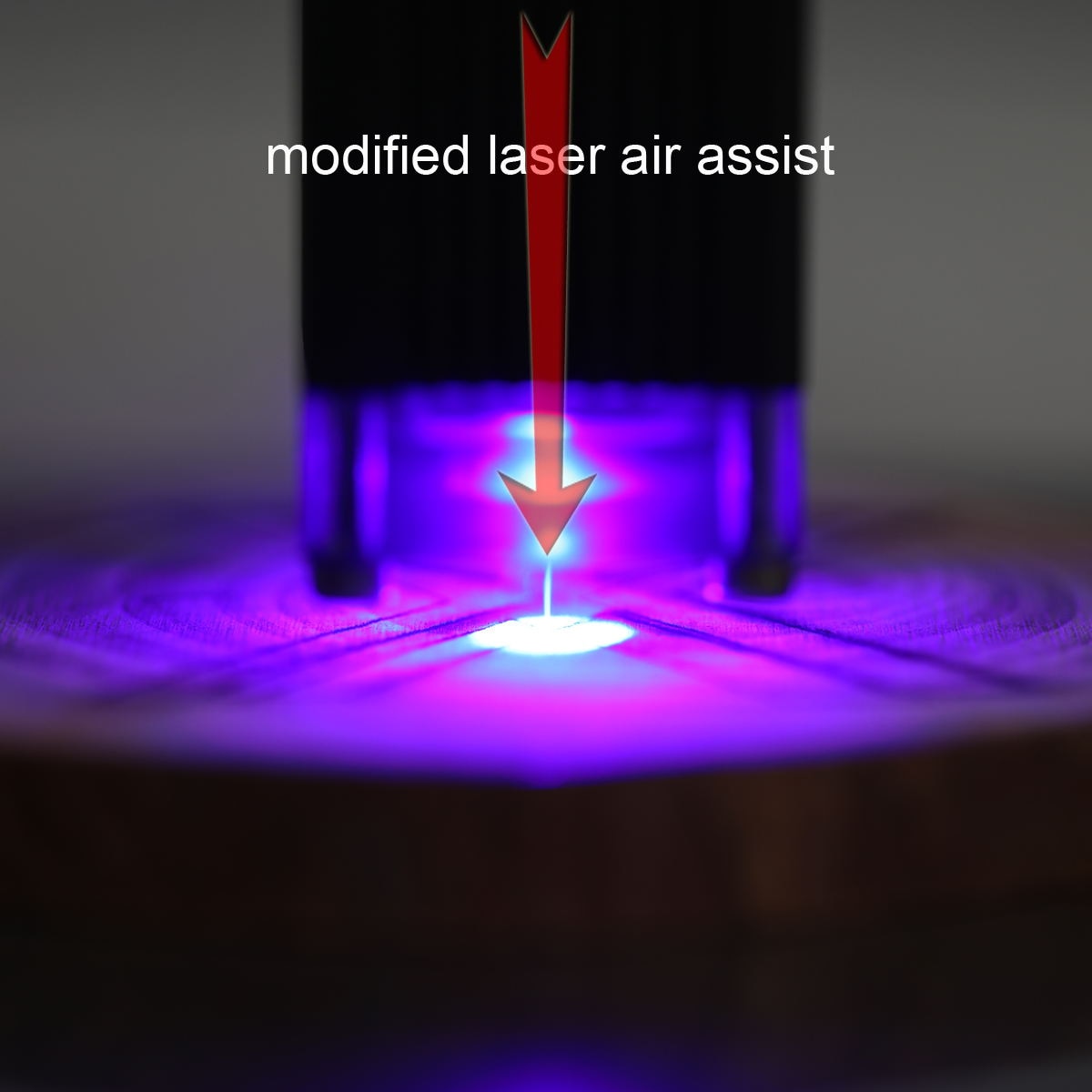

8. Modified laser air assist.
9. Intelligent drive, able to detect temperature and dynamically adjust the fan speed, making it quieter when not in use.
10. 15000 rpm double ball high speed fan, stronger heat dissipation performance.

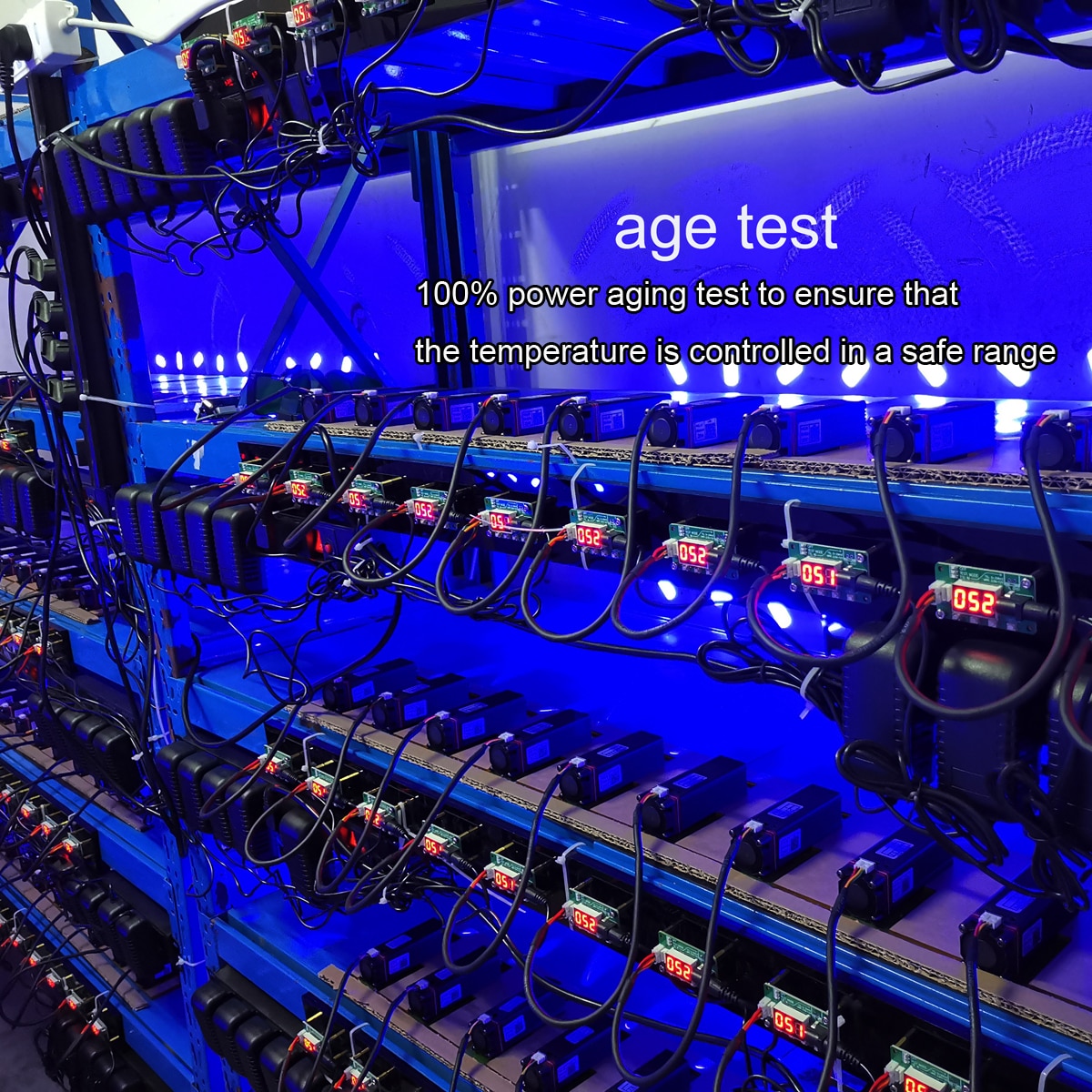

11. 60mm built-in threaded copper core, add heat dissipation silicone grease, safe temperature control, NEJE 48-hour aging test.
