30W Double beam Laser Moudle Feature：

30W General Specification:

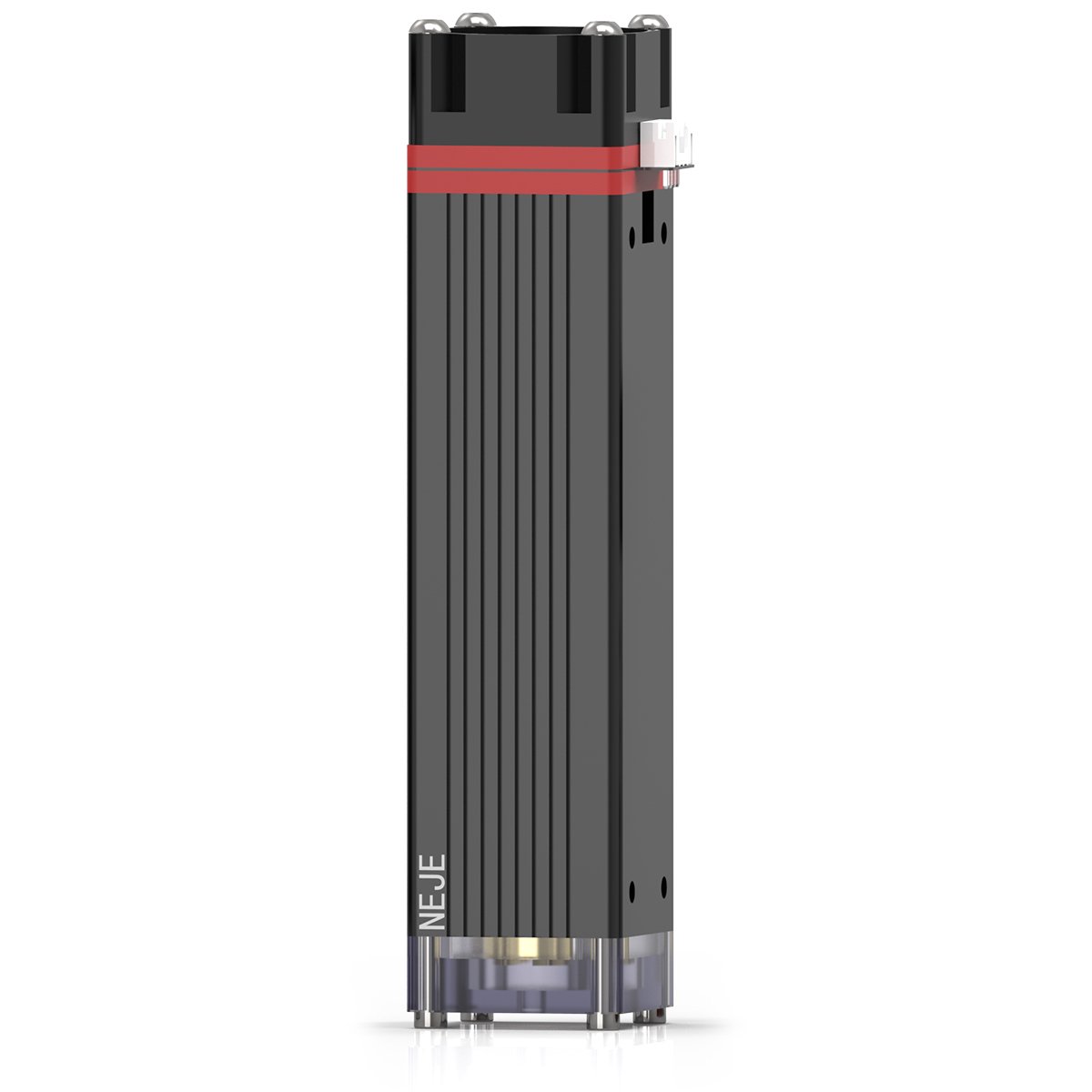

Model：NEJE Module F30130 40W

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Section Size：40mm x 40mm

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：60 * 40 * 40mm

Adapter Plug：5.5 2.1 port

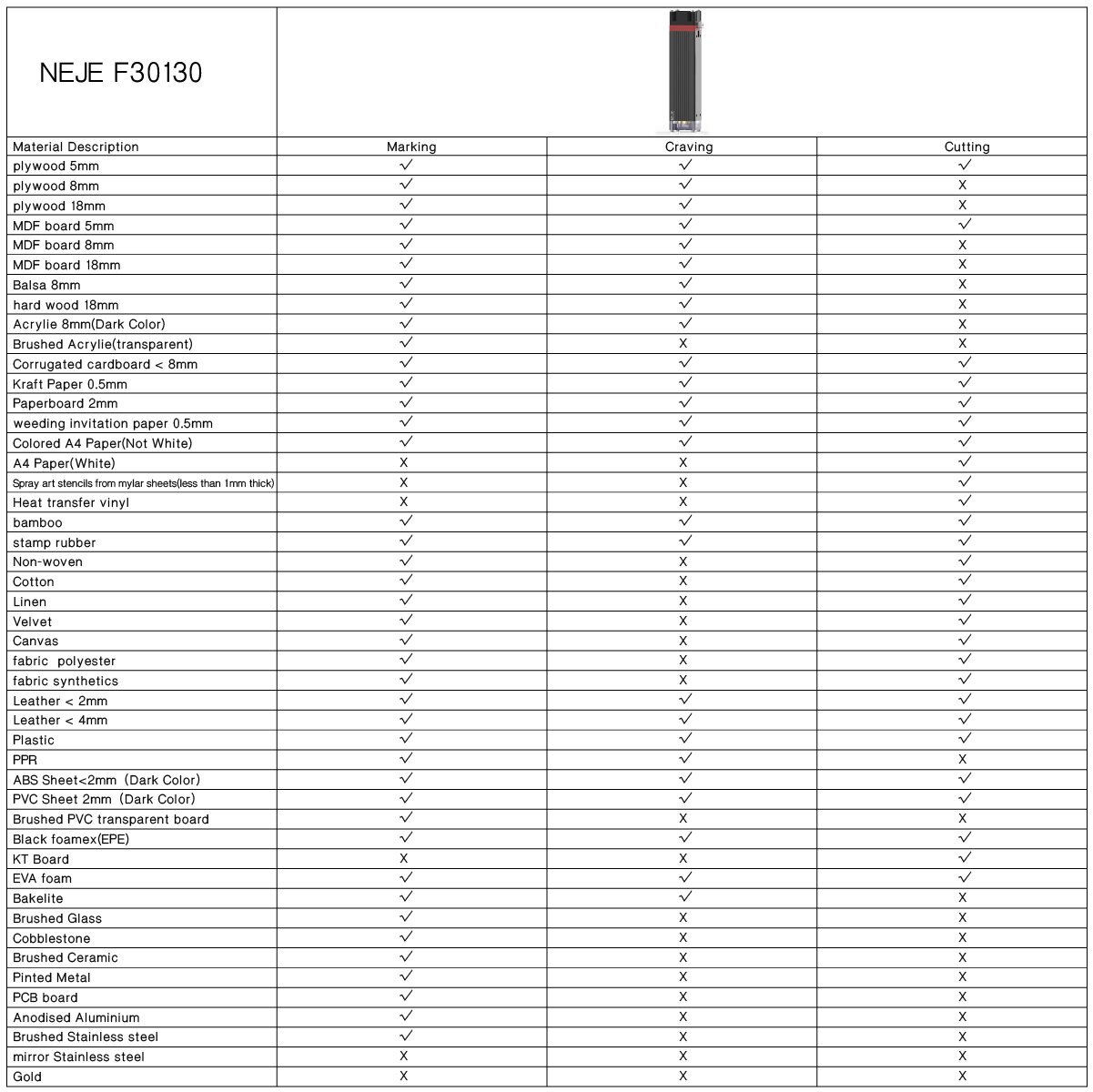

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum /Stainless Steel

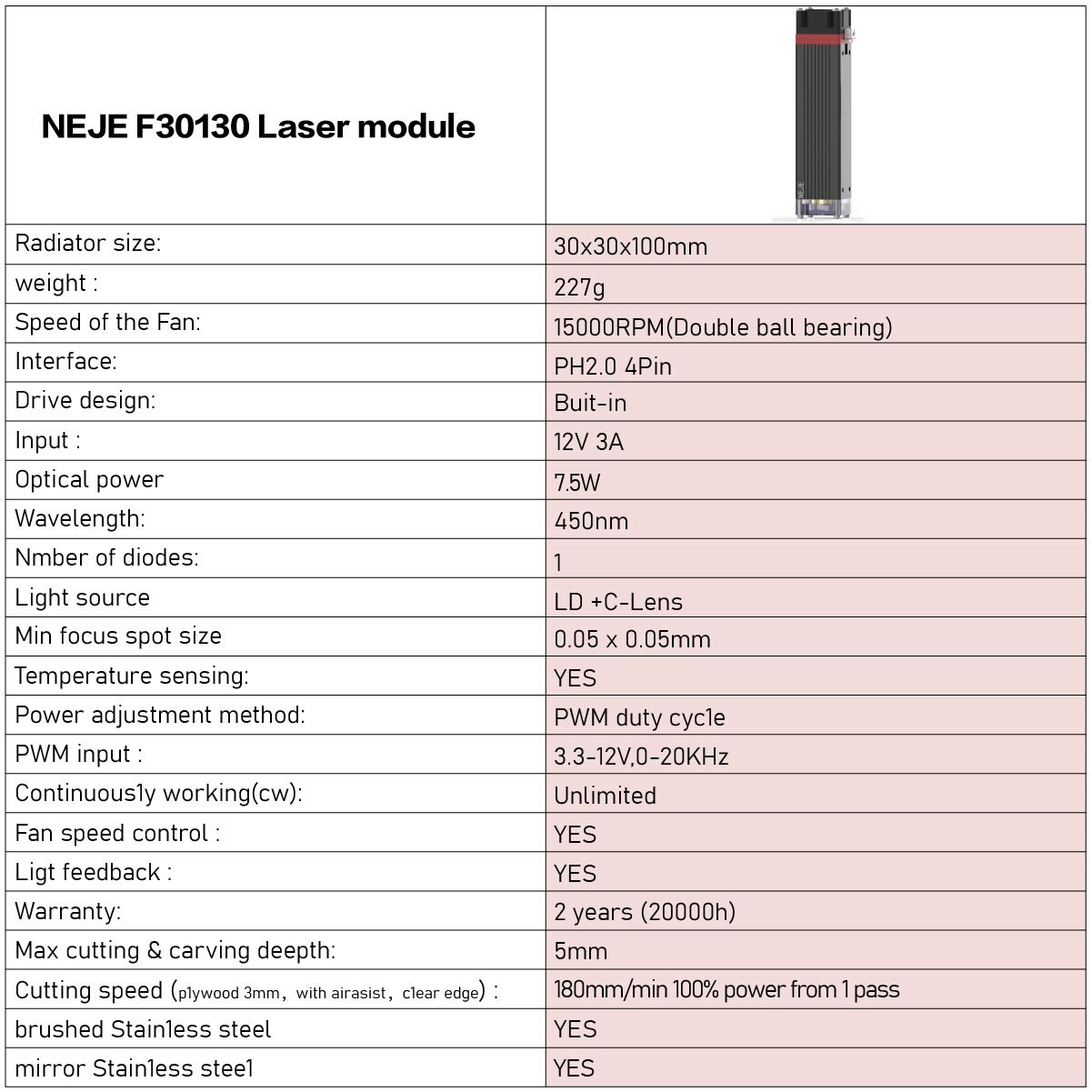

Technical Parameters：

Module Input：40W

Optical power output：7.5W

Wavelength：445-450nm

Beam Shape：Dot (Focusable)

Working Voltage：DC 12V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Voltage：DC12V 3A

PWM/TTL Input：DC3.3V-12V

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20,000 hours

F30130 40W small Module kit

Small Kits Package Included:

1 x F30130 Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(1000mm)
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 x interface tranfer board
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x 2 Pin Cable(yellow+black color)
1 x 3 Pin Cable
