NEJE A40640 Pro 80w Cnc Router Grbl Diy Stainless Steel Metal Laser Engraving Wood Cutting Graving Dog Tag Engraver Machine

$694.80

SKU: 1005003479594775 Category:

Description

  • Brand Name: Oakeroo
  • Origin: CN(Origin)
  • Certification: ce
  • Model Number: Master 2S max A40640 80W
  • Certification: CE
  • Is Smart Device: YES
  • Product name: Master 2S Max A40640 80W laser engraving machine
  • Optical Power: 450nm 15W
  • Warranty: 2 years
  • control board: 1 x MCU Wireless control MEMS
  • safety protection: MEMS
  • system supported: windows/ android / iOS / macOS
  • Laser Type: diode
  • Engraving Area: 460*810mm
  • Certification: ce, ISO, FCC/SDS/IEC68025
  • laser engraving machine: Laser cutting machine
  • laser engraving machine for metal: printer machine
  • engraver machine: Woodworking
  • portable laser engraver: Metal cutting machine

Choose [ Ships From China ]
We will ship from [EU Warehouse ]
VAT Tax is inclusive

Free shipping ,Fast Delivery in 3~5 days

Buy Max A40640 free MF6 receive!

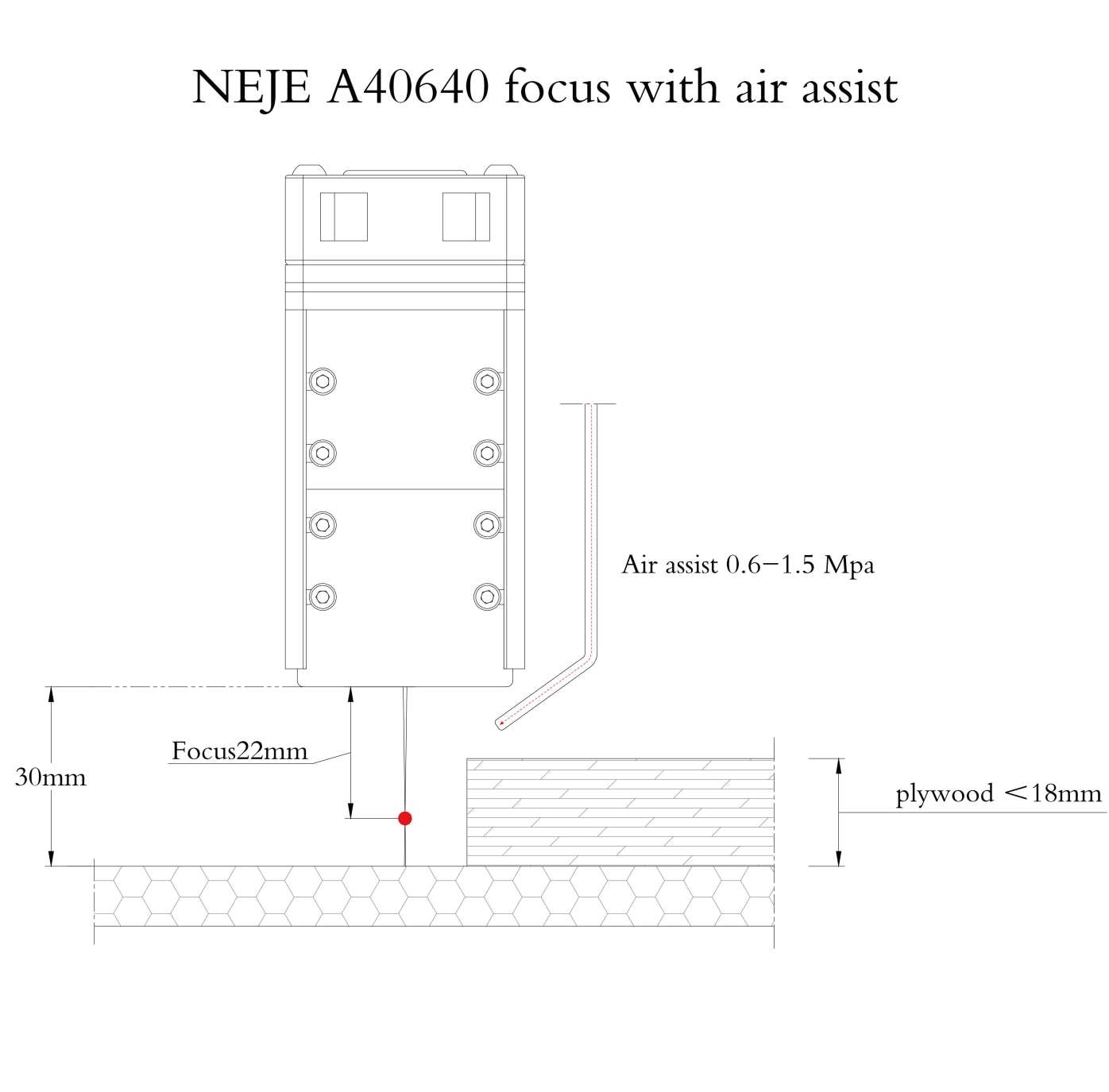

(Tip: 0,6-1,5 MPA air supply with air assist can work best; MF6 is shipped from China or Europe warehouse)

Characteristics:

810 X460mm large engraving area: 6133 X10800 PX, engraving accuracy: 0,075mm dot pitch, 339 dot/inch. The whole machine is checked and shipped, and only six screws are required to complete the installation.

Fort geschrittenes laser module: support oakeroo advanced laser module, built-in fast intelligent stick, temperature feedback can timely and the fan heat dissipation intelligent adjust. Safe and quiet. The minimum focus point reaches 0,05 X0,05mm.

More materials and clear: Wood, MDF, leather, paper, cotton, etc. all support, 3mm plywood must only once with luftasis cut, the section is very clean. Stainless steel, glass, transparent acrylic and other materials can on certain way engraved.

Portable professional control software: 32-bit-steuersystem, the fastest speed reaches 1500000 minute, supports laser grbl, light burn, Windows software, wireless app (Android, iOS, ipados, macOS).

Perfect after-sales service: free year warranty for the whole machine (laser module: 2 years 20,000 hours warranty) and 24-stunden-versand of protection needy share worldwide.

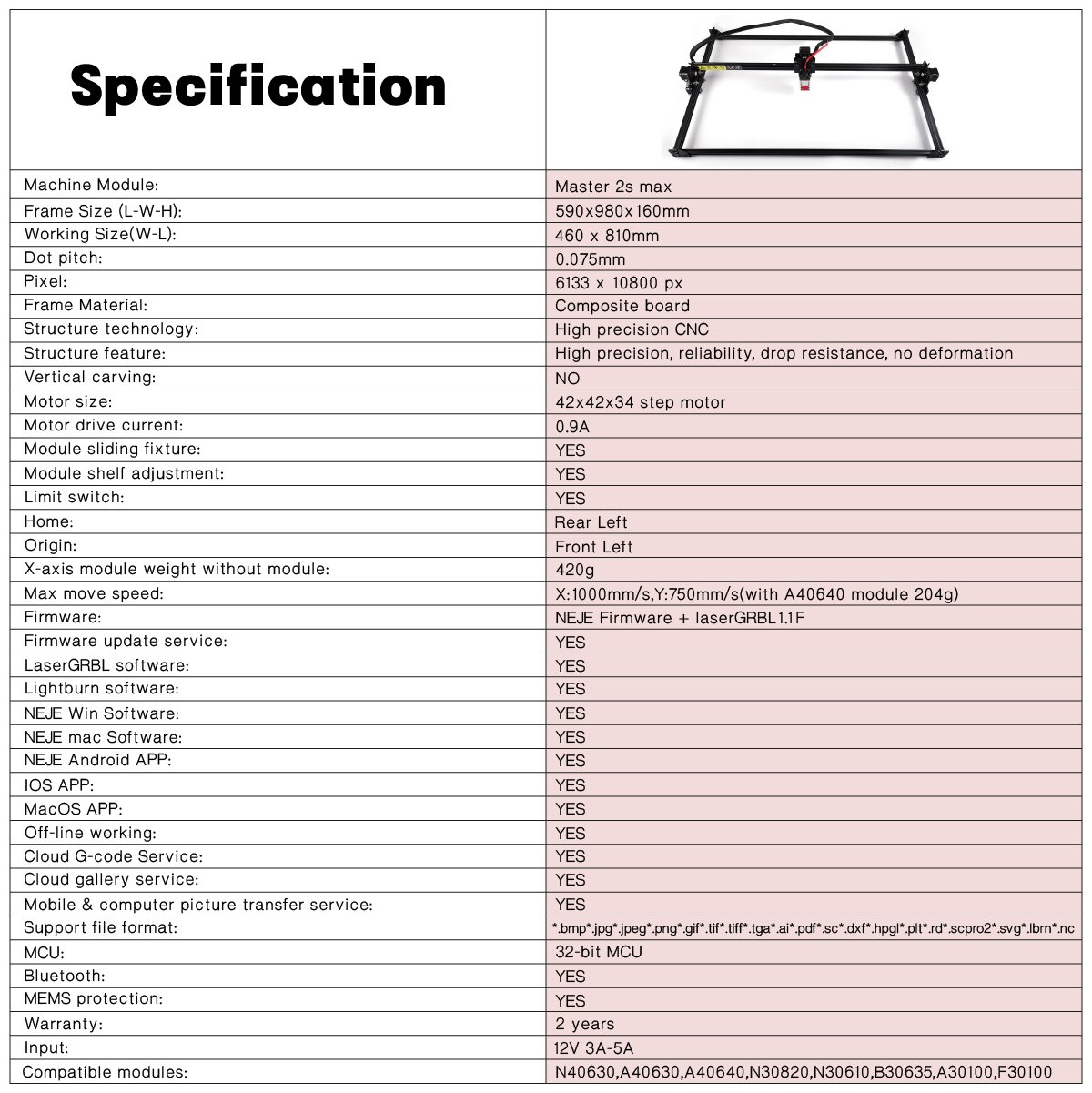

Specification:

Machine module: oakkeroo Max A40640 80W
Working Area: 460*810mm
Frame size: 590*980*160mm
Main Board: 32 bit
Control mode: PWM,TTL
Firmware: grbl 1.1f
Precision: 0,075mm
Pixel accuracy: Adjustable
Focal length: 30mm
Pixel: 6133*10800 px
Motor size: 42*42*34 stepper motor
Supported file format: BMP/jpg/JPEG/png/DXF/ibm/NC etc
Input: 12v3a-5a

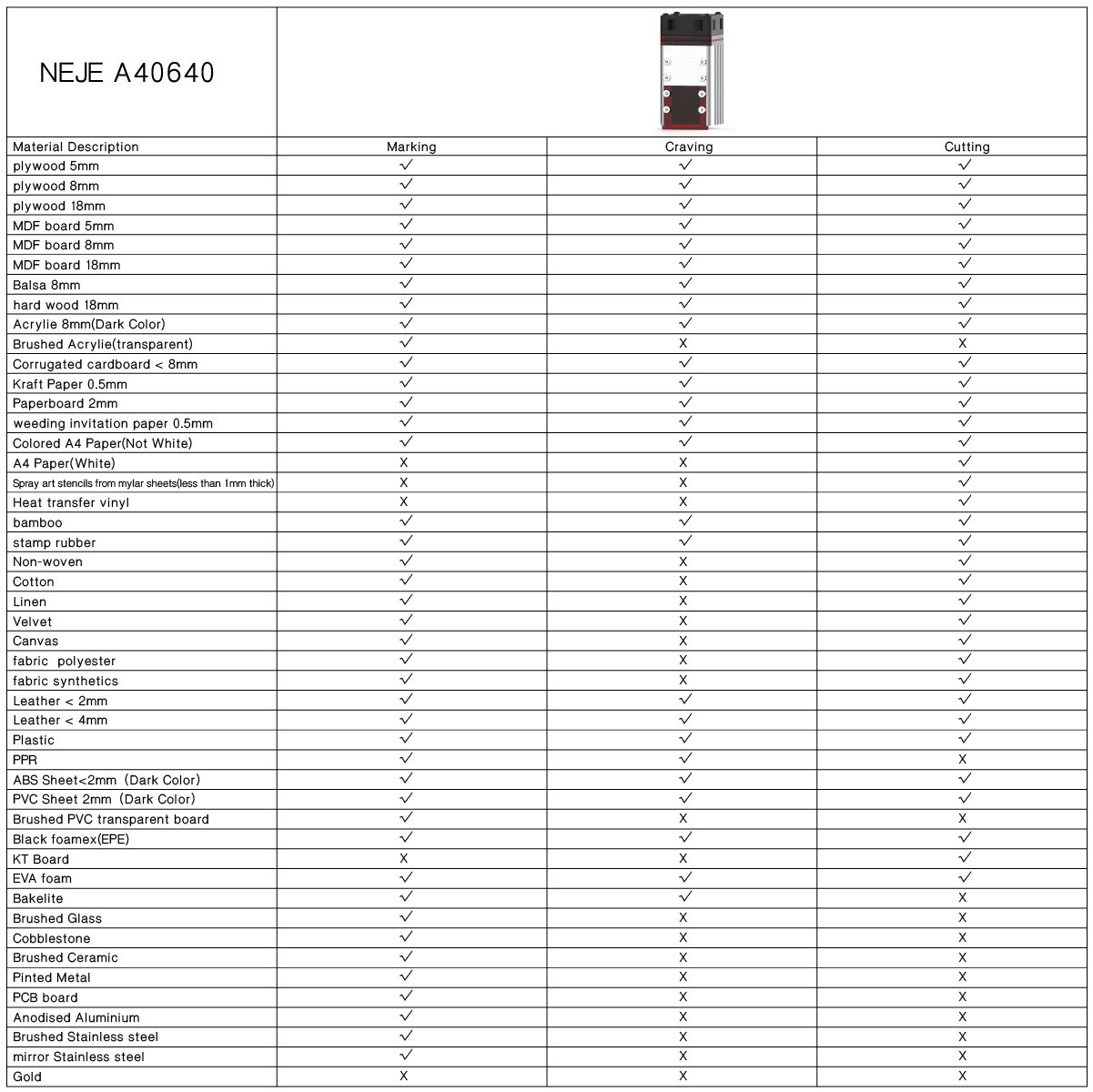

Available engraving materials: wood, cardboard, acrylic, metal

Available materials for cutting: kraft paper, cardboard box etc

Note (please note):

Please wear during use a laser glasses and avoid it, the laser directly with eyes and skin touch!
Engrave you no mirror objects, pay attention to fire, make you at work on pets!
When burned produces smoke, please pay attention to the smoke indoors.
If your laser module has a problem, disassemble it please don’t without our permission. It will destroy the laser module.
Case of quality problems with the machine, please feel free to contact us. Many operational problems can based on your videos and your problem description.

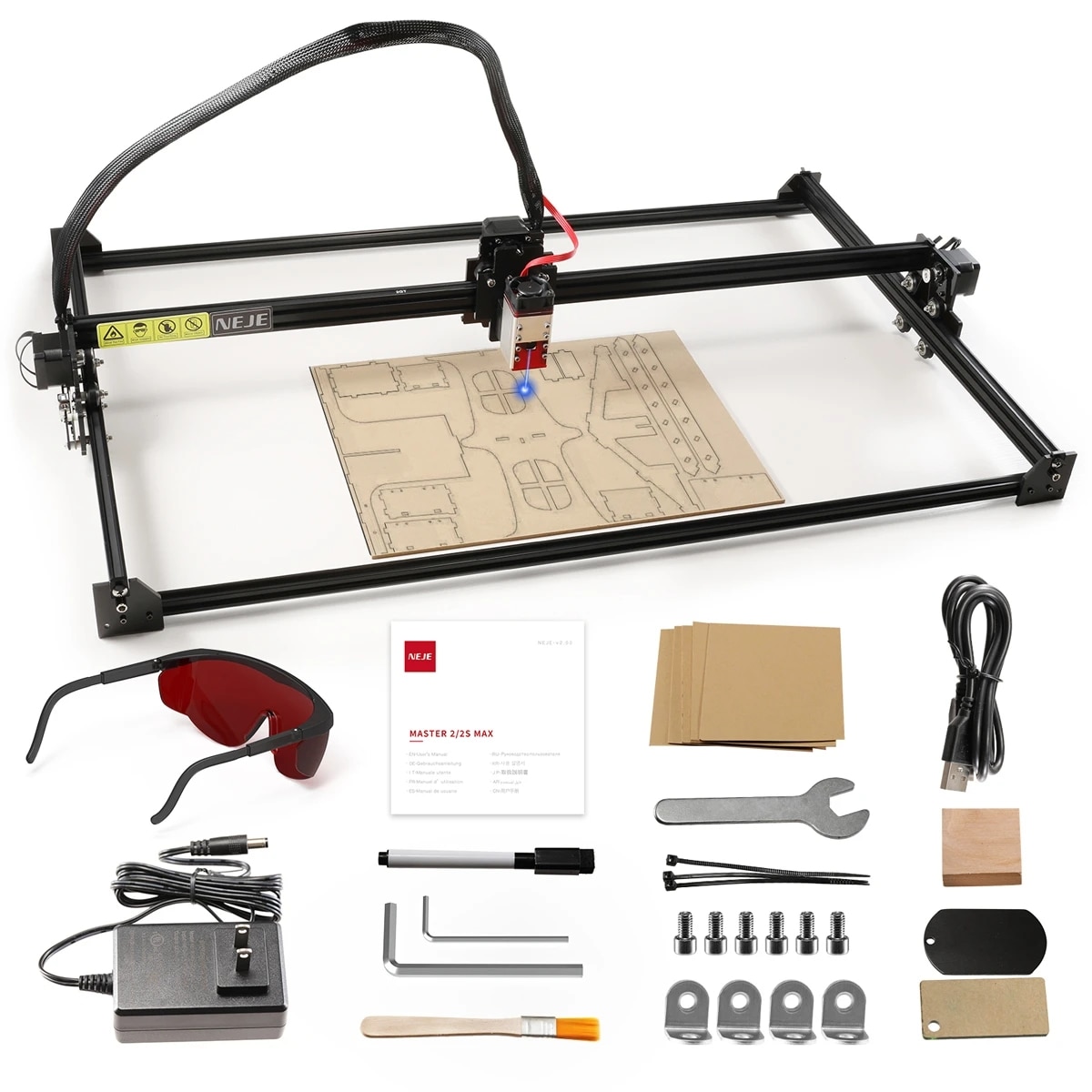

List of packages:

1 x free MF6 air assist

1 x Max A40640 80W laser engraving machine
1 x A40640 80W laser module
1×12 V3A power supply EU
1 x Manual
1 x eyeglasses
1 x data cable
1 x wood cut
1×5 paper
1 x brush
1 x focusing of film
1×4 iron
1 x Film Aluminum
1 x cable ties
1×5 groove
1 x big hexagon key
1 x small hexagonal key
1 x open key
