Description
Product Description
Selling points:
1. Warehouse in Netherlands,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders
4.Accept OEM/ODM orders

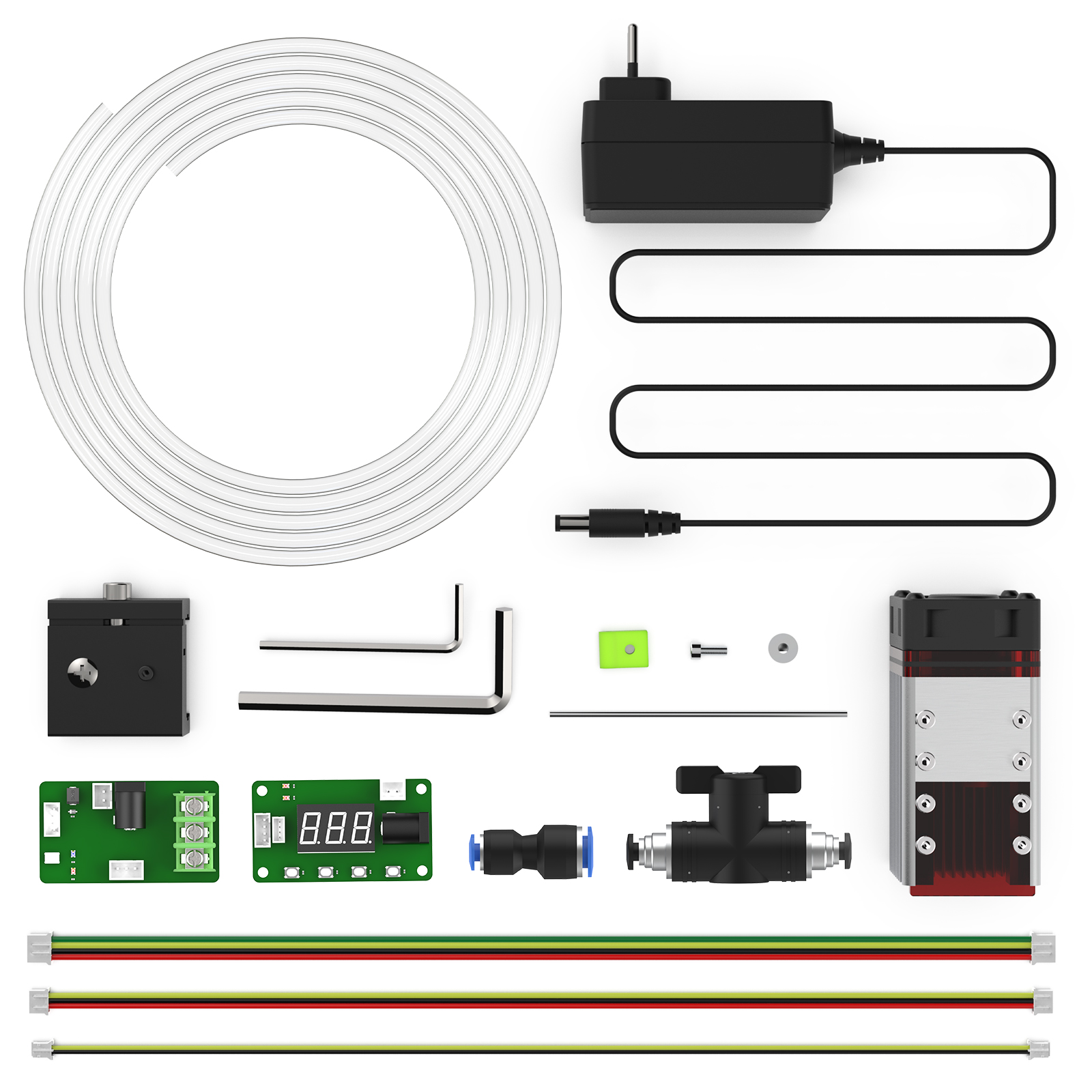

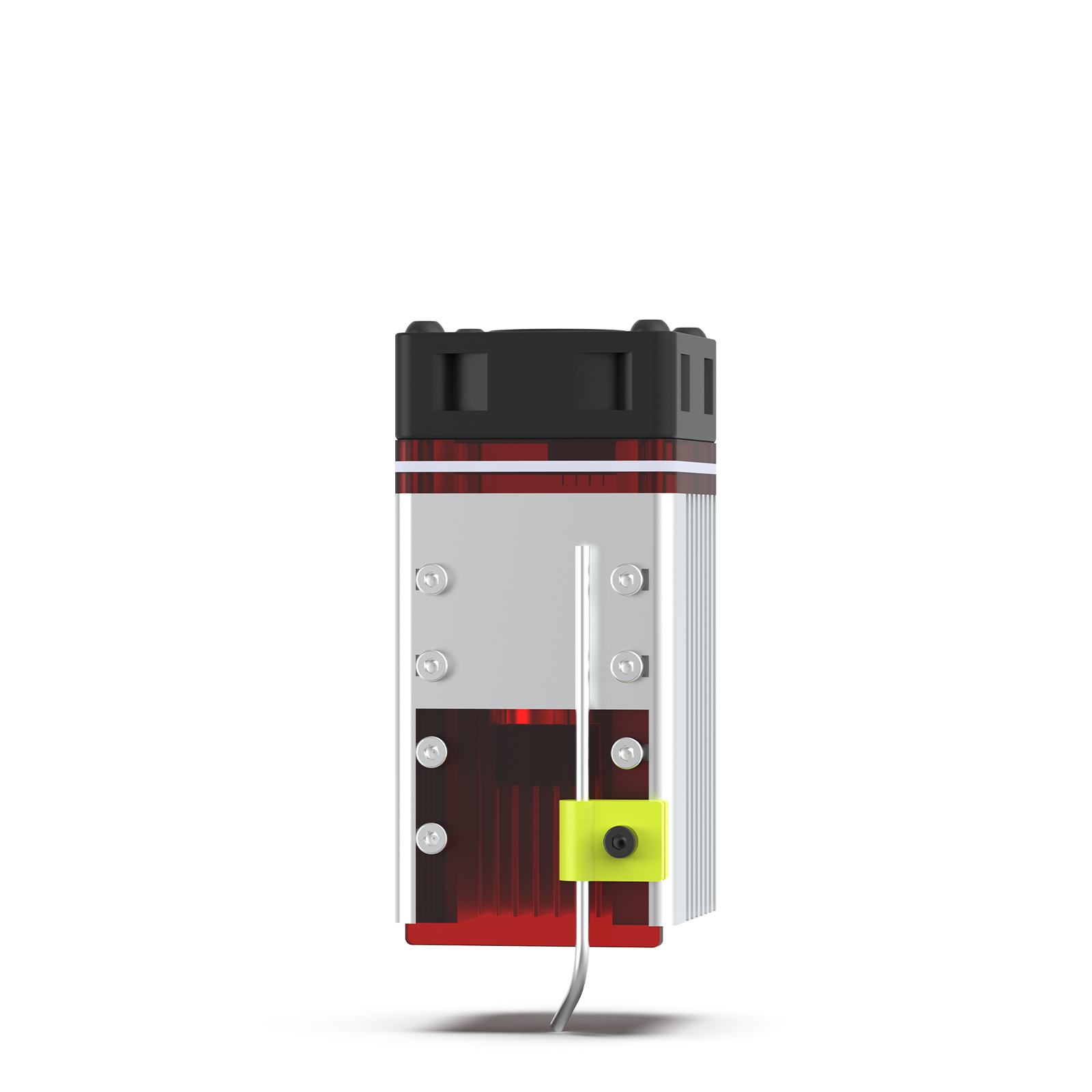

80w 450nm laser module kit for Neje master series mini engraver accessory DIY Tools Laser Module Head
80W Laser Moudle Specifications
Model：NEJE Module 80W
Model：NEJE Module 80W
Heatsink Material：Aircraft Aluminum + Brass Shell Luminous
Color：Blue Section
Size：40mm x 40mm Cooling
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port
Can engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon fiber/paint metal/Anodized Aluminum/Stainless Steel Can cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board
Module Input：80W Optical
power output：10-15W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 4A
PWM/TTL Input：DC3.3V-12V

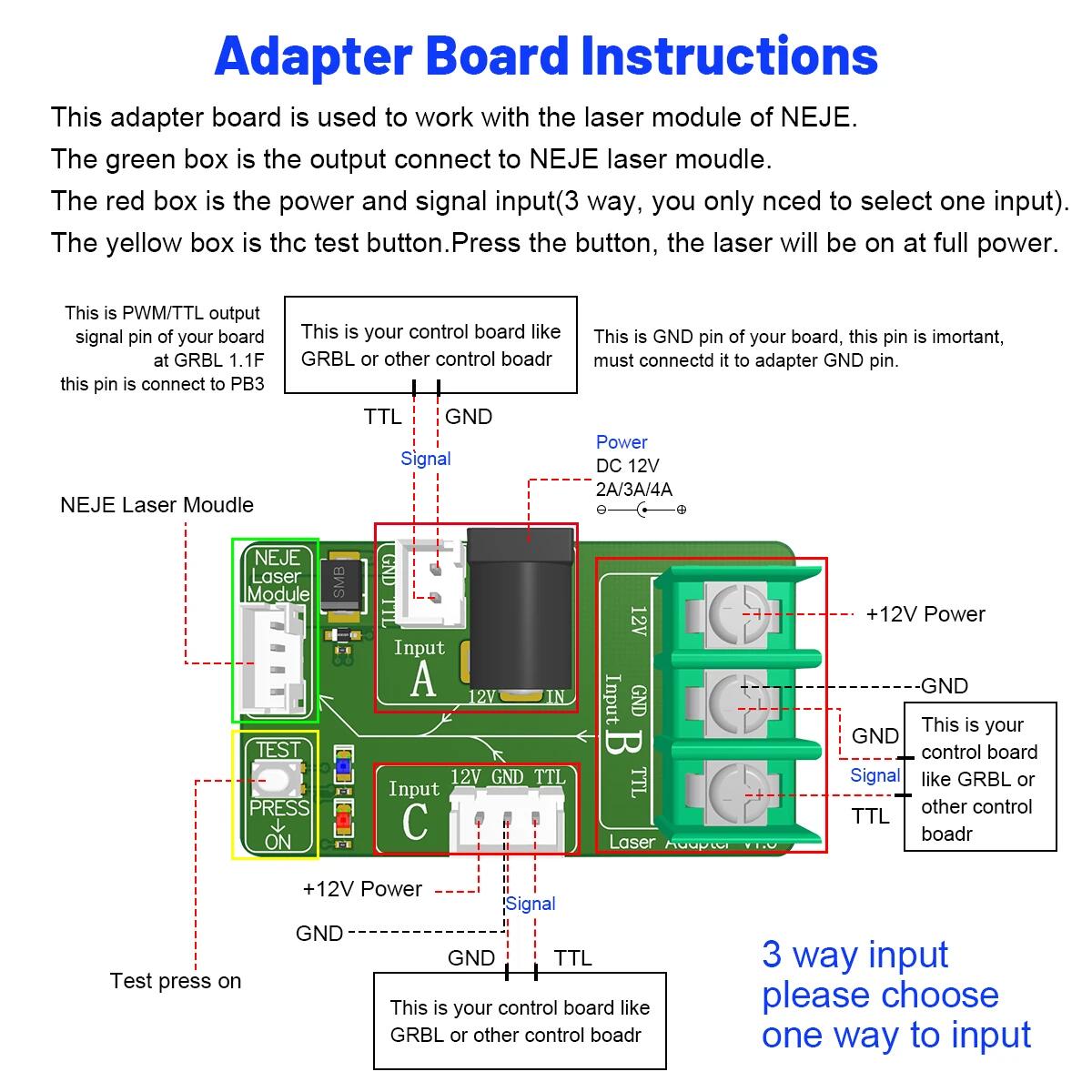

Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：
Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC Safe
temperature range：<60 ℃ Module
weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
LifeTime：10000-20,000 hours
