NEJE A40640 80W pro OUTPUT 2 LASER BEAM Laser Module Head KITS compressed spot MODULE for LASER ENGRAVER CUTTER

$569.00

SKU: 3588011018651 Category:

Description

Product Description

Selling points:
1. Warehouse in Netherlands,UK,Gemany,Spain,USA, Russia
2. Accept
Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept
OEM/ODM orders

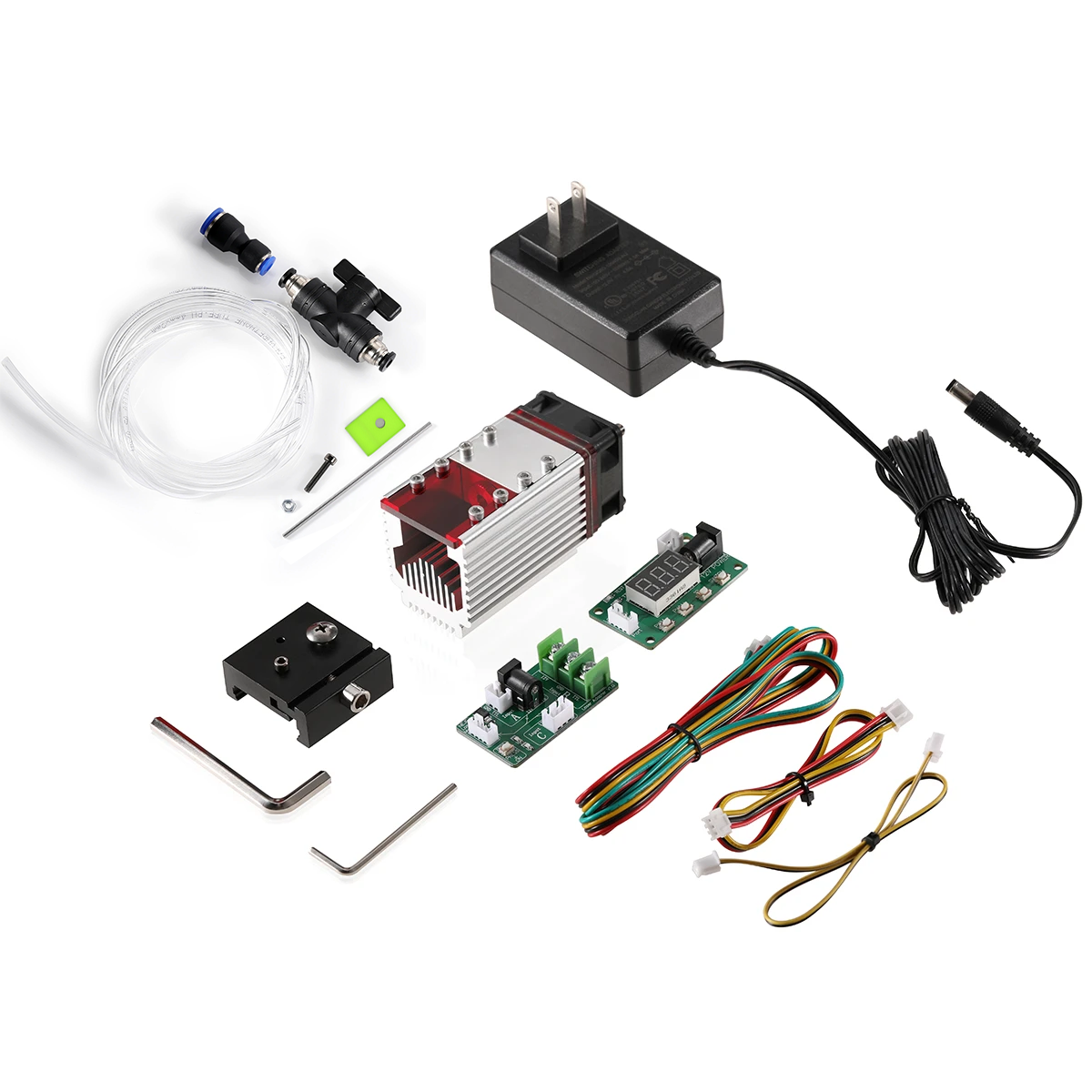

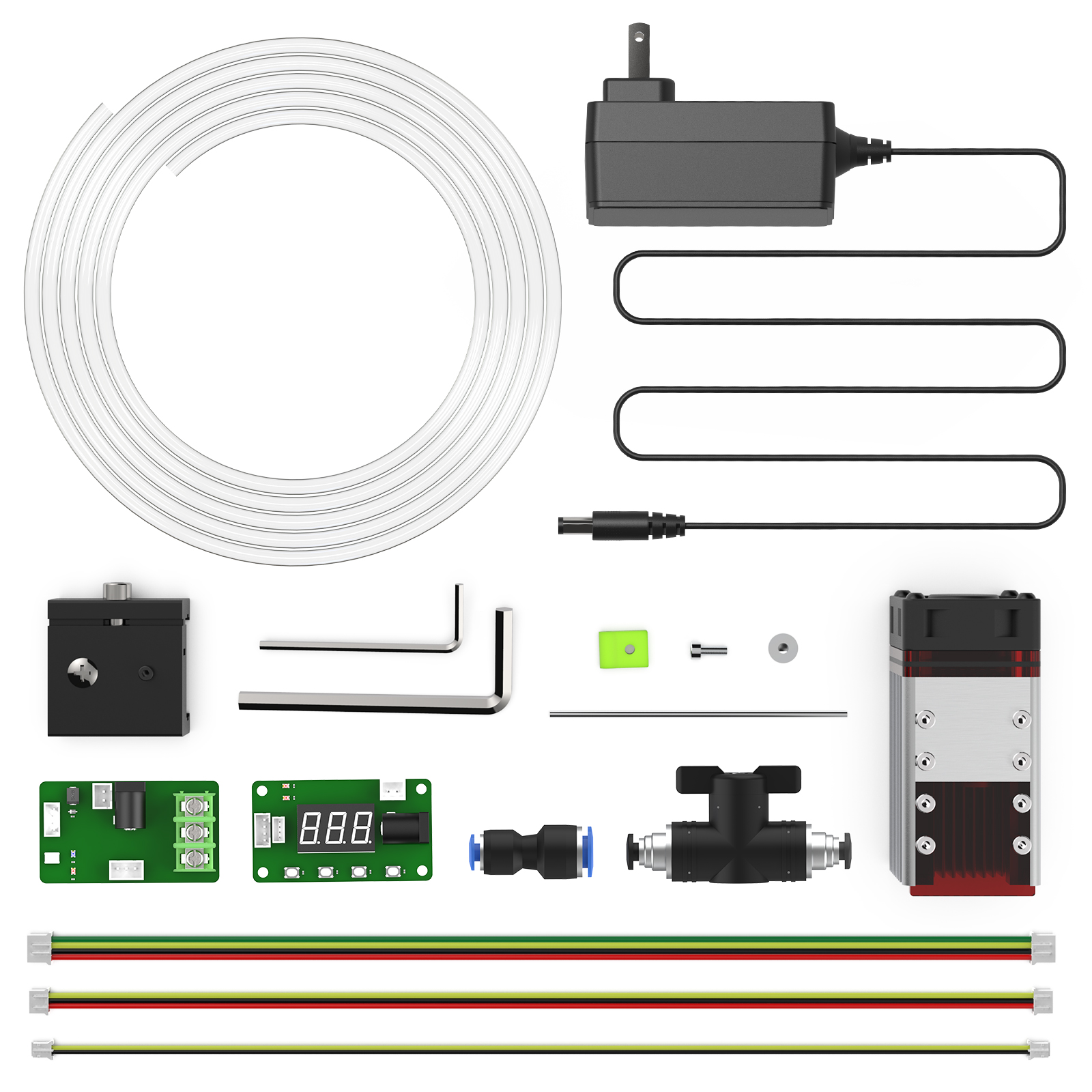

A40640 laser module kit for Neje master series mini engraver accessory DIY Tools Laser Module Head

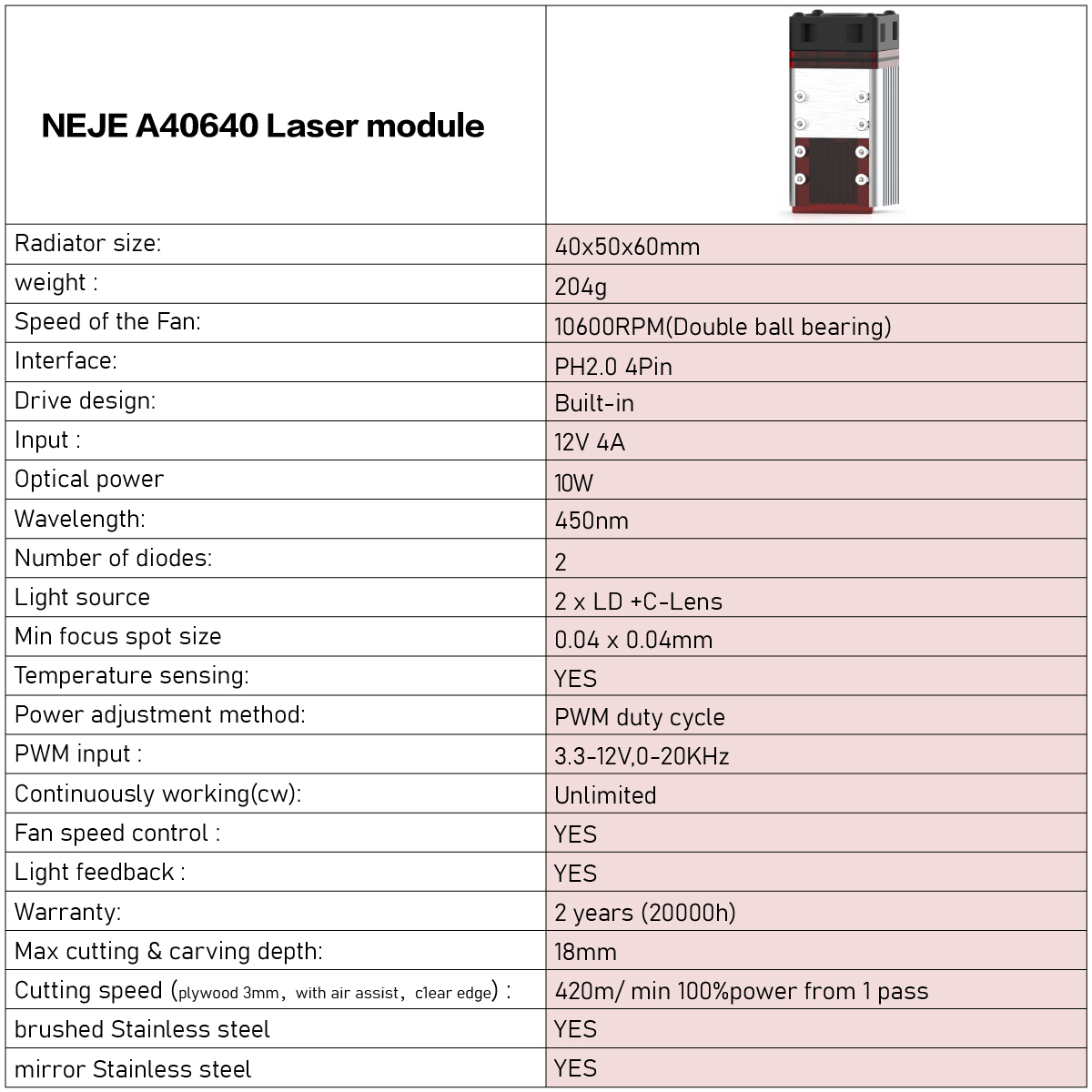

NEJE A40640 Laser Module Specifications
Model: NEJE A40640
Heatsink Material:Aircraft Aluminum + Brass Shell Luminous
Color:Blue Section
Size:40mm x 40mm Cooling
Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm Adapter Plug:5.5 2.1 port

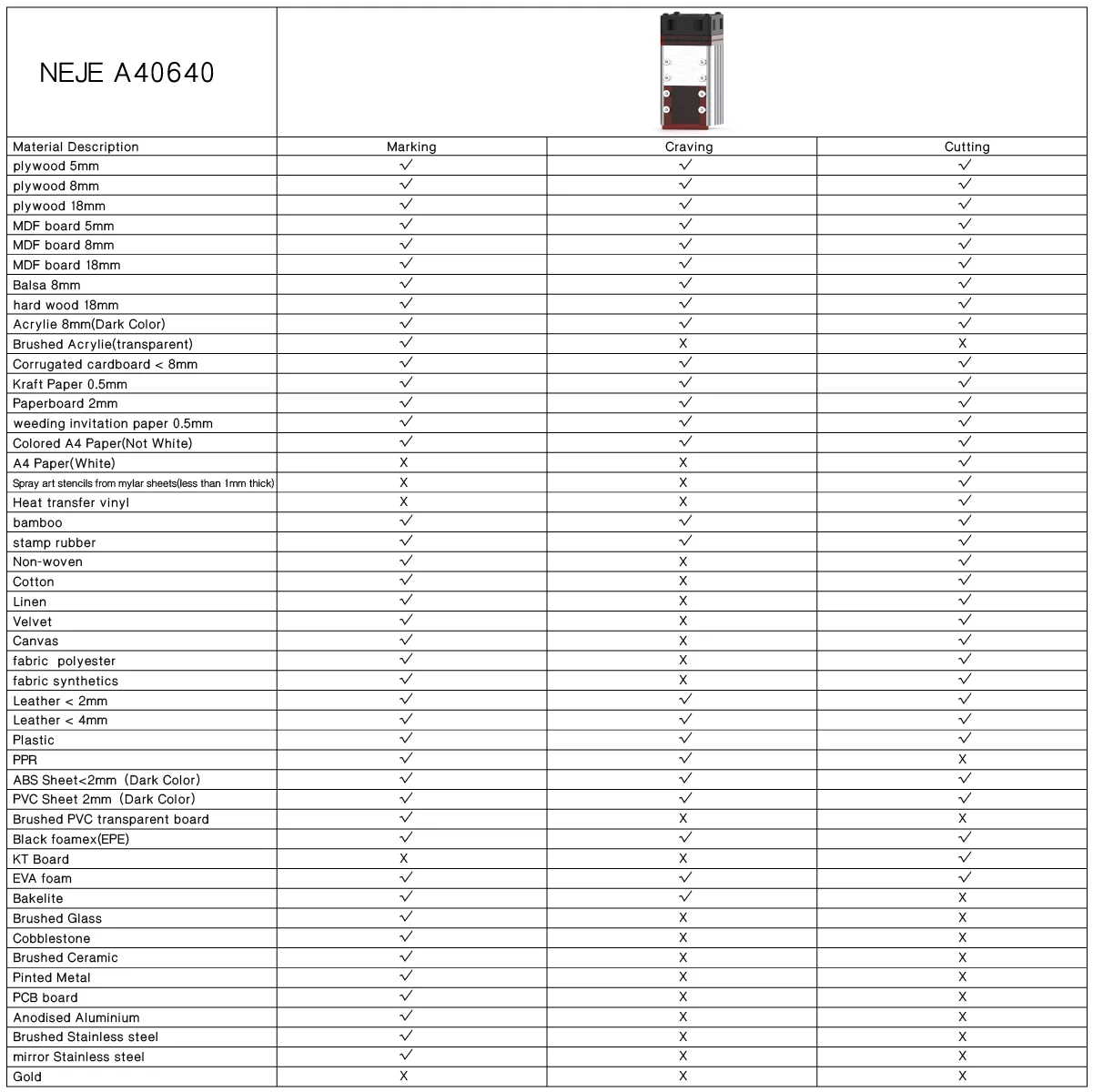

Can engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon fiber/paint metal/Anodized Aluminum/Stainless Steel Can cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board
Optical
power output:10W
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V 3-4A
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

NOTE:
Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC Safe
temperature range:<60 ℃ Module
weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
LifeTime:10000-20,000 hours
