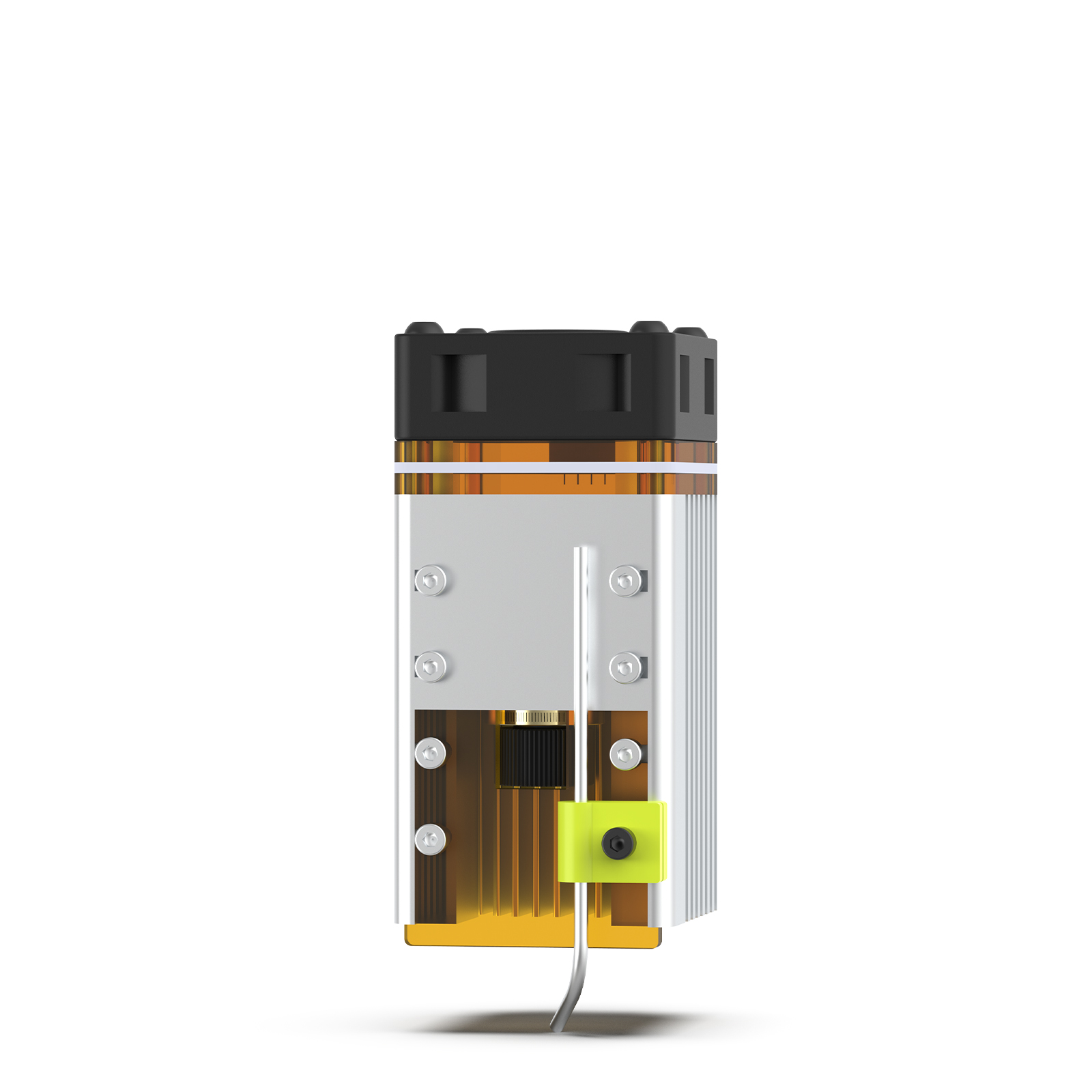

NEJE A40630 Optical 7.5w Pro 445nm Wavelength Laser Module Head
Product Description
Selling points:
1. Warehouse in Netherlands,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders
4.Accept OEM/ODM orders

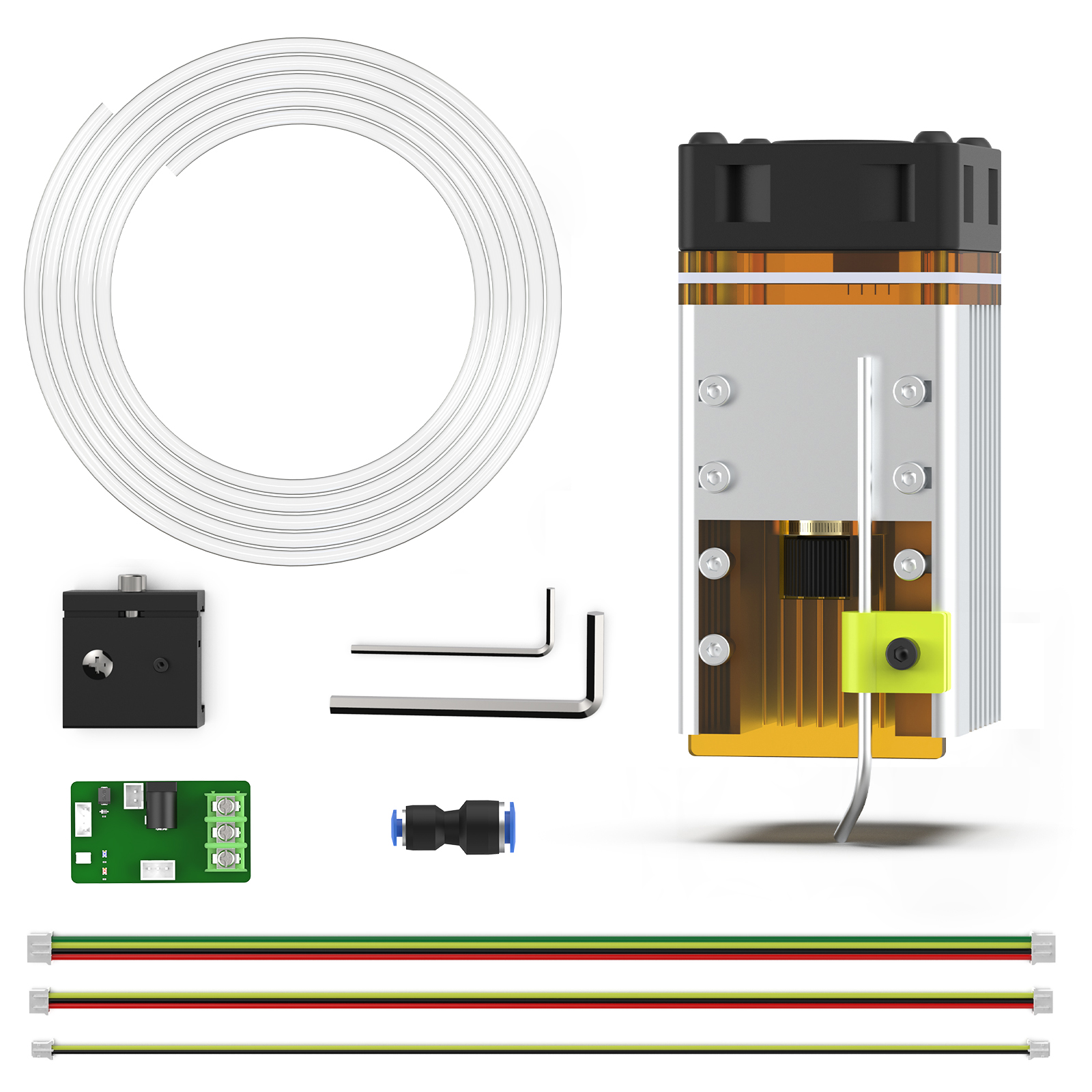

A40630 laser module kit for Neje master series mini engraver accessory DIY Tools Laser Module Head

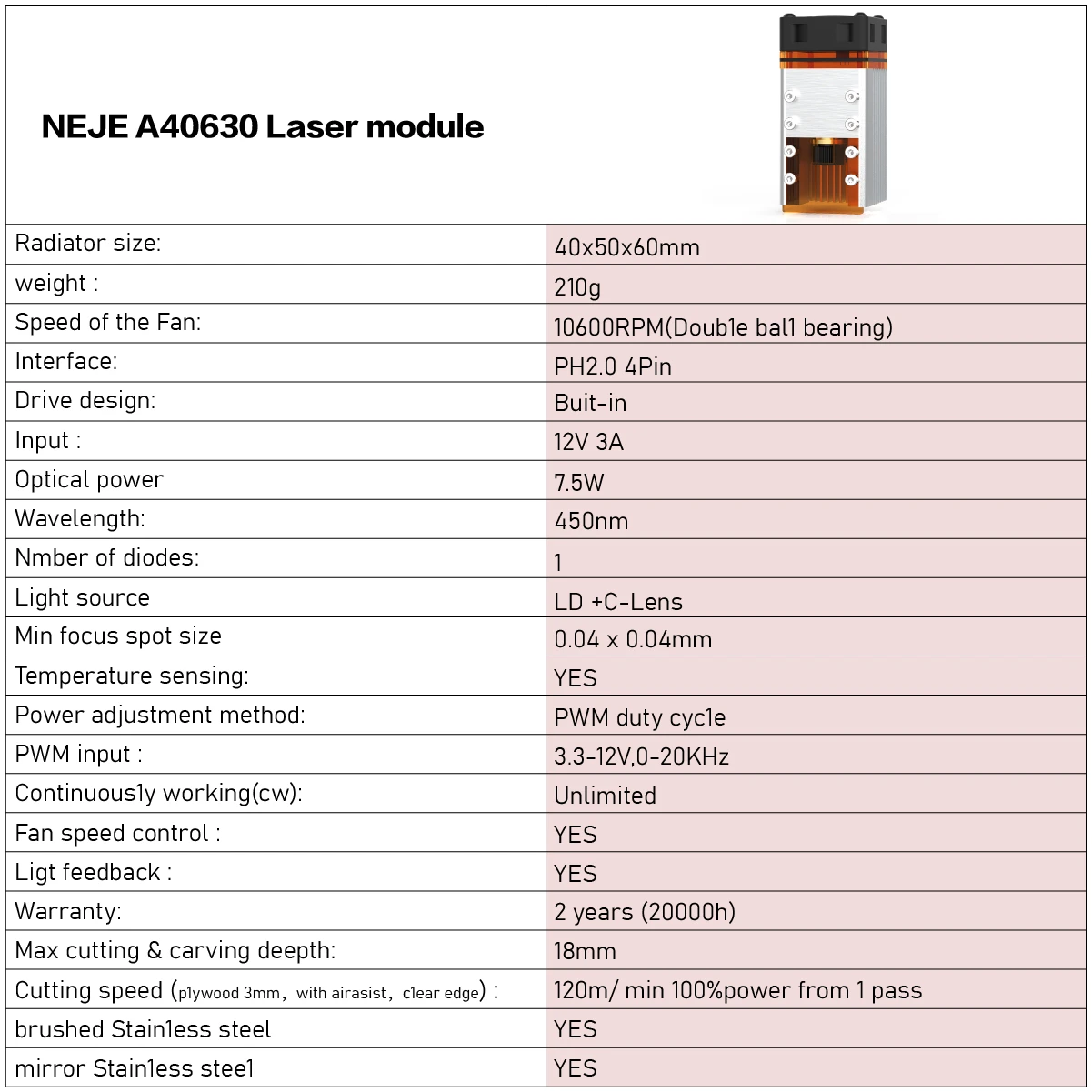

NEJE A40630 Laser Module Specifications
Model： NEJE A40630
Model： NEJE A40630
Heatsink Material：Aircraft Aluminum + Brass Shell Luminous
Color：Blue Section
Size：40mm x 40mm Cooling
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm Adapter Plug：5.5 2.1 port

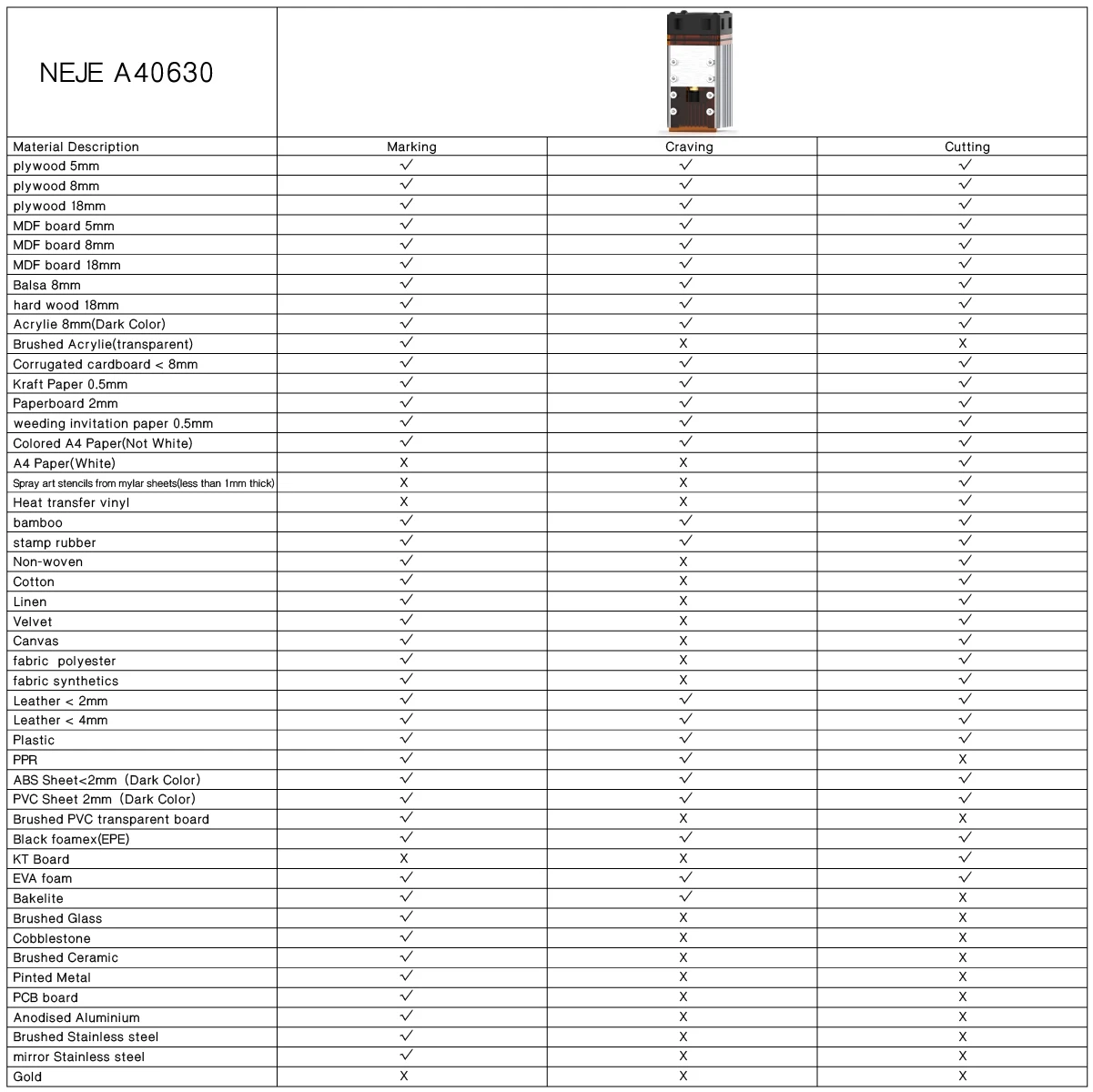

Can engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon fiber/paint metal/Anodized Aluminum/Stainless Steel Can cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board
Optical
power output：10W
power output：10W
Wavelength：445-450nm

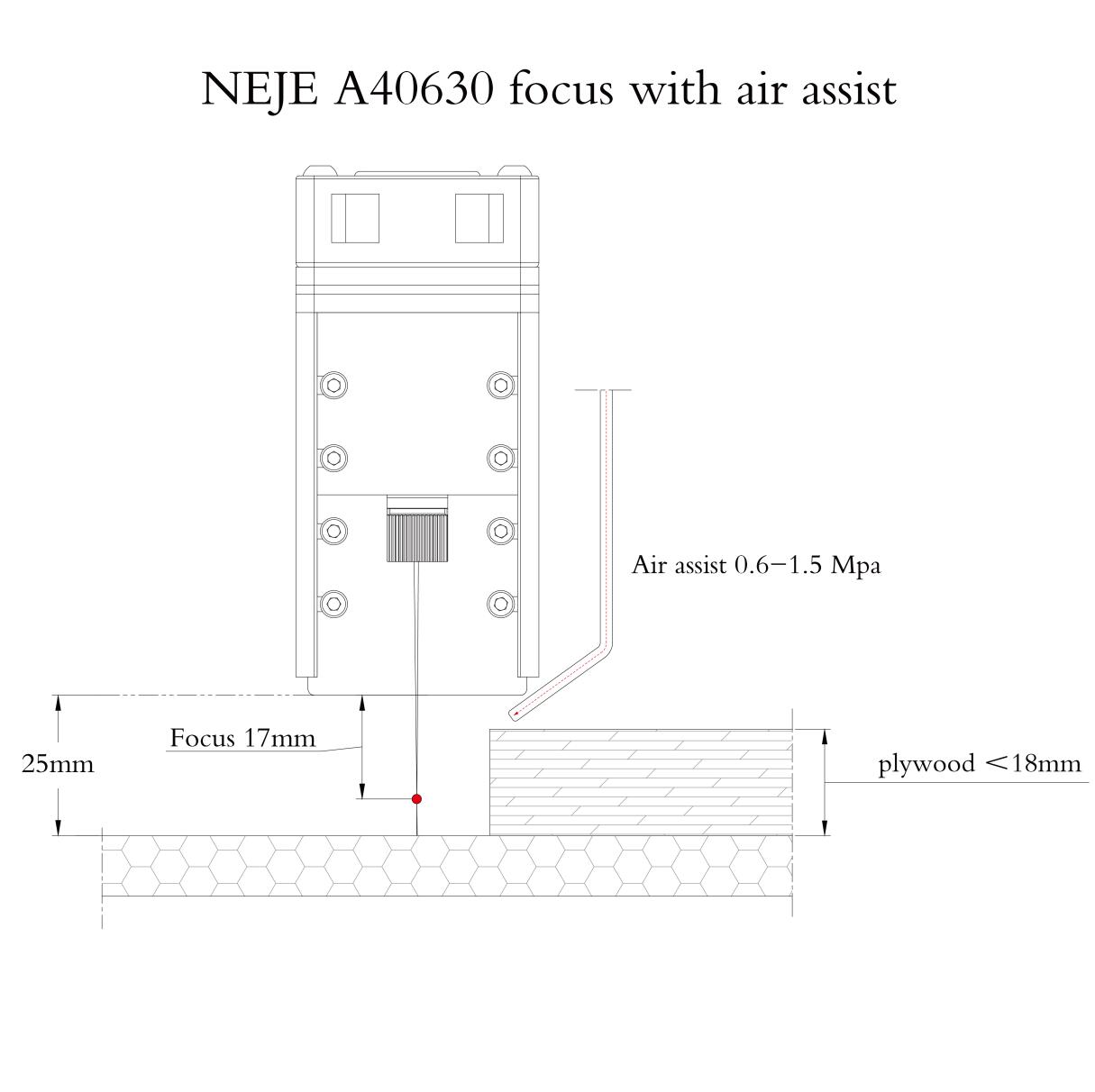

Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：
Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC Safe
temperature range：<60 ℃ Module
weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
LifeTime：10000-20,000 hours
