Description

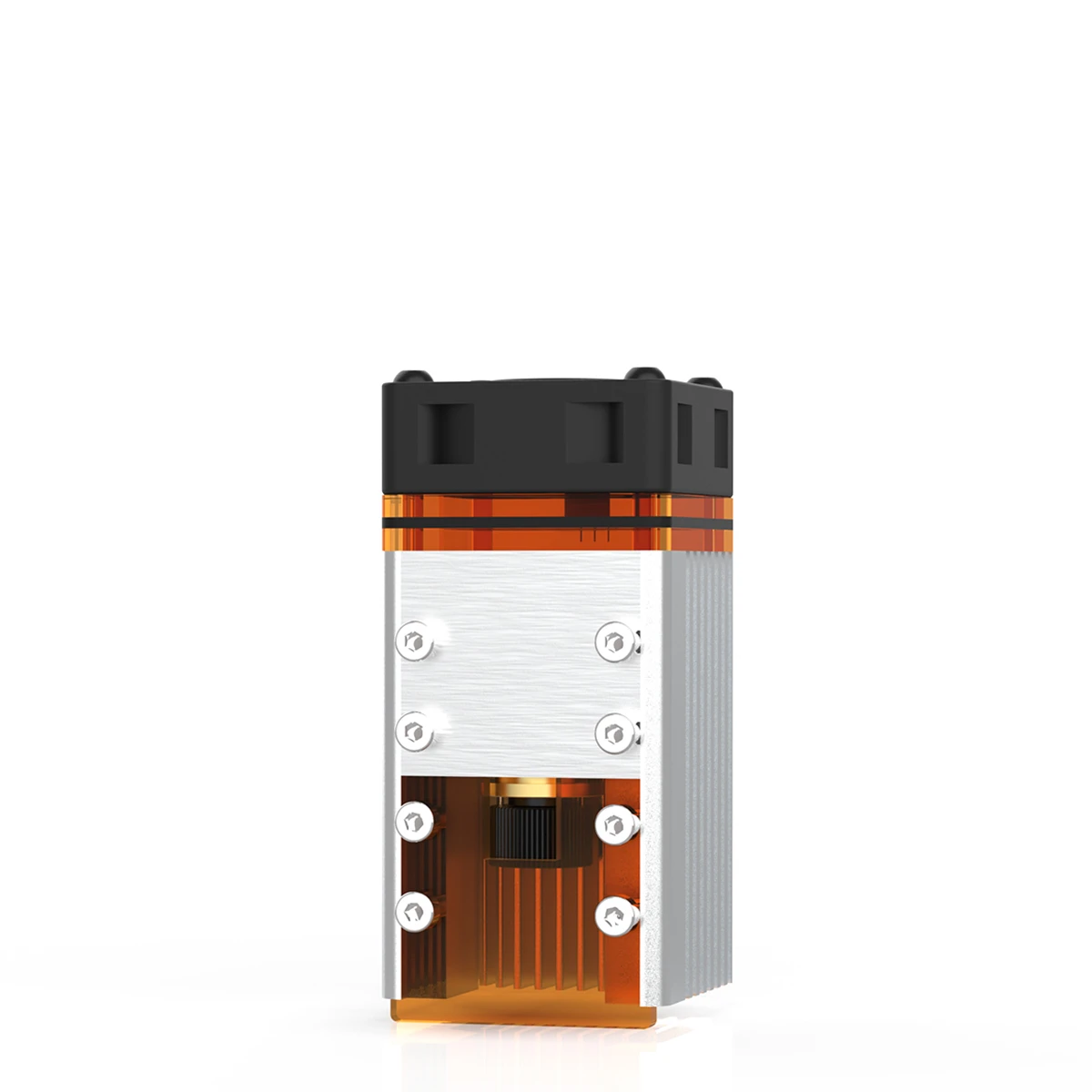

A40630 LASER ENGRAVER / CUTTER MODULE KITS – FAC – 7.5W OUTPUT
Product Description

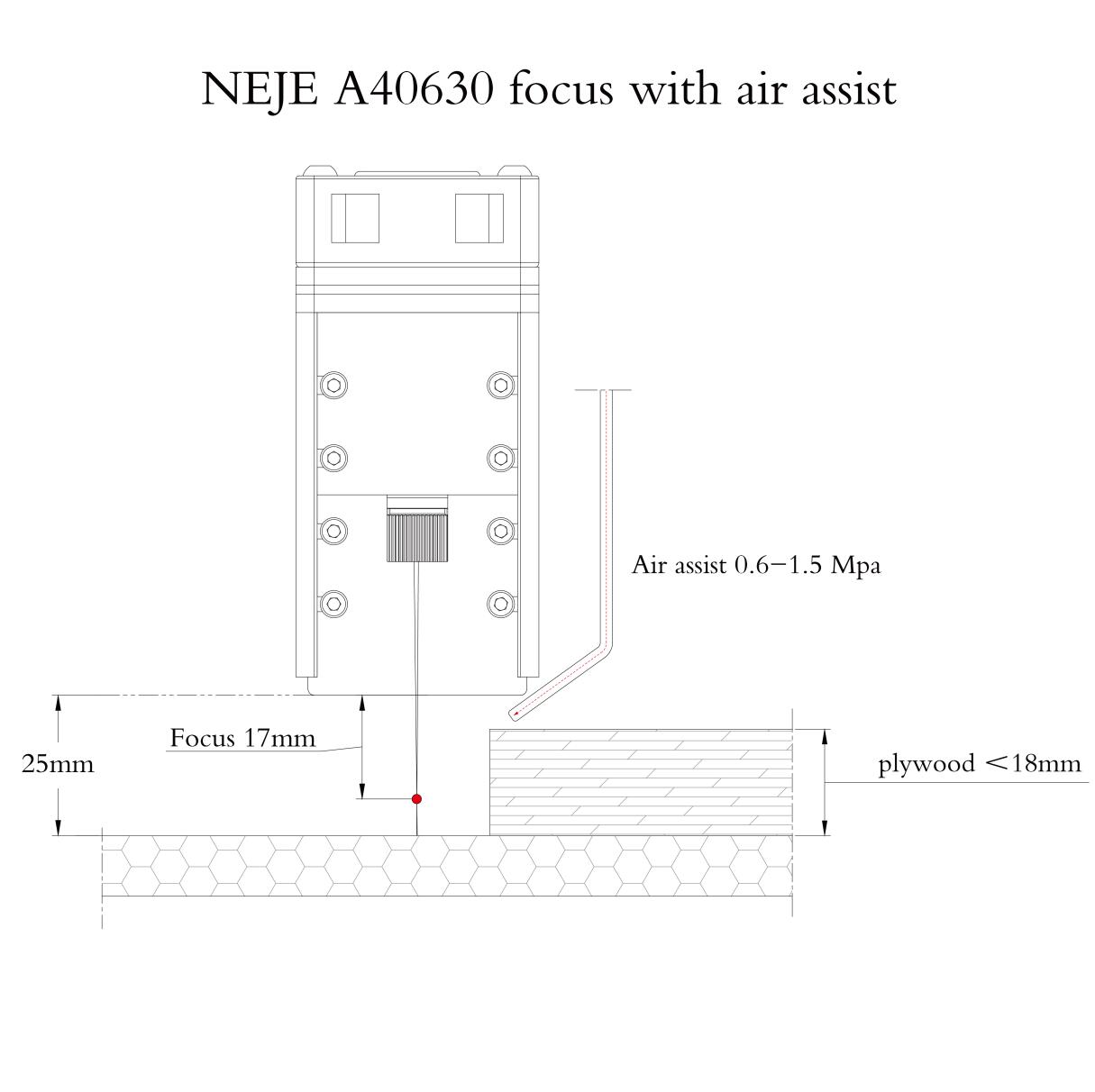

Feature： – Designed for Laser Engraver, 3D printer, CNC mill, arduino project. – 7.5W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment. – More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable. – More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature. – Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module. – slidable mounting fixture is provided for easy adjustment of focus.

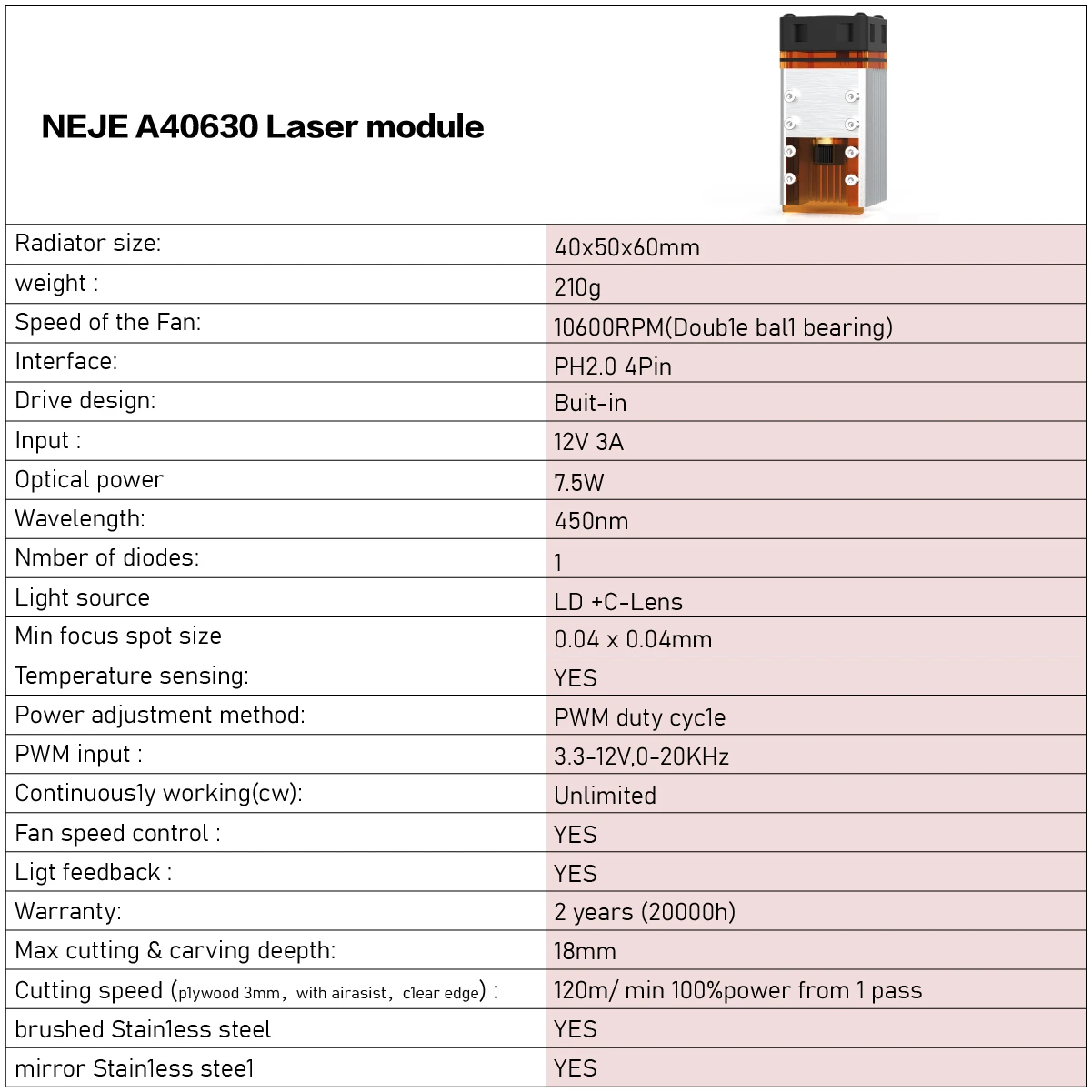

Specification:
|
Model
|
NEJE Module A40630 50W
|
|
Heatsink Material
|
Aircraft Aluminum + Brass Shell
|
|
Luminous Color
|
Blue
|
|
Section Size
|
40mm x 40mm
|
|
Cooling Mode
|
emperature sensor intelligent control + 10000 rpm 40mm cooling fan
|
|
Dimension
|
60 * 40 * 40mm
|
|
Adapter Plug
|
5.5 2.1 port
|
|
Can Engrave
|
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
|
|
Can Not Engrave
|
Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
|
|
Module Input
|
50W
|
|
Optical power output
|
7.5W
|
|
Wavelength
|
445-450nm
|
|
Beam Shape
|
Dot (Focusable)
|
|
Working Voltage
|
DC 12V
|
|
TTL&PWM Modulation
|
YES, Compatible with Both TTL & PWM Modulation
|
|
Input Voltage
|
DC12V 4A
|
|
PWM/TTL Input
|
DC3.3V-12V
|
|
Input Interface
|

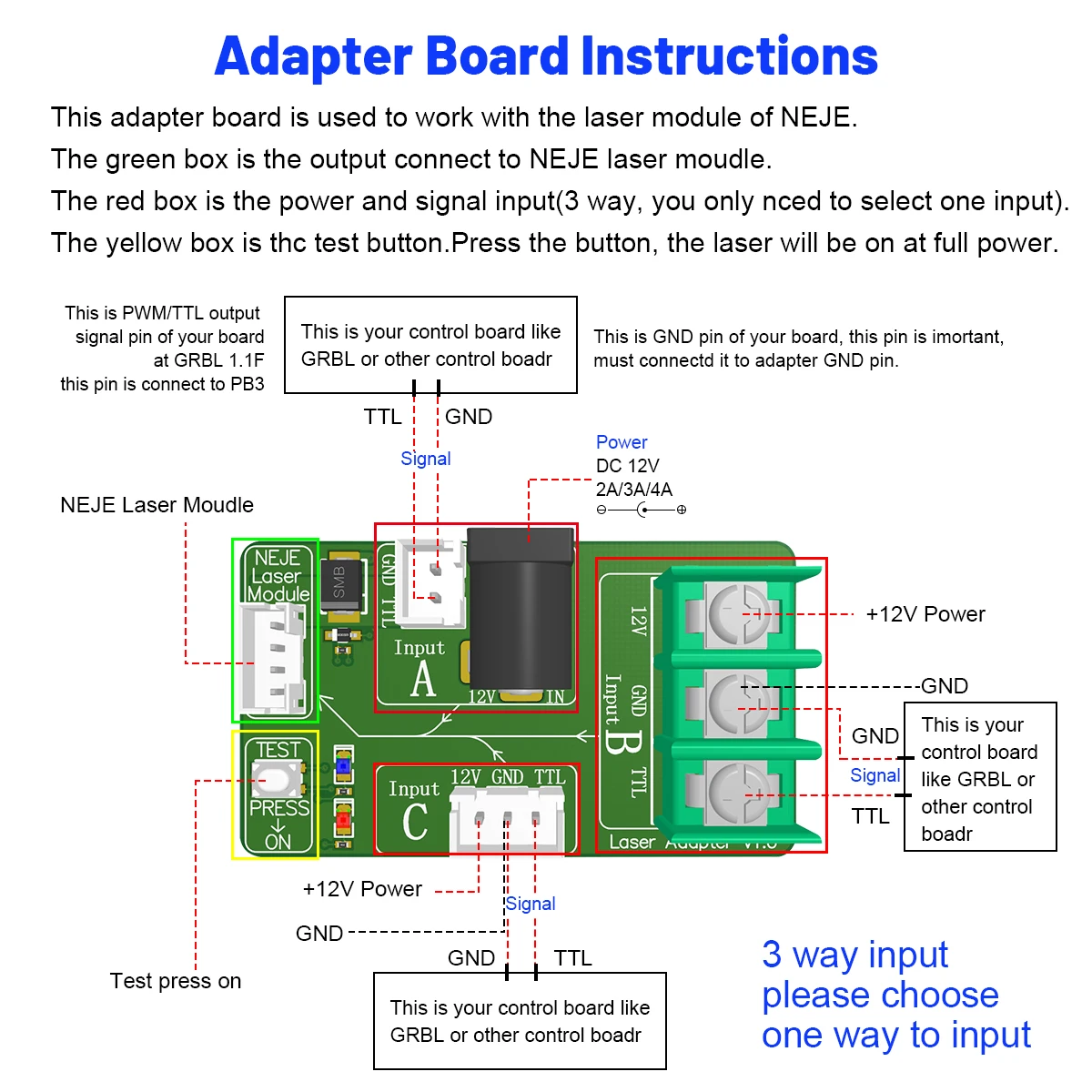

PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
|
|
Drive Mode
|
External ACC
|
|
Life Time
|
10000-20,000 hours
|
|
Power input
|
DC 12V
|
|
Output
|
PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
|
|
mode
|
3 modes (off, manual pwm, pwm / ttl in)
|
|
temperature display
|
Yes
|
|
pwm display
|
Yes
|
|
Manual PWM control
|
Yes
|
Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin! 2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！ 3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors. 4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help. 5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module. 6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance. 7. This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machine . 8. It can also be compatible with other cnc equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of pwm waveform control.
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin! 2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！ 3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors. 4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help. 5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module. 6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance. 7. This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machine . 8. It can also be compatible with other cnc equipment, such as 3d printers, CNC MIlling, etc., but you need to master a certain knowledge of pwm waveform control.
Product packaging
1 x 50W Laser Engraving Module 1 x Laser Module Sliding fixture 1 x 4 Pin Cable(1000mm) 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board 1 x 12V4A UL Certified Power Adapter (UP to 50W) 1 x Euro adapter 1 x goggles 1 x 2.5mm L-shaped wrench 1 x 5mm L-shaped wrench
