NEJE 80W Lasergravurmaschine 410×400 Engraving Compression Area Cnc Desktop Diy Laser Engraver Cutting Machine

  • Home
  • NEJE 80W Lasergravurmaschine 410×400 Engraving Compression Area Cnc Desktop Diy Laser Engraver Cutting Machine

NEJE 80W Lasergravurmaschine 410×400 Engraving Compression Area Cnc Desktop Diy Laser Engraver Cutting Machine

$623.07

SKU: 3586131018651 Category:

Description

Products Description

NEJE 3 PRO A40640 Laser Engraver & Cutter

Fetures:

◆ PC CNC structure, using the characteristics of PC material document bonding, combined with high-precision CNC processing technology, brings more accurate and stable bonding and smooth and reliable motion control. Although PC material is more difficult to control the production quality, it can provide better quality than metal materials. More precise and smooth motion control.
◆ The new top-level 32-bit processing supports NEJE unity OTA upgrade, and the NEJE team will continue to optimize functions to bring you more surprises and value.
◆ The NEJE engineering team has made a lot of corrections to the GRBL firmware, resulting in the use of diode machines, and has made a lot of improvements in interaction and reliability. It is more perfectly compatible with laserGRBL and lightburn software, such as automatic low light in laserGRBL and Lightburn modes. M8, M7, door compatibility, bug fixes, program interaction and more.
◆ NEJE’s unique APP control control system can be combined with NEJE software to achieve a new interactive experience, enabling users to realize mobile usage scenarios, not only on desktops, but even on doors and chairs, away from the computer, and use image engraving.

THE LEADER OF DIODE LASER TECHNOLOGY INNOVATION!


When focusing to 55mm position (lens-to-focus distance), you can get a 0.18×0.18mm focal point and be able to cut material up to 18-20mm (requires accurate focus, 0.6-1.5mpa air assist to align the cut).

At present, the FAC technology adopted by NEJE is already the smallest focus solution on the market, and those so-called 0.08mm and 0.1mm need to be falsely marked!

Product Paramenters

3 Pro Machine

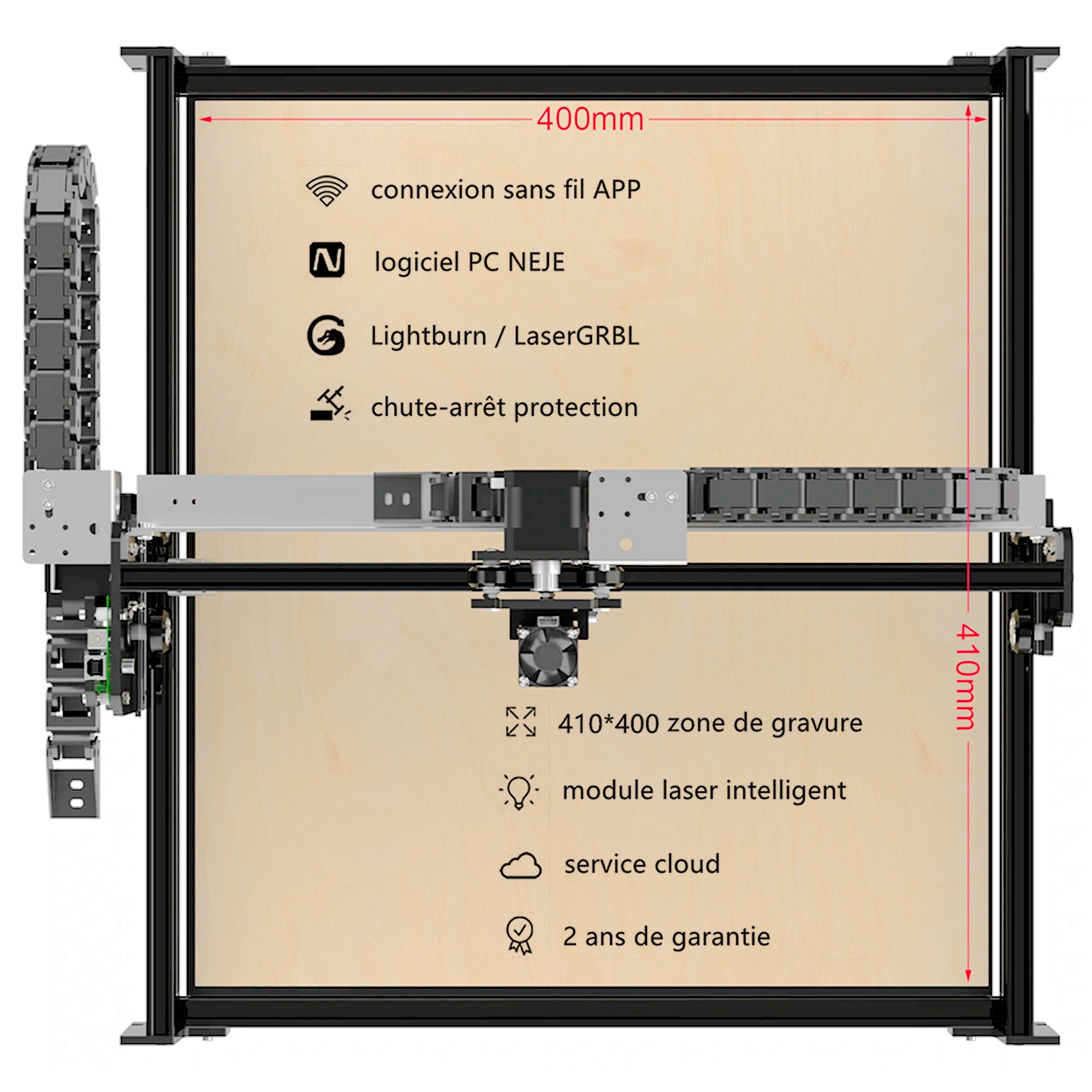

Engraving Area (XxY)
410 x 400 mm, support extension
Material
Aluminum alloy + PC,

brings more accurate and stable bonding and smooth and reliable motion control

Dot Pitch
0.075mm
Pixel
6133 x 10800 px
Motor Size
42 x 42 x 40 mm
Motor Drive Current
0.9A
Drive Design
Built-in
Home
Rear Left
Origin
Front Left
MCU
32-bit MCU
Input
12V 5A
Off-Line Working
Supported
Vertical Carving
YES
Module Height Adjuster
YES
Limit Switch
YES
Technology
Y-axis fit adjustable design, X-axis stress fit assembly
Feature
Fit, high precision, stablize, smooth, no oil, easy maintenance, long life
NEJE A40640 Laser Module
Radiator Size
40 x 50 x 60 mm
Input
12V 4A +
Optical Power
10W +
Wavelength
450nm
Number of Diodes
2
Light Source
2 X LD + FAC Tech + C-Lens
Software
Mobile Phone & Pad
NEJE Android APP

NEJE iPhone & iPad APP
PC
NEJE macOS software

NEJE Wins software

LaserGRBL with firmware GRBL1.1f.

LightBurn Software with firmware GRBL1.1f.

LightBurn ( paid software from the official website of Lightburn.)

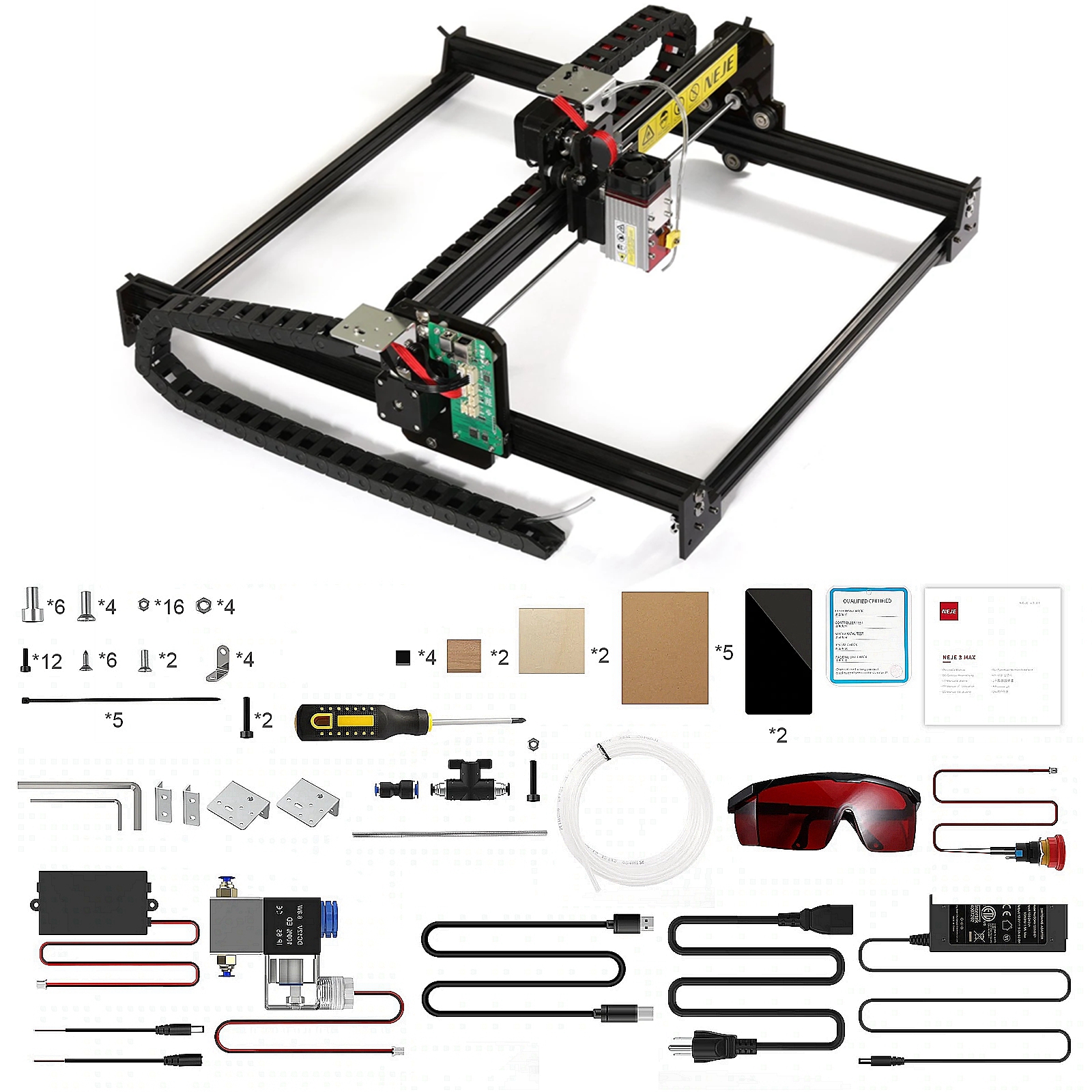

Packing List
NEJE 3 Pro Machine x 1
A40640 Laser Module with air Assist Kits x 1
12V 5A standard certified power adapter x 1
USB Cable + Manual + Quality Card x 1
Goggles x 1
Crawler x 1
12V Valve Control Kit (less than 1.5mpa) x 1
12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) x 1
Door Control Kit x 1 (The length of the control line is 1 meter.)
Screw Nut Wrench Screwdriver Belt Installation Package x 1
Test Material Package x 1

Additional information

Model Number

NEJE 3 PRO A40640

Power

80W
