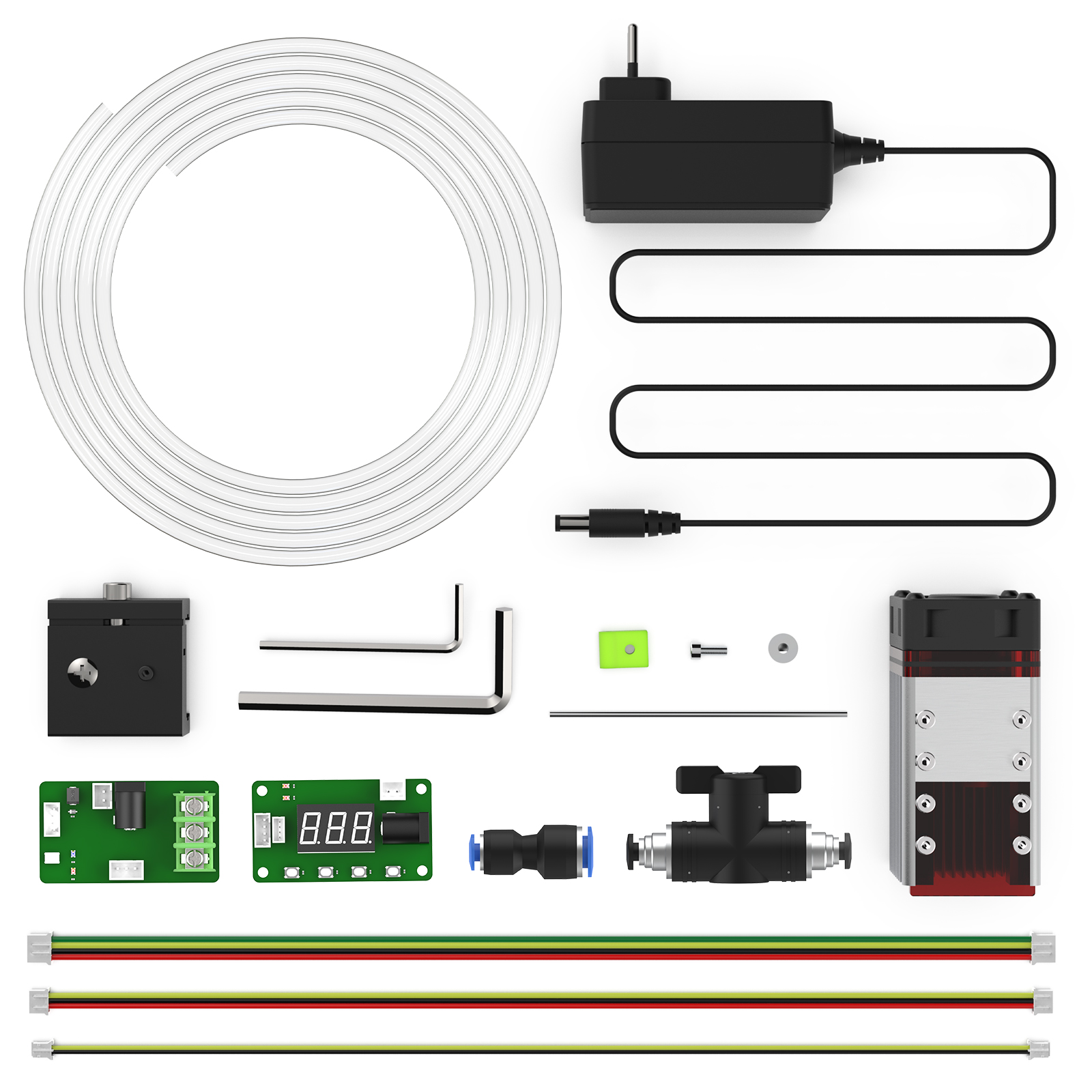

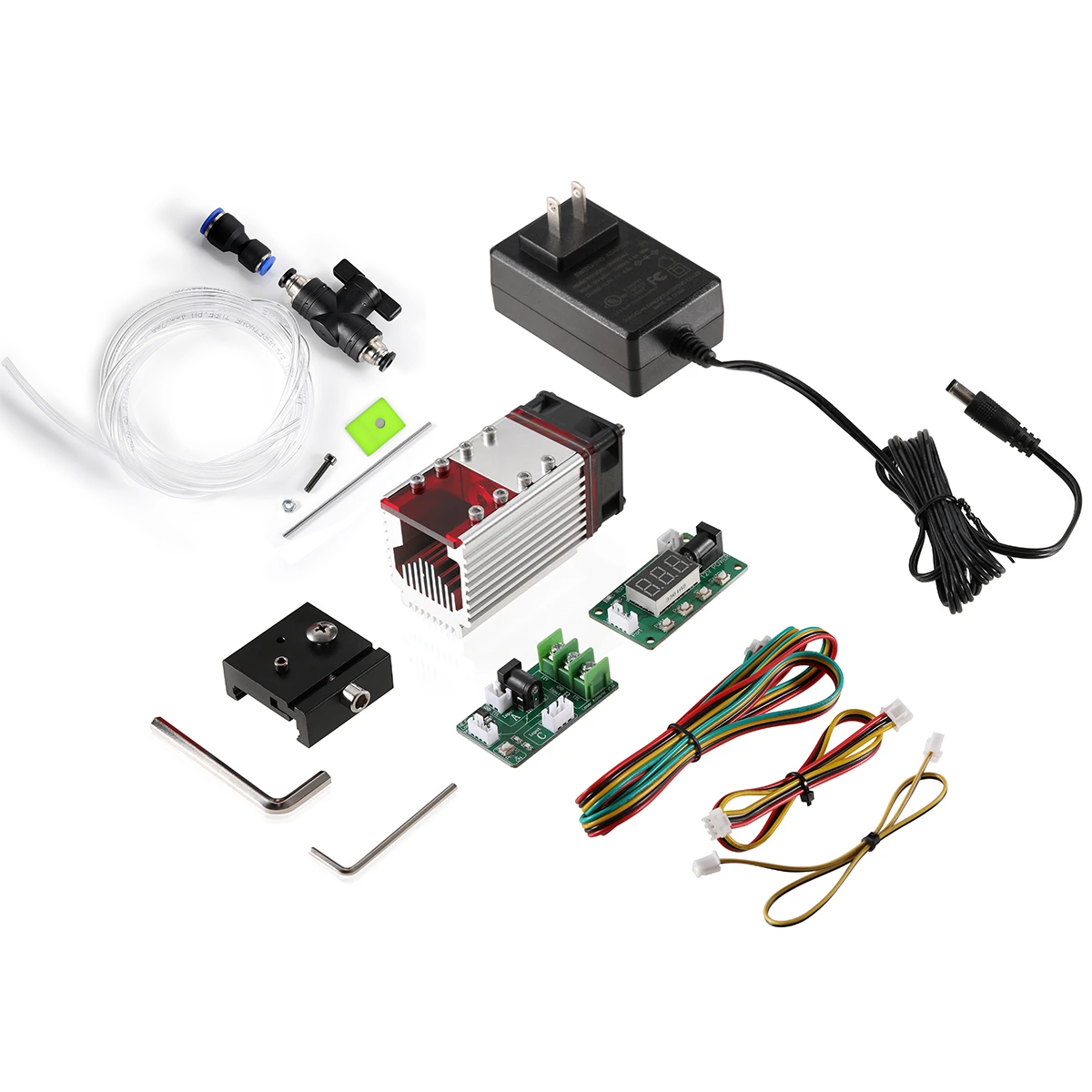

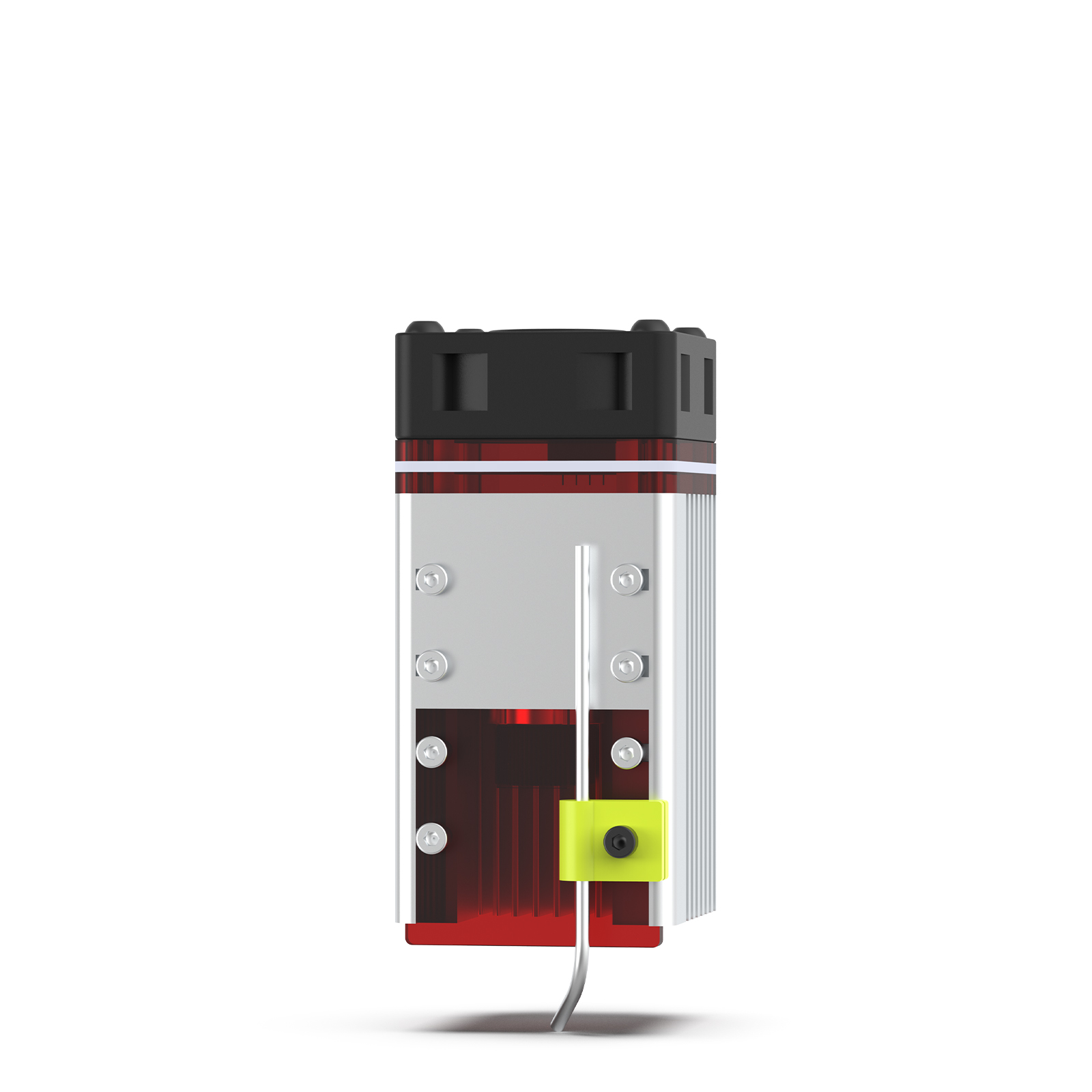

A40640 laser module kit for Neje master series mini engraver accessory DIY Tools Laser Module Head

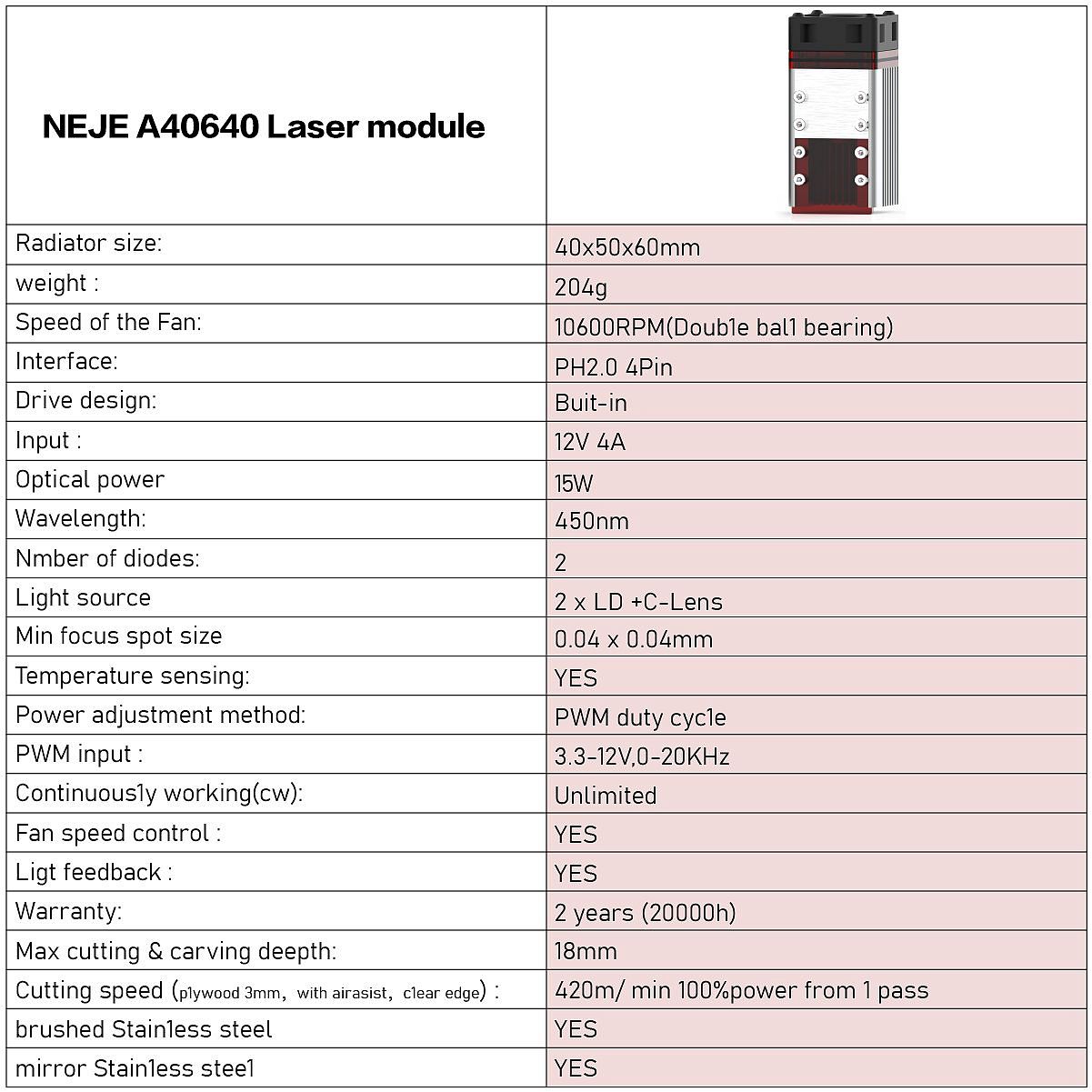

NEJE A40640 Laser Module Specifications
Model： NEJE A40640
Model： NEJE A40640
Heatsink Material：Aircraft Aluminum + Brass Shell Luminous
Color：Blue Section
Size：40mm x 40mm Cooling
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm Adapter Plug：5.5 2.1 port

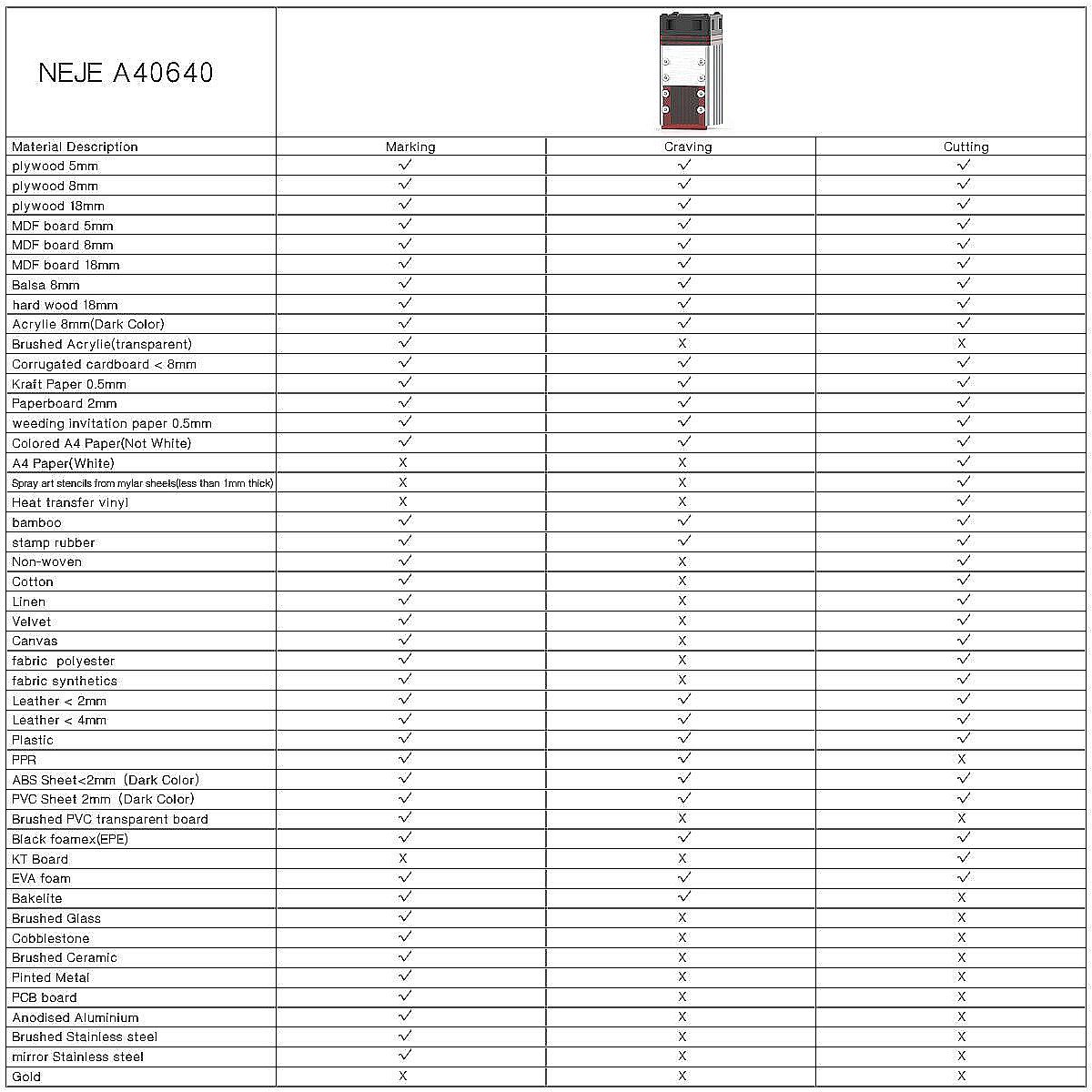

Can engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/acrylie/ABS Board/PVC Sheet/PPR/PCBA/Bakelite/Carbon fiber/paint metal/Anodized Aluminum/Stainless Steel Can cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Non-woven/cotton/linen/velvet/canvas/acrylie/ABS Board/PVC Sheet/EPE/KT board
Optical
power output：10W
power output：10W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：
Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC Safe
temperature range：<60 ℃ Module
weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
LifeTime：10000-20,000 hours
