Features:
With high quality material and excellent performance, our laser engraver model kit is sturdy and durable. Designed for Laser Engraver, 3D printer, CNC milling, Arduino project, etc.

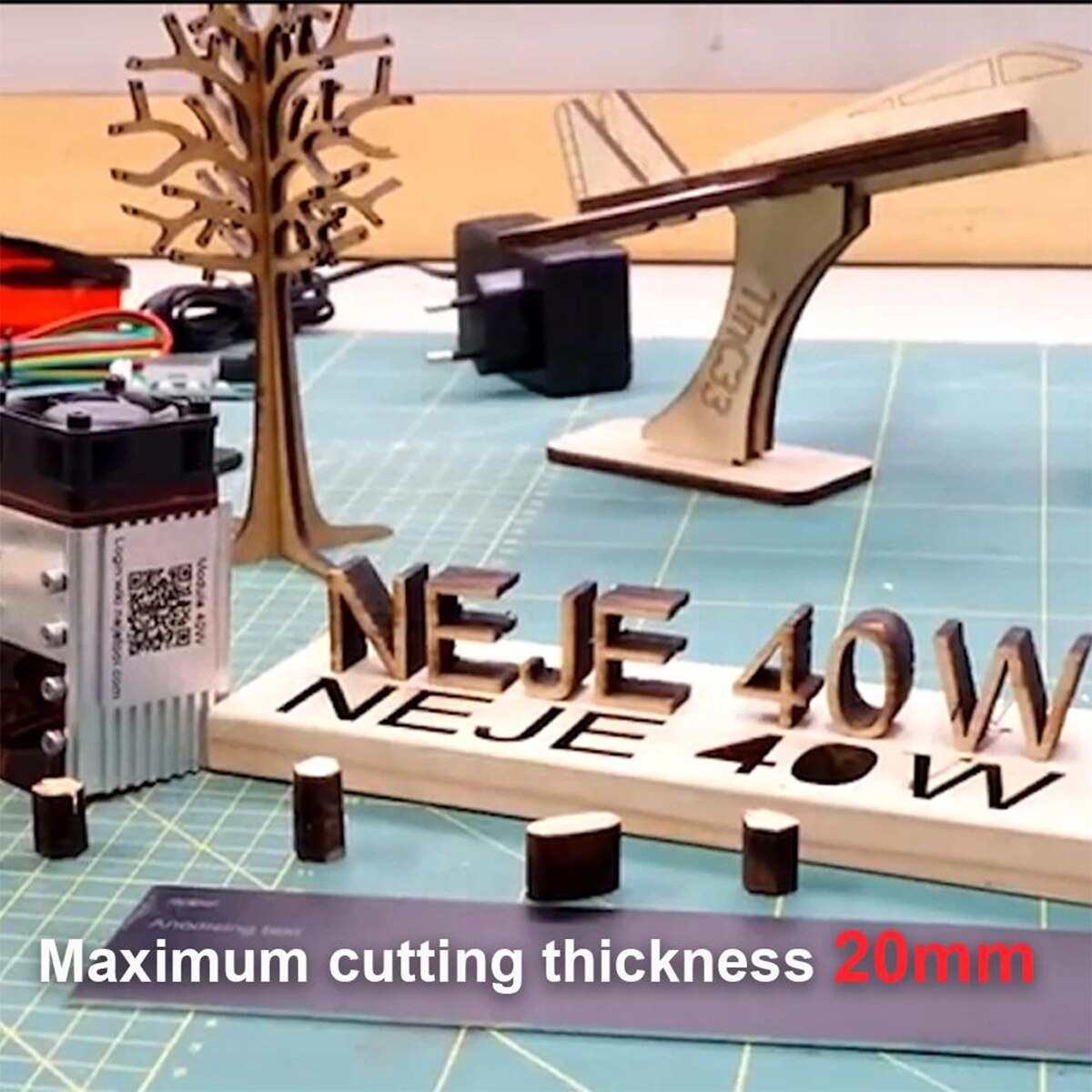

15W optical power output, 4mm plywood from 1 pass (speed 200), 3mm black acrylic board from 1 pass. Able to engrave mirror finished stainless steel, but it needs good focus adjustment.

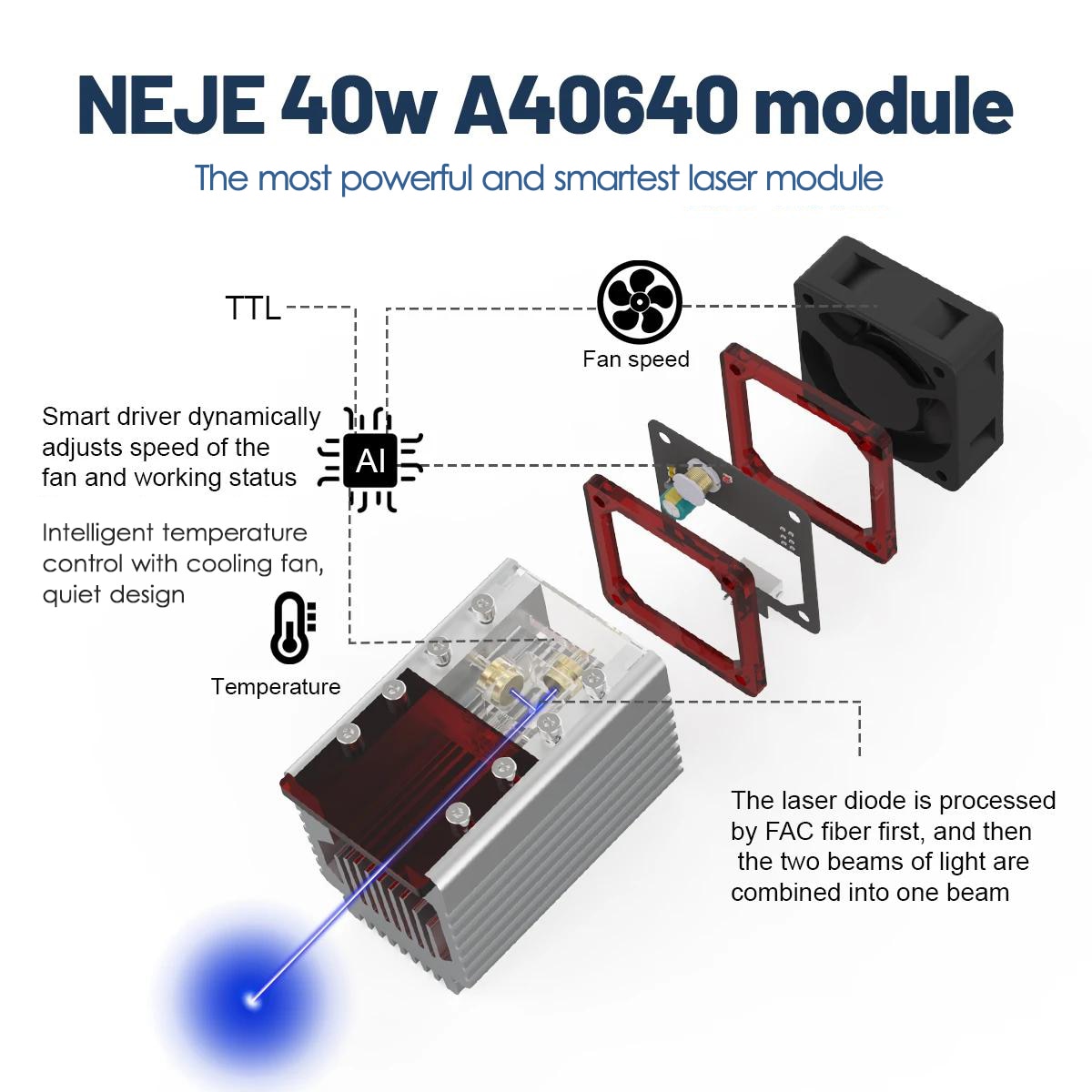

Cooling mode and quiet design: with temperature sensor inteiilgent control and 10000 rpm cooling fan, intelligent drive can adjust the cooling fan speed according to laser temperature.

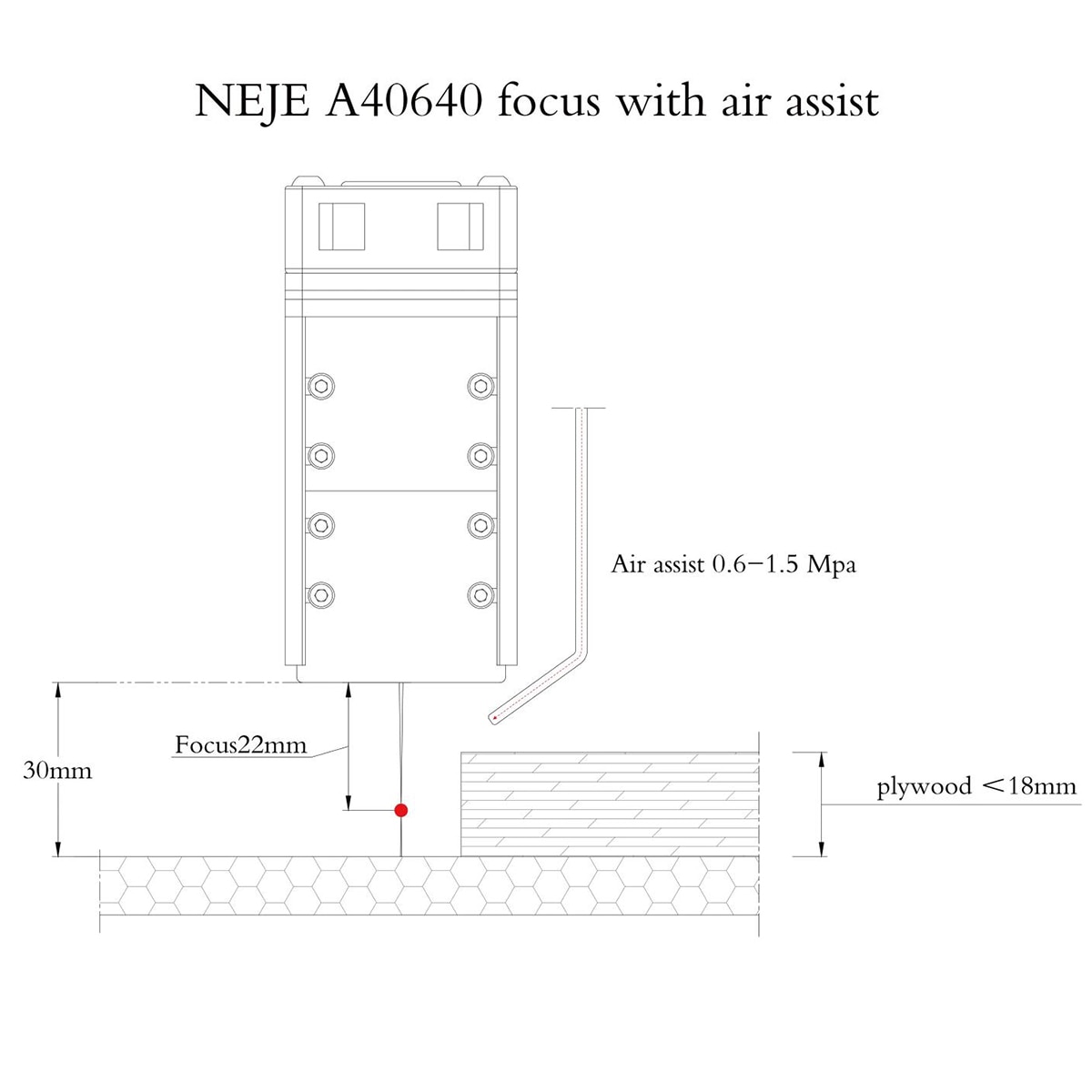

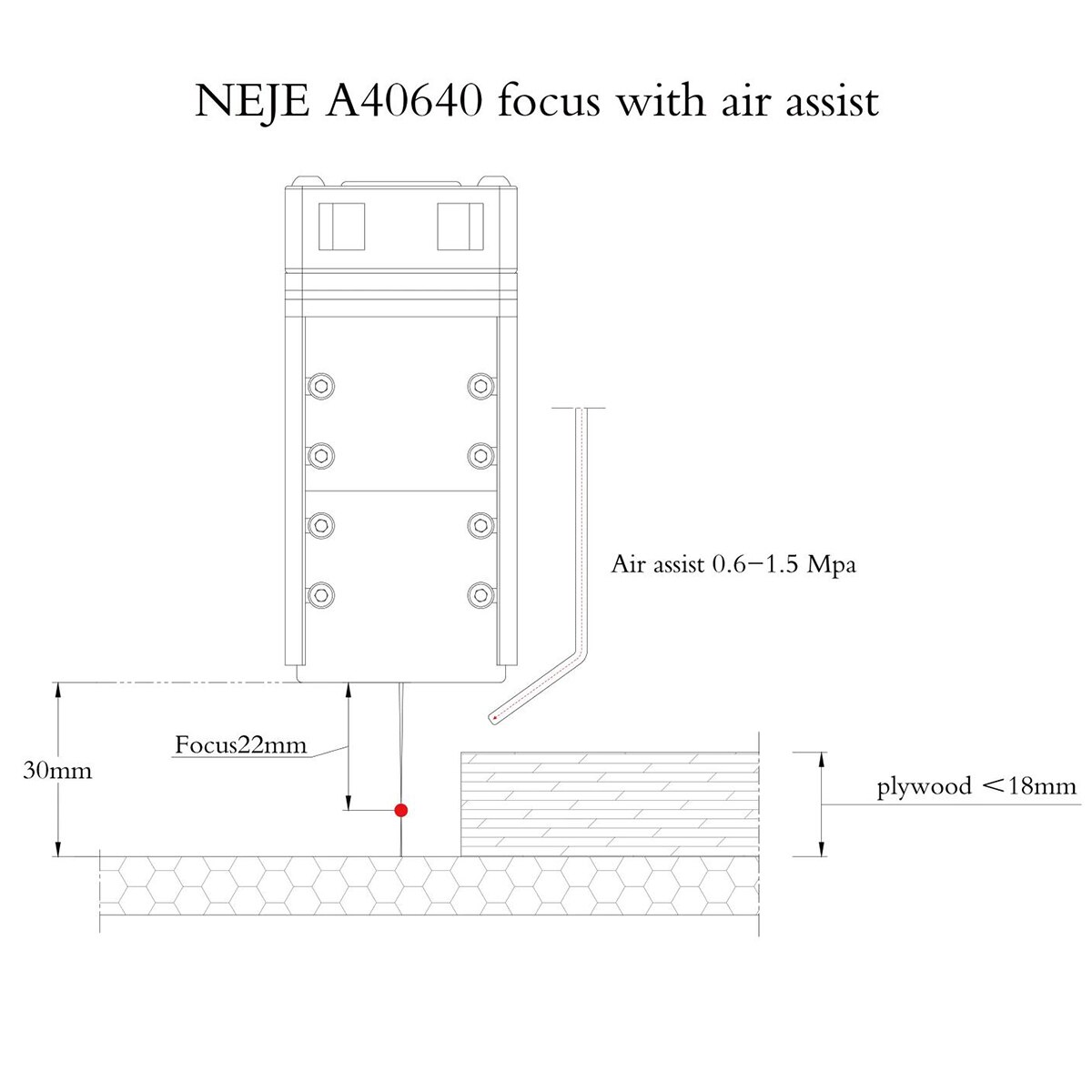

Easy to use: digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module. Slidable mounting fixture is provided for easy adjustment of focus.
Equipped with protective glasses to protect eyes. Safer and more comfortable when using the machine.

Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin
2. Do not engrave mirror objects. Pay attention to fire. Pay attention to pets when working.
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. If your laser module has any problem, please DO NOT dismantle it freely. It will destroy the laser module.
5. This laser module is compatible with our NEJE Master 2 Plus and Master 2 Max machines.
6. It can also be compatible with other CNC equipment, such as 3d printers, CNC Milling, etc., but you need to master a certain knowledge of PWM waveform control.
7. If you have any quality problem with the machine, please feel free to contact us. Many operating problems can be solved according to your video and problem description. Thank you.

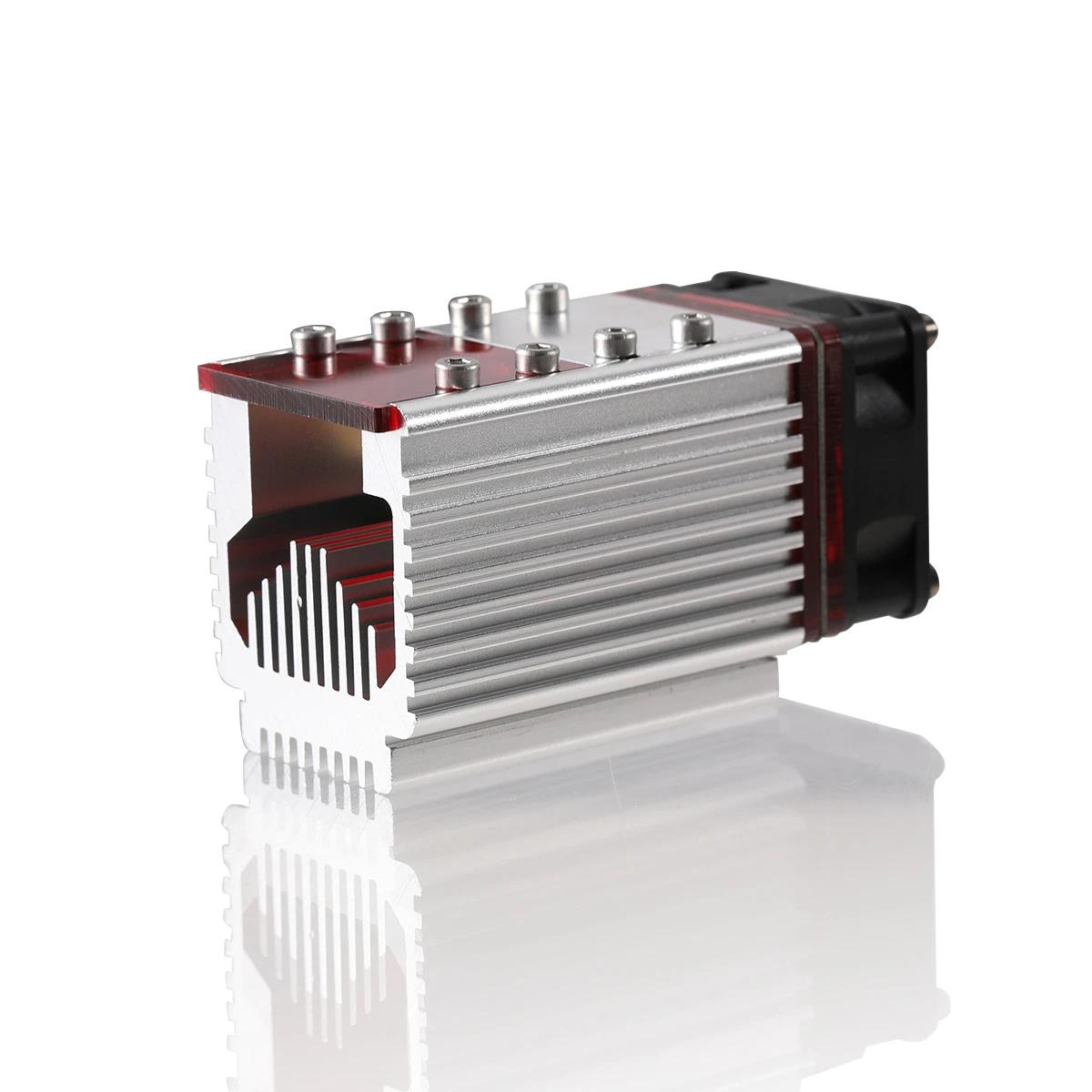

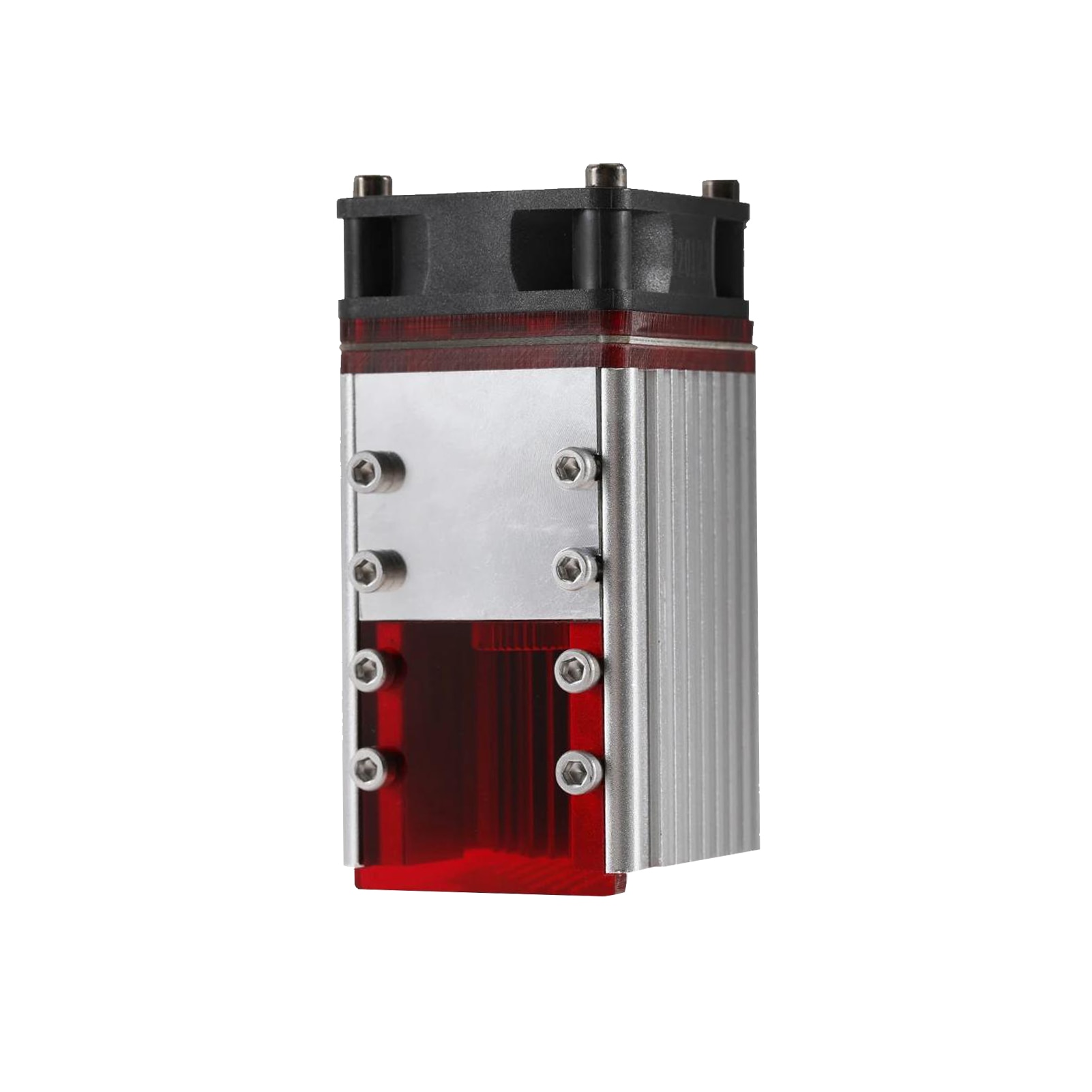

40W General Specifications:

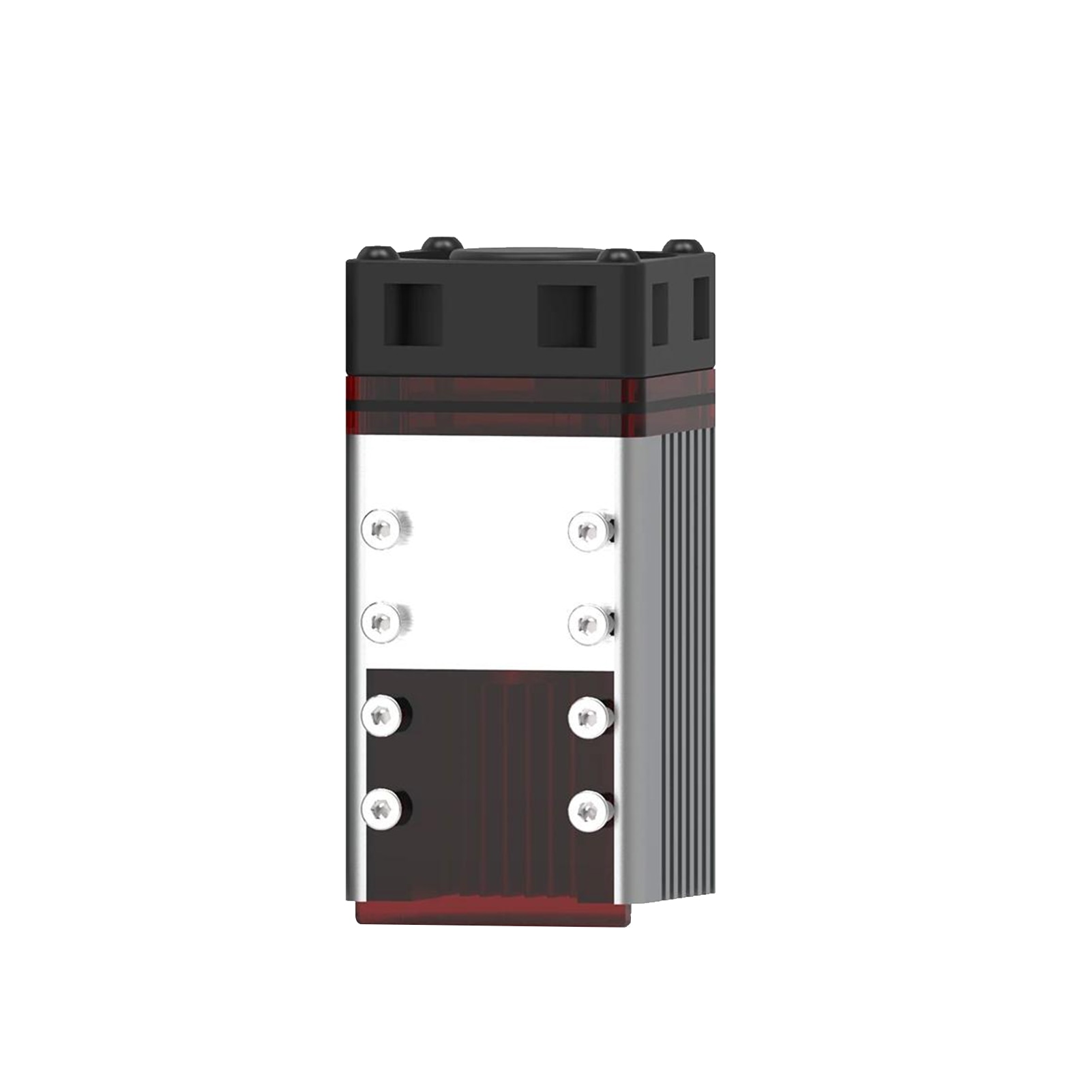

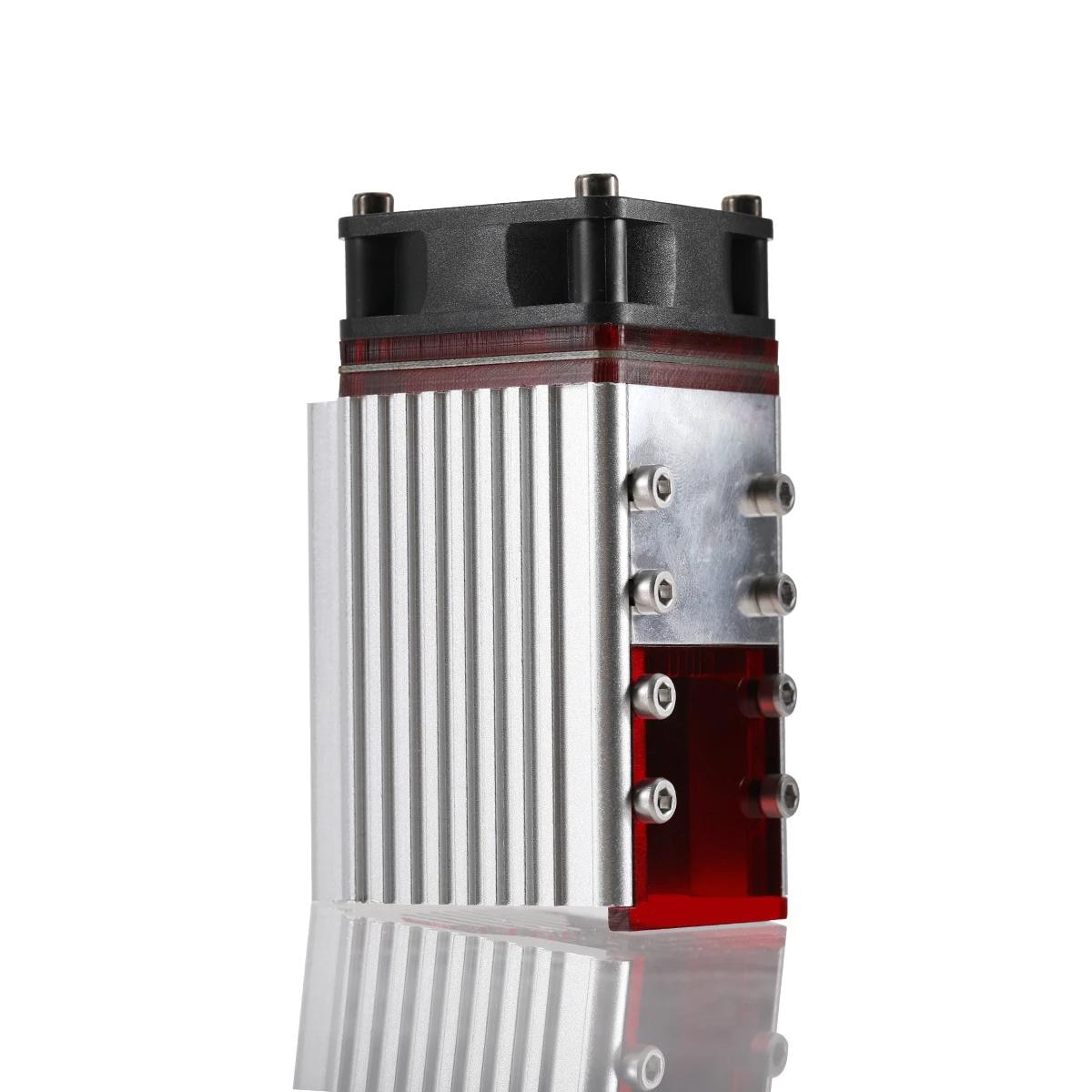

Model: NEJE Module 40W
Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Section Size: 40 * 40mm / 1.57 * 1.57in
Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Can Engrave: MDF/ Balsa/ Paper/ Wood/ Fabric/ Plastic/ Mirror Finished Stainless Steel/ Leather/ Plywood/ Foam Paper/ Anodized Aluminum
Can Not Engrave: Metal/ Glass/ Stone/ Ceramics/ PCB/ Normal Stainless Steel/ Reflective Material/ Transparent Material
Dimension: 60 * 40 * 40mm / 2.36 * 1.57 * 1.57in
Package Size: 36 * 16 * 11cm / 14.17 * 6.30 * 4.33in
Package Weight: 700g / 1.54lbs

Technical Parameters:
Module Input: 30-40W
Optical Power Output: 15W
Wavelength: 445-450nm

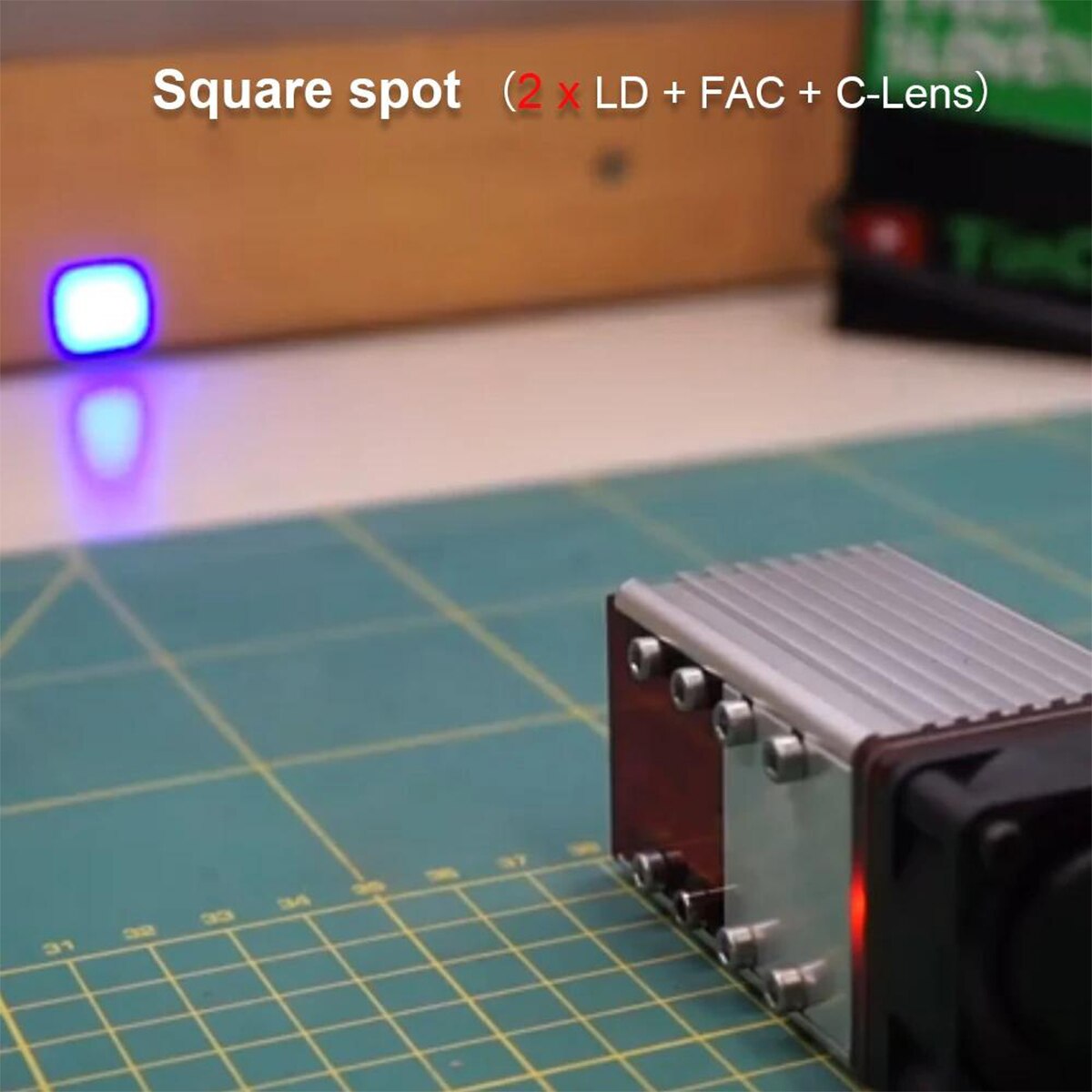

Beam Shape: Dot (Focusable)
Working Voltage: DC 12V
TTL & PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC 12V 3-4A
PWM/ TTL Input: DC 3.3V-12V

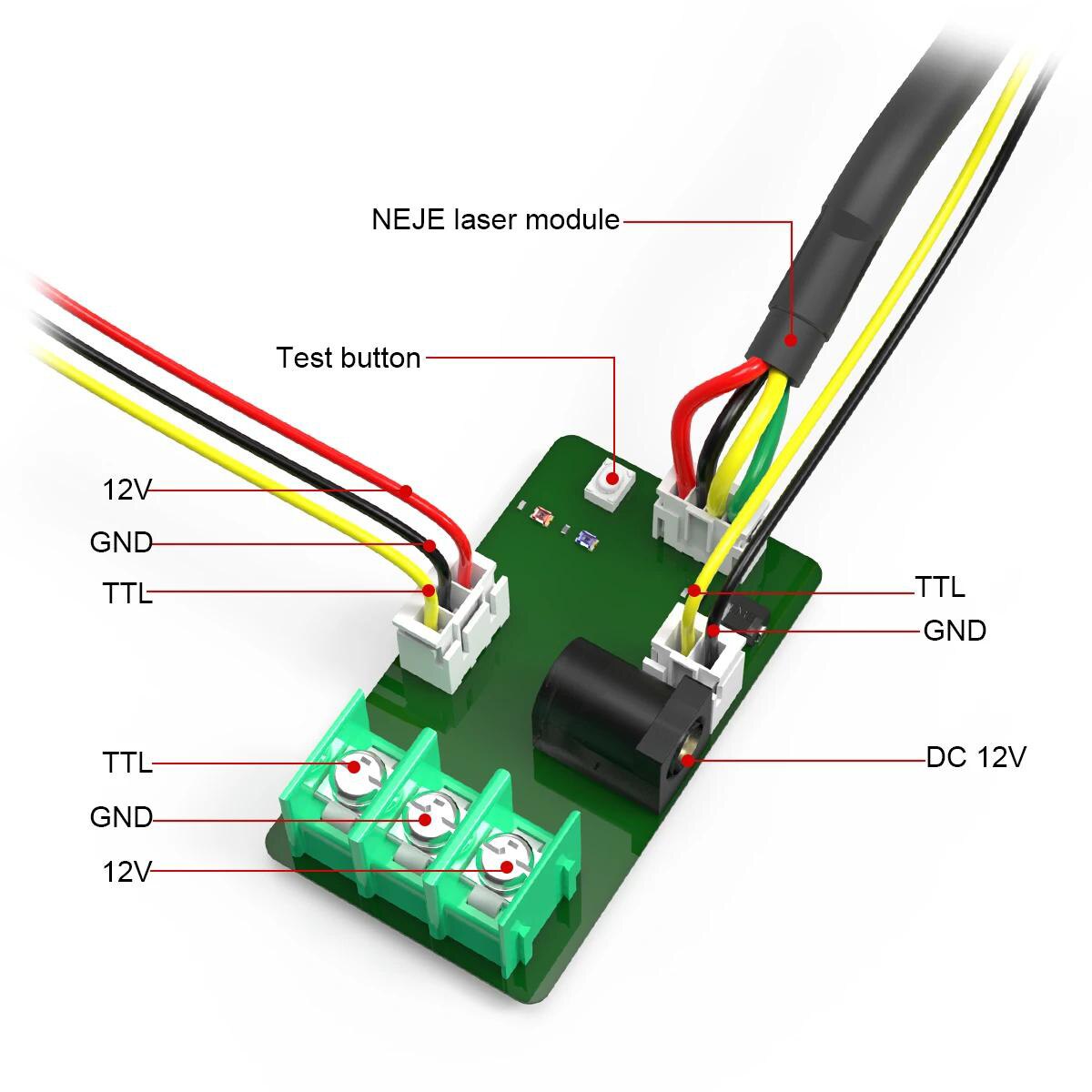

Input Interface: PH2.0-4Pin (+, -, PWM/ TTL, Temperature), 3Pin (+, -, PWM/ TTL) , 2Pin+2Pin (+, -) + (PWM/ TTL, -)
NOTE: Temperature interface can be disconnected, NEJE provides text instructions for temperature acquisition on the wiki.
Drive Mode: External ACC
Safe Temperature Range: <60 ℃
Module Weight: 202g / 7.13oz (The lighter the weight, the smaller the moving inertia, the better the performance)
Life Time: about 10,000-20,000 hours

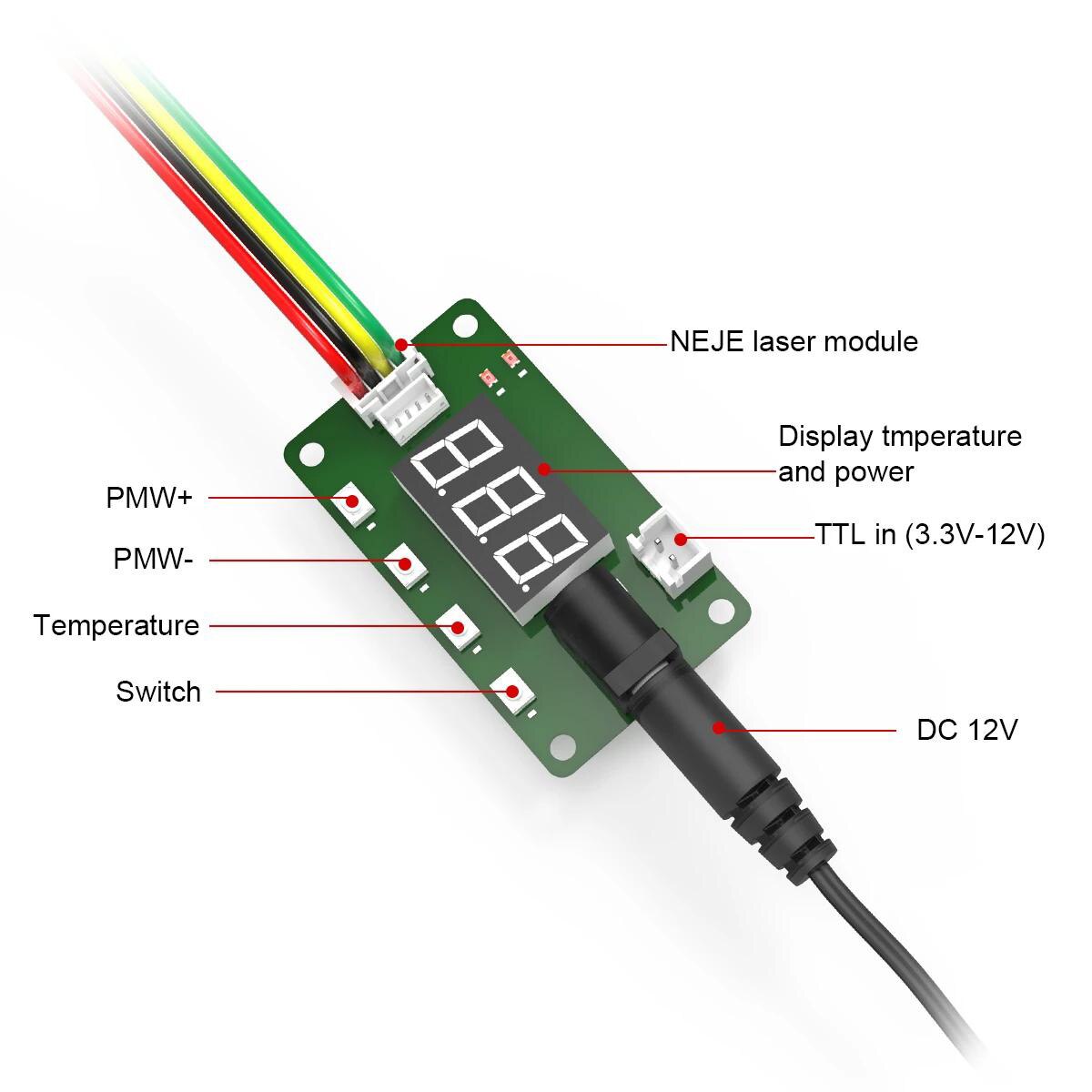

Digital PWM Wave Pulse Signal Generator Adjustable Frequency Duty Cycle for NEJE Laser Module Tester Board Specifications:
Power Input: DC 12V
Output: PH2.0 4Pin (12V, GND, PWM/ TTL,Temperature)
Mode: 3 Modes (off, manual pwm, pwm/ ttl in)
Temperature Display: YES
PWM Display: YES
Manual PWM Control: YES

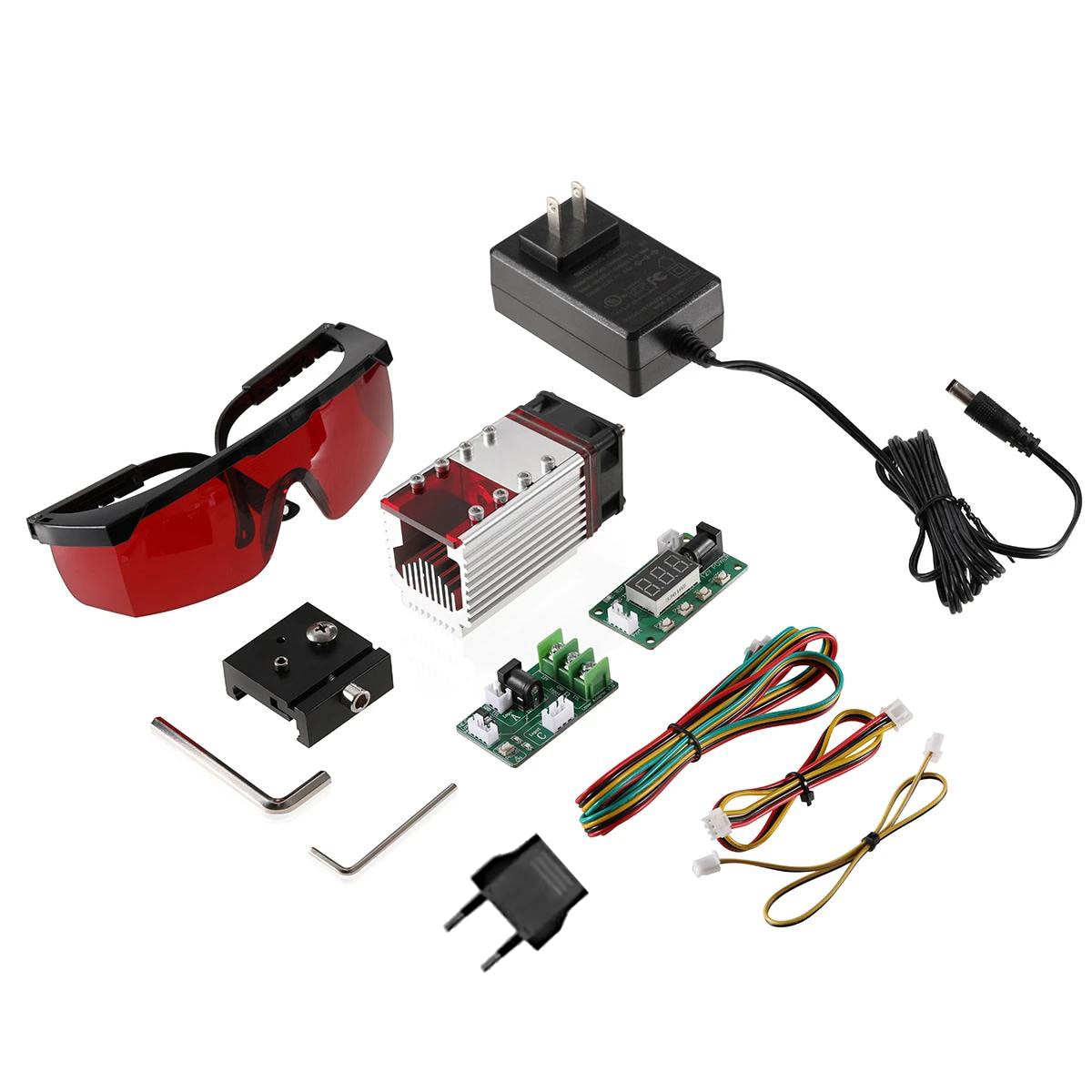

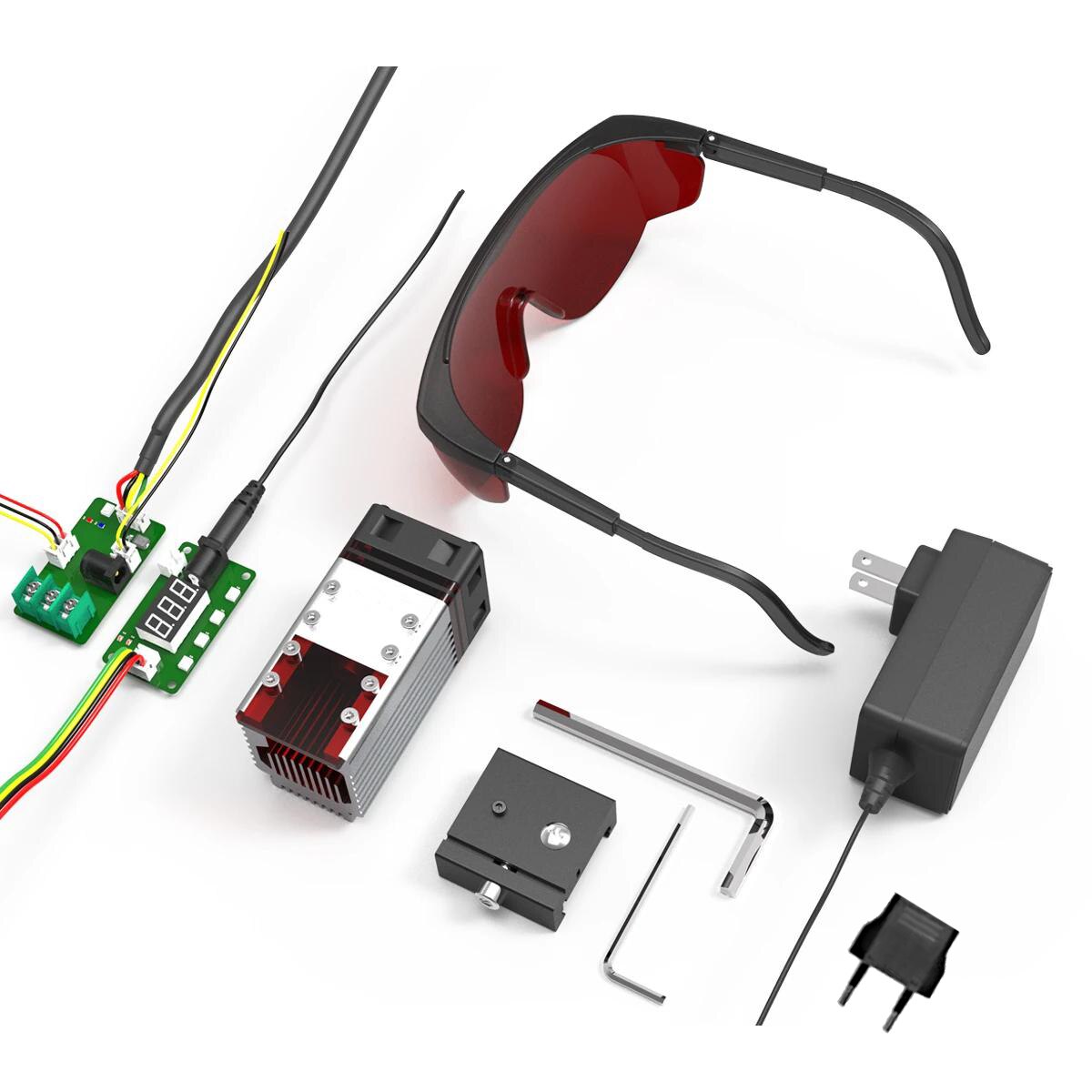

Package List:
1 * 40W Laser Engraving Module
1 * Laser Module Sliding Fixture
1 * 4 Pin Cable(1000mm)
1 * Digital PWM Wave Pulse Signal Generator Adjustable Board
1 * 12V 3A Power Adapter (US)
1 * EU Adapter
1 * Pair of Goggles
1 * 2.5mm L-shaped Wrench
1 * 5mm L-shaped Wrench
