NEJE 3500mW/7W/20W Laser Module Kit Cutting Engraving Module Head 450nm Blue Light With TTL / PWM Modulation for DIY Creation

  • Home
  • NEJE 3500mW/7W/20W Laser Module Kit Cutting Engraving Module Head 450nm Blue Light With TTL / PWM Modulation for DIY Creation

NEJE 3500mW/7W/20W Laser Module Kit Cutting Engraving Module Head 450nm Blue Light With TTL / PWM Modulation for DIY Creation

$116.64$275.94

SKU: 1005002590721105 Category:

Description

  • Brand Name: NEJE
  • Origin: CN(Origin)
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Condition: New
  • Model Number: NEJE-Module-3500M/7W/20W
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Luminous Color: Blue
  • Optical power output: 3500M/7W/20W
  • Beam Shape: Dot (Focusable)
  • Life Time: 10000-20,000 hours

Detail 3500mW Vs 7W Vs 20W Laser Module

Laser Module Package List

1 x 3500mW/7W/20W Laser Module
1 x 4 Pin Sport Cable
1 x 3 Pin Cable
1 x 2 Pin Cable
1 x Interface Adapter Board

1 x Bag of Screwdriver

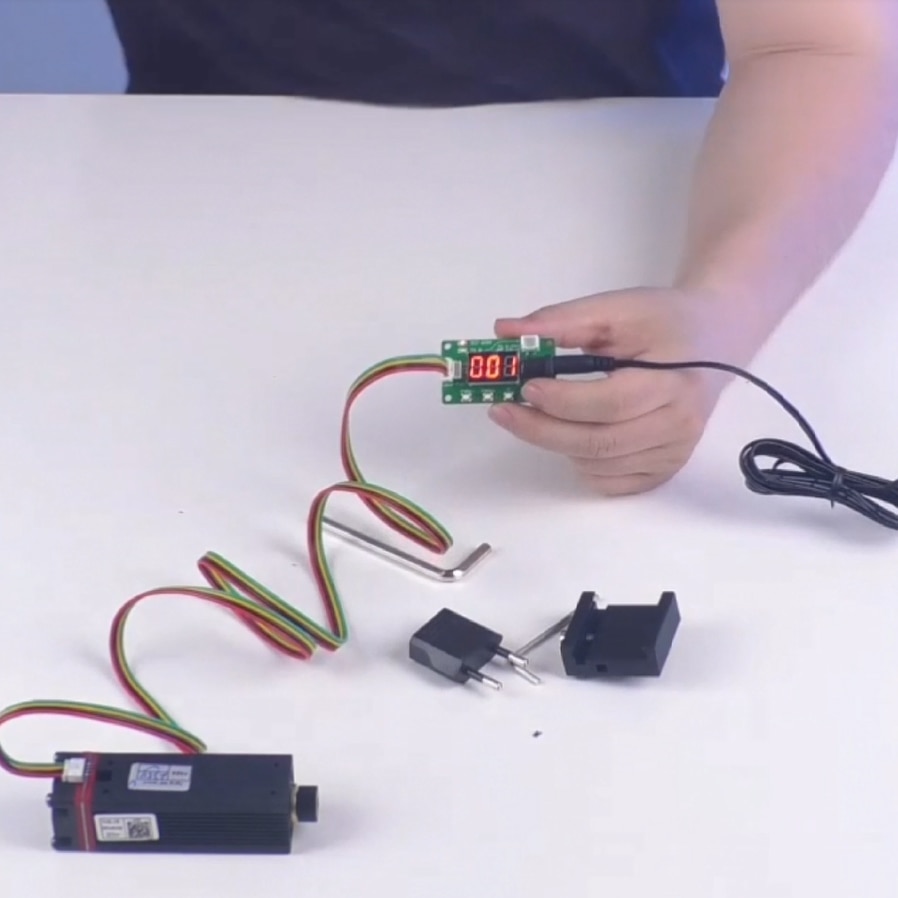

Laser Module Kits Package List:

1 * 20W/7W/3.5W Laser Engraving Module Kit

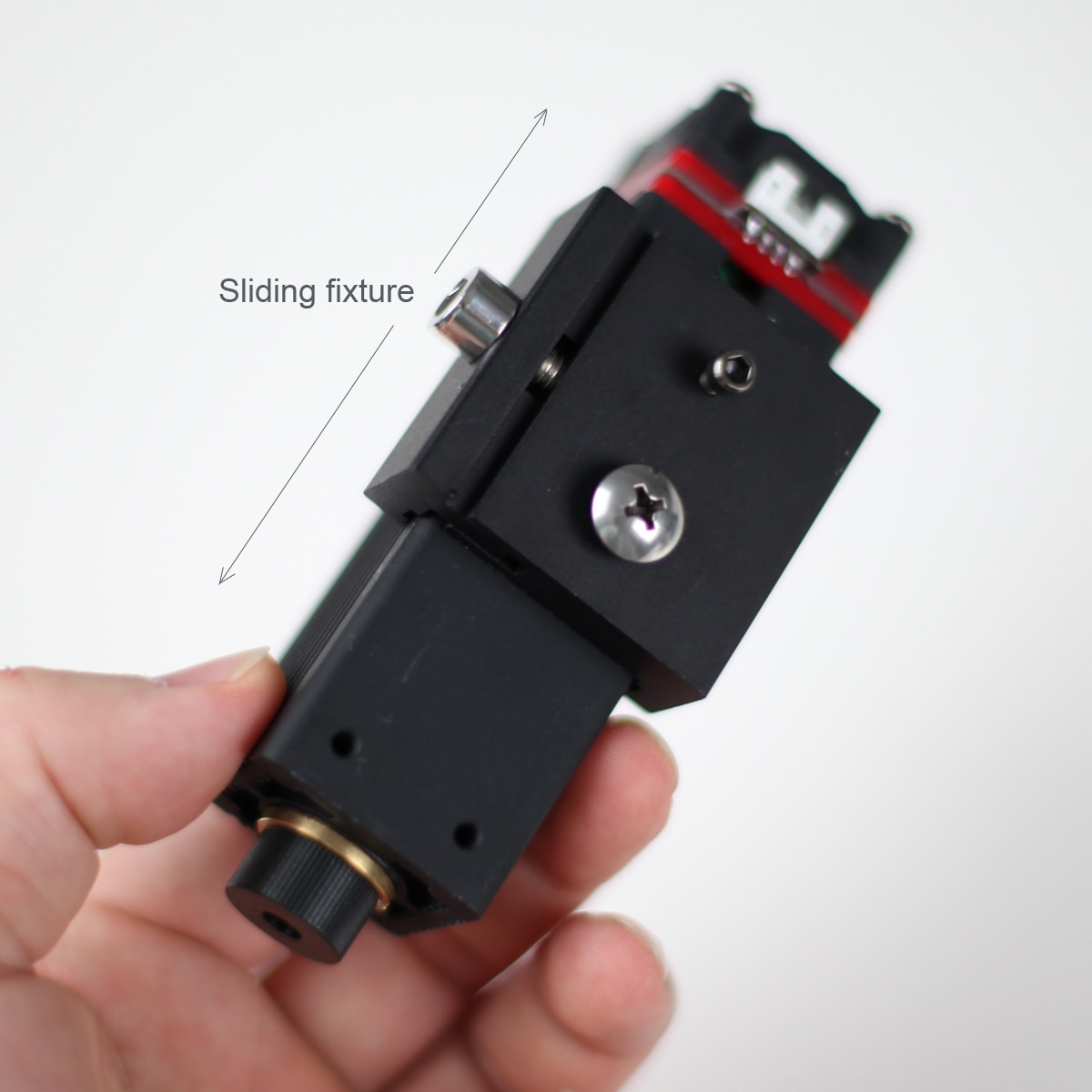

1 * Laser Module Sliding fixture

1 * 4 Pin Cable(1000mm)

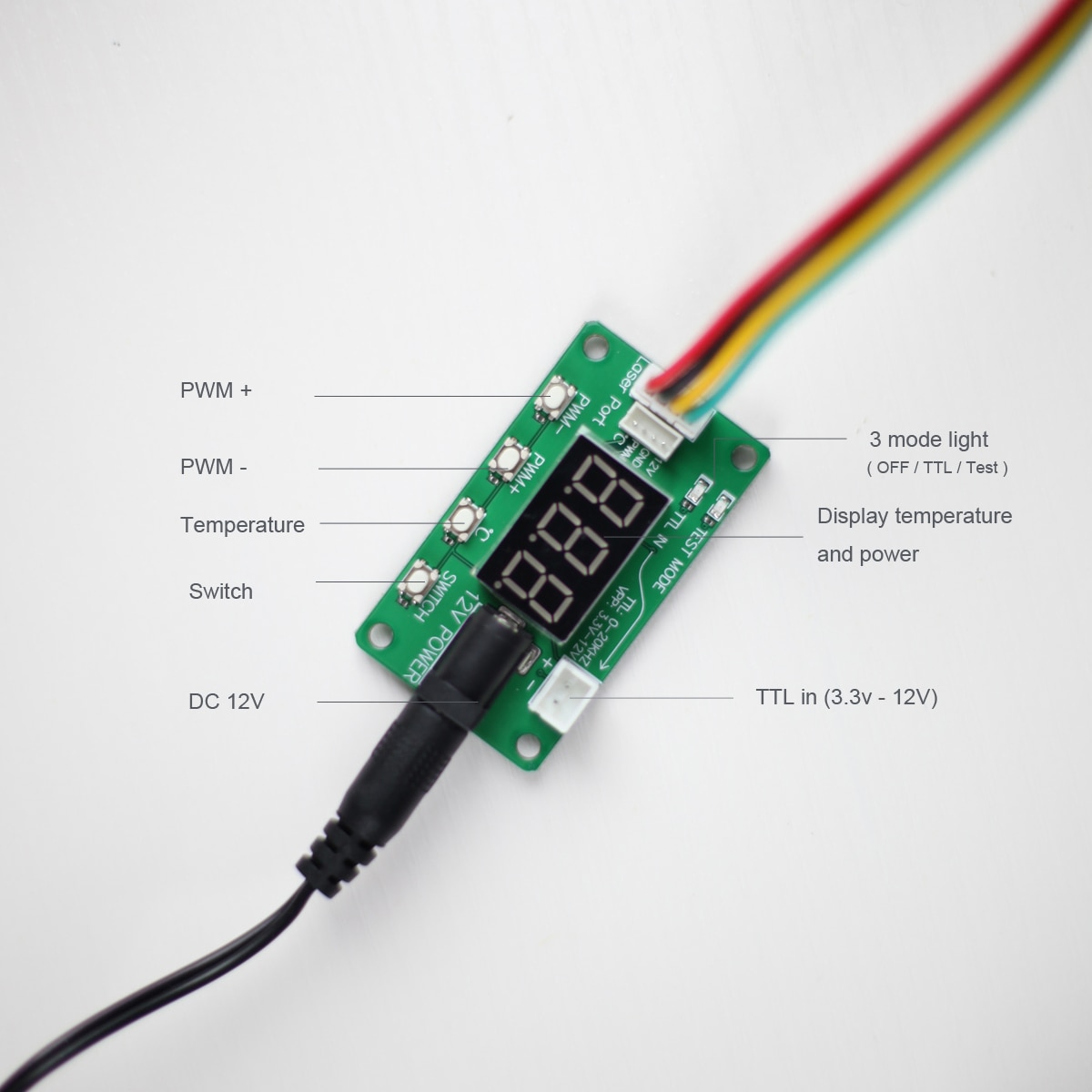

1 * NEJE PWM/Temperature tester board

1 * 110V-240V 12V2A UL certified power supply

1 * Euro adapter

1 * 2.5mm L-shaped wrench

1 * 5mm L-shaped wrench

1 * goggle

20W NEJE Module Specification:

Model: NEJE Module 20W
Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Laser diode: NUBM0A with NEJE Cap technology
LD Current: 3.2A
Section Size: 30mm x 30mm

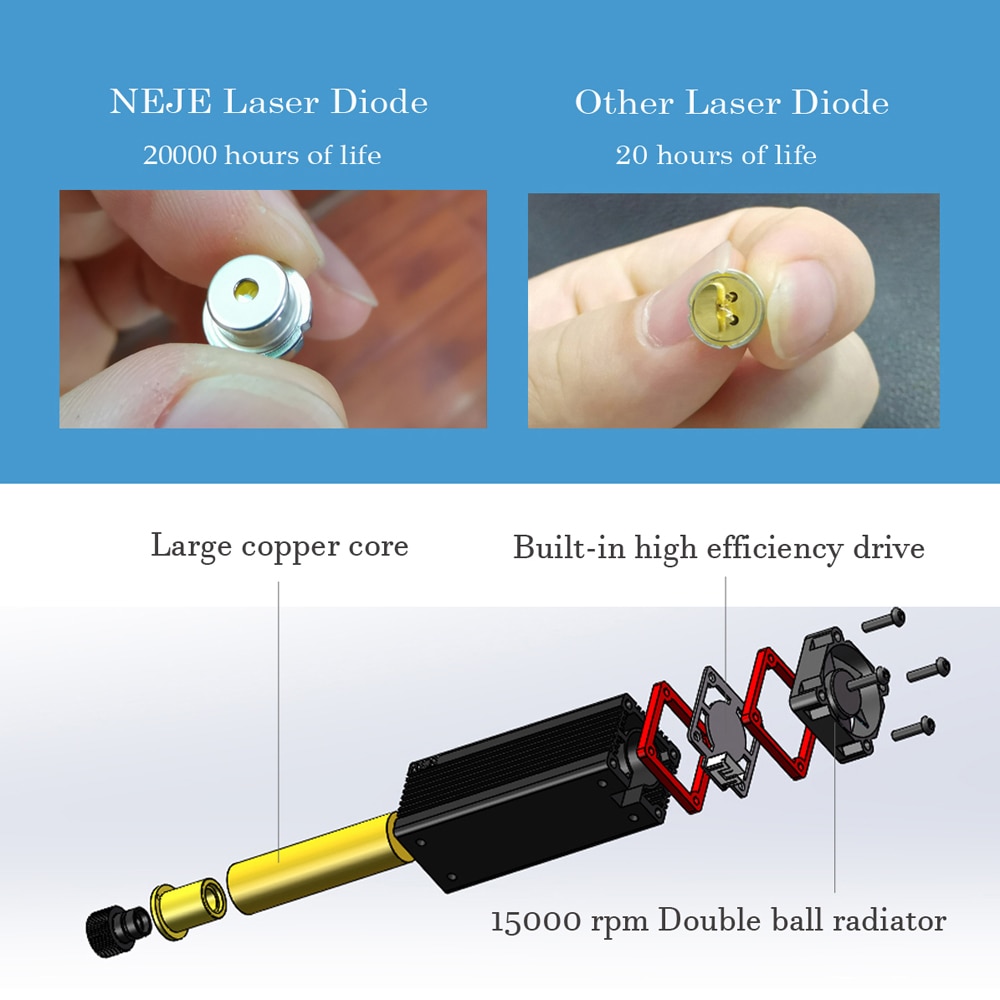

Cooling Mode: 40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan
Dimension: 80 * 30 * 30mm
Intput Voltage: DC 12V
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 18-20W
Laser Output Power: 5.5W (5500mW)
Wavelength: 445-450nm
Beam Shape: Dot (Focusable)
Working Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V

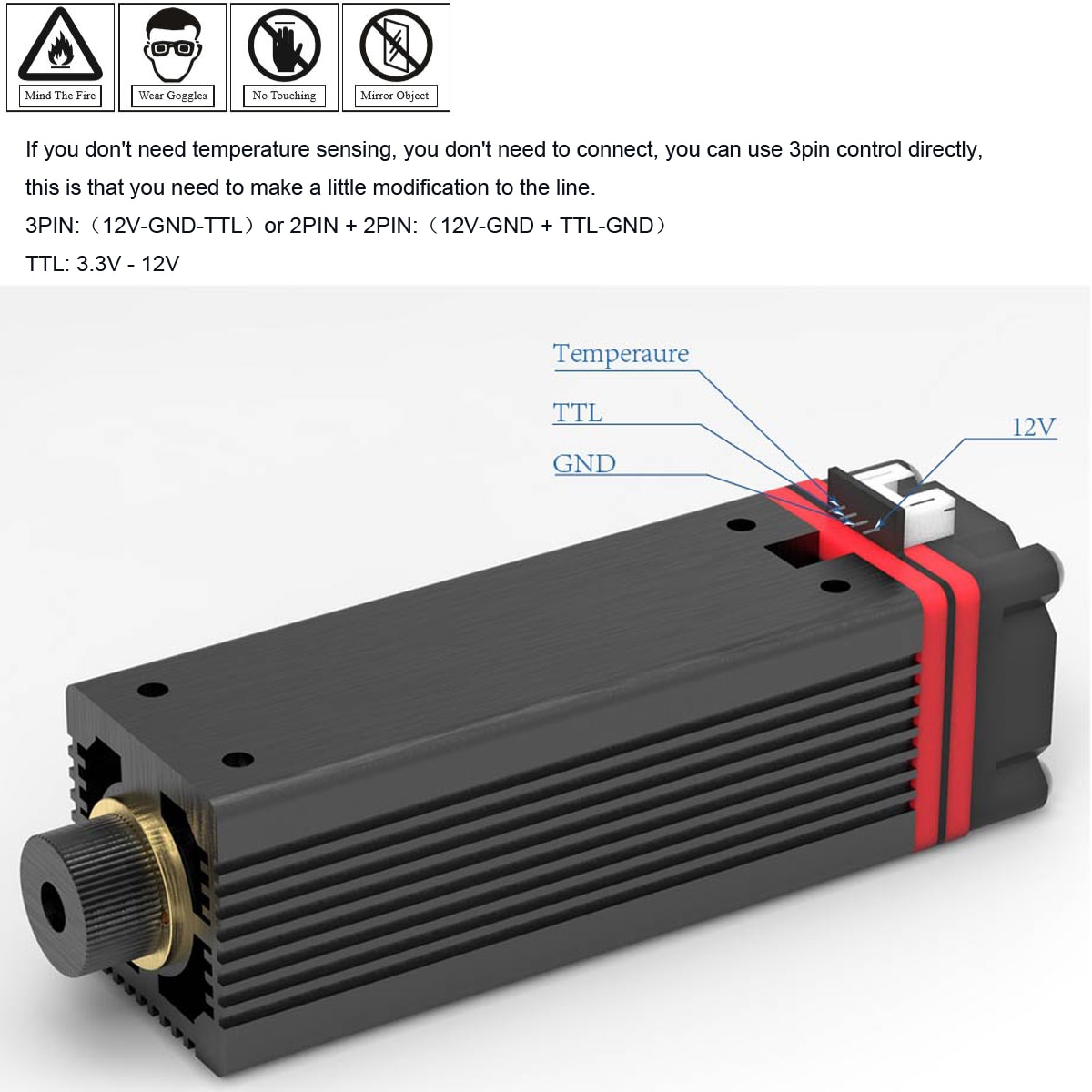

Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃ Module weight: 202g ( The lighter the weight, the smaller the move inertia, the better the performance ) Life Time: 20,000 hours Test: Material: Plywood, thickness 3mm Speed 330, cutting 3 times, each cutting 1.0mm Speed 200, cut 2 times, each cut 1.5mm Speed 100, cut once, cut 3mm each time

7W NEJE Module Specification :

Model: NEJE Module 7W
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Laser diode:Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current: 1.6A
Section Size: 30mm x 30mm
Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension: 60 * 30 * 30mm
Adapter Output Voltage: DC 12V 2A
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 10W
Laser Output Power: 2.5W (2500mW)
Wavelength: 445-450nm
Beam Shape: Dot (Focusable)
Input Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃ Module weight: 115g ( The lighter the weight, the smaller the move inertia, the better the performance ) Life Time: 20,000 hours

3500mW NEJE Module Speciation:

Model: NEJE Module 3500mW
Heatsink Material: Aircraft Aluminum + Brass Shell
Laser diode:sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
(Real 500mw continuous work,The other seller 500mw is Nichia 3.8mm laser with a power of only 200mw)
LD current: 350mA
Luminous Color: Blue
Section Size: 30mm x 30mm
Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension: 60 * 30 * 30mm
Adapter Output Voltage: DC 12V 2A
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 3500MW
Laser Output Power: 500MW
Wavelength: 405nm
Beam Shape: Dot (Focusable)
Working Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃ Module weight: 115g ( The lighter the weight, the smaller the move inertia, the better the performance ) Life Time: 20,000 hours
