NEJE 3500mw-30W Laser Module Kit Continuous Head 450nm CNC Laser Engraving Cutting Set Wood Router

$129.00$399.00

SKU: 4001019295071 Category:

Description

NEJE 3500mw-30W Laser Module Kit Continuous Laser Head 450nm CNC Laser Engraving Cutting Module Set for CNC Engaver Wood Router

  • Certification: CE
  • Model Number: Laser tool
  • Wave Length: 450nm
  • Drive Position: Built-in
  • Is the Power Adjustable: PWM can be adjusted
General Specification
30W General Specification:
Model:NEJE Module 30W
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:40mm x 40mm

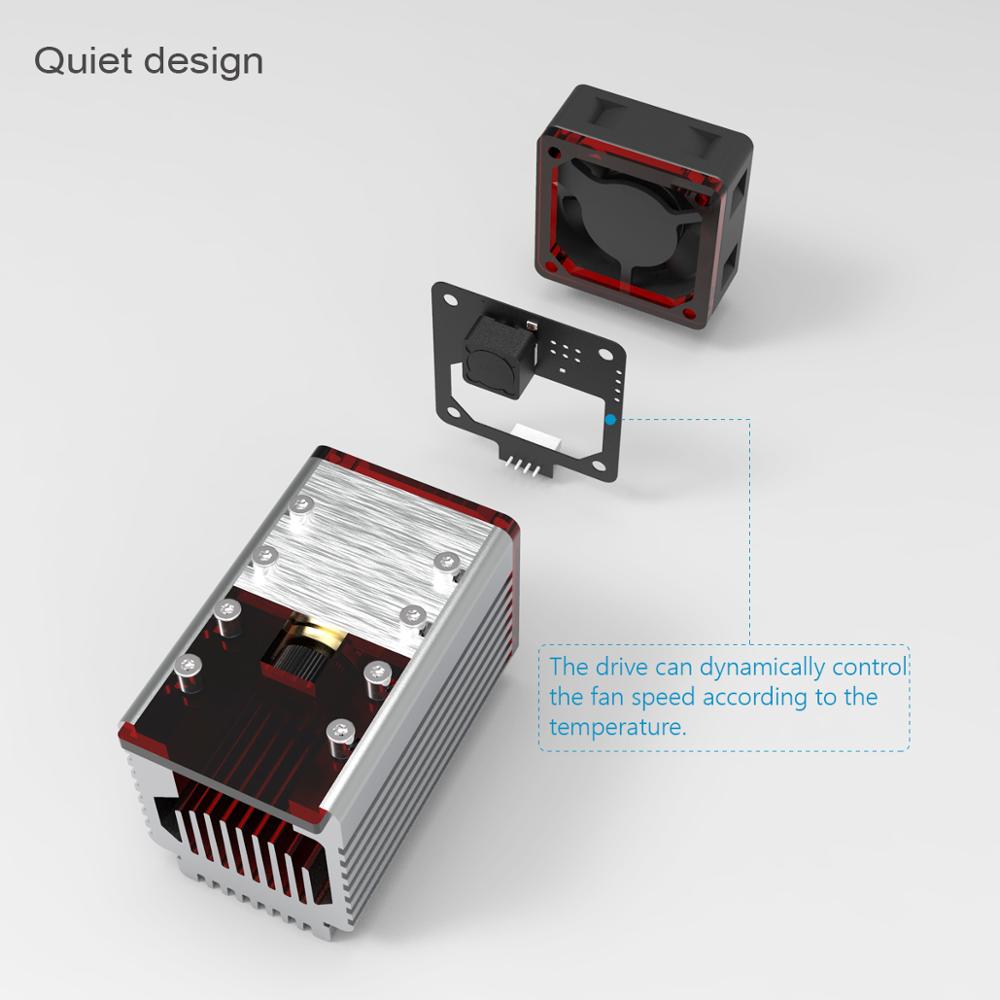

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:60 * 40 * 40mm
Adapter Plug:5.5 2.1 port
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input:20-30W
Optical power output:7.5W (7500mW)
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V 3A
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20,000 hours
20W Laser Module :
Model:NEJE Module 5.5W (INPUT about 20W)
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Section Size:30mm x 30mm
Cooling Mode:40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan
Dimension:80 * 30 * 30mm
Adapter Plug:US Plug
Adapter Input Voltage:AC 100-240V UL certification high quality
Adapter Output Voltage:DC 12V 2A
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input:18-20W
Laser Output Power:5.5W (5500mW)
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<70 ℃
Module weight:202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:20,000 hours
7W Laser Module:
Model:NEJE Module 2.5W (INPUT about 10W)
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Laser diode:Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current:1.6A
Section Size:30mm x 30mm
Cooling Mode:20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension:60 * 30 * 30mm
Adapter Output Voltage:DC 12V 2A
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input:10W
Laser Output Power:2.5W (2500mW)
Wavelength:445-450nm
Beam Shape:Dot (Focusable)
Input Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<70 ℃
Module weight:115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:20,000 hours
3500mW Laser Module:
Model:NEJE Module 500MW (INPUT about 3500MW)
Heatsink Material:Aircraft Aluminum + Brass Shell
Laser diode:sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
(Real 500mw continuous work,The other seller 500mw is Nichia 3.8mm laser with a power of only 200mw)
LD current:350mA
Luminous Color:Blue
Section Size:30mm x 30mm
Cooling Mode:20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension:60 * 30 * 30mm
Adapter Output Voltage:DC 12V 2A
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input:3500MW
Laser Output Power:500MW
Wavelength:405nm
Beam Shape:Dot (Focusable)
Working Voltage:DC 12V
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Input Voltage:DC12V
PWM/TTL Input:DC3.3V-12V
Input Interface:PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE:Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode:External ACC
Safe temperature range:<70 ℃
Module weight:115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:20,000 hours
PWM/Temperature tester board Specification
Power input: DC 12V
Output: PH2.0 4pin (12v,GND,PWM/TTL,Temperature)
mode: 3 modes (off, manual pwm, pwm / ttl in)
temperature display: YES
pwm display: yes
Manual PWM control: YES
Features(Unique technology):
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, High-quality LD capping technology, Ensure service life!
3. Built-in driver board, 40mm threaded copper core with thermal grease compound, Temperature sensor,NEJE factory 48 hour 100% power aging test, Ensure long time working!

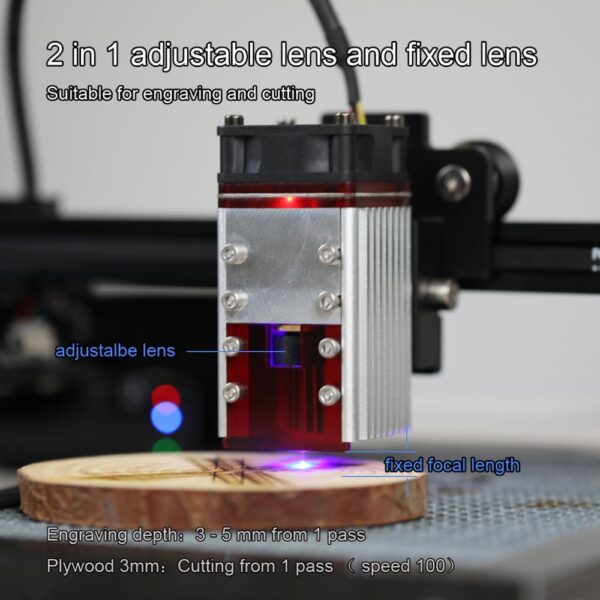

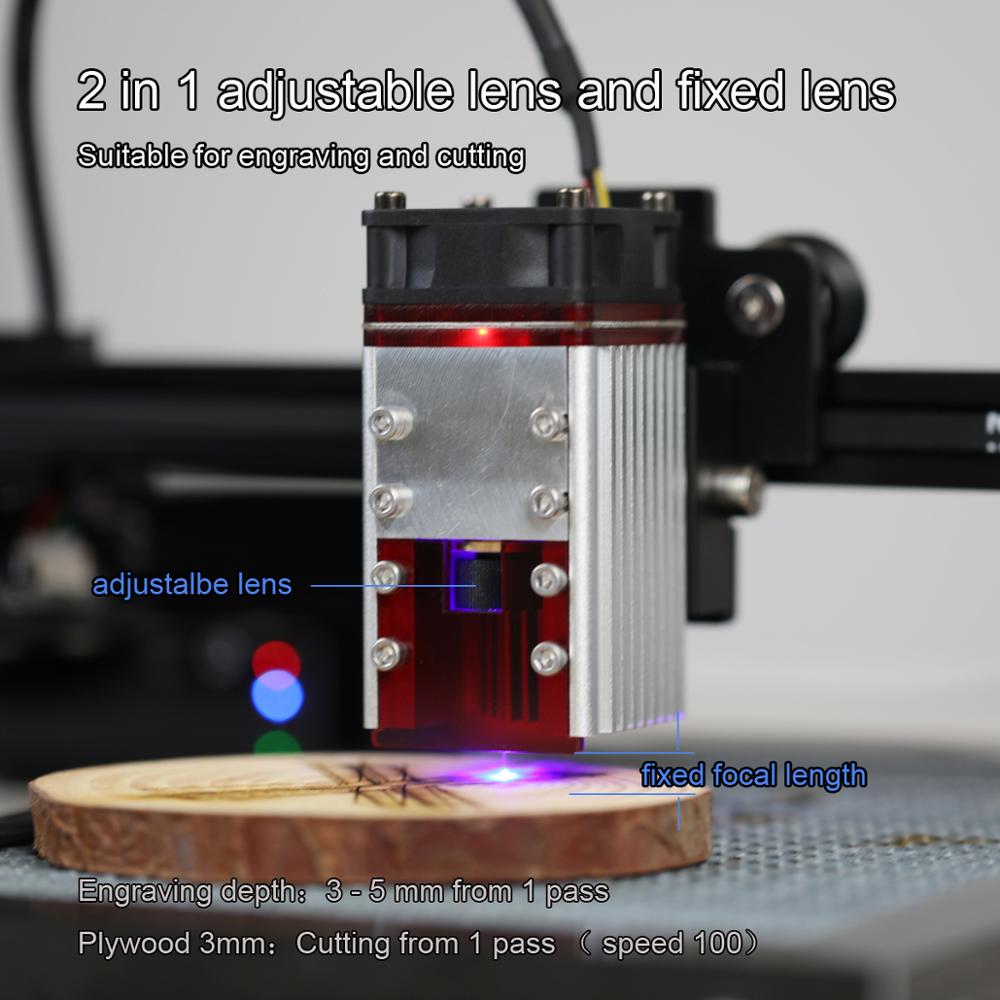

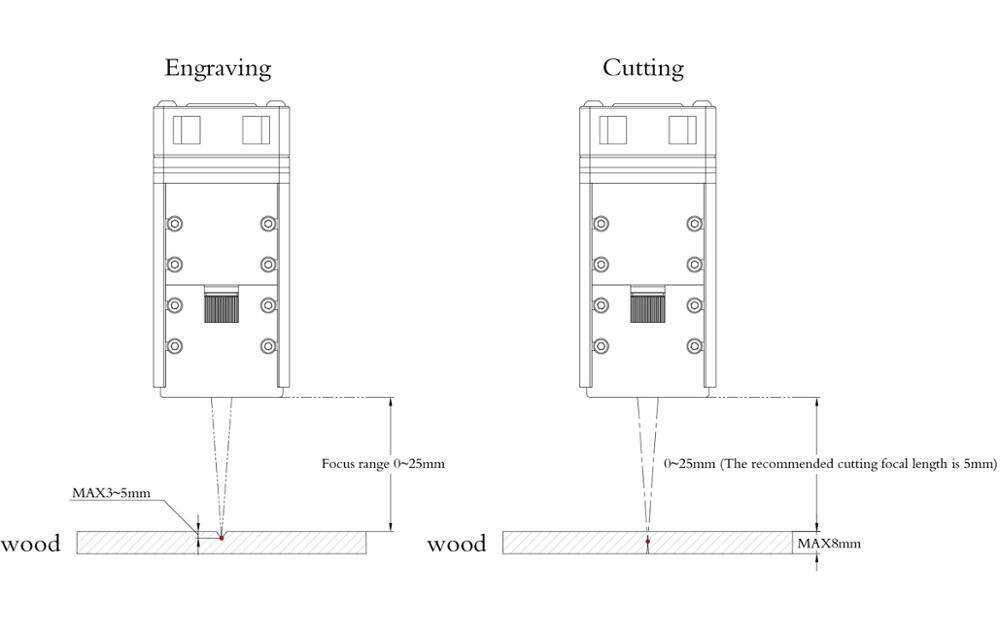

4. New lens, Clear focus, Not stray light, Adjustable focal length.
5. Can carving / Cutting MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Package Included:
Laser Module KitPackage Included:
1 x Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(1000mm)
1 x NEJE PWM/Temperature tester board
1 x 110V-240V 12V2A UL certified power supply
1 x  Euro adapter
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
1 x goggle
Laser Module Package Included:
1 xLaser Engraving Module
1 x NEJE PWM/Temperature tester board
1 x 30cm 4pin cable
1 x Install accessory kit

Single Module Package Include:

1 x Laser Engraving Module
1 x3pin input line

1 x fixed screw installation package

1 x30cm silicone cable
1 xInterface transfer board
1 x 2 Pin Cable

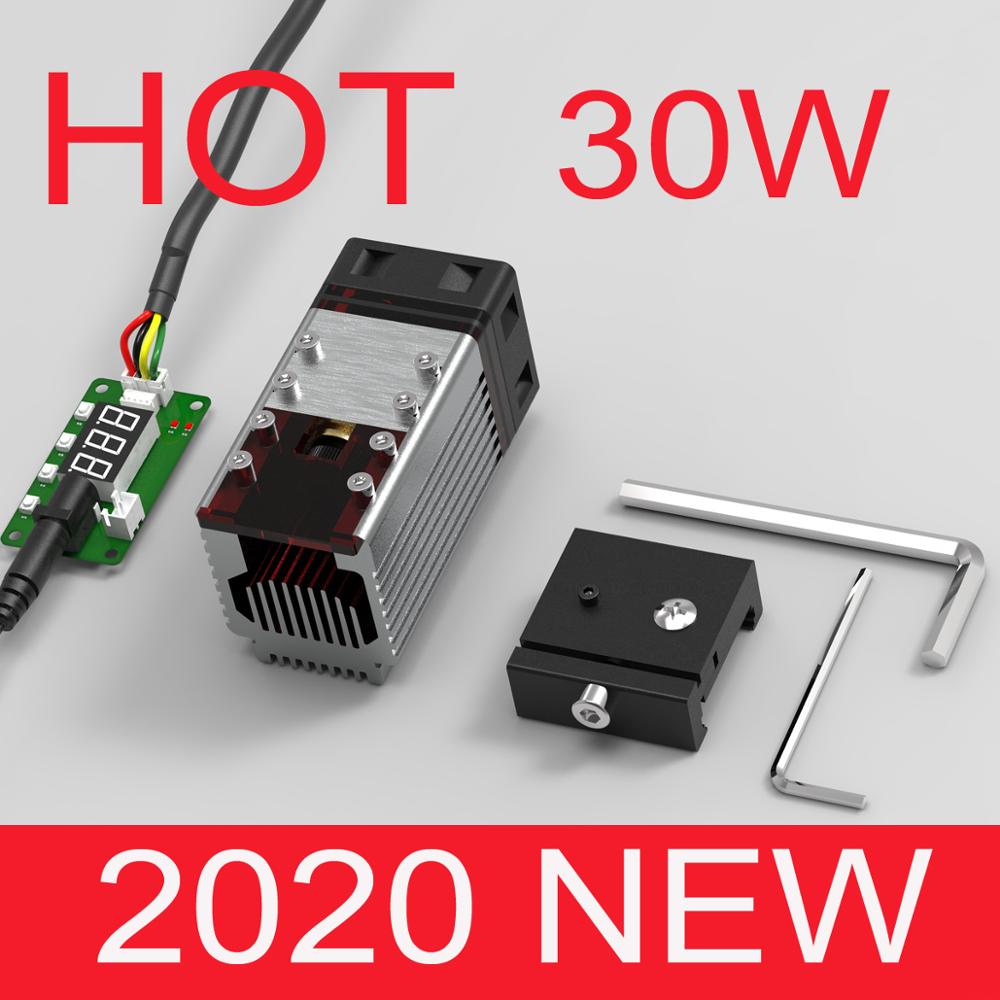

30W Laser Module small Kits Package Included
1 x 30W Laser Engraving Module
1 x Laser Module Sliding fixture
1 x 4 Pin Cable(300mm Sports Cable)
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
1 x 2.5mm L-shaped wrench
1 x 5mm L-shaped wrench
(This kit does not include 12V3A power supply and goggles)
Please note:
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.
