NEJE 30W laser module head cutting module kit fixed focal length sliding focus for Laser Engraving Machine Cutting DIY Tool

$133.88

SKU: 3462159018651 Category:

Description

NEJE 30W laser module head cutting module kit fixed focal length sliding focus for Laser Engraving Machine Cutting DIY Tool





Features:

1. Designed for general-purpose laser engraving, laser cutting, 3D printer, Arduino and other CNC equipment
2. 3.3-12V TTL adjustable power.

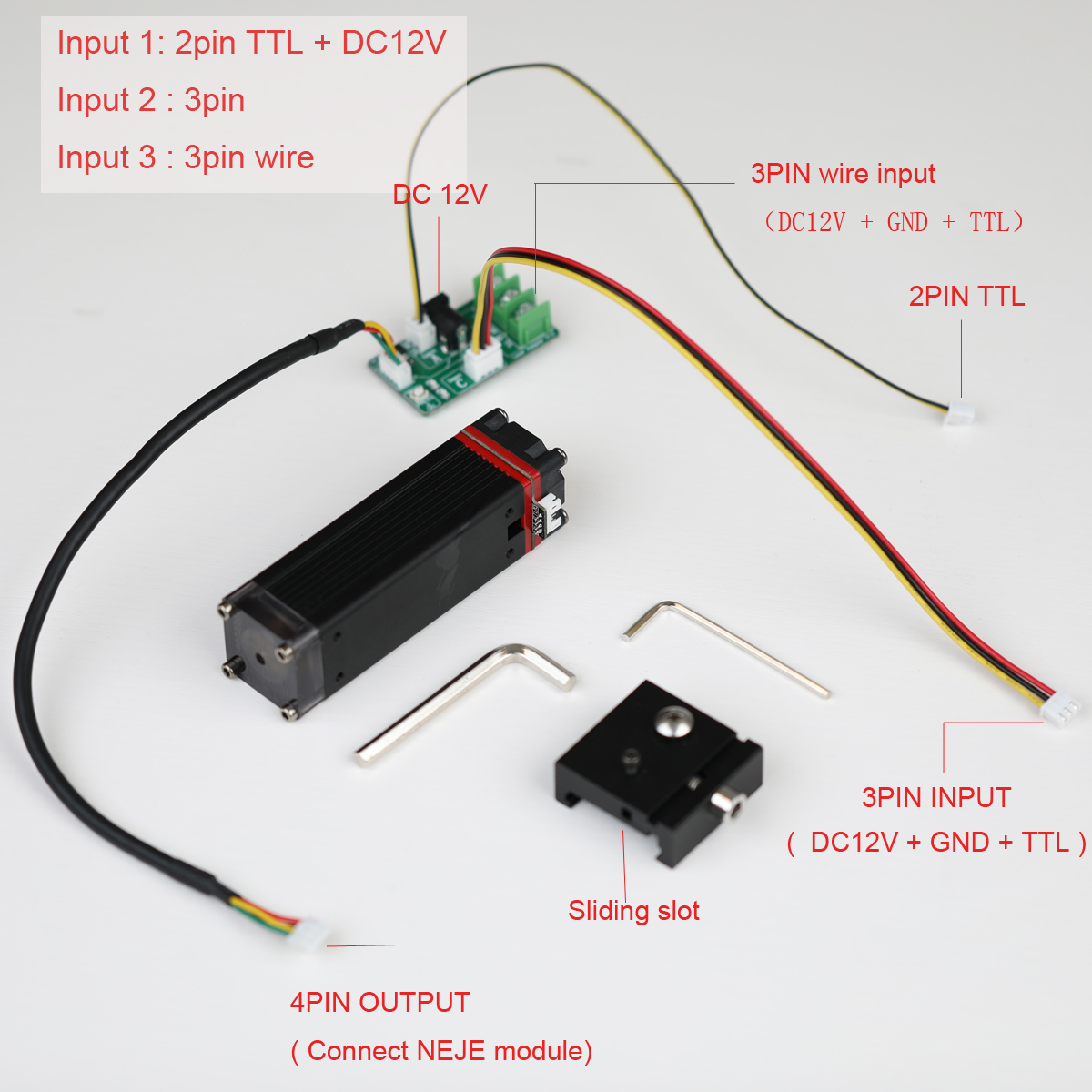

3. Wide application, 3 input interface designs, DC12V+TTL, 3Pin 2.54 interface, 3pin connection port
4. 30W electric power, 7.5W optical power output, can be directly upgraded on the basis of NEJE Master2 20W, if it is 7W and 3500mw customers need to replace the 12V3A power adapter
5. Fixed focus design, you only need to pad a 6mm spacer on the bottom and lock the screw to adjust the focus
6. 30mm size, does not affect the engraving area of NEJE Master2

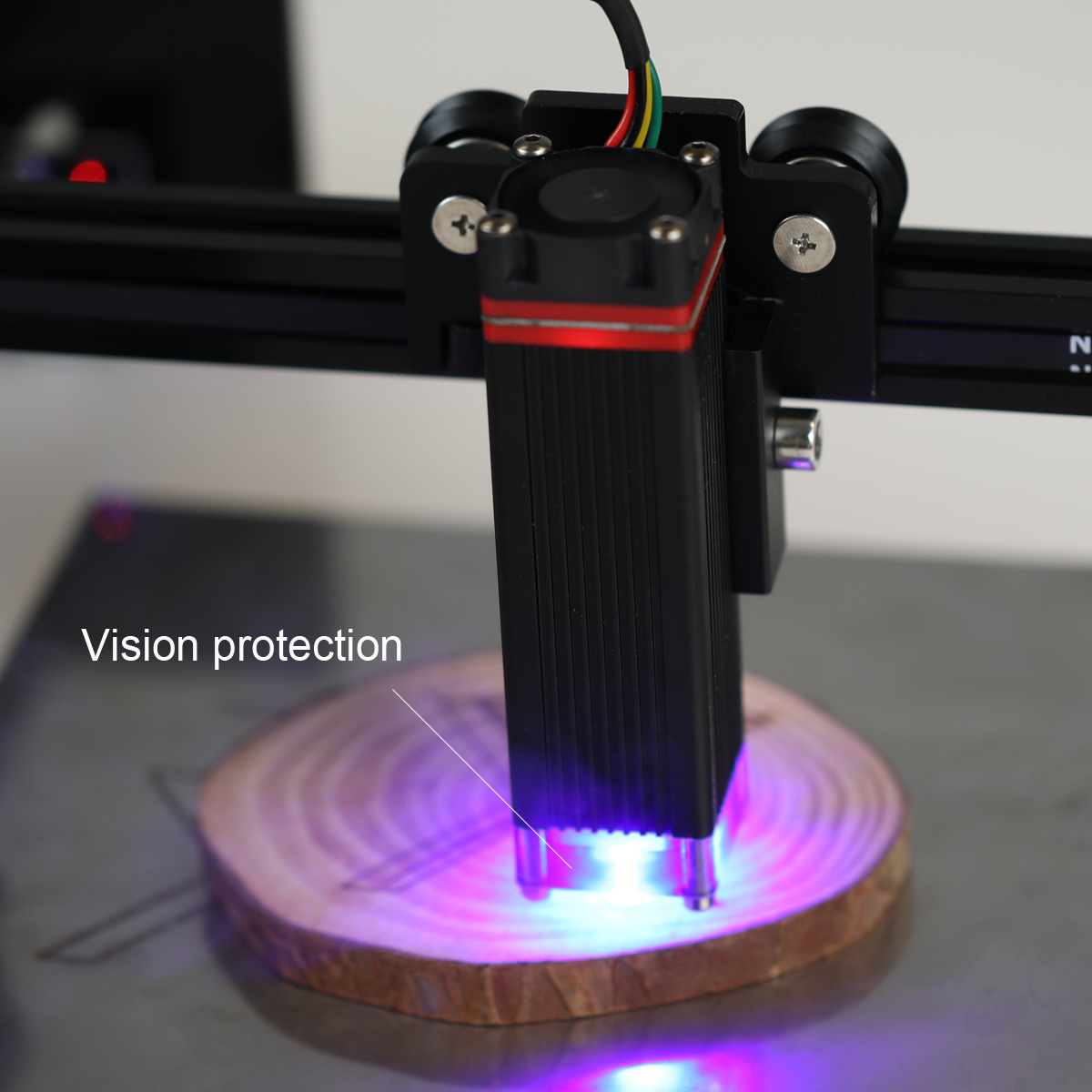

7. vision protection

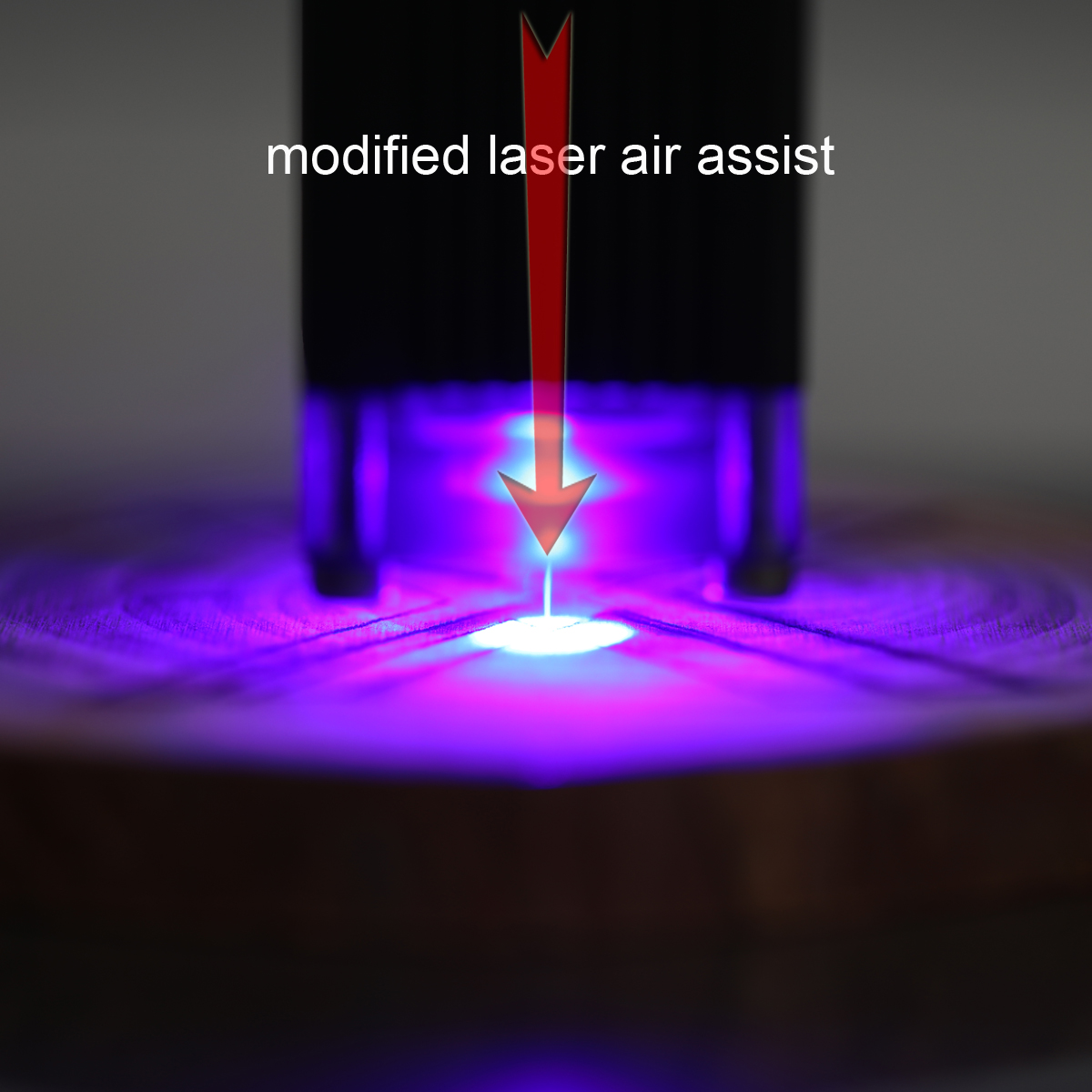

8. Modified laser air assist
9. Intelligent drive, able to detect temperature and dynamically adjust the fan speed, making it quieter when not in use.
10. 15000 rpm double ball high speed fan, stronger heat dissipation performance

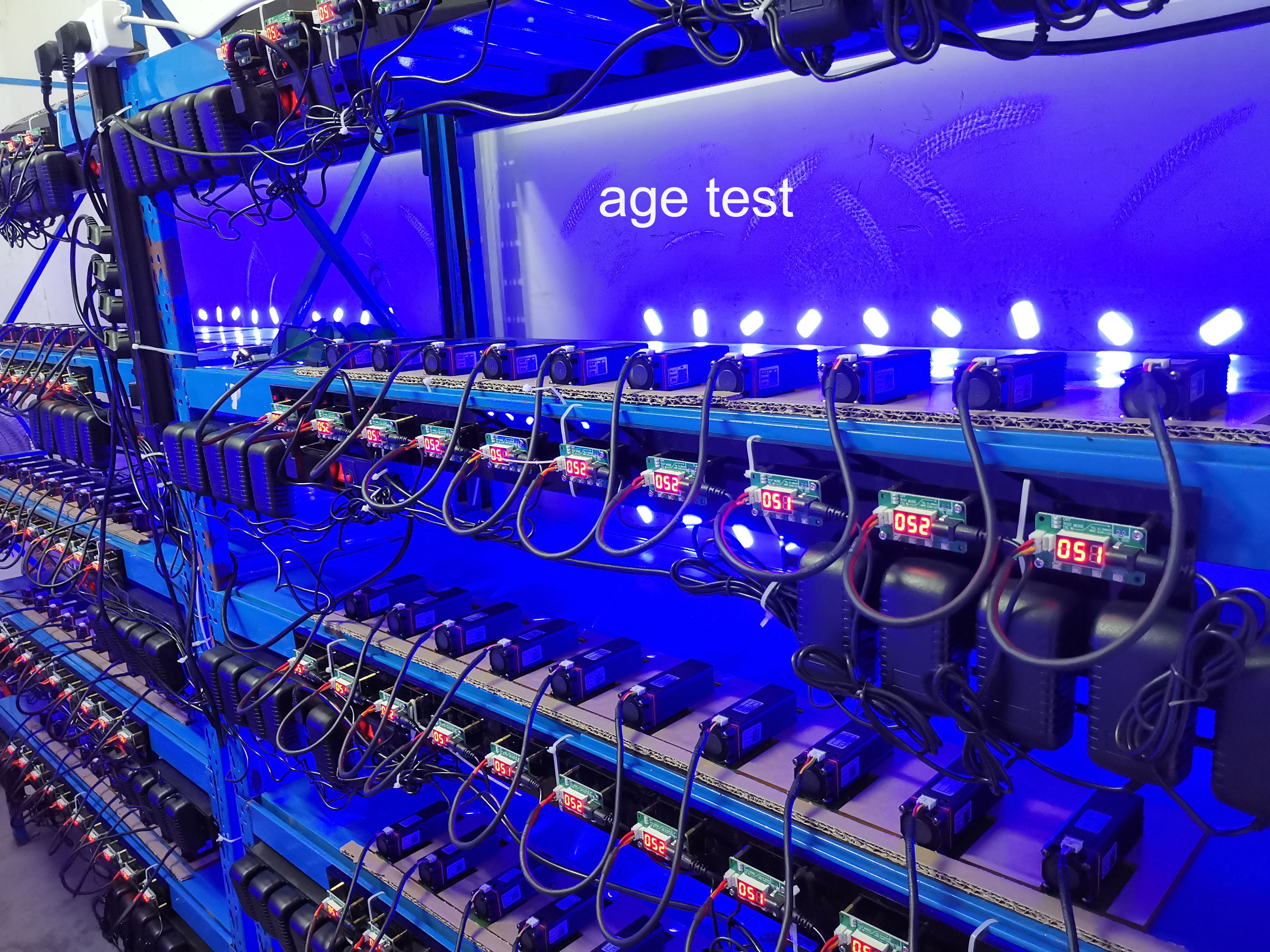

11. 60mm built-in threaded copper core, add heat dissipation silicone grease, safe temperature control, NEJE 48-hour aging test



.jpg

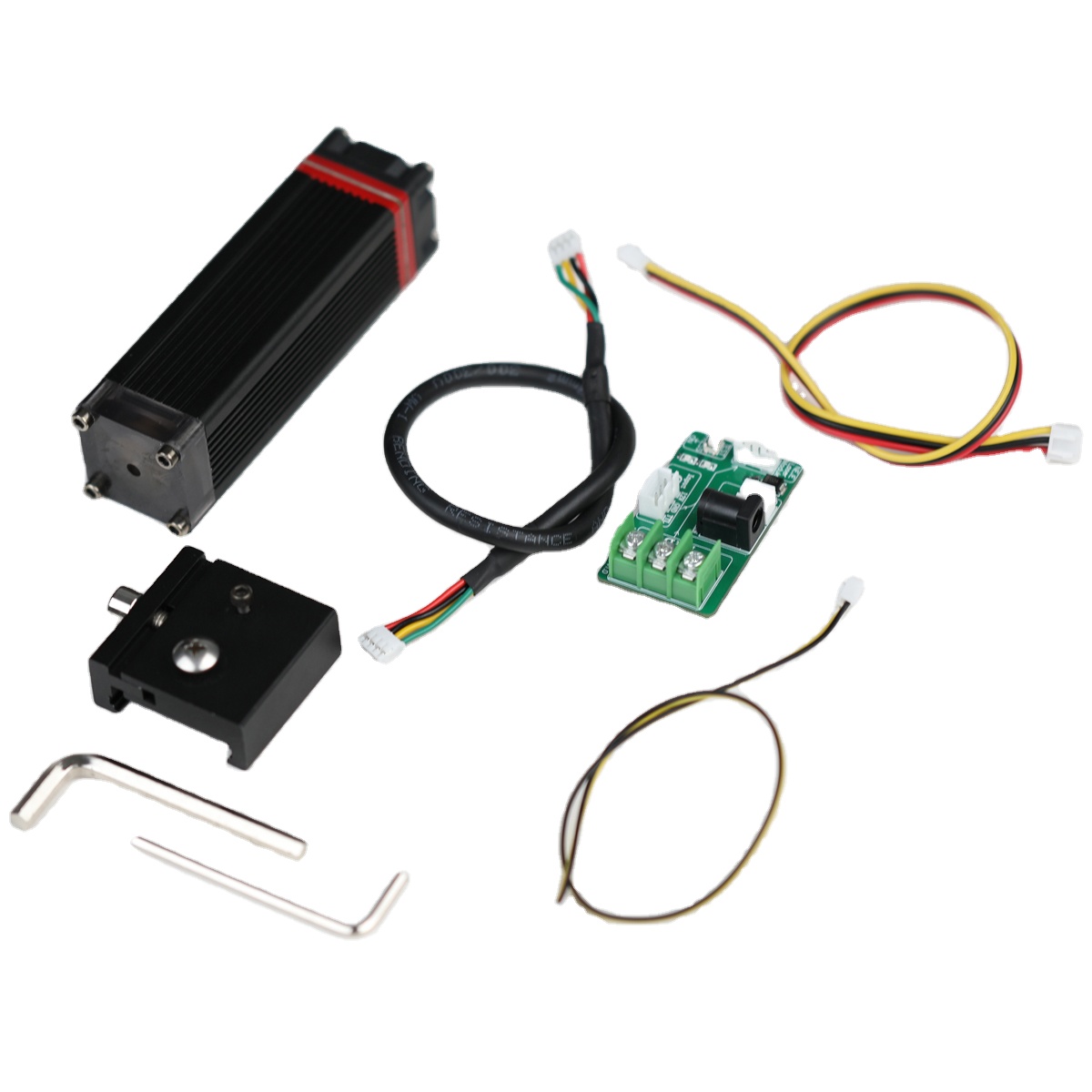

Package List:
1 x 30W single module
1 x sliding card slot
1 x 4pin cable
1 x L wrench



Additional information

Model Number

30W laser module DIY kit
