NEJE 30W Laser Module Cutting Module Kit Fixed Focal Length Sliding Focus For Laser Engraving Machine Cutting Tool

$304.23

995 in stock

SKU: 1005001722138370 Category:

Description

  • Brand Name: KKMOON
  • Origin: CN(Origin)
  • Certification: NONE
  • Condition: New
  • Model Number: 30W Laser Module
  • CNC or Not: Normal
  • Is Smart Device: No

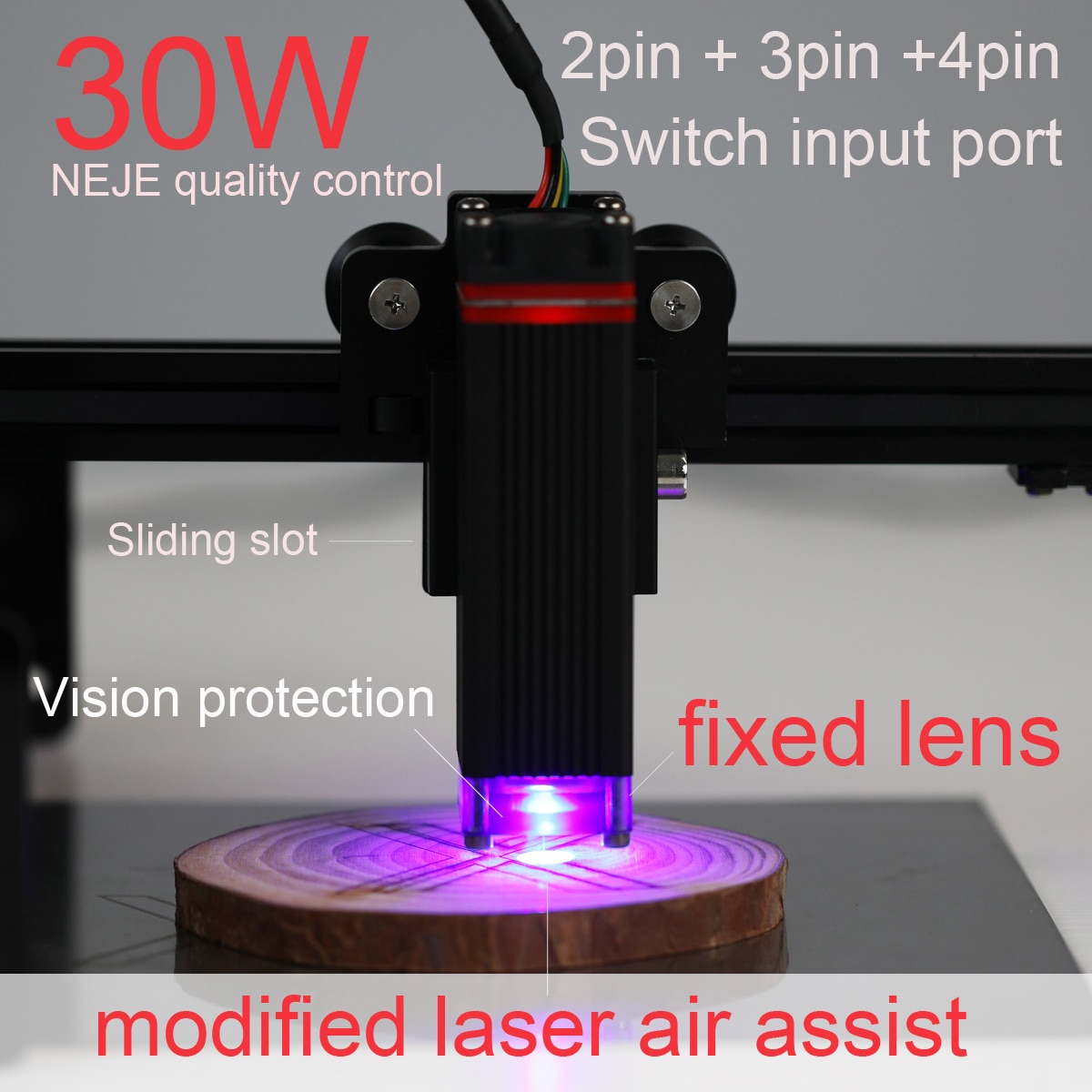

The laser module features 30W power input, 7.5W optical power output,  445nm~450nm wavelength, TTL modulation, vision protection, modified laser air assist and high-speed cooling fan. Great for cutting and engraving various soft materials.

Features:

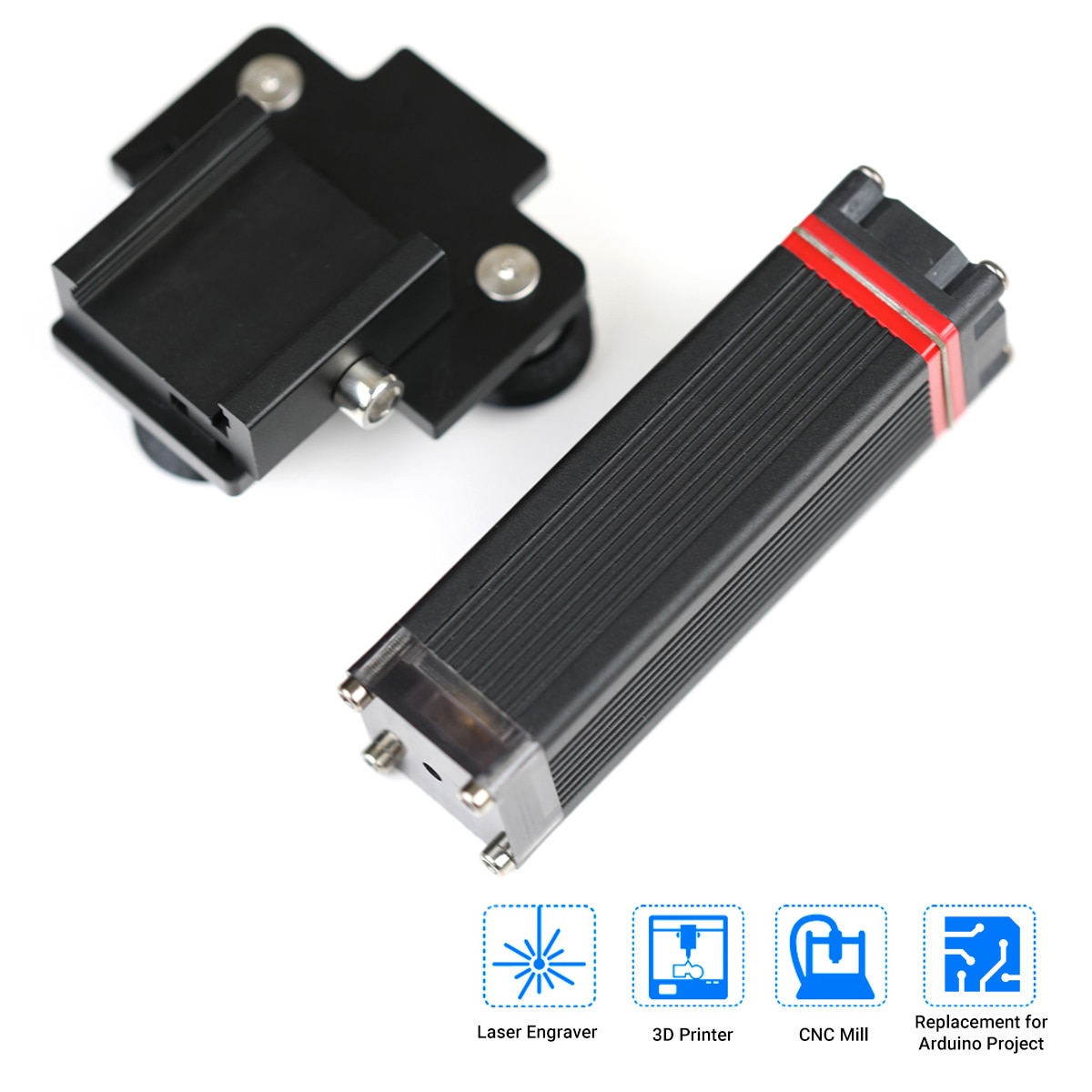

– Designed for laser engraver, laser cutter, 3D printer(which supports laser engraving), CNC machine, replacement for Arduino project and NEJE Master series.

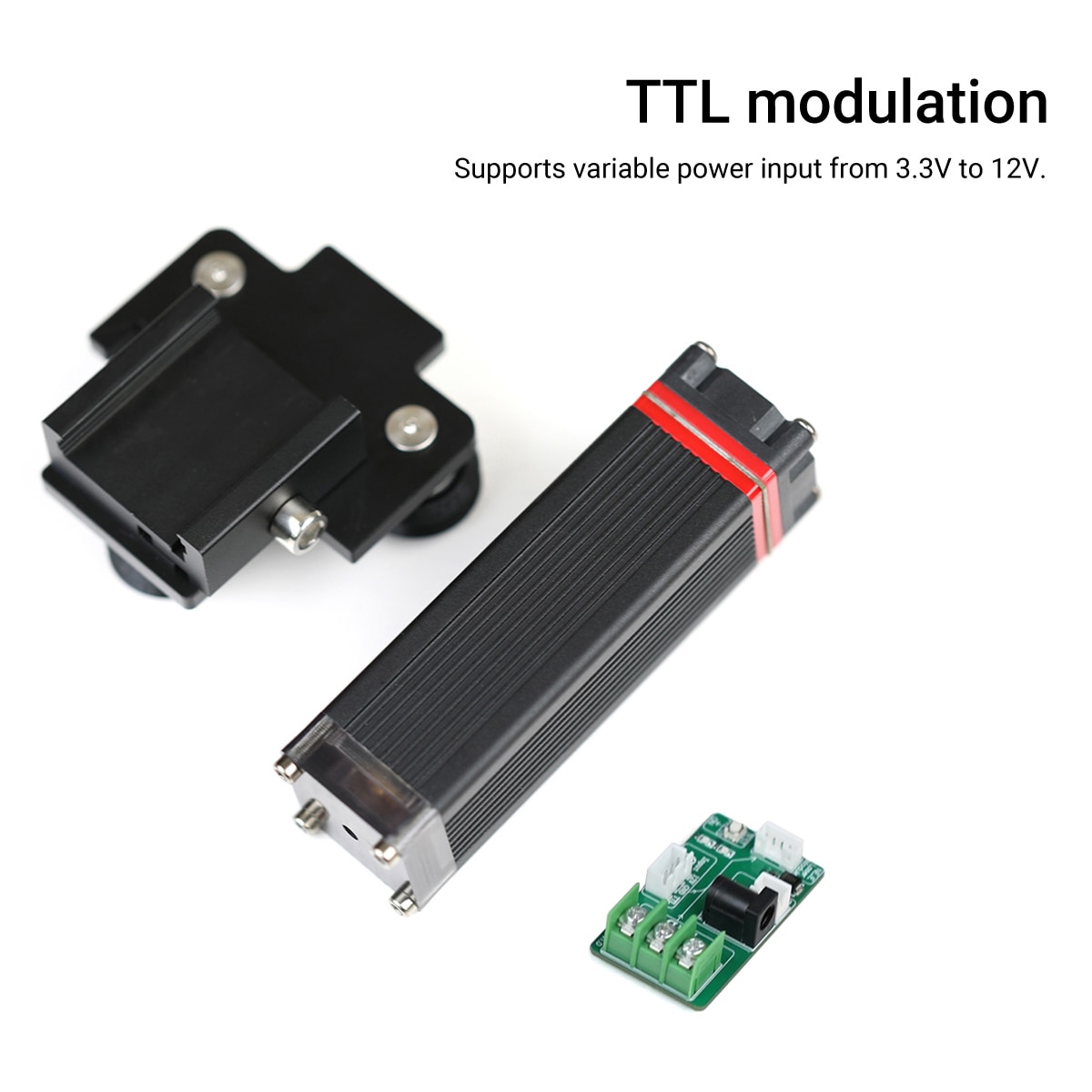

– TTL modulation supports variable power input from 3.3V to 12V.
– Wide compatibility. Designed with 3 interfaces: DC12V+TTL, 3Pin 2.54 interface, and 3pin interface.

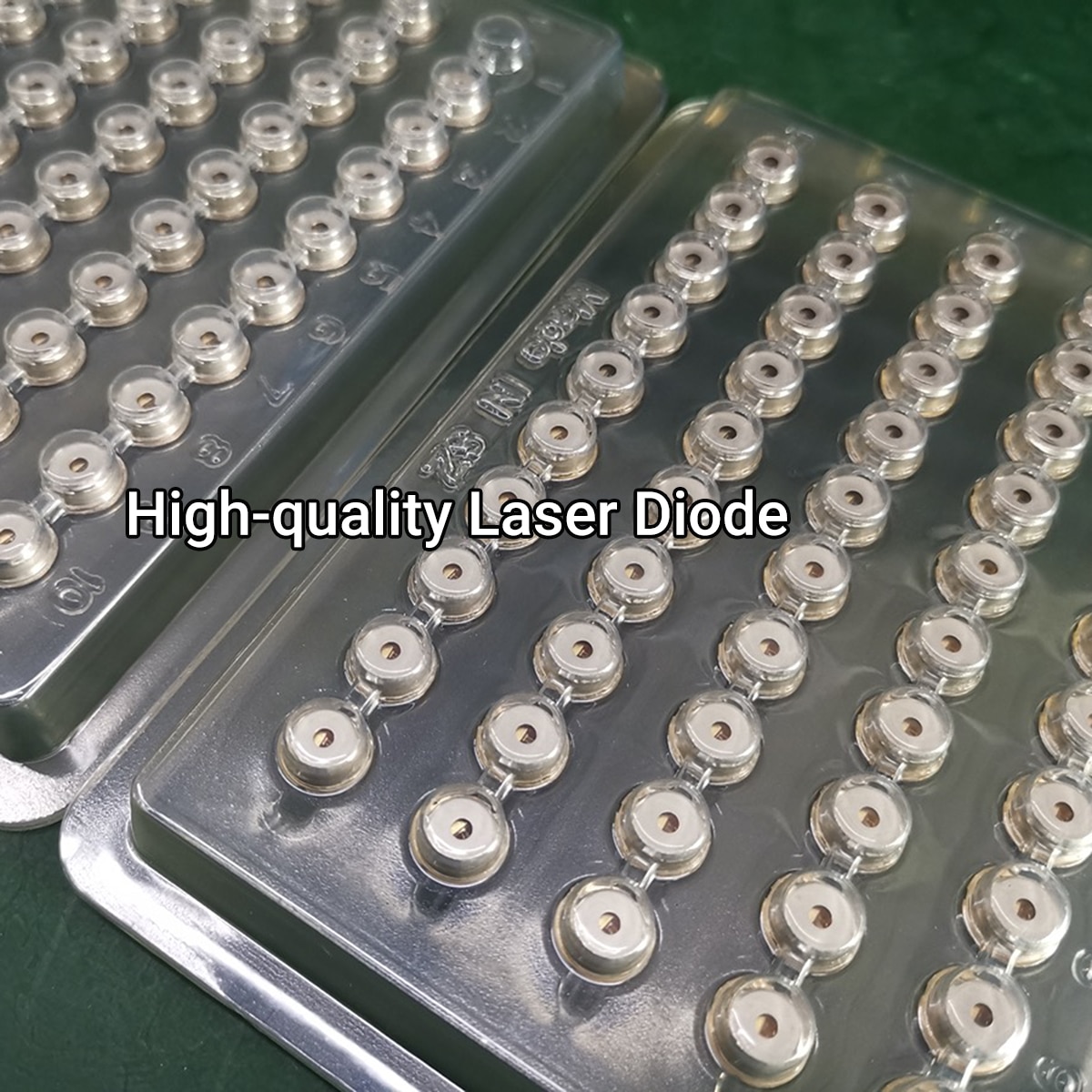

– 7.5W blue light diode laser, 30W module input, suitable for engraving and cutting.

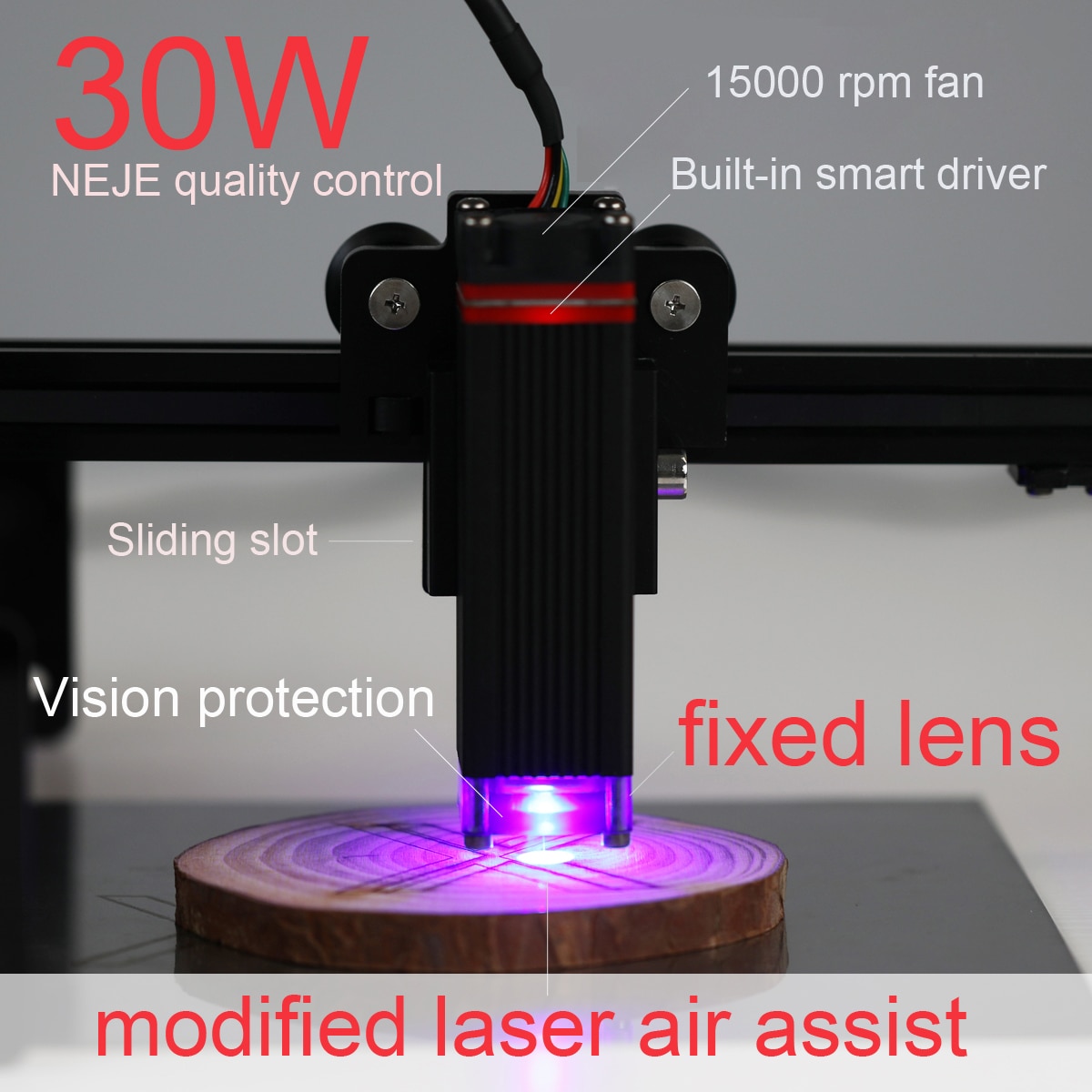

– Fixed lens design, not focusing lens, change the object height to change the focus distance.
– Protective glass for more safer and comfortable operation, no need to wear goggles.
– Modified laser air assist, avoid smoke damage to the lens, keep the optical power stable.
– Quiet and intelligent drive adjusts the cooling fan speed according to the laser temperature.
– 15000 rpm high speed cooling fan for more effective heat dissipation.

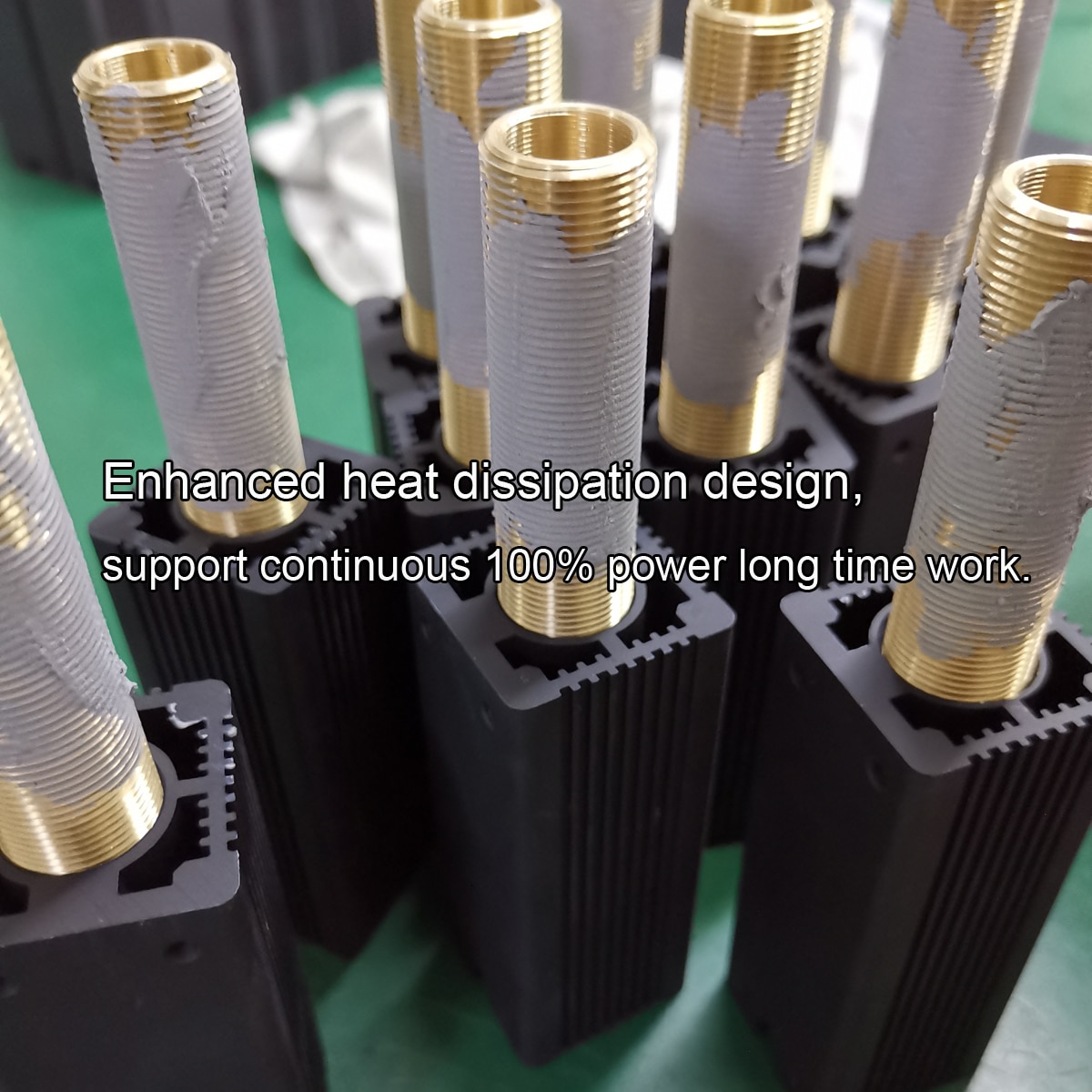

– Built with heat-removing silicone grease for strict control of temperature.
– Engrave a wide range of soft materials: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum.

Note:
*For 3D printer, this module only works for the one that supports laser engraving.

Specifications:
Material: Aviation aluminum, brass
3 Interface Design: DC12V+TTL, 3Pin 2.54 interface, 3pin interface
Cooling Mode: Temperature sensor intelligent control + 15000 rpm cooling fan
Module Input: 20-30W
Optical Power Output: 7.5W (7500mW)
Wavelength: 445-450nm
Lens: Fixed
TTL Input:DC3.3V-12V
Working Voltage: DC 12V3A
Input Voltage:DC12V 3A

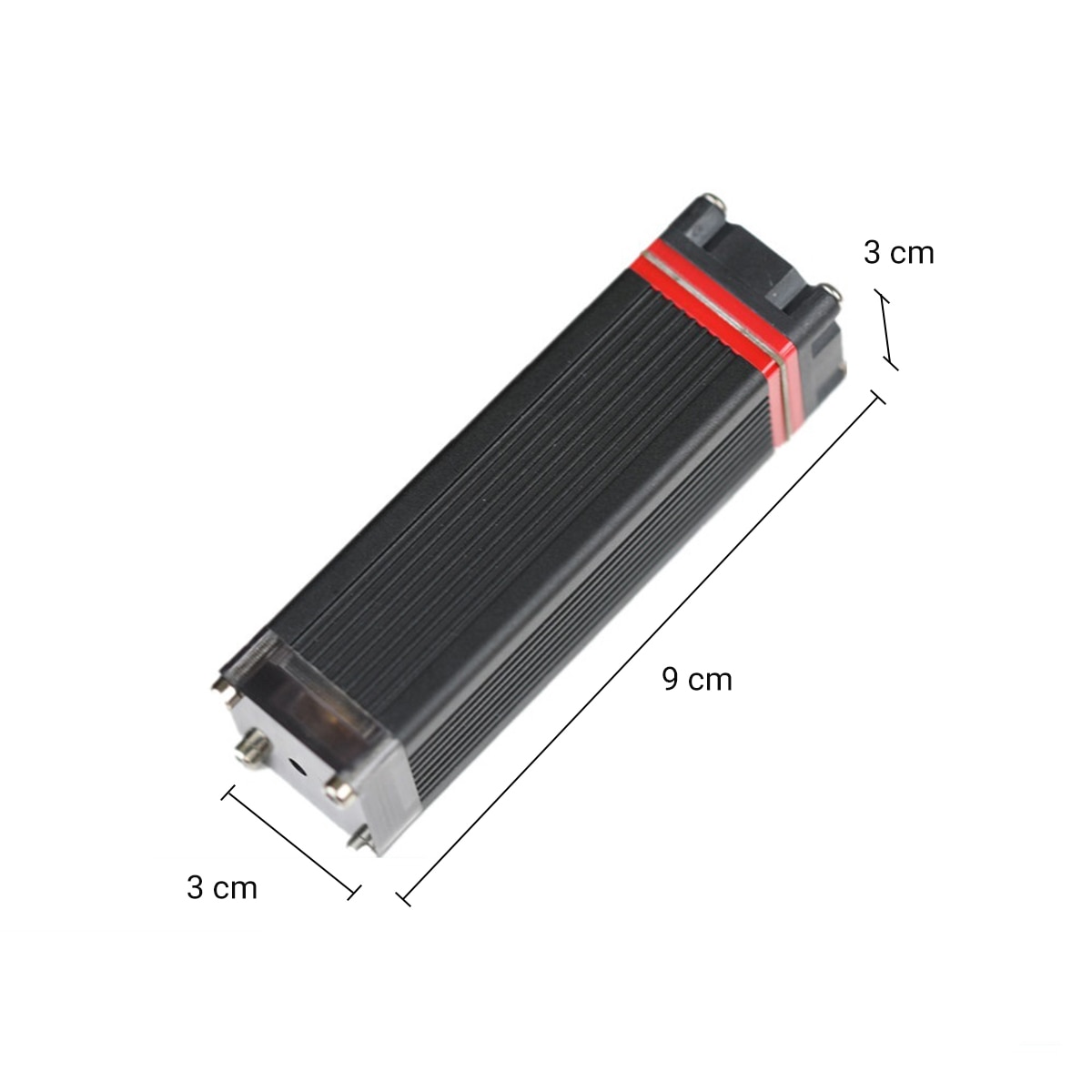

Item Size: approx. 9*3*3cm / 3.54*1.18*1.18in
Package Size: 16*11*6cm / 6.29*4.33*2.36in
Package Weight: 430g / 15.16oz

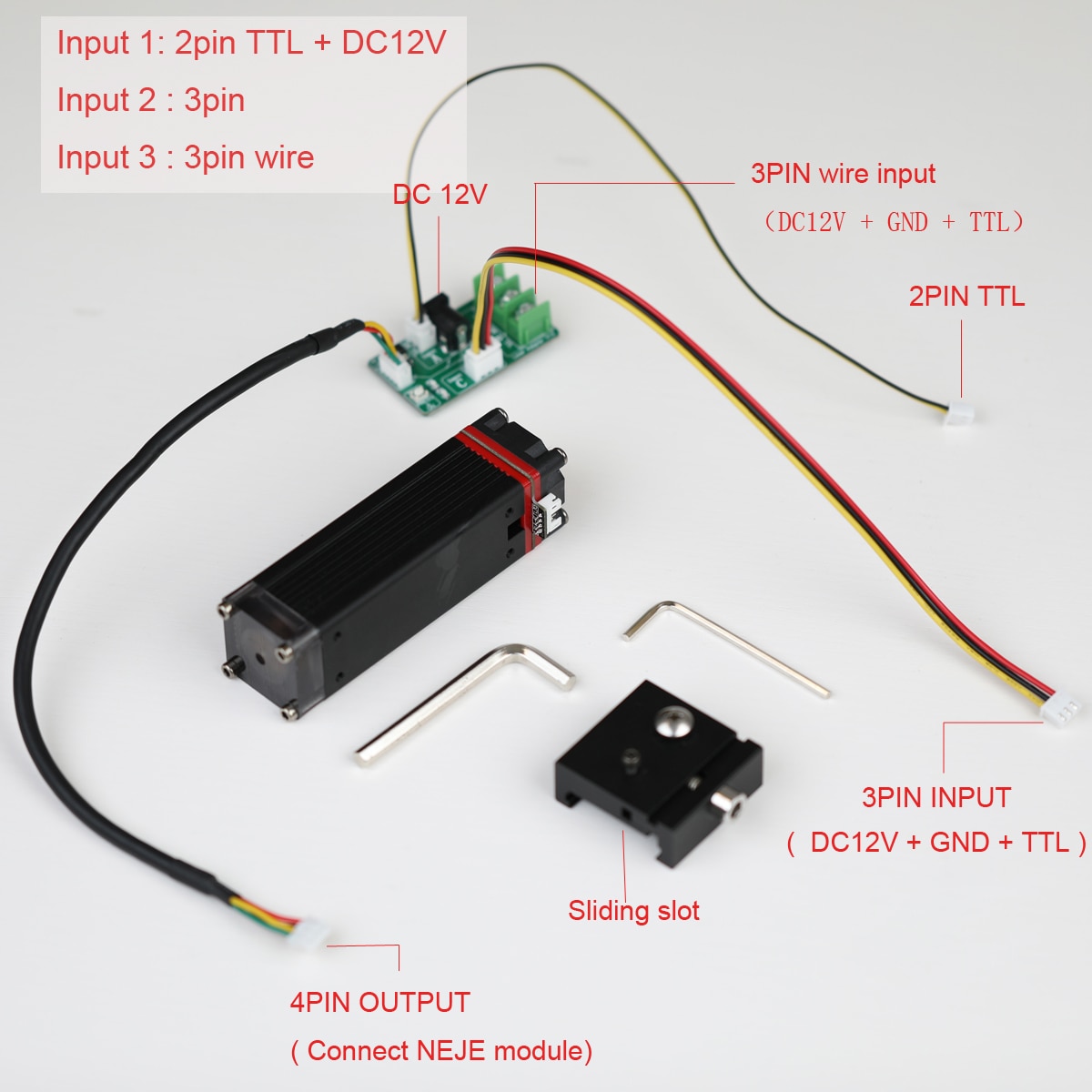

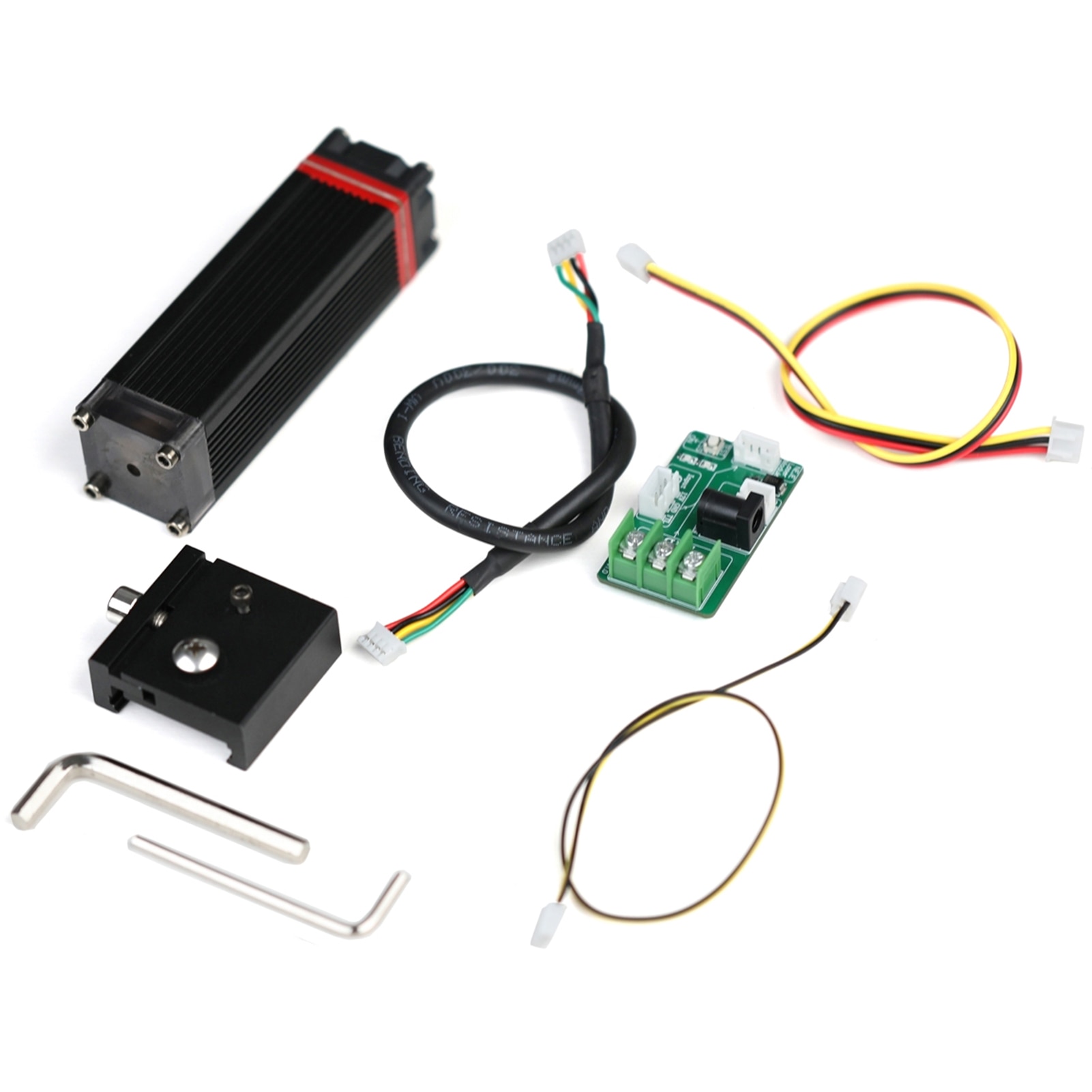

Packing List:
1 * 30W Laser Module

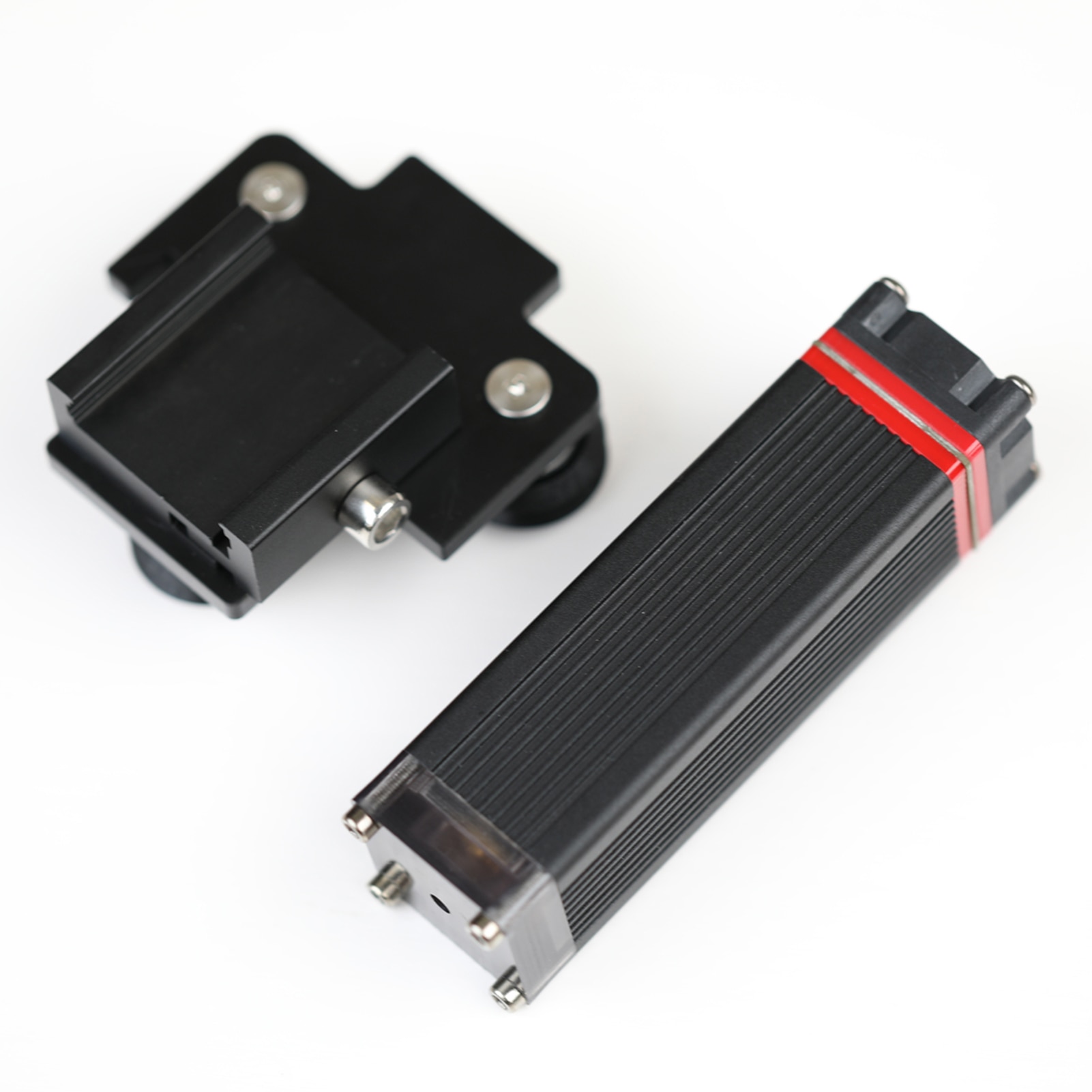

1 * Sliding Mount
2 * Allen Wrench
1 * Interface Adapter Board
1 * 4pin Cable
1 * 3pin Input Cable
1 * 2pin TTL Cable
