NEJE 20W Laser Module Kit Engraving Cutting Laser Head 450nm Blue Light With TTL/PWM Modulation,for Laser Engraver DIY Creation

$129.80$187.00

SKU: 1005003150625612 Category:

Description

  • Brand Name: NEJE
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Certification: UL
  • Origin: CN(Origin)
  • Model Number: MM-20W
  • Brand: NEJE
  • Laser Module: N30820/N30610/B30635

Note:

If you need for logo, words, cartoon, numbers or other lines engraving, please choose N30820 or N30610, if you need for portrait engraving, please choose B30635.

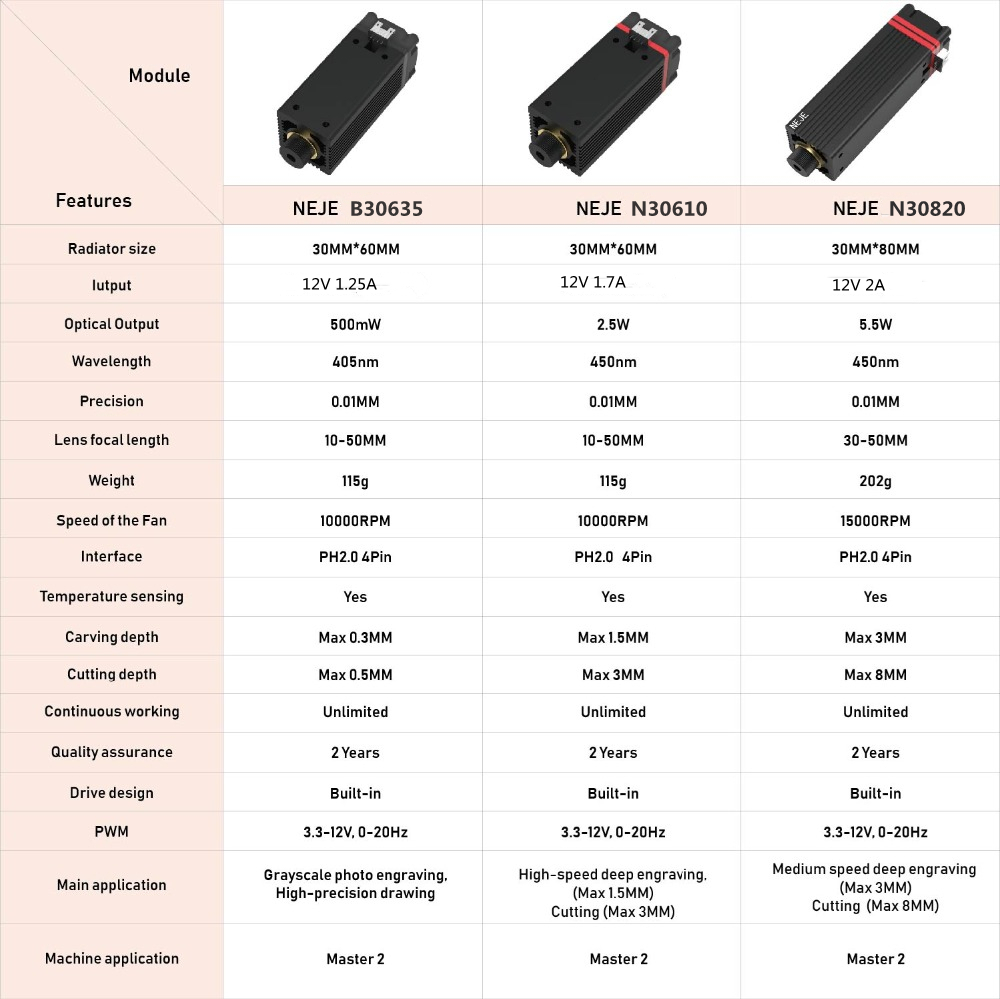

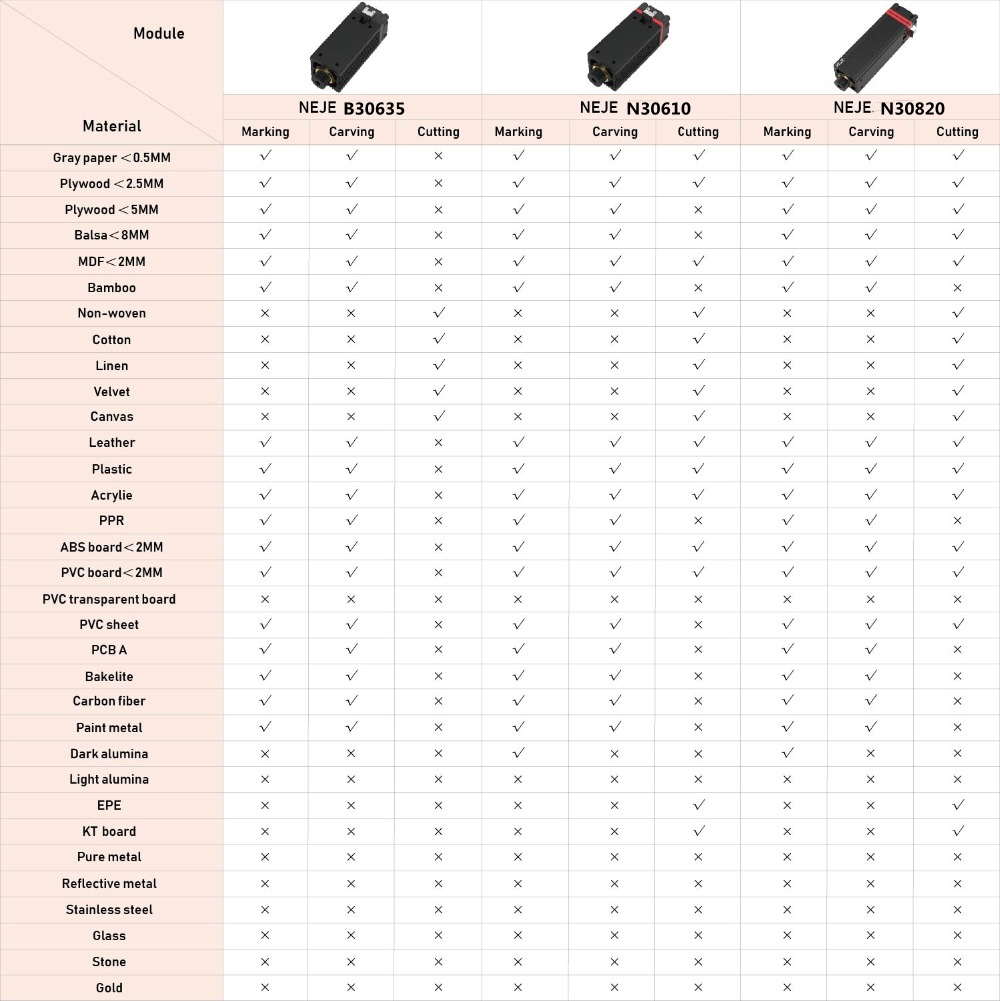

Detail B30635 Vs N30610 Vs N30820 Laser Module

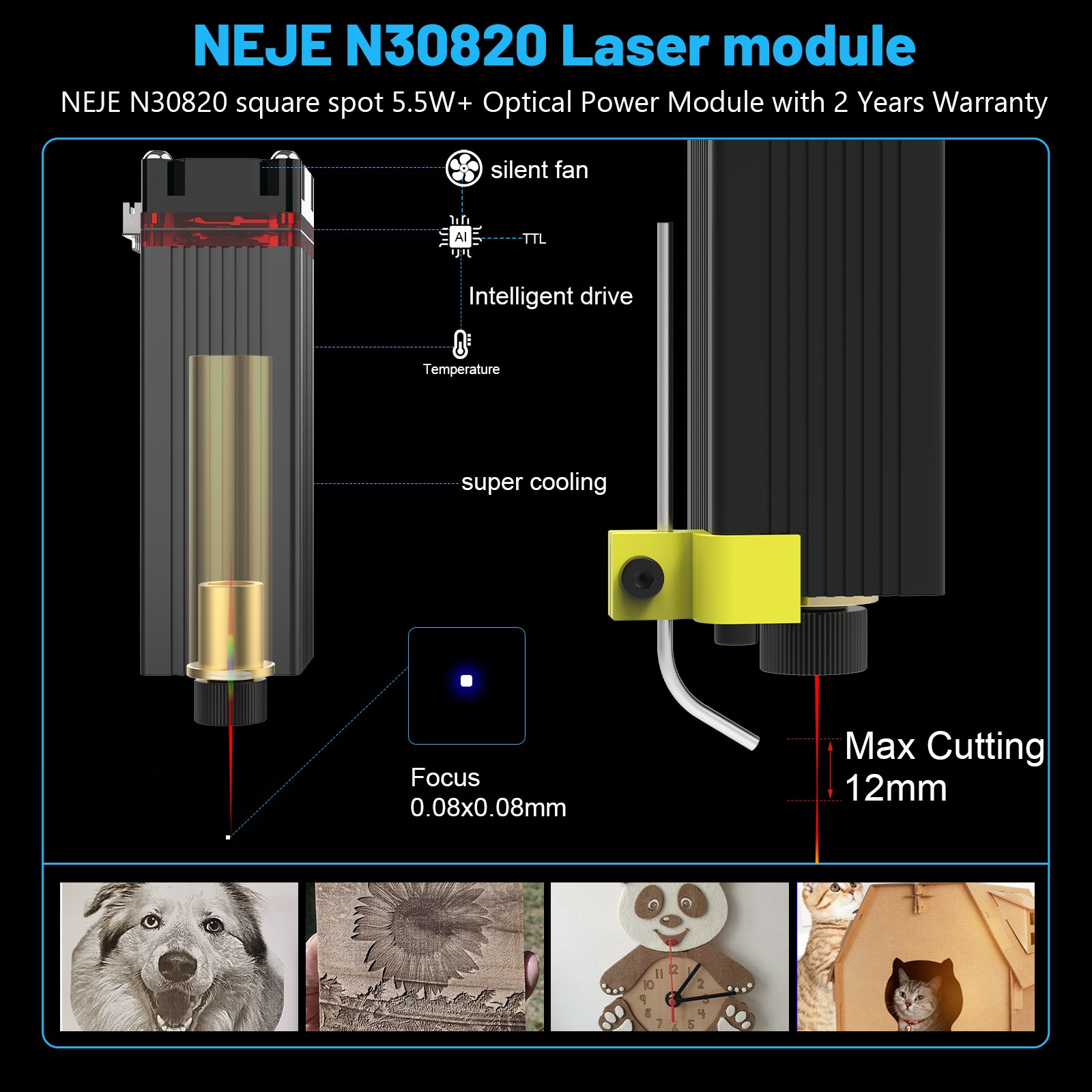

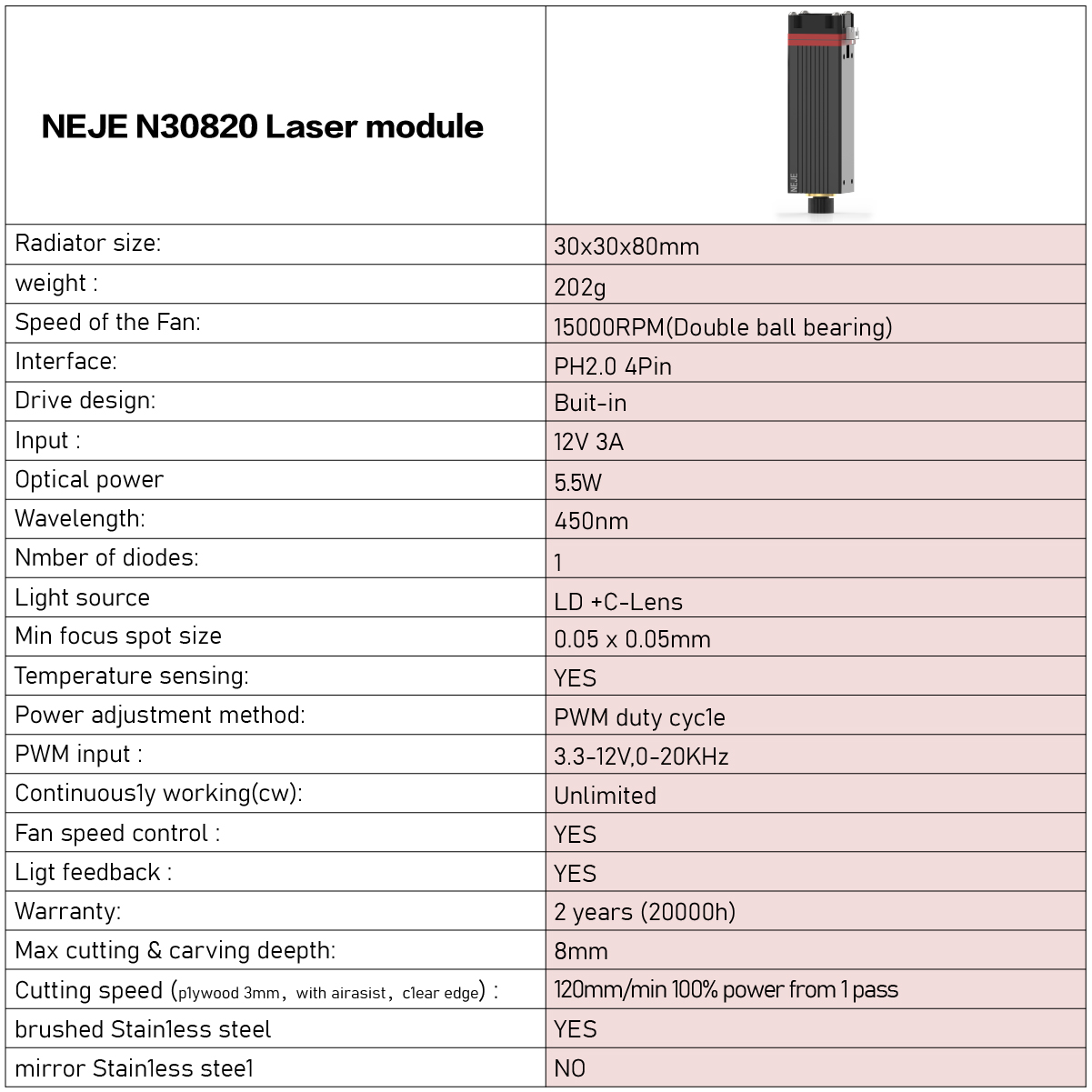

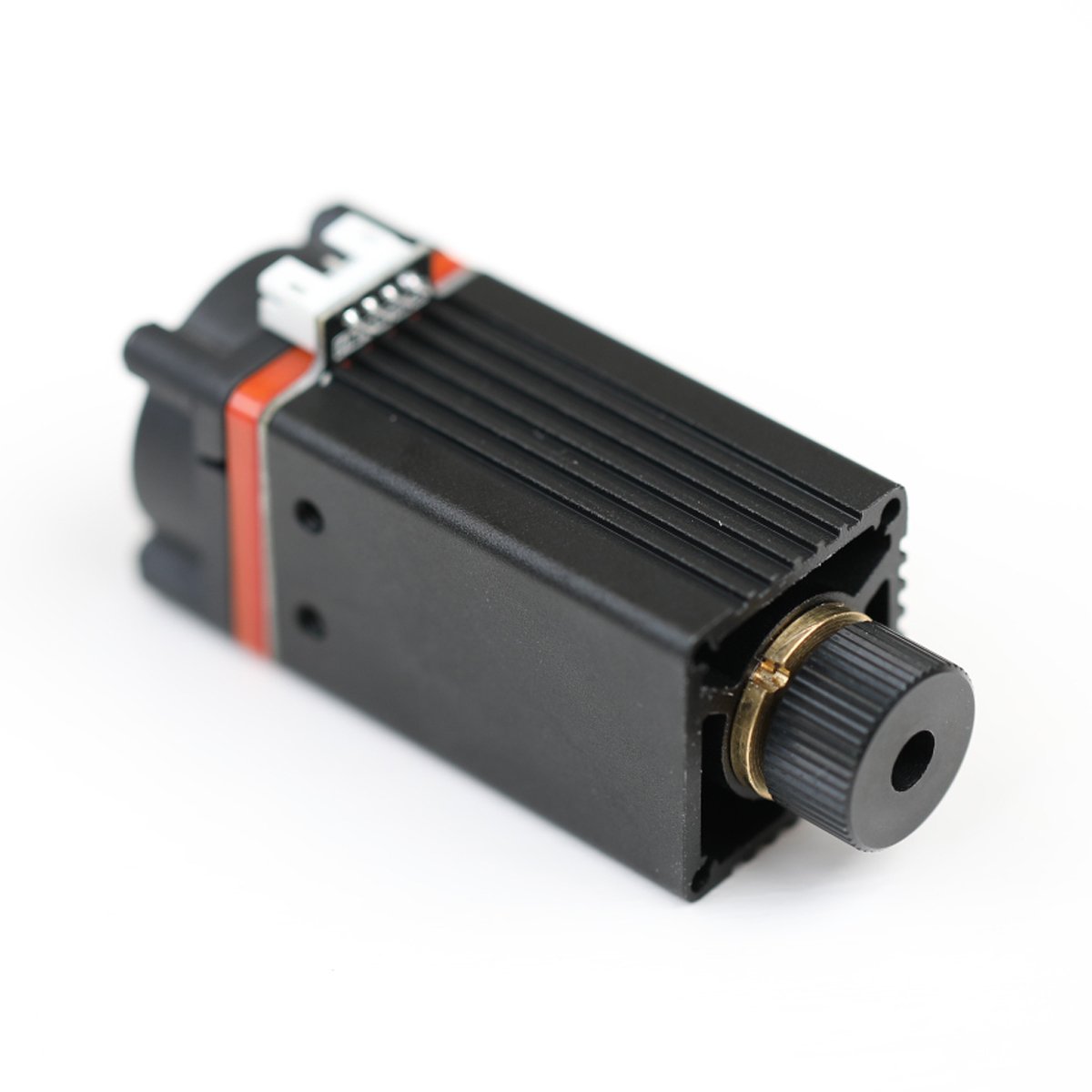

N30820 NEJE Module Specification:

Model: NEJE Module N30820

Input Power:20W

Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Laser diode: NUBM0A with NEJE Cap technology
LD Current: 3.2A
Section Size: 30mm x 30mm

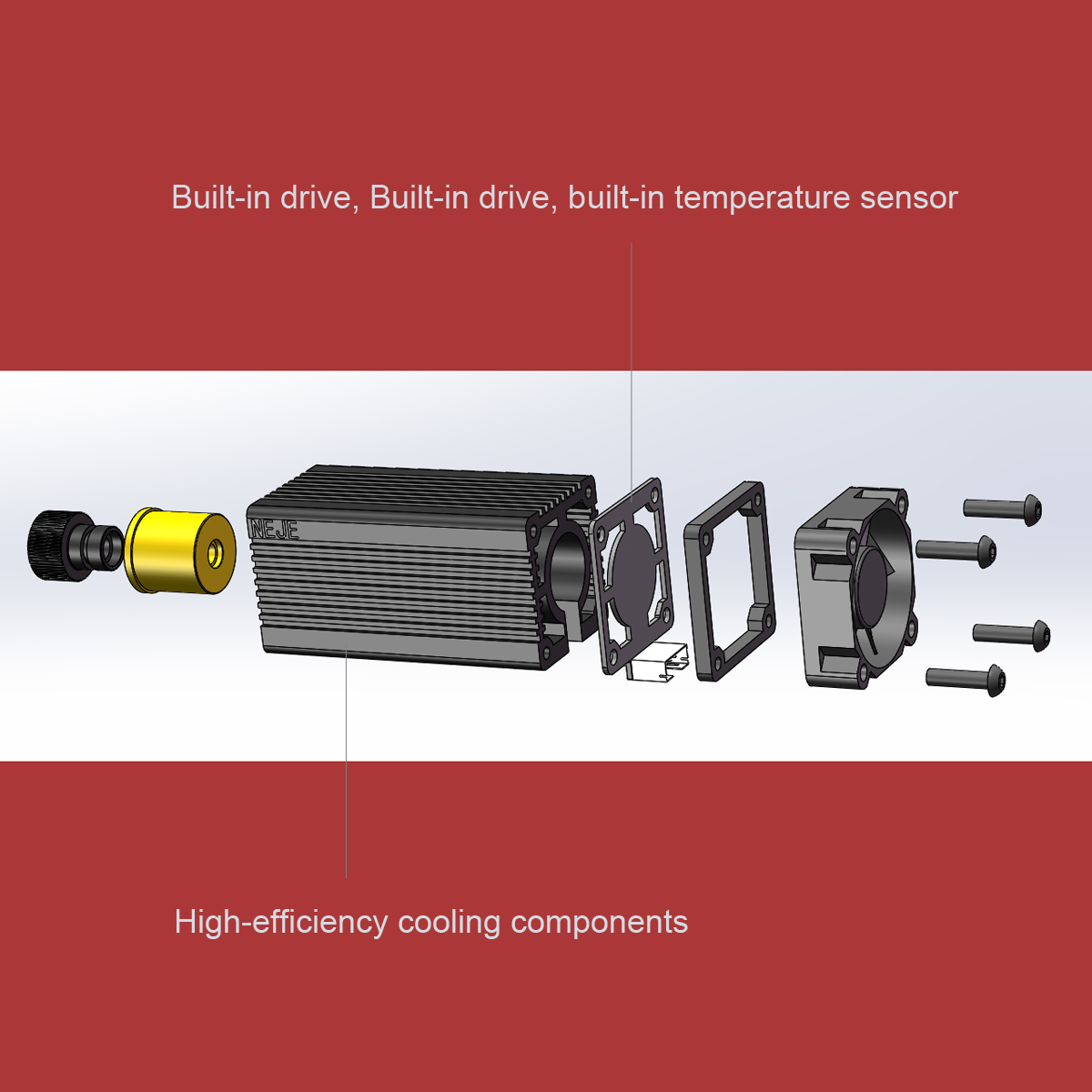

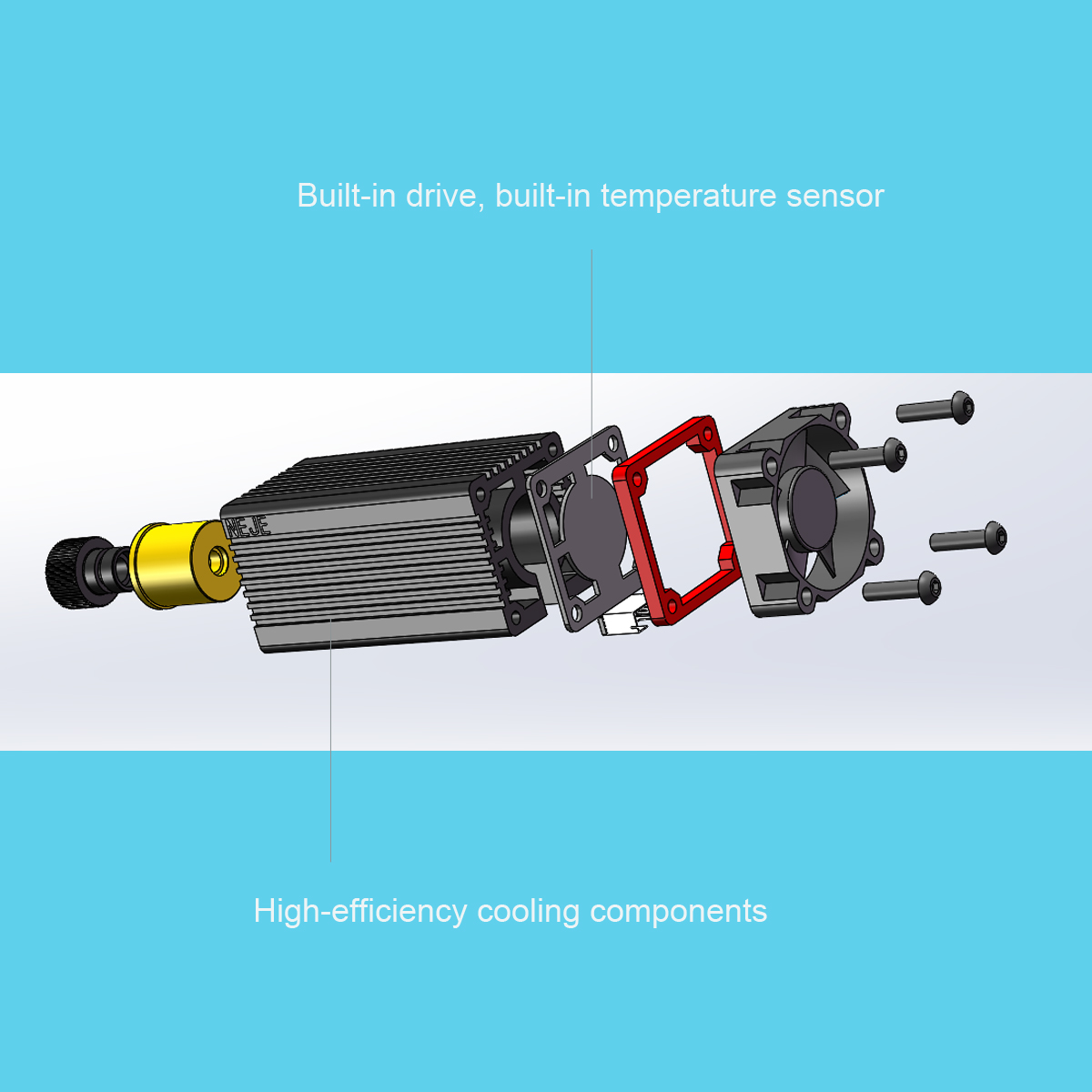

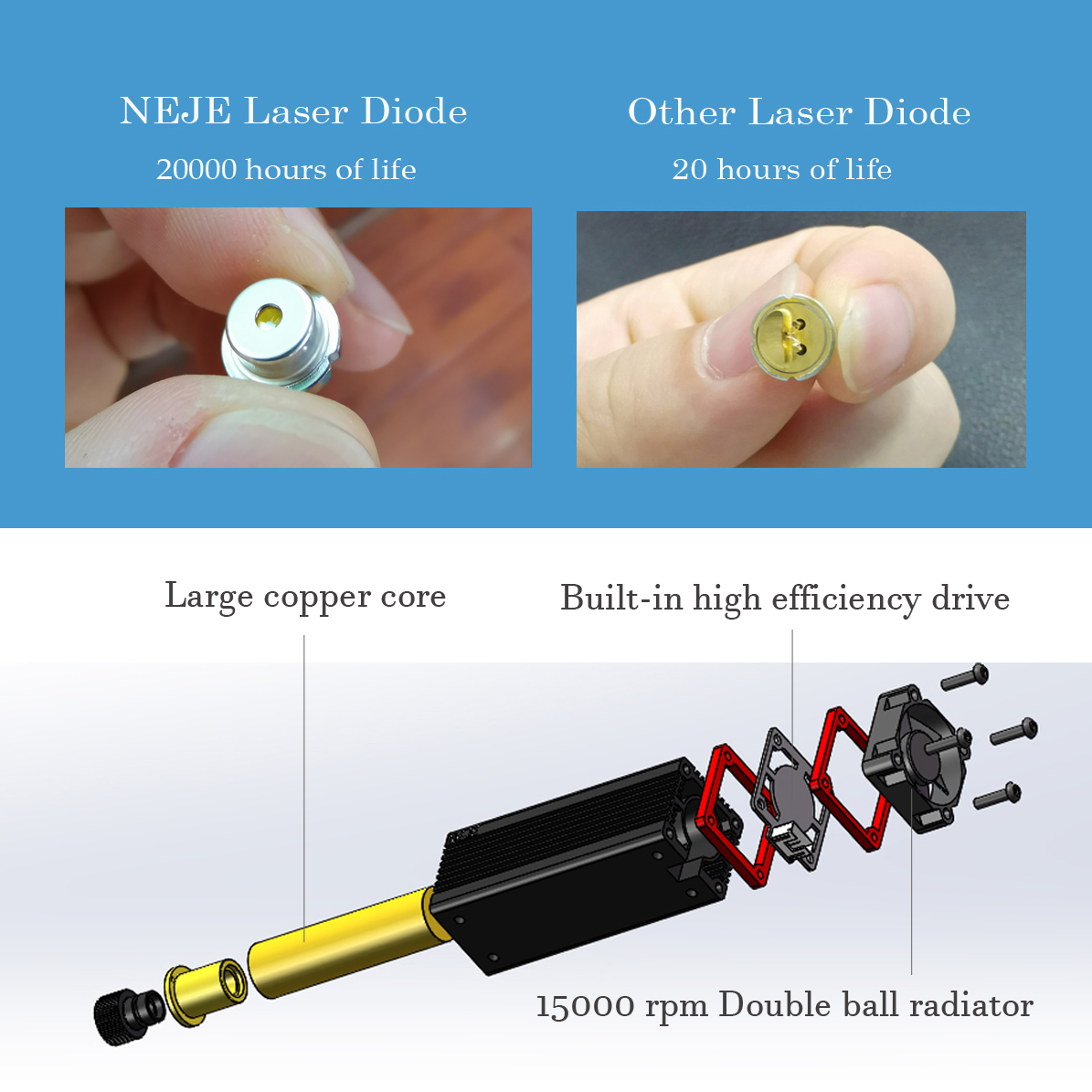

Cooling Mode: 40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan

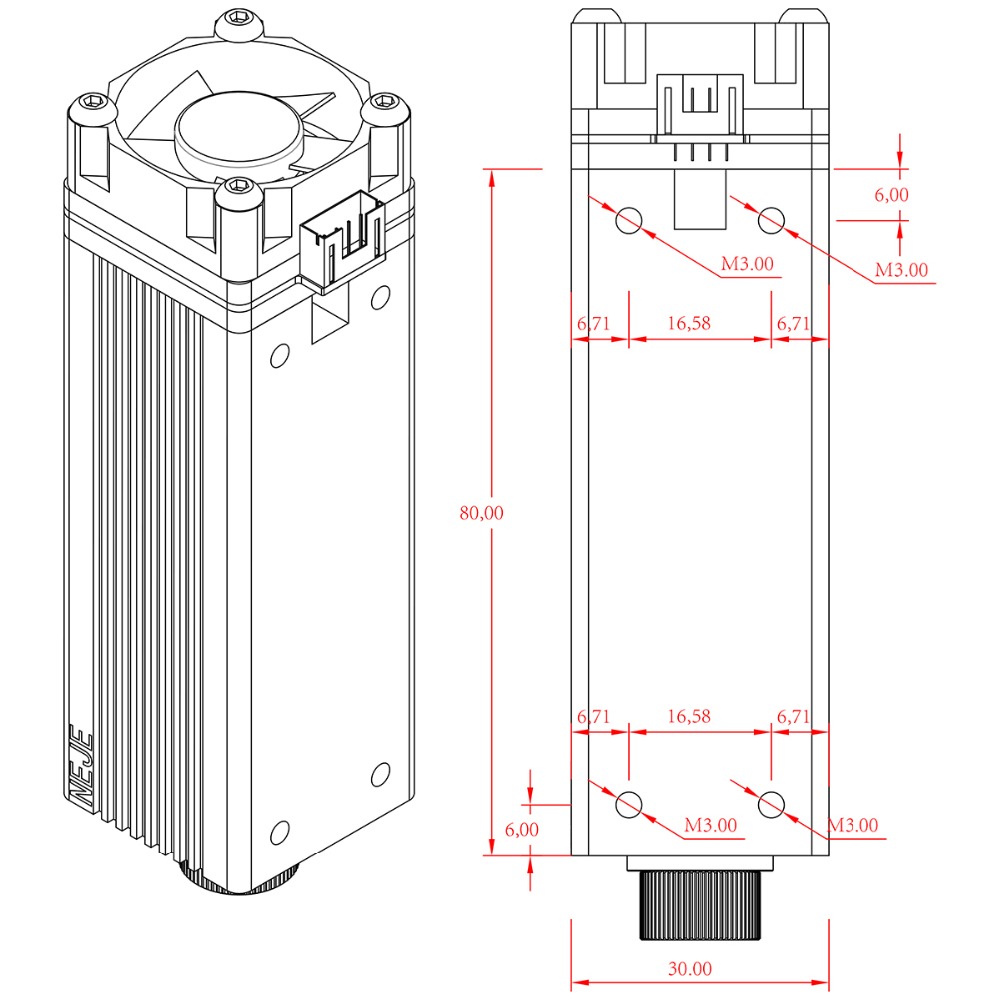

Dimension: 80 * 30 * 30mm
Intput Voltage: DC 12V

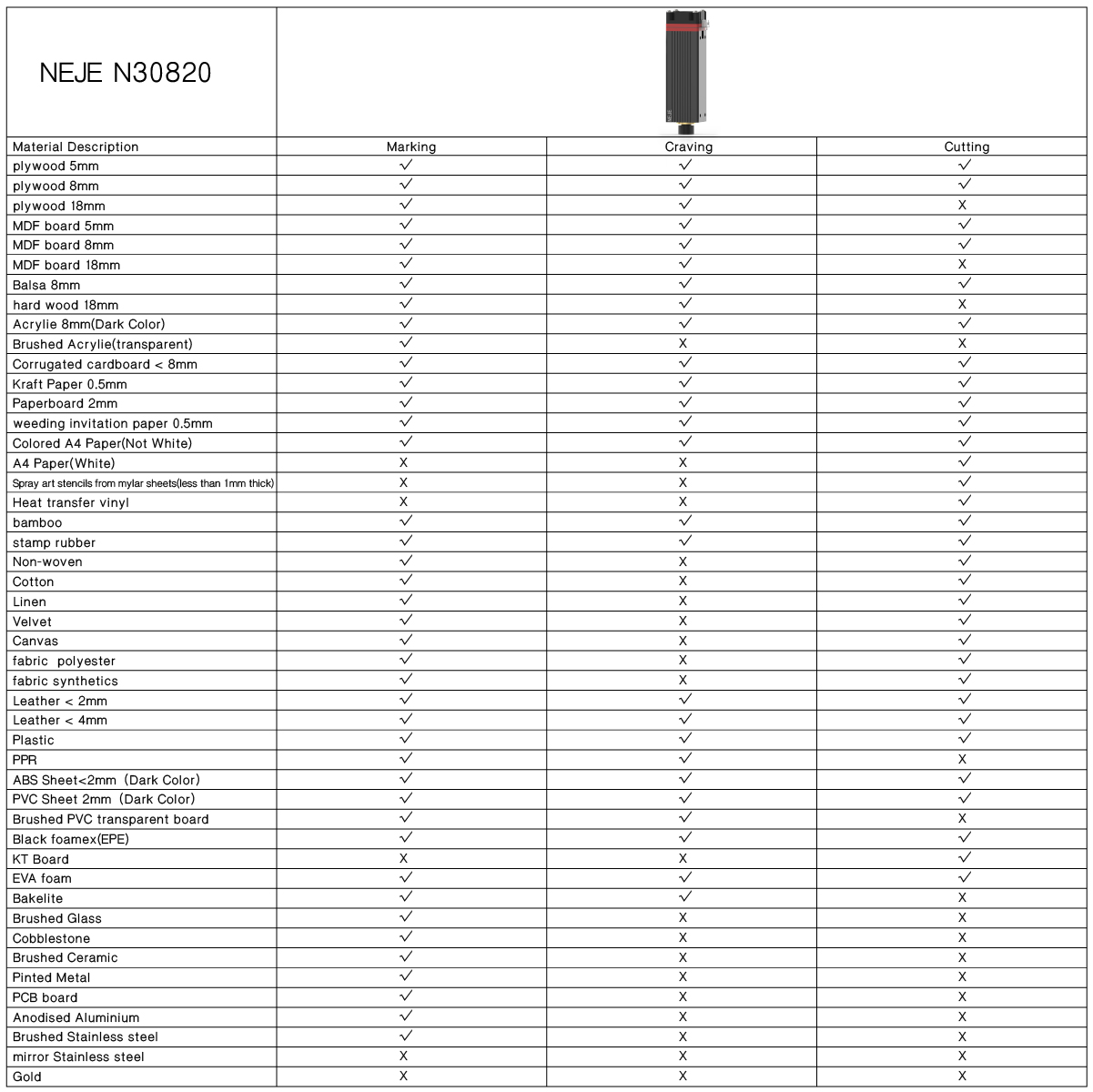

Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Laser Output Power: 5.5W (5500mW)
Wavelength: 445-450nm

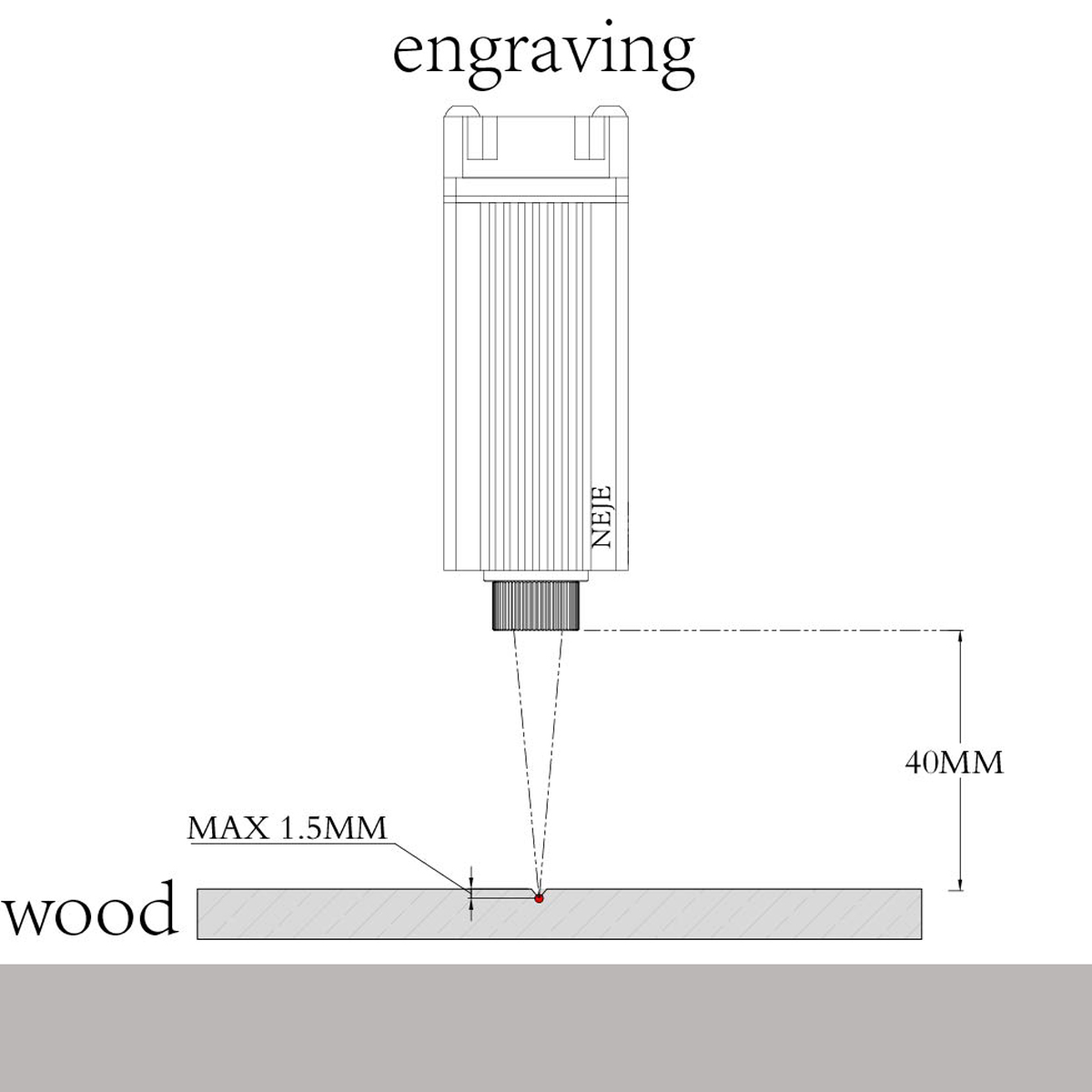

Beam Shape: Dot (Focusable)
Working Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V

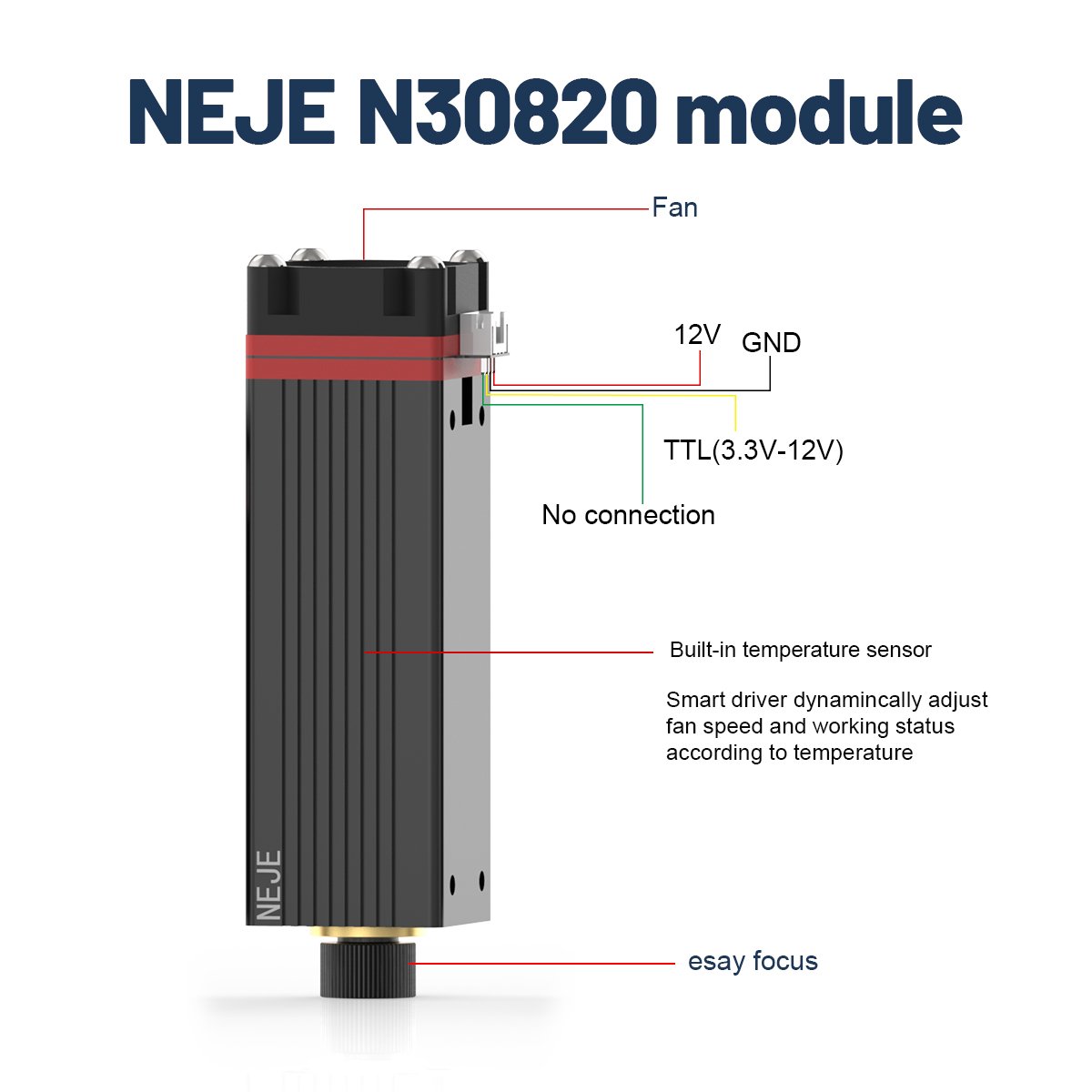

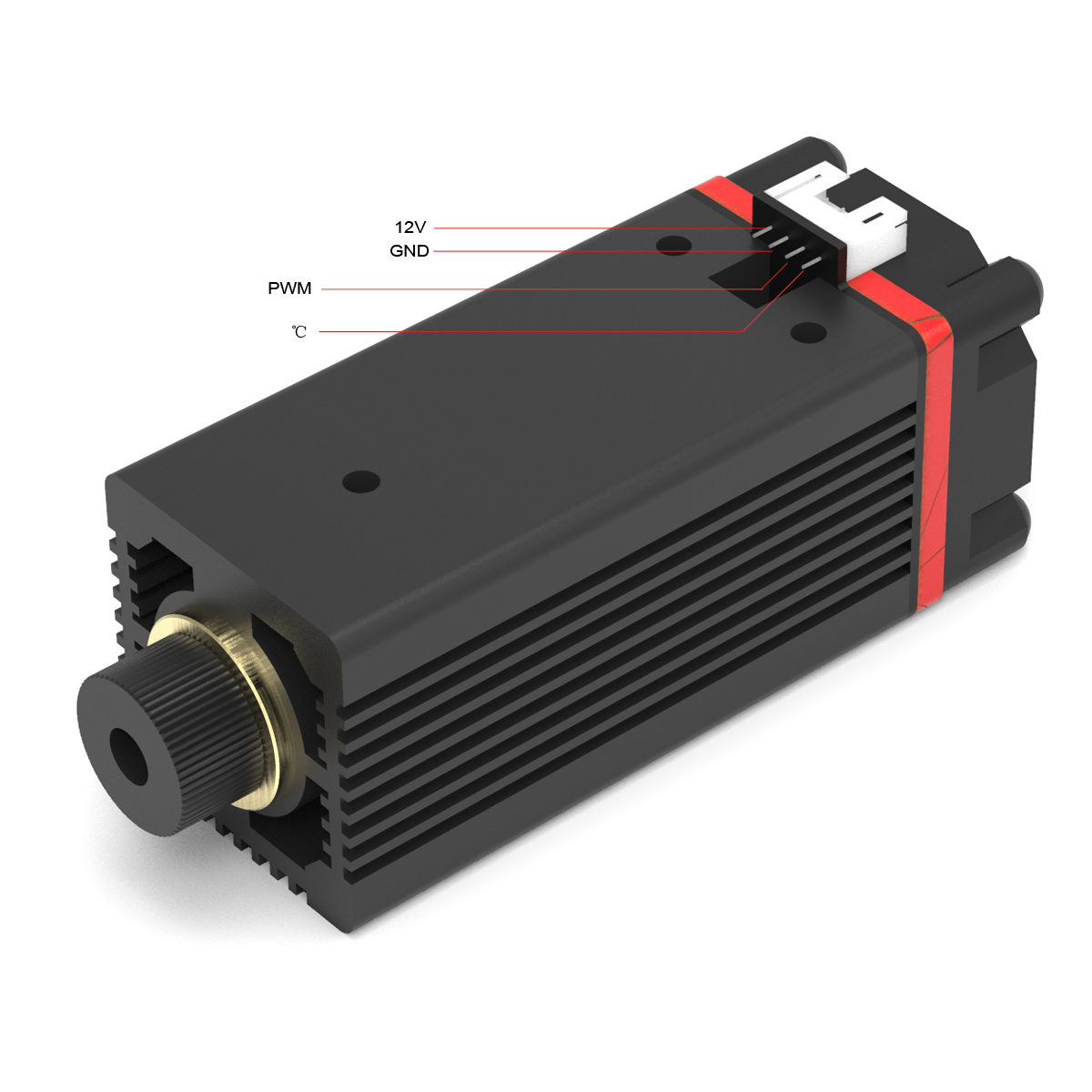

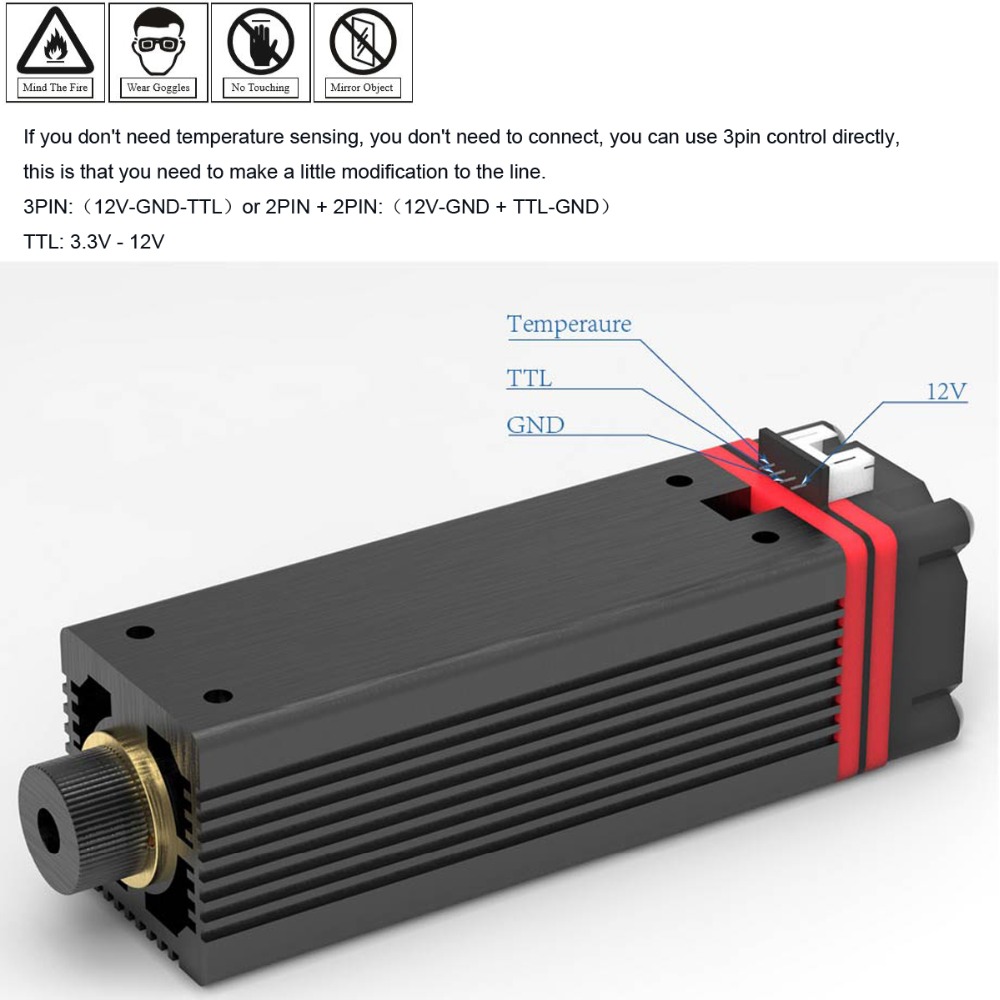

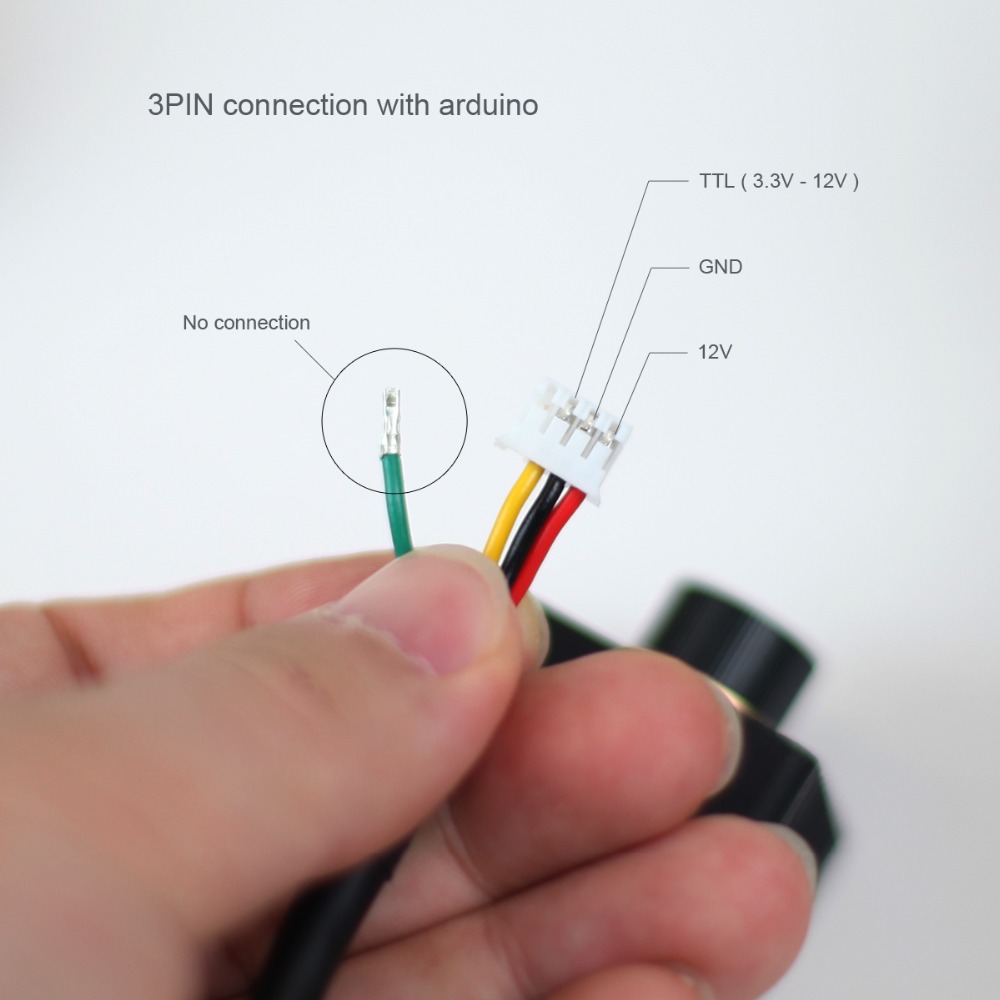

Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃
Module weight: 202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time: 20,000 hours

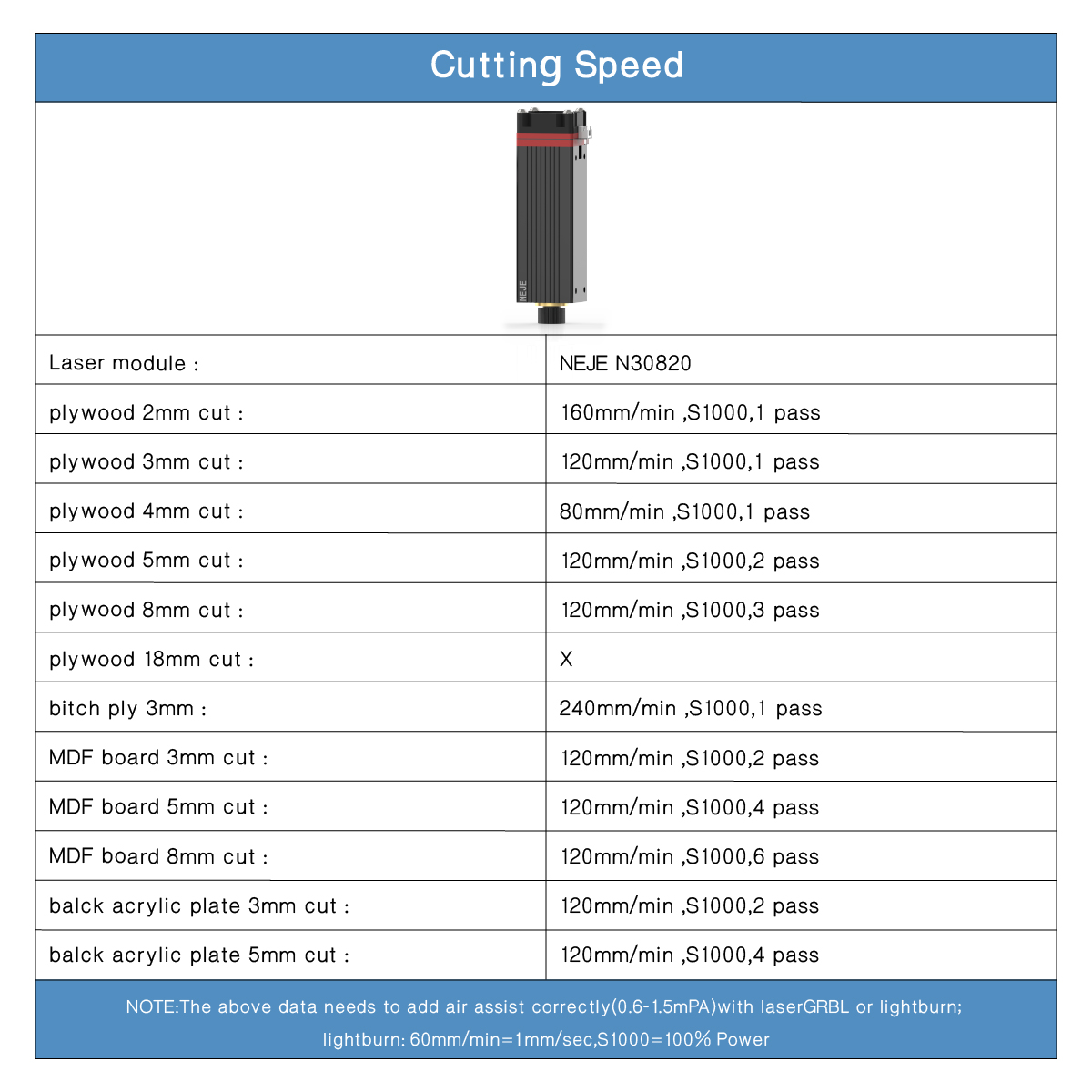

Test:
Material: Plywood, thickness 3mm
Speed 330, cutting 3 times, each cutting 1.0mm
Speed 200, cut 2 times, each cut 1.5mm
Speed 100, cut once, cut 3mm each time

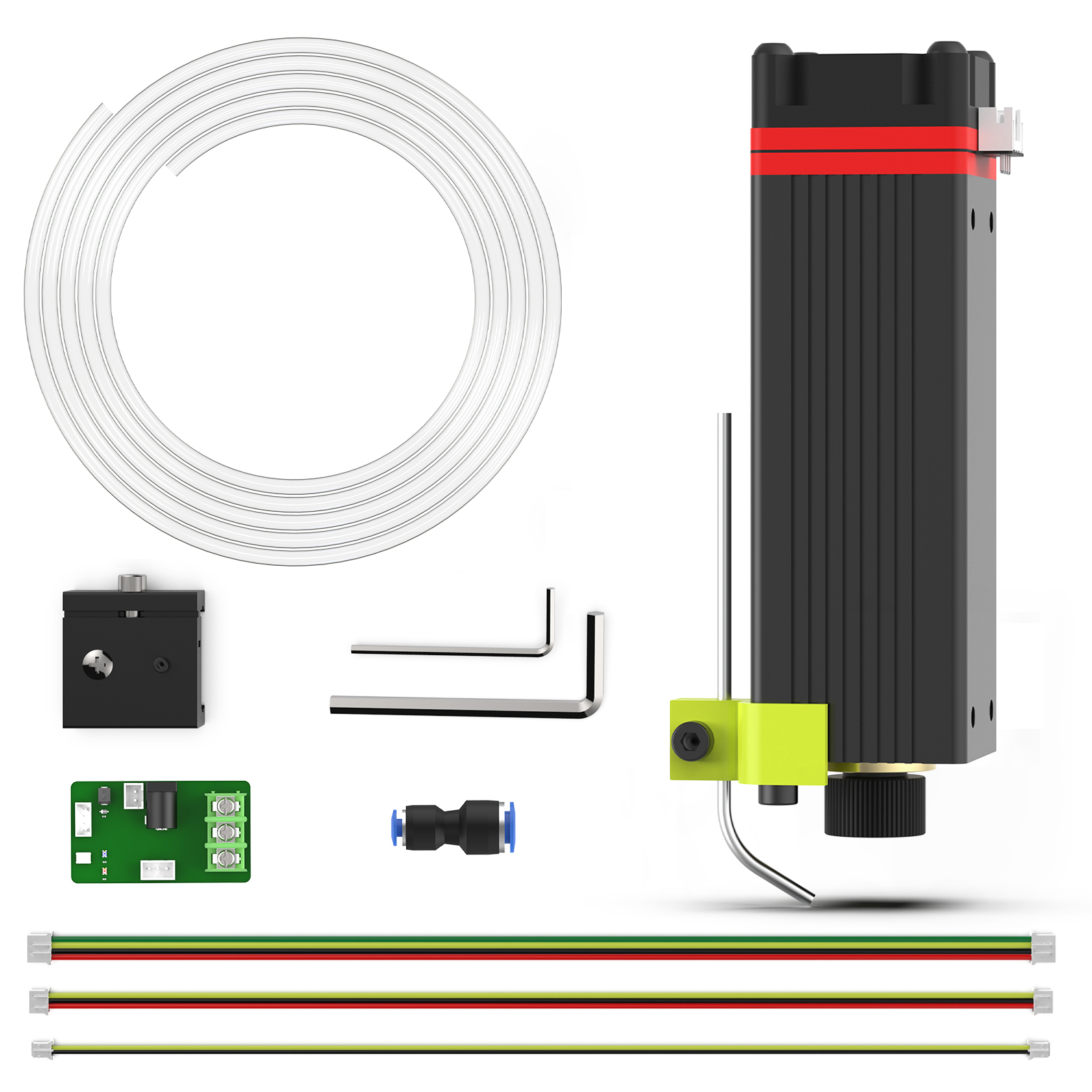

N30820 Laser Module Packing list

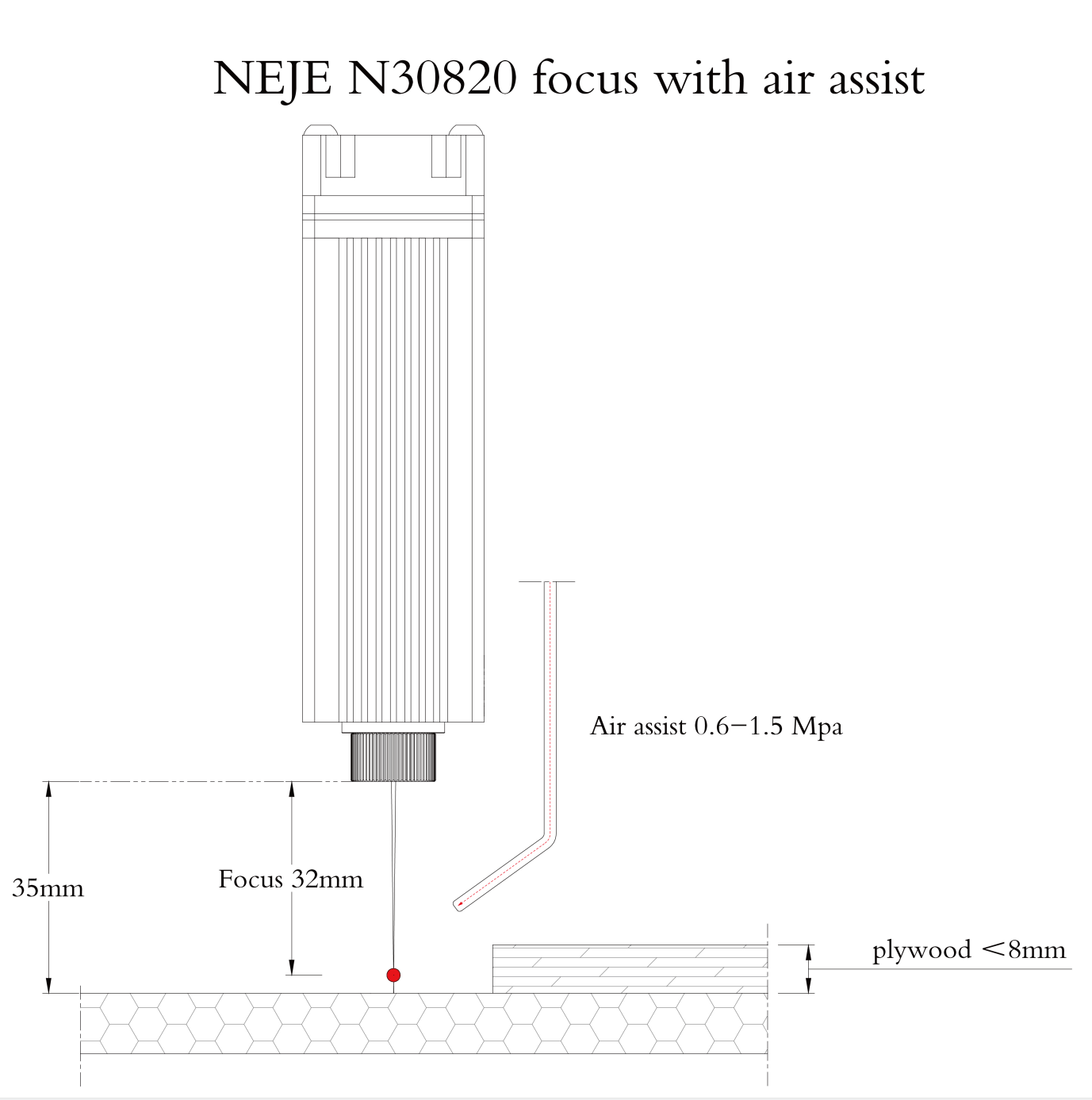

  • 1 x MF11 Air Assist

  • 1 x N30820 20w Engraving Module

  • 1 x 2 Screw

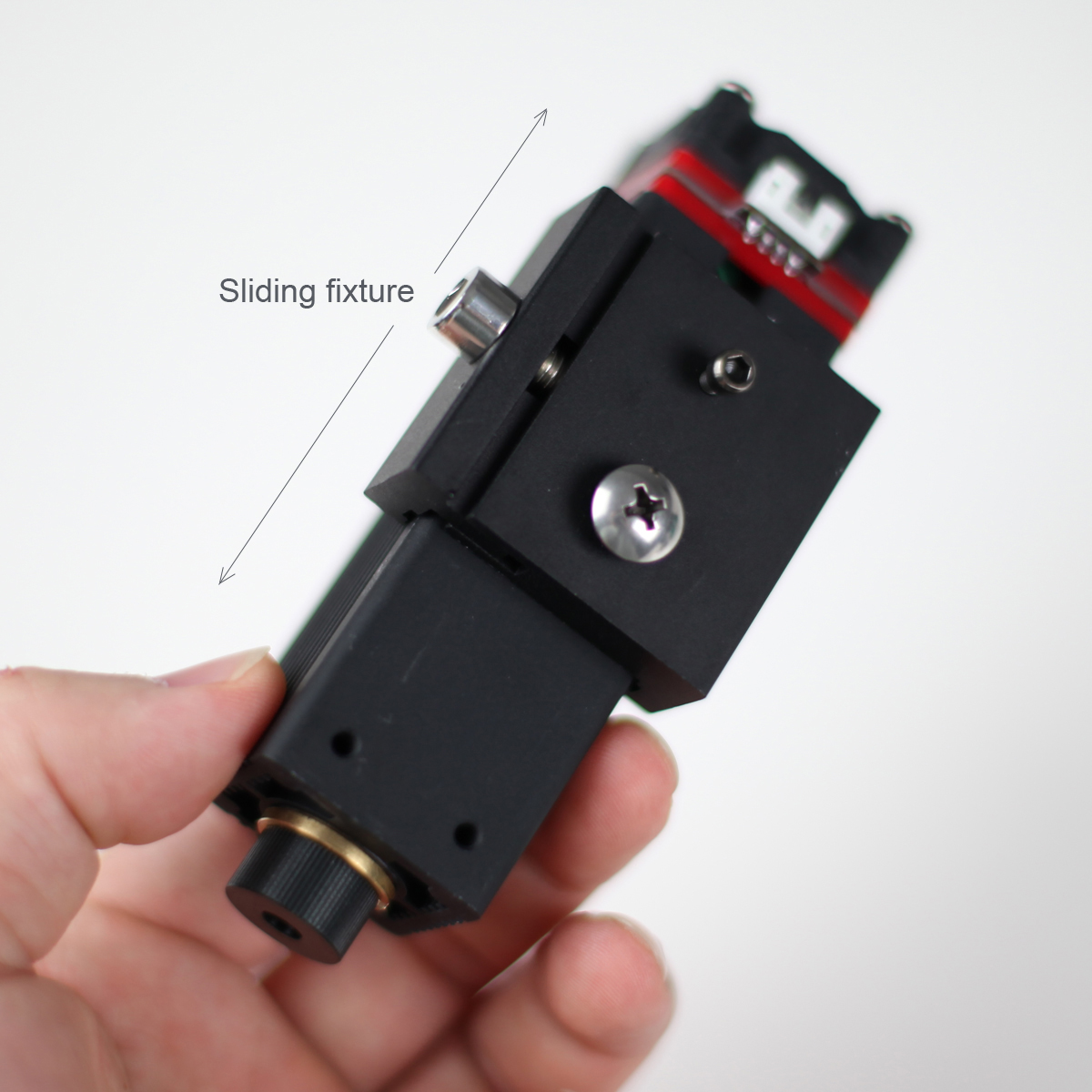

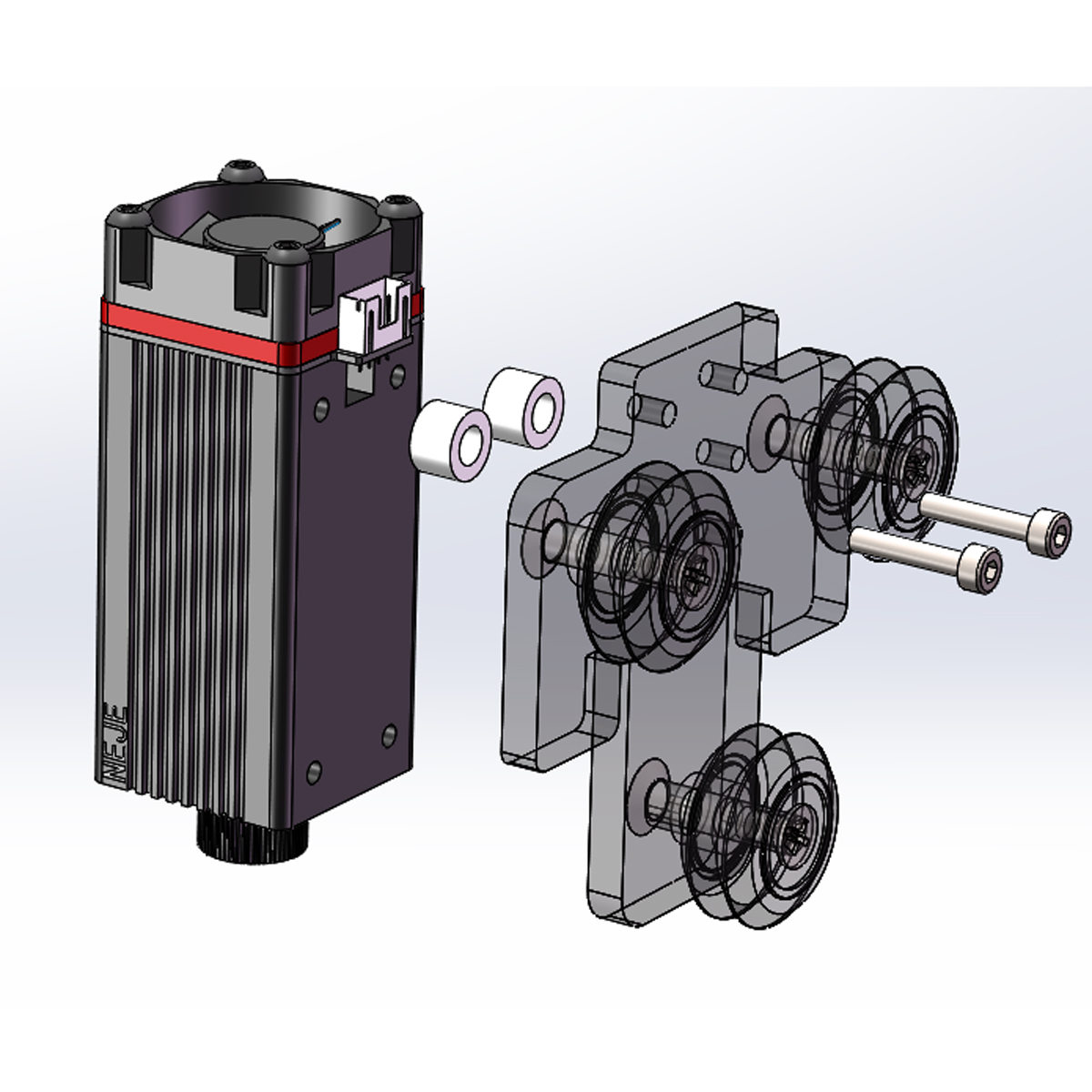

  • 1 x sliding card slot

  • 1 x Adapter board

  • 1 x 2 pin cable

  • 1 x 3 pin cable

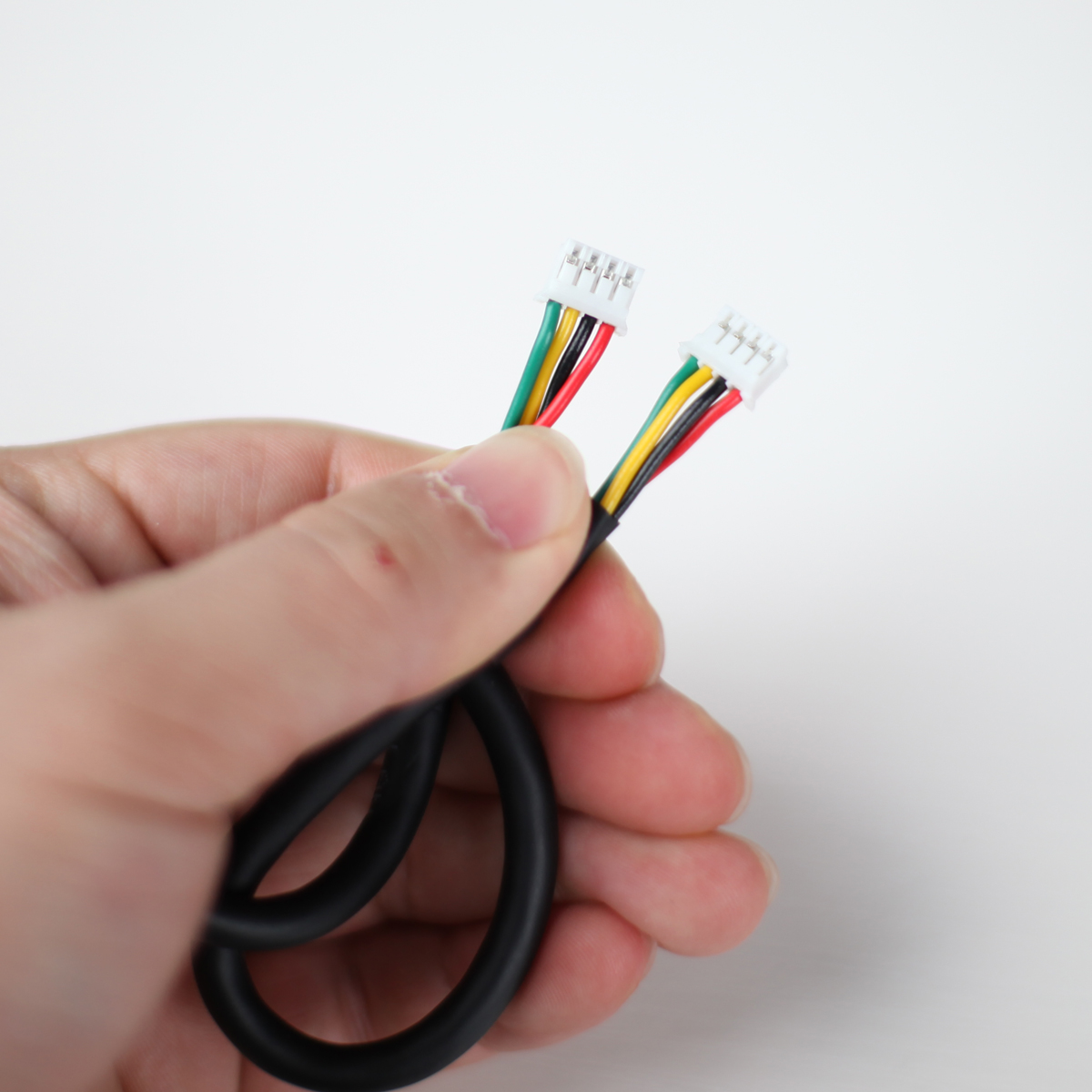

  • 1 x 4 pin cable

  • 1 x L-shaped wrench

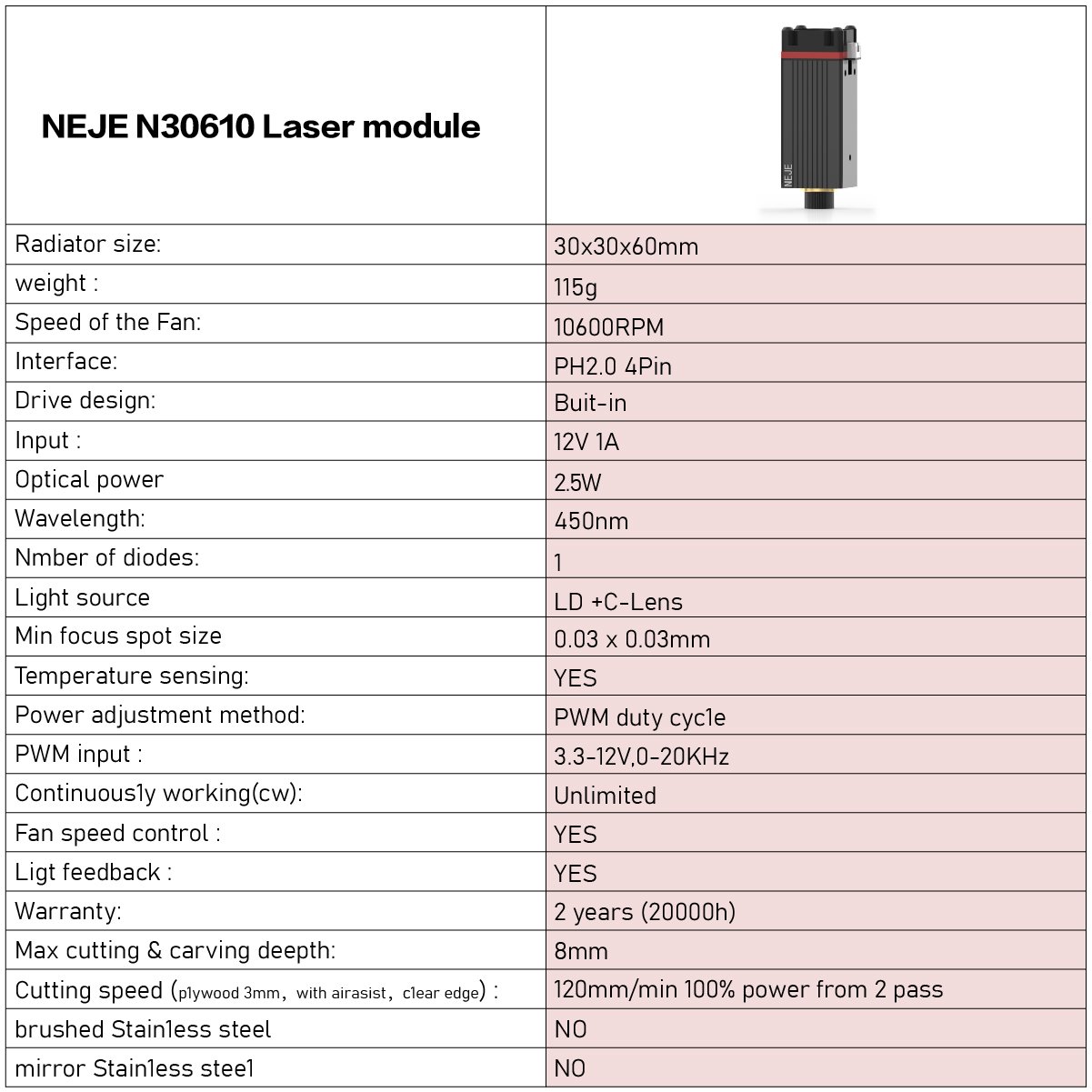

N30610 NEJE Module Specification :

Model: NEJE Module N30610

Input Power:15W
Heatsink Material:Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Laser diode:Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current: 1.6A
Section Size: 30mm x 30mm
Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan
Dimension: 60 * 30 * 30mm
Adapter Output Voltage: DC 12V 2A
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 15W
Laser Output Power: 2.5W (2500mW)
Wavelength: 445-450nm
Beam Shape: Dot (Focusable)
Input Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃
Module weight: 115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time: 20,000 hours

N30610 Laser Module Package List

1 x N30610 Laser Module

1 x sliding card slot

1 x 4 Pin Sport Cable

1 x 3 Pin Cable

1 x 2 Pin Cable

1 x Interface Adapter Board

1 x Bag of Screwdriver

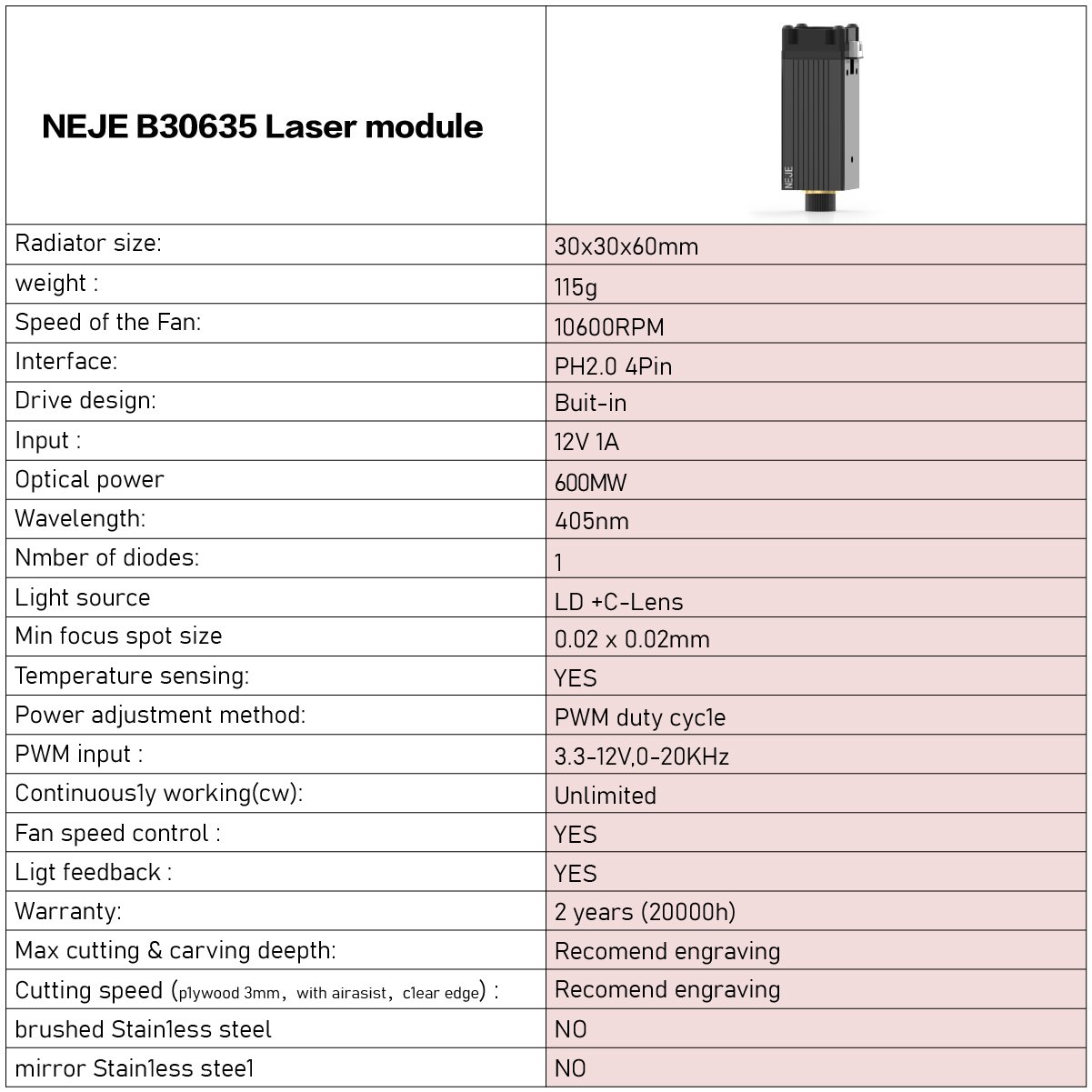

B30635 NEJE Module Speciation:

Model: NEJE Module B30635

Input Power:10W
Heatsink Material: Aircraft Aluminum + Brass Shell
Laser diode:sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
(Real 500mw continuous work,The other seller 500mw is Nichia 3.8mm laser with a power of only 200mw)
LD current: 350mA
Luminous Color: Blue
Section Size: 30mm x 30mm
Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan

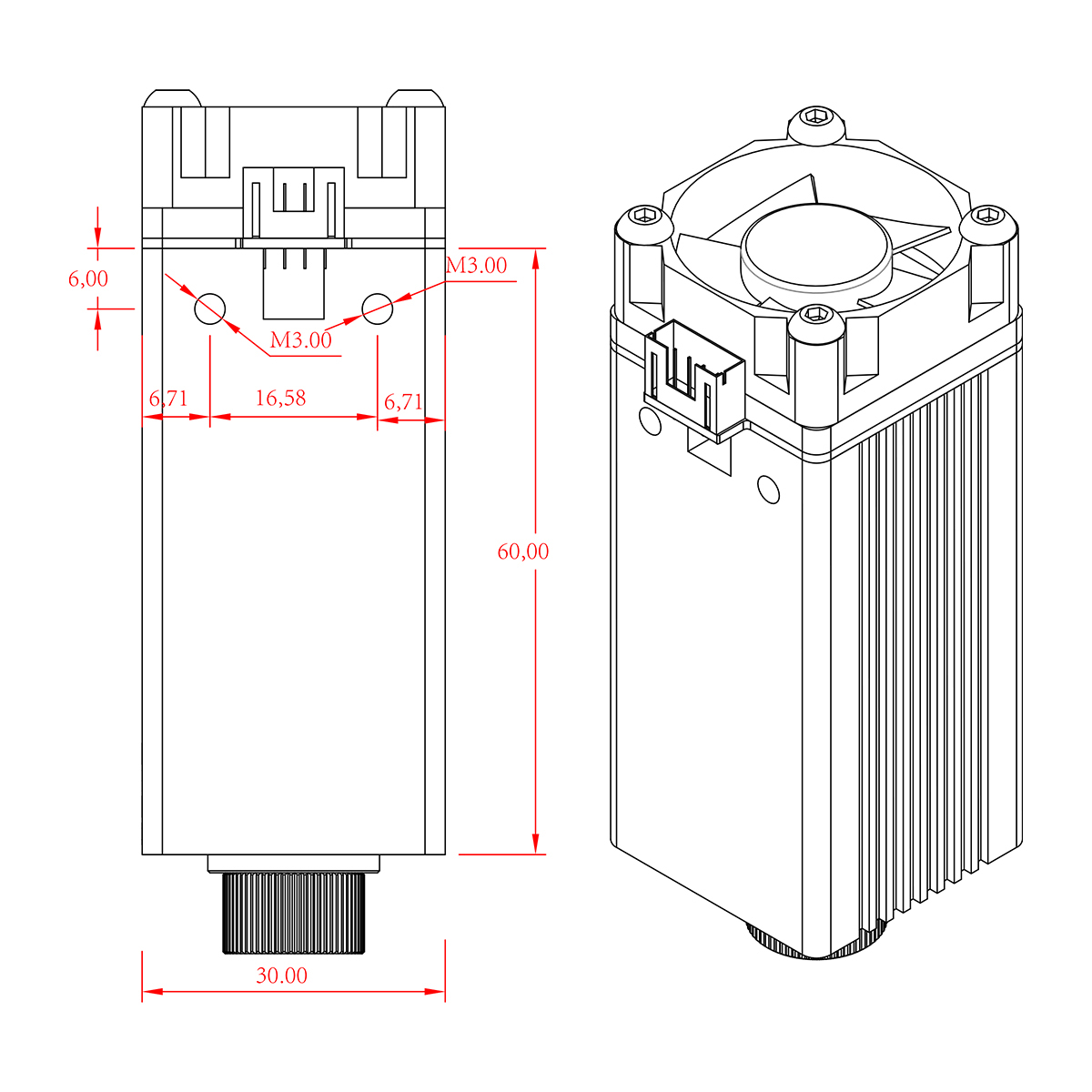

Dimension: 60 * 30 * 30mm
Adapter Output Voltage: DC 12V 2A
Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 10W
Laser Output Power: 500MW
Wavelength: 405nm
Beam Shape: Dot (Focusable)
Working Voltage: DC 12V
TTL&PWM Modulation: YES, Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode: External ACC
Safe temperature range: <70 ℃
Module weight: 115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time: 20,000 hours

B30635 Laser Module Package List

1 x B30635 Laser Module

1 x sliding card slot

1 x 4 Pin Sport Cable

1 x 3 Pin Cable

1 x 2 Pin Cable

1 x Interface Adapter Board

1 x Bag of Screwdriver

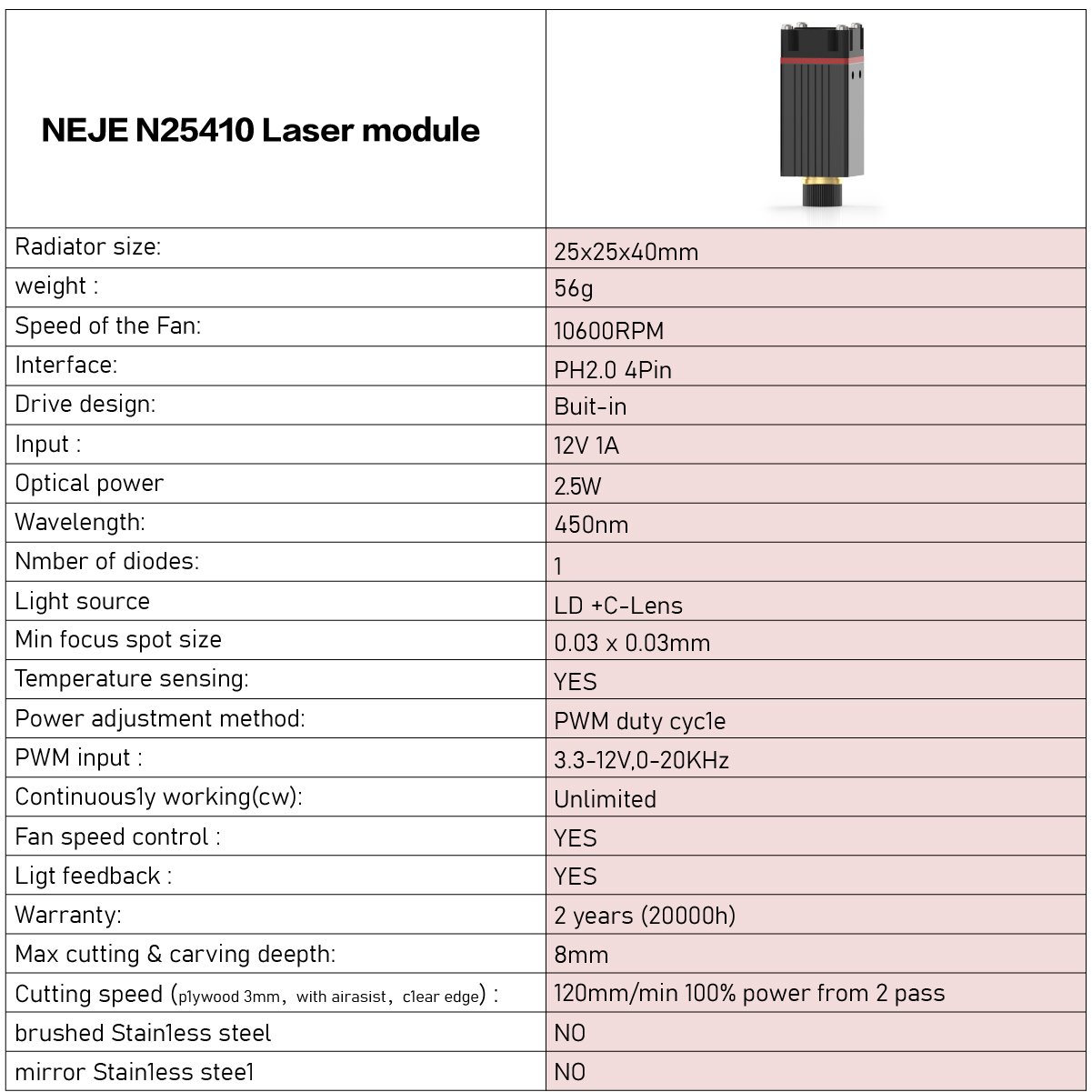

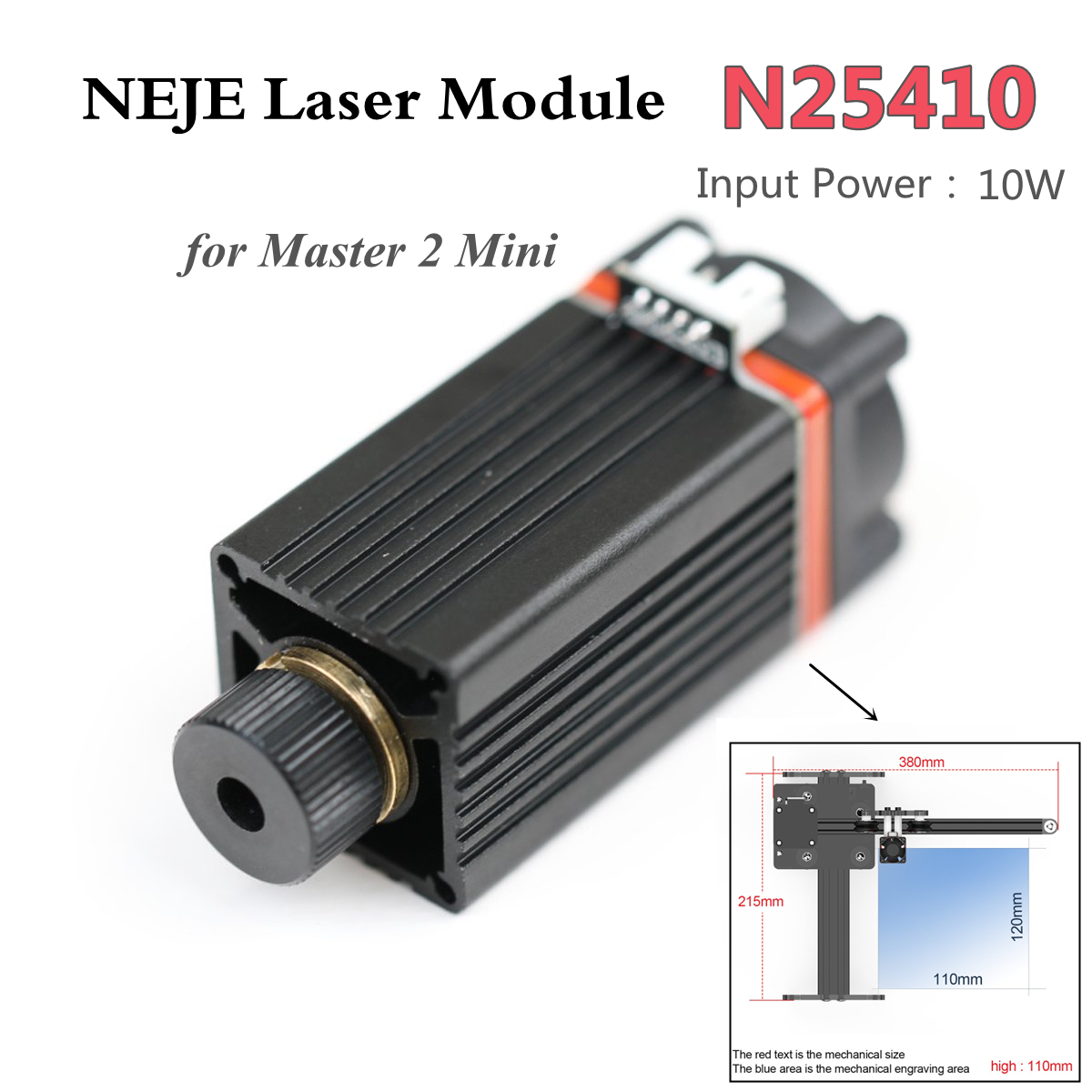

N25410 Laser Features
~High optical precision, 0.06mm focus point
~Input Power:10W , 2.5W optical power output
~Wide application, able to engrave black alumina, good at deep engraving
~Lightweight, high-speed scanning without jitter
~Intelligent, quiet, intelligent drive design, built-in control program can adjust the fan working state according to the TTL state and laser temperature
~High heat dissipation performance, 10000~20000 hours life
packing list
Laser module * 1
Screw installation kit (5 pcs)*1
30cm 4pin laser line * 1
Interface adapter board * 1
2pin TTL signal line * 1
3pin input signal cable * 1~
