Sale!

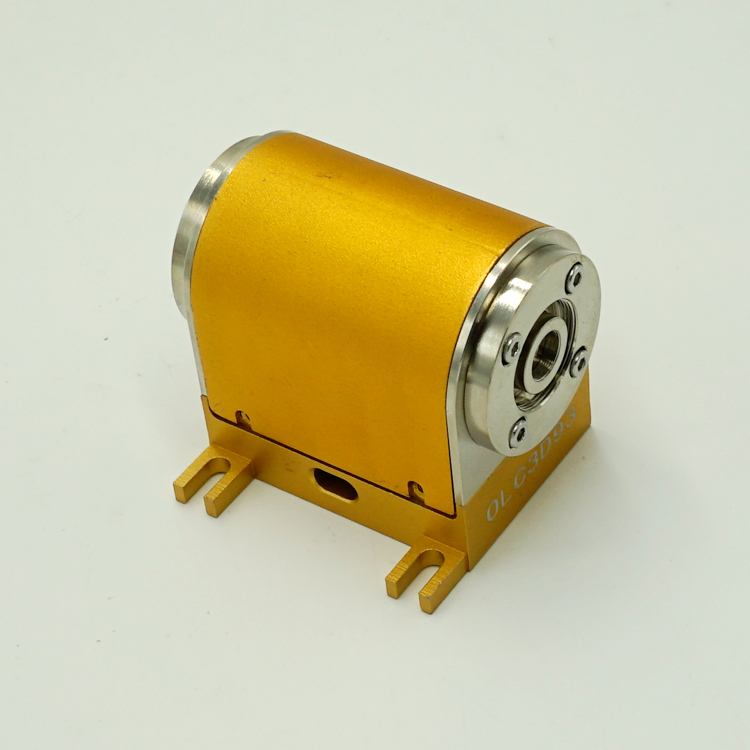

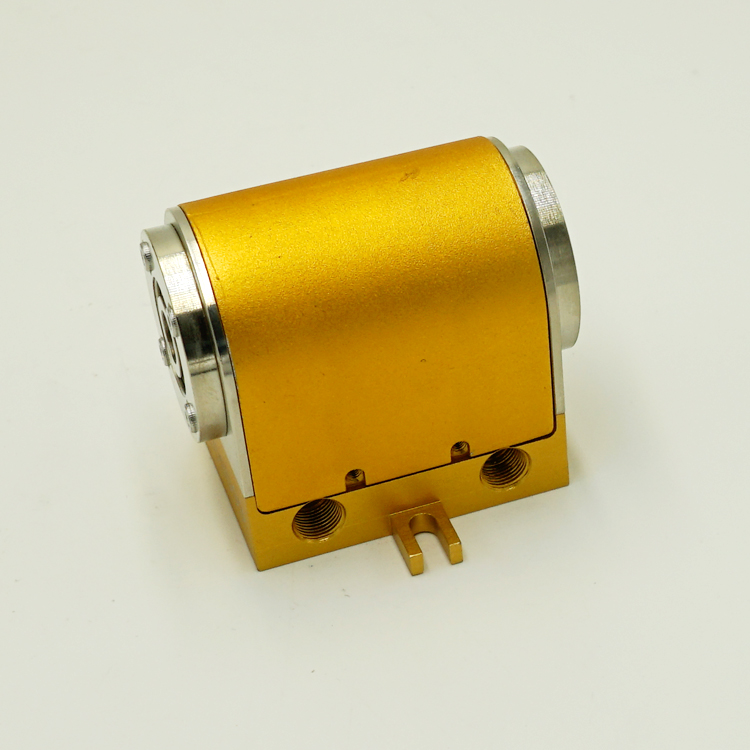

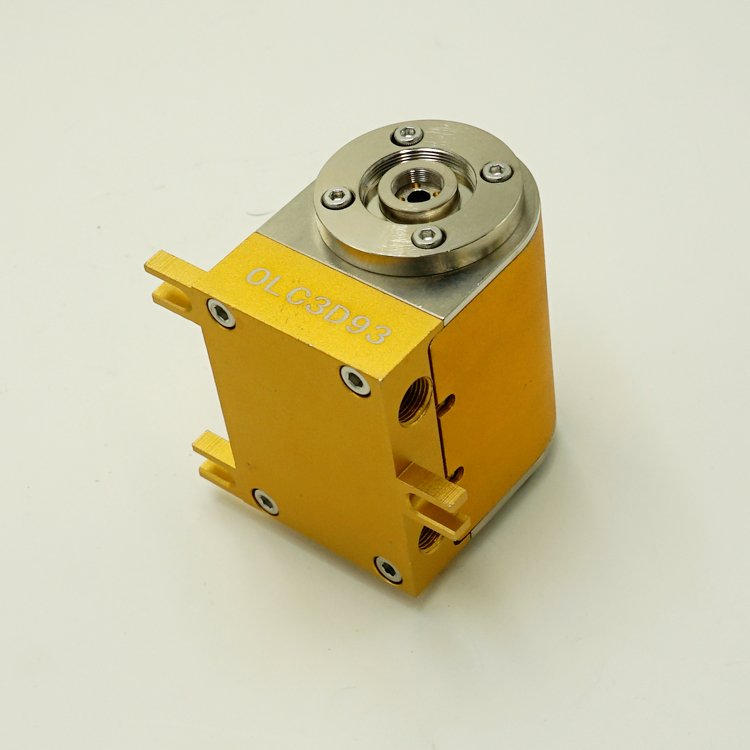

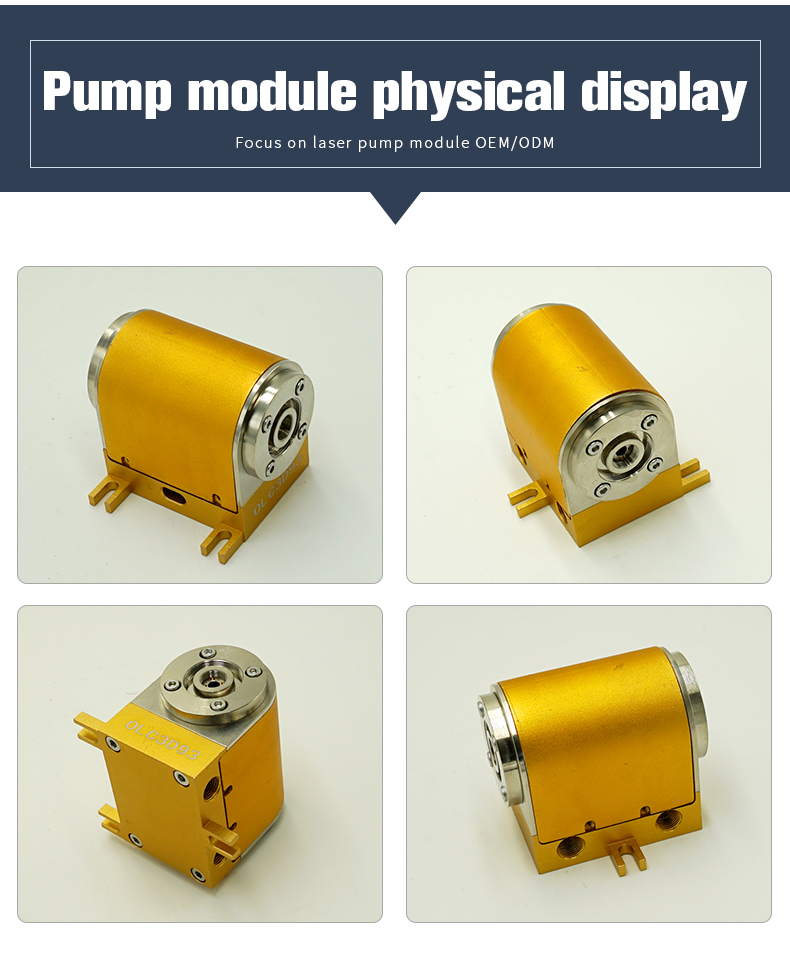

Nd Yag Module Flash Lamp 50w Cw / Qcw Solid-state Lasers / Laser Diode Module / Developing Diode Pumped

$4,356.00

99 in stock

SKU: 1005004267768619 Category:

Description

Nd Yag Module Flash Lamp 50w Cw / Qcw Solid-state Lasers /  Developing Diode Pumped

  • Certification: CE
  • Warranty: 1 Year
  • Spare Parts Type: diode laser epilator
  • Weight (KG): 3 KG
  • Operating Current: 25A
  • Voltage: <18V
  • Nd Yag Length: 75mm/78mm/67mm
  • Application1: laser dpss
  • Application 2: engraving
  • Application 3: marking
  • Local Service Location: Turkey, Italy



Item name Model Power Chips Voltage Current
CEO CEO RBA30-1C2 50W 9*20W <18V <25A
Northrop Grumman CEO RBA20-1C2 50W 9*20W <18V <25A
Cutting Edge Optronics CEO RBA-34-1C2 75W 12*20W <24W <25A
CEO RBA30-2C2 75W 9x(2×20)W <36W <25A
CEO RB Plus 50W 9*20W <18W <25A
CEO RB Plus 75W 18*20W <24W <25A



1.Specifications
SN:07##### Diode:9×20W
Module No.RBA30-1C2
Array included:6####;6####;6####
2. Test condition
Chiller Temperature Cavity Lengh Chiller pressure
23 Deg.C 300MM 0.21
3. Test Results
Current(A) Ourput(W) Voltage
8 0.3 15
10 6.7 15.2
12 16.4 15.4
14 26 15.6
16 35.4 15.8
18 44.5 16
20 54.6 16.2
22 59.4 16.4

Output Power: 20-500W (1064nm, CW)

Working Mode: CW

Wavelength: 1064nm

ND: YAG, Doping at 0.6%

Water-cooled

Expected life: 10000 hours

Warranty: 12 months

Diode Provider: Jenoptik (Jena, Germany) 40W bars.

 GN Series:

GN20 Series, 20W DPSS Laser Module (2mm Diameter Nd:YAG)

GN30 Series, 35W DPSS Laser Module (2mm Diameter Nd:YAG)

GN50-H, 50W DPSS Laser Module

GN50-E, 50W DPSS Laser Module

GN75-H, 75W DPSS Laser Module

GN75-E, 75W DPSS Laser Module

GN100 Series, 100W DPSS Laser Module

150W-500W DPSS Laser Module

Customized DPSS Laser Module



 Applications:

1. Laser marking & material processing

2. Laser welding & thin metal cutting

3. Laser research experiments

4. Laser engraving

5. Laser fiber coupling

6. Others
