ND YAG Cheap Price Hot Sale DPSS 850nm Diode Module for Laser Marking/Engraving/Cutting on Sale

Product description

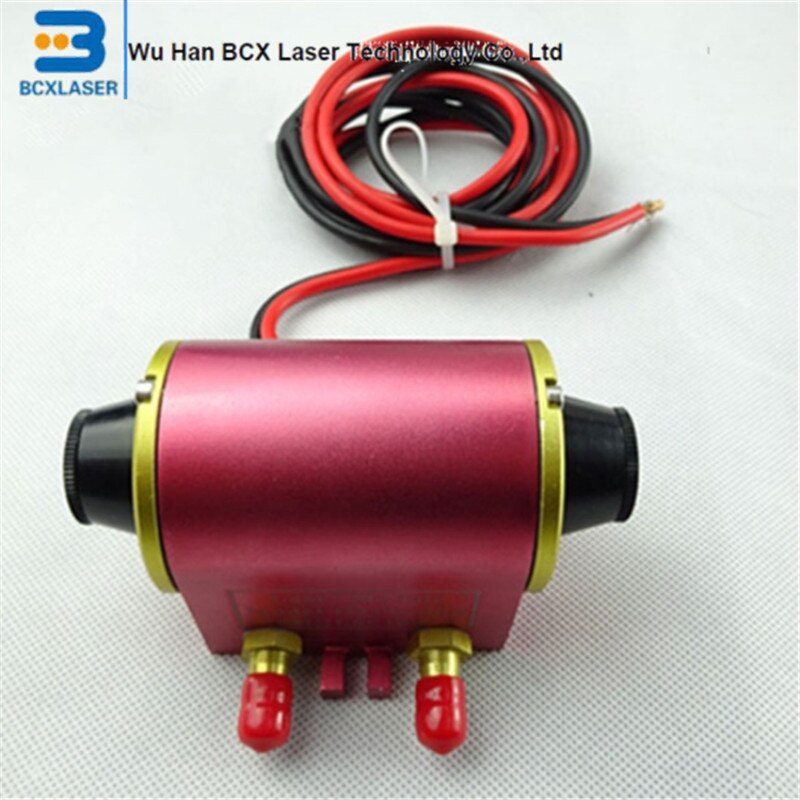

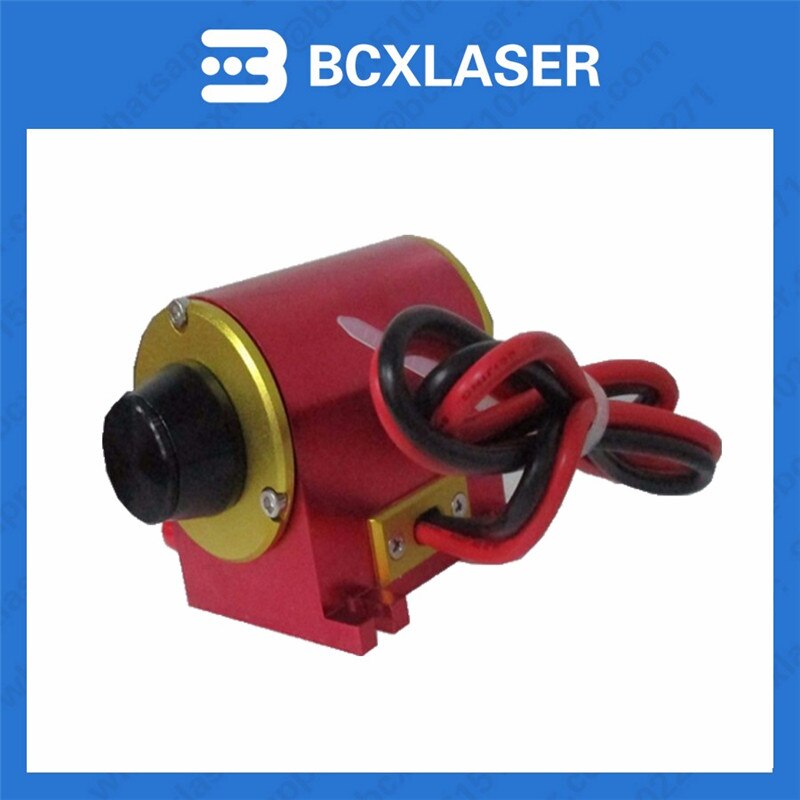

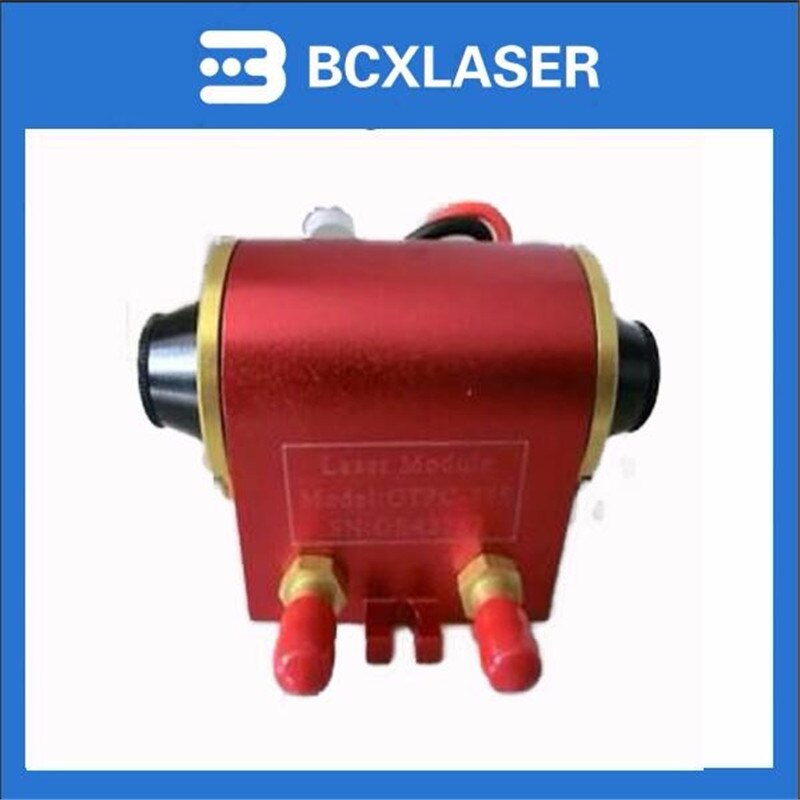

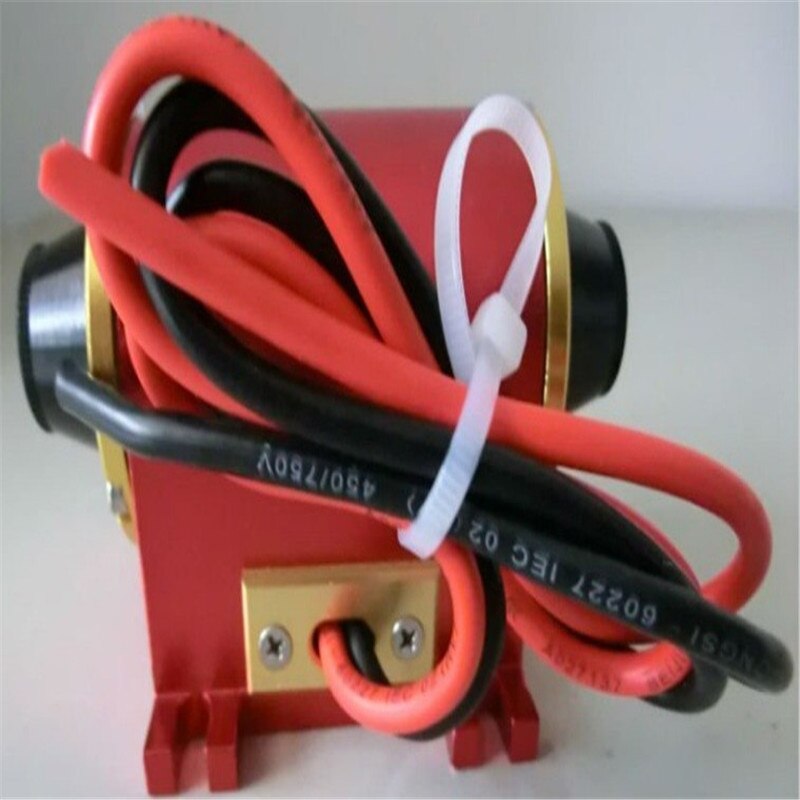

The Diode Pumped Laser Module incorporates a Nd:YAG laser rod that is efficiently pumped by a radial array of long life laser diode bars, and delivers excellent gain uniformity and lensing performance. It is ideally suited for multimode applications such as laser marking, and can also provide high beam quality for more precise micro-machining and scientific applications.

The laser module is driven by low voltage electronics. Cooling of the laser is accomplished with a simple recirculating water chiller running on filtered water, eliminating the need for deionized water systems.

Typical Performance Curves

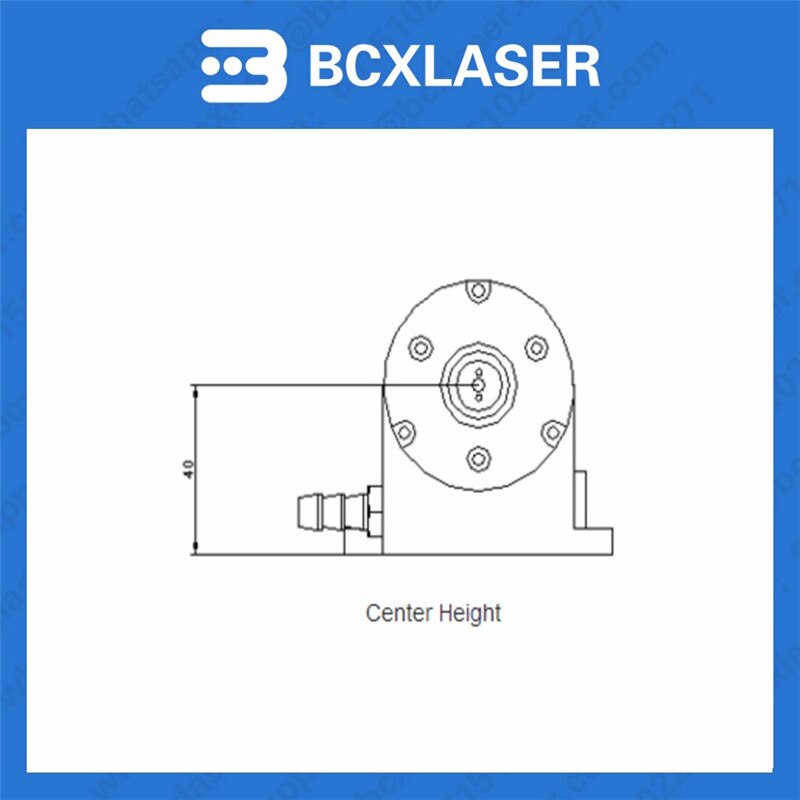

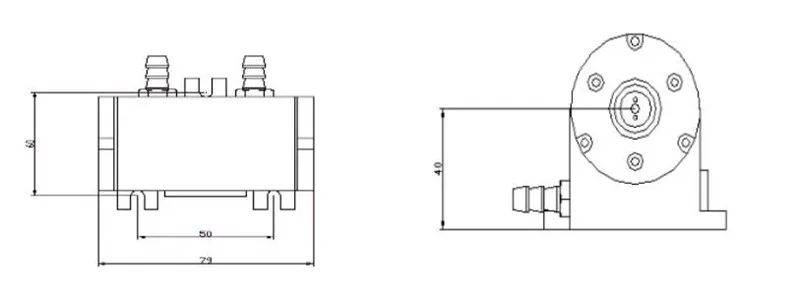

Mechanical Dimensions

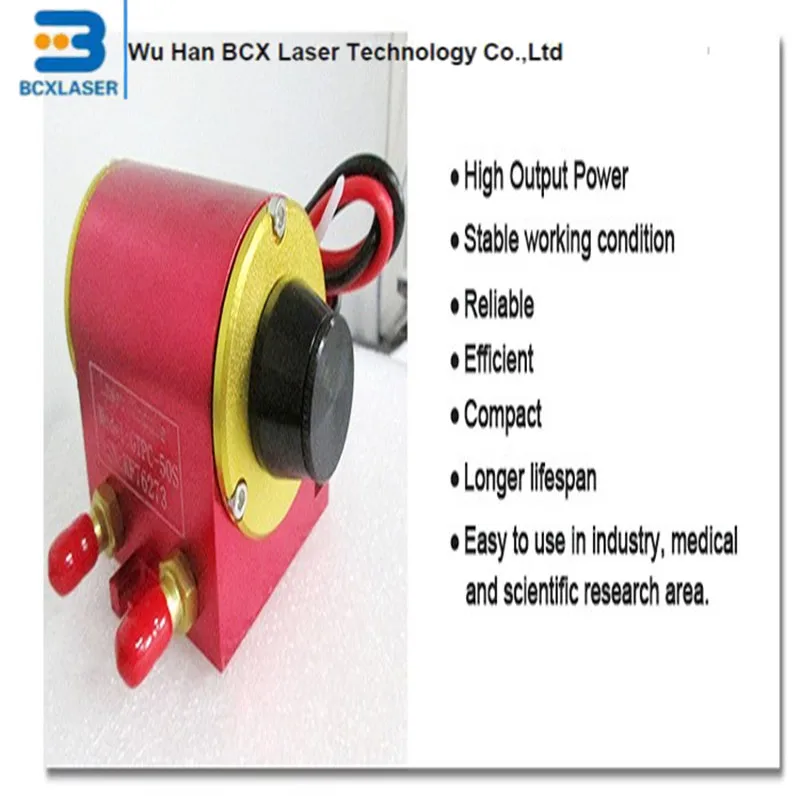

Advantages of our Diode Module

I. High output power

II. Stable working condition

III. Reliable

IV. Efficient

V. Compact

VI. 10000 hours long lifetime

VII. Easy to operate

Technical Parameters

CW Output Power	75W
Threshold Current	11A
Operating Current	29A
Forward Voltage	≤18V
Center Wavelength	1064nm
The length of the YAG rod	65mm
The Diameter of the YAG rod	3mm
YAG Terminal	Flat/AR at 1064nm/YAG doped 1%
Weight	≤1.5kg
Recommend Case Temperature of chiller	19-23°C
Temperature Range (Storage)	5°C~ 70°C

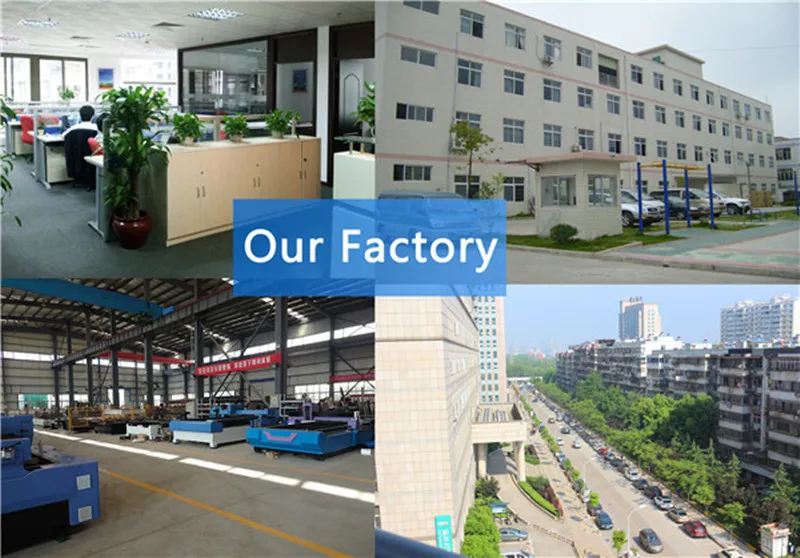

Company introduction
