Product indicate



Application:

1).Materials: Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2).Industry: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.



Marking sample:

Characture:

1). Long lifetime, over 100,000 hours.
2). Compact laser source with air cooling.
3). 2 to 5 times more productive a traditional laser marker or laser engraver.
4). Super quality galvanometer scanning system.
5). High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6). More stable performance.
7). Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8). Output power is stable, optical mode is good, beam quality is excellent.
9). Marking speed is fast, efficient, and high accuracy.
10). Appearance is professional, operation is easy.



Optional Parts:

Technology Parameter:

Technical parameter
Item  /  Model	LXF-20/30/50/60/70/100/120W
Laser source	Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)
Laser power	20w, 30w, 50w,60w ,70w,100,120w
Laser type	Fiber laser
Graphic Format Supported	DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,
Marking speed	≤8000mm/S
Max.Marking Depth	≤0.4mm
Laser Wavelength	1064nm
Marking lines	0.06-0.1mm
Minimum line width	0.06mm
Minimum character	0.15mm
Resolution ratio	0.01mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	TAJIMA, CorelDraw, Photoshop, AutoCAD
Equipment Dimensions	760*680*770mm(different model has different size,detailed can be confirmed with sellers)
Net Weight:	70/80kg(different configuration has small difference)
Unit Power	≤500W
Optional Spare Parts	Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on.

Our Other Hot products

Company Information

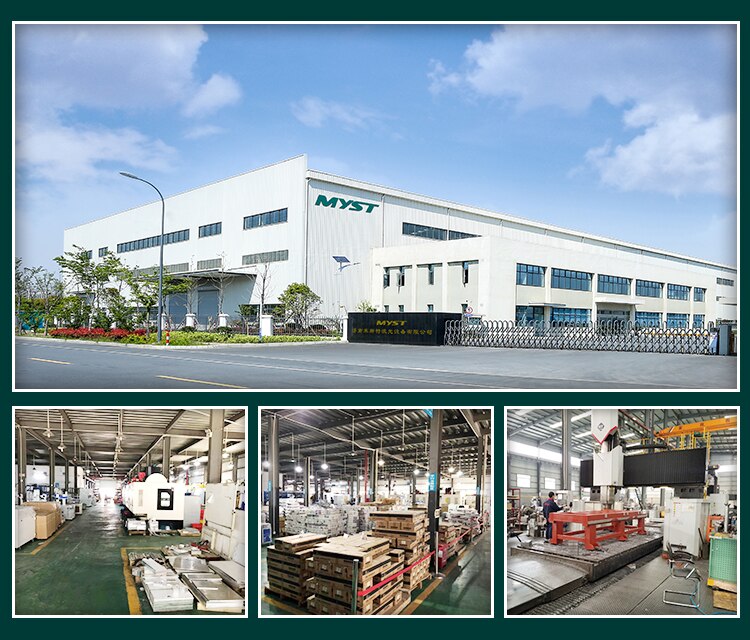

Our Factory

Why Choose Us

Certifications

 FAQ



Q1 :How about warranty?

A1:3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.



Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1) Max work size:We can do work size with 110*100mm—–300mm*300mm.

2) Materials and marking effect:we will check whether our machine is suitable for you or not and choose a most suitable power and optional parts.



Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.



Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.



Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2). If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.



Q6:Delivery time

A5:General configuration:3 days. Customized:7-10 working days.
