Description
- Brand Name: NoEnName_Null
- Certification: None
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Measuring Range: 10Hz-50MHz/500MHz-2.4GHz
- Display Type: Digital Only
- Dimensions: 270mmx215mmx100mm
- Operating Temperature: -5C~50C

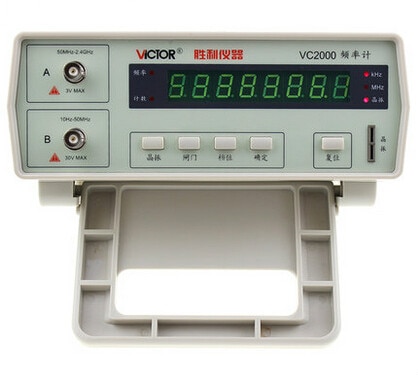

- Model Number: VC2000
- Accuracy Class: Refer to SPEC

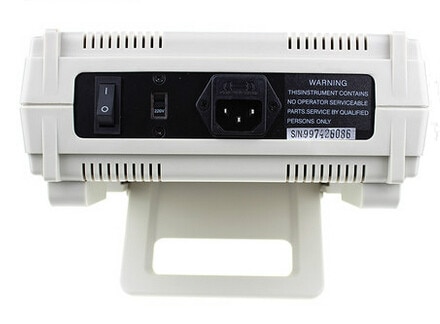

- Voltage: AC 220V/110V 50Hz/60Hz
1.8-bit led display.
2.cumulatie frequency measurement counting,crystal resonator test function.
3.multi gate adjustable.
4.automatic thermostatic crystal frequency benchmark.
|
basic function |
vc2000 |
|
frequency measurement range |
a channel : 500mhz-2 . 4ghz basic precision & plusmn . ( 1 & times . 10 – 5 + 3 ) |
|
frequency measurement range |
channel : b 10hz-50mhz basic precision & plusmn . ( 1 & times . 10 – 5 + 3 ) |
|
crystal measurement |
crystal slot 3.5mhz ~ 16mhz basic precision & plusmn . ( 4 & times . 10 – 6 + 1 ) |
|
to accumulatively measurement |
Channel : b 10hz-4mhz basic precision & plusmn . ( 4 & times . 10 – 6 + 1 ) |
|
sensitivity |
50mvrms |
|
input impedance |
a channel : 50m & omega . channel : b 1m & omega . |
|
count range of |
1-10 8 10hz / 4mhz |
|
precision |
plusmn . ( 2 & times . 10 – 5 r + 3d ) |
|
crystal measurement range |
3.5mhz ~ 16mhz ( cardinality ) |
|
sluice-gate time |
0.1s / 1s / 5s / 10s |
|
volume |
270 *215 *100mm |
|
weight |
1.5kg |
|
power supply applicable scope |
ac 220v / 110v 50hz / 60hz |
