Description

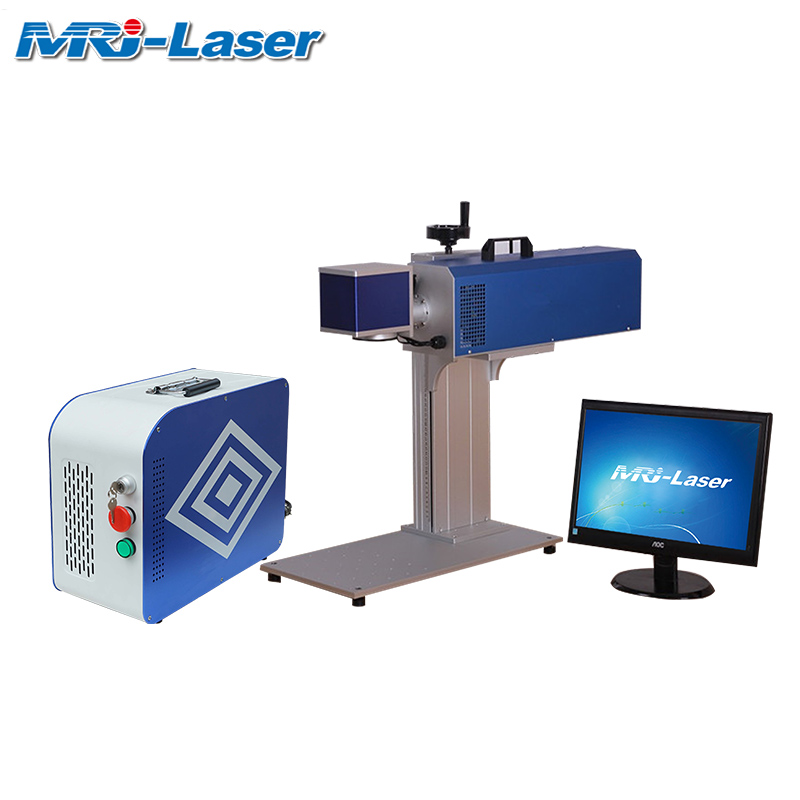

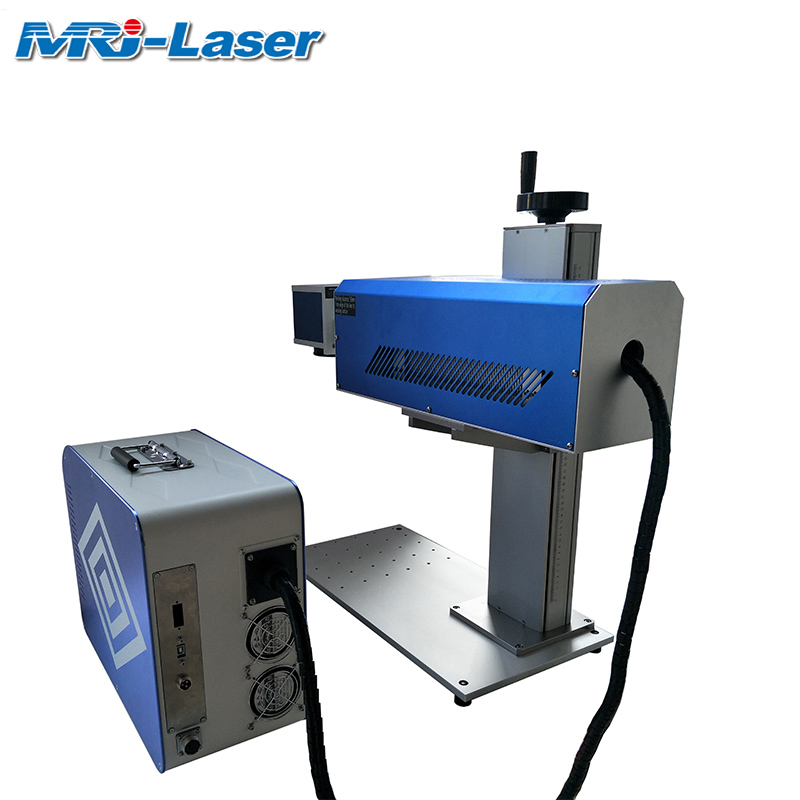

MRJ-laser plastic wood and paper marking with CO2 galvo laser printing machine
Laser Marker Introduction
MRJ-laser co2 galvo laser machine is developed by the world’s most advanced laser technology;
Adopted self-developed CO2 laser, integrated structure and professional engineering design
Unique design structure to meet kinds of marking requirements
| Model | MRJ-FL-SC20 | MRJ-FL-SC30 |
| Laser Power | 20W | 30W |
| Laser Wavelength | 1064nm | 1064nm |
| Beam Quality | M²<1.6 | M²<1.6 |
| Repetition REEQ. | 20-80KHz | 20-80KHz |
| Marking Field | 110*110mm-300*300mm | 110*110mm-300*300mm |
| Marking Depth | ≤1.2mm | ≤1.2mm |
| Marking Line Speed | ≤14000mm/s | ≤14000mm/s |
| Min.Line Width | 10um | 10um |
| Min. Character | 0.15mm | 0.15mm |
| Repetition Precision | ±0.005mm | ±0.005mm |
| Power Consumption | ≤600w | ≤800w |
| Maintenance-free Time | 100,000 hours | 100,000 hours |
| Input Power | 110V/220V/50-60Hz | |
| Cooling Method | Air Cooling | Air Cooling |
|
Applied Industries: |
|
|
Electronic Components : |
Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
|
Apparatus And Meter: |
Panel signs, precision equipment, etc. |
|
Instrument: |
Panel signs nameplates, precision equipment, etc. |
|
Hardware Tools: |
Knives, tools, measuring tool, cutting tool, etc. |
|
Automobile Parts: |
Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc. |
|
Mechanical Parts: |
Bearings, gears, standard parts, motors, etc. |
|
Daily Necessities: |
Handicrafts, zipper, key holder, sanitary ware, etc. |
|
Jewelry: |
Rings Jewelry, gold, silver, etc. |
|
Food package: |
Plastic packages, etc. |
|
Marking Material: |
|
|
Metals: |
Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, rare metal and alloy steel, gold, silver, titanium, etc. |
|
Non-metals: |
Plastics, rubber, resin, carton box, etc. |
