Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: 488-60-3365-GD
Specifications:
Output Wavelength: 488nm
Output Power: 60mW
Spot Mode: Dot/Word/Cross
Cooling Method: Aluminum Heat Sink + Fan
Modulation- Frequency: Modulatable
Surface Treatment: Sky Blue
Shell Material: Aluminum
Circuit Control: Constant Current
Working Voltage: DC=12V
Working Current: I<145mA
Working Characteristics: Can Work Continuously
Reverse Connection Protection: With Automatic Identification Of Positive And Negative
Structural Features: Laser Tube + Lens + Heat sink
Remarks: The Power Supply Is External.
Working -Temperature:-10 ° C ~ +40 ° C
Storage Temperature: -10 ° C ~ +40 ° C
Housing Size: 65*33*33mm
Circuit Board Size: Length 45*34*16mm
Product Usage:
These products can be widely used in a variety of stage laser lights, with TTL modulation, can work for a long time, a true industrial grade laser.
Special note:
The input voltage of 12V, overpressure will lead to instant damage to the circuit and module.
Reminder:
The input voltage is 12V, and overvoltage will cause instantaneous damage to the circuit and module!

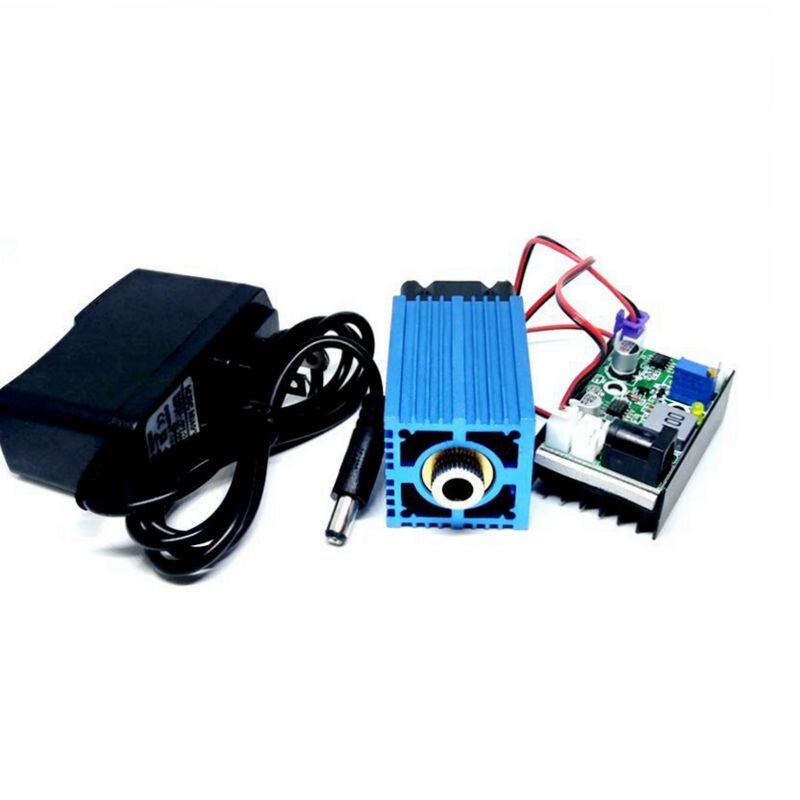

Package:
1 x 488nm 60mw Laser Diode Module
1pc 12V Adapter
