ML129F27 CW 120mW Pulse 300mW 3.8mm 660nm Red Lazer Laser Diode

Features:
.
Module:ML129F27

Diameter: φ 3.8 mm

Life-Span: > 6000 hours

Wavelength: 660nm(typical) / + 5nm

CW Output: 120 mW

Pulse Output Power (tp=50ns, Duty=40％) 300mW

Voltage: 3V DC

Current: 200mA Po=120mW CW

430mA Po=300mW Pulse

Beam Spread: parallel 10° when 120mW CW
vertical17° when 120mW CW

Working Temperature: – 10 ℃ ~ + 80 ℃
Storage Temperature: – 10 ℃ ~ + 80 ℃

Details:

Highoperation temperature at 80 ° C and industry’s highest output 300 mW pulse contribute to high-speed recording of laptop computers
Guaranteed high-temperature operation, small-size, high-power “red semiconductor laser diode for recordable DVD.
Mitsubishi Electric Corporation (President & CEO: Setsuhiro Shimomura) is a thin recordable DVD built in a notebook computer
As a light source of the device, it is a compact red semiconductor which realized high temperature operation at 80 ° C and industry’s highest * 1 optical output 300 mW pulse

Package

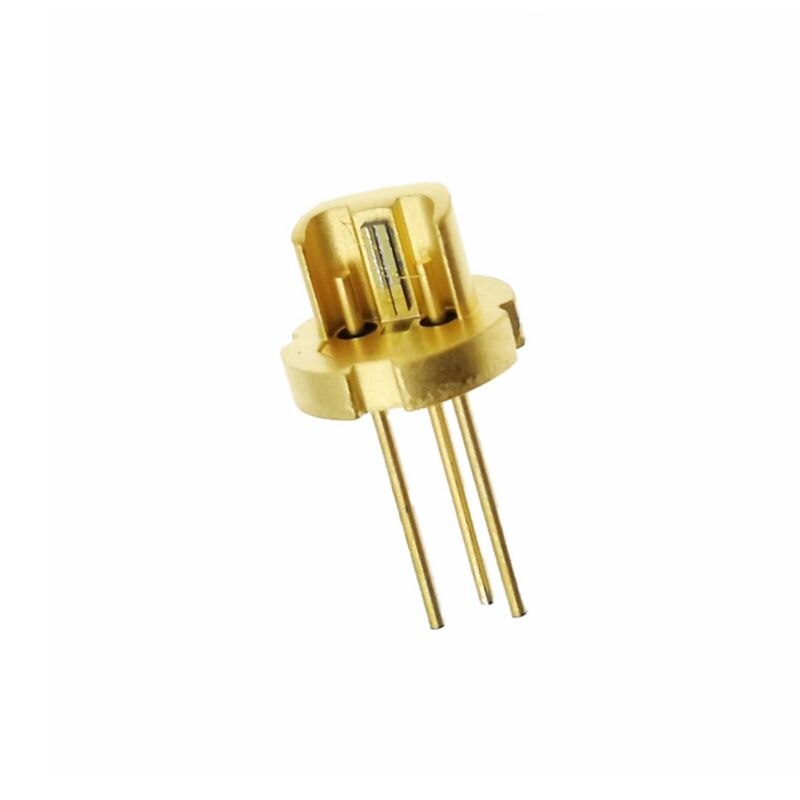

1PC ML129F27 TO-18 Red Laser Diode
