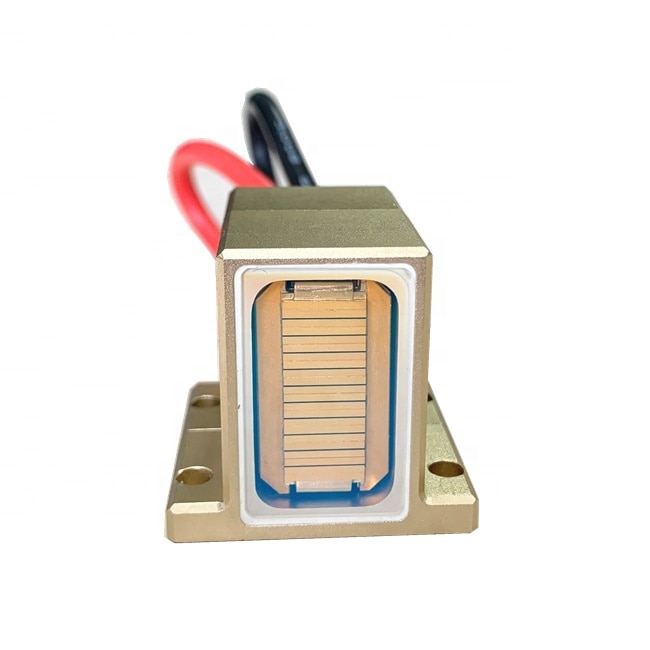

Description
- Origin: CN(Origin)
- Item Type: BALL
Characteristics:
1. Full sealed nitrogen treatment has strong environmental adaptability and high stability.
2, rectangular symmetrical spot output, high energy density, easy to reshape;
3. Window coating with antireflection coating to reduce power loss.
4, macrochannel cooling structure, water cooling is simple.
5, integrated design of driving plate, high stability of power output;
Advantages of hybrid packaged lasers:
1, including 808nm/1064nm/755nm band optical output, which has wide applicability.
2, customers can select different band output according to their own needs.
3. Apply to different types of skin, different thickness of hair, different shades of hair, and has the effect of skin rejuvenation;
4. It has a certain effect on pigmented dermatosis, vascular dermatosis, onychomycosis and other skin diseases.
|
Laser power |
470W |
|
Central wavelength |
755-830nm 808±10nm 1064±10nm |
|
Maximum current |
40-45A |
|
Maximum working voltage |
18V |
|
Repetition frequency |
1～10Hz |
|
Maximum duty cycle |
20-30% |
|
Maximum pulse width |
200-300ms |
|
Spot size |
10×12mm |
|
working temperature |
15～35℃ |
Mixed array mode indication
|
808nm |
|
1064nm |
|
755nm |
|
808nm |
|
1064nm |
|
755nm |
|
808nm |
|
1064nm |
|
755nm |
|
808nm |
Note:
1. The product itself does not have selective light after power on, customers can filter the light source according to their own situation.
2. strictly in accordance with the above technical parameters within the scope of use;
3. Before use, please follow the principle of first water and then electricity. Conditional customers can use flow monitoring system to protect the products, which can ensure long-term use.
Points for attention in using lasers:
1. The ideal temperature of refrigerating water is less than 25 C. It is suggested that the laser temperature should be controlled at + 5 C to avoid condensation.
2, the actual water flow through the laser is more than 3L / min.
3. Please use it in a dry environment.
4. In order to be more conducive to heat dissipation, please strictly select the standard washer or external connection to ensure that the inlet and outlet (see the structure size diagram) and external water-cooled pipes need to be installed reasonably, to avoid the size of too small resulting in ineffective water resistance, too large size easy to burst pipe leakage, affecting the life of the laser.
5. In order to ensure the long-term use of this product, please use deionized water for circulating cooling, if there is a filtering system, please change the filter element regularly (according to the water quality), if there is no filtering proposal to replace deionized water once every two weeks;
6. the external conductor of the laser is equal to 4m (national standard).
