Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Model Number: MCSB1000-U-18
- Place of Origin: Hebei, China
- Brand Name: MIRAN
- Brand: MIRAN
- Operating Temperature: -20°C~ 60°C
- Resolution (Bits): 0.35mm(max)
- Frequency: 200KHz
- Output Configuration: 0~10V
- Current: 20MA
- Voltage Rating: 15~30VDC
- Measuring Range: 0-1000mm
- Model: MCSB1000-U-18
- Effective Length: 50mm-1000mm
- Standard test board: 300x300mm
- Working Temperature: -20°C~ 60°C
- Usage: Position Sensor
- Theory: Ultrasonic Sensor
- Output: Analog SENSOR
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{padding:0;line-height:20px;margin:0}#detail_decorate_root .magic-5{font-size:16px}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{margin:0;padding:0}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-11{font-size:20px}#detail_decorate_root .magic-12{line-height:20px}#detail_decorate_root .magic-13{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:174px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:198px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;font-style:normal;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-18{width:750px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:223.56687898089172px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:223.56687898089172px}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:530.3347280334729px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:750.0000000000001px;height:530.3347280334729px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-25{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-27{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{margin-top:-11px;margin-left:-11px;width:373px;height:279.75px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-33{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-34{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-35{width:446px}#detail_decorate_root .magic-36{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:446px;height:265px}#detail_decorate_root .magic-38{margin-bottom:0}
Product Description

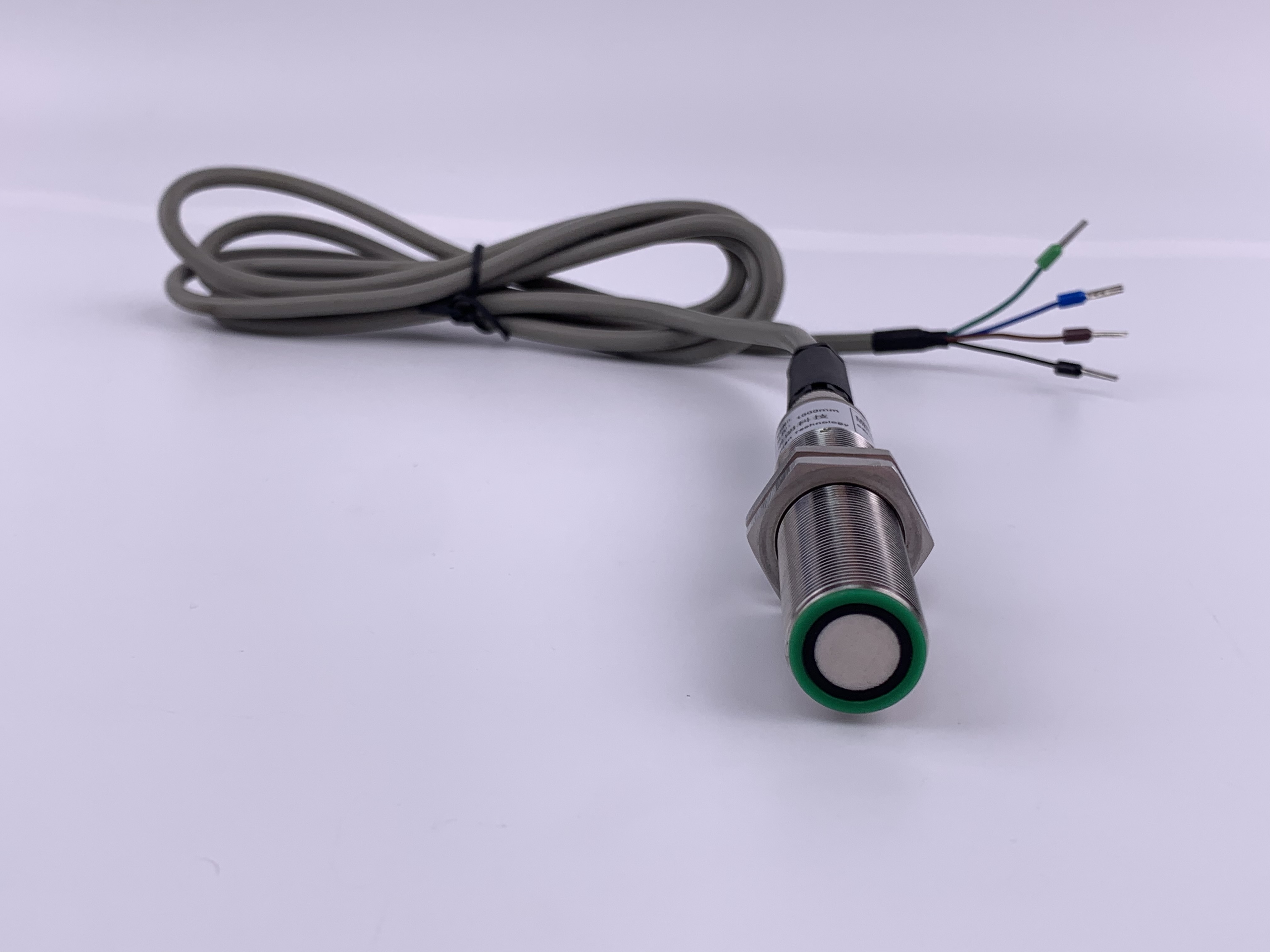

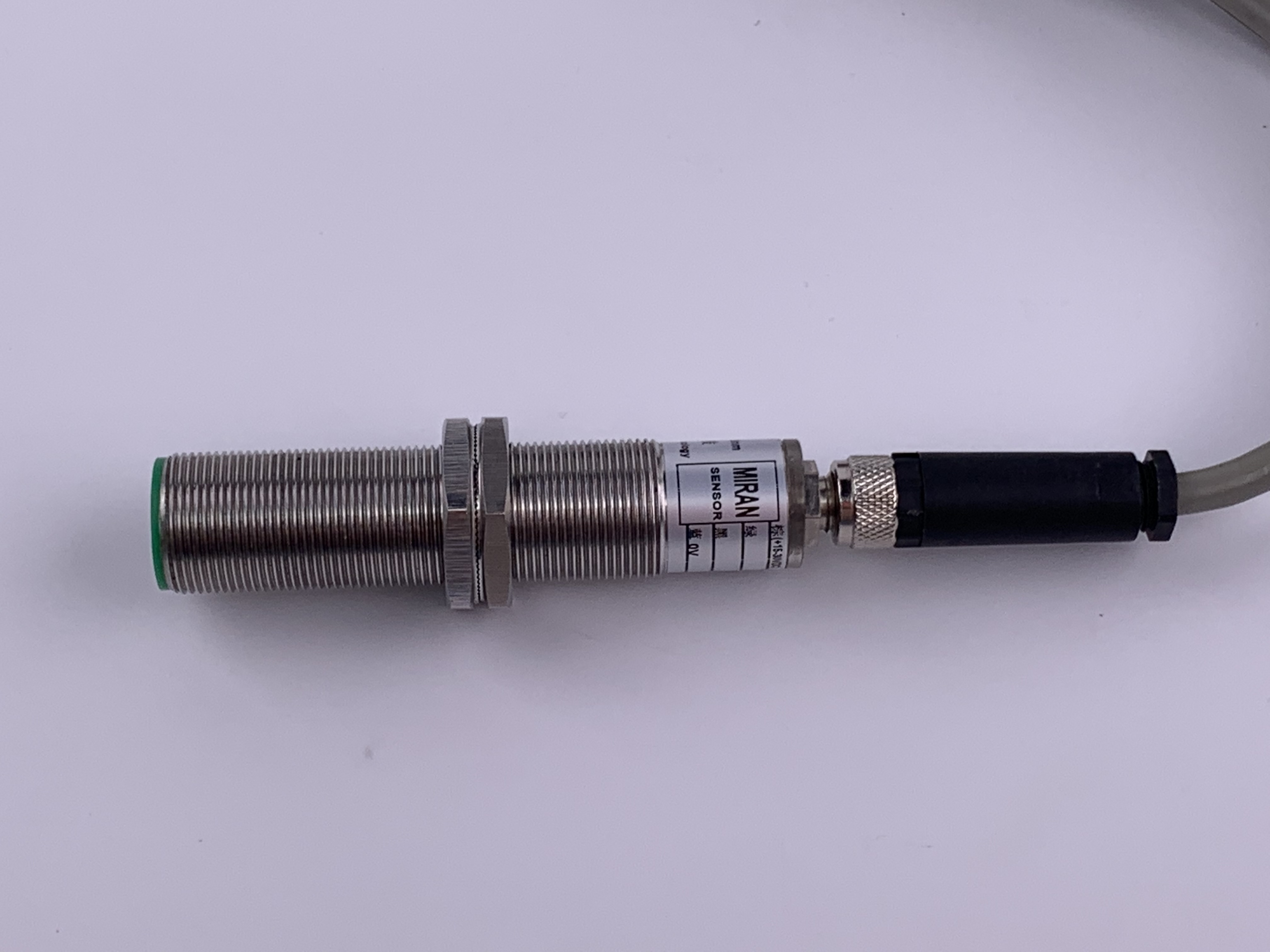

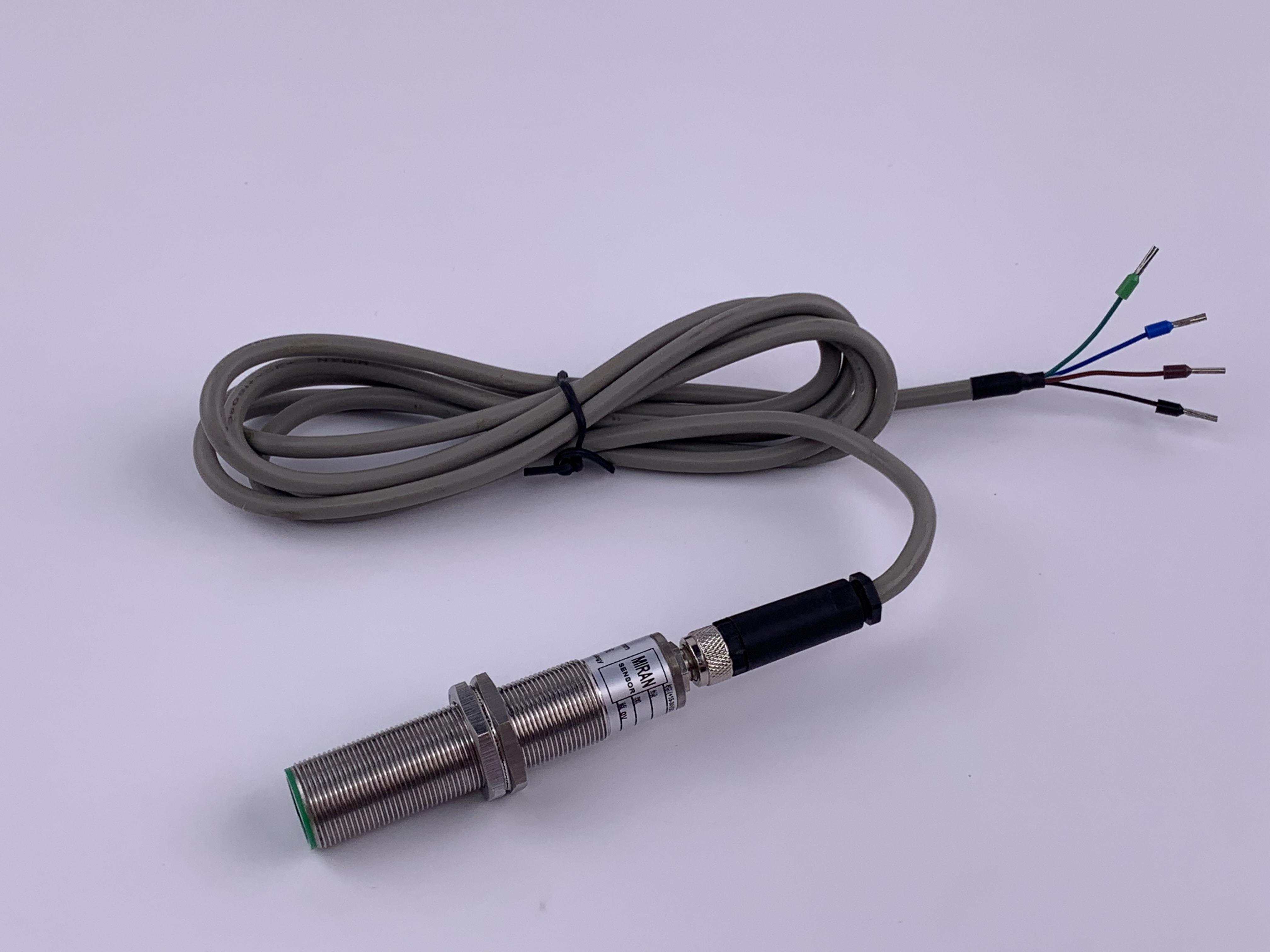

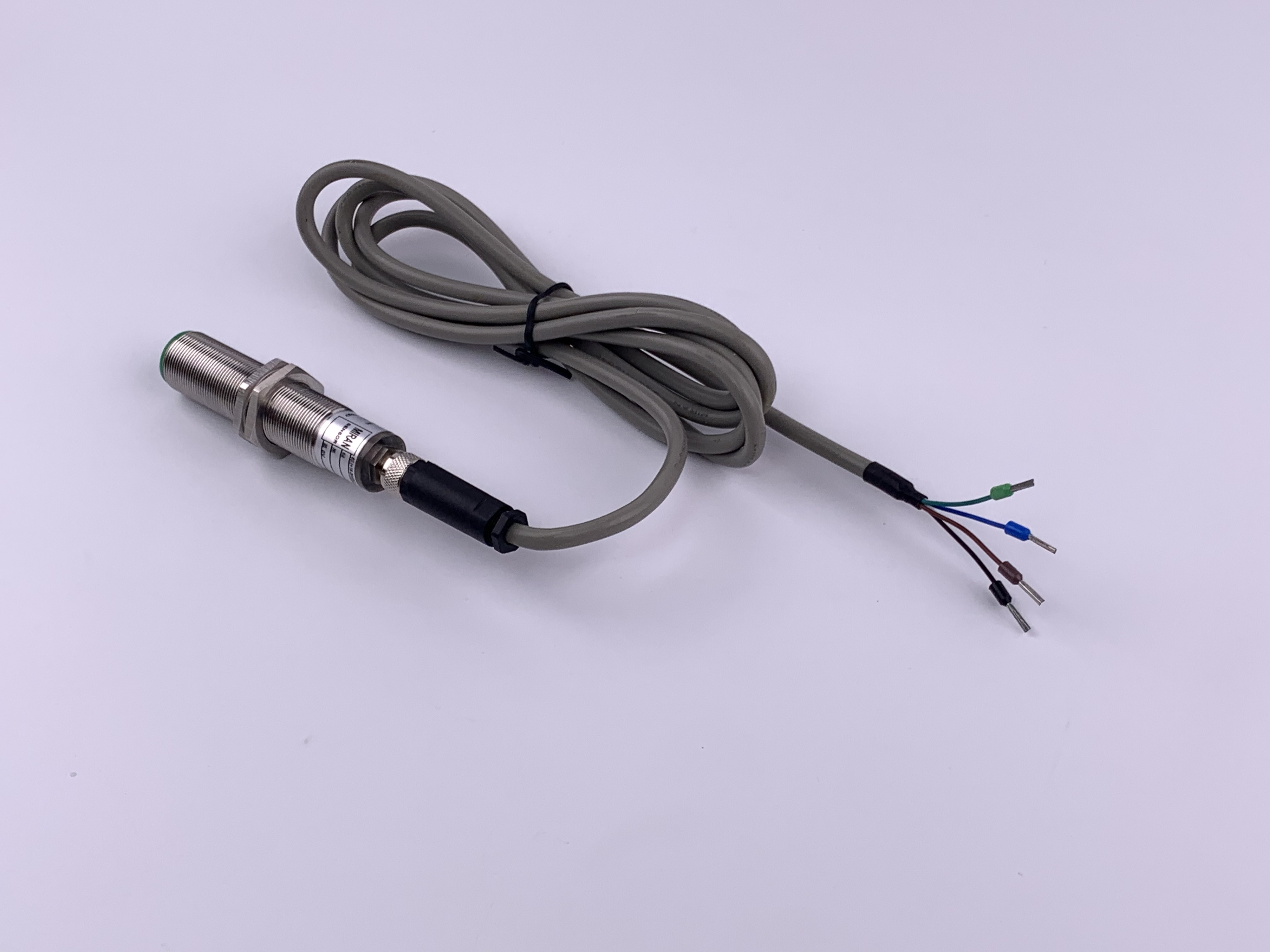

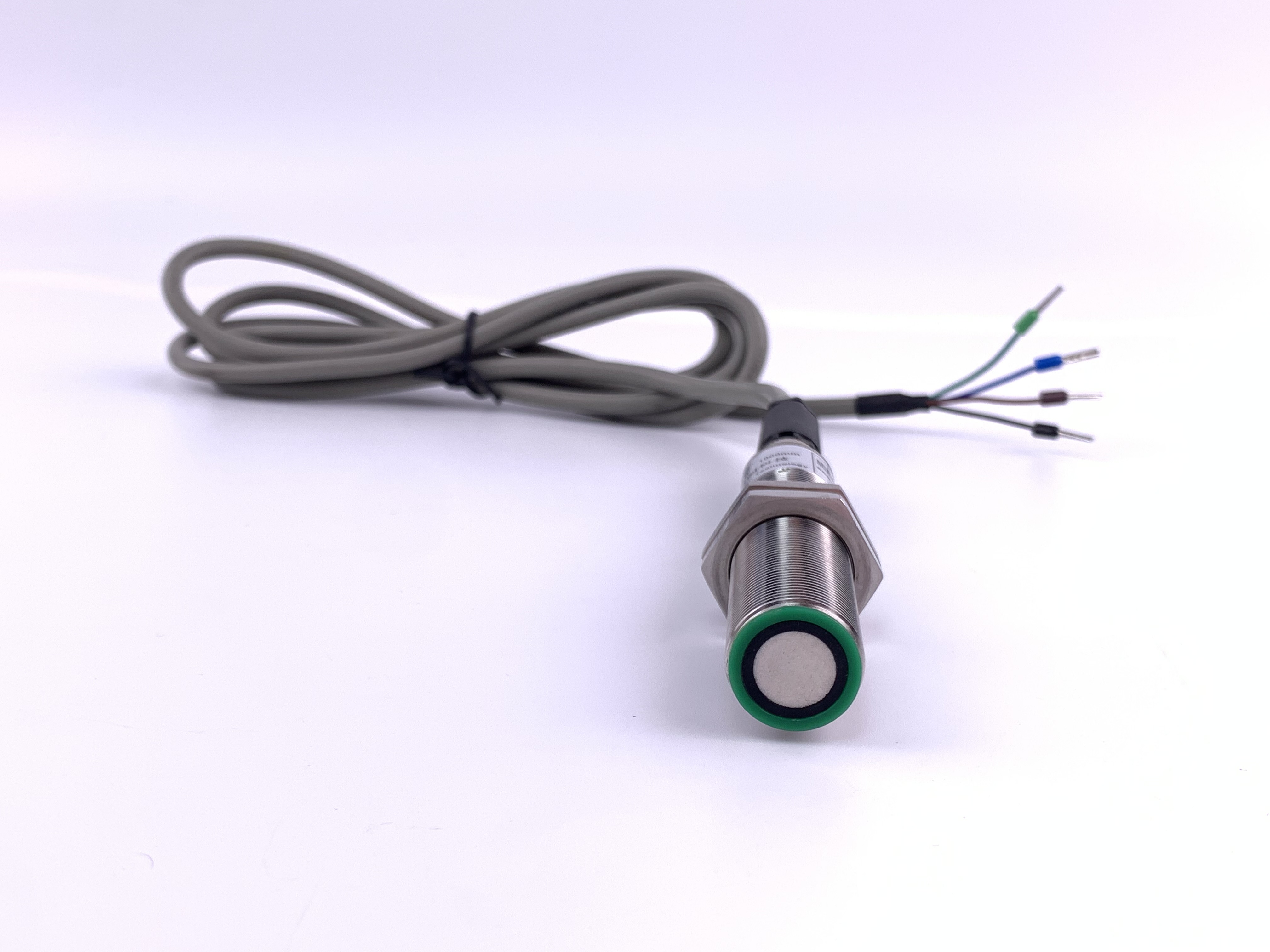

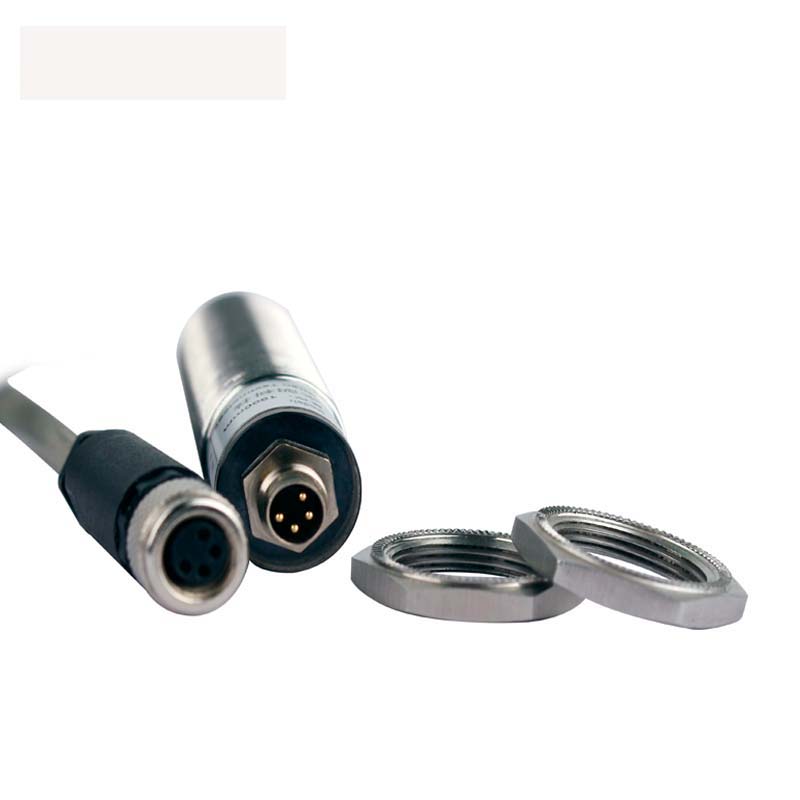

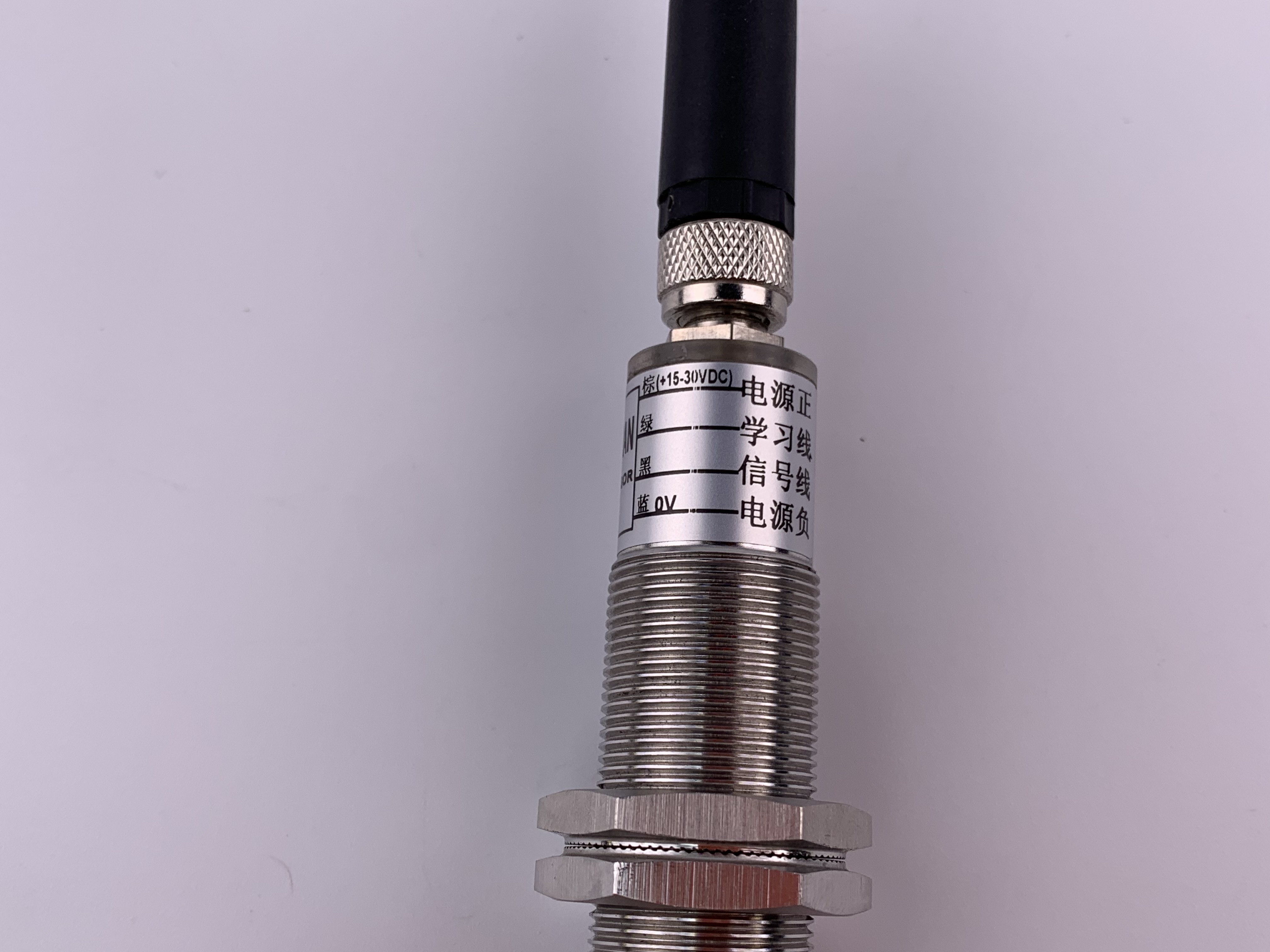

Miran Ultrasonic Sensor 50mm~1000mm Distance Analog Output Sensor
MIRAN MCSB ultrasonic distance sensor is a kind of mechanical wave whose vibration frequency is higher than that of sound wave.It’s development depends on the theory that the transducer crystals chip vibrates under the excitation of voltage and then combine with the characteristics of ultrasonic wave. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directivity, and be the directional propagation of radiation.
Applications
Distance measurement, liquid level measurement, height measurement, interval measurement, size measurement, material accumulation height measurement, filler level measurement, filler level detection,Diameter and Speed Measurement, Profile Measurement, Tension Control, Packaging Detection, Object Counting etc.
Specification
|
Measuring range
|
50~1000mm
|
|
Blind area
|
60mm
|
|
Standard test board
|
300x300mm
|
|
Resolution
|
0.35mm(max)
|
|
Beam angle
|
10-15°
|
|
Linearity
|
0.1%
|
|
Frequency
|
200KHz
|
|
Working voltage
|
15~30VDC
|
|
Ripple voltage
|
5%
|
|
Power consumption
|
20MA
|
|
Output signal
|
0~10V
|
|
Working Temperature
|
-20°C~+60°C
|
|
Storage temperature
|
-40°C~+70°C
|
|
Line Length
|
2m
|
|
Response time
|
100ms
|
|
Housing material
|
Nickel plated brass
|
|
Protection
|
IP67
|

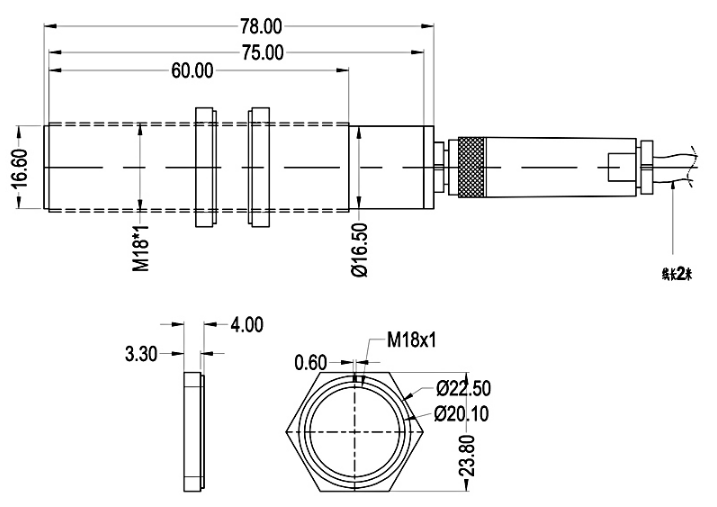

Installation Size (mm)
Installation
2. The sensor is a precision instrument. Do not scratch the surface.
Firstly, the sensor is electrified, and the red and yellow lights behind the sensor will light up.
Yellow light means: yellow light is unchanged, the object is within the measurement range; Blinking yellow light ,Set object detected in the set function state.
Red light means : red light is always on, power is on; long dark, error red light flashing ,No object detected in the set function state.

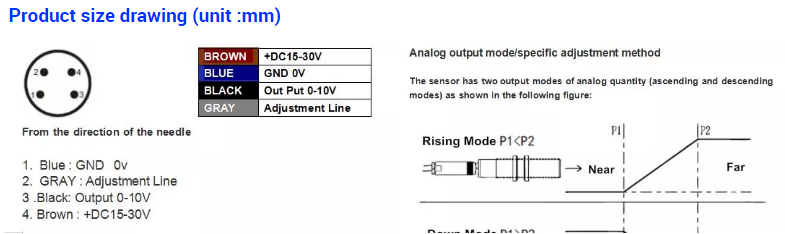

This sensor has two analog output modes (rise and fall modes) as shown below:
A: Setting the farthest distance P2:
1. Place a test object where you want to set the distance.
2. Pry the gray line (adjustment line) and the brown line (power supply) together , during this time if the measured object is captured, the yellow light will always flash. After this state lasts for four to five seconds, please removed the gray line. The setting is successful.
B Set the nearest distance P1:
1.Place a test object where you want to set the distance.
2, please tie the gray line (adjustment line) and the blue line (power supply negative) together. during this time, if the measured object is captured, the yellow light will always flash. After this state lasts for four to five seconds, pls removed the white line. The setting is successful.
Note:
The yellow light and the red light may flash together during the setting process, indicating that the sensor does not accurately capture the measured object. Need us to move the sensor slightly to align the measured object.Until the yellow light flashes continuously. (Please noted that this setting process must be completed within 3 minutes, otherwise the sensor will be locked. If the sensor is locked ,you need to disconnect the power supply and re-power. Then reset it).
Notes:
1. Since the ultrasonic sensor is directional, it is important to pay attention to its mounting position. It is recommended that it should be straight between the installation position and the tested object. In this situation the measurement data will be more accurate.(with mounting nut)
2. The sensor is a precision instrument. Do not scratch the surface.
3. When using the sensor, please make sure about the power supply and ripple voltage.
4. When using the sensor, there must be no strong mechanical vibration, and the working environment should not have strong electromagnetic interference.
5. The sensor cannot be used in the vacuum zone or in the explosion-proof zone.
6. please don not use the sensor near by the water, steam, acid, solvents which is above 50℃。
7. The sensor shall not be dismantled without permission, and the company will not bear any consequences if it is damaged by private disassembly.
Product Details
Our Company

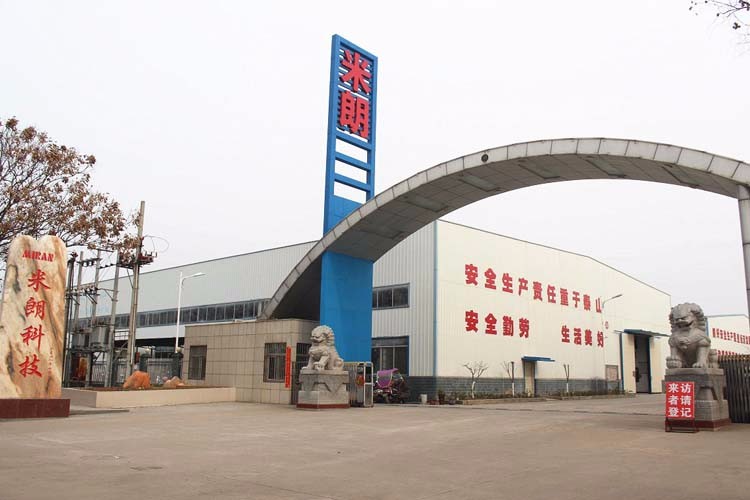

Since 2003 we have been developed and produced displacement sensors in Shenzhen.In order to meet more customer needs,we expand the scale of production.And set up our new factory in Hubei Province Zaoyang Miran Technology Co., Ltd. is the professional manufacturer of Linear Position Sensor in China.It’s our new factory which is located in Hubei Provice.Our sales headquarters located in Shenzhen.

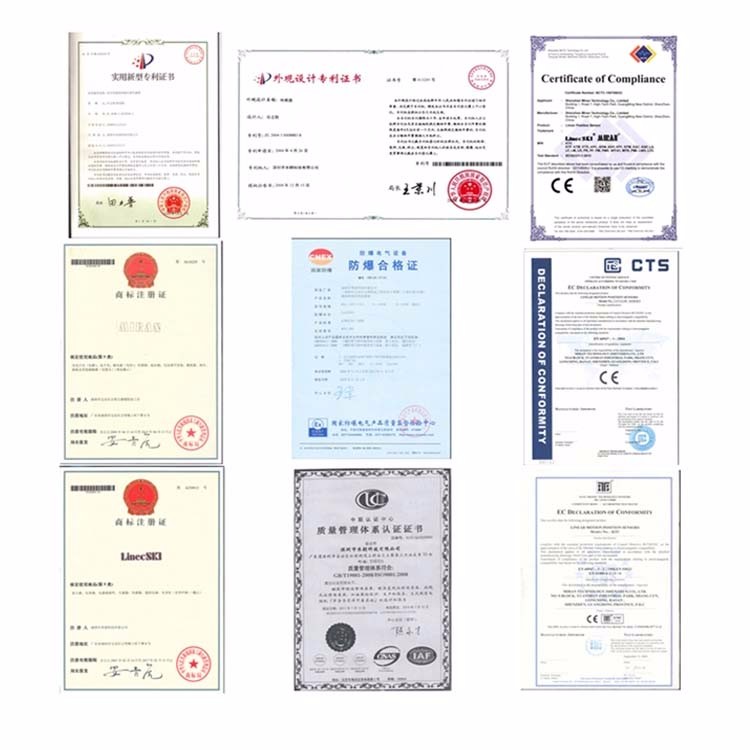

Our main products are: Linear Position Sensor,Wire Rope Encoder,Magnetostrictive Liquid Level Sensor,Angle Sensor,Inclinometer, Lubricating System(pump and distributors and the other accessories),LVDT sensor,Eddy Current Sensor, and many other motion control products to support many different industries.Our factory is approved by ISO9001:2008, and all our products have CE, CCC certificates.
