Description
- Brand Name: NFLIXIN
- Type: DC/AC Inverters
- Size: 85mm*125mm*150mm
- Model Number: 1.5kw/2.2kw 220v inverter
- Output Frequency: 0-400HZ
- Output Type: Triple
- Weight: 1.3kg
- is_customized: Yes
- Output Current: 1.5kw 7A /2.2kw 10A
- Input Voltage: single phase 220V (Range 15% Above or Less)
- output Voltage: 3 phase 220V (Range 15% Above or Less)
- Applications: Universal
- Level of portection: Ip20
- Control method: V/F
- Power: 0.75kw/1.5kw/2.2kw/220V inerter
|
Type |
0.75kw 220v VFD |
1.5kw 220v VFD |
2.2kw 220v VFD |
4kw 220v VFD |
5.5kw 220v VFD |
|
Input Voltage |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
|
Output Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
|
Input Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Output Frequency |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
|
Rated current |
4A |
7A |
10A |
16A |
20A |
|
Input Phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
|
Output Phase |
3 phase |
3 phase |
3 phase |
3 phase |
3 phase |
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;

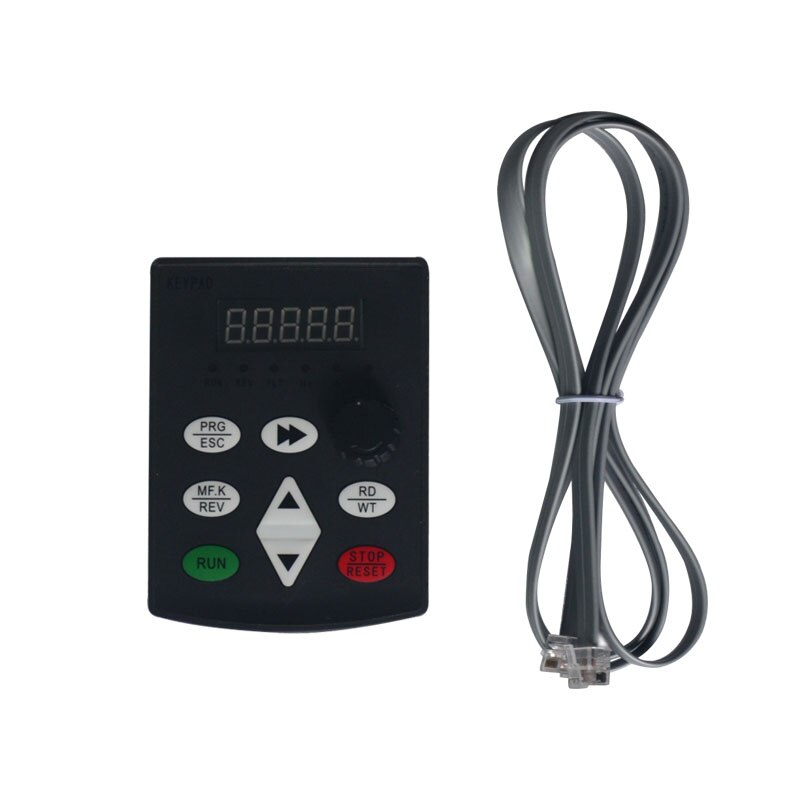

04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
