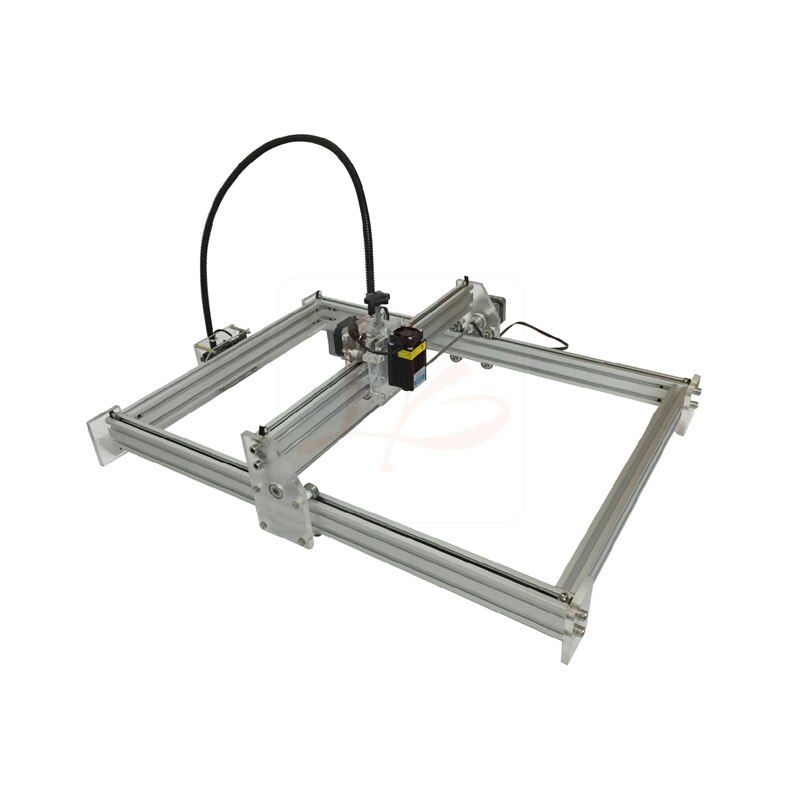

Mini Laser Engraving Carving Machine 500mw 2500mw 10W Blue Violet 3550 Engraver Laser Height Adjustable Engraving Area 35*50CM

  • Home
  • Mini Laser Engraving Carving Machine 500mw 2500mw 10W Blue Violet 3550 Engraver Laser Height Adjustable Engraving Area 35*50CM

Mini Laser Engraving Carving Machine 500mw 2500mw 10W Blue Violet 3550 Engraver Laser Height Adjustable Engraving Area 35*50CM

$639.26$1,052.93

SKU: 1005002748952136 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: NONE
  • Condition: New
  • Model Number: laser engraving machine 3550
  • CNC or Not: Normal
  • Model Number: laser engraving machine 3550
  • Size: 700MM*450MM*110MM
  • Engraving area: 350MM*500MM
  • Voltage: 5V/12V
  • Input voltage: 12V
  • Accuracy: 0.1MM



Disassembled LY 500mw 2500mw 5500mw 10W Blue Violet mini Laser Engraving Machine 3550 laser height adjustable Carving Size 35*50CM

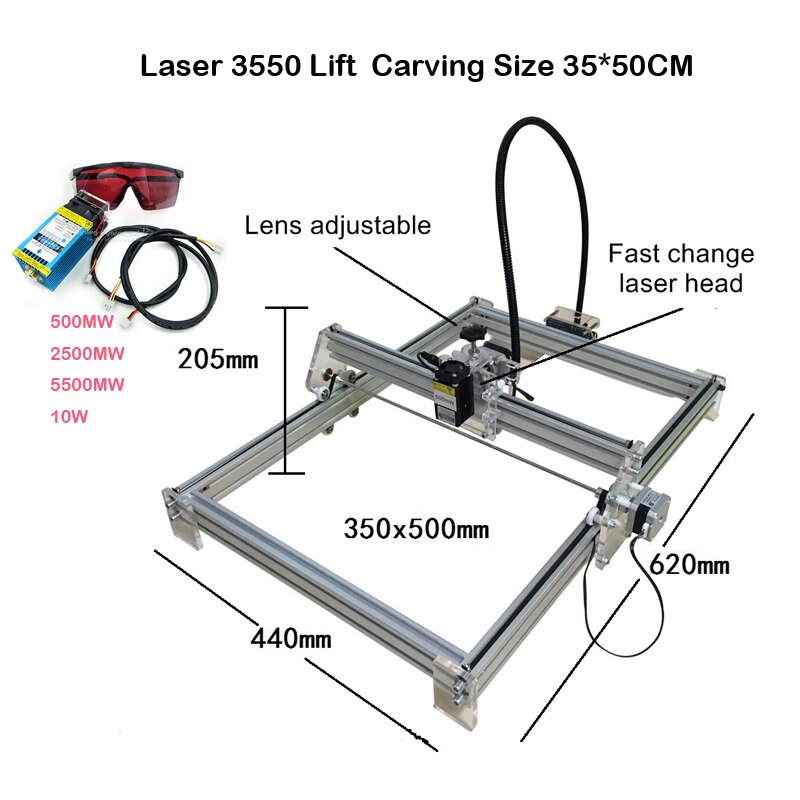

Specification for laser machine:

Size: 700MM*450MM*110MM(Length*Width*Height)

Engraving area: 350MM*500MM

Power: 500MW/2500MW/5500MW/10W(10000MW)  (1000MW,3500MW, 7000MW, 15000MW Laser head also available, if you need, please directly contact us, we will answer as soon as possible)

Voltage:  5V/12V

Input voltage:  12V

Axis:  X  double Y(Mainboard support 3 axis)

Accuracy:  0.1MM

Main features:  low light positioning, sculpture preview, grayscale engraving, contour engraving, solid engraving




Advantages:

1, Power adjustable by software

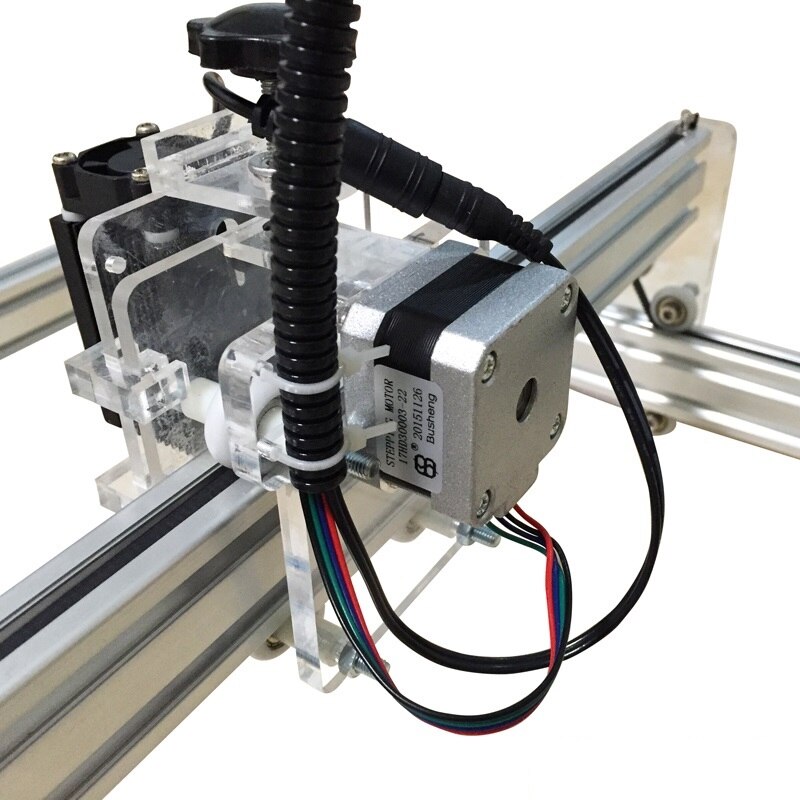

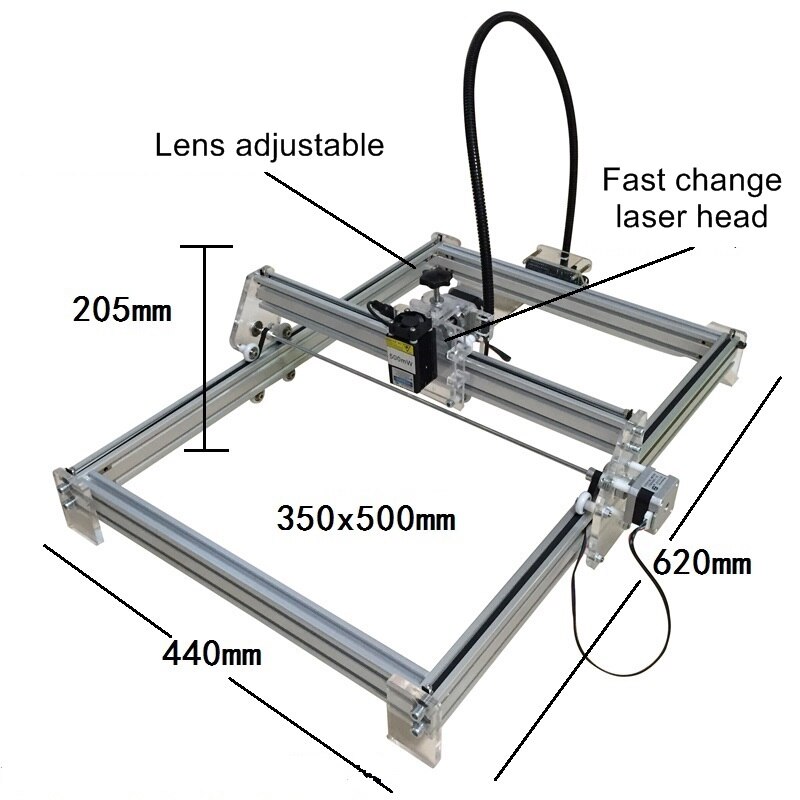

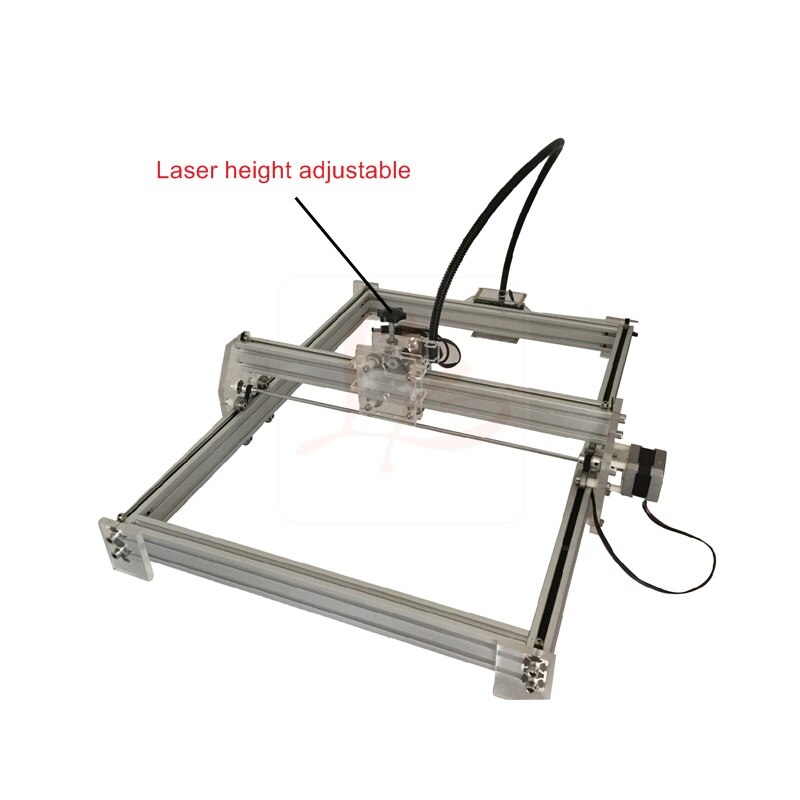

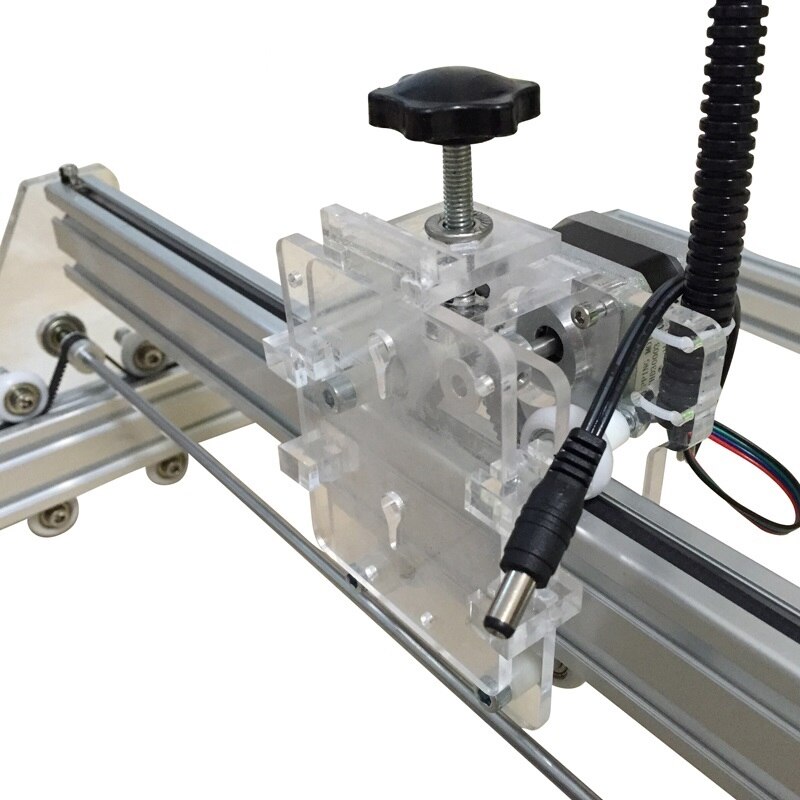

2,Fast exchangeable laser head design + up & down laser focus adjustable

3,Max engraving area: 35*50CM

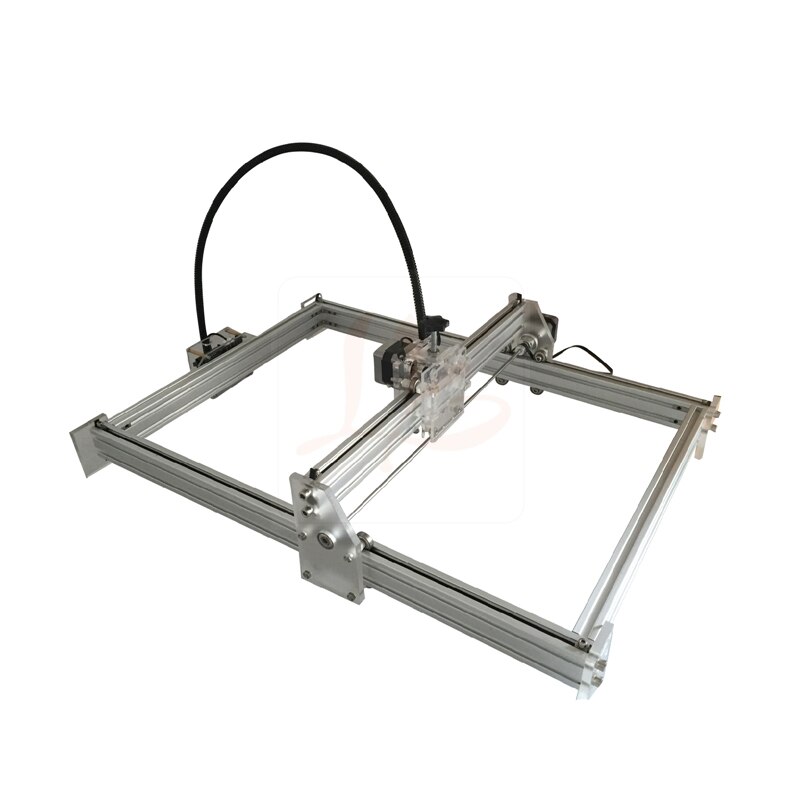

4,Full aluminum+ Thick acrylic stuff,nice outlooking & more stable

5,Software easy to use,whole life-time free upgrading service.

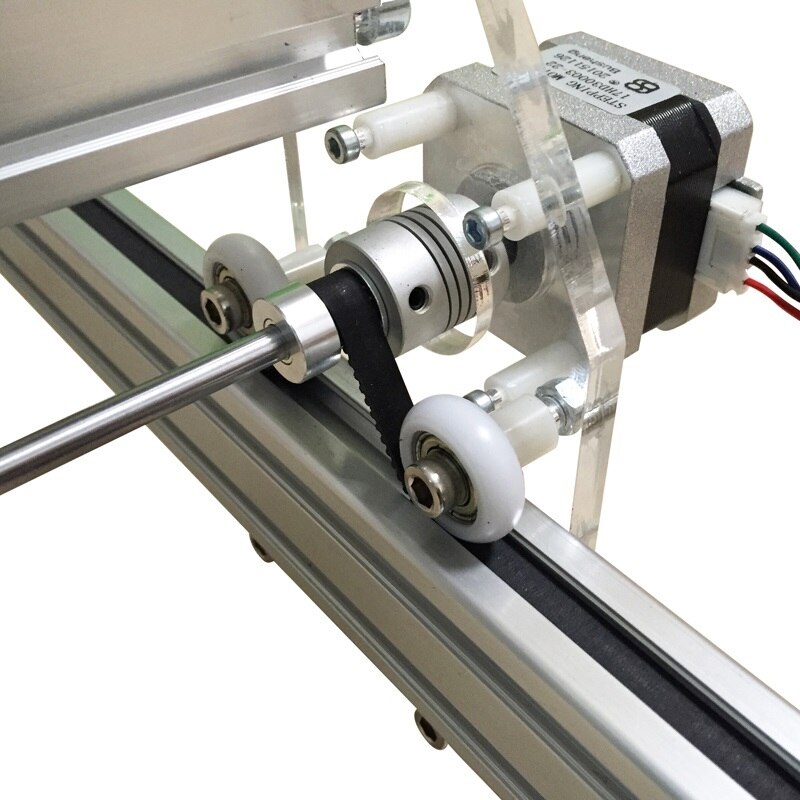

6,Double motor design,more swift & accurate.

7,Engraving item no height limitation,can directly put machine on target item.(For example desk)

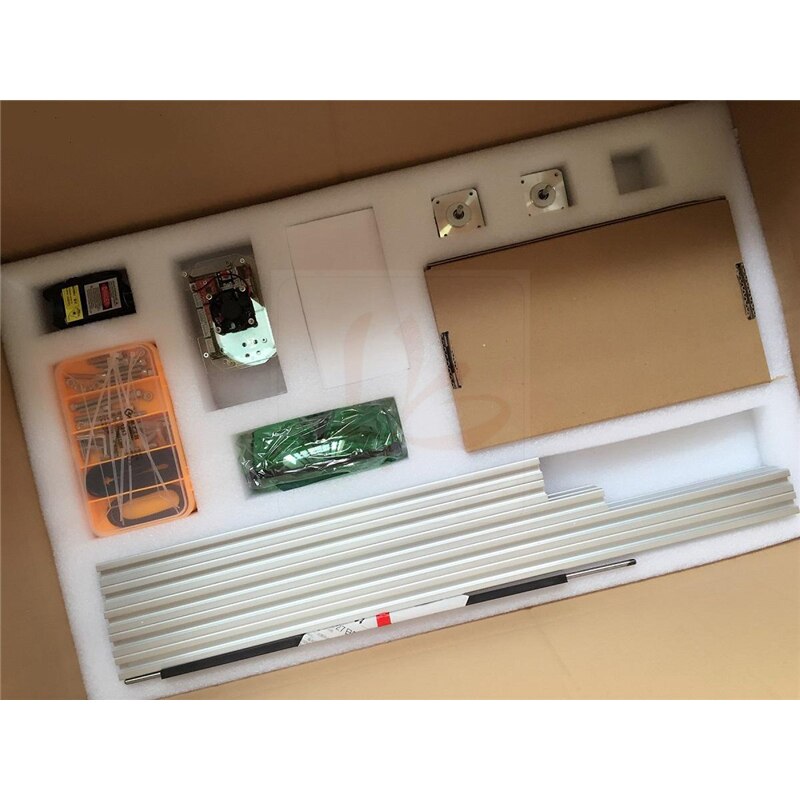

8,For saving shippingcost,we use disassembled package,when get machine,install machine follow instruction is ok.

Note: For sake of protect mainboard,we will pull out X,Y line,when get machine,install as instruction is ok.

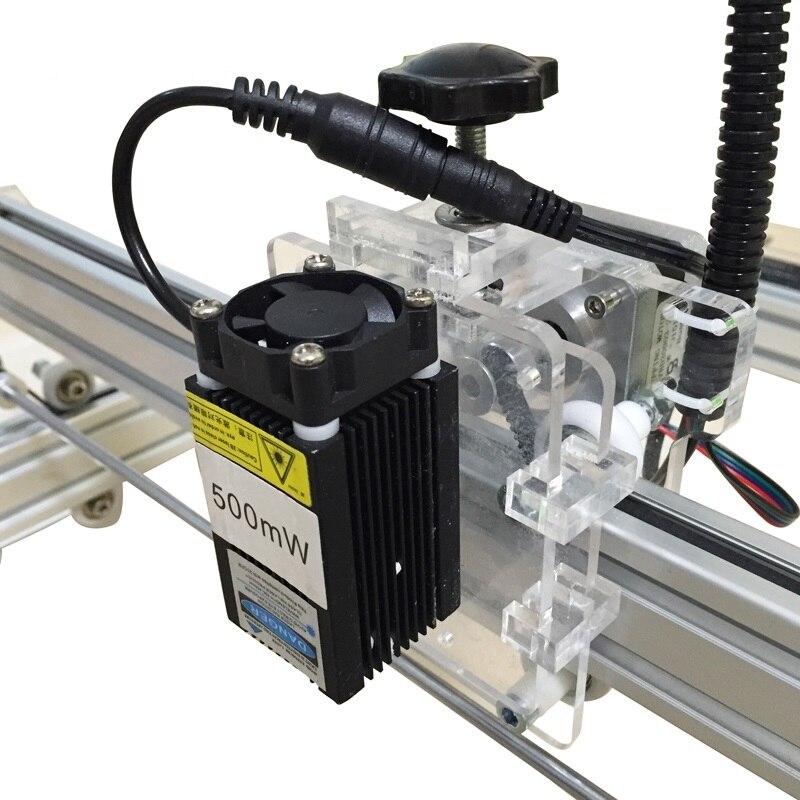

Specification for laser head:

1. Size: 33*33*65mm
2. Wavelength: 405nm-450nm
3. Drive mode: external ACC constant current drive
4. Laser power: 0.5w / 2.5w / 3.5w / 5.5w /7W/10W/15W
5. Control mode: TTL/PWM
6. Working voltage: DC = 12V
7. Operating current:  <3A
8. Cooling mode: forced air cooling
9. Material: aluminum, anodized surface
10. Material form: copper
     (RE:7W 10W 15W laser focal length not adjustable, focal length 1.8cm.)
11. Work temperature:-47-75 degree
12. Frequency:0-30Khz




Application:

Cannot do:
Metal(10W can ),stone,ceramic plate,jewellery,reflecting materials,crystal stuff,soft stuffm so ect.

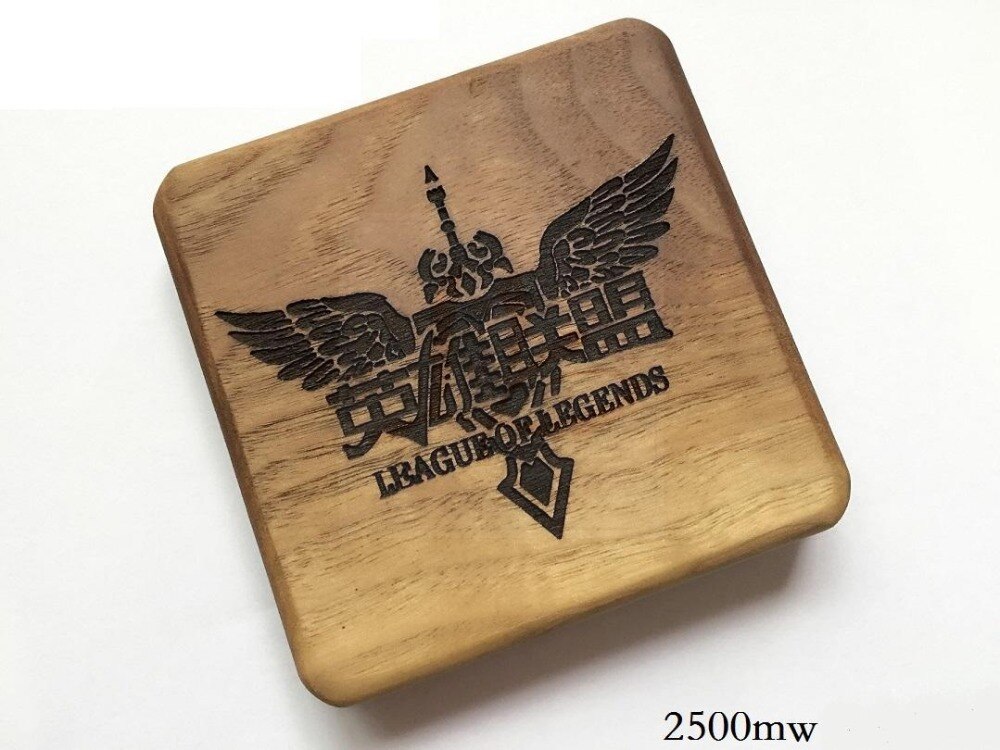

Can do:
Wood,plastic,paper,bamboo,animal angle,leather,plastic mobile case,stampe,sponge so ect.

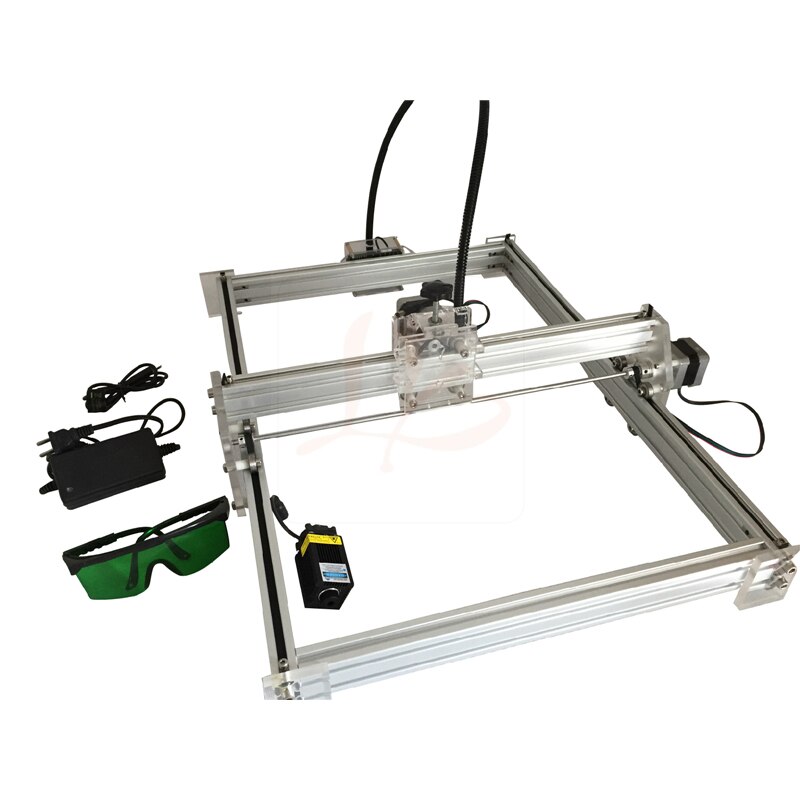

Packing list:

Machine x 1
Power cable x 1

USB date line x 1

Protect glasses x 1
Test wood board x 1

Wrench x 1




Announce:

Item not for commercial use,not for big batch production use.
For personal DIY only,make life more funny & interesting.

LY 3550 lift (1)LY 3550 lift (2)LY 3550 lift (3)LY 3550 lift (4)LY 3550 lift (6)LY 3550 lift (7)LY 3550 lift (9)LY 3550 lift (10)

LY 3550 lift (16)
