Mini hand held 4-20mA MR9270S Signal Generator

$366.22

88 in stock

SKU: 1005004235671785 Category:

Description

  • Brand Name: HKNA
  • Origin: CN(Origin)
  • Certification: CE
  • Place of Origin: Beijing, China
  • Brand Name: SRK
  • Model Number: MR9270S, MR9270S
  • Name: Signal Generator
  • Usage: Industrial
  • Type: Hnad Held
  • Power Supply: USB Charging & Battery
  • Display: 3.5-inch TFT-LCD 320*240
  • Working Temperature: 0 degrees to 50 degrees
  • Size: 92*70*32MM
  • Weight: 500g
  • input & output: Universal

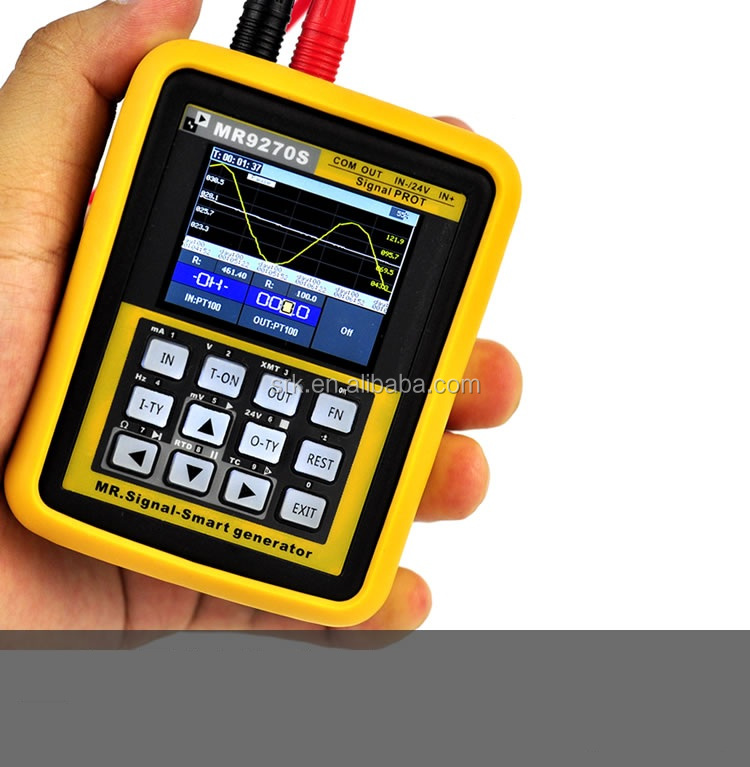

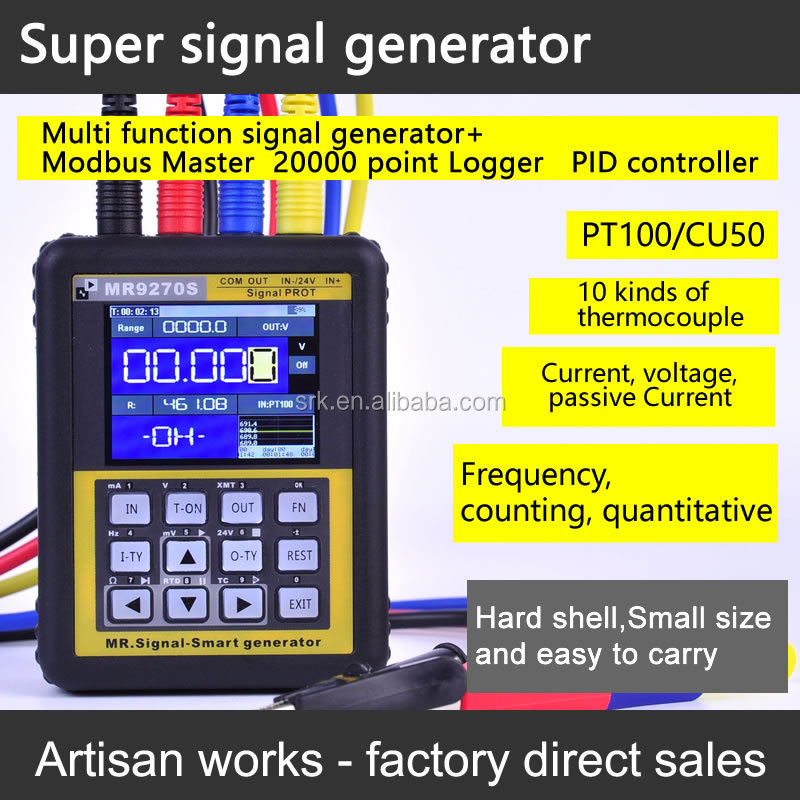

I.  Mini hand held Signal Generator

Intelligent signal generator, using a new software system which expans  the software.

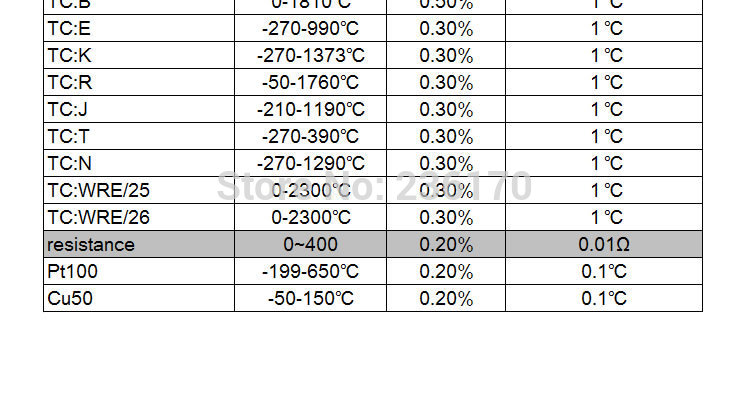

Hardware: equipped with the industry commonly used current, voltage, frequency, millivolt, thermocouple, thermal resistance, Pt100, the input is also output.

Software: Modbus master, USB to RS485 interface … This product has collected many years Experienced on-site work program made of various views developed, it will be your favorite tool.

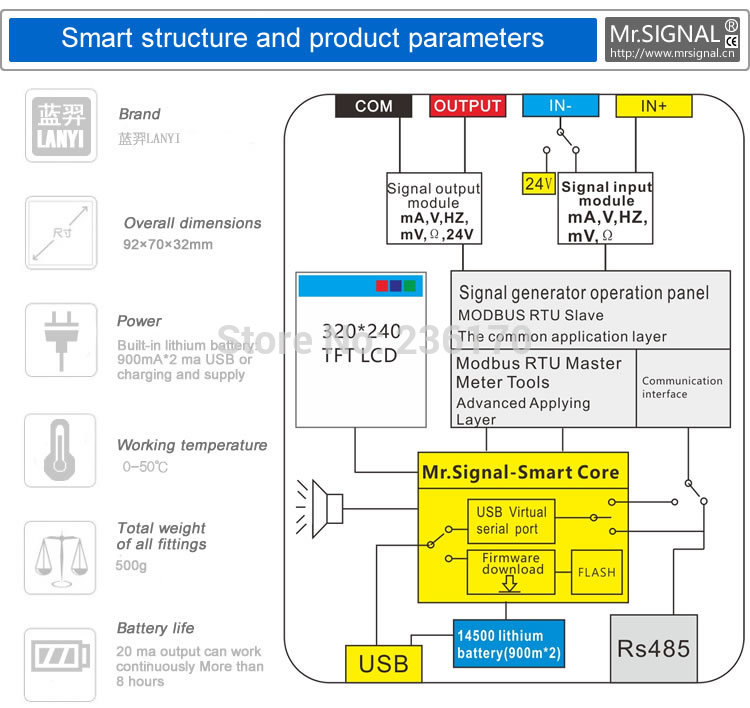

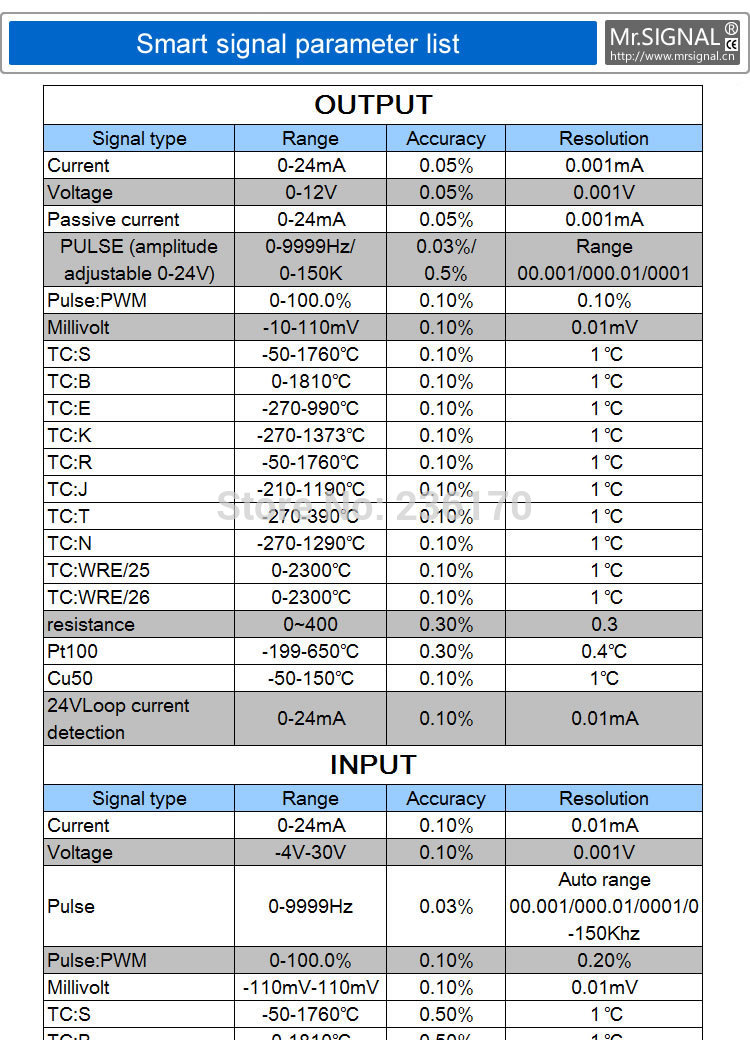

II. Signal Generator Specification:









Size 92*70*32MM
Power Build-in lithium battery 900mA*2ma USB or charging and supply
Working temperature 0-50C
Total weight 500g
Battery Life 20mA can work continously more than 8 hours
TFT LCD 320*240

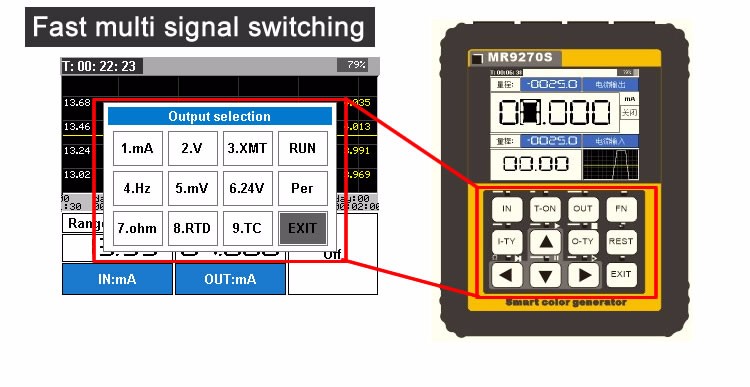

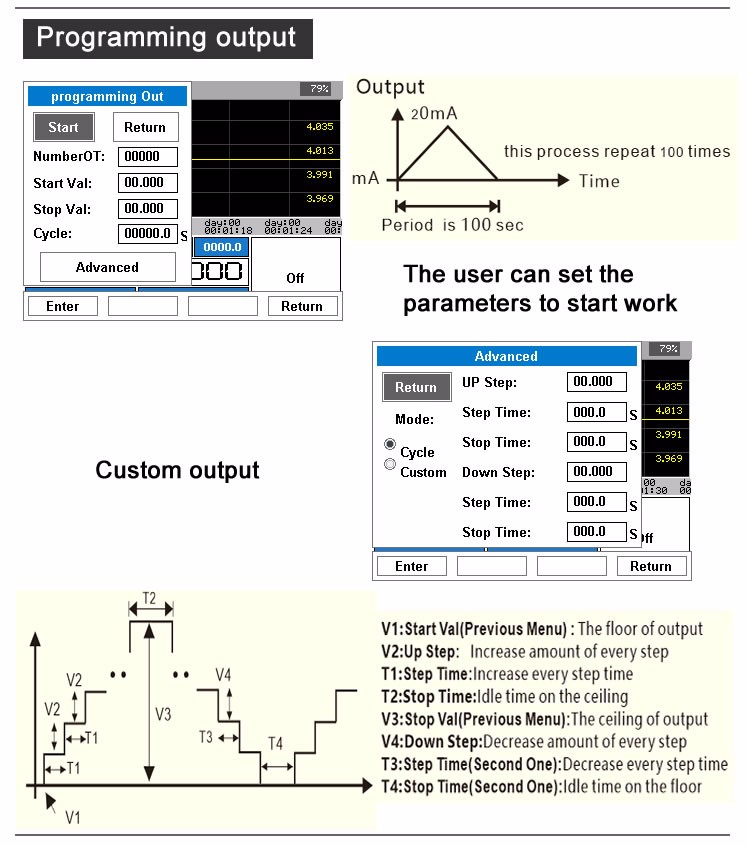

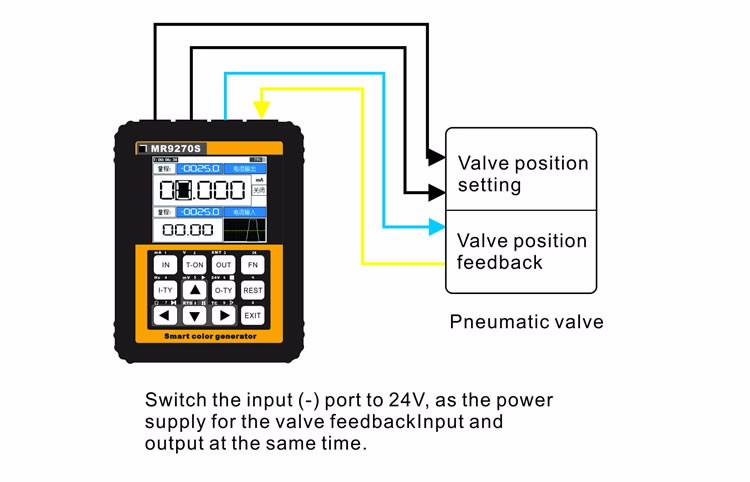

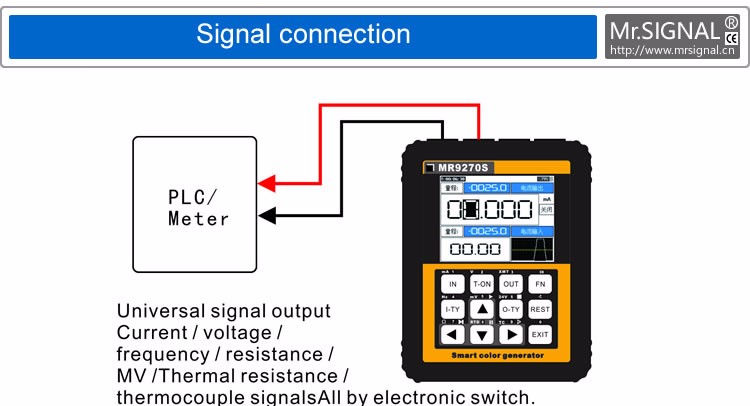

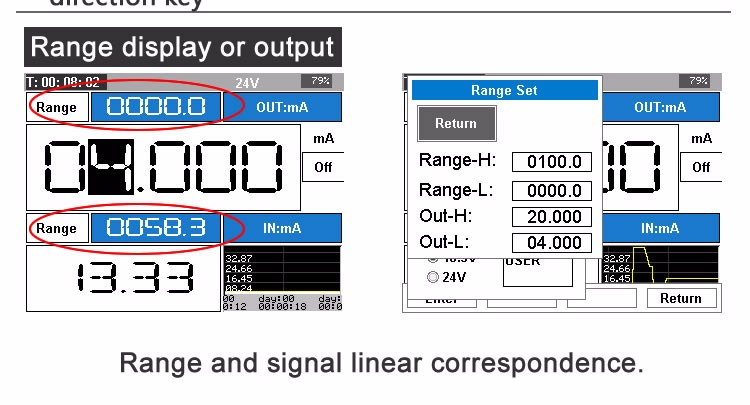

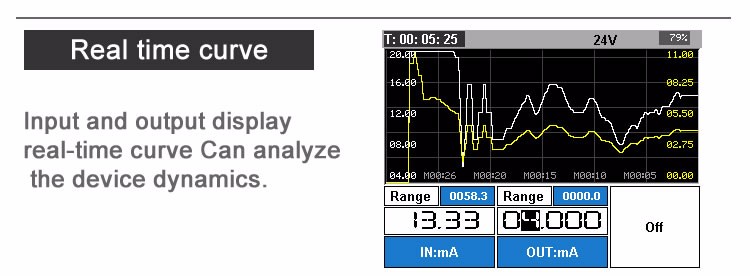

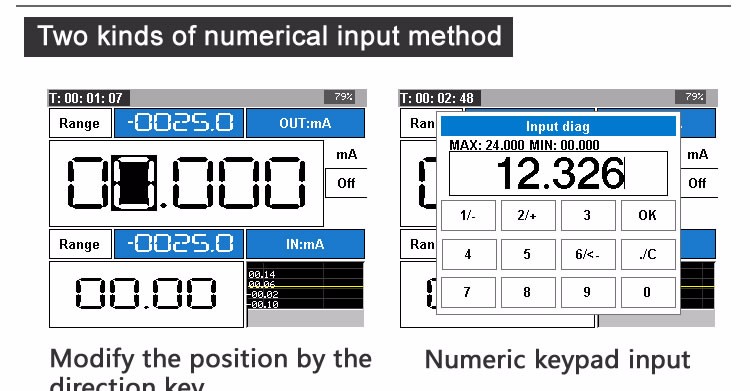

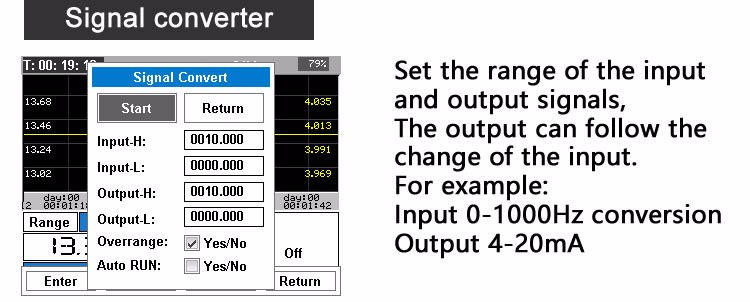

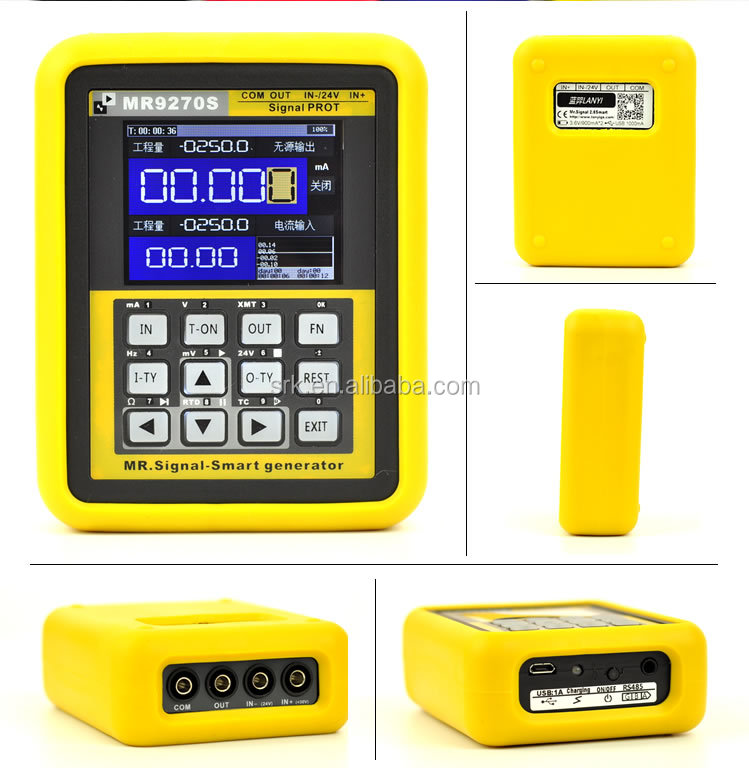

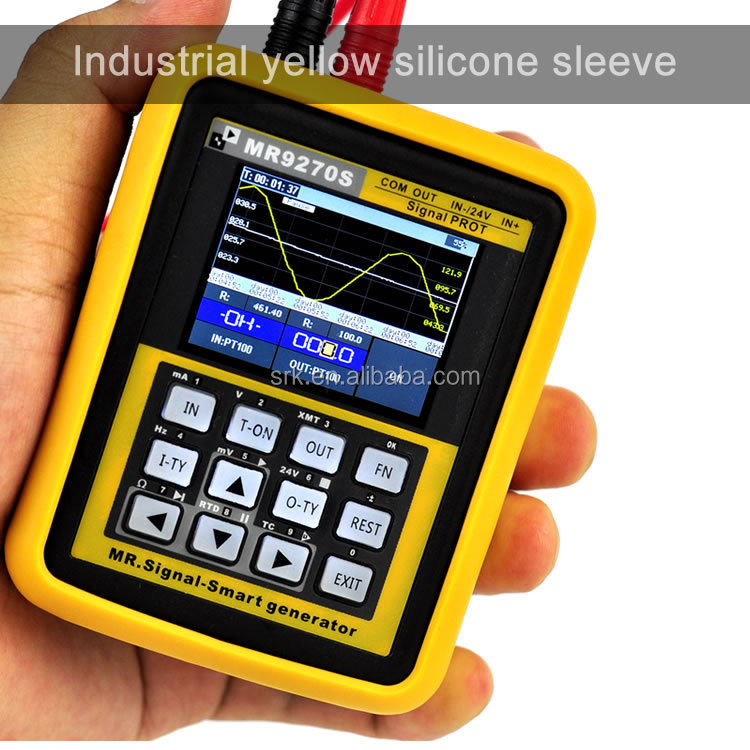

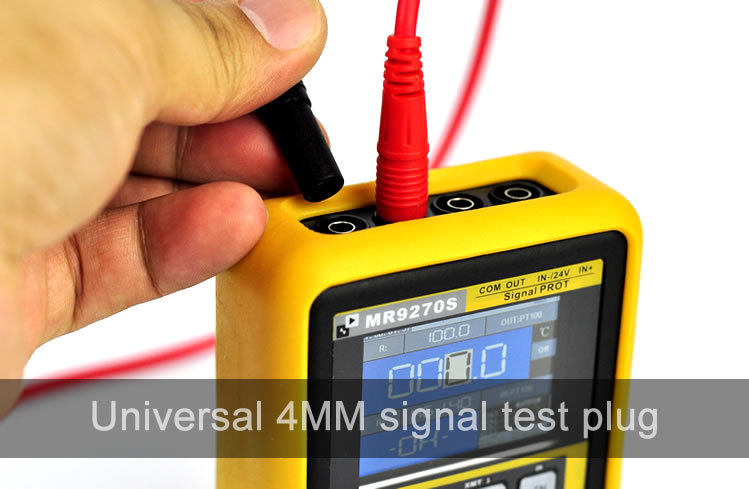

III.Signal Generator Show
