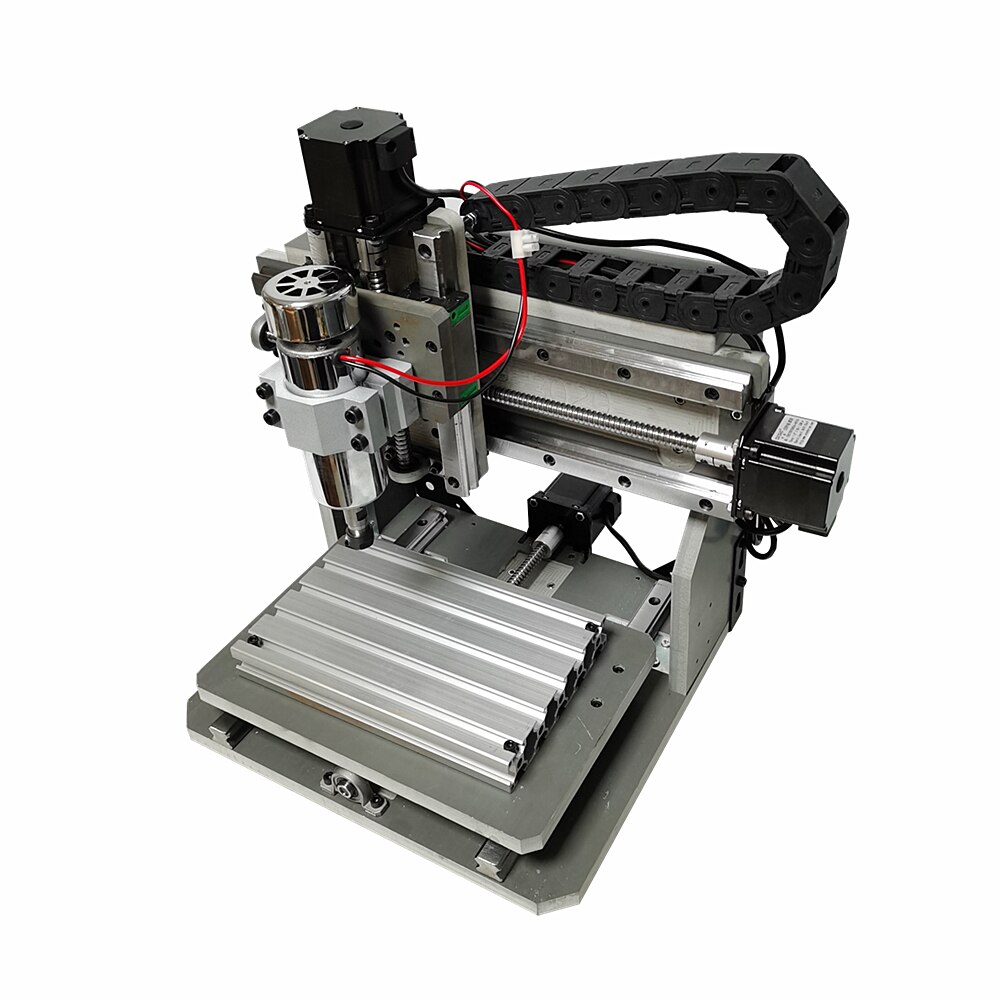

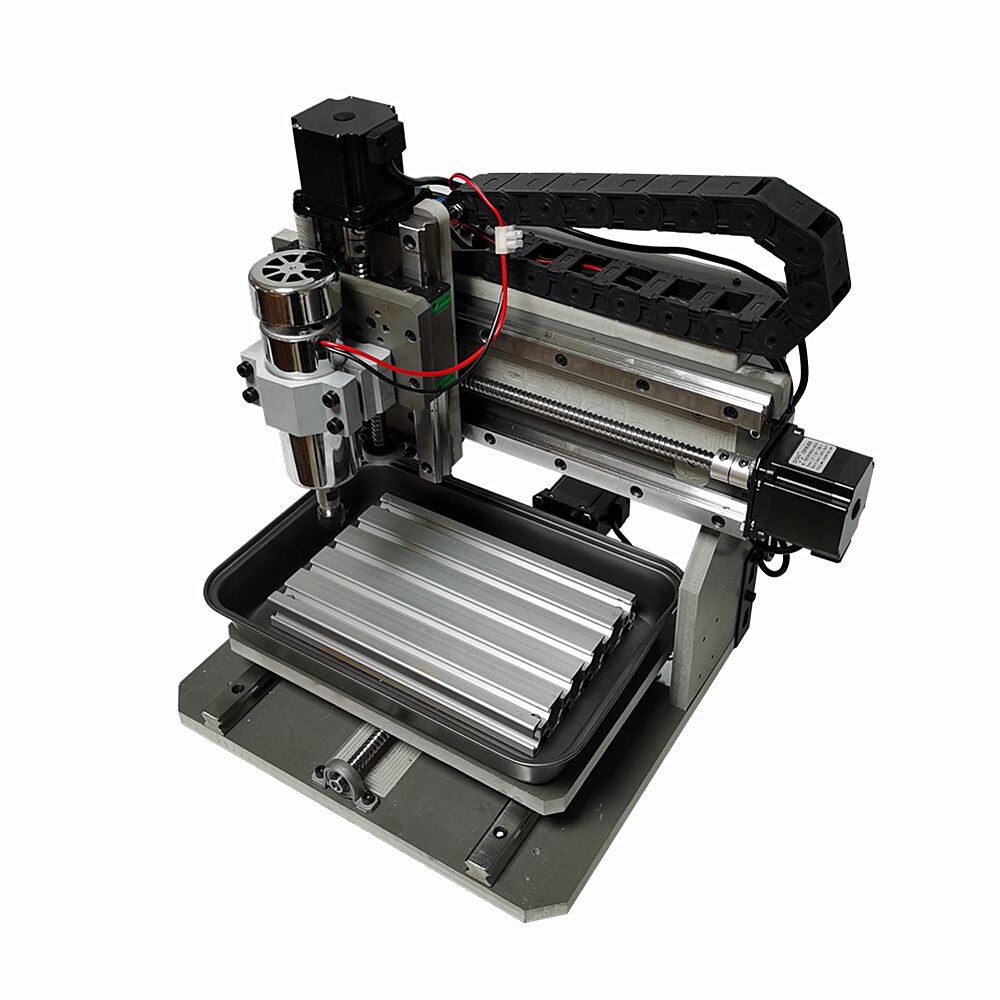

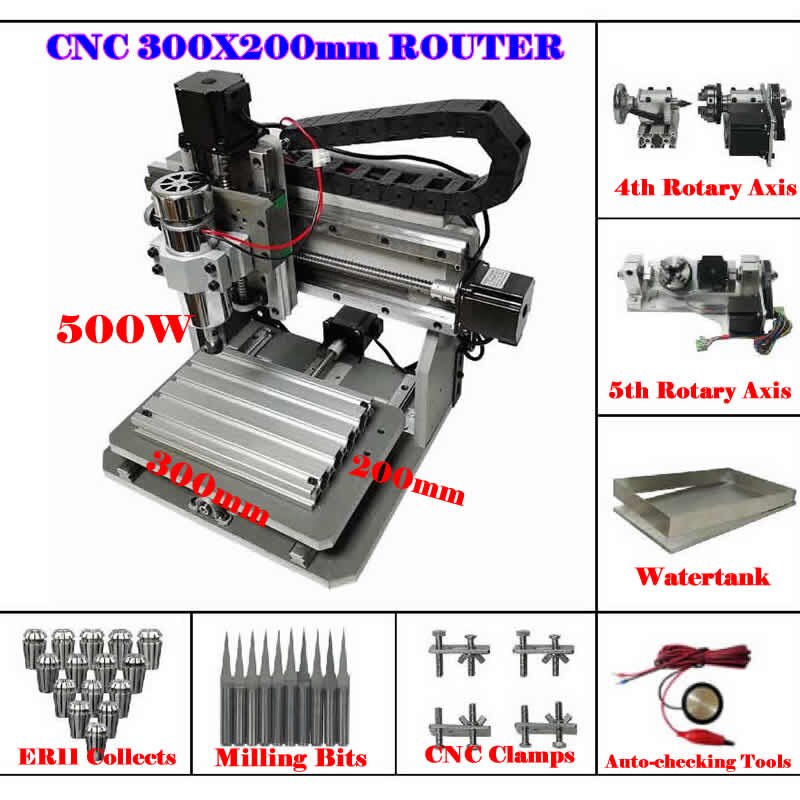

MODEL

PVC-3020F

Attribute

3axis

4axis

5axis

Axis

3axis

4axis

4axis

Interface

USB Port

USB Port

USB Port

Spindle Motor:

500W

500W

500W

Weigh

27

31

33

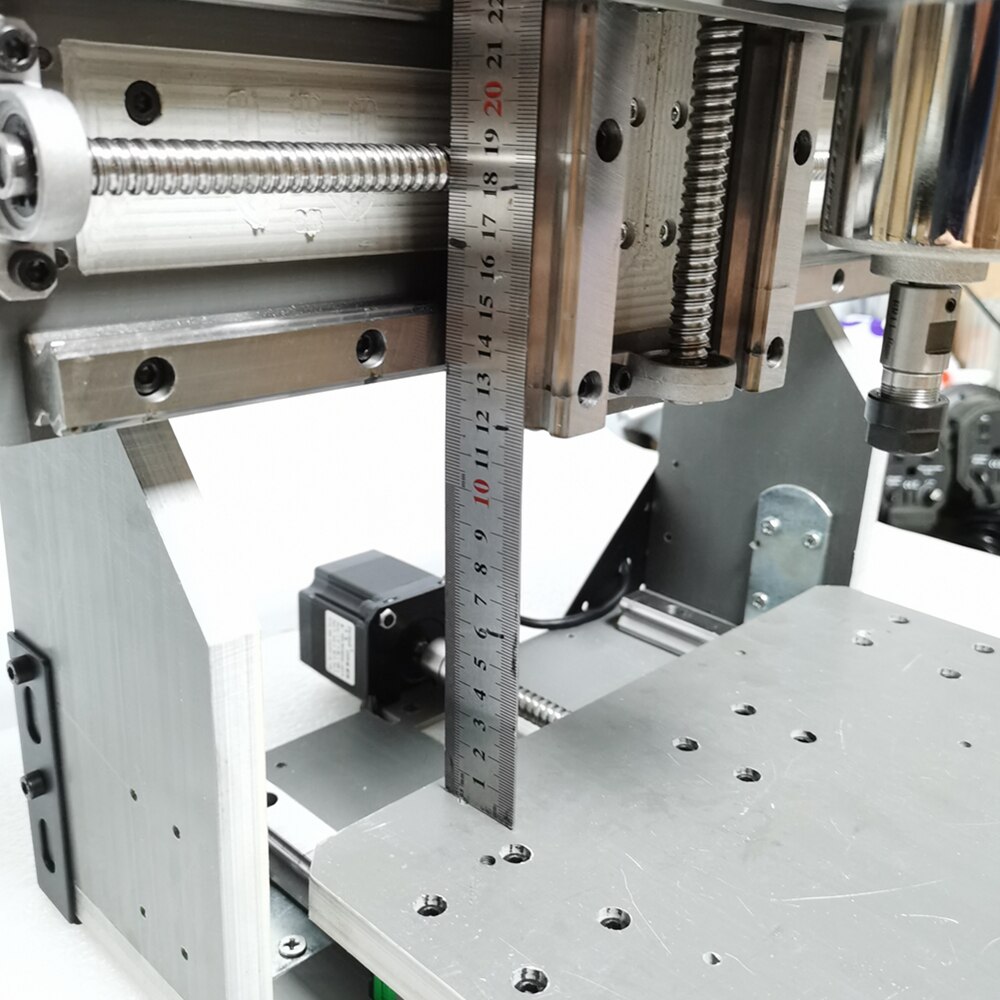

Max. working stroke

XYZ=300*200*100mm

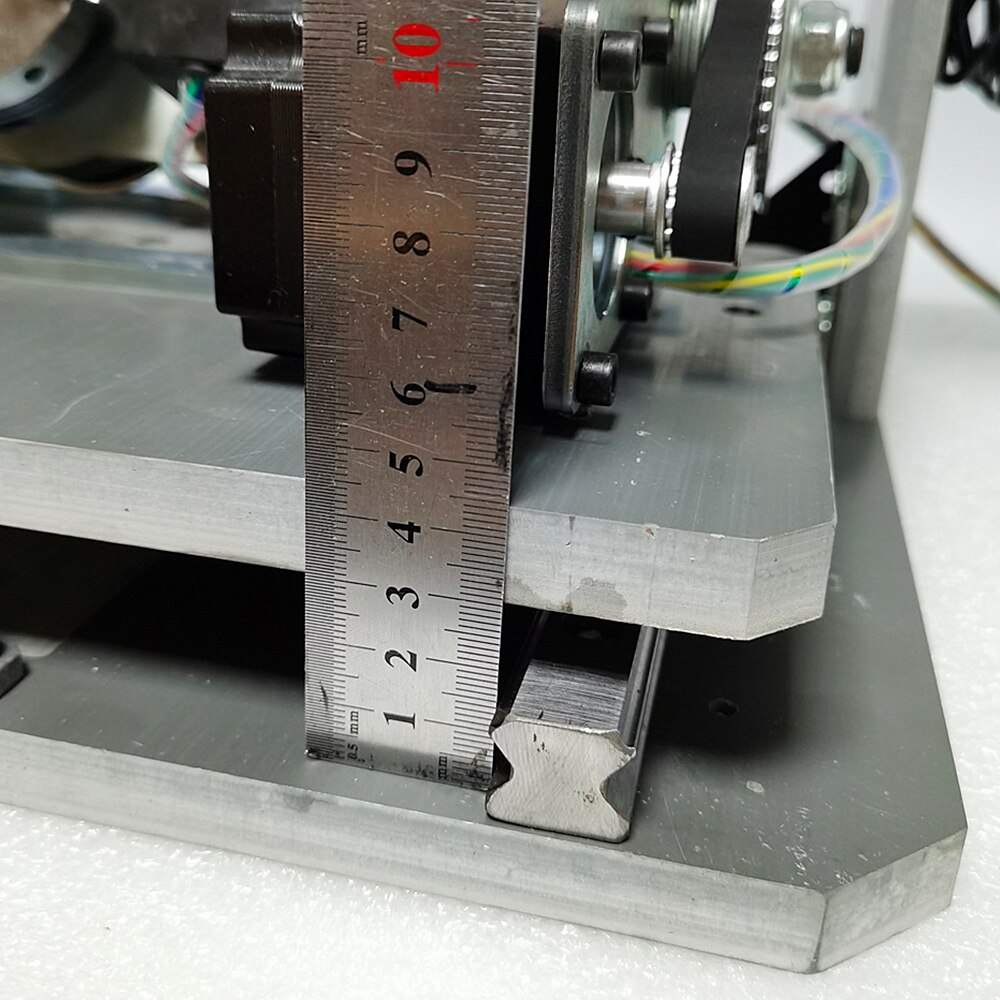

Acceptable material thickness

≤100mm

Rack material:

15mm PVC + corner brace connection

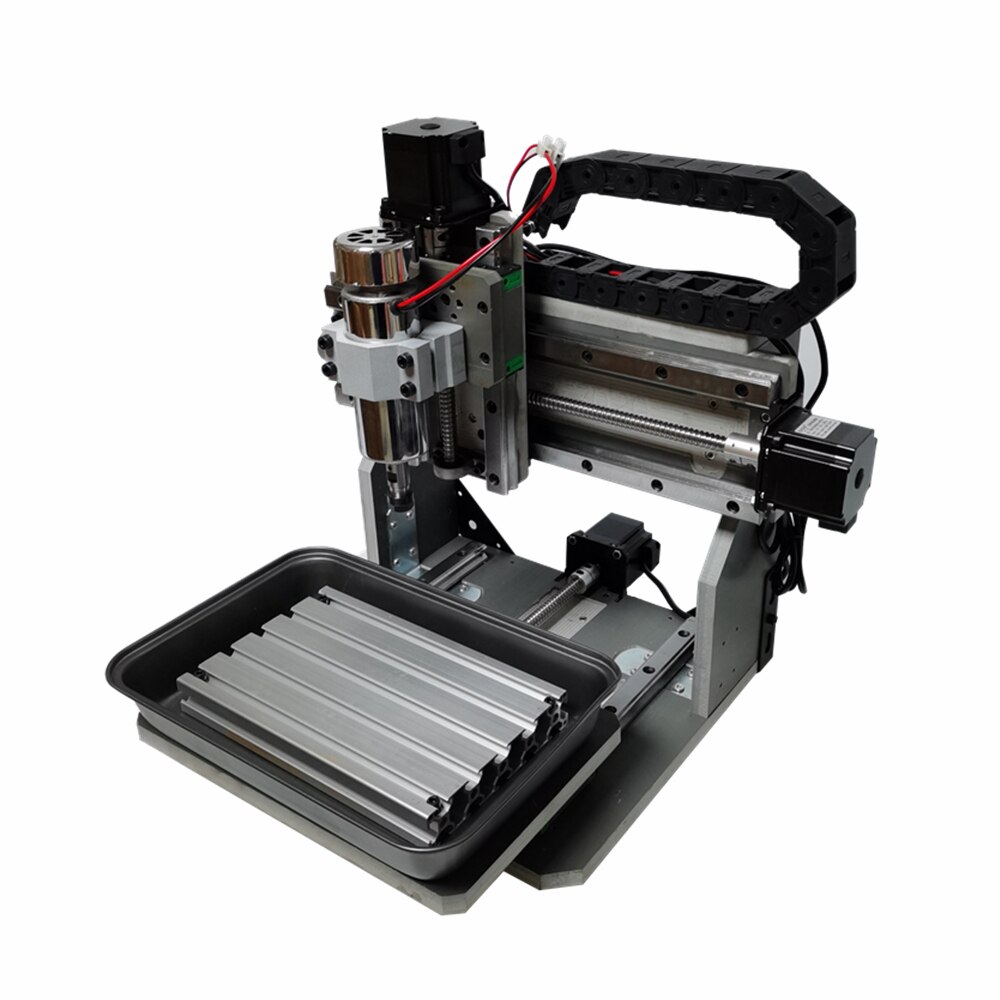

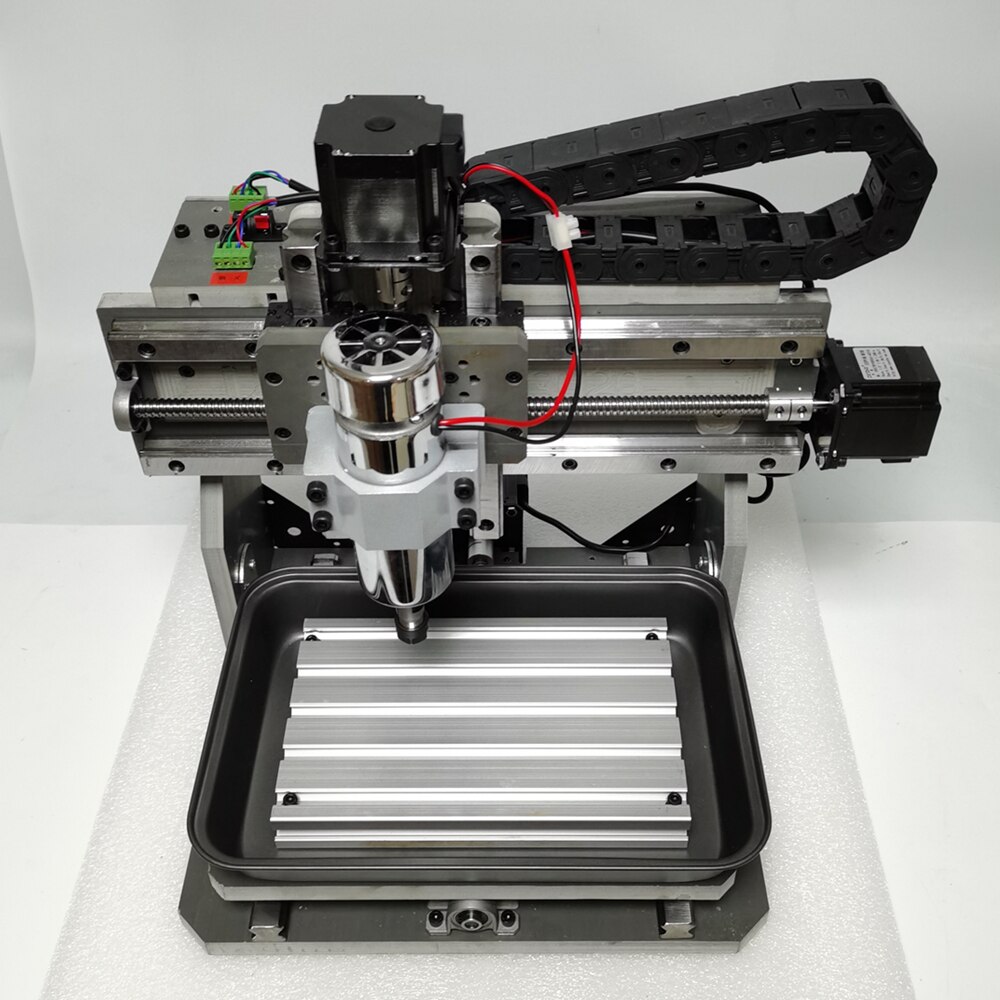

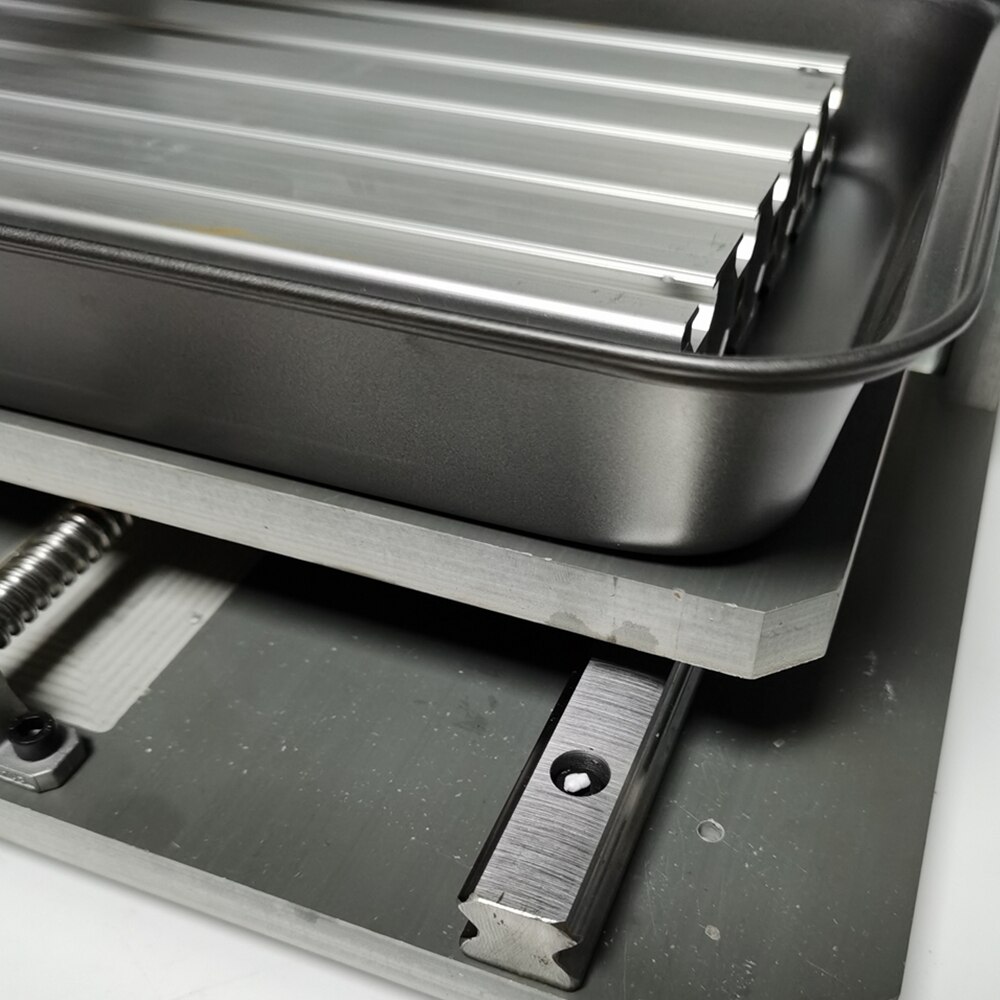

Table material:

Aluminum alloy T table + Water tank

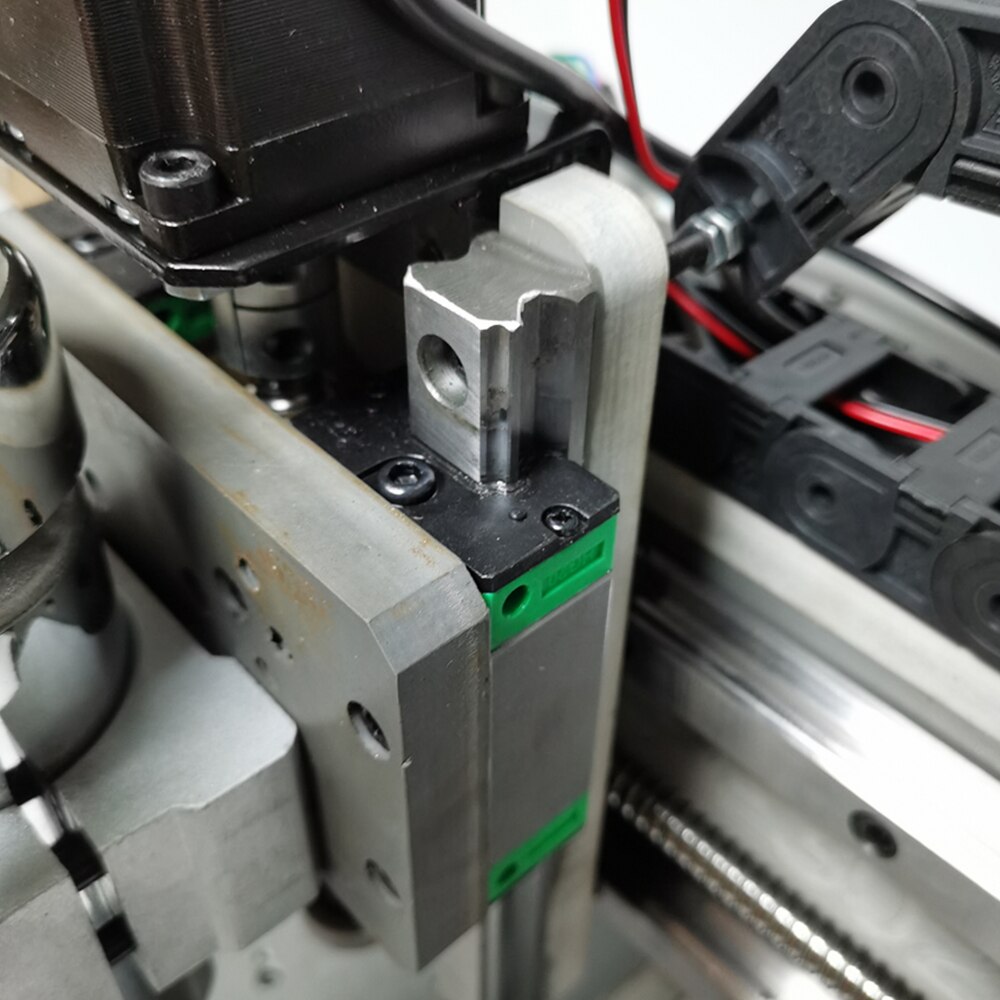

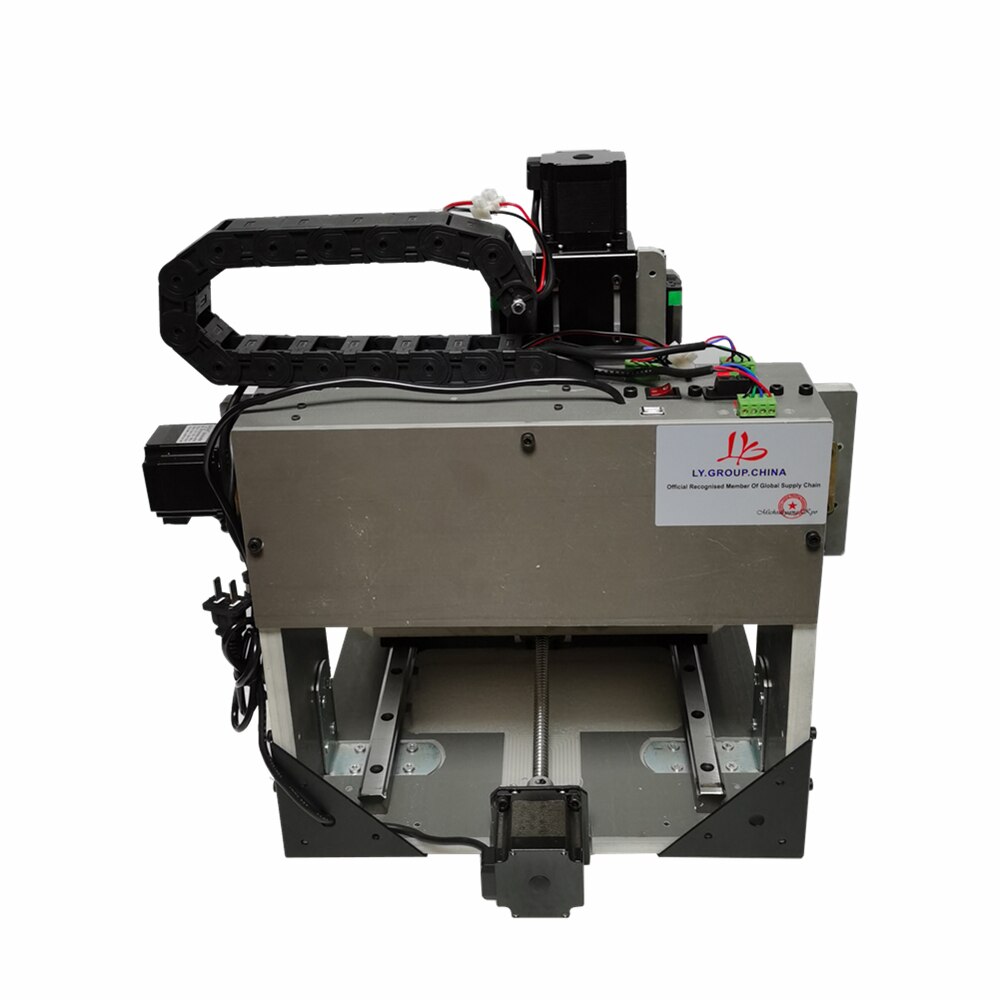

Rail type

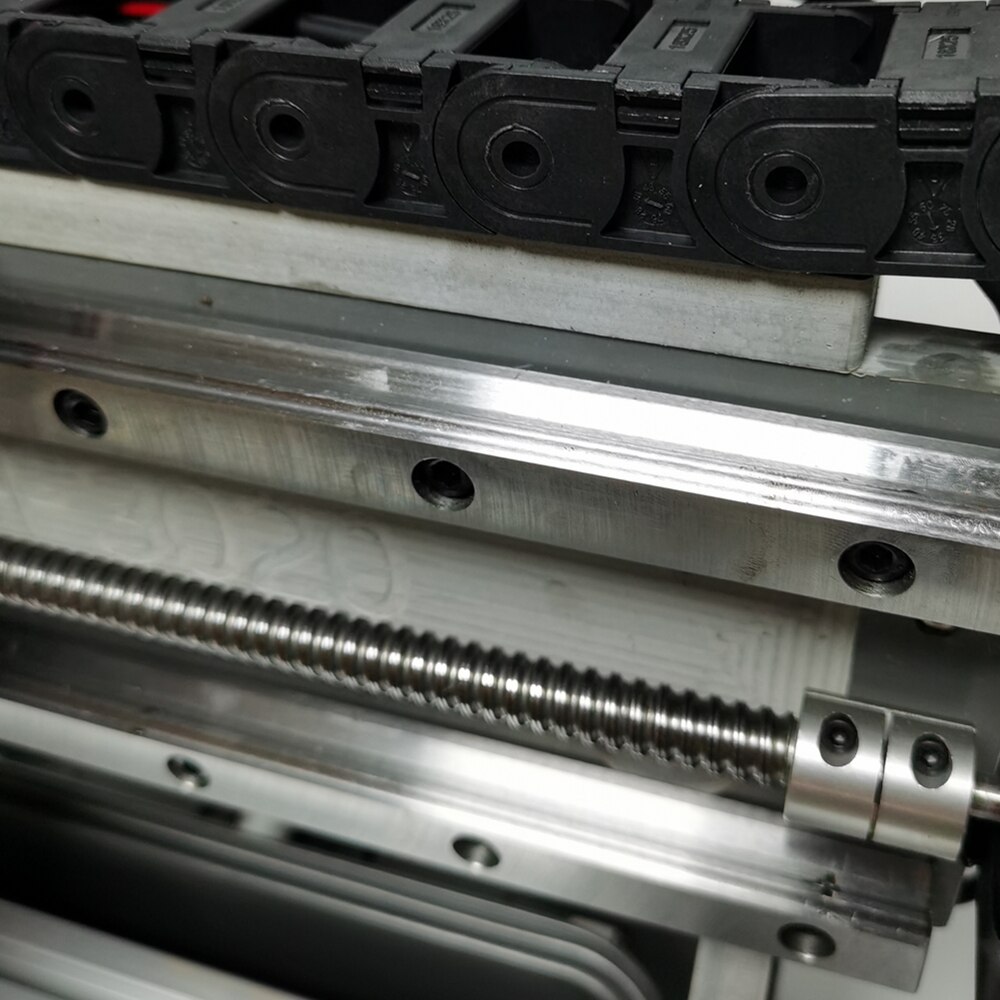

X Y Z 1204 ball screw,

Square line rail track, three-axis is 20 mm square wire track,

Spindle motor

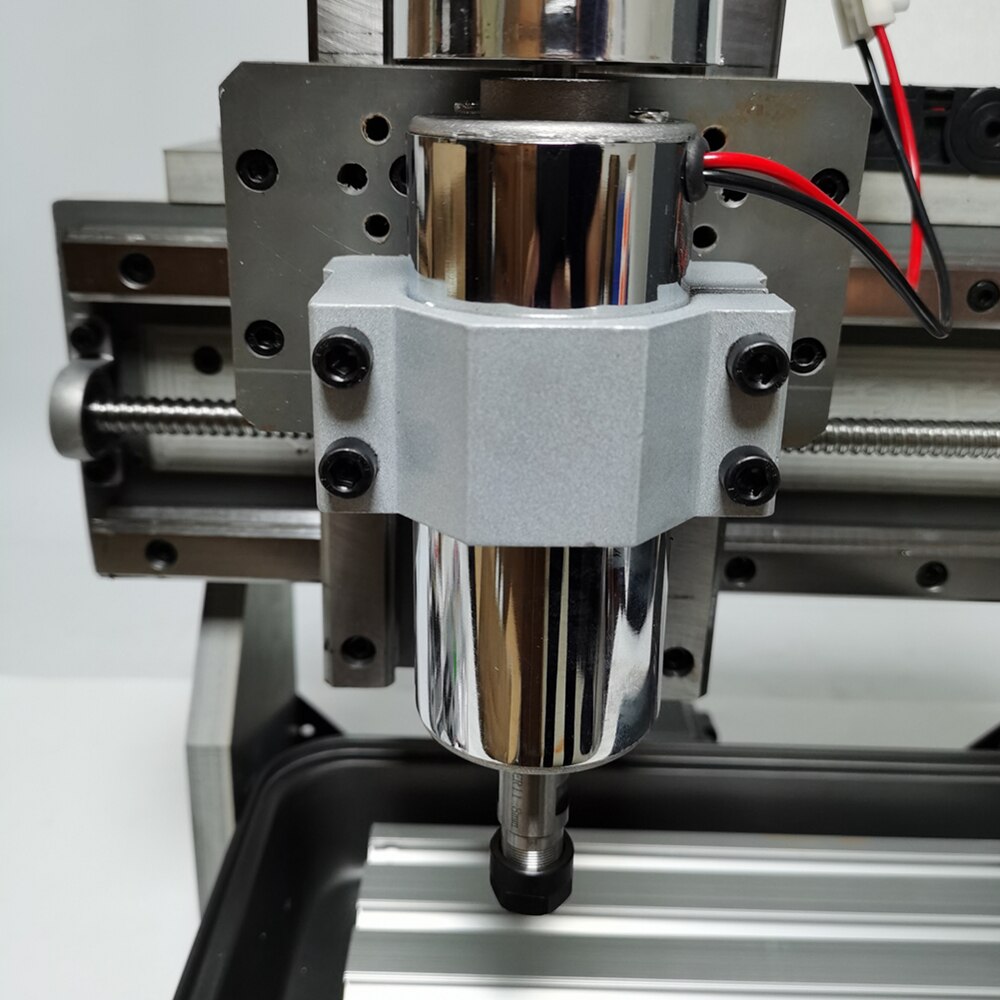

500WDC spindle ,0-12000r/min

Collet type

ER11,1/8″(3.175mm) Collet

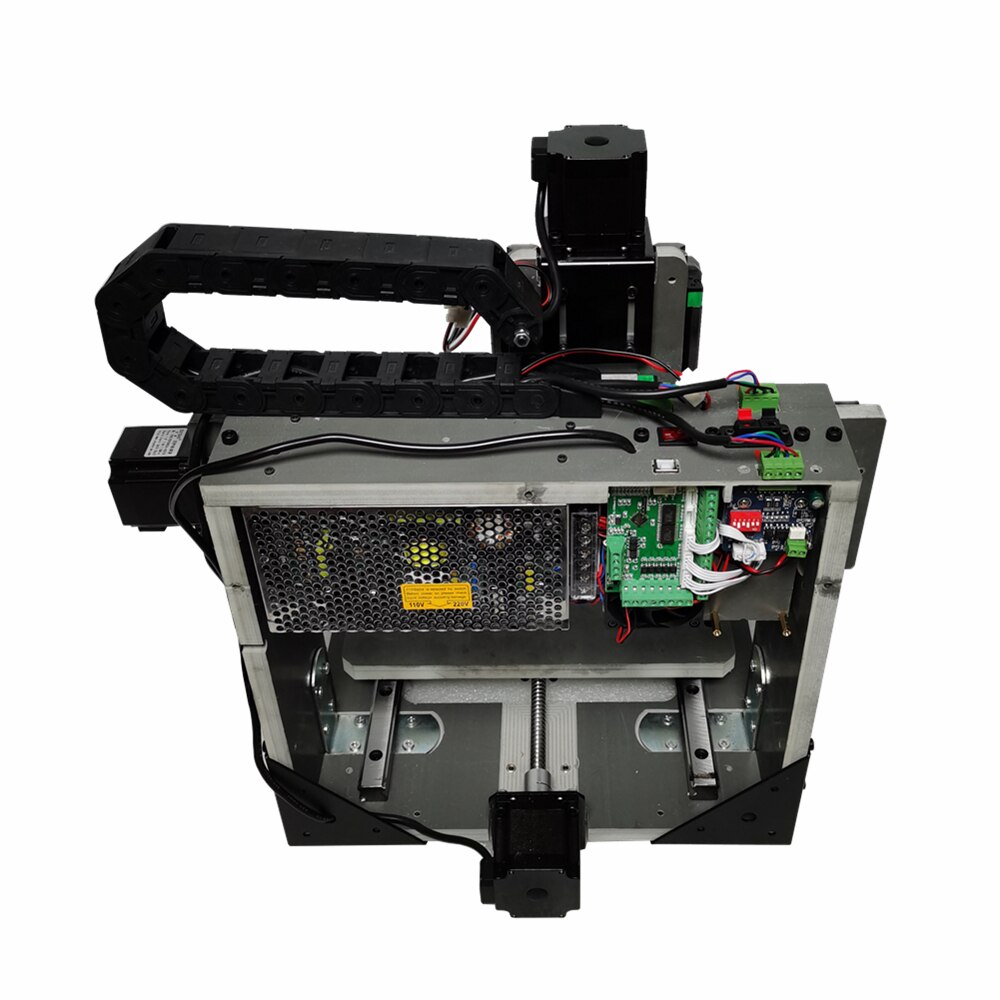

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

Communication interface

USB Port

System requirements

Win-XP / Win 7 Win 8 Win10

Software Copatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

27kg

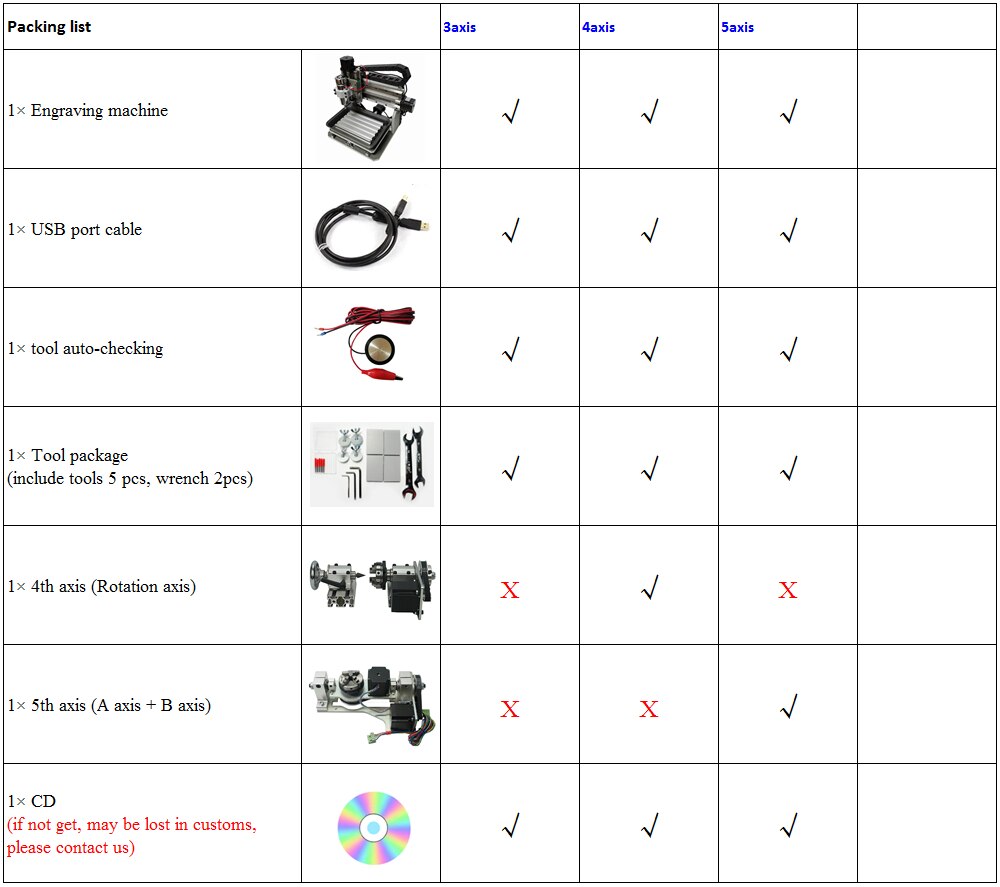

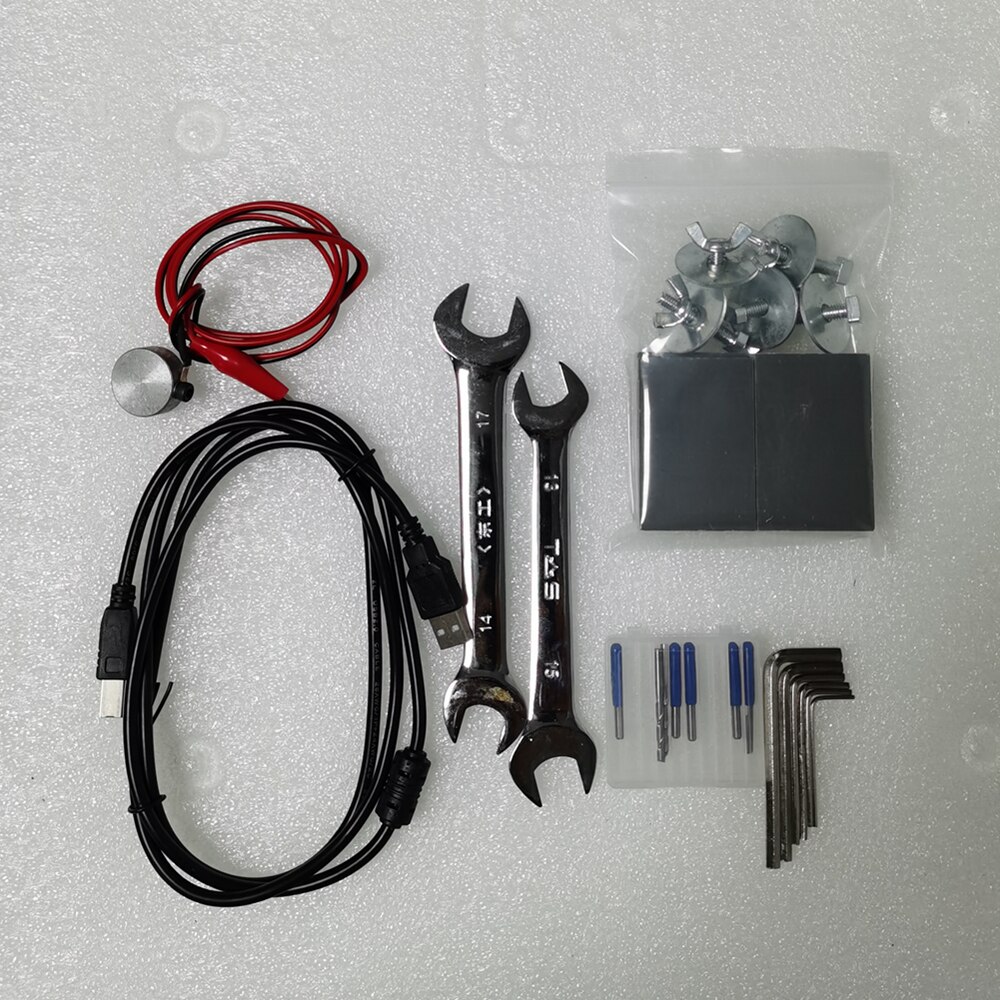

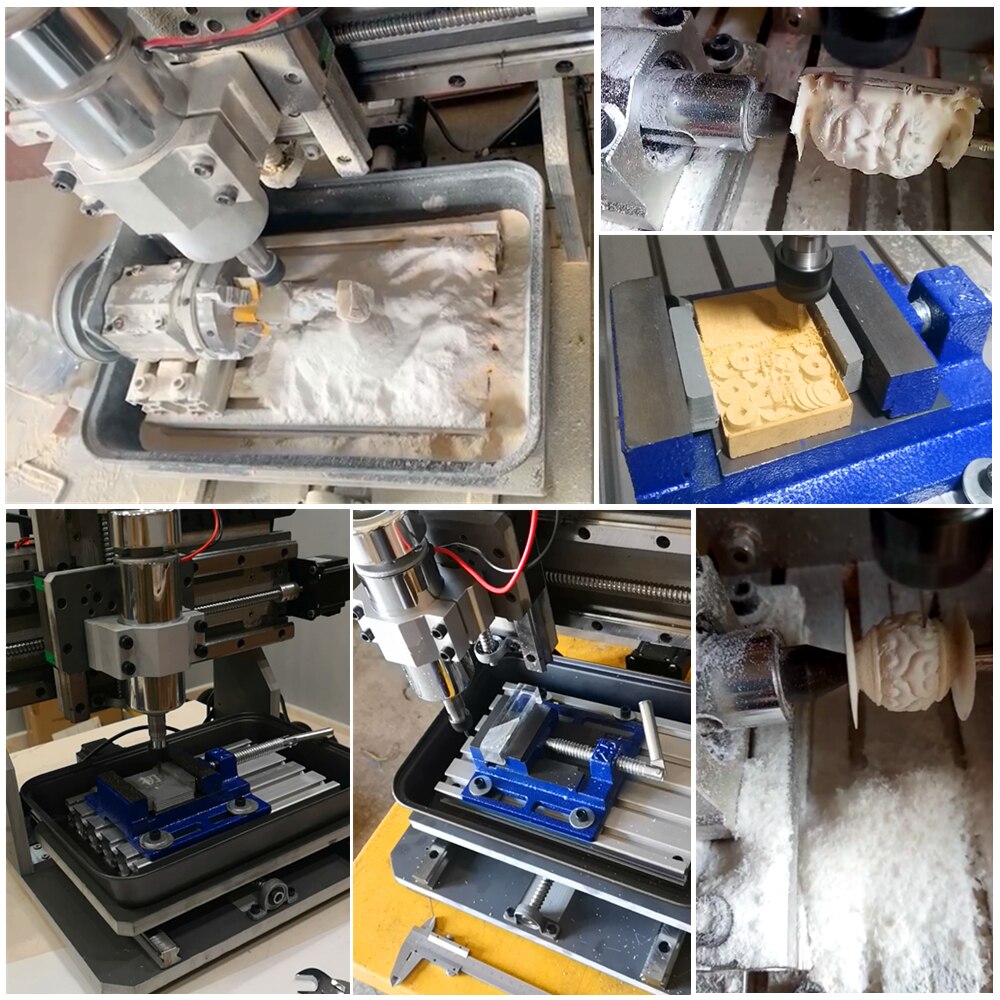

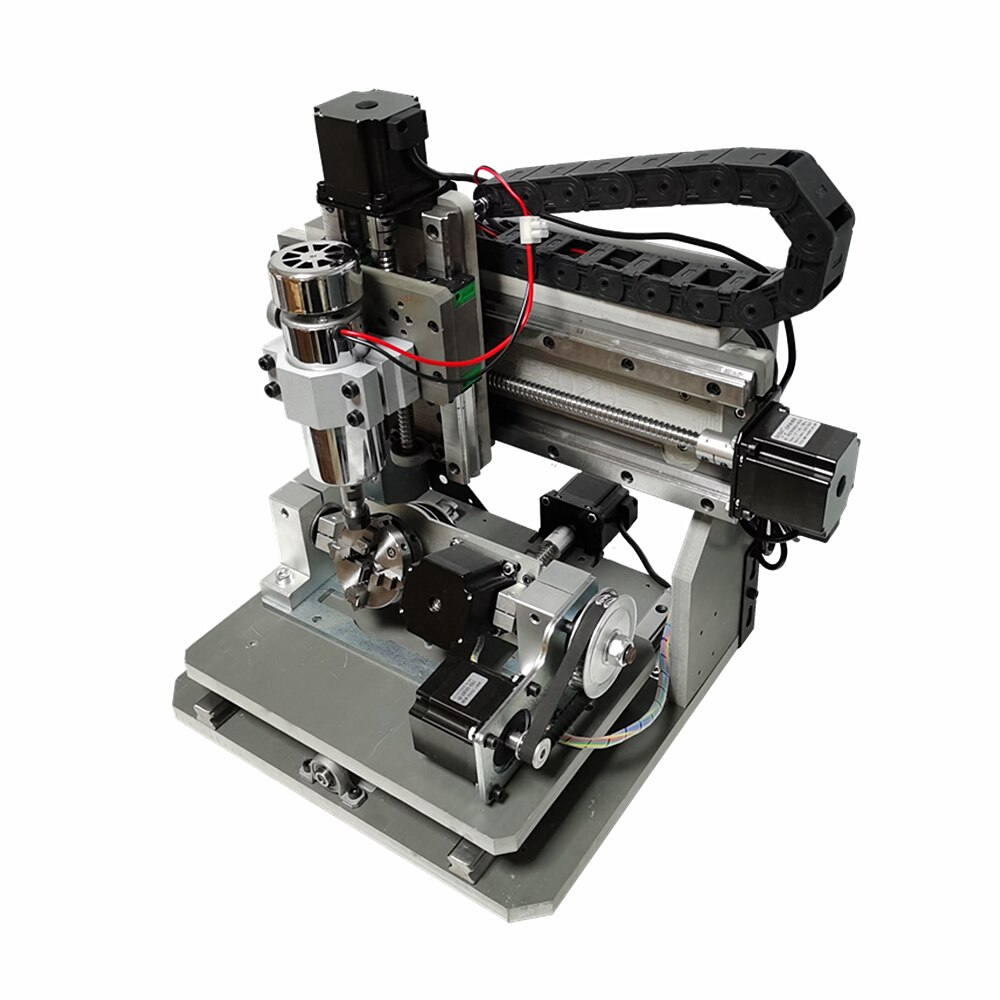

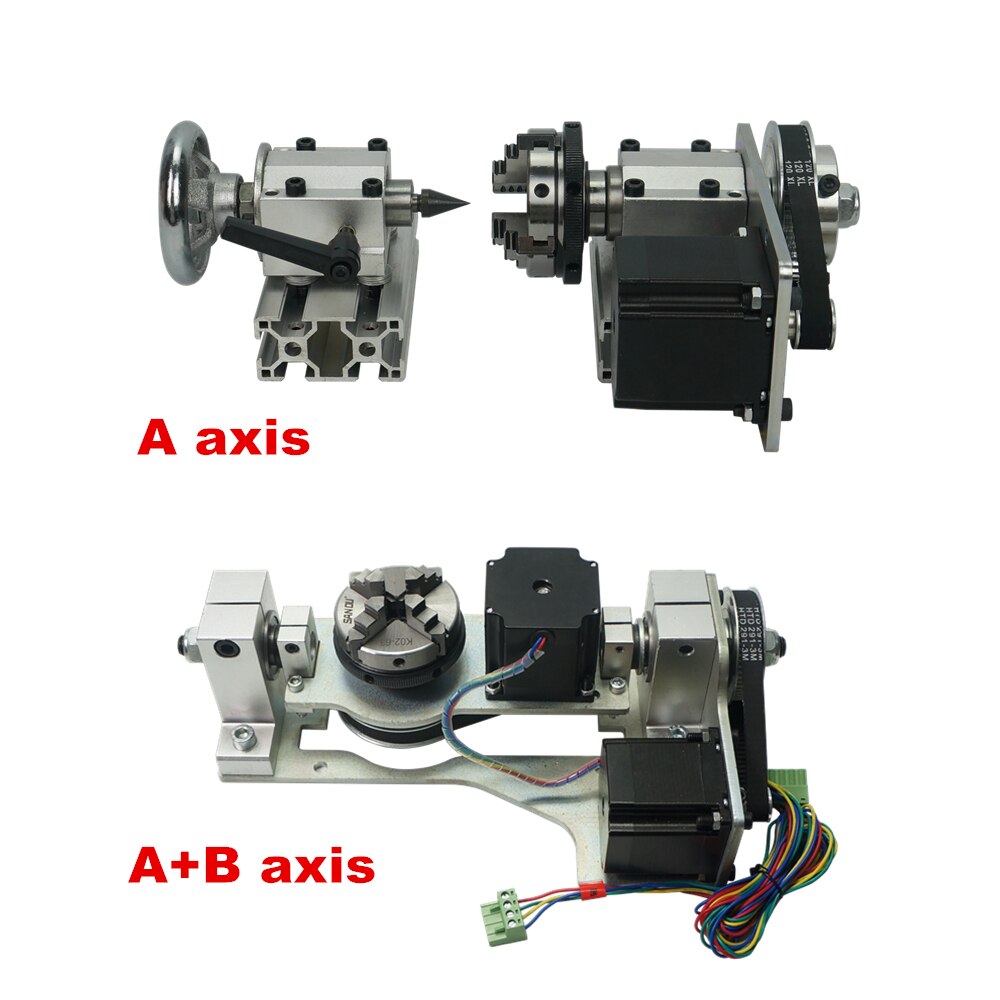

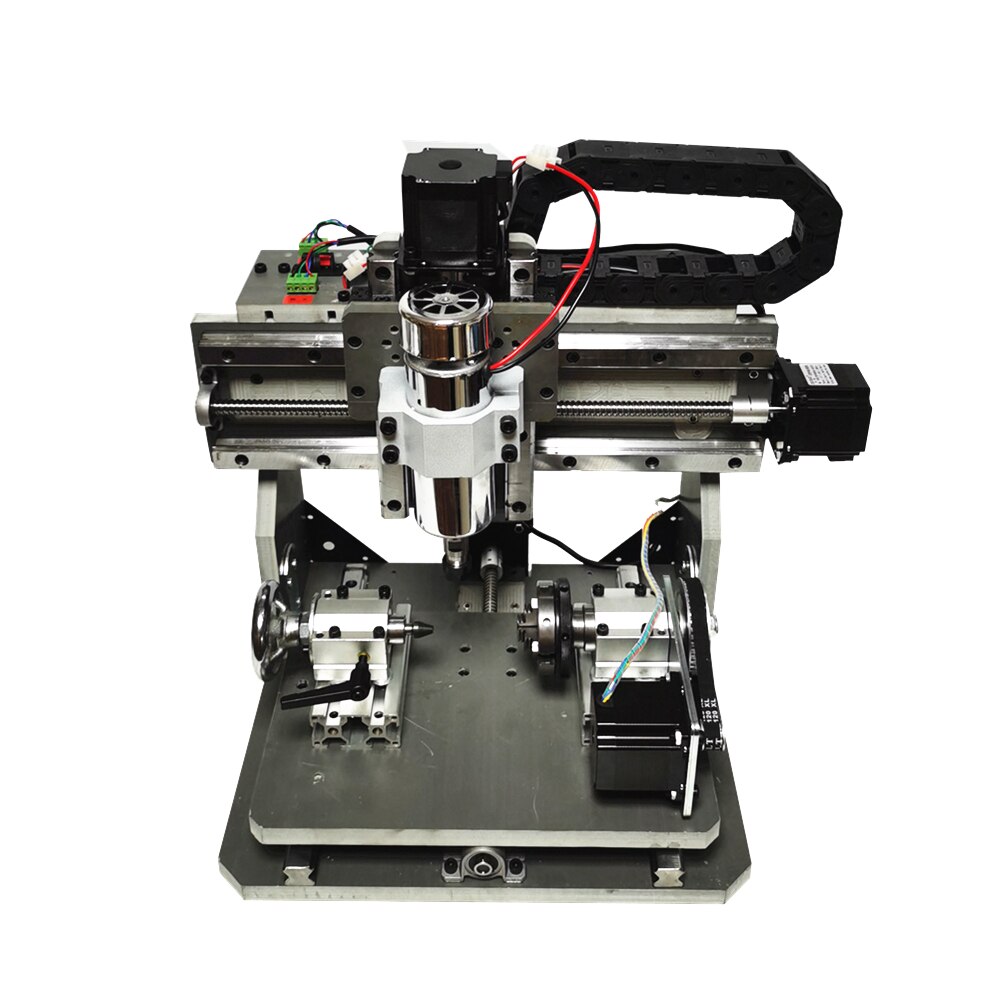

4th Axis

Description:

Center height: H = 51mm

Maximum turning diameter: ≤ 81mm

Deceleration ratio: 4:1

Stepper motor: 57HS56

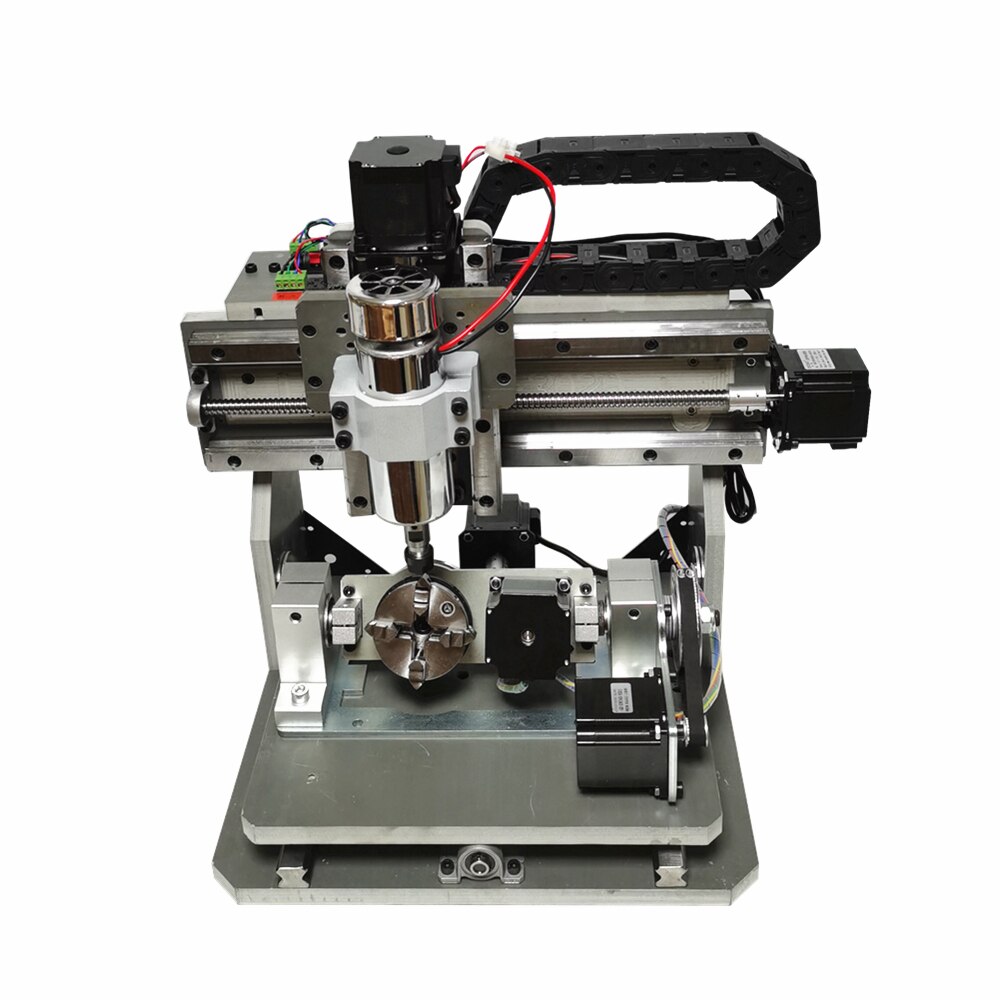

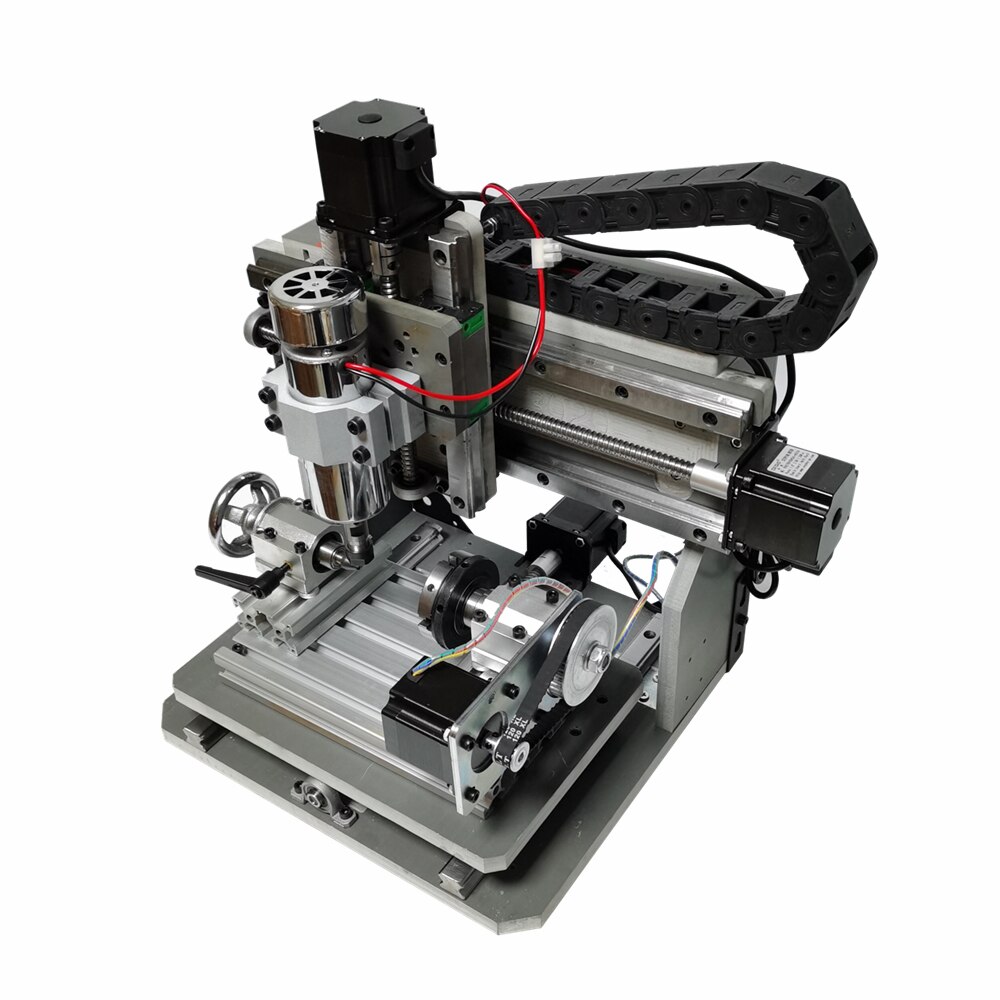

5th Axis

Description:

The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N)

The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N)

Four jaw chuck 60MM

The clamping: Positive direction:40mm; In the opposite direction:70mm

Fourth axis Center height: 55MM

The fifth axis higher than the 4th axis 44 mm

Bottom fixed hole distance: 150mm x 85mm
