Description
- Brand Name: HABOTEST
- Certification: CE
- Certification: RoHS
- DIY Supplies: ELECTRICAL
- Origin: CN(Origin)
- Measuring Capacitance Range: 0-2mF Only HT200B
- Model Number: HT200A/B Black
- Dimensions: 16.4*6.1*3cm
- Measuring Voltage Range: AC/DC 0-600V
- Operating Temperature: 0-40℃
- Measuring Resistance Range: 0-20MΩ
- Measuring Inductance Range: N/A
- Weight: Approx.50g
- Measuring Current Range: 0-200A Only AC
- Display Type: Digital Only
- Brand: HABOTEST

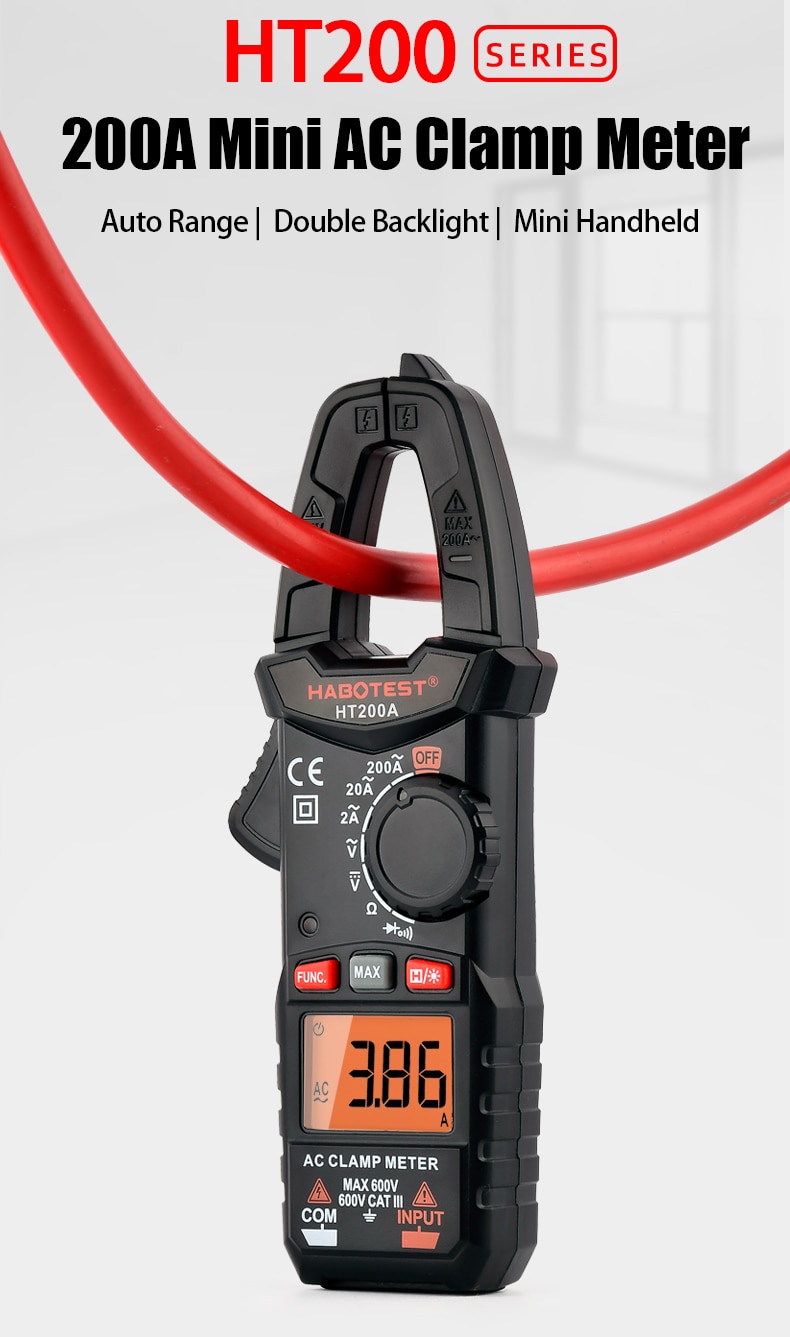

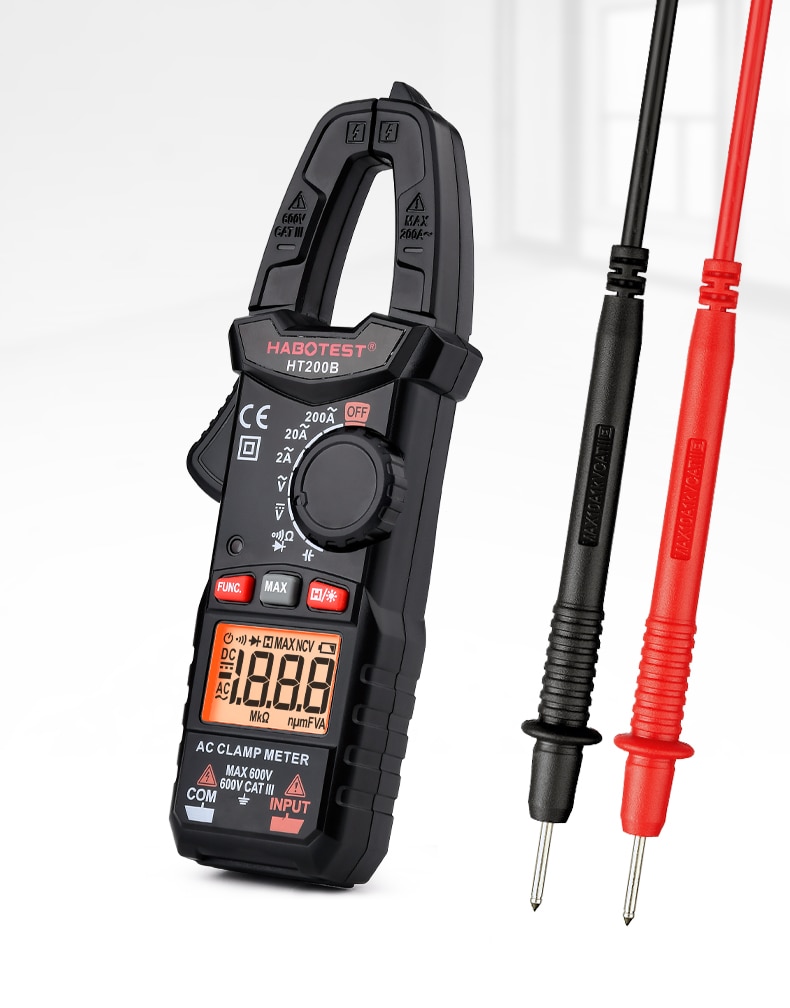

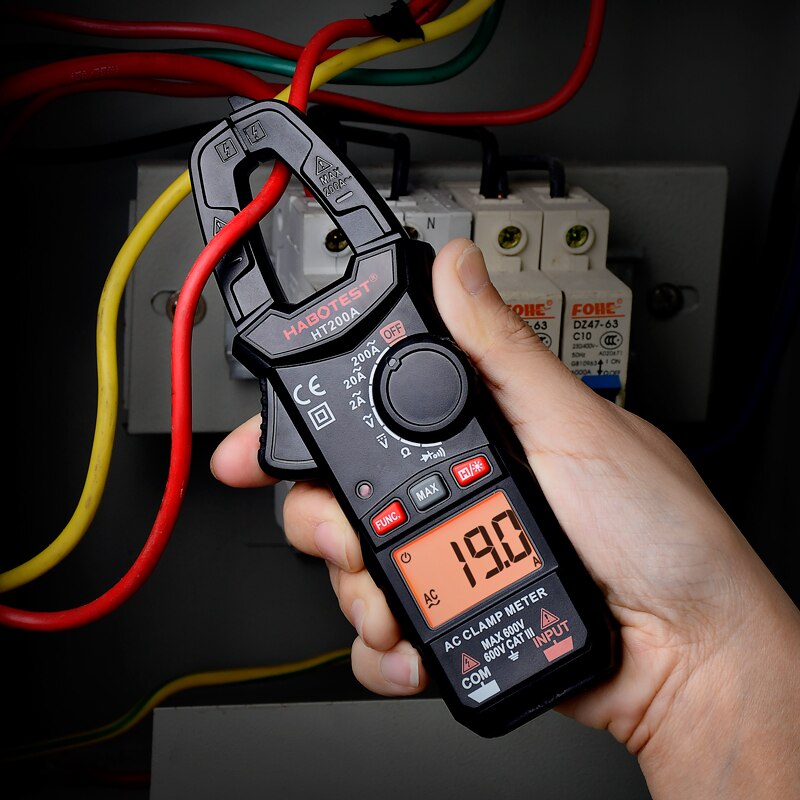

- Product Name: 2000 Counts AC Digital Clamp Meter
- Color: Black
- Voltage Range: AC/DC 0-600V
- Current Range: AC 0-200A
- Resistance Range: 0-20MΩ
- Capacitance Range: 0- 2mF HT200B Only
- Continuity: Yes (Sound and Light Alarm)
- Diode Test: Yes
- Data Hold: Yes
- True RMS: Yes

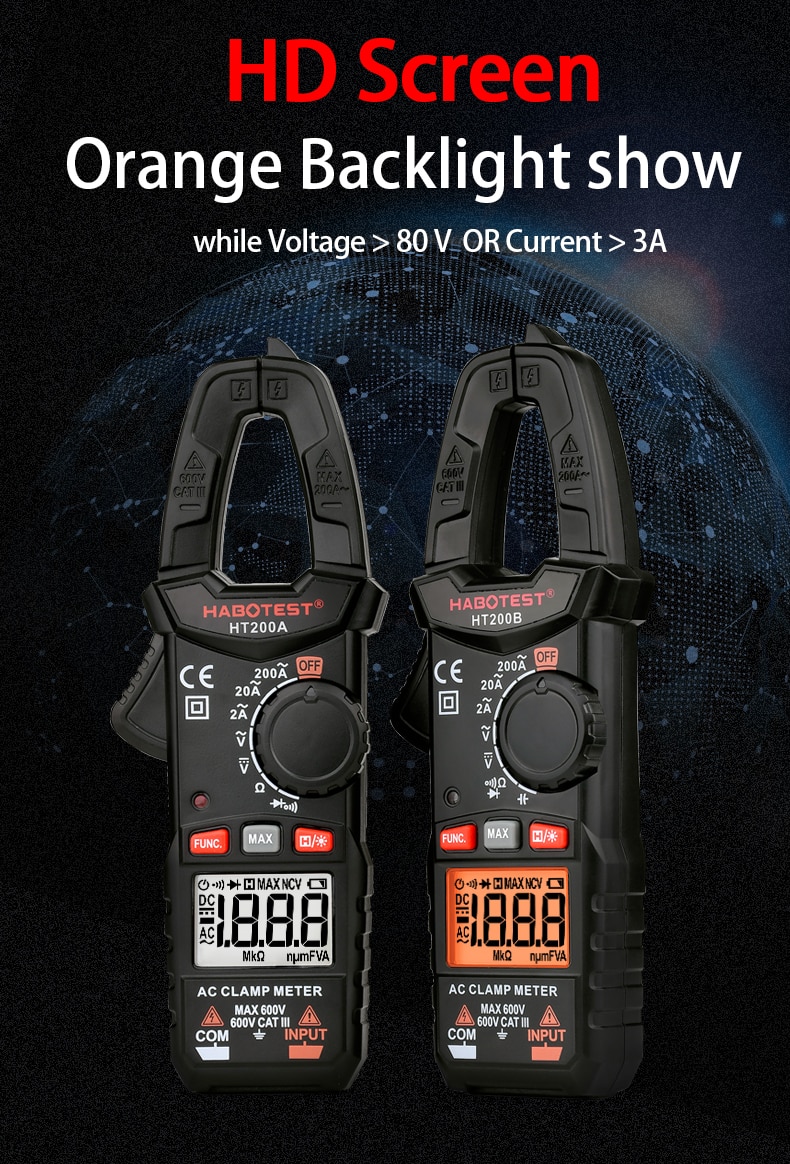

- Bicolor Backlight: Yes
- Low Battery Indication: Yes
- Auto Power Off: Yes
- MAX: Yes
- Size: 16.4*6.1*3cm
- Weight: Approx.150g

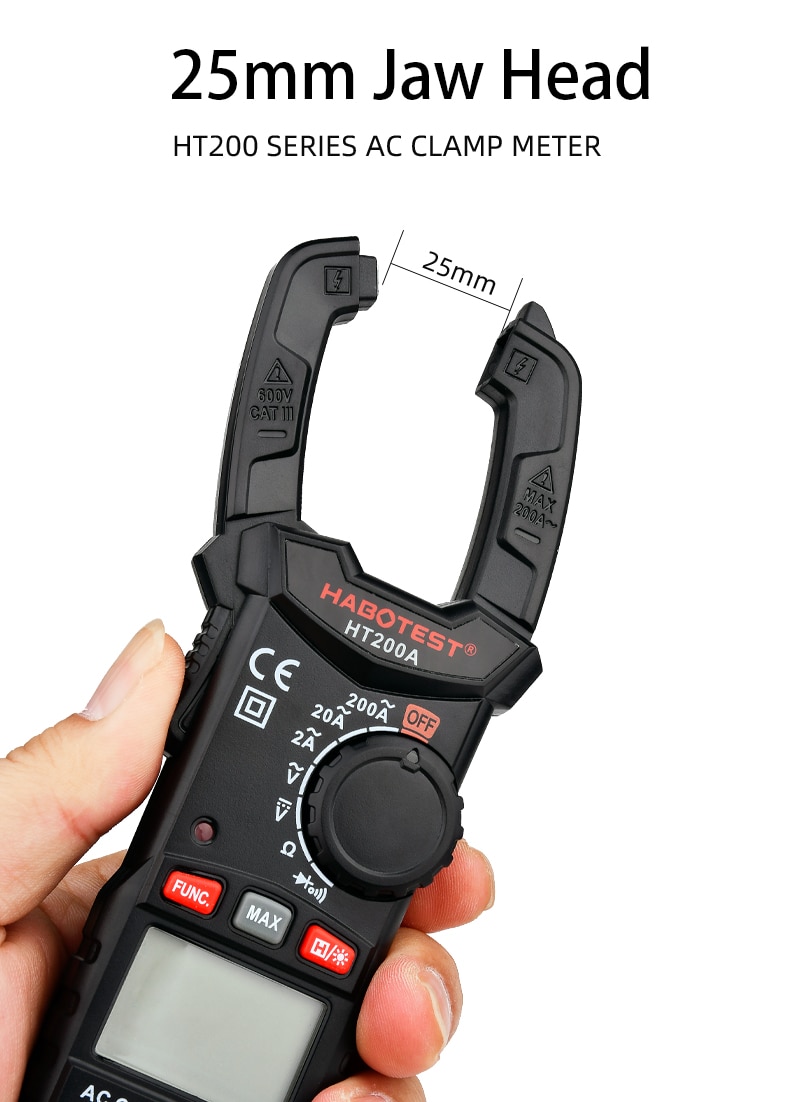

- Jaw Size: 18mm*36mm
- Power Supply: 2*AAA(1.5V) Batteries

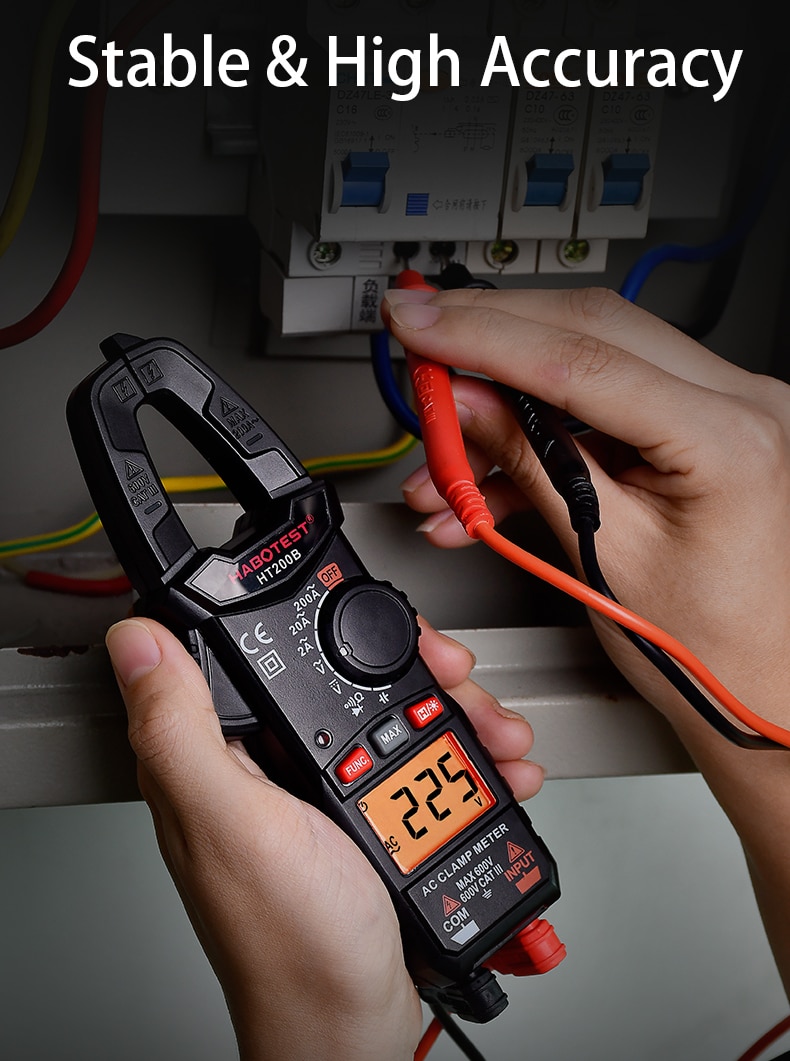

Technical Details

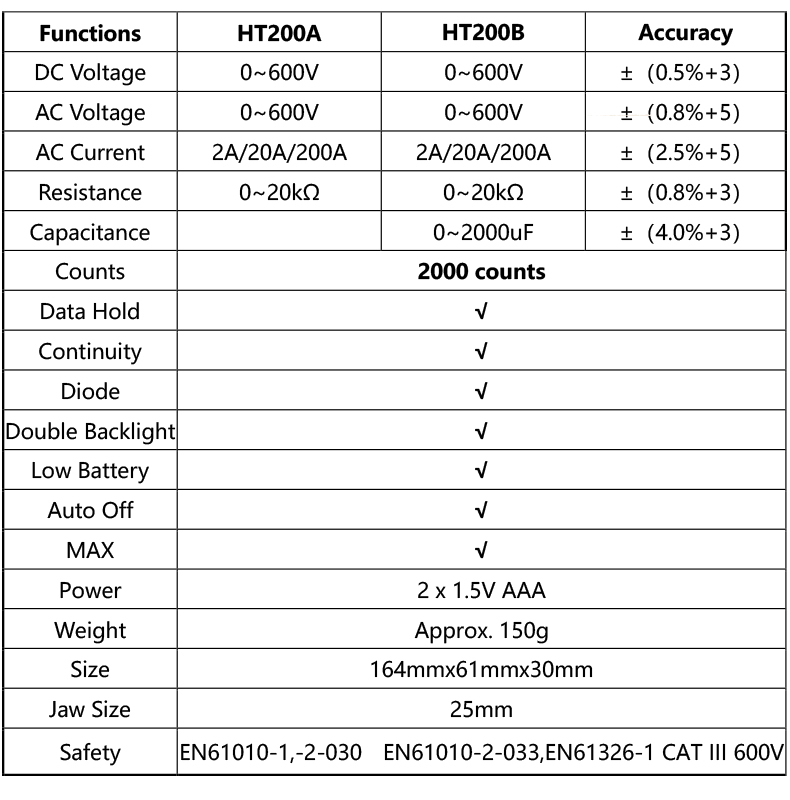

Specifications
DC Voltage:200mV/2V/20V/200V/600V
Accuracy:±（0.5%+5）
AC Voltage:2V/20V/200V/600V
Accuracy:±（1.0%+5）
AC Current:2A/20A/200A
Accuracy:±（2.5%+8）
Resistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ Accuracy:±（1.0%+5）

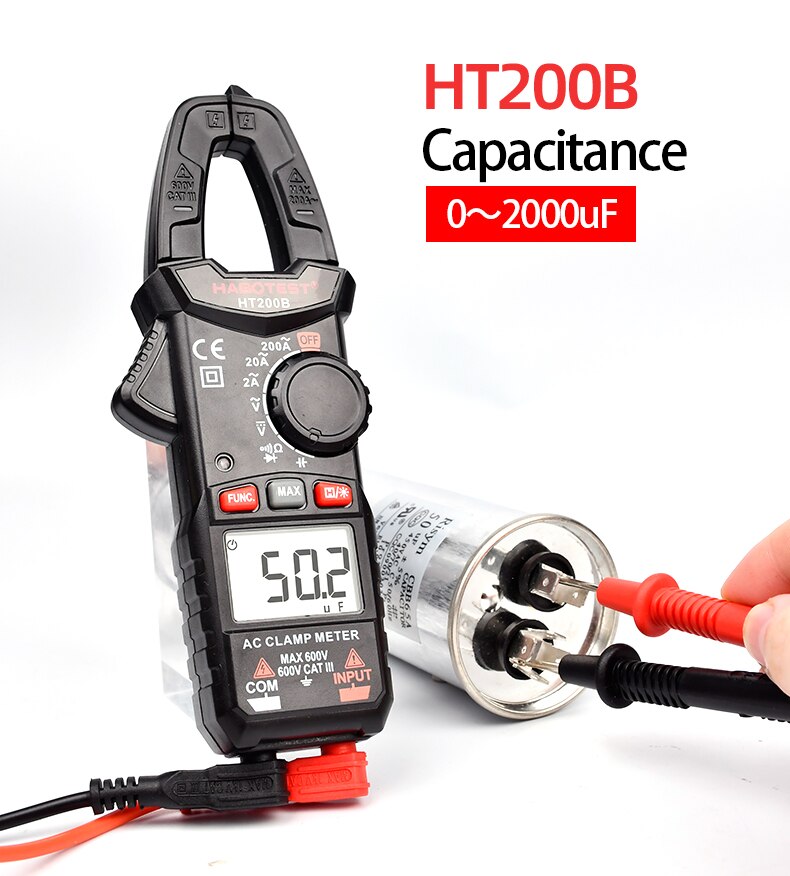

Capacitance:20nF/200nF/2uF/20uF/200uF/2mF
Accuracy:±（4.0%+5）
Only HT200B can measure Capacitance
Counts:2000 Counts
Continuity:Yes (Sound&Light Alarm)
Diode Test: Yes
Data Hold:Yes
True RMS: Yes
Bicolor Backlight: Yes
Low Battery Indication:Yes
Auto Power Off:Yes
MAX: Yes
Power:2*AAA(1.5V) Batteries
Weight: Approx.150g
Size:164mm*61mm*30mm
Jaw Size:18mm*36mm

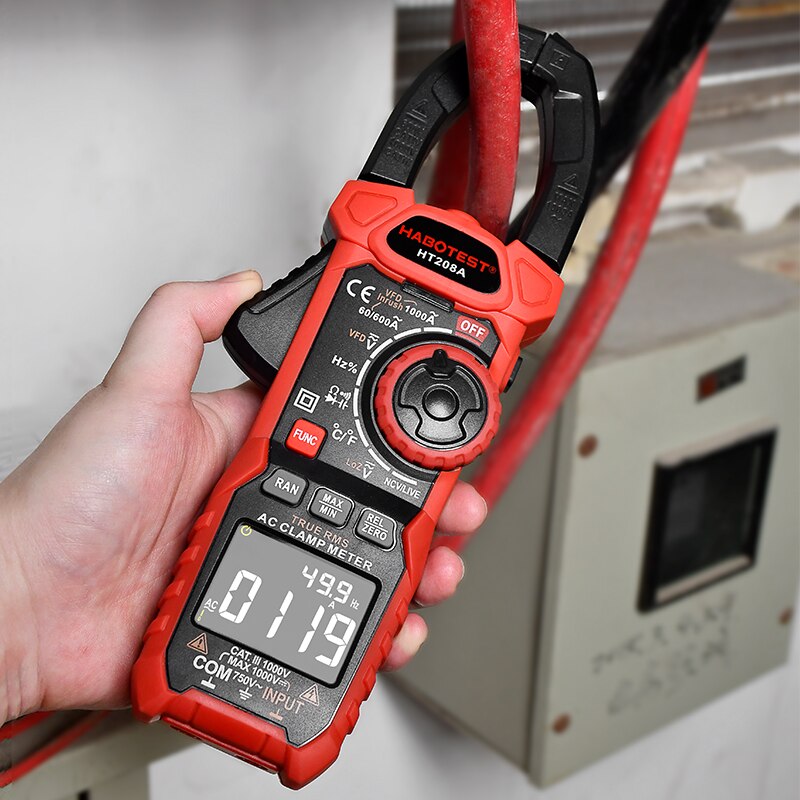

Technical Details Of HT208
Speicifications:
DC Voltage:600mV/6V/60V/600V/1000V
Accuracy:±（0.5%+3）
AC Voltage:600mV/6V/60V/600V/750V
Accuracy:±（0.8%+3）
AC Current: 60A/600A/1000A
Accuracy:±（2.5%+5）
DC Current:60A/600A/1000A (Only HT208D)
Accuracy:±（2.5%+5）
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ Accuracy:±（0.8%+3）
Capacitance:10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF Accuracy:±（3.0%+3）
Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz Accuracy:±（0.5%+5)
Duty:1%-99% Accuracy:±（1.0%+2）
Temperature:-40-1000℃/-40-1832℉
Accuracy:±（1.0%+2）
Counts:6000 Counts
Auto/,Manual Range: Yes
Functions:Continuity/Diode Test/Data Hold/NCV/Back light/Flashlight
DCA ZERO: Yes
Low Power Indication: Yes
Auto Power Off: Yes
True RMS:Yes
VFD:Yes
INRUSH:Yes
MAX/MIN:Yes
REL:Yes
LowZ:Yes
VA-LCD: Yes
Power Supply:3*AAA(1.5V) Batteries
Weight:Approx.380g
Size:240mm*85nn*47nn
Jaw Size:35mm*60mm

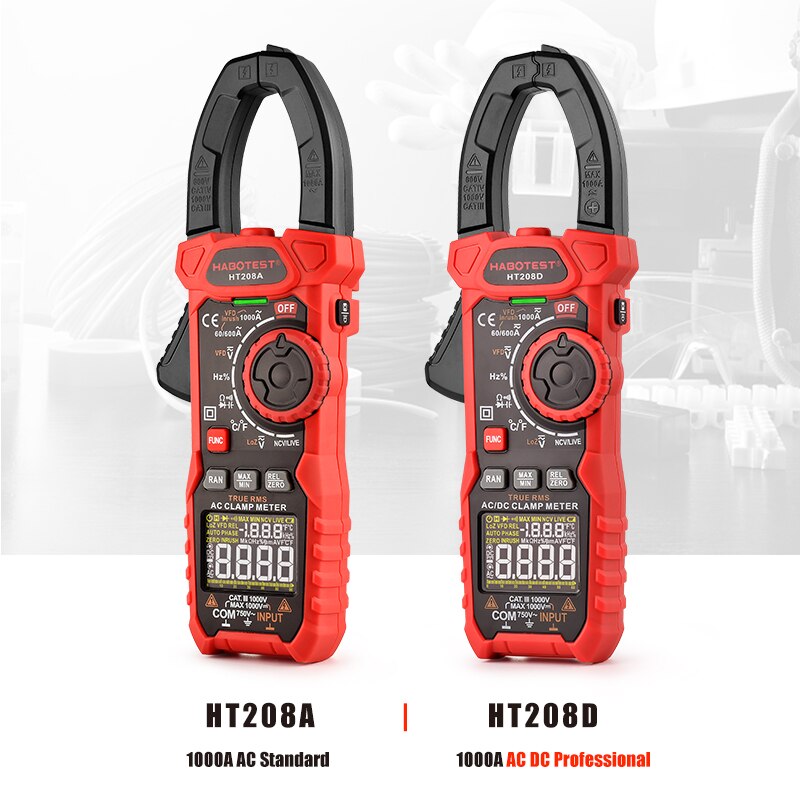

Big Clamp Digital Pliers Ammeter HT208 Series
