Description
- Brand Name: YOOCNC
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: Mini CNC Router 6040 with water tank
- CNC or Not: CNC
- Is Smart Device: NO
Mini CNC Router 6040 Engraving Drilling and Milling Machine with water tank

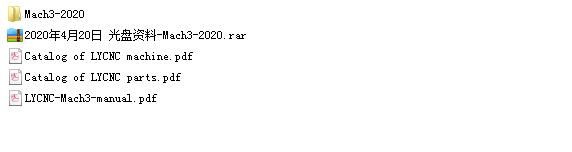

Package has CD , CD include detail english manual and software , it is very easy for operate the machine ,
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project
and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making,
PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

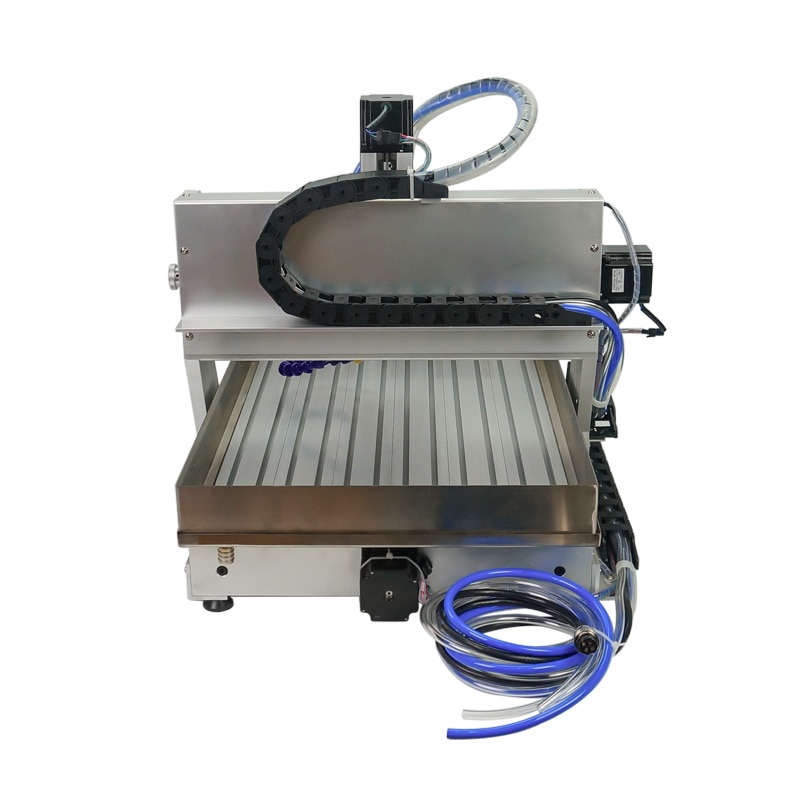

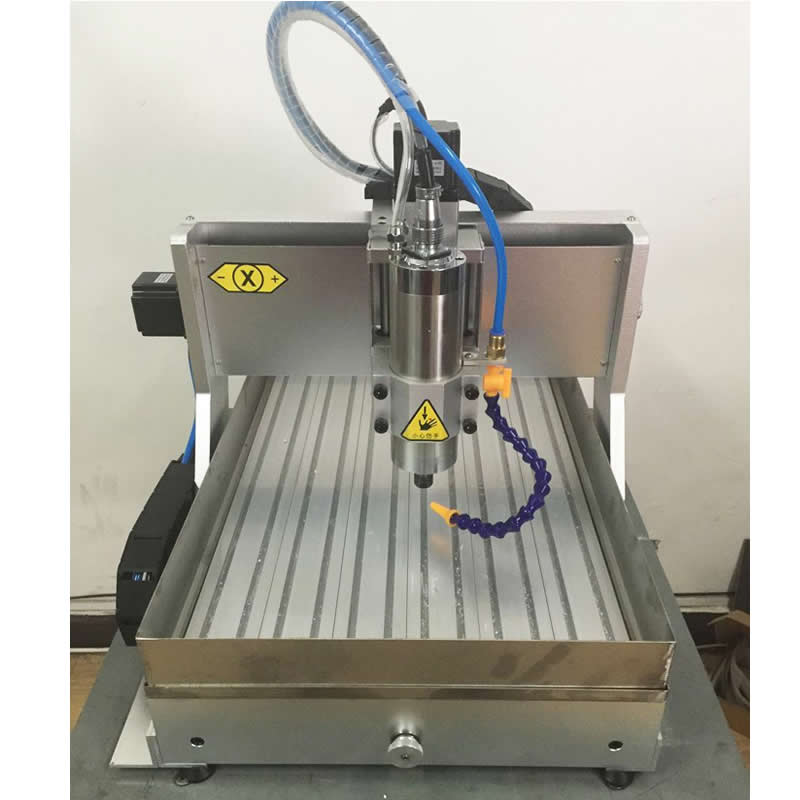

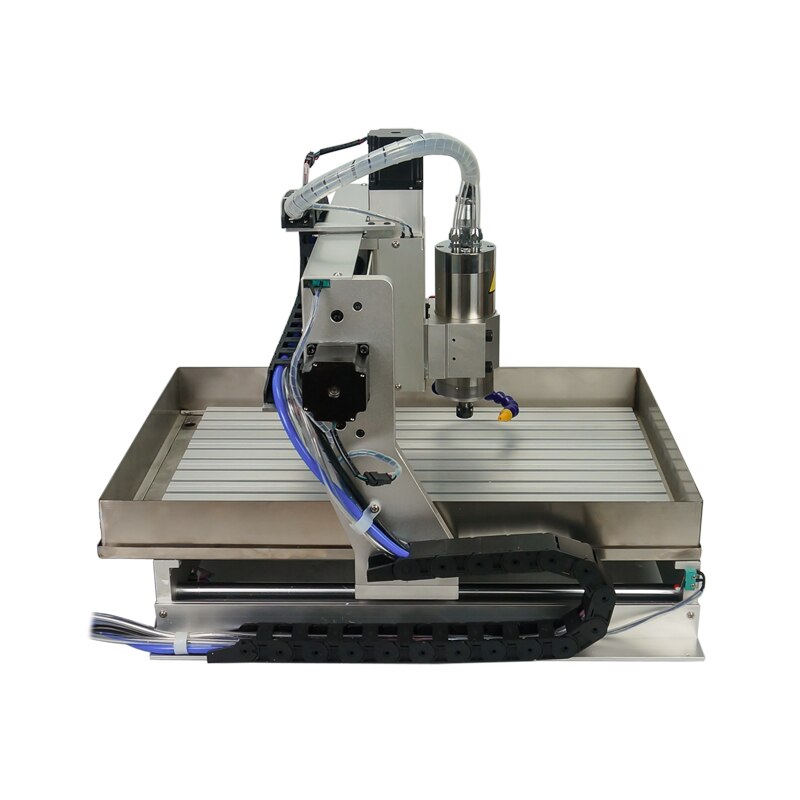

Water tank is the requisite for engraving jade and metal on engraver;
The tank is made of 304 stainless steel, stable and beautiful;
Features:
a. The water tank has integrated low frame which can be removed
b. The size and weight of the tank are as follows. The hole is mainly applicable to the LY brand engraving machine,
if you want to use other brands of engraving machines, you need to deal with it yourself;
c. The machine with installation of water tank , before shipment, has done a good deal of water leak-proof treatment.
If you just buy a water tank, you need install it yourself and do the water leak-proof treatment;
Model and Technical Parameters
MODEL |
6040 with water tank |
||||
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|

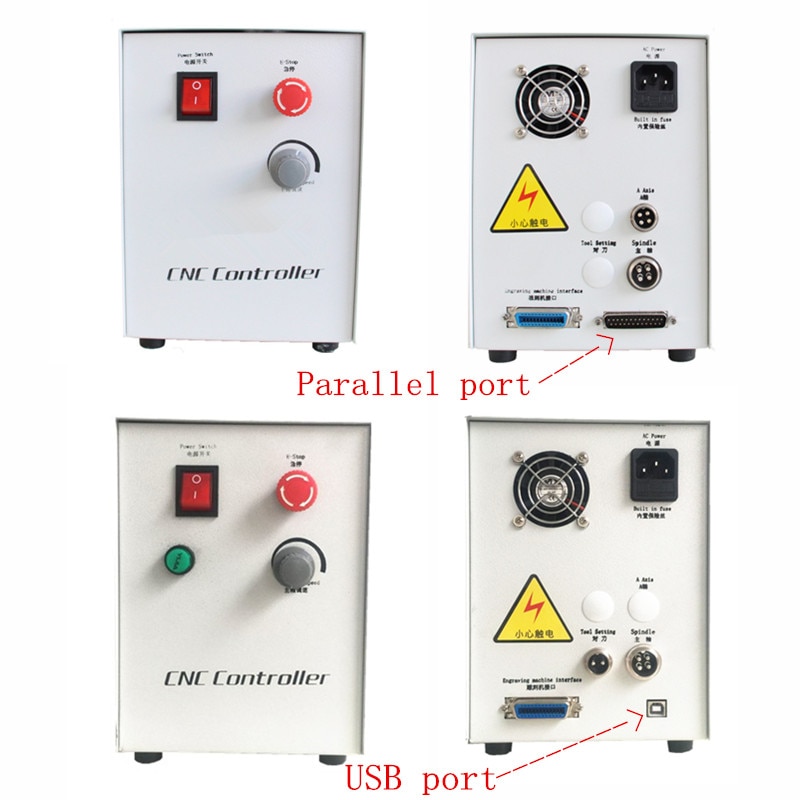

Interface |
LPT port |
USB port |
LPT port |
USB port |
|

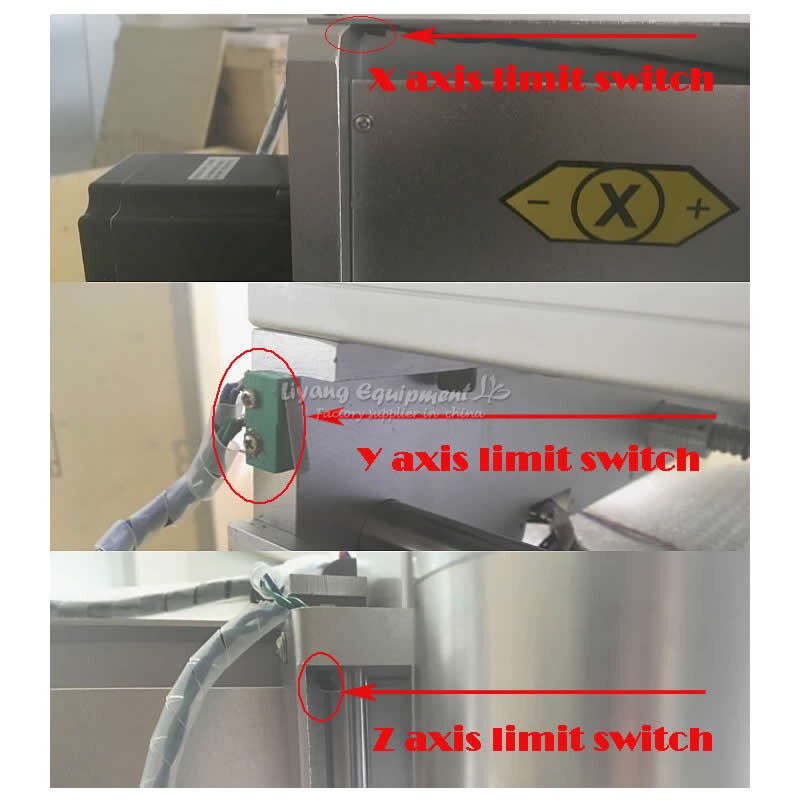

Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
|
Spindle Motor: |
1.5KW/2.2KW |
1.5/2.2KW |
1.5/2.2KW |
1.5/2.2KW |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
60 |
60 |
66 |
66 |
|
Machine Dimensions: |
810X640X480mm |
||||
Rack material: |
6061 and 6063 Hard aluminum alloy |
||||

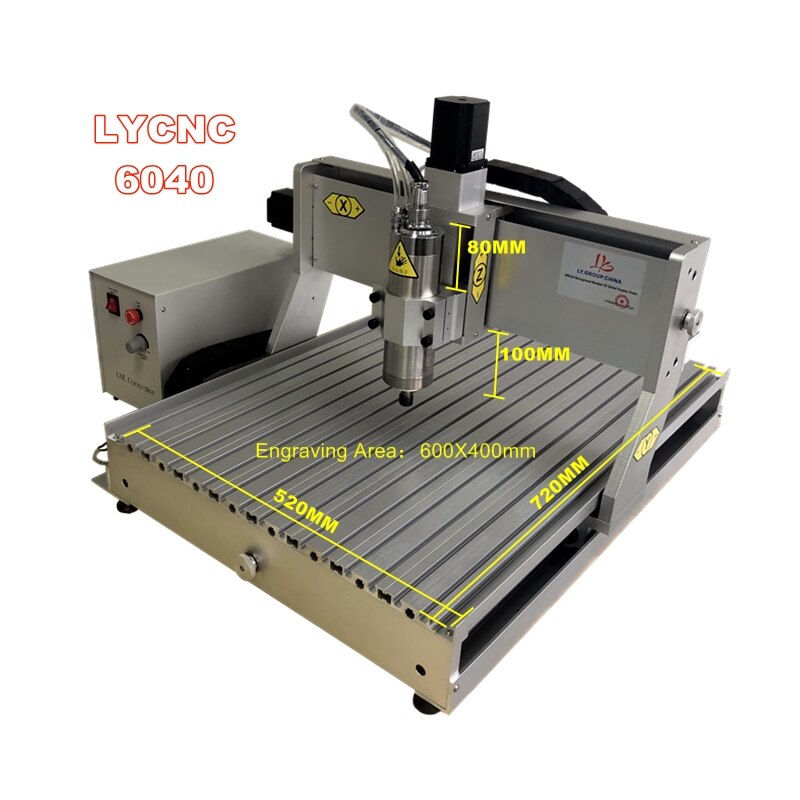

Engraving area: |
600X400mm |
||||
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
||||
Acceptable material thickness: |
≤100mm |
||||
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
||||
Type of screw: |
Ball screw 1605, Pitch 4mm |
||||
Spindle motor: |
1.5KW/2.2KWVFD water cooling spindle , 0-24000r/min |
||||
Collet type: |
1.5KW ER11/2.2KW ER20,1/8″(3.175mm) Collet |
||||
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
||||
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
||||
Repeat positioning Accuracy: |
0.03mm |
||||
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
||||
Command code: |
G code/.nc/.ncc/.tab/.txt |
||||

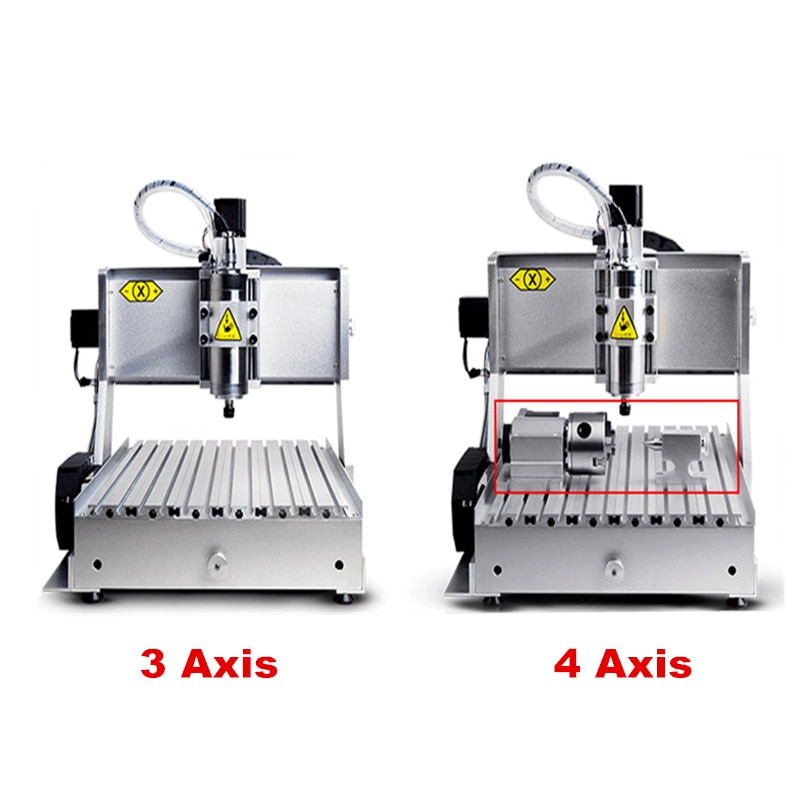

Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
