Mini CNC Laser Router Engraving Machine DIY CNC 3018 Pro MAX GRBL Offline Controller 1000mW 2500mW 5500mW 7W 10W 15w Module

$621.88$1,276.03

SKU: 1005001633972044 Category:

Description

  • Brand Name: Nakupenda
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 3018Pro-M
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Rated Power(W): 100W
  • Certification: CE
  • Working area: 300 mm*180 mm*45 mm
  • Type of screw: Ball screw
  • Spindle Collet type: ER-11 1-7mm
  • Spindle: Air Cooling Spindle
  • Spindle power: 80W
  • Type: DIY CNC router Laser

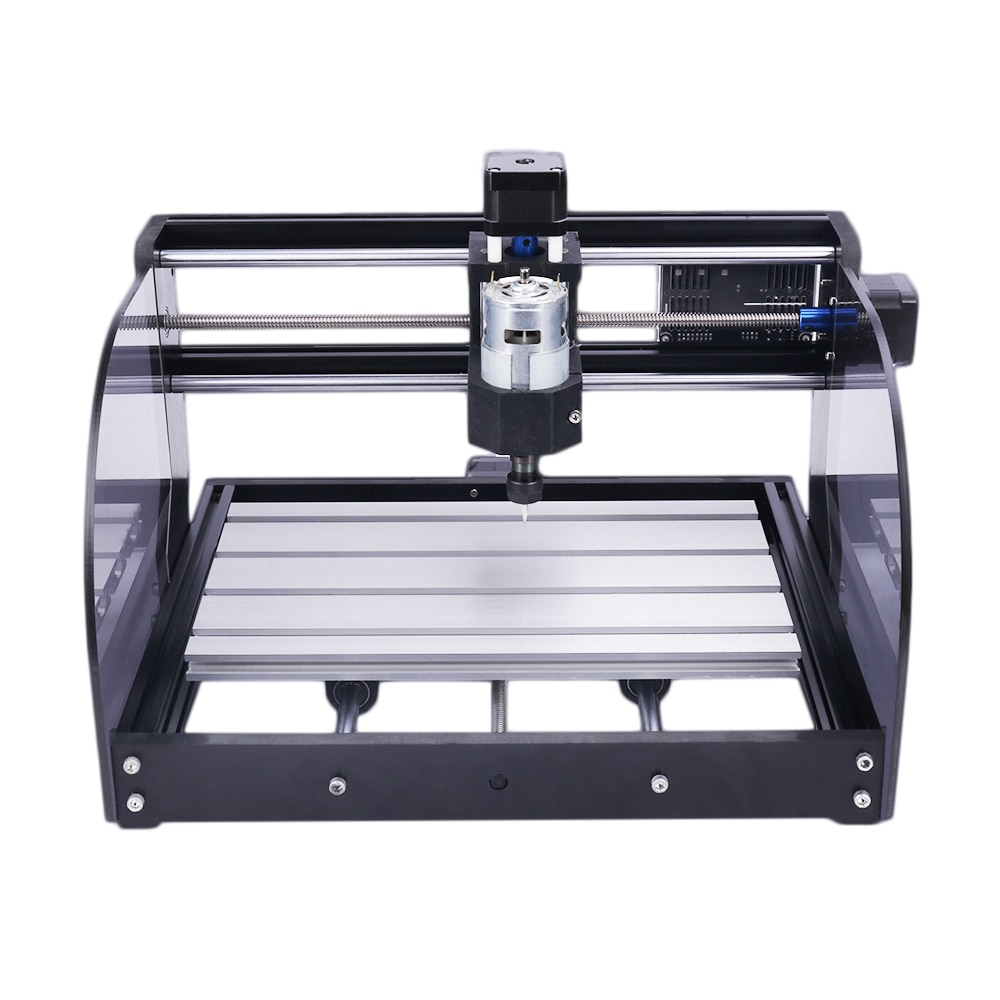

DIY CNC 3018 Pro MAX Mini CNC Laser Router Engraving Machine with GRBL Offline Controller 1000mW 2500mW 5500mW 7W 10W 15W Module

Upgraded
  • Control board:Three-axis drive, dual Y-axis
  • Laser:Support offline laser output 3P, Support PWM TTL function
  • PVC Frame: Durable, beautiful appearance, high precision and long life

Control Software GRBL,LaserEngraver,EngraverMaster etc
Construction Aluminum + BAKELITE
Working area 300x180x45mm
Frame size 400x330x240mm
Input voltage AC 100V-240V,50 / 60Hz (EU/US Plug Available)
Output 24V 5A
Spindle 775 spindle motor,24V 10000 rpm
Stepper motor 1.3A 0.25N.m
System support Windows XP / Win 7 / Win 8 / Win10
Collet ER11, default size 3.175mm
Drill bits Diameter: 3.175mm  tip: 0.1mm  length: 30mm
Laser (option) 1000mW 2500mW 5500mW 7W 10W 15W

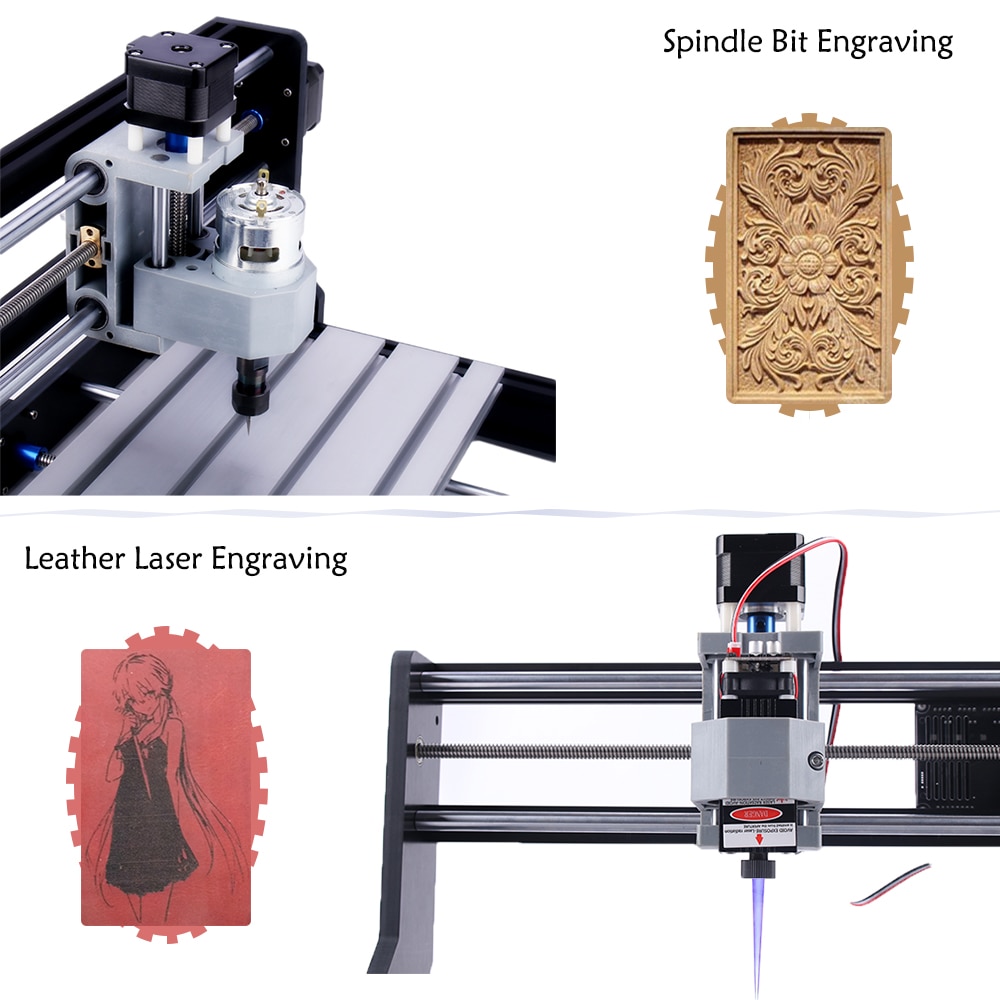

Applications

1. Three-axis CNC engraving: wood, plastic, PCB, acrylic, plywood, etc.

2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.


Warranty service

One-year’s warranty,all your after-sales problems under protection.

15-day’s part free warranty,any parts damaged within 15 days after receiving the product will be replaced.

413814

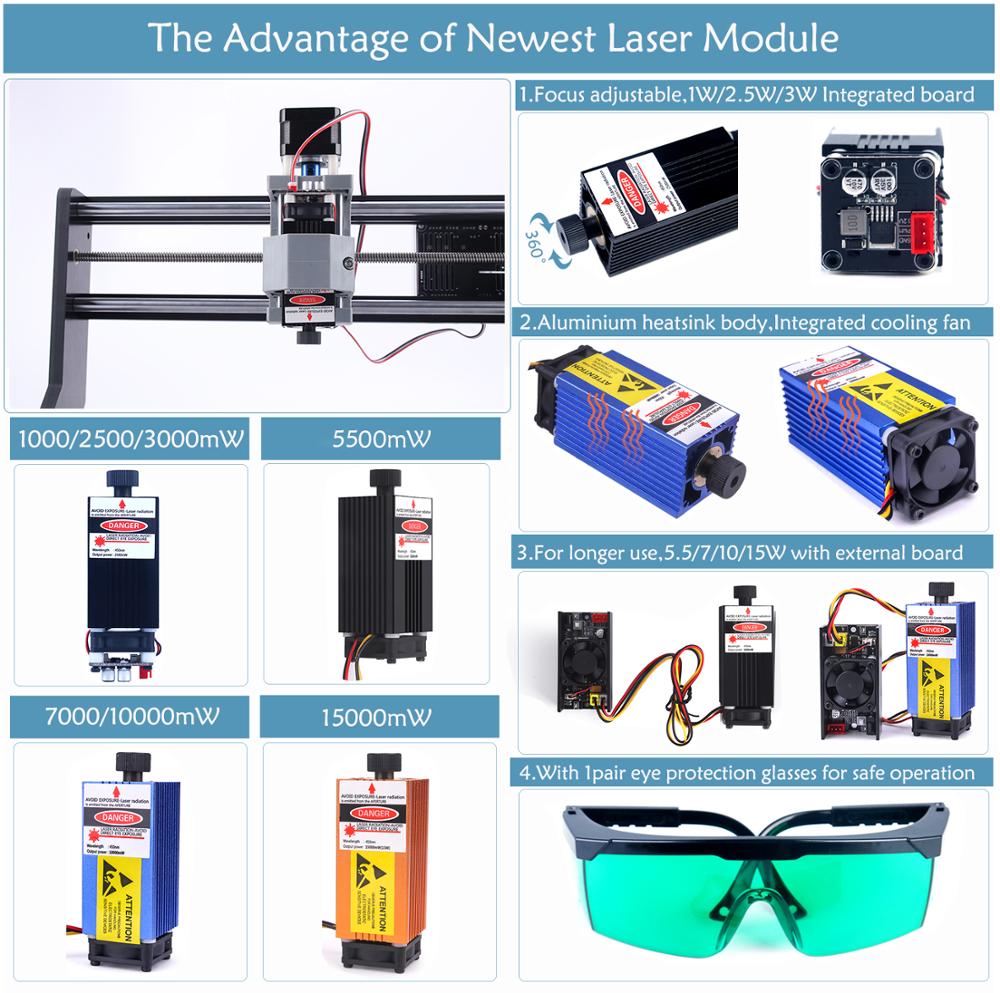

  • Upgraded 1000mW/ 2500mW/ 5500mW / 7000mW/ 10W/ 15W Laser
  • Upgraded Blue-violet laser module, which is 33mm, 3P connection, supports PWM/TTL, power 0-100% adjustable.
  • Laser wavelength: 445nm-450nm blue laser
  • Drive mode: external ACC constant current drive
  • Cooling method: forced air cooling
  • Operating voltage: 12V  DC
  • Control interface: 2 * 2.54 (TTL control switch, PWM control power)
  • Shell material: aluminum, surface anodized

laser heads specifications321

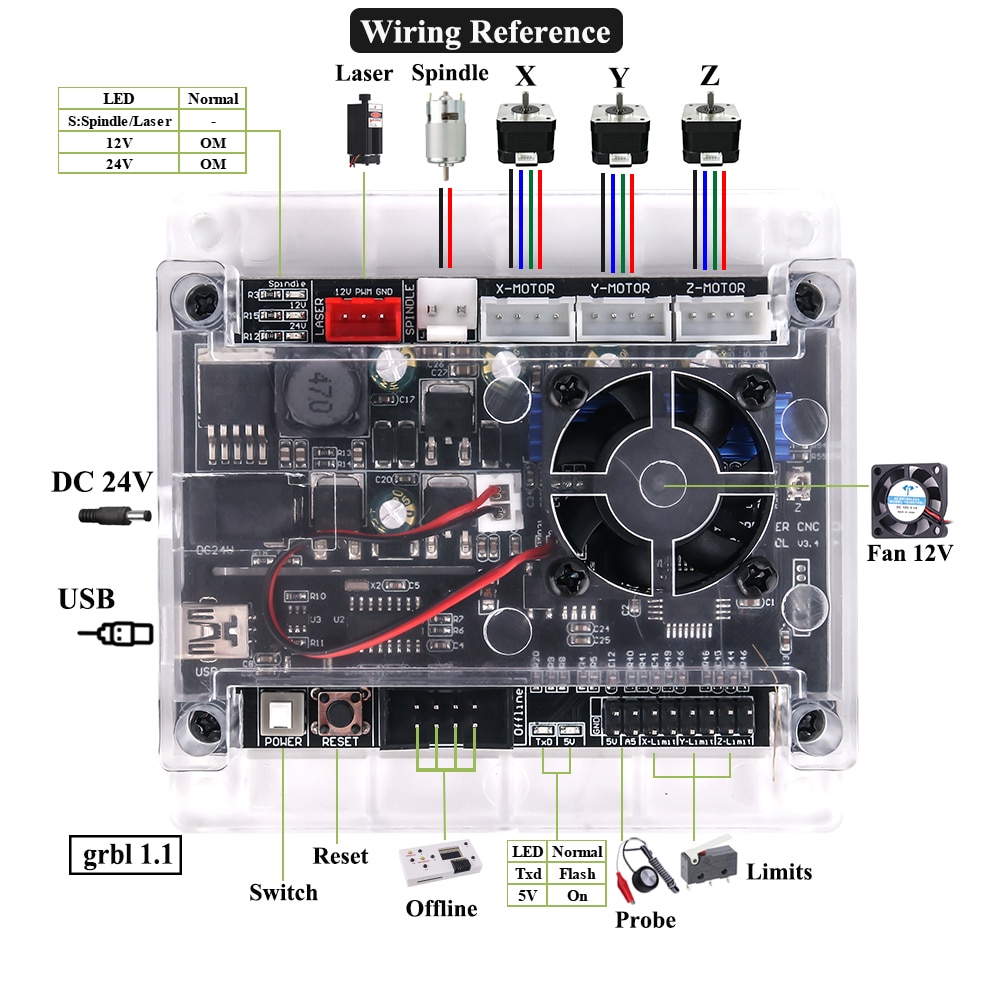

The advantages of Upgraded Control Board

1. Upgraded A4988 step motor drivers with heat sink and GRBL1.1f firmware of control board, stable performance, overcurrent protection to avoid damage.

2. Upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving.

3. Improved power interface: the original plastic interface changed to all metal shielded interface.

4. USB interface: plug-in type, very strong(The old USB interface is patch soldering, collision and improper use easy to drop.)

5. Improved spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.

5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.

6. 12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.

7. Optimize the layout, the control area is separated from the drive area, and the operation is more stable.

8.Added heat sink to avoid burning the control board or the offline controller

O1CN01jVcvXU2AFk3brFe0A_!!1391681745

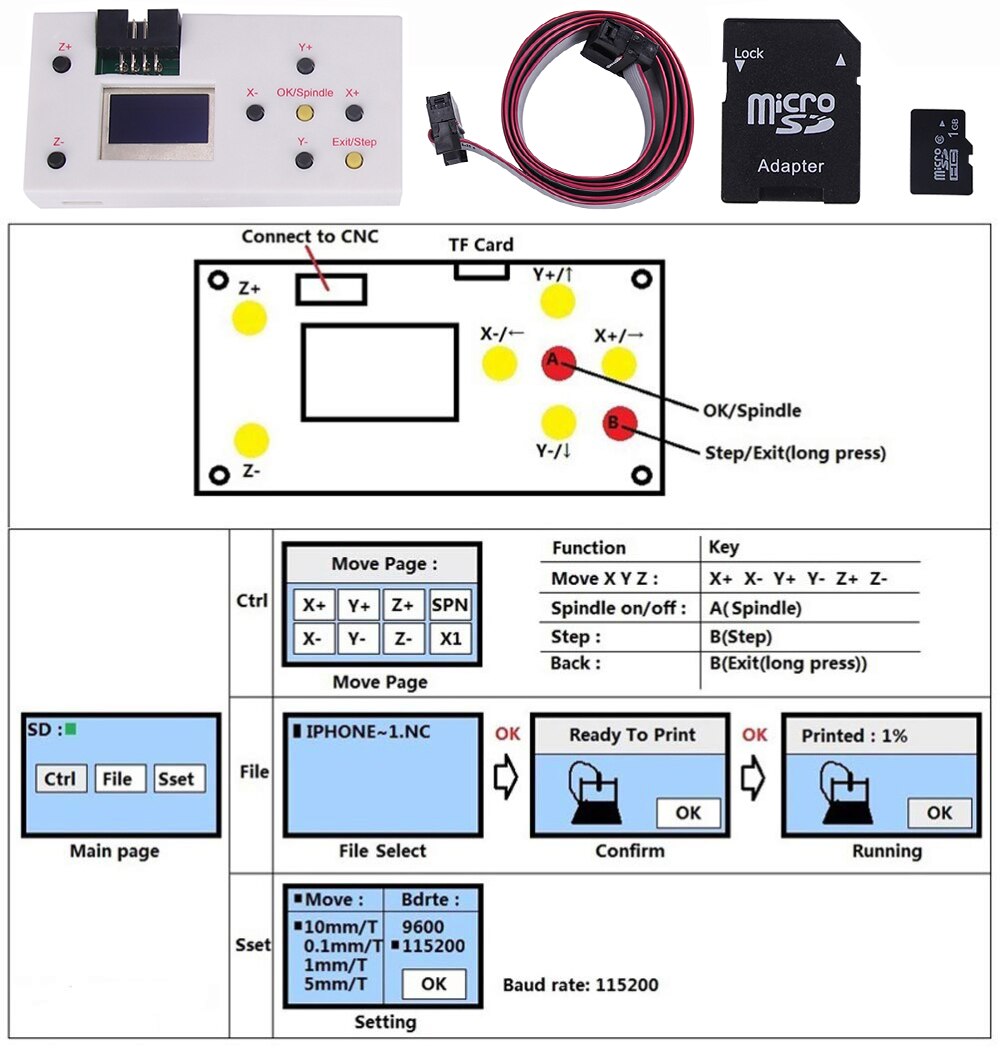

Offline controller : LCD screen with installed 1GB large SD card
10



About software and instructions

  • A 4GB USB Flash Drive includes software and installation instructions along with the package.
  • You can also download from our Web Cloud Disk(We’ll send you after shipment).
  • Or tell me your email address, we’ll send you the software and installation instructions.

             (22)
             (23)

Brief introduction



A. What area it can used for?

CNC 3018 router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.



B. What materials it can used for?

It can work for Wood, acrylic,plastic,Jade, PCB ,PVC Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.



C. Samples

Shipping Methods:



1. 1)Express(door to door):DHL/UPS/Fedex/TNT etc.

    2)Air/Sea Shipment: Please provide us your air port information.

2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.

3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days     will be needed for some remote place.



Shipment Time:



1. For samples within 1-3 workdays

2. Wholesales Orders : 2-5 workdays according to different quantities

3. OEM orders:7-10 days after receiving your sample confirmation and payment.



Problem and Feedback:



Please contact us first when you have problem

Give us the opportunity to resolve any problem

We will try our best to help you to solve the problem.



Your satisfaction is very important for our store,

So please contact us before you want to leave a negative feedback.

Thanks very much in advance.



Refund:



If you are not satisfied with our package like the products is damage,

Please  contact us immediately,well help you r refund if its our mistake .

If it is possible, please take some photos or make a small video about it. It will help us to solve the problems
