Description
Products Description
|

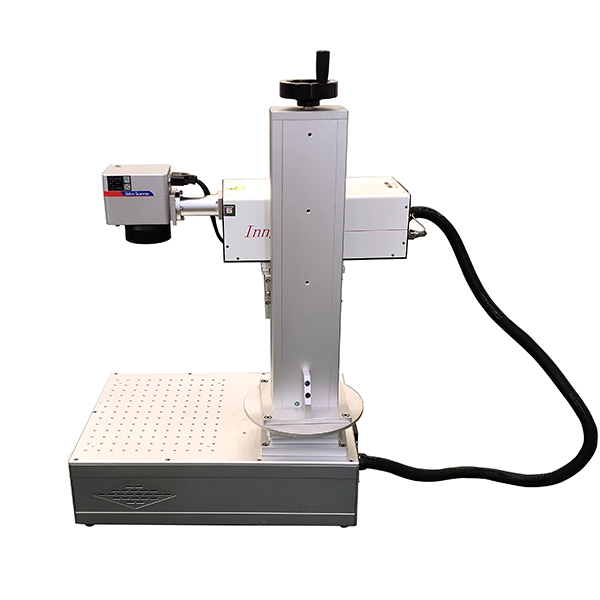

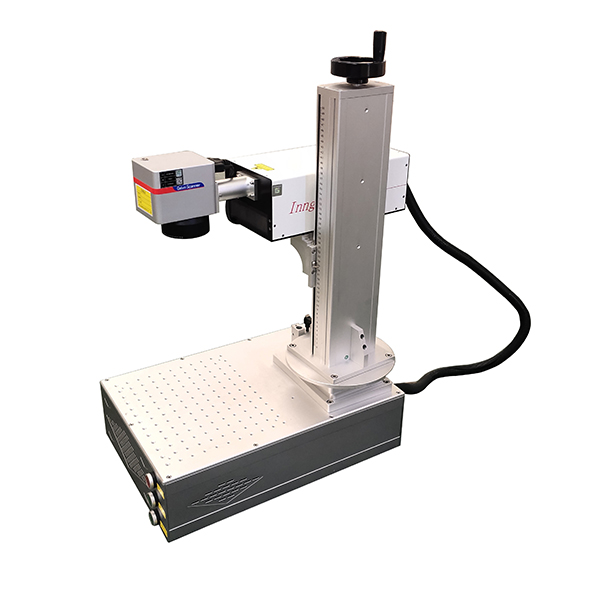

3W 5W 8W 10W 355nm UV Laser Marking Machine for Plastic
Product Application
Electrical components,integrated chips,electric appliance ,communication equipments,tools,precision machinery,glass frames,clocks and watches accessories,automotive accessories,fake proof,marking ,plastic buttons,construction material,packaging,PVC pipes and medical instrument processing and manufacturing |
||||||||
Product Paramenters
|
Product Name
|
UV Laser marking machine
|
||||||
|
Machine power
|
3w/5w/10w(Optional)
|
||||||
|
Marking speed
|
8000mm/s
|
||||||
|
Marking area
|
110*110mm / 175*175mm / 200*200mm / 300*300mm
|
||||||
|
Wavelength
|
355nm
|
||||||
|
Pulse repetition rate
|
20–200KHZ
|
||||||
|
Pulse width
|
<20ns@30KHz
|
||||||
|
Average power stability
|
<±2% over 23 hours
|
||||||
|
Graphic format
|
AI ,PLT ,BMP,JGP,PNG,DXF, etc.
|
||||||
|
Marking depth
|
0.5mm
|
||||||
|
Beam divergence
|
<2mrad(full angle)
|
||||||
|
Beam diameter
|
0.6±0.1mm
|
||||||
|
Cooling method
|
Air-cooling
|
||||||
|
Relative humidity
|
10%-80%(non-condensing)
|
||||||
|
Warm-up time(mins)
|
<10
|
||||||
|
Operating voltage
|
110V/220V(Optional)
|
||||||
Product configuration
|
Main Features of UV Laser Marking Machine
1.Ultraviolet lasers have the advantage of limiting thermal stress that other lasers do not.This is because most uv laser systems 2.By using a process sometimes called “cold ablation”, the laser beam produces a reduced thermal impact zone that minimizes the 3.The ultraviolet laser beam can be 10-20 degrees Celsius |
||||||||
Sample
