Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- CNC or Not: CNC
- Is Smart Device: NO
- Model Number: Mini 3000mW Engraving Machine
- Working Voltage: DC 12V
- Laser Power: 3000mW
- Engraving Area: 65x50cm(maximum)
- Material: stainless steel and acrylic

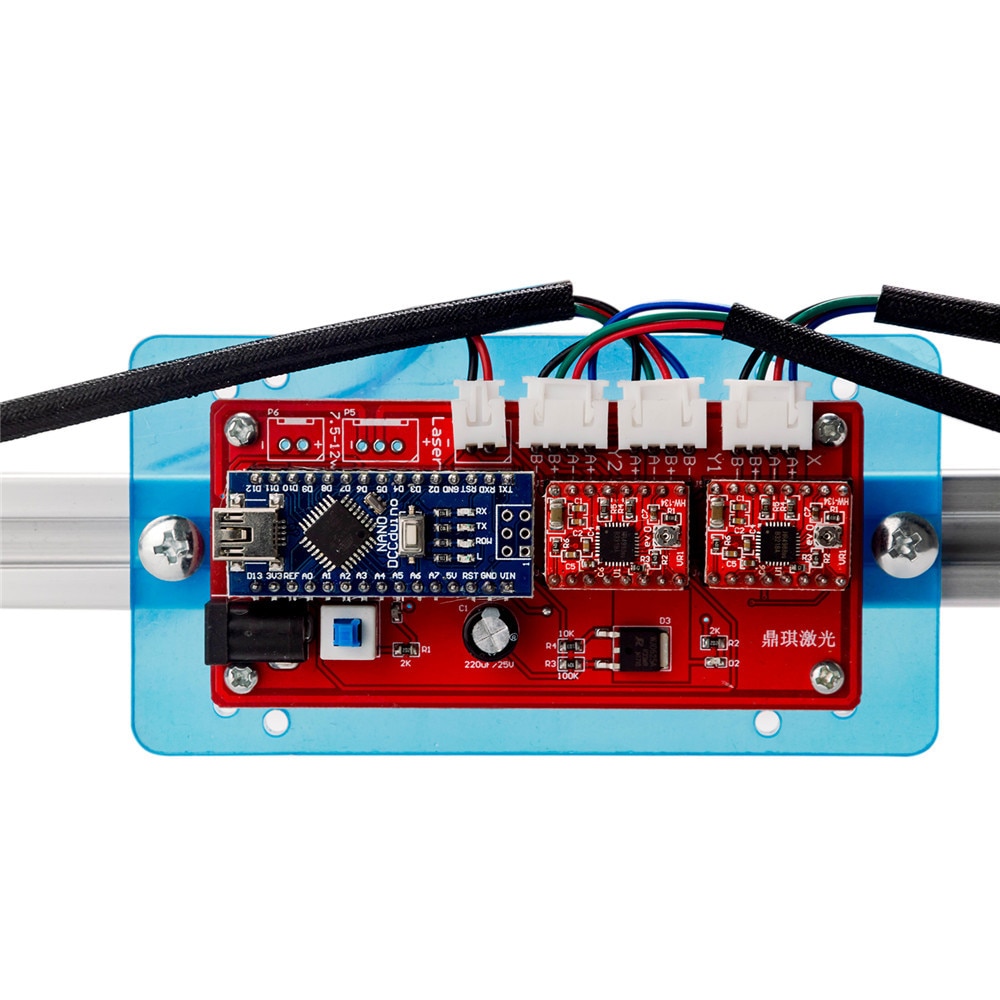

- Axis: 2Axis control board
Description:

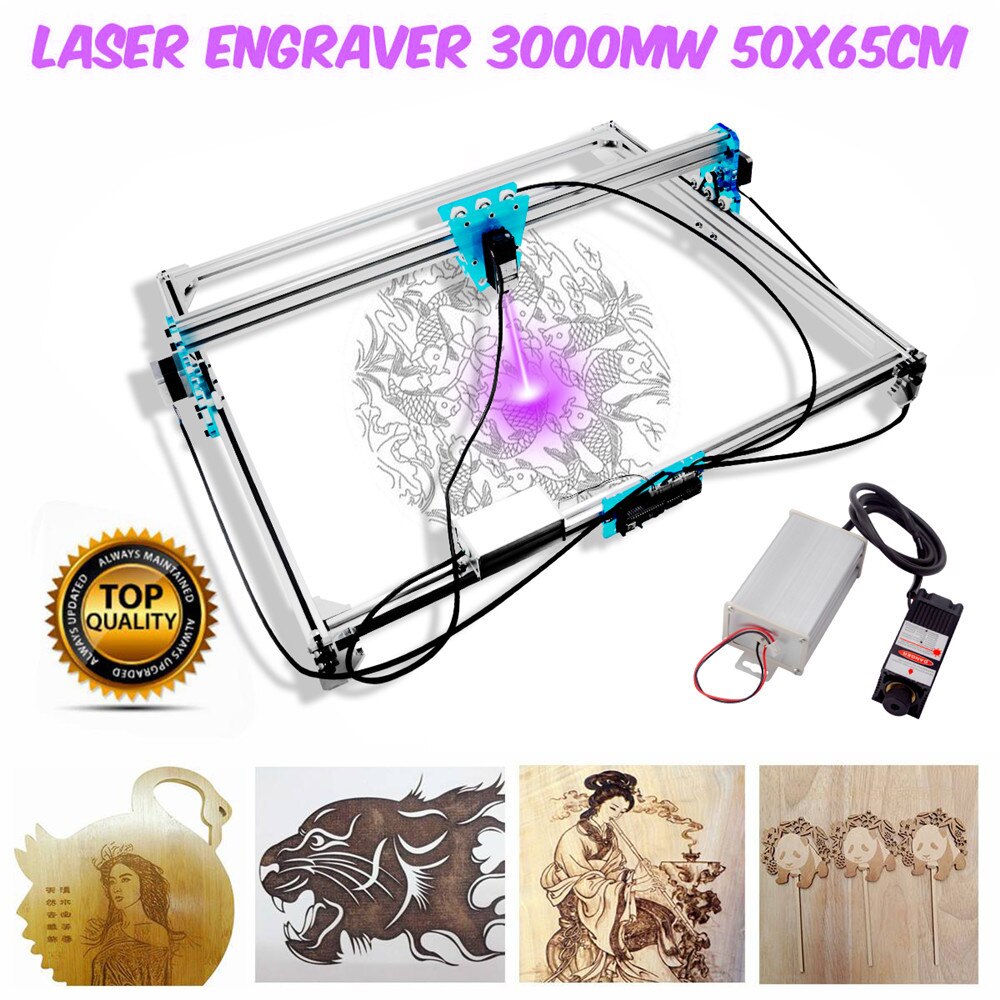

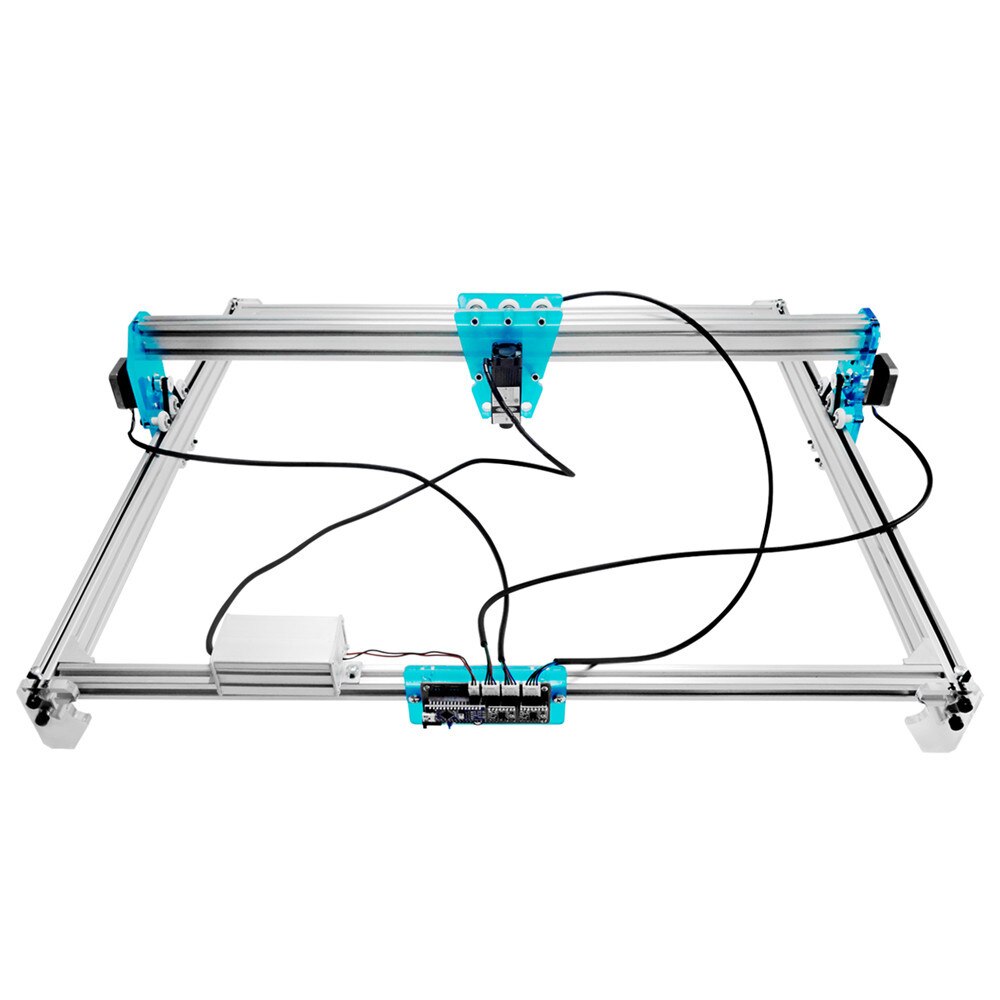

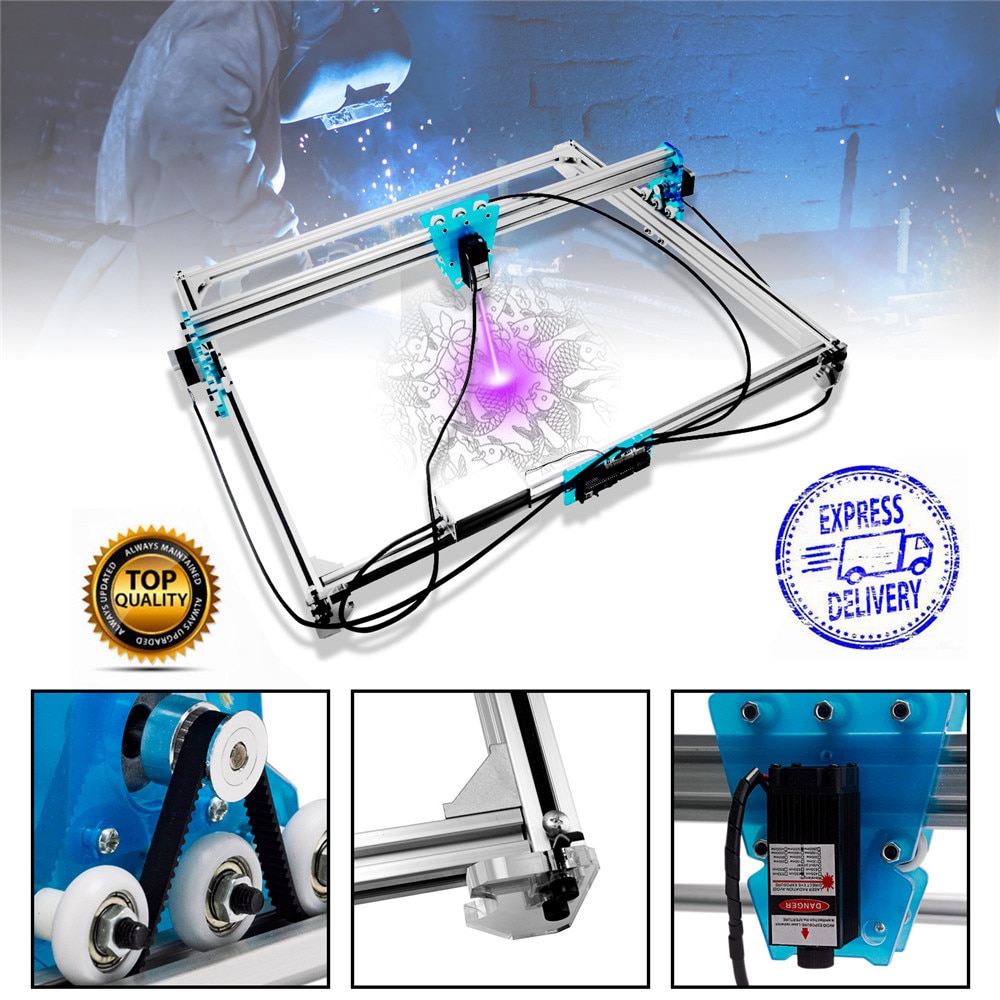

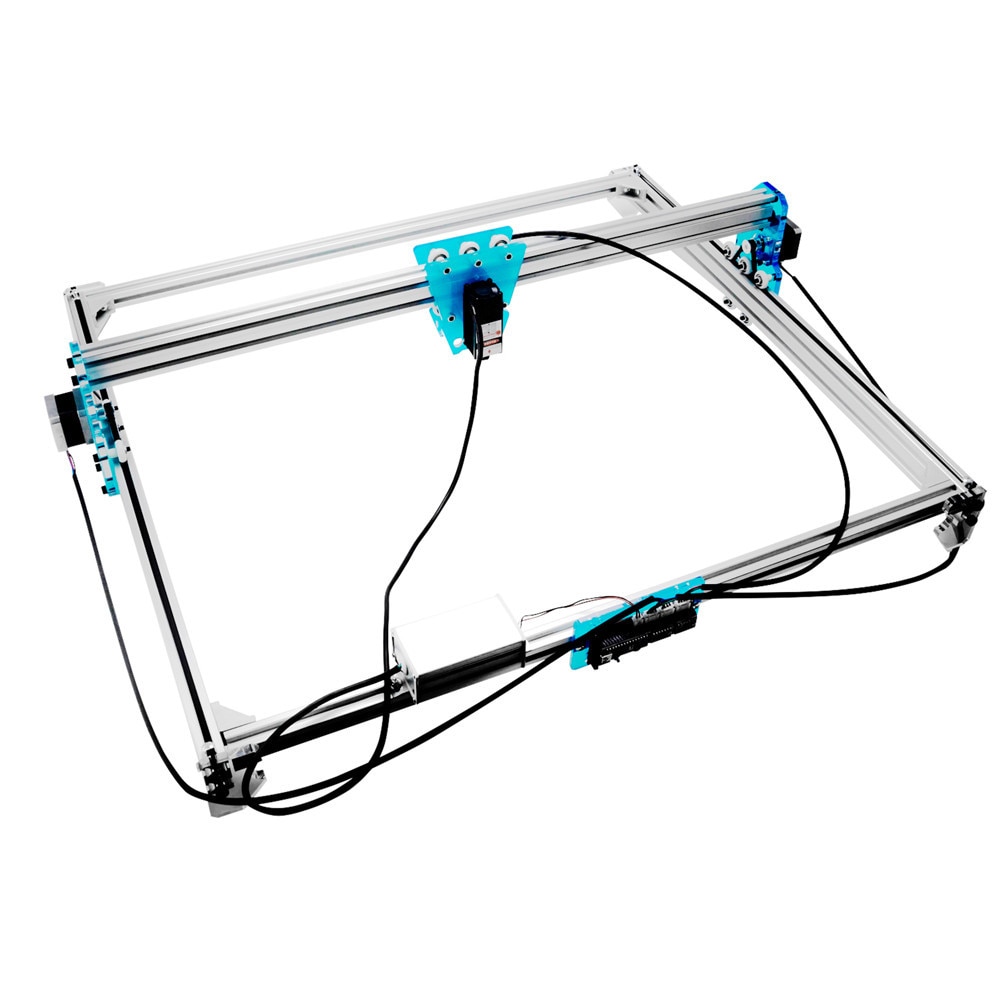

This 3000mW DIY desktop blue laser engraving machine is ideal for amateur laser engraving usage with grayscale printing,low-light positioning and freedom positioning functions.It only need you to connect it to the computer,then you can print any pictures your like with your own creativity.
Specifications:
Material:stainless steel and acrylic
Working Voltage:DC 12V
Laser Power:3000mW

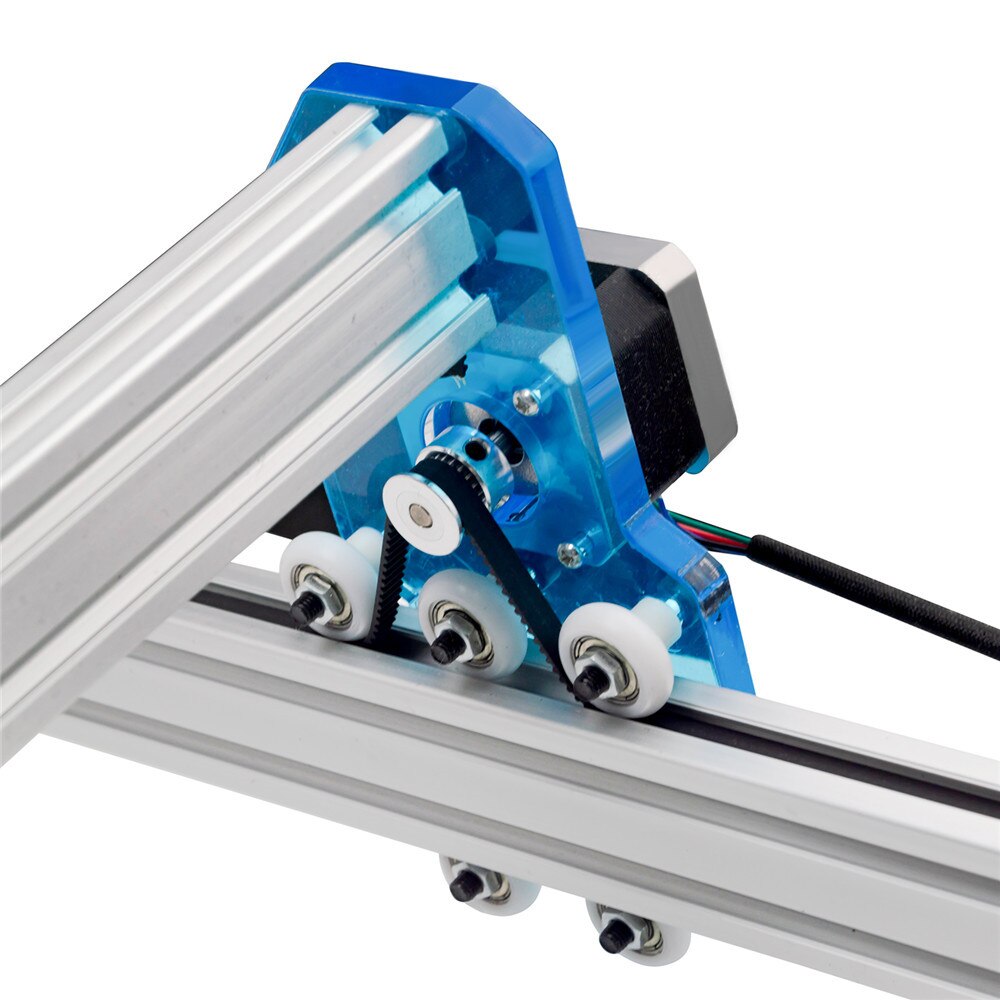

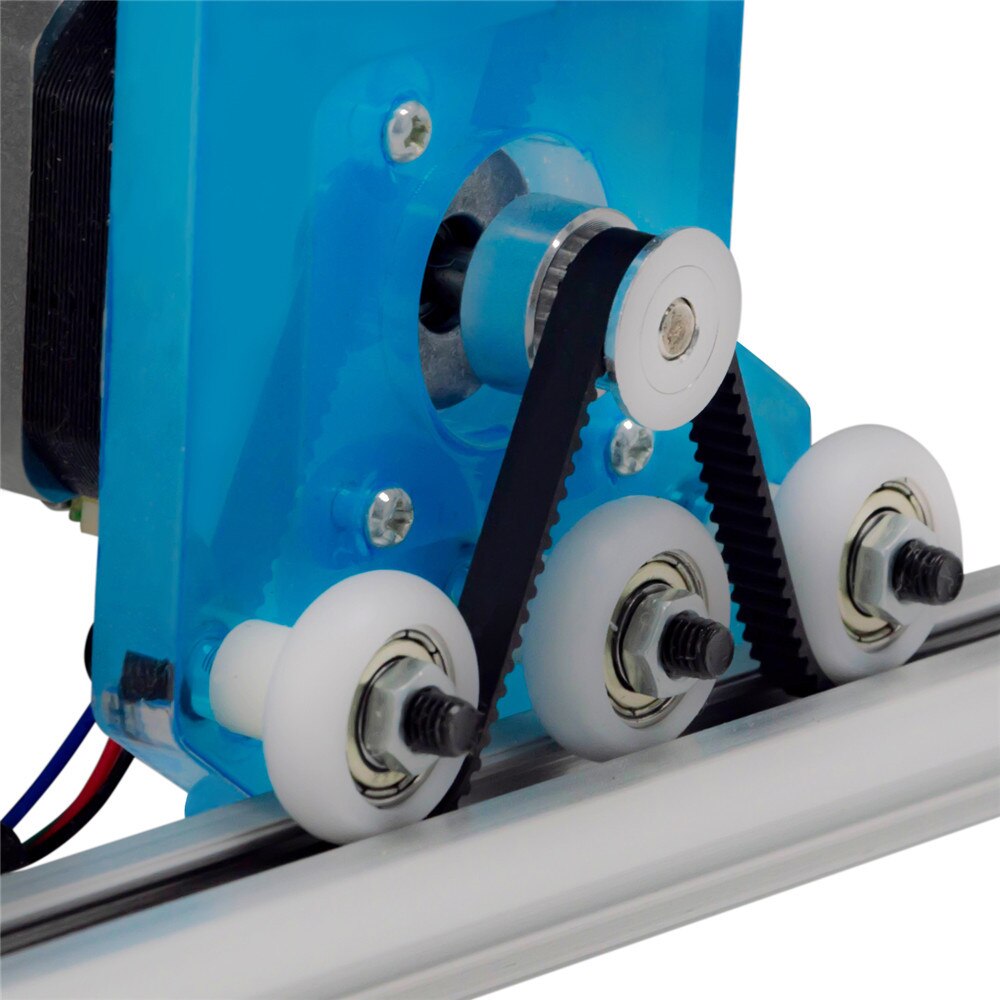

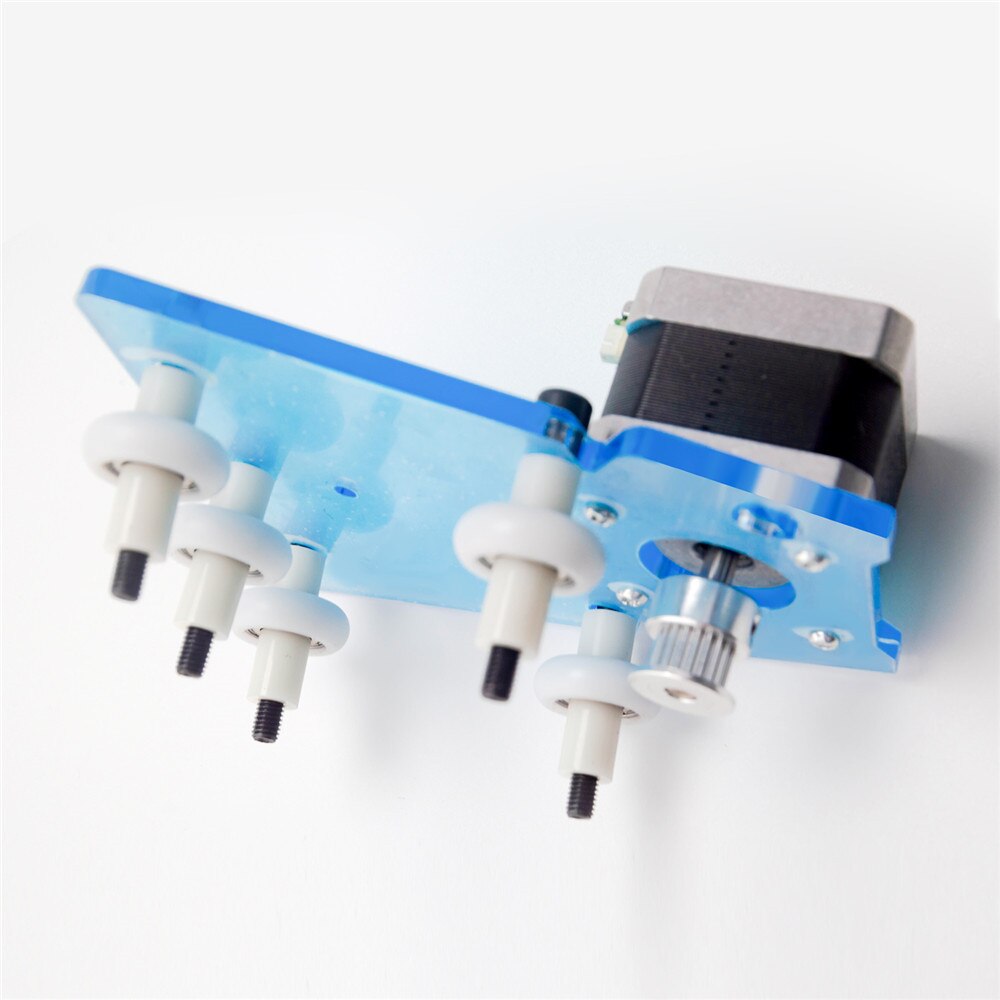

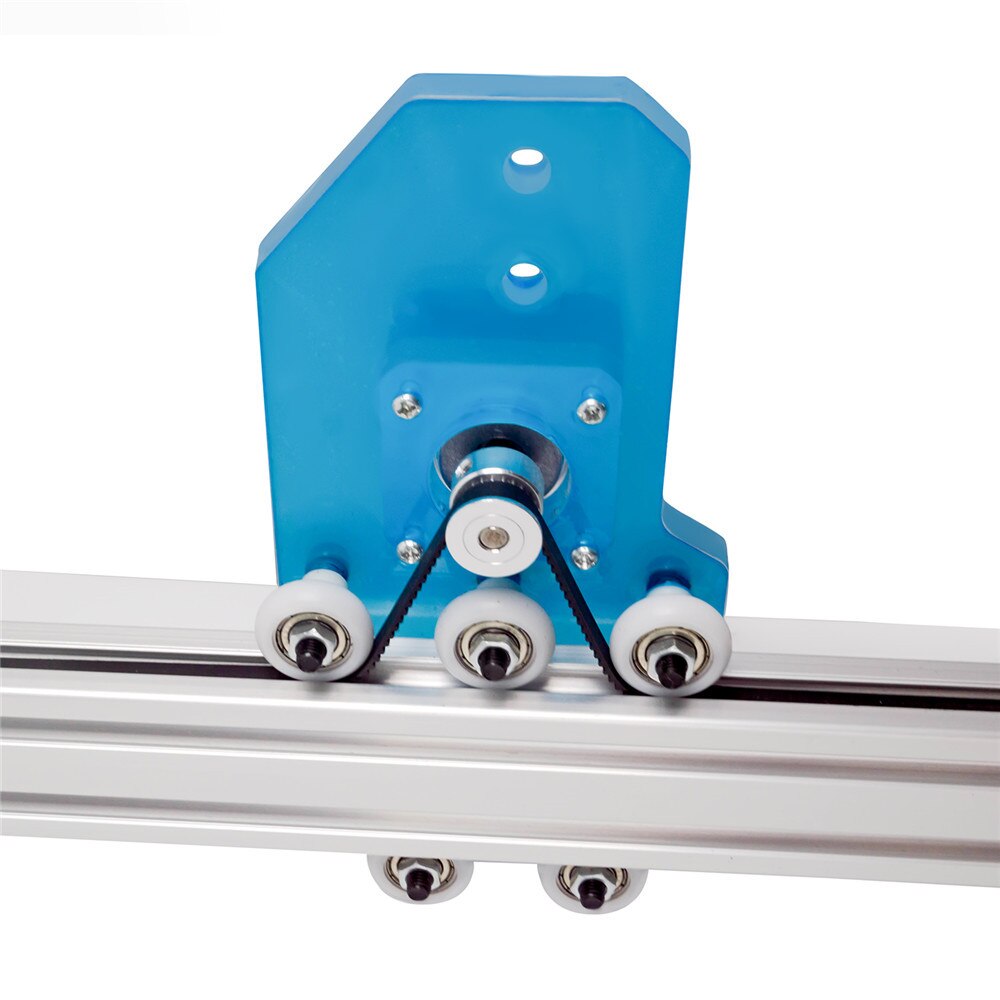

Drive system: stepper motor(step accuracy: 0.1mm)
Engraving speed: 200-2000m/min
Cutting speed: 1-100ms/pixels
Operating temperature: -10 – 45 degrees
Engraving Area:65x50cm(maximum)
Size:72x63cm
Cooling mode: air cooling
Whole machine weight: 5.1kg
Machine net weight: About 4kg

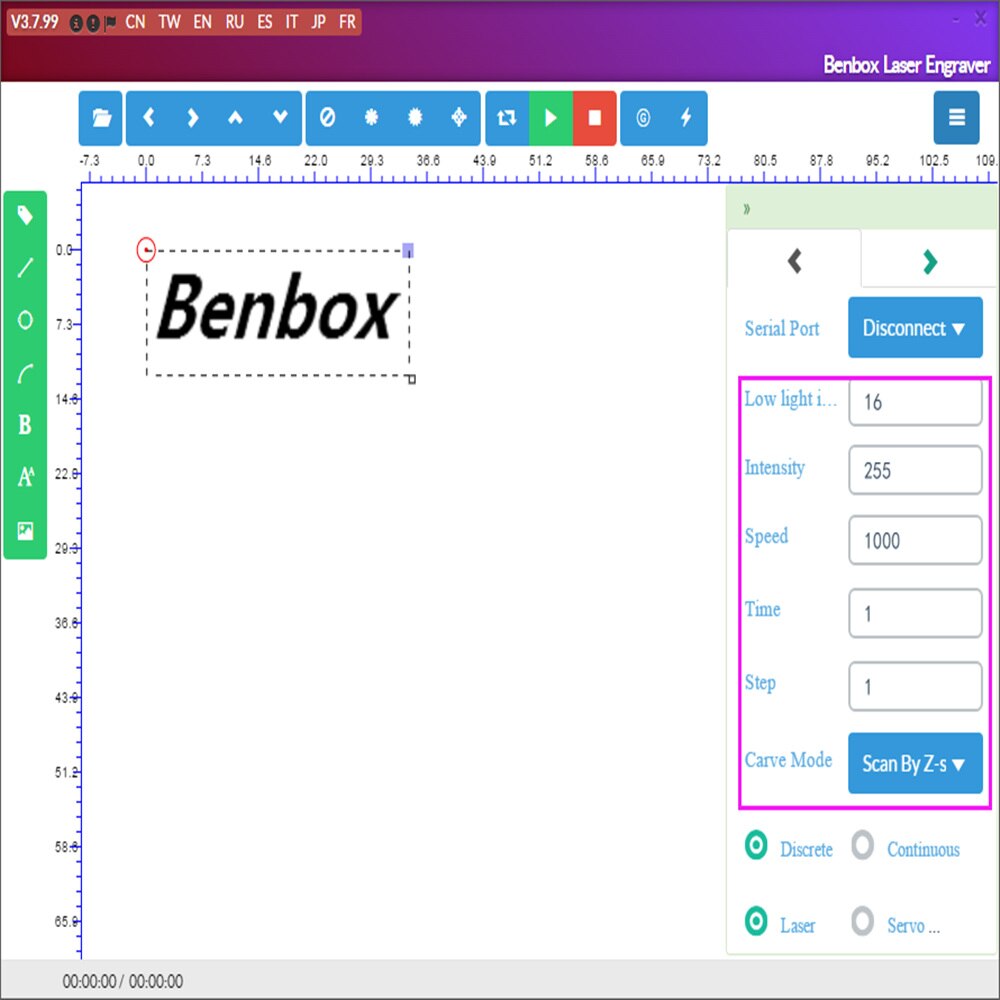

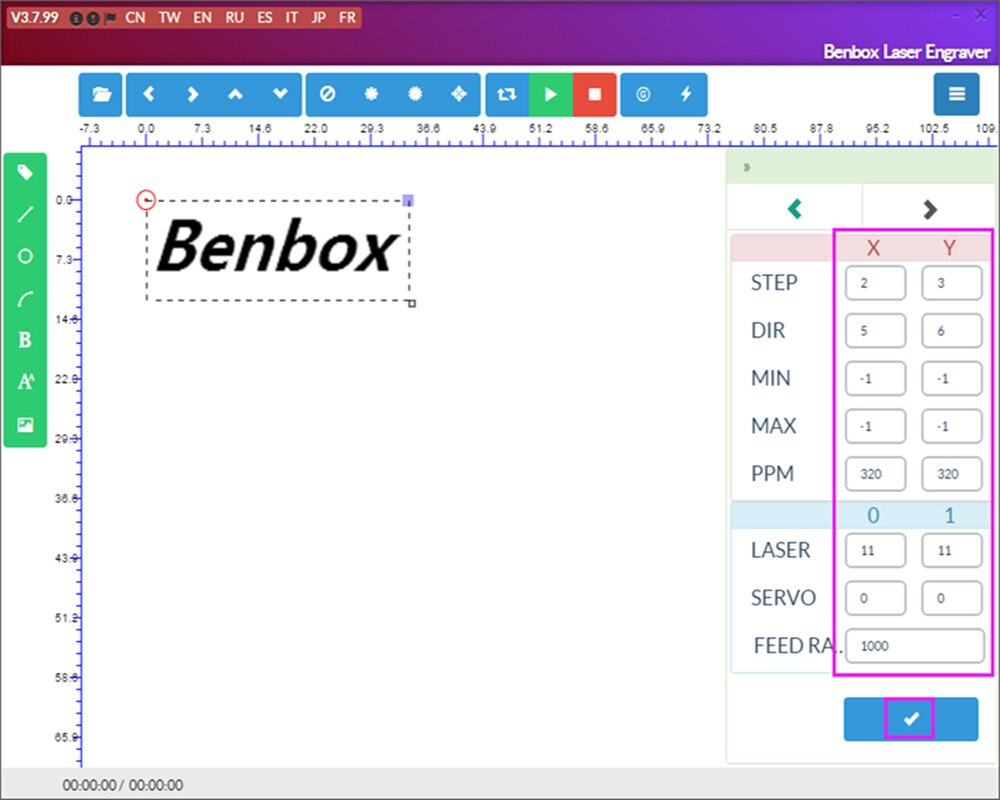

Control software: Benbox software support power can be adjusted, weak light positioning

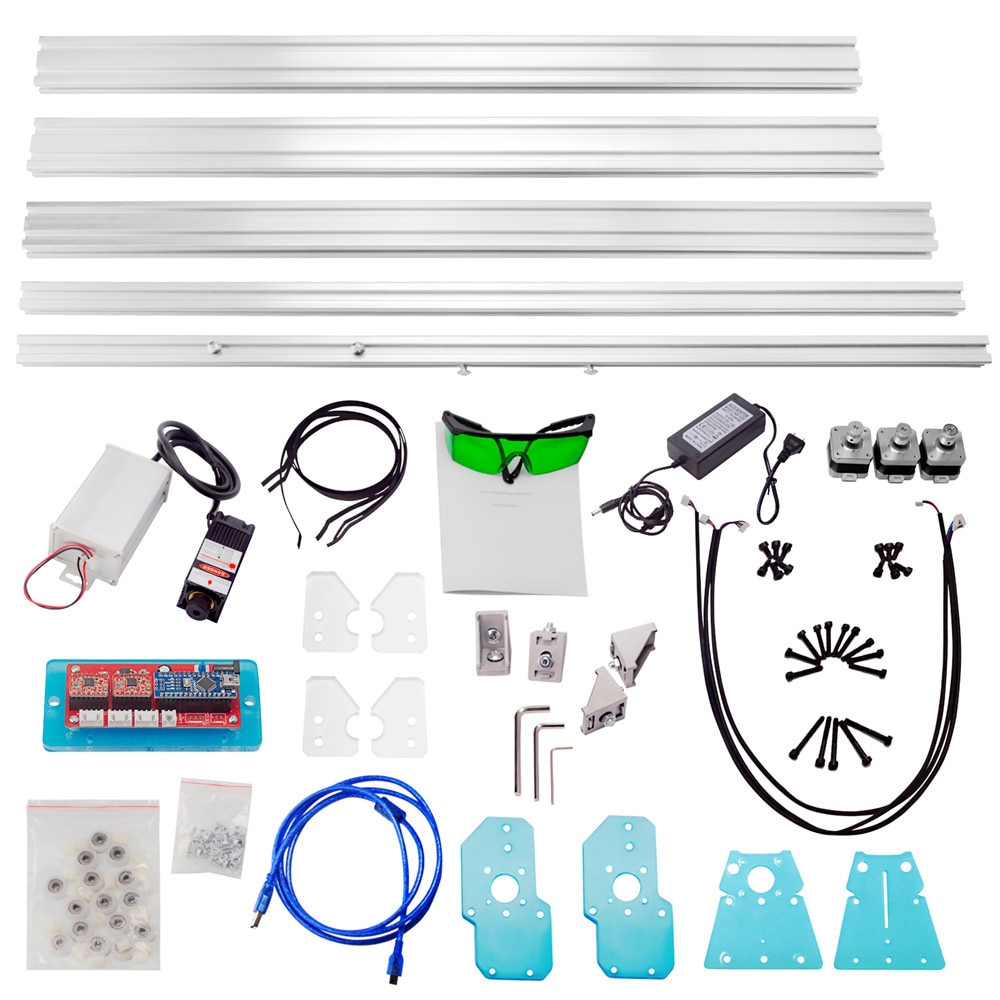

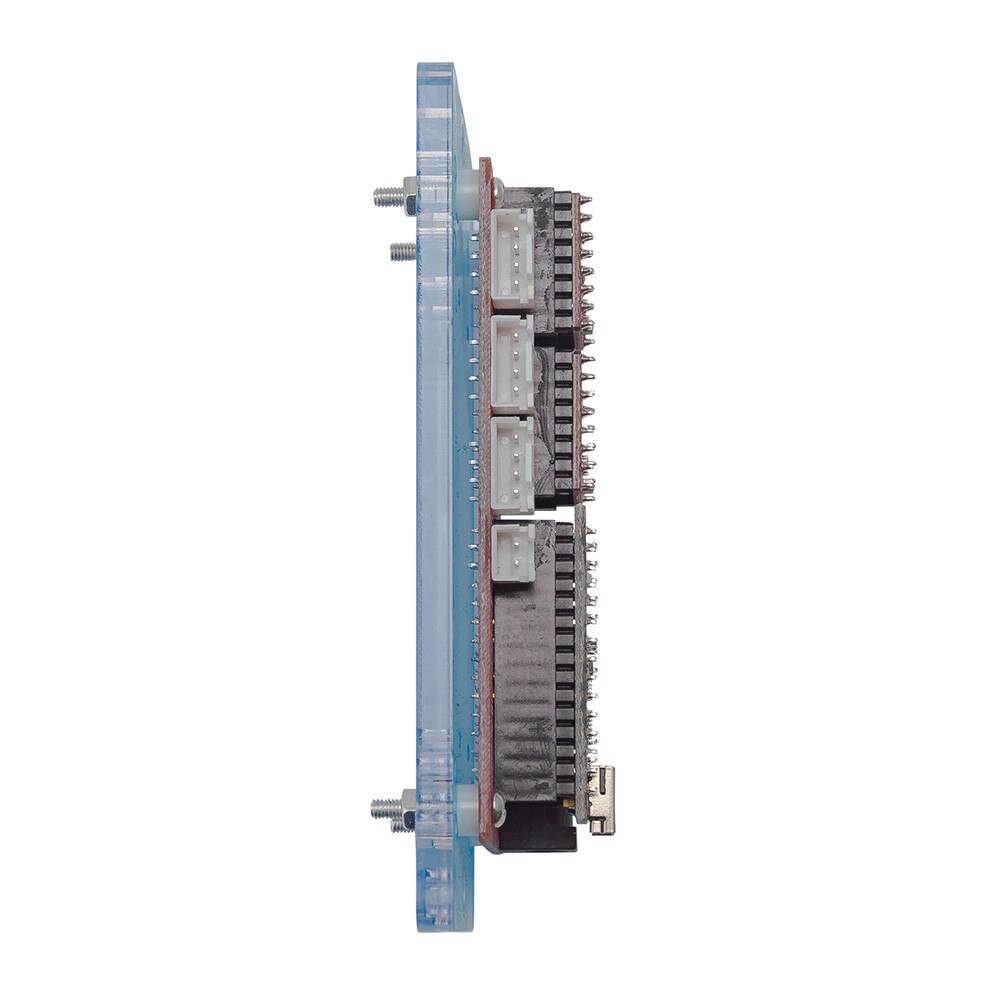

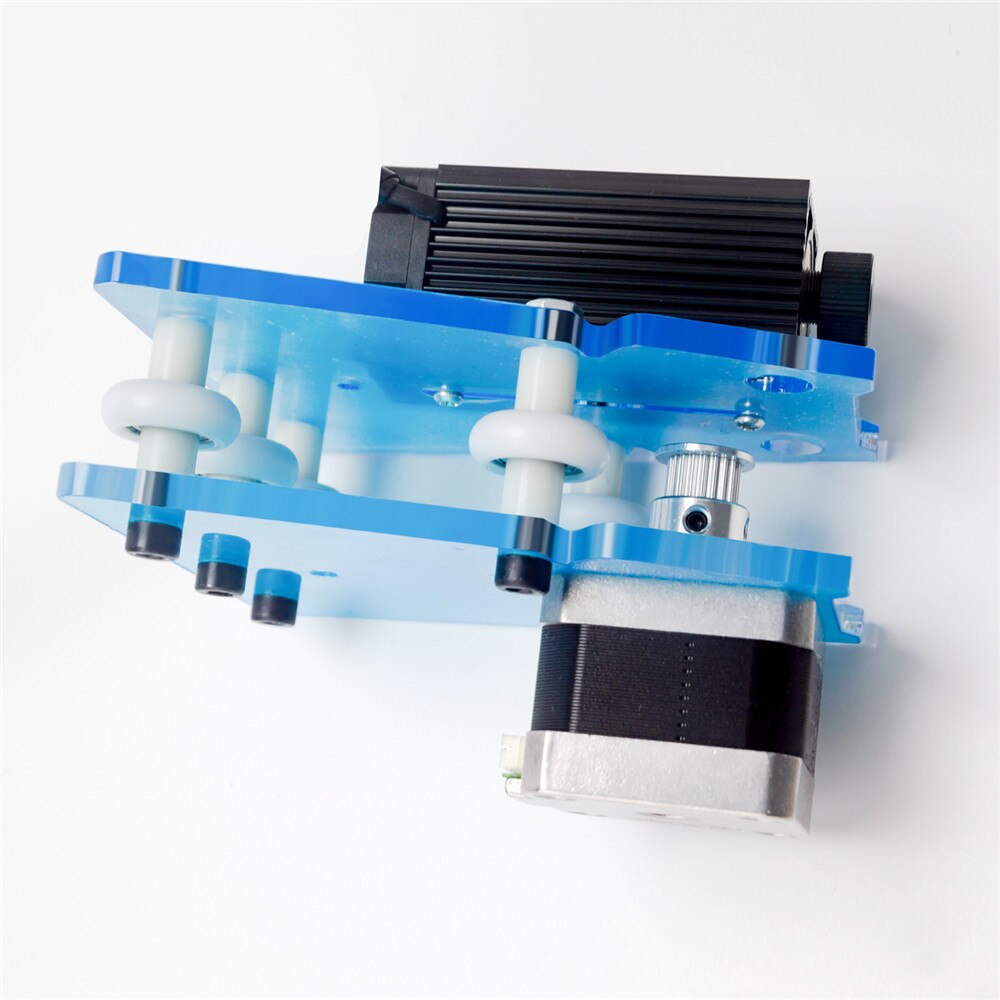

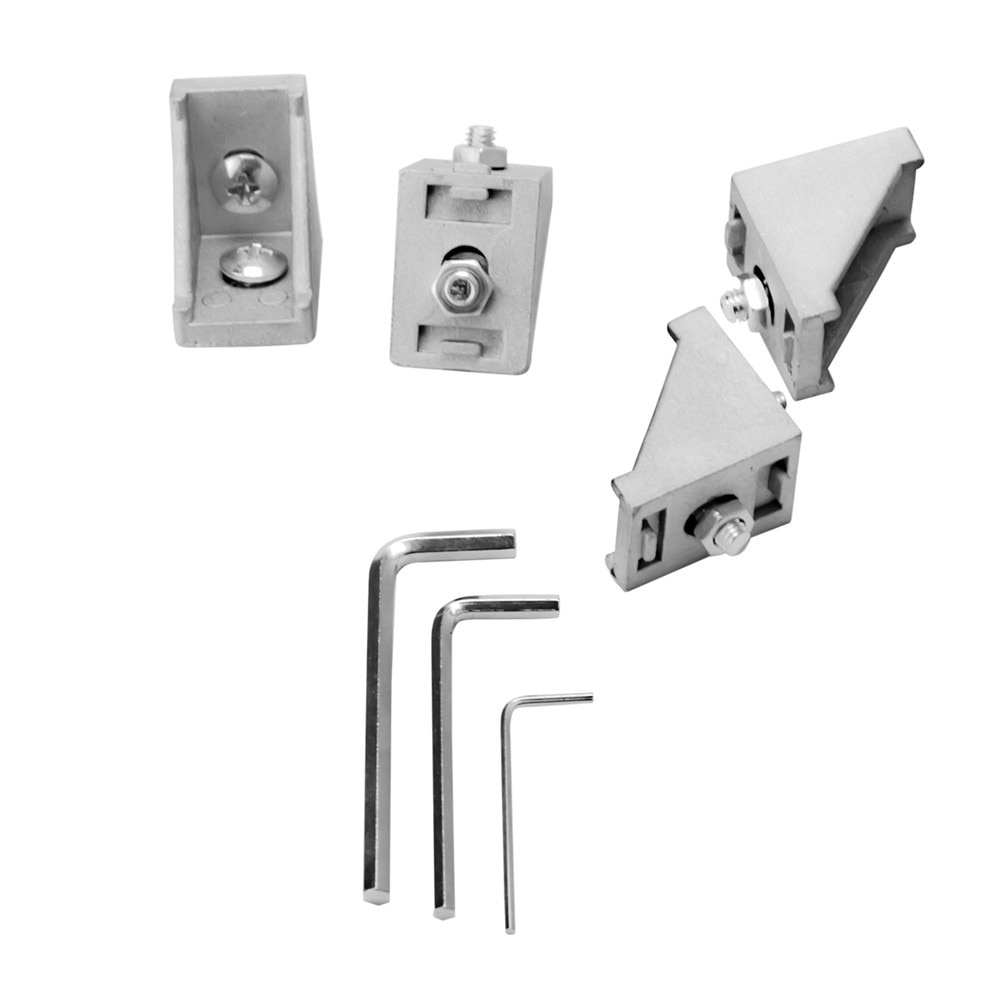

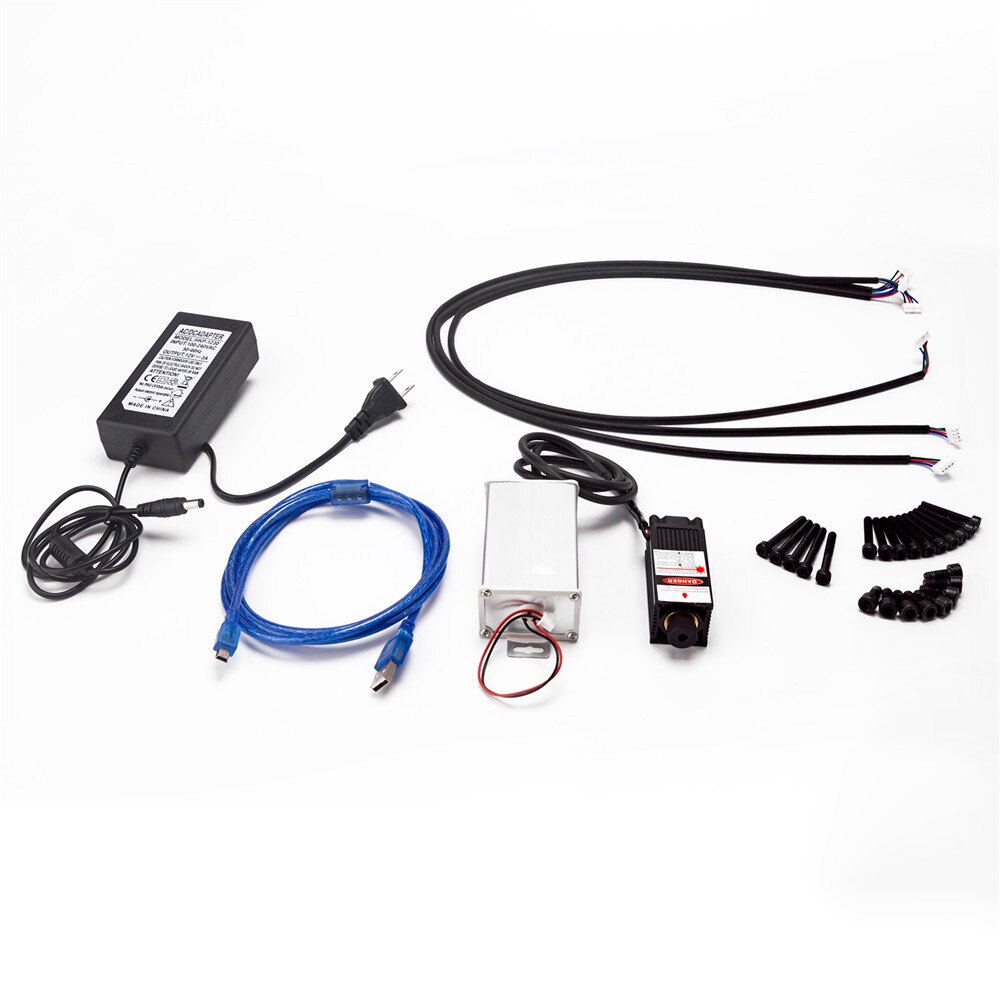

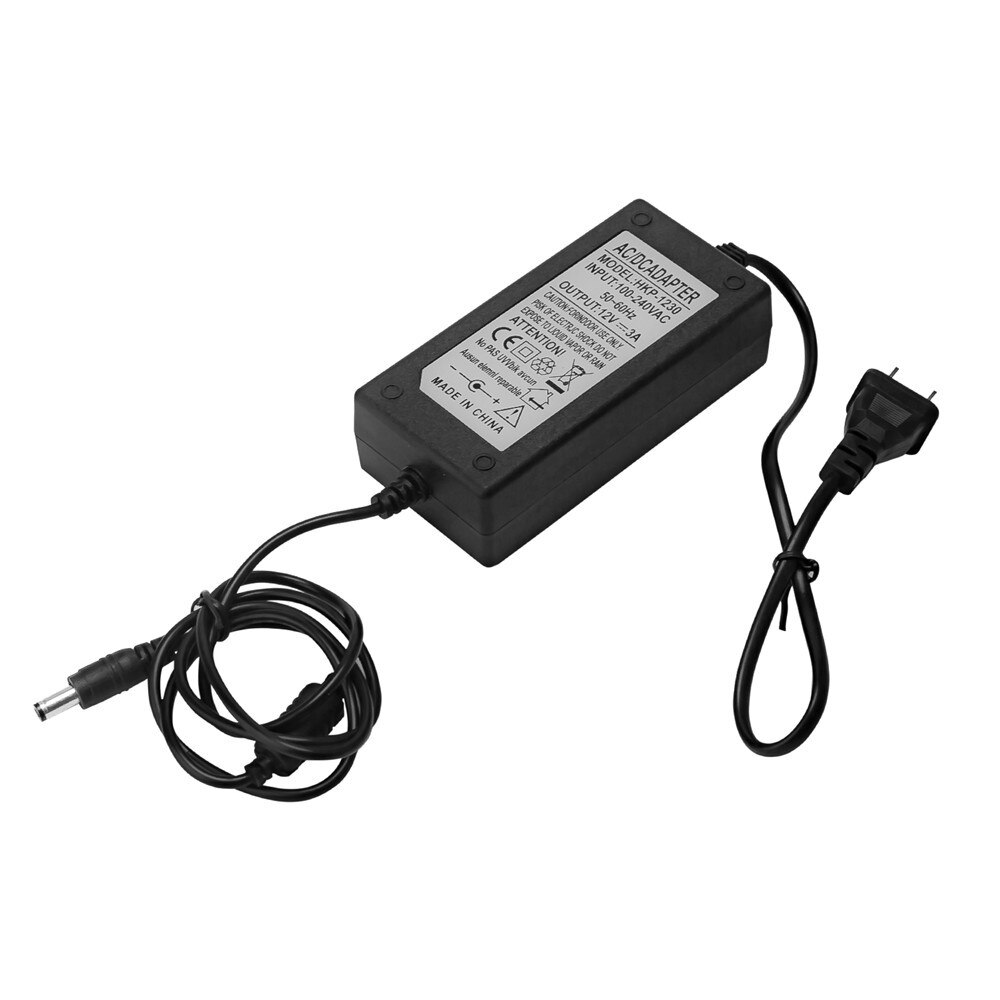

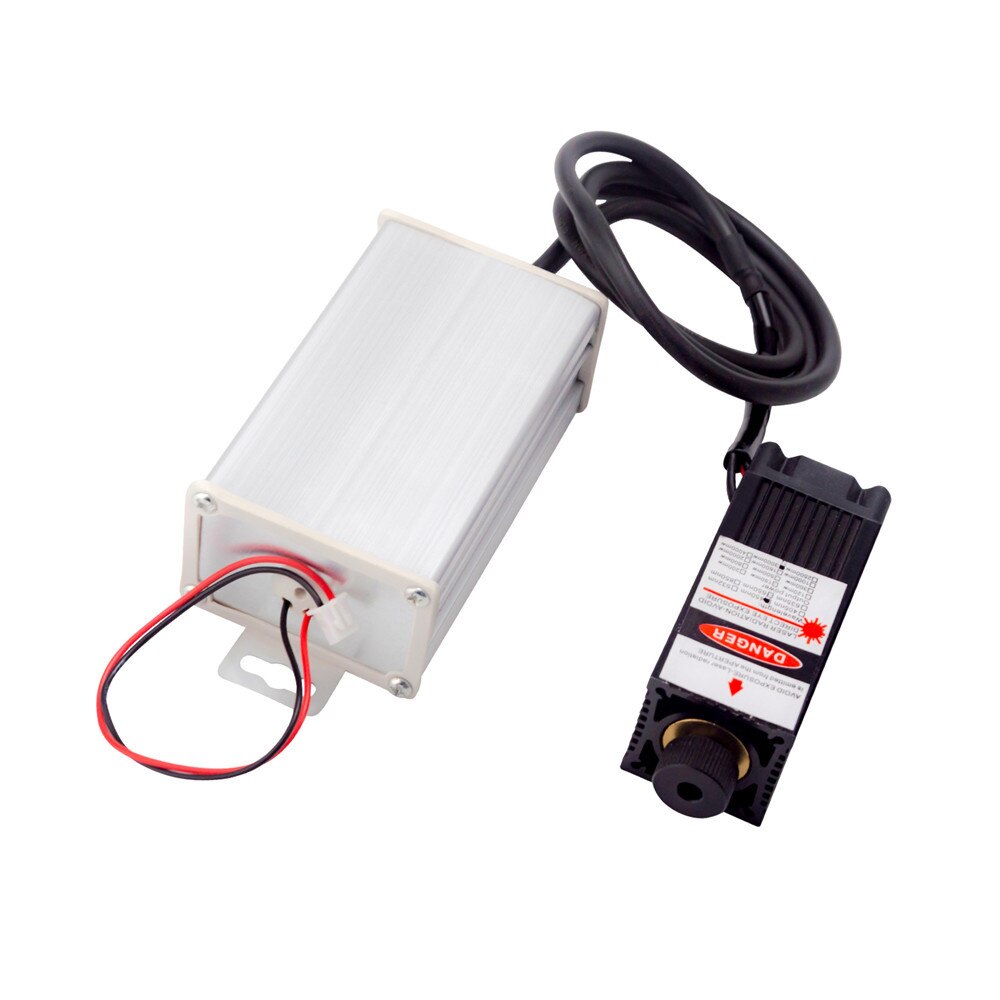

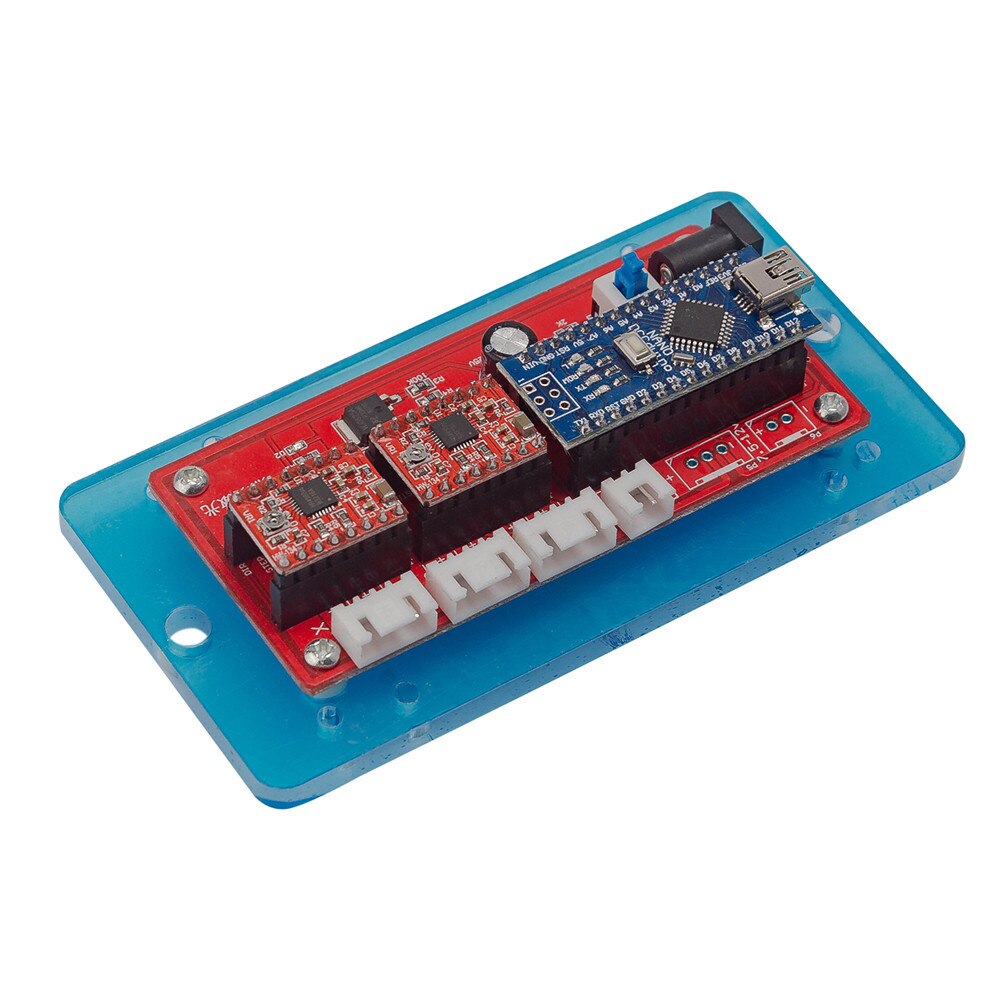

Accessories: (as the picture) Aluminum 4, 5mm axis, import acrylic accessories 1 sets, control panel kits, stepper motors, screws, accessories, tools, 1 boxes, power supply, USB wire, anti laser glasses, laser module,
Engraving Material Note:
1.can engraving materials: wood,bamboo,plastic,paper,leather,bank card,rubber
2.can not engraving material:metal,stone,ceramic,shell,light-reflecting material, transparent material
(Only high-power lasers can engrave metal, power greater than 10W)
Cutting Material:
It can only cut foam,paper,thin leather material.
It can cut the maximum thickness of the product is about 1mm cutting board, 2mm plywood, 1mm mdf, 2mm PVC board, 4mm foam, 3mm paper.
The product has a lifespan of 8,000 hours, it can last for 1 hour, and then it takes 10 minutes to rest.
Note:
1.In the process of using, please wear professional protective glasses
2.Forbid children to play
3.Suggested that the laser light in the case of-focus, the power is too strong, do not use strong
light to illuminate the skin
4. the use of flammable objects or gases in order to causing a fire/explosion
5.Don’t update the firmware. Can not change the original firmware.
This link is about how to assemblethe engraving machine.
https://youtu.be/fdgIeWwFBcM
There is already a video on this link for assembling and using this product. However, every customer who purchases this product needs to install the software, which can be downloaded from this link.
Download link for all documentation of the product, include : the assembly of products, software, videos using the product and so on.
https://mega.nz/#F!wDxgFYAI!DsqvK4BFoLm-a2KWmQDKJQ
Notice: If you need the instruction of the machine, please contact us freely, and we will send it to you by e-mail.

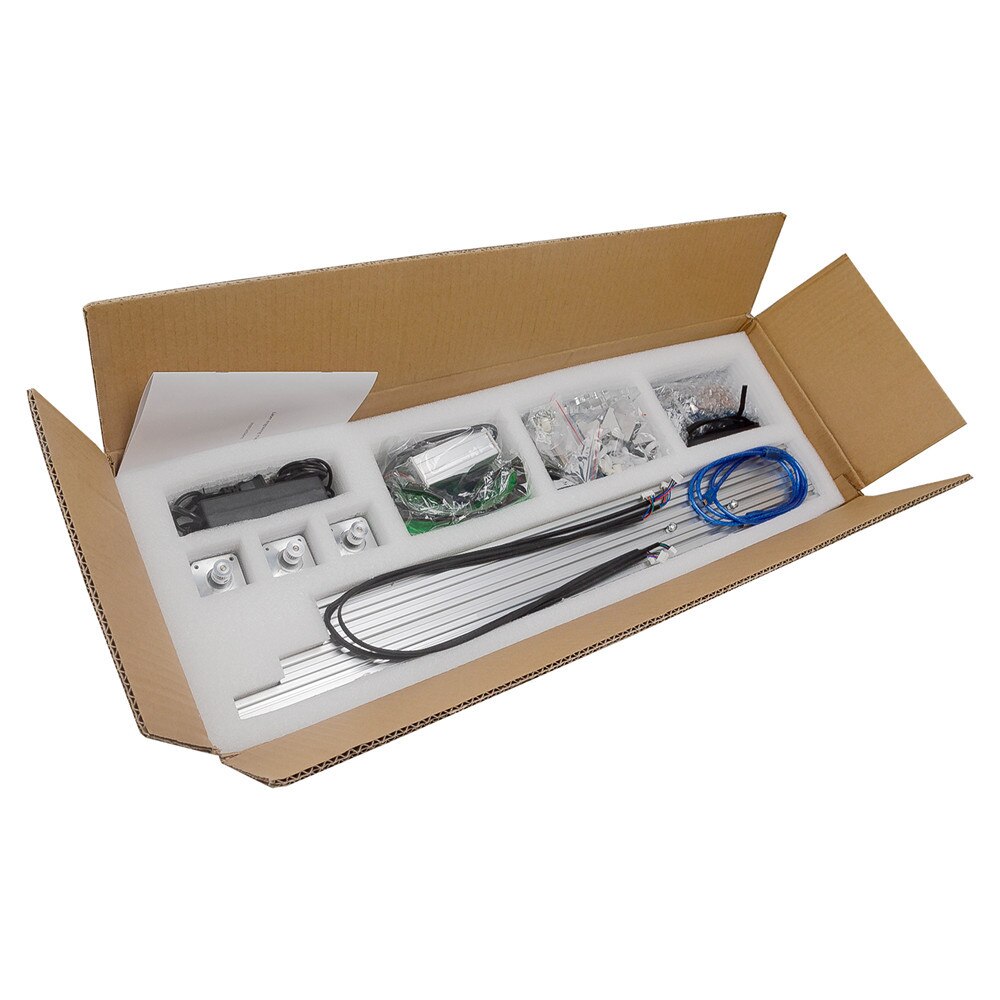

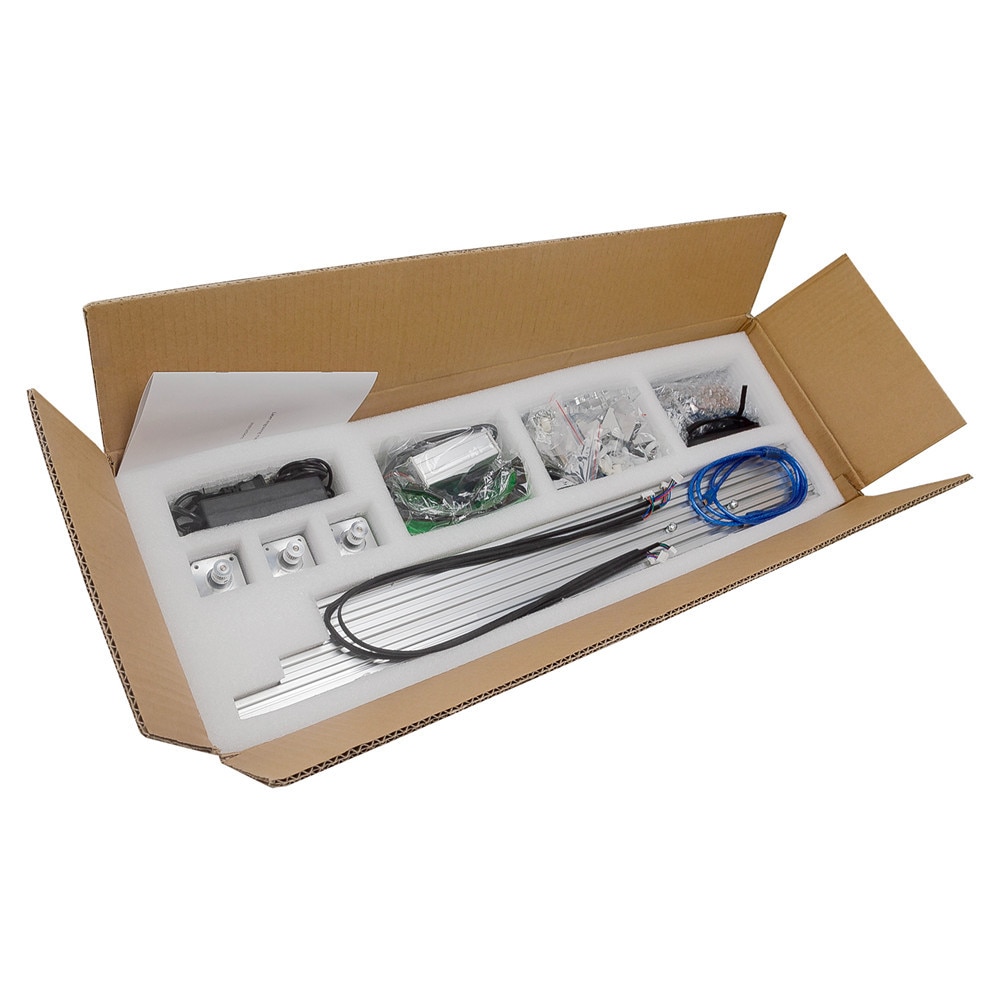

Package include:
1x DIY Desktop Mini Laser Cutting/Engraving Machine (assembly kit)
1x user manual
1x Product List
