Description

Description:

– Carving On the Door – Support 360-degree Engraving

– G-code Vertical Engraving

– Fully Assembly – Use Directly

Specification:

Model	Master 2 mini
Optical Power	450nm 2.5W
Control Board	1 x MCU + Wireless control + MEMS
Satety Protection	MEMS

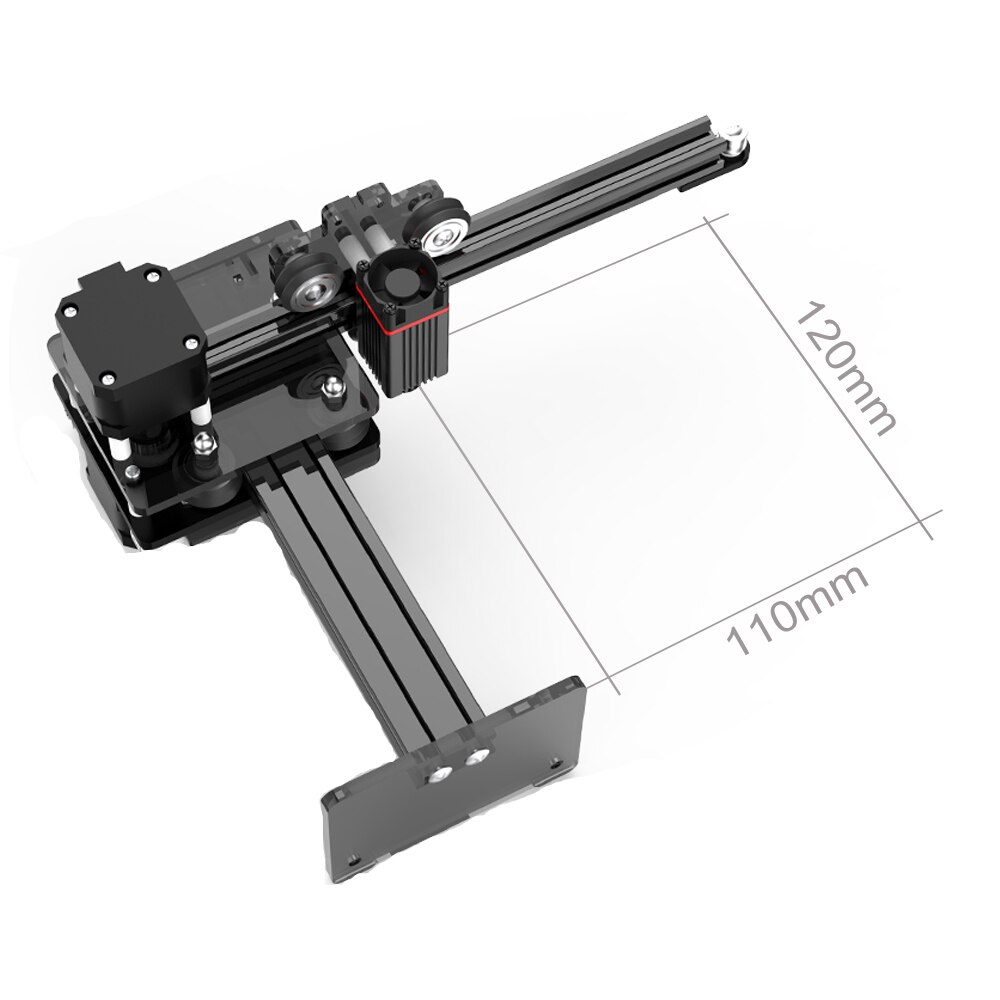

Working Size	110 x 120 mm
Pixel	1466 x 1600 px
Dot pitch	0.075mm
Software	APP for Android, Wireless APP for iOS / ipadOS / OSmac, software for windows，N-Scanner APP for Android.
Software Upgrading Service	YES
Cloud Gallery	YES
Scanner function	YES
Frame material	CNC Cutting Composite plate, aluminum alloy, acrylic.
Can Engrave	MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave	Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Continue working	Unlimited
Wavelength	450nm
Beam Shape	Dot (Focusable)
Drive	Built-in
Lens Material	D-ZK3
Heatsink Material	Aircraft Aluminum + Brass Shell
Luminous Color	Blue
Input Voltage	AC100-240V, 50/60Hz
Output Voltage	DC12V, 2A
Image Format	.bmp .jpg .png .nc .dxf etc..
Plug Type	EU / US (Optional)
Net weight	968g
Gross weight	1460g
Product size	26.7x 21.5x11cm
Packing size	36x29x18cm

Features:

【More Convenient and faster】Off-line and APP Wireless Control. 360°Engraving, High Speed, save more time. Cloud Gallery and Online Gcode Makes Creation Easier.

【Professional CNC software】110 x 120 mm Engraving Range. Operating System: windows 7/10 / android / iOS / ipadOS/ OSmac. Picture format: BMP / PNG / JPG / NC / DXF,etc.”

【Safe To Use】Built-in MEMS sensor protection, when accidentally touched, the machine will automatically stop working.

【Carved Material】It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)”

【2 Year warranty】We provided 2 years warranty, and full life customer service. If you have any questions about this engraving machine, please contact us, we will reply to you in 24 hours.

Note(Please pay attention):

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

2. Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！

3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.

4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.

5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.

6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.

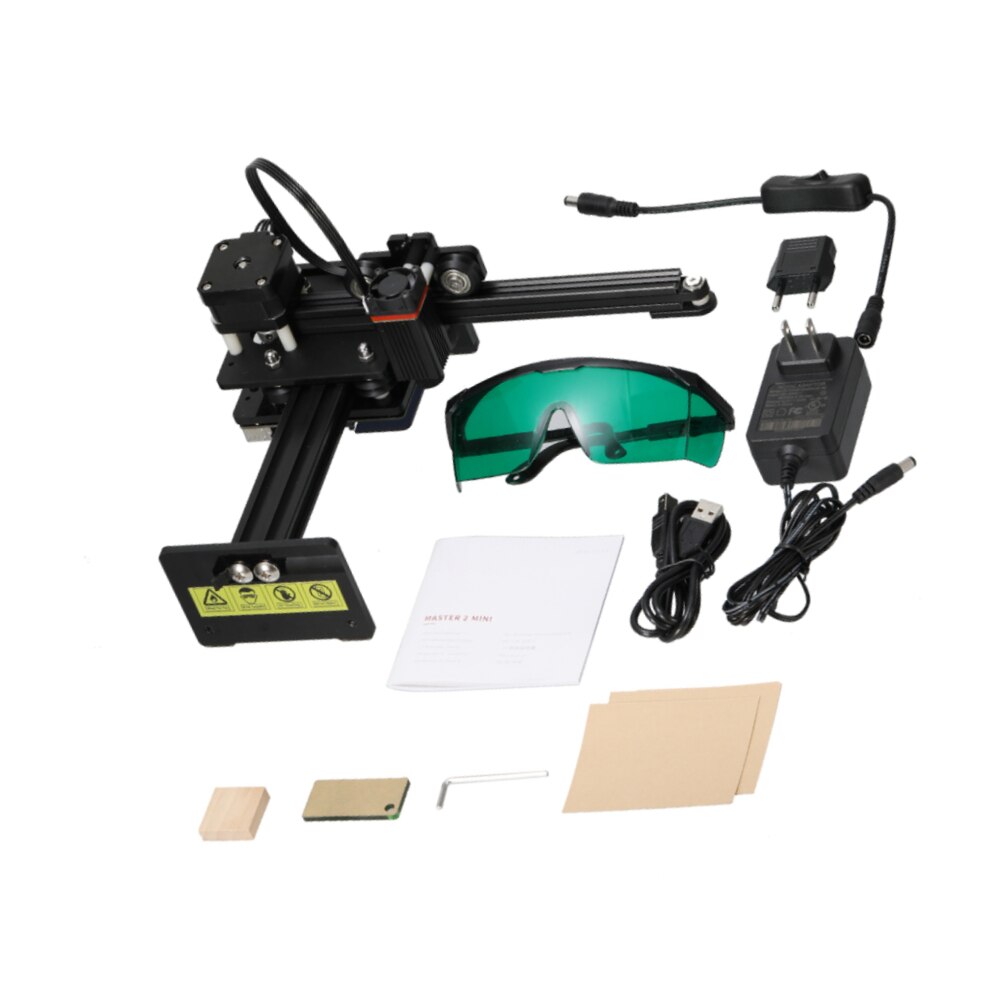

Package Included:

1 x Laser Engraving Machine

1 x goggle

1 x Manual

1 x ON/OFF Switch Cable

1 x USB Cable

1 x 12V2A Power Adapter

1 x Eu adapter

1 x L-shaped wrench

2 x Test Paper

1 x wooden block

1 x Focusing plate
