Description
- Origin: CN(Origin)
- Certification: CE
- Certification: FDA
- Condition: New
- Model Number: ASML-D01
- CNC or Not: Normal
- Is Smart Device: No
Metal fiber laser marking machine Fiber laser marker 20W 30W 50W
Introduction:
-
Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, largerwork-piececould be marked by our customized electrical XY working table.
2. Best Marking Effect: Owning to theoriginalRaycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker isespeciallygood for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 – 100,000hours.
5. No consumables except electricity.
6. Free Maintenance.
7. Easy operation: Machine is installed well. We will supply the installation training video for our dear customers to install laser marking machine.

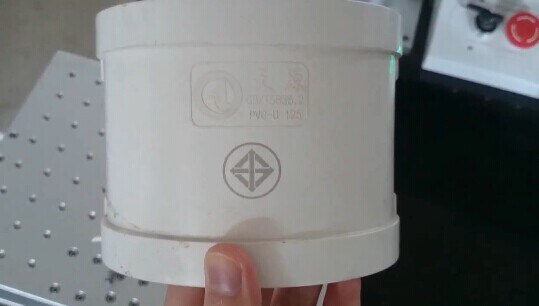

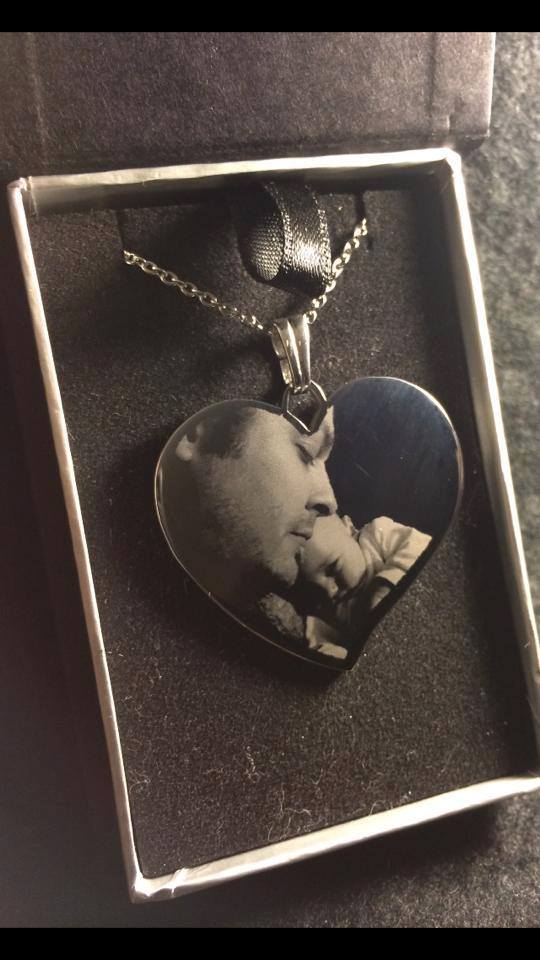

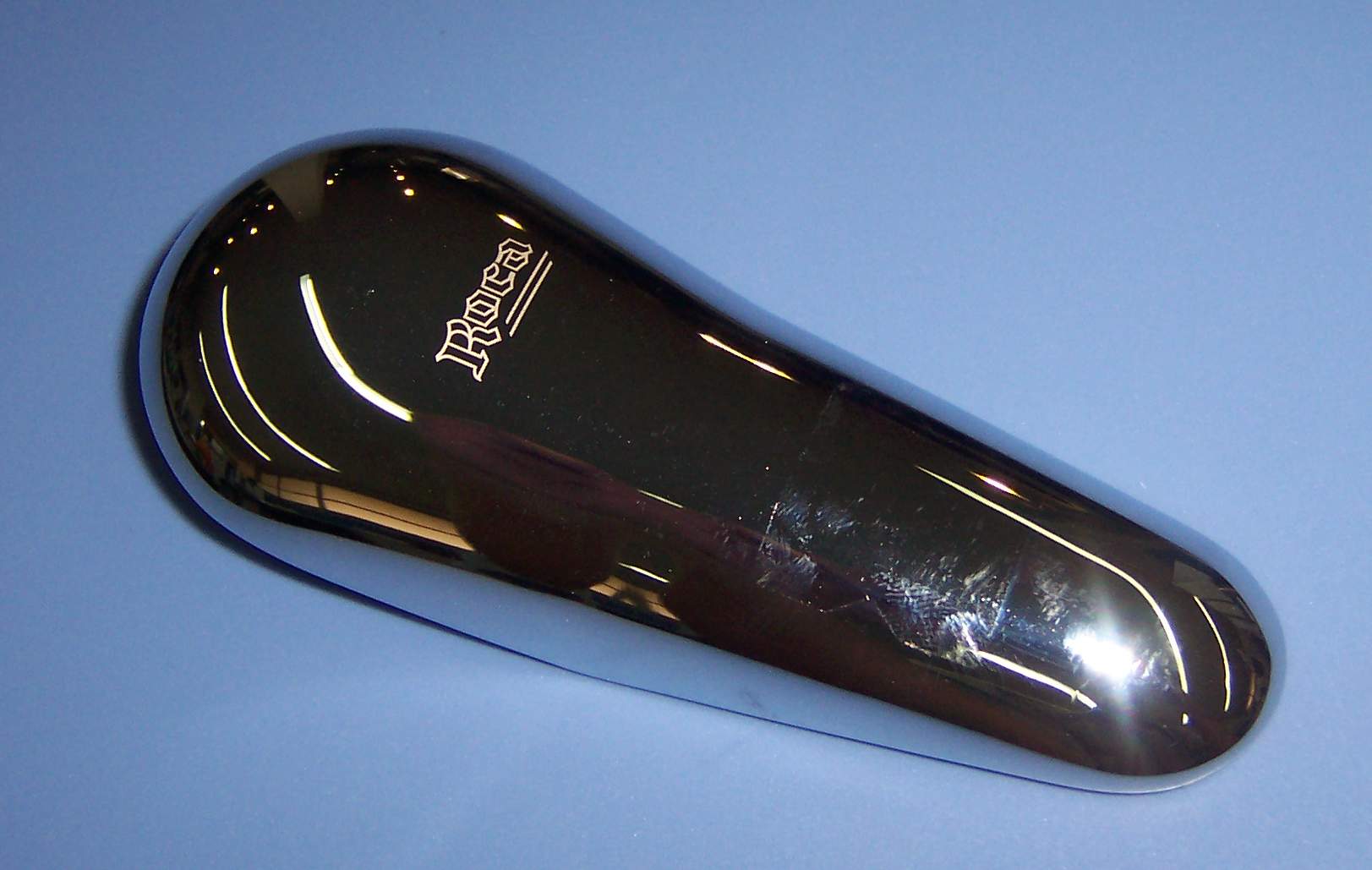

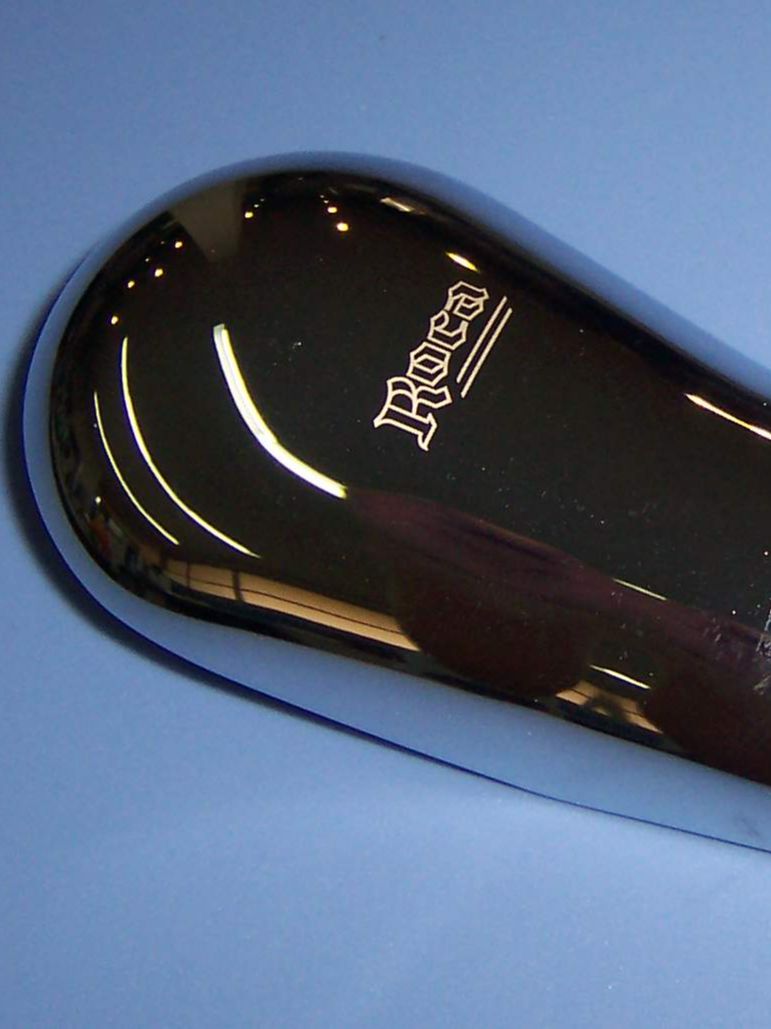

Fiber laser marking machine could work perfectly for most metal marking applications, such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron etc.
Especially the 50w and 100w laser marking machine could cut small gold silver brass jewelry, very popular now.
Parameters:
Model |
AL-YLP20W/30W/50W/100W |
Laser source |
Raycus/MAX/JPT |
Laser Type |
Fiber laser |
Positioning Way |
Red light |
Laser power |
20W/30W/50W/100W |
Laser Module Life |
100000 hours |
Weave length |
1064 nm |
Cooling Style |
Air cooling |
Marking area |
110mm*110mm–300mm*300mm |
Total power |
≤500W |
Marking speed |
7000-12000mm/s |
Operating Voltage |
220v /110v 50hz |
Marking depth |
0.01-2mm |
Supported Windows |
Windows XP,7,8,10 |
Repetition Precision |
0.001mm |
Certificate |
ISO, CE |
Minimum Character |
0.2 mm |
Control software |
EZCAD 2.14.11 |
Minimum Line Width |
0.01mm |
Supported Format |
PLT, DXF, DST, AI, SDT, BMP, etc. |
Packaging Dimension |
77*87*113CM |
Gross weight |
110kg |
Accressories
A whole set of machine will include:
-
Fiber laser marking machine
-
USB disk
-
Ruler
-
Safety goggles
-
Hexagon tools
-
Power wire
-
Foot switch
