Description

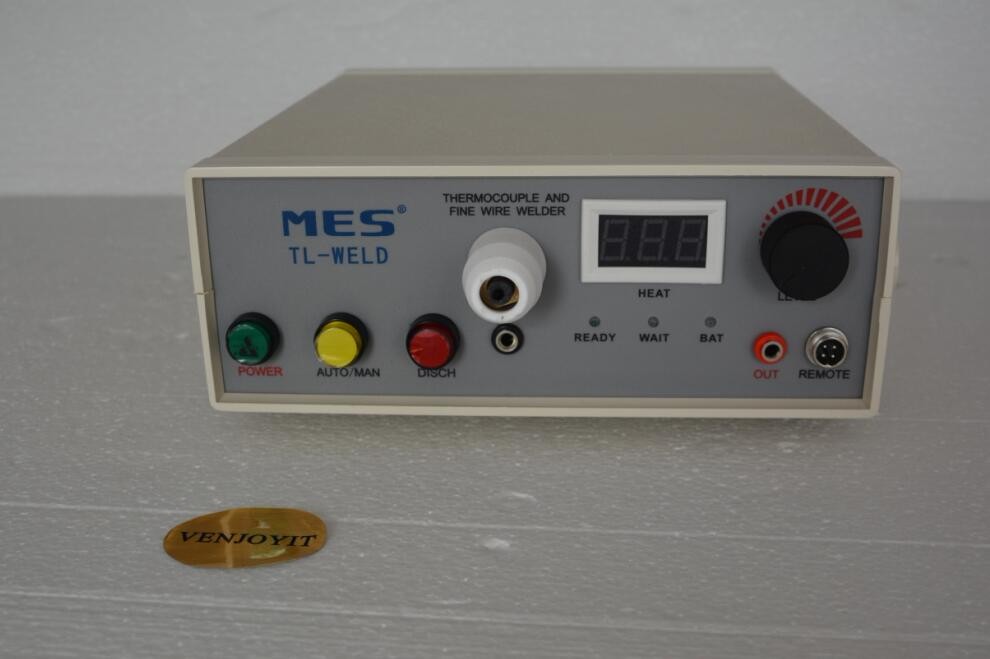

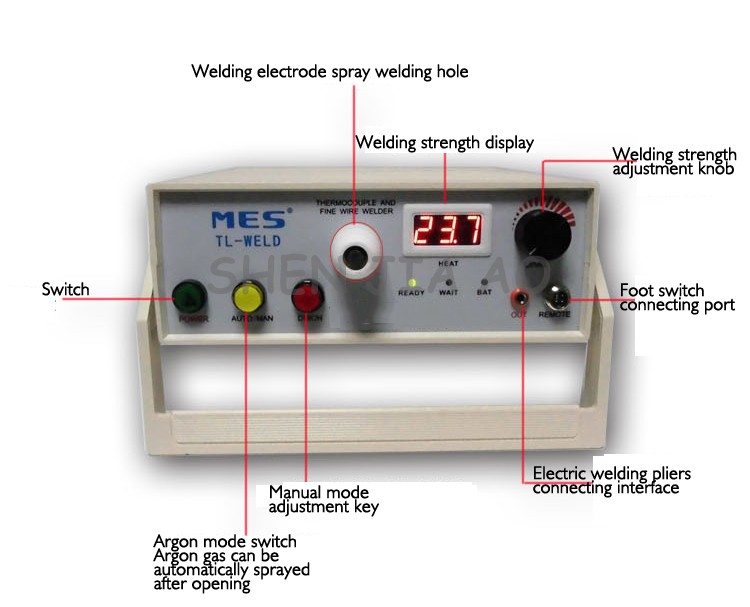

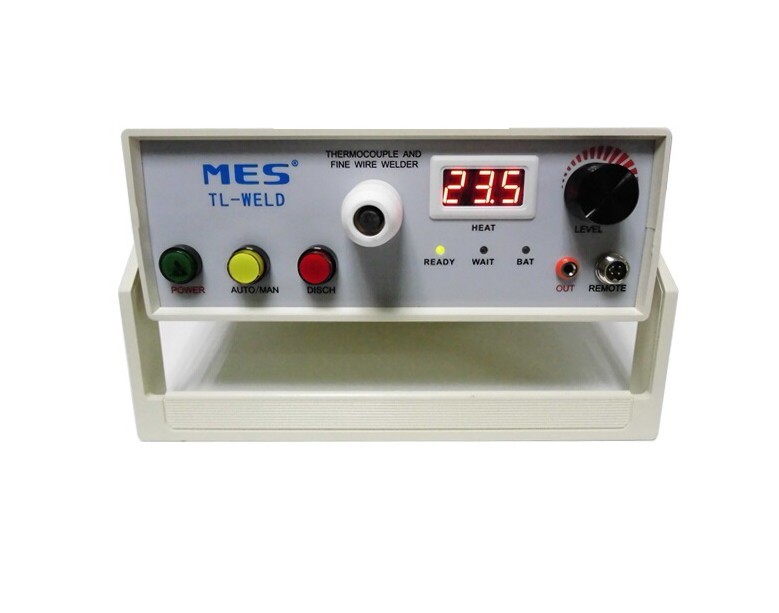

MES TL-WELD K T Thermocouple Wire Spot Welding Machine Thermocouple Welder
- Brand Name: MLHJ
- Customized support: OEM
- Place of Origin: China
- Brand Name: MES
- Model Number: TL-WELD
- Name: Thermocouple Fine Wire Welder
- Frequency: 50-60Hz
- Welding thickness: 0.01-3.0mm
- Control mode: Manual
Product Application

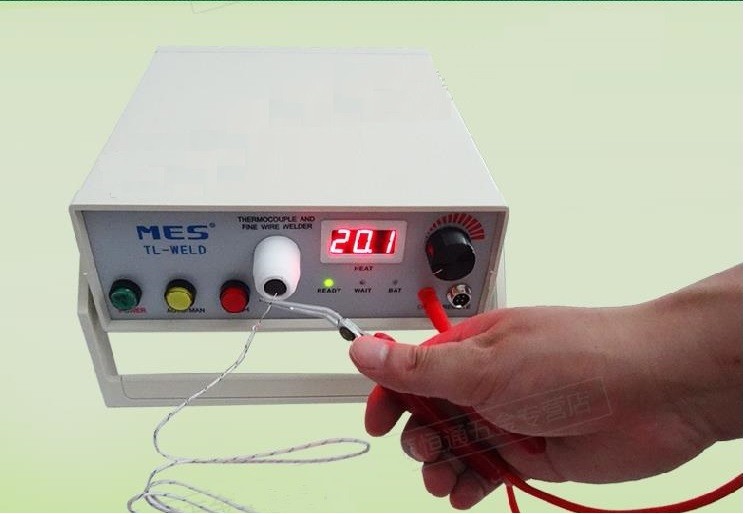

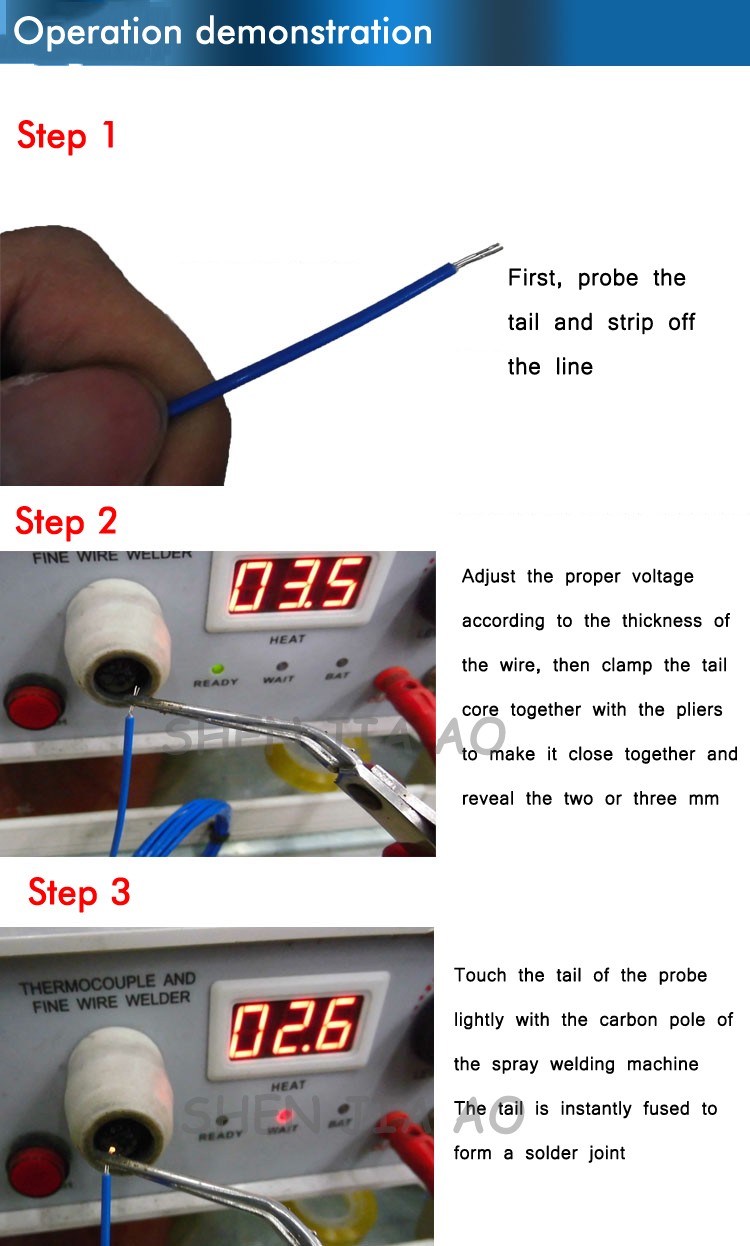

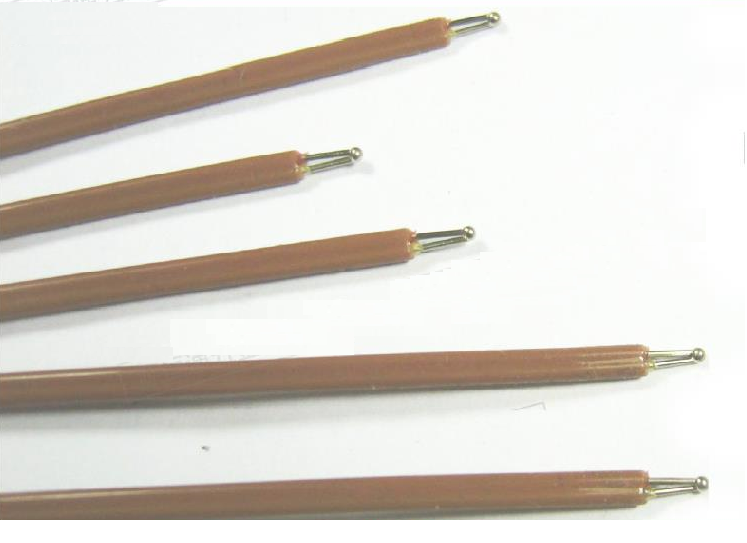

The thermocouple welding unit can instantaneously generate a strong current to pass through the circuit. so that the two phases of the thermocouple can be formed into a spherical shape under a strong current.
1.Voltage: 90-265V
2.Frequency: 50-60Hz
3.Frequency band: high frequency
4.Principle of action: invert
5.Welding principle: butt welding
6.Maximum welding thickness: 0.01-3.0mm
7.Drive type: Electric
8.Object: Metal
9.Thermocouple welding machine: welding machine processing and customization
10.Machining accuracy: precision
11.Control mode: Manual
12.Welding method: arc drawing type
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
