Description

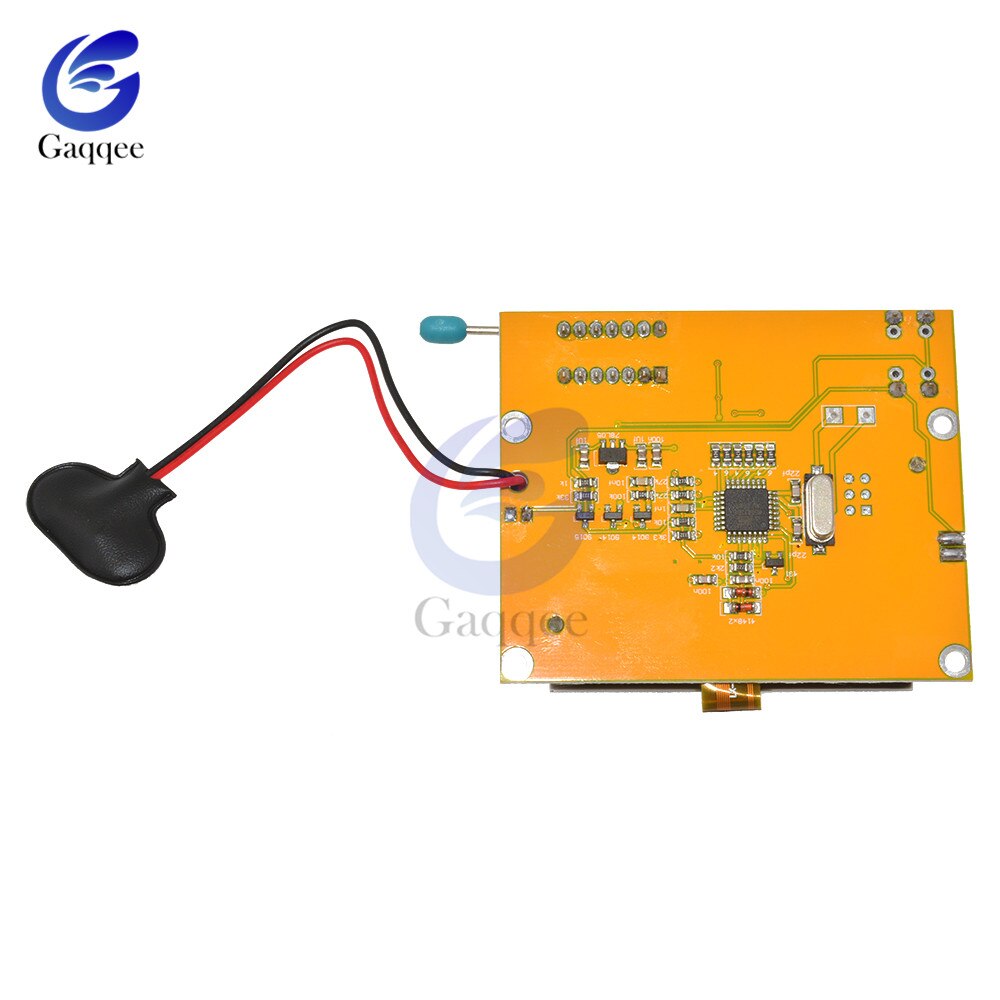

[LCR-T4]
Funtion:
Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
Automatic test the pin of a component, and display on the LCD
It can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
Measure the gate and gate capacitance of the MOSFET threshold voltage
It can simultaneously measure two resistors and resistor symbol is displayed
It can measure a single diode reverse capacitance
It can be in the correct order and the diode symbol display two diodes, and gives the diode forward voltage
It can measure capacitance of 30pF-100mF, resolution 1pF
It can be obtained with a single measurement rectifier bridge connection

Notice:
Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter

Specification:
One -button operation, automatic shutdown
Only 20nA shutdown current
Automatic identification components pin arrangement
Measuring bipolar transistor current amplification factor and base – emitter threshold voltage
Via the base – emitter threshold voltage and high current amplification factor to identify Darlington transistors
Measuring the gate MOS FET threshold voltage and the gate capacitance
Eeverse breakdown voltage is less than 4.5V Zener diode can be identified

Feature:

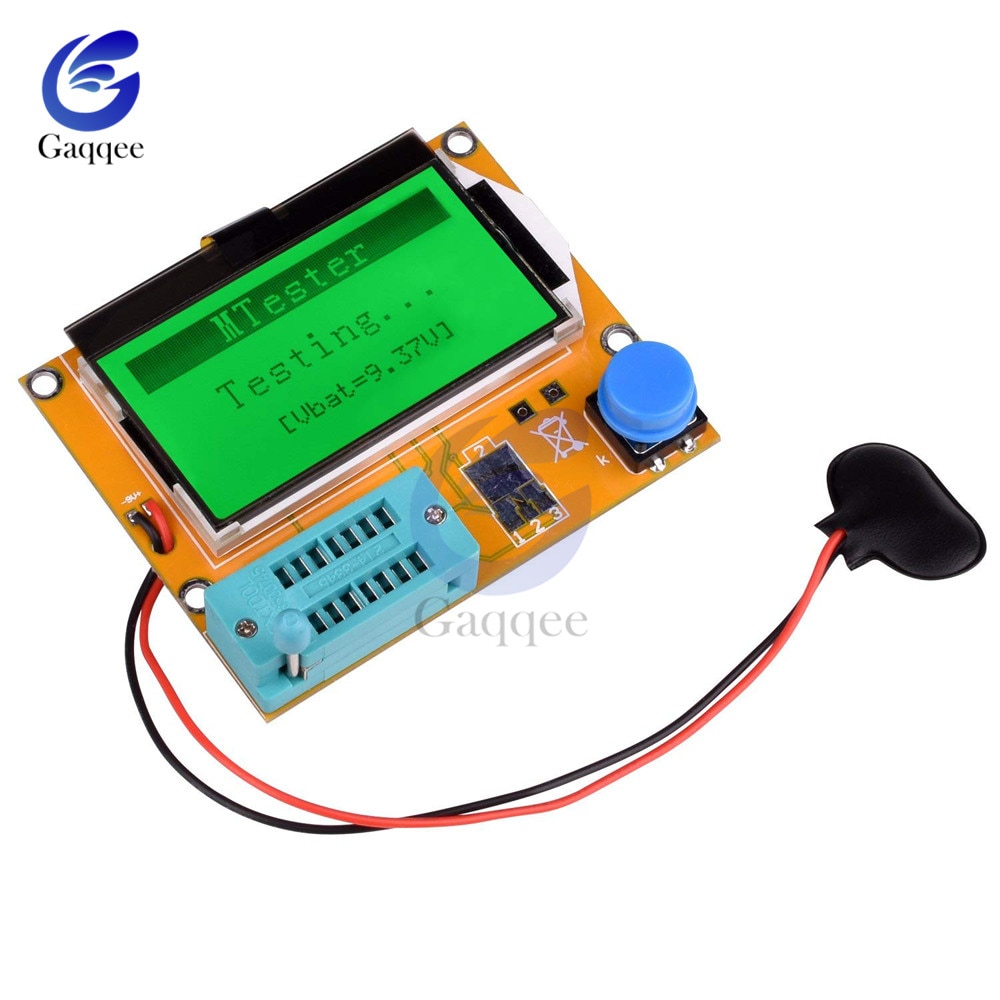

128*64 big Backlight LCD display,only 2mA when stand by

Test range:
Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR, Resistance,Adjustable potentiometer
Resistance: 0.1 Ohm resolution, maximum 50M Ohm
Capacitor: 25pf -100,000 uf
Inductors: 0.01mh-20H

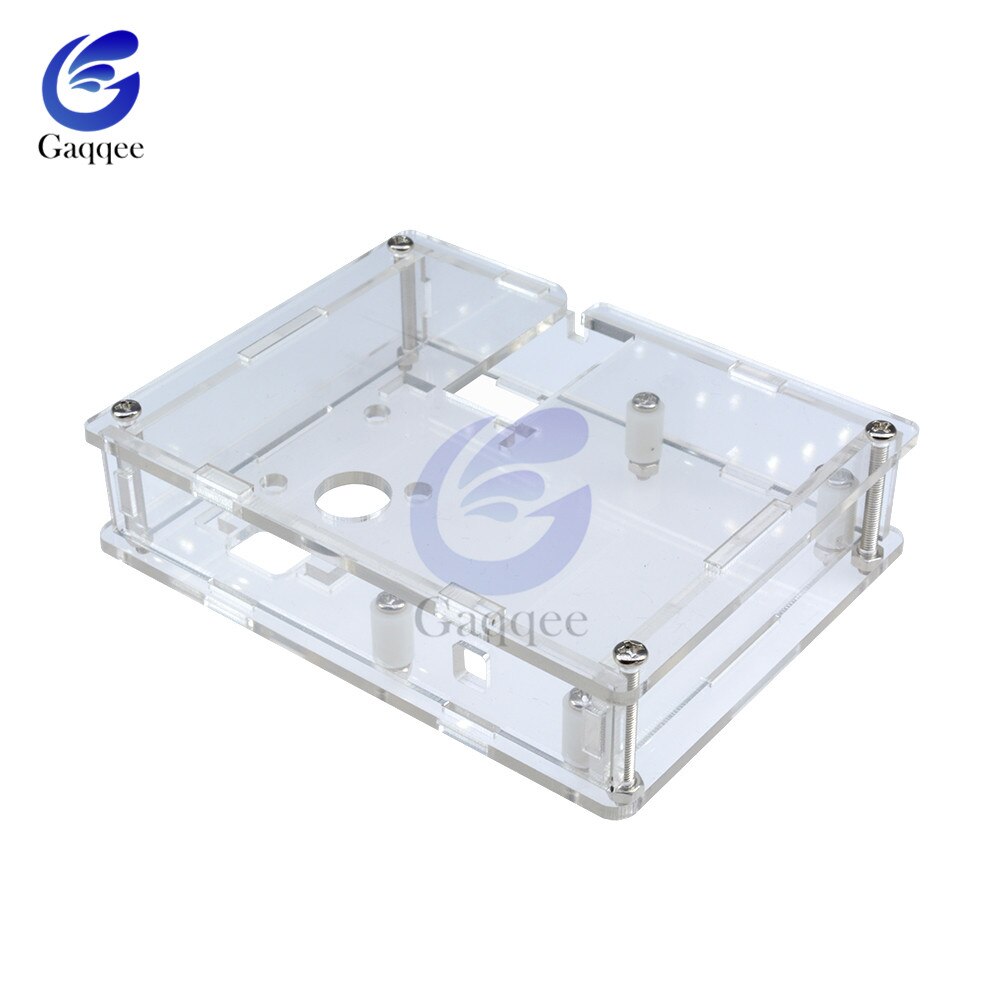

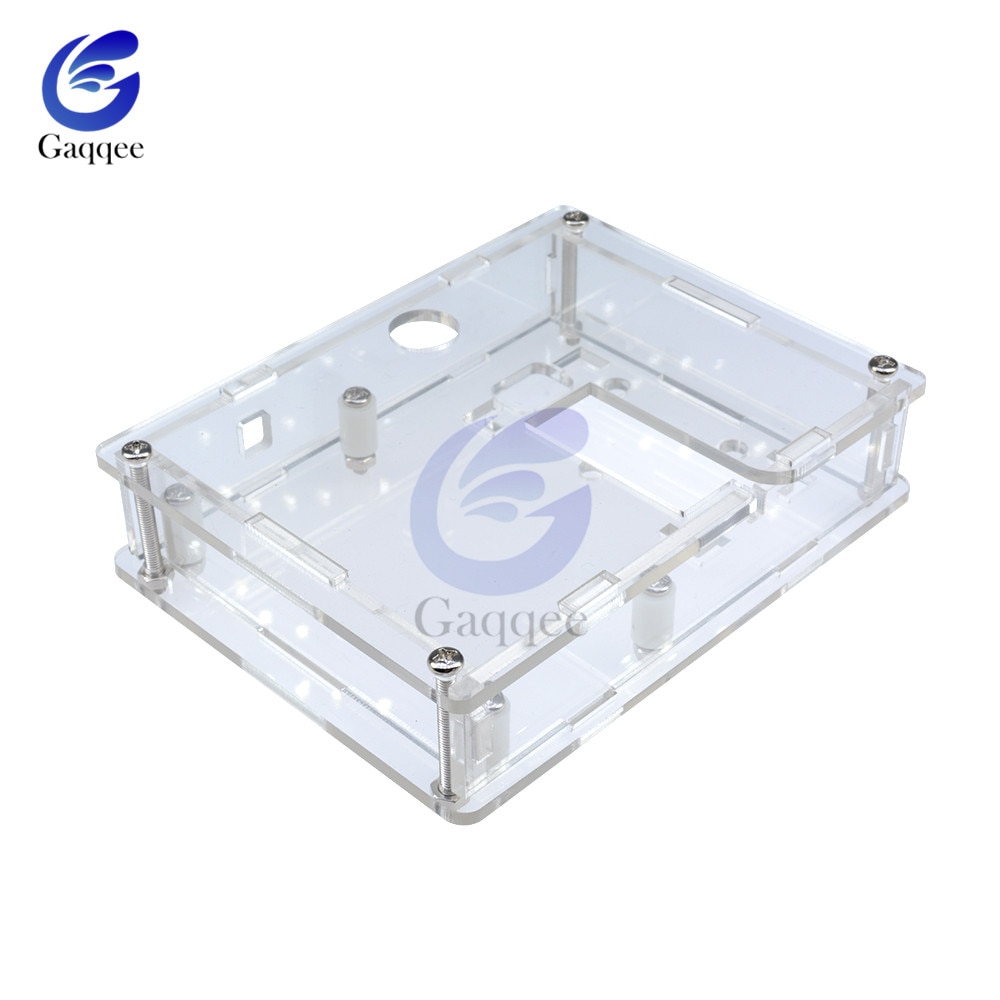

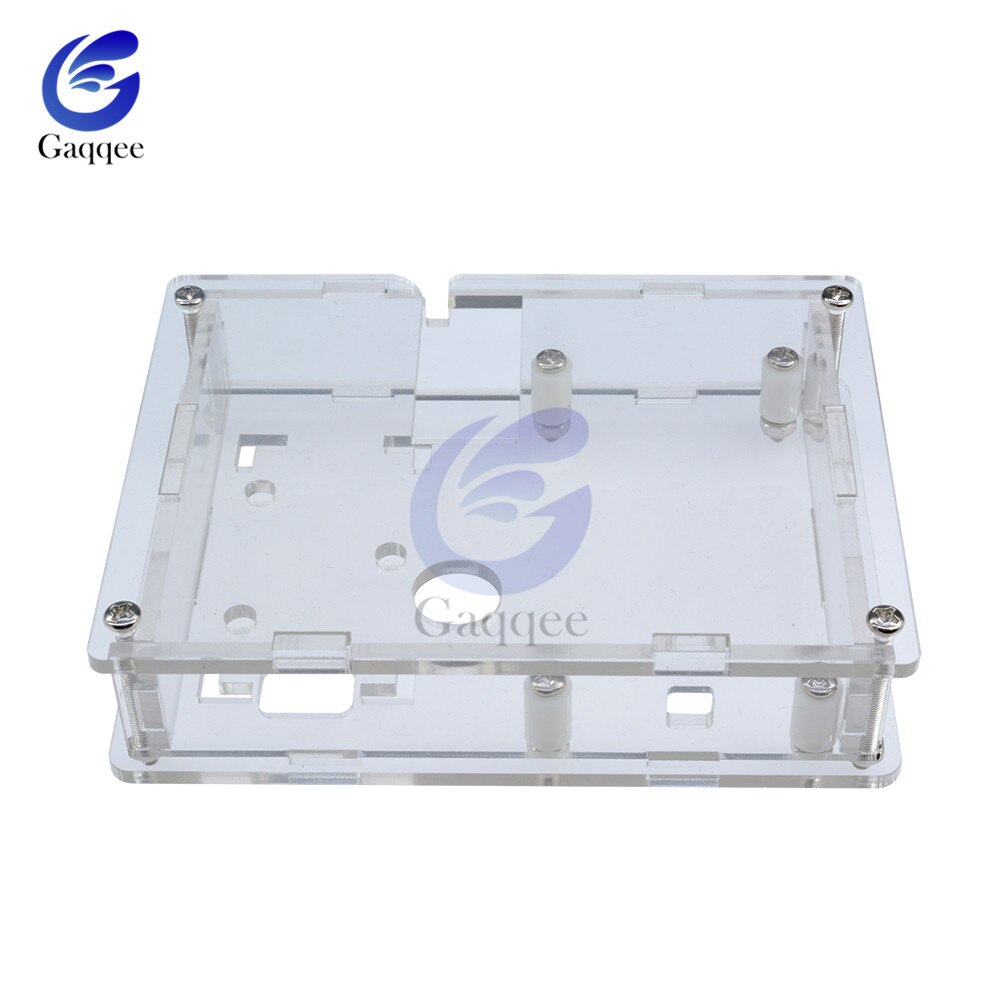

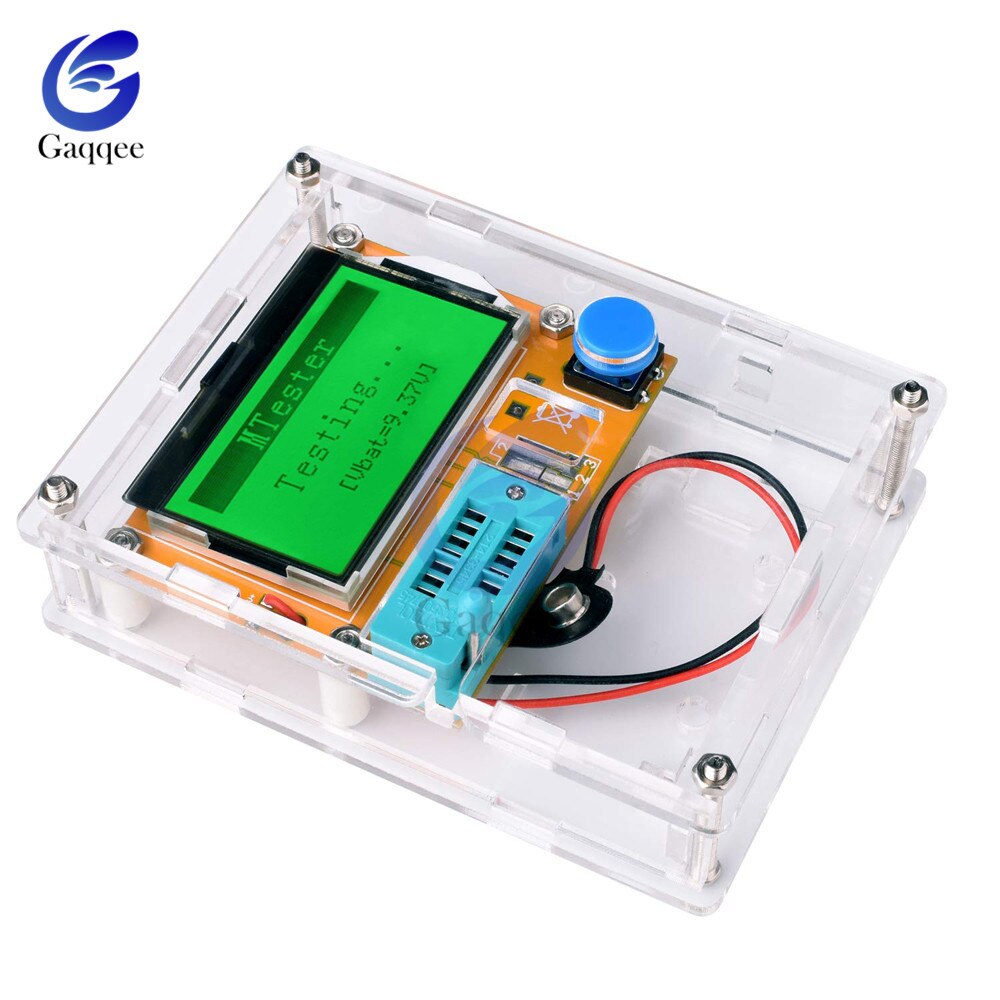

[Protection Case]
This case is a protective fitting for LCR-T4 transistor inductor capacitor ESR meter multifunction tester.
Made of high quality acrylic, this case is durable and has long service life.

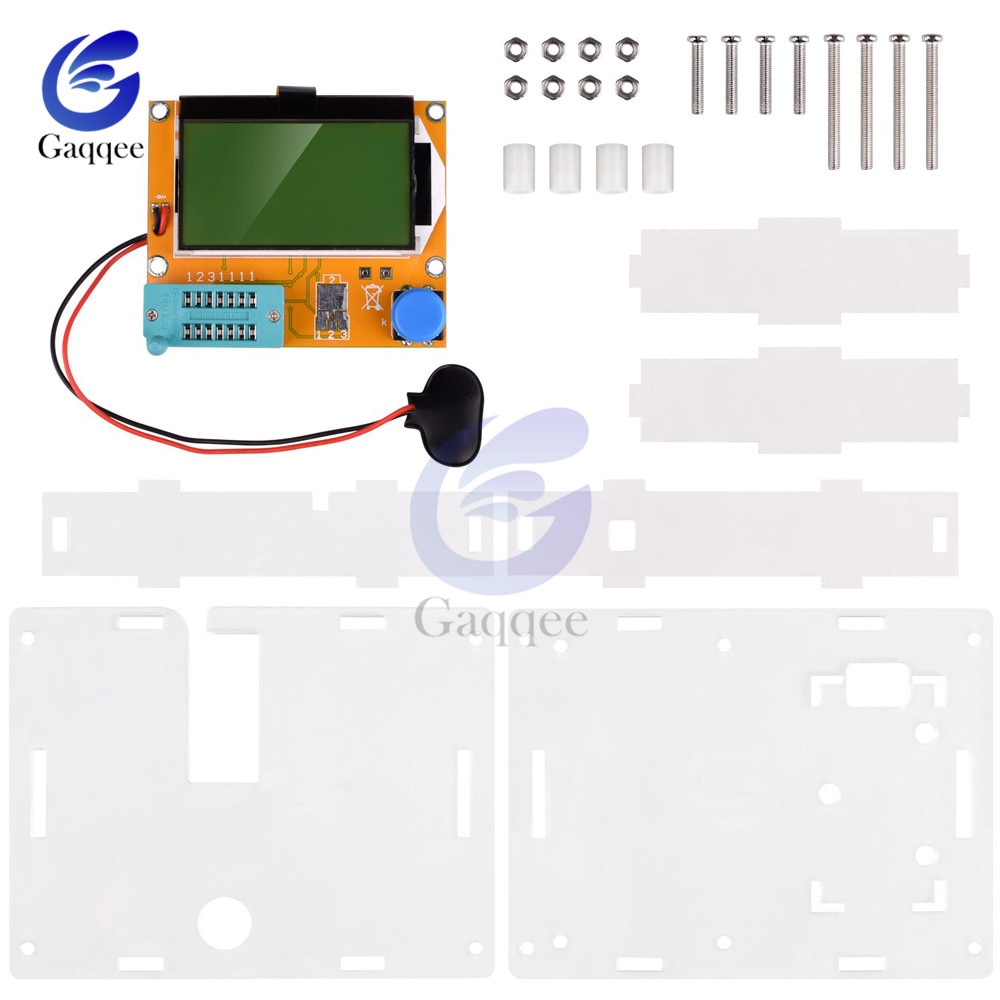

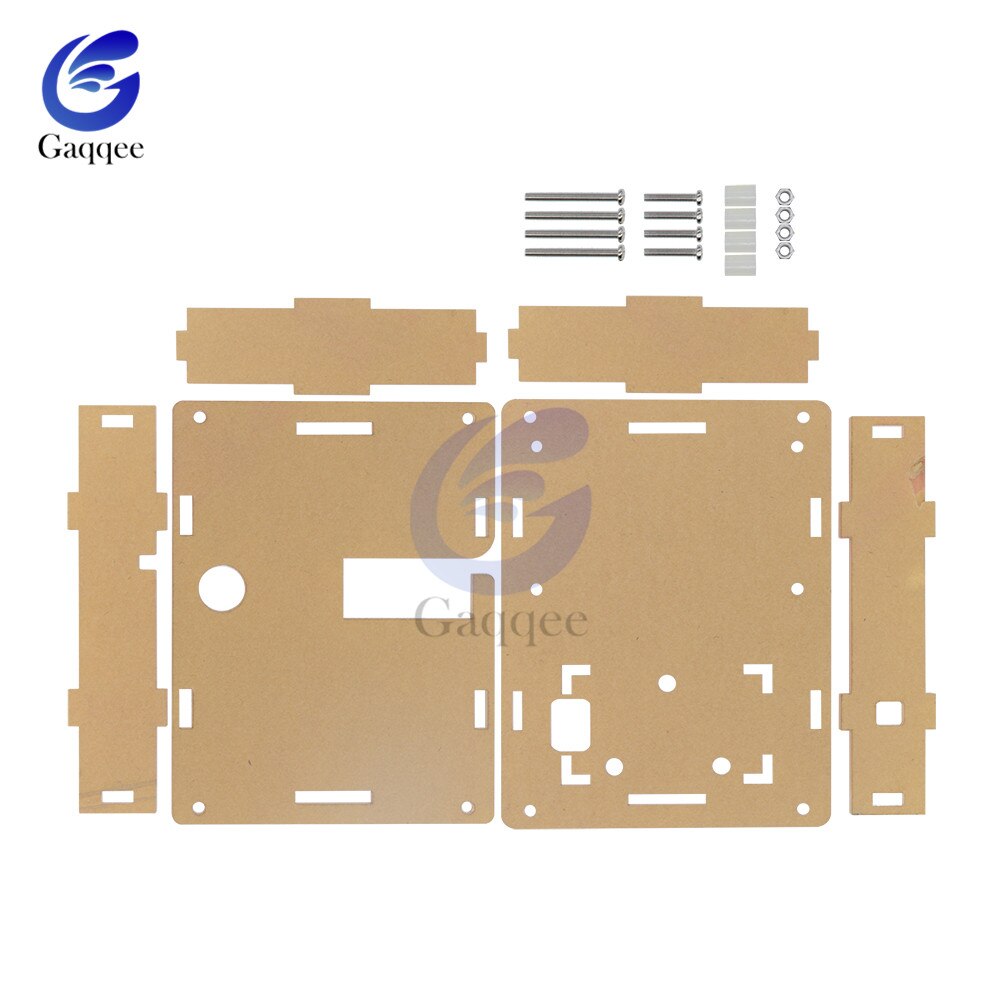

With the enclosure sets and screws provided , it is easy and intuitive to assemble and detach.

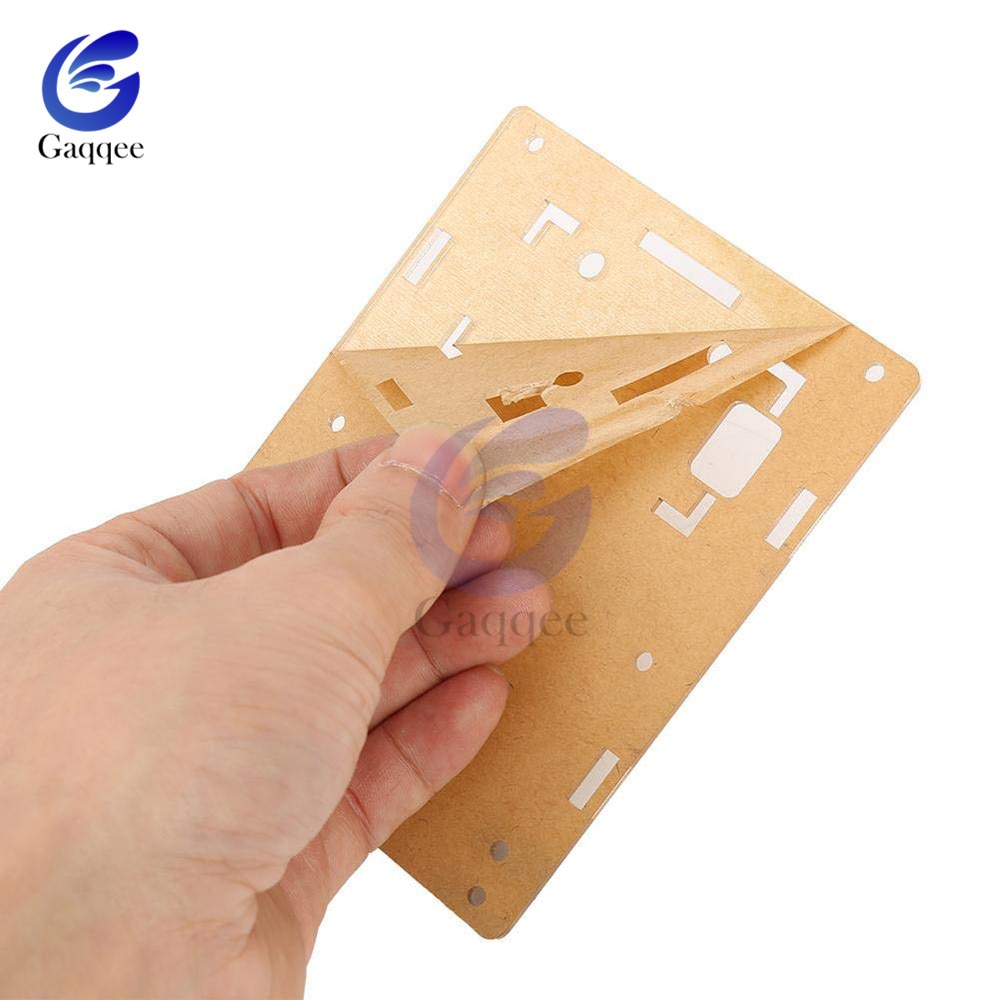

Acrylic sheets have protective film covered on surface to avoid scratch, you can simply peel it off.
This acrylic case is a great shell for protecting LCR-T4 transistor inductor.

Specification:
Material: Acrylic
Type: Transparent
Size: 105 x 82 x 22cm/4.1 x 3.2 x 0.9inch
