Measuring Range 1.2~ 220mm ( steel ) Glass Plastic Pipe Valve Thickness TECMAN TM130D Ultrasonic Thickness Gauge

$91.08

9986 in stock

SKU: 2251832071515013 Category:

Description

  • Model Number: TM130D
  • With Backlight Or Not: YES
  • Brand Name: NoEnName_Null

Measuring Range 1.2~ 220mm ( steel ) Glass Plastic Pipe Valve Thickness TECMAN TM130D Ultrasonic Thickness Gauge

Short Description:
Ultrasonic Thickness Gauge for a variety of high-density plates, parts and sealed pressure vessel , pipe wall thickness testing. Widely used in petroleum , chemical, metallurgy , shipbuilding , aviation, aluminum processing , and many other metal manufacturing and processing industries.

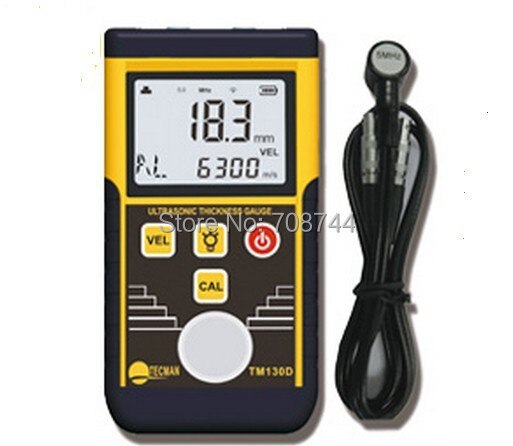

TM130D is “TECMAN- Teichman ” brand users in 2012 according to market demand , developed a new easy to use speed measuring ultrasonic thickness gauge products , TM130D comes standard with a universal 10mm probe , 5MHz frequency of the probe , the common industrial steel, iron, copper ( brass , copper , etc. ), glass , PVC, acrylic, aluminum and other 10 kinds of materials in the product preset velocity , can directly select the corresponding code to the fast and accurate measurement of the material thickness. Very suitable for standard sheet metal materials processing enterprise users.

Basic parameters

Model Specification

TM130D

Measuring range

1.2~ 220mm ( steel )

Measurement error

(0.5% H +0.2) mm

Resolution

Less than 100mm thickness 0.1mm

(<100mm) 0.1mm

Velocity Range

Built-in 10 groups used the speed of sound

Steel Copper Glass PVC, etc.

Probe configuration

5MHzX1Branch

Operating Frequency

5MHz

Operating temperature range

0~ 45

Probe temperature

0~ 60

Pipe measurement limit

10mm probe : 20x3mm ( steel )

Special Features

Select the measured material mode

Copper zinc aluminum stainless steel

PVCAcrylic glass, tin-lead

CALSelf-calibration function



LCDBacklight



Upper and lower limit alarm



Low battery indication



Automatic shutdown



Product supply

1.5V AAAlkaline batteries three(not included package)

LCDSize

56mmX42mm

Colors

Yellow + Black

Dimensions

135mmX71mmX35mm

Product Weight

210g

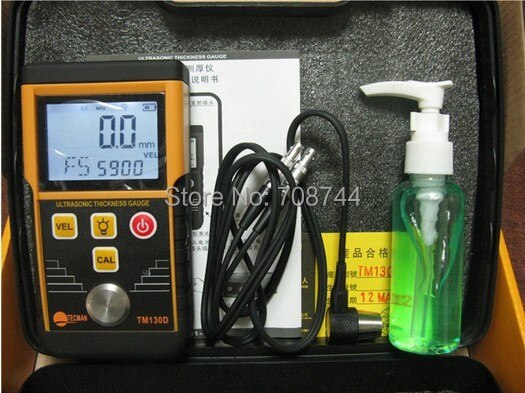

Product Configuration

Host warranty card manual industrial-type battery at room temperature couplant

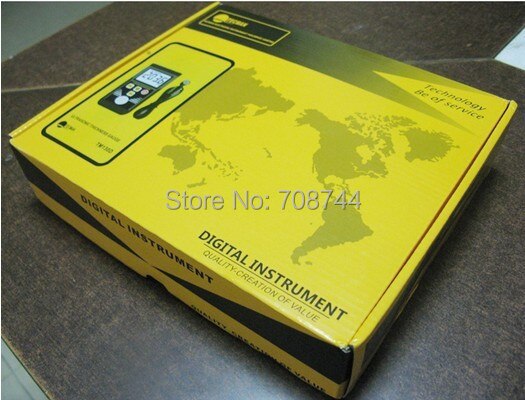

Packaging standards

PP box + plastic tool box

Standard Packing

20Taiwan

Standard package size

52.5cmX34cmX47cm

Standard Gross Weight

18.5KG

Note:From our packing,you can find the bottle with liquid,which is couplant,but for air shipment,which is not allowed to ship out,please kindly buy the coupling agent at your local store,  if you can not find the coupling agent at your local store, you can use the detergent or oil to replace it, but please do not wash in water after using,  you can clean by cloth or paper  to avoid the rusty..

TM130D 1

TM130D 3

TM130D 2

TM130D 4

TM130D 5
