MAYZUM Factory X Ray Gold Jewelry Karat and Karat Testing Analyzer

$6,900.00

SKU: 3528299018651 Category:

Description

Product Description
MAYZUM Factory X Ray Gold Jewelry Karat and Karat Testing Analyzer

Warranty For 2 Years

Original Manufacturer

Free Shipping For NOT Remote areas

One-to-one Remote Operation Guidance



Warm Tips:

The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.

The Principle of Energy Dispersive X Fluorescence Spectrometer

The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.

Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.

The Main Components

High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc

Specification parameters



MAYZUM Factory X Ray Gold Jewelry Karat and Karat Testing Analyzer



Specification parameters of four models



Brand
MAYZUM
Model

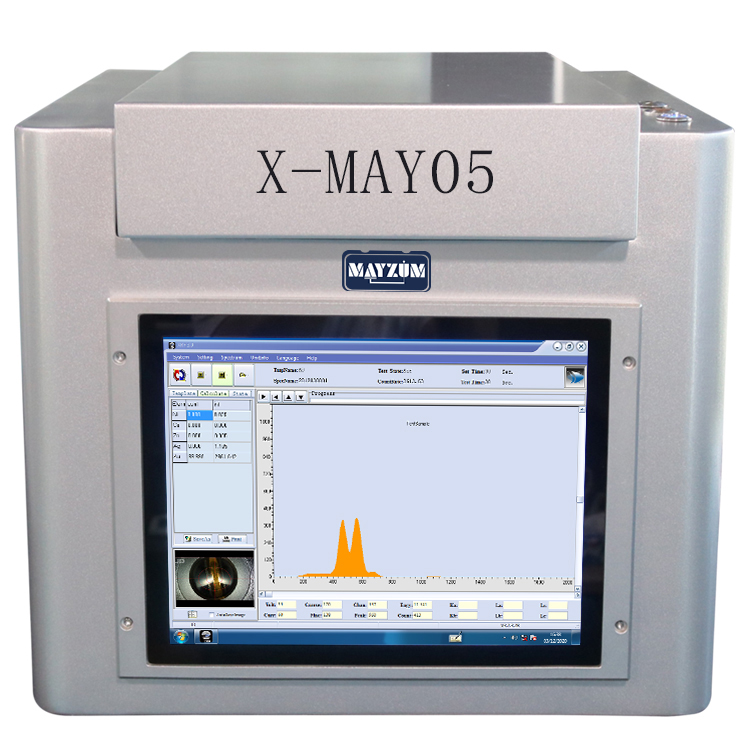

X-MAY05
X-MAY16
X-MAY72A/ X-MAY72B (split type)
X-MAY72-Pro
Price
$5480
$ 10500
$13420/$11550
$19190
Detector Type
Proportional Counter tube
Si-pin (USA)
SSD(USA)
Multichannel Analyzer
Multi channel simulation
Test Time
10sec ~ 50sec
Measuring Element
Au,Ag,Pt,Pd,Cu
Au, Ag, Pt, Pd,  Cu, Ni, Zn, Rh, Cd, Ru, Fe, Co ,Ir ,W. Os, Pb.
72 elements from sodium (Na) touranium (U) between all the elements
Analysis Range
1ppm to 99.99%
Accuracy(Content≥96%)
0.1%
0.05%-0.1%
0.03%
0.01%
Density direct reading
No
Yes. D:0.01g/cm3
No
Sample Form
Solid, powder, liquid
Tube Voltage
5KV ~ 50KV
High Voltage Power Supply
0 ~ 50KV
Camera
HD camera
Filters
Selectable customized switches
Analysis Software
Qualitative and quantitative analysis software
Sample Chamber Size(mm)
310*280*60
400*300 * 65
380*380*60/310*270*80
380*380*60
External Dimensions(mm)
400 * 430 * 350
500*340*230
480 * 480 * 390/460*390*350
480 * 480 * 390
Net Weight
33Kg
30kg
38Kg
38Kg
Gross Weight
38Kg
47kg
47kg
47kg
Instruments Environmental Requirements
Ambient Temperature
-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity
15% ~ 90%
Power Requirements
AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby
Advantages & Characteristics
Detailed Images
MAYZUM Factory X Ray Gold Jewelry Karat and Karat Testing Analyzer

Additional information

Usage

XRF Gold Testing Machine
