Description
- Origin: Mainland China
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE
- Gurantee: 3 Years

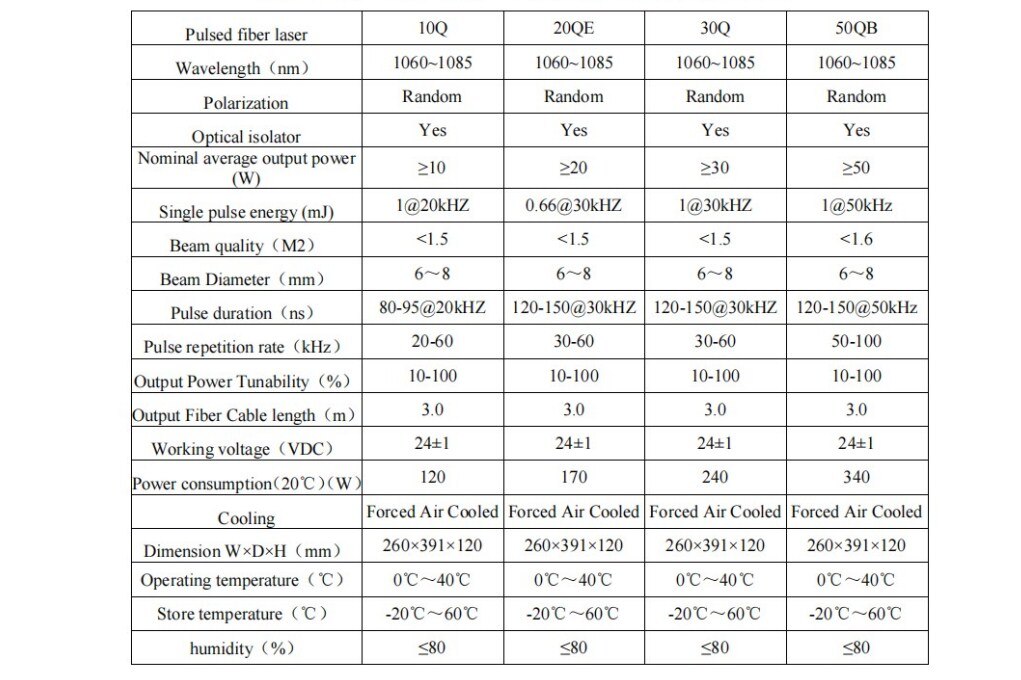

- Output center wavelength (nm): 1060~1085
- Beam quality (M2): <1.5
- Working temperature (c): 0-40
- Model Number: 20W-100W
- Polarization: Random
- Mode: Q-Pulse
- Power Range: 10-100%
- Beam Ellipticity: 90%
- Usage: For fiber laser marking machine
Please Attention
1. Please contact customer service to confirm your size and material before placing an order. Help you choose the right machine.
2. If you buy a laser tube, please choose the DHL shipping method, including insurance, the only shipping method for damage claims.
3. The price does not include shipping, customs, etc.
4. If you have any questions after receiving the machine, please contact customer service in advance.
5. When the goods arrive, please check whether the outer packaging is damaged in advance.
6. Depending on the logistics method, the time limit will also be different.
7. For machines with more expensive express delivery, we set the mode of no delivery, and your country can also deliver to your country, please contact customer service to help you calculate the shipping cost

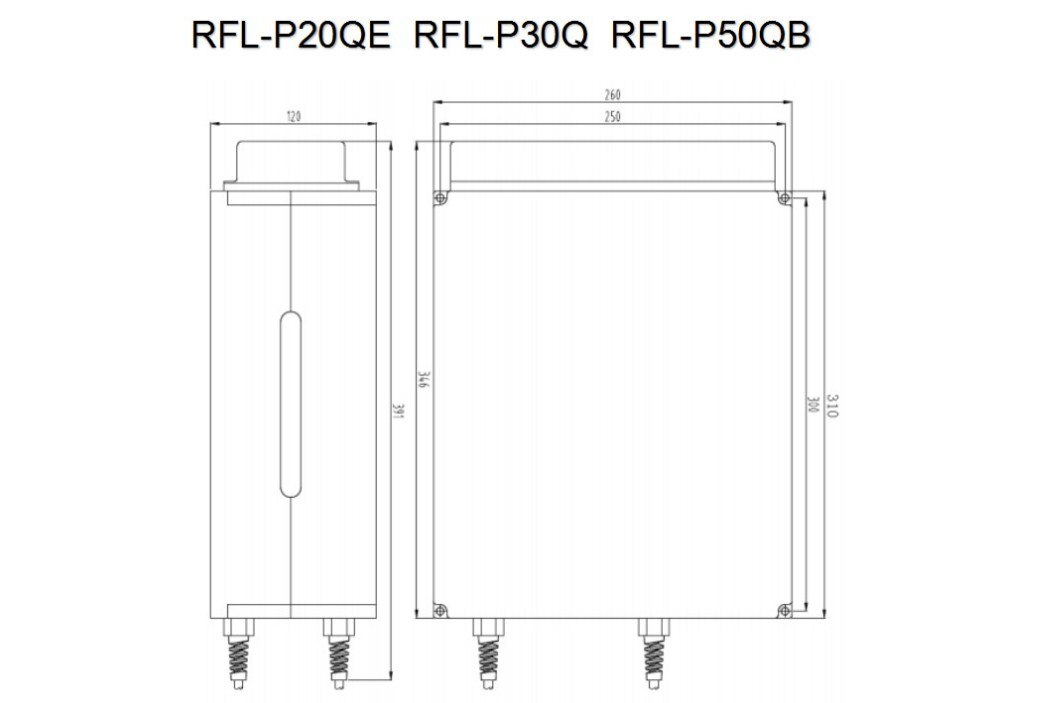

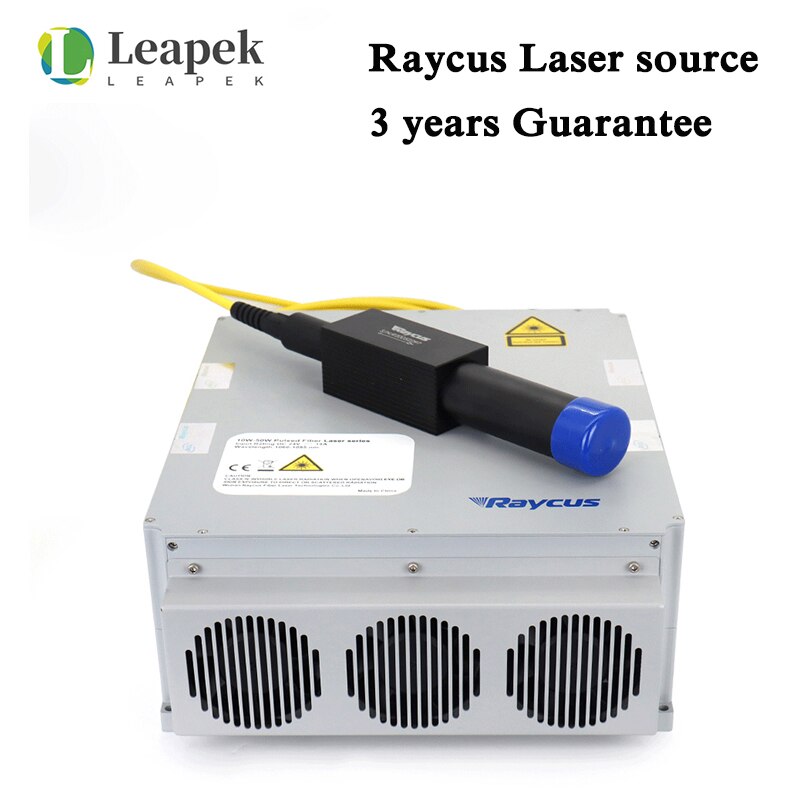

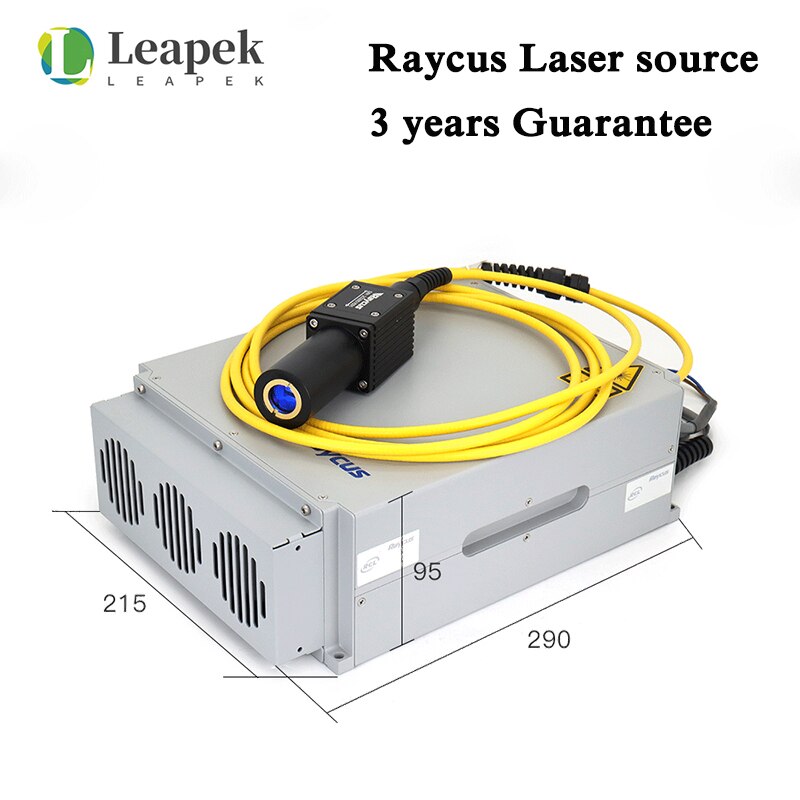

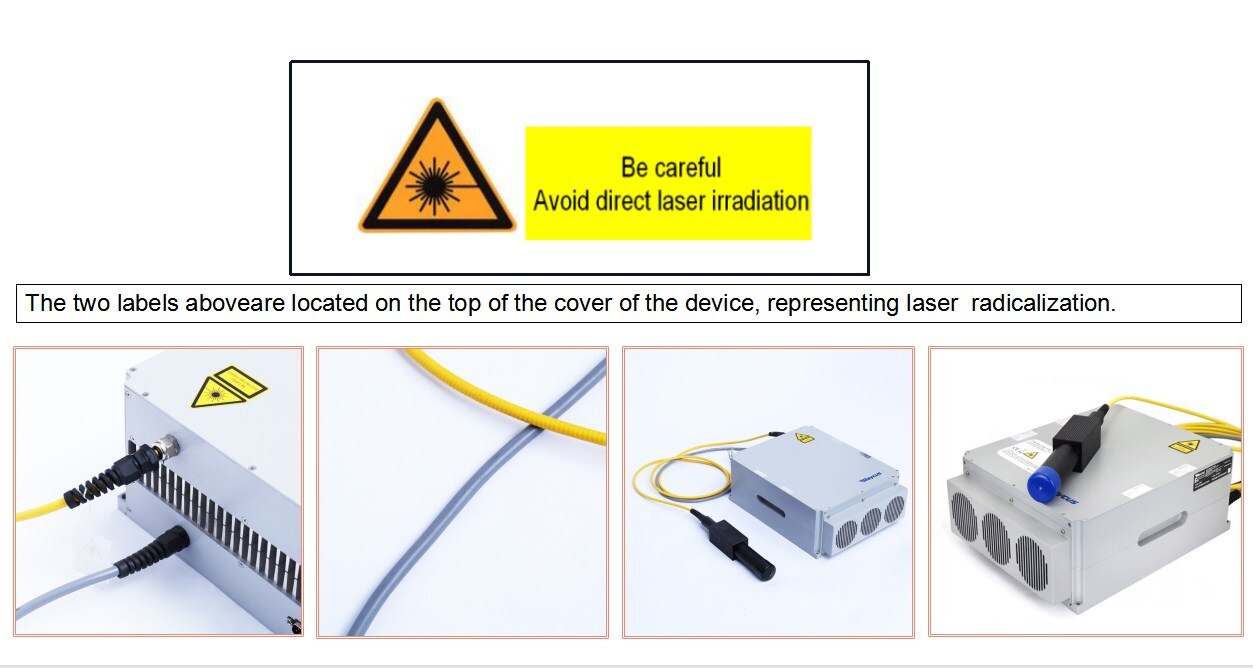

Raycus 20W 30W 50W Q-switched Pulse Fiber Laser Source 1064nm High Quality Module for Marking Machine
Introduction:
Q-switched fiber lasers are widely used in industrial marking and micromachining. This series of pulsed fiber lasers are characterized by high peak power, high single pulse energy, and optional spot diameter. They are widely used in non-metallic, high-inverse gold, silver, copper, aluminum and non-high-resistance materials. Marking, precision machining, graphic marking, deep engraving, precision cutting of sheets, drilling and other fields. In marking applications, CO2 lasers are less expensive and more stable.
Application:
Material processing / Marking / Deep carving / Cleaning
Precision welding / Micromachining / Sheet metal cutting and punching
Underline / Maoization / Silicon processing / Resistance trimming / ITO film etching
Why choose Raycus laser source?
Raycus’ 10~100W Q-switched pulsed fiber lasers feature high peak power, high pulse energy and optional output beam size. They are widely used in marking, precision drilling and engraving on non-metal and high reflection metals, such as gold, silver, aluminum and stainless steel etc.. Compared with traditional lasers, Raycus’ Q-switched fiber lasers have lower cost and more stable performance in these applications. The key components of the lasers are developed and manufactured in house to ensure the lasers’ reliability and uniformity. With more than 10000 lasers installed in the field, the reliability has been well proved.

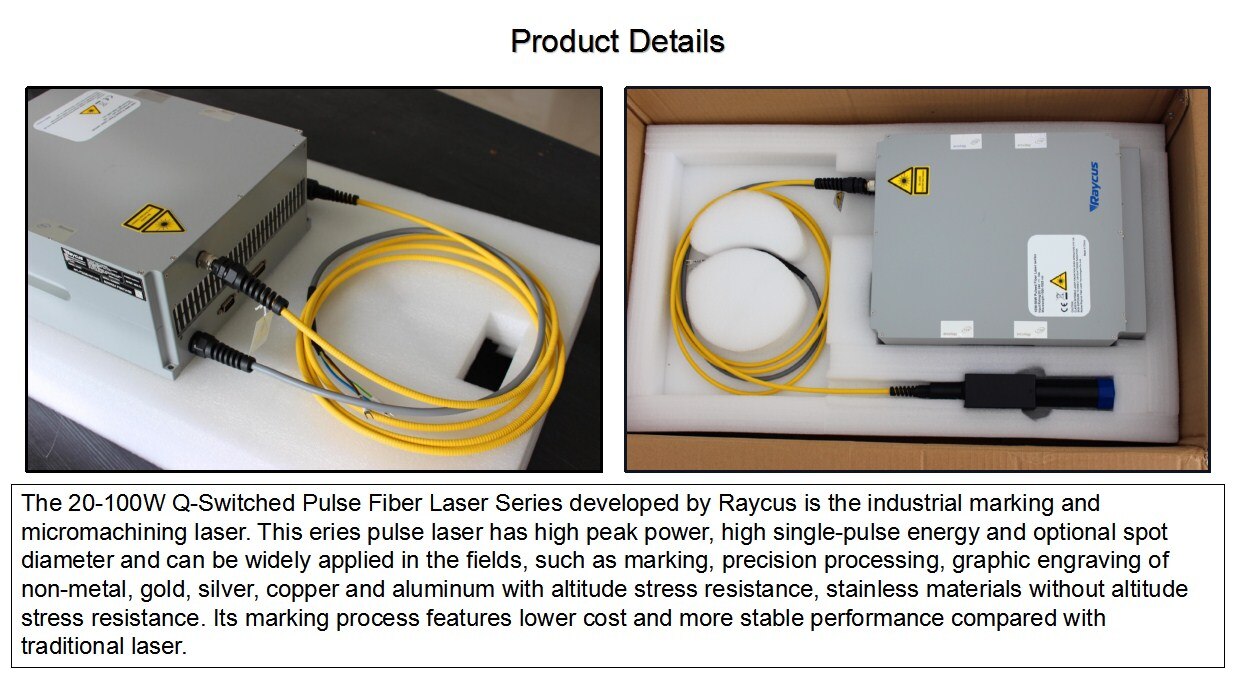

Product description
Raycus pulse laser is a high speed and high efficiency of the laser marking system and the development of specialized. It provides an ideal high power laser energy source for the industrial laser marking machine and other applications. Pulse laser with respect to conventional lasers, for each tile pump conversion efficiency is improved by more than 10 times, automatic design of low energy consumption, suitable for laboratory or outdoor operation. Exquisite, can be placed independently, can be used at any time, can be directly embedded in the user’s equipment. The laser can emit a pulse laser with 1060~1085nm wavelength, which is controlled by the standard interface of the industrial laser. The laser needs to use 24V DC power supply.
