Description
Products Description

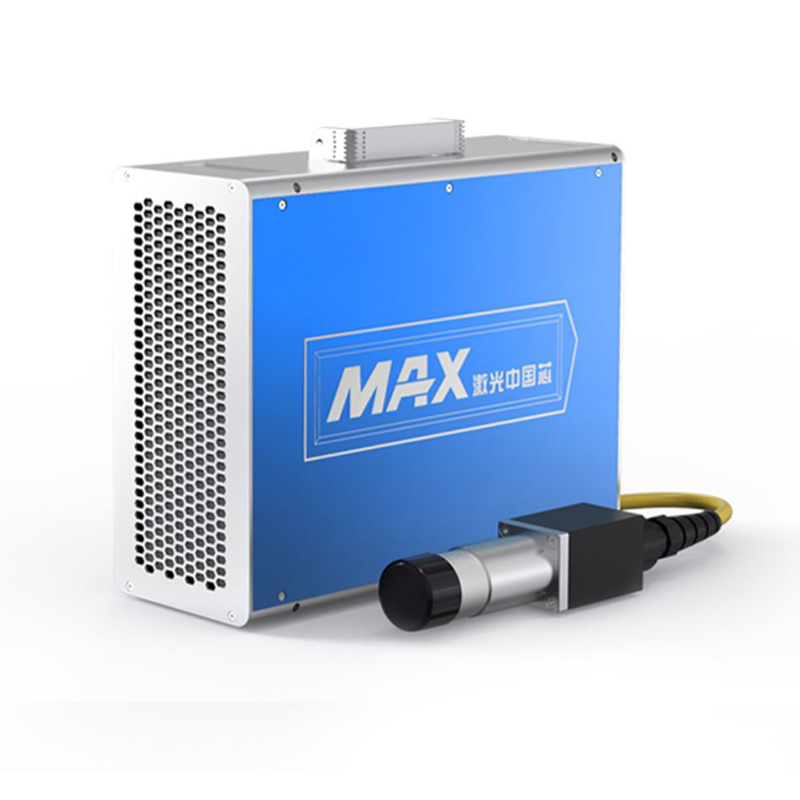

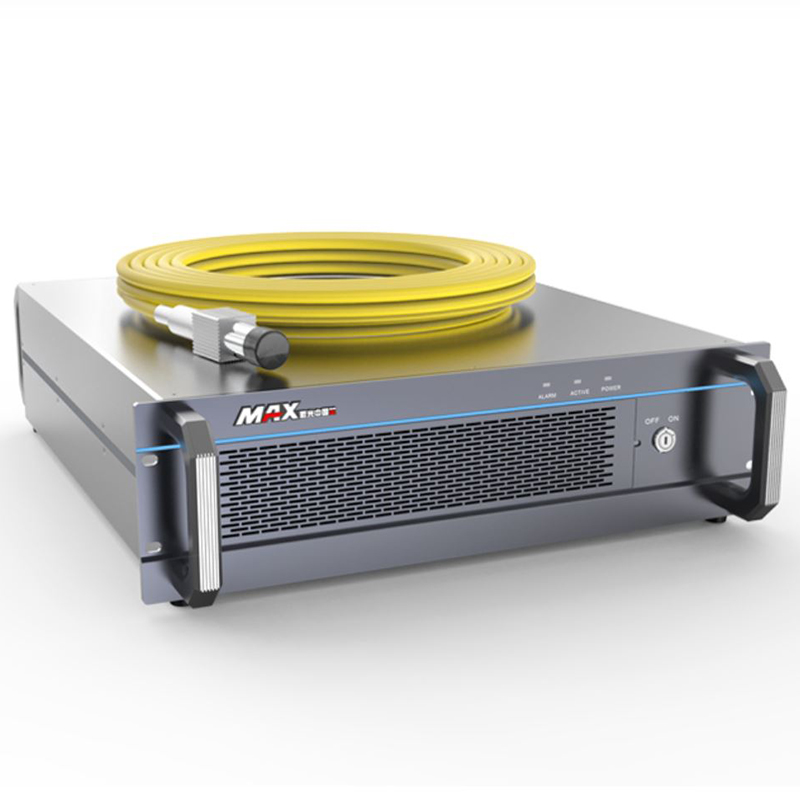

MFP acousto-optic Q-switched fiber lasers belong to Class 4 laser products. The design and testing of the products have fully considered safety. Convenient operation, automatic adaptation to user needs, overall maintenance-free, and can be directly integrated into user equipment. It has a compact structure and uses optical fiber ribbon isolator for output. It can meet most of the plastic marking, all metal marking, etching, deep carving, surface cleaning, high-precision sheet cutting, drilling and other applications
Product Paramenters
|
Model
|
MPF-20H
|
MPF-30H
|
MPF-50H
|
MPF-100W
|
MPF-200W
|
|
Rated output power: (W)
|
20
|
30
|
50
|
100
|
200
|
|
Center wavelength: (nm)
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
1064±5
|
|
Repetition frequency range (kHz)
|
20-80
|
30-60
|
30-80
|
20~200
|
20~200
|
|
Output power stability
|
＜3%
|
＜3%
|
＜3%
|
＜3%
|
＜5%
|
|
Pulse width range (ns)
|
100(90~110)
|
100(90~110)
|
100(90~110)
|
110(90~130)
|
140(120~160)
|
|
Output spot diameter (mm)
|
7.5（6~9）
|
7.5（6~9）
|
7.5（6~9）
|
5~8
|
5~8
|
|
Beam quality M²
|
＜1.5
|
＜1.5
|
＜1.6
|
＜2
|
＜2
|
|
Maximum single pulse energy (mJ)
|
1
|
1.2
|
1.5
|
1.5~8
|
1.5~8
|
|
Output fiber length (m)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
3 (can be customized)
|
|
Input power (VAC)
|
24
|
24
|
24
|
24
|
24
|
|
Power adjustment range (%)
|
10-100
|
10-100
|
10-100
|
10-100
|
10-100
|
|
Power consumption (W)
|
150
|
240
|
360
|
600
|
900
|
|
Dimensions (mm)
|
355×266×120
|
355×266×120
|
355×266×120
|
540×482×141
|
540×482×141
|
|
cooling method
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Air-cooled
|
Applications
laser marking
laser welding
laser cleaning
Our Advantages
Our company is located in Wuhan Optics Valley and has more than 20 years of laser industry experience
Laser Technology R&D Laboratory
Large inventory of lasers
